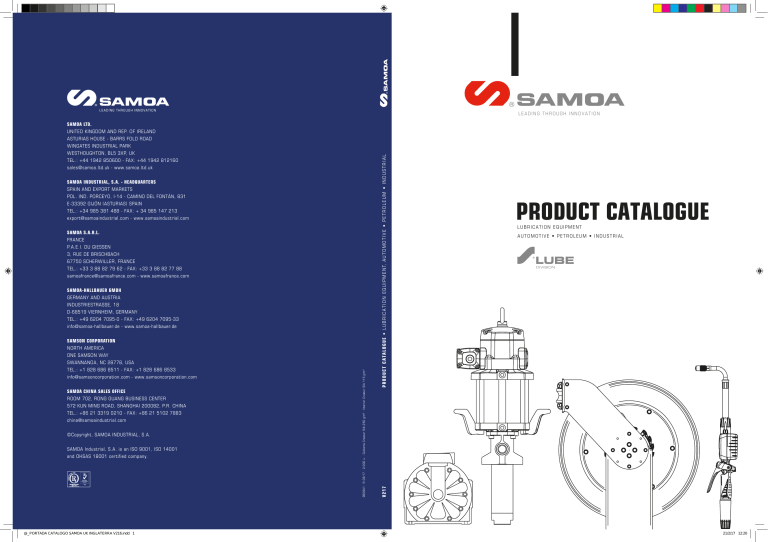

prOduCt CAtALOGue
SAMOA Industrial, S.A. - headquarters
spain and export markets
Pol. Ind. Porceyo, I-14 - Camino del Fontán, 831
E-33392 GIJÓN (Asturias) spain
Tel.: +34 985 381 488 - Fax: + 34 985 147 213
[email protected] - www.samoaindustrial.com
SAMOA S.A.r.l.
France
P.A.E.I. du Giessen
3, Rue de Brischbach
67750 Scherwiller, france
Tel.: +33 3 88 82 79 62 - Fax: +33 3 88 82 77 88
[email protected] - www.samoafrance.com
Samson Corporation
north america
One Samson Way
Swannanoa, NC 28778, usa
tel.: +1 828 686 8511 - Fax: +1 828 686 8533
[email protected] - www.samsoncorporation.com
SAMOA China sales office
ROOM 702, RONG GUANG BUSINESS CENTER
572 KUN MING ROAD, SHANGHAI 200082, P.R. CHINA
TEL.: +86 21 3319 0210 - FAX: +86 21 5102 7883
[email protected]
©Copyright, SAMOA INDUSTRIAL, S.A.
SAMOA Industrial, S.A. is an ISO 9001, ISO 14001
and OHSAS 18001 certified company.
@_PORTADA CATALOGO SAMOA UK INGLATERRA V216.indd 1
990941 · R-03/17 · 2.000 u. · Cubierta Creator Silk 250 g/m 2 · Interior Creator Silk 115 g/m 2
SAMOA-Hallbauer GmbH
germany and Austria
IndustriestraSSe, 18
D-68519 VIERNHEIM, germany
tel.: +49 6204 7095-0 - Fax: +49 6204 7095-33
[email protected] - www.samoa-hallbauer.de
product catalogUE
LUBRICATION EQUIPMENT
AUTOMOTIVE • PETROLEUM • INDUSTRIAL
V21 7
SAMOA Ltd.
united kingdom and rep. of ireland
Asturias House - Barrs Fold road
Wingates Industrial Park
Westhoughton, BL5 3XP, uk
tel.: +44 1942 850600 - Fax: +44 1942 812160
[email protected] - www.samoa.ltd.uk
p r o d u c t c a t a l o g u e • L U B R I C A T I O N E Q U I P M E N T, A U T O M O T I V E • P E T R O L E U M • I N D U S T R I A L
LEADING THROUGH INNOVATION
21/2/17 12:20
@_PORTADA CATALOGO SAMOA UK INGLATERRA V216.indd 2
21/2/17 12:20
SAMOA Quality AND LEADERSHIP
FLUID HANDLING TECHNOLOGY
SAMOA, a privately owned company, is a leading European manufacturer of Lubrication
and Fluid Handling Equipment. SAMOA products are used for transfer, dispensing, dosing
and recovery. SAMOA designs and manufactures a wide program that includes air operated
piston and diaphragm pumps, volume flow meters, delivery guns, electronic components for
inventory control systems, hose reels, hand pumps and accessories.
PRODUCT DEVELOPMENT
Product research and development is a fundamental part of SAMOA’s philosophy. We are
in permanent contact with the market to identify new customer needs, that we satisfy with
product improvements and new products.
MANUFACTURING
SAMOA’s headquarters have been in Gijón, on the Spanish North Coast, for over 55 years.
SAMOA’s manufacturing facilities are modern and are equipped with the latest state-of-the
art production equipment and technology. We are committed to design and manufacturing
excellence, environmental sustainability and a healthy and safe workplace; our work processes
and facilities are consequently ISO 9001, ISO 14001 and OHSAS 18001 certified.
DISTRIBUTION
Our products are available through a network of knowledgeable distributors and owned
Distribution Companies. This global network provides a sales and consulting service, to identify
the products that best meet each customer’s needs and, when required, offers after sales
service to ensure the long and satisfactory use of our equipment.
GLOBALLY COMPETITIVE
Our continuous product improvement process ensures that our products meet customer
requirements worldwide, including in even the most demanding applications and
environments. As a result, we are proud to say that SAMOA products are reliably working away,
night and day, in more than 100 countries.
Research & Development and Manufacturing facility in
Gijón (Spain)
A
Product
Development
Manufacturing
Distribution
C
Quality and
Leadership
00_PRESENTACION V216_UK.indd 1
FLUID
HANDLING
TECHNOLOGY
B
Globally
Competitive
22/2/17 12:45
SAMOA
Quality and leadership
RESEARCH
AND DEVELOPMENT
SAMOA’s R&D Department is at the cutting
edge of Lubrication Equipment and Fluid
Handling product development programs with
innovative technology concepts.
PRODUCT DESIGN & ENGINEERING
Product designs are created and rough product engineering is ensured by using 3D CAD. CADCAM manufacturing equipment dedicated to prototyping and a well equipped test laboratory,
allow fast product evolution and the release of optimized and fully proven products to market.
STATE OF THE ART MANUFACTURING
High volume CNC manufacturing equipment is fed by robots. The robotized material handling
processes incorporate part cleaning and 100% automated part inspection.
Sheet metal processing is also highly automated and it includes welding robots, laser cutting and
CNC bending machines among others.
2
00_PRESENTACION V216_UK.indd 2
Product specifications are subject to change without prior notice
22/2/17 12:45
COMPONENTS
FINISHING
Once components are manufactured and
passed inspection procedures, they are finished
before they are assembled into final products.
Products are polyester powder coated, zinc or
nickel plated depending on their functionality
and finishing requirements.
RAPID AND
RELIABLE ORDER
FULFILMENT
UNWAVERING
COMMITMENT
TO QUALITY
Components are inspected during their
manufacturing process following SPC
standard and many sub-assemblies are 100%
functionally tested. Many products, including
all air operated pumps and meters, are run
wet and taken through a carefully defined test
procedure to ensure zero defects on shipment.
SAMOA’s experienced customer service staff
and worldwide distributors can recommend the
Lubrication Equipment System that best meets
each application need.
A generous inventory of finished products and
parts allows short delivery times. High rotation
products are stored in an automated warehouse
integrated with the ERP system.
Prompt after-sales service and immediate spare
parts availability ensure a long and trouble-free
product life.
Product specifications are subject to change without prior notice
00_PRESENTACION V216_UK.indd 3
3
22/2/17 12:45
Iquip
modit iriuscidunt nos niam ver ip
INDEX
AIR OPERATED OIL PUMPS AND KITS
01
AIR OPERATED OIL PUMPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 2 - 1:1 RATIO OIL PUMPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 2 - 3:1 RATIO OIL PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 2 accessories and otHer oil MOBILE dispensers. . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 4 - 3:1 RATIO OIL PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 4 - 5:1 RATIO OIL PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 4 - 3:1 and 5:1 oil pumps installation kits and accessories. . . . . . . . . . . .
PUMPMASTER 35 - 3:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 35 - 8:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 35 - 5:1 and 8:1 oil pumps installation kits and accessories. . . . . . . . . . .
PUMPMASTER 45 - 3:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 6:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 10:1 ratio OIL pumpS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 60 - 6:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 60 - 12:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 45 & 60 oil pump installation kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 & 60 accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
oil pump accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OIL PUMPS
01
AIR OPERATED grease PUMPs AND KITS
02
AIR OPERATED grease PUMPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 3 - 55:1 ratio grease pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 3 accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 35 - 60:1 ratio grease PUMPs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 35 accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 25:1 ratio grease PUMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 40:1 ratio grease PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 70:1 ratio grease PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 60 - 12:1 ratio grease PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 60 - 80:1 ratio grease PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 & 60 installation kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 45 & 60 grease pump kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 35, 45 & 60 grease pump kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
grease pump accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GREASE PUMPS
02
03
OTHER FLUIDS PUMPS
03
00_PRESENTACION V216_UK.indd 4
34
36
38
40
42
43
44
45
46
47
48
49
50
51
AIR OPERATED PUMPs FOR other service FLUIDS
innovative central flow technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
directflo® pump range comparative chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air operated diaphragm pumps plastic pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air operated diaphragm pumps metal pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
four-way evacuation valve and air operated diaphragm pumps - MIX PUMPS . . . . . . . .
air operated diaphragm pump kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
diaphragm pumps accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air operated piston pumps for fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
04
AdBlue®/DEF PUMPS AND KITS
04
AdBlue®/DEF pumps kits and mobile units - air operated pumps . . . . . . . . . . . . . . . . . . . .
AdBlue®/DEF pumps kits AND MOBILE UNITS - electric pumps . . . . . . . . . . . . . . . . . . . . . . . .
AdBlue®/DEF pumps and kits - lever action pumps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AdBlue®/DEF accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AdBlue®/DEF
PUMPS
4
8
10
12
15
16
17
18
20
21
22
23
24
25
26
27
28
30
31
54
55
56
57
58
59
61
62
64
65
66
67
Product specifications are subject to change without prior notice
22/2/17 12:45
Iquip
modit iriuscidunt nos niam ver ip
INDEX
05
HOSE REELS
05
06
VALVES & METERS
06
07
MANAGEMENT
SYSTEMS
07
08
WASTE OIL EQUIPMENT
08
09
ELECTRIC PUMPS
09
HOSE REELS
HOSE REEL MOUNTING RECOMMENDATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RM-12 DOUBLE PEDESTAL DOUBLE ARM HOSE REELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RM-12S SINGLE ARM ALUMINIUM HOSE REELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RM-12CL INDIVIDUALLY ENCLOSED HOSE REELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-12l HEAVY-DUTY hose reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-34 HEAVY-DUTY hose reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-100 HEAVY-DUTY large capacity hose reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-150 HEAVY-DUTY large delivery hose reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
stainless steel reel and compact reels for air and cable . . . . . . . . . . . . . . . . . . . . . . . .
hose reel kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
hose reel accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FLUID DISPENSE VALVES AND METERS
CONTROL VALVES FOR dispensing OIL and other fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ELECTRONIC METERED CONTROL VALVES FOR dispensing OIL and other fluids. . . . . . . . . . . . .
MECHANICAL METERED CONTROL VALVES FOR dispensing OIL and other fluids . . . . . . . . . . .
in-line meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pulse transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
other meters and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
grease guns and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OIL BARS, SPIGOT VALVES AND OTHER FLUID DISPENSE GUNS . . . . . . . . . . . . . . . . . . . . . . . . . . . .
86
88
90
92
93
94
95
96
inventory management systems
advanced monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
advanced monitoring system. basic components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
advanced communication platform and accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
tank level control solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
INVENTORY MANAGEMENT CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
special ams version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
preset dosing module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
control master oil monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
WASTE OIL EQUIPMENT
used fluid collection units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WASTE OIL suction and GRAVITY RECEIVERS, 100 AND 70 Litres. . . . . . . . . . . . . . . . . . . . . . .
waste oil drain units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
waste oil evacuation pump kits and evacumaster suction unit . . . . . . . . . . . . . . . . . . .
waste oil equipment accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
109
111
112
113
114
electric pumps for oil and diesel
dc DIESEL PUMPS AND KITS - POLUX SERIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ac DIESEL PUMPS and KITS - POLARIS SERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIESEL PUMP ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
oil pumps WITH ELECTRIC MOTOR - flowstar series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
oil electric pump kits - Flowstar series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product specifications are subject to change without prior notice
00_PRESENTACION V216_UK.indd 5
71
72
73
74
75
76
77
78
79
80
83
116
117
119
120
121
5
22/2/17 12:45
Iquip
modit iriuscidunt nos niam ver ip
INDEX
lubrication tools and accessories
10
grease nipples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GREASE NIPPLES, DISCHARGE VALVES AND THREAD GAUGES. . . . . . . . . . . . . . . . . . . . . . . . . . .
GREASE CONNECTORS, nozzles and other accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .
grease stems and outlet hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LEVER action GREASE PUMPS - sg series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
manual hand held grease pumps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air operated and battery hand held grease pumps, filler valves and fittings . . . . .
battery grease pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
grease compressors and bucket pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drum pumps for oil and other fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drum pumps for oil and other fluids gear oil dispensers. . . . . . . . . . . . . . . . . . . . . . .
Drum pumps for various fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drum pumps for various fluids and connecting adaptors . . . . . . . . . . . . . . . . . . . . . .
funnels, measures and gravity drainers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
barrel taps, cans and oil cans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LUBRICATION TOOLS
10
AIR accessories
11
blow guns, wash guns and industrial spray GUNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
spray guns AND tyre inflators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
hand tyre pumps and tyre inflator accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR TREATMENT UNITS (FRLs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air Couplers and CONNECTION ADAPTORS FOR COMPRESSED AIr . . . . . . . . . . . . . . . . . . . . .
blisters of air Couplers and CONNECTION ADAPTORS . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
hose clamps and shutoff valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR ACCESSORIES
11
environmental solutions
12
totally enclosed bunded tanks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
single skin tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bespoke Tanks, offset cabinets and tank alarm unit . . . . . . . . . . . . . . . . . . . . . . . . . . .
tank level indicators and bunded AdBlue®/DEF - diesel storage tanks . . . . . . . . . . . . .
spill pallets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
work floors and spill trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ibc storage and drum trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
drum racks, grit bins and drum funnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
drum funnels and oil spill kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ENVIRONMENTAL
SOLUTIONS
12
part number index
6
00_PRESENTACION V216_UK.indd 6
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
140
141
142
143
144
146
147
148
150
151
152
153
154
155
156
157
158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Product specifications are subject to change without prior notice
22/2/17 12:45
OIL PUMPS
01
01
AIR OPERATED OIL PUMPS AND KITS
AIR OPERATED OIL PUMPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PUMPMASTER 2 - 1:1 RATIO OIL PUMPs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PUMPMASTER 2 - 3:1 RATIO OIL PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PUMPMASTER 2 accessories and otHer oil MOBILE dispensers . . . . . . . . . . . . . . . . . . . . . . 15
PUMPMASTER 4 - 3:1 RATIO OIL PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PUMPMASTER 4 - 5:1 RATIO OIL PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
pumpmaster 4 - 3:1 and 5:1 oil pumps installation kits and accessories . . . . . . . . . . . . 18
PUMPMASTER 35 - 3:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
PUMPMASTER 35 - 8:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
pumpmaster 35 - 5:1 and 8:1 oil pumps installation kits and accessories . . . . . . . . . . . 22
PUMPMASTER 45 - 3:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
PUMPMASTER 45 - 6:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
PUMPMASTER 45 - 10:1 ratio OIL pumpS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PUMPMASTER 60 - 6:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PUMPMASTER 60 - 12:1 ratio OIL pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
pumpmaster 45 & 60 oil pump installation kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PUMPMASTER 45 & 60 accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
oil pump accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
01_BOMBAS DE ACEITE V216_UK.indd 7
24/2/17 12:33
OIL PUMPS
01
AIR OPERATED OIL PUMPS
I
t all starts with the pump; the heart of the system. The choice of a pump requires considering a wide variety of factors so that your system will
provide years of dependable service. SAMOA has engineered a broad offering of oil pumps to handle a wide variety of applications. This range of
pumps will fit original containers of different sizes and bulk storage tanks; covering applications that range from the transfer of oil to very large
centralized systems.
Why choOse an air operated pump?
Compressed air provides the best power
source because it allows the pump to stall
against fluid back pressure. When the dispense
gun is opened, the fluid pressure drops in the
system, the pump automatically starts and oil
flows. When the dispense gun is closed, back
pressure is created in the system. When the
fluid back pressure force acting on the pump
piston equals the force of the compressed air
pushing on the pump air piston, the system
stops or stalls. When using other power
sources, such as electric or hydraulic, the
pump must have pressure sensing switches,
bypass loops and relief valves, for controlling
the motor and pressure.
Pressure and Volume
An important, and often confusing, aspect of selecting a pump is how to determine which
pump ratio and what pump size to select. The pump ratio is calculated by dividing the surface
area of the air motor piston by the surface area of the fluid piston. The maximum pressure at the
pump outlet that the pump is able to develop is determined multiplying the air inlet pressure
by the pump pressure ratio. Restrictions such as the pipe length and diameter, hoses, hose reels,
solenoid valves, pulse meters, control handles, and other system components create friction in the
system. Sufficient fluid pressure is needed to overcome this friction, in order to get the required
volume of oil to each dispense point.
Pump size determines the amount of fluid flowing through the piston pump outlet during each
cycle of the pump. Three different sizes of pumps, with the same ratio, will each deliver a different
flow rate. It is important to consider a variety of factors (number of dispense points, desired
delivery, product dispensed,...) in choosing the proper pump size for your system.
STANDARD
DUTY
OCCASIONAL
DUTY
PUMPMASTER 2
1:1
PUMPMASTER 2
3:1
heavy-DUTY
PUMPMASTER 4
3:1
PUMPMASTER 4
5:1
PUMPMASTER 35
5:1
PUMPMASTER 35
8:1
Pump
description
Utility Transfer
Utility Medium
Pressure
Standard Duty
Medium Pressure
Standard Duty
Medium Pressure
Heavy-Duty
Medium Pressure
Heavy-Duty
High Pressure
Simultaneous
operation
outlets
1 (no reels)
1
1 to 2
1 to 2
1 to 3
1 to 2
Max. line length
30 m - 100'
60 m - 200'
60 m - 200'
150 m - 500'
150 m - 500'
200 m - 650'
Service shops
In-plant oil transfer
Agriculture
Marine
Auto dealers
Service shops
Fast lube centres
Agriculture
Marine
Auto dealers and
service shops
Fleet service
Fast lube centres
Lube trucks
Mining and
construction
In-plant
Auto and truck
dealers
Fleet service
Mining and
construction
Lube trucks
Railroad and mass
transit
Marine
In-plant
Auto and truck
dealers
Fleet service
Mining and
construction
Lube trucks
Railroad and mass
transit
Marine
In-plant
Vehicle maintenance
centres
Fleet service
Mining and
construction
Lube trucks
Railroad and mass
transit
Marine
In-plant
Application
Maximum line length and number of simultaneous dispense outlets also depends on the line diameter, fluid viscosity and required delivery.
8
01_BOMBAS DE ACEITE V216_UK.indd 8
Product specifications are subject to change without prior notice
24/2/17 12:33
OIL PUMPS
01
heavy-DUTY
PUMPMASTER 45 - 3:1
PUMPMASTER 45 - 6:1
PUMPMASTER 45 - 10:1
PUMPMASTER 60 - 6:1
PUMPMASTER 60 - 12:1
Heavy-Duty Volume Transfer
Heavy-Duty High Flow
Heavy-Duty Pressure Flow
Heavy-Duty High Delivery
Heavy-Duty High Performance
3 to 4
3 to 4
3 to 4
3 to 4
3 to 4
75 m - 250'
160 m - 525'
240 m - 800'
160 m - 525'
250 m - 800'
Construction equipment
Mining equipment
Large fleets
Railroad and mass transit
Marine
In-plant oil distribution
Large auto and truck dealers
Construction equipment
Mining equipment
Railroad and mass transit
Large fleets
Lube trucks
Marine
In-plant oil distribution
Large auto and truck dealers
Construction equipment
Mining equipment
Railroad and mass transit
Large fleets
Lube trucks
Marine
In-plant oil distribution
Very large auto and truck
dealers
Construction equipment
Mining equipment
Large fleets
Railroad and mass transit
Marine
In-plant oil distribution
Very large auto and truck
dealers
Construction equipment
Mining equipment
Large fleets
Railroad and mass transit
Marine
In-plant oil distribution
Maximum line length and number of simultaneous dispense outlets also depends on the line diameter, fluid viscosity and required delivery.
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 9
9
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 2 - 1:1 RATIO oil PUMPs
351 120
UTILITY TRANSFER PUMPS
Double acting air operated low pressure pumps for transferring lubricants. Pumps include height
adjustable 2" BSP (M) bung adaptor for tank or drum bung mounting. Built in port for optional
pressure relief valve (PN 609 007).
fluids handled
• Synthetic and mineral based lubricants.
• Transmission fluid.
• Hydraulic oil.
• Diesel.
Markets served
• Service shops.
• In plant oil transfer.
• Agriculture.
• Marine.
• Mining and construction.
Models
Part No.
Application
pump tube height
Total height
Weight
351 120
Universal stub pump
215 mm
500 mm
2.5 kg
356 120
60 l (16 gal)
drum bung mounted
700 mm
985 mm
4.8 kg
352 120
205 l (55 gal)
drum bung mounted
915 mm
1,200 mm
5.4 kg
Technical data
Pump pressure ratio
1:1
Air pressure operating range
1.5 - 10 bar (20 to 140 psi)
Air consumption (1)
150 NL/min (5.3 cfm)
Maximum fluid outlet pressure
10 bar (140 psi)
Air motor diameter
51 mm (2")
Air motor effective diameter
35 mm (1.4")
Air motor stroke
75 mm (3")
Delivery at 150 cycles/min.
Maximum free flow delivery
20 l/min (5.3 Gal/min)
52 l/min (13.7 Gal/min)
(2)
Air inlet
1/4" BSP (F)
Fluid inlet (short pump only)
1" BSP (F)
Fluid outlet
3/4" NPSM (F)
Wetted and seal materials
Aluminium / Steel / NBR / Acetal / Polyurethane
Noise level (3)
80 dB
(1) Air consumption with 6 bar air inlet pressure and 150 cycles per minute.
(2) Maximum free delivery at 7 bar.
(3) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
B
C
D
285
985
285
52
215
52
700
5
352 120
4
1,200
A
500
356 120
90
7
ba
r-
285
52
2
915
6b
ar
70
5b
60
ar
50
3
D
A
351 120
Air consumption
100
80
B
Model
350
100
10
0
150
ps
i
-9
0p
-7
200
si
0p
3
4
5
6
250
9
40
300
310
320
20
1
11
BAR
PSI
C
0
50
2
6
100
4
200 7
150
8
250
9
330
335
Gal / min
0
0
2
10
5
8
20
30
10
40
13
50
15
11,83
280 9,8 9
3
4
5
6,00
200
210
9,5
10
0
150
10
30
5
3, 5
100
7
8
si
SCFM
dimensions (mm)
300
Nl/min
6
250
SCFM
7
150
Nl/min
Cycles / min
75
Nl/min
Fluid Pressure
SCFM
SAE 30 - 20 ºC (68 ºF) CAPACITY
220
225
7
7, 5
7,9 5
7 bar
6 bar
5 bar
100 psi
90 psi
70 psi
60
Litres / min
10
01_BOMBAS DE ACEITE V216_UK.indd 10
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 2 - 1:1 RATIO oil PUMPs
PUMPMASTER 2 - 1:1 PUMP PACKAGES FOR 205 LITRE DRUMs
Packages with air operated low pressure transfer pump. The pump is designed to fit through the 2" bung
opening on 50 and 205 l oil drums or to be mounted on a lid for open drums. The pump is fixed using a
height adjustable bung adapter.
1:1 ratio pumps are used for a clean and efficient transfer of lubricants, from their original drum to
miscellaneous portable grease and oil pumps, buckets, auxiliary tanks, etc., without the risk of lubricant
contamination.
An air valve or an optional pressure regulator allows the user to adjust the pump speed and the lubricant flow
rate. This is useful when filling open buckets to prevent splashing or to avoid overflow when reaching the top
of a container.
454 002
454 003
454 009
454 010
PART No.
DESCRIPTION
APPLICATION
PUMP
HOSE
DELIVERY GUN
AIR INLET
ACCESSORY
Approx..
DELIVERY
454 002
1:1 high volume transfer package
205 l drums
352 120
3 m x 3/4"
362 303
High delivery nozzle
361 000
Needle air valve
950 302
30 l/min(1)
454 003
1:1 transfer package
205 l drums
352 120
3 m x 1/2"
362 103
Oil control gun
363 115
_
15 l/min(1)
454 010
1:1 transfer package, metered
205 l drums
352 120
3 m x 1/2"
362 103
Hose end meter
365 535
_
10 l/min(1)
1:1 grease transfer package
185 kg drums
352 120
3 m x 3/4"
362 303
Ball valve with
angled nozzle
Needle air valve
950 302
3.2 kg/min(2)
454 009
(3)
(1) Delivery with SAE30 oil at 7 bar inlet pressure and 20 ºC temperature.
(2) Delivery with NLGI2 grease at 7 bar inlet pressure and 20 ºC temperature.
(3) Model 454 009 also includes drum cover PN 418 006 and follower plate PN 417 004 for 185 kg grease drums.
Not included options:
239 000: 1/4" BSP (MM) connection adaptor.
240 200: Air pressure regulator 0 - 12 bar, 1/4" BSP (FF)
240 500: Air filter and pressure regulator, 0 -12 bar, 1/4" BSP (FF).
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 11
11
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 2 - 3:1 RATIO oil PUMPS
000 120
354
000
Iquip
utility
modit
medium
iriuscidunt
pressurenos
pumps
niam ver ip
Double acting air operated medium pressure pumps for dispensing lubricants from mobile
units, oil distribution packages and small systems. Pumps include 2" BSP (M) height adjustable
bung adaptor for tank or drum bung mounting. Built in port for optional pressure relief valve
(PN 609 007).
fluids handled
• Synthetic and mineral based lubricants.
• Hydraulic oil.
• Gear oil.
• Transmission fluid.
Markets served
• Auto dealers.
• Service shops.
• Fast lube centres.
• Agriculture.
• Marine.
• Mining and construction.
Models
Part No.
Application
pump tube height
Total height
Weight
353 120
Universal stub pump
200 mm
495 mm
2 kg
358 120
60 l (16 gal) drum bung mounted
700 mm
995 mm
3 kg
354 120
205 l (55 gal) drum bung mounted
905 mm
1,200 mm
3.5 kg
Technical data
Pump pressure ratio
3:1
Air pressure operating range
1.5 - 10 bar (20 to 140 psi)
Air consumption (1)
180 NL/min (6.4 cfm)
Maximum fluid outlet pressure
30 bar (420 psi)
Air motor diameter
51 mm (2")
Air motor effective diameter
35 mm (1.4")
Air motor stroke
75 mm (3")
Delivery at 200 cycles/min.
10 l/min (2.7 Gal/min)
Maximum free flow delivery (2)
35 l/min (9.3 Gal/min)
Air inlet
1/4" BSP (F)
Fluid inlet (short pump only)
3/4" BSP (F)
Fluid outlet
1/2" NPSM (F)
Wetted and seal materials
Aluminium / Steel / NBR / PTFE
Noise level (3)
80 dB
(1) Air consumption with 6 bar air inlet pressure and 200 cycles per minute.
(2) Maximum free delivery at 7 bar.
(3) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
SAE 30 - 20 ºC (68 ºF) CAPACITY
34
200
700
905
D
D
4
2
0
PSI
BAR
C
01_BOMBAS DE ACEITE V216_UK.indd 12
350
ps
380
i
400
2
3
4
5
6
7
8
9
10
10
150
11
200
12
250
13
300
14
11
15
12
16
17
500
Gal / min
0
0
1
2
5
3
10
4
15
5
6
20
7
25
8
30
9
150
200
400
410
420
430
14
15
2
3
4
5
6
7
8
250
13
7 bar
6 bar
100 psi
90 psi
10
35
18
50
100
SCFM
100
9
Nl/min
SCFM
50
8
350
450
Litres / min
12
70
SCFM
34
6
5
6
7
Nl/min
34
A
C
8
i
295
r-
300
ps
295
ba
250
90
295
5
r-
B
10
ba
1,200
200
i
ps
354 120
995
550
100
6
358 120
495
500
0
10
353 120
A
450
r-
Model
12
400
ba
dimensions (mm)
230
220
210
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
300
7
B
14
200
Nl/min
100
16
Air consumption
Cycles / min
Fluid Pressure
9
10
300
350
11
12
5 bar
70 psi
40
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 2 - 3:1 RATIO oil pumps
Lubricant dispensing and transfer require more than a bare pump. SAMOA offers a range of pump packages and installation kits that include all the
accessories needed to efficiently dispense or transfer lubricants. Packages and kits can be used with 205 litre oil drums, 1,000 l IBCs and tanks.
They provide an easy solution to common applications.
454 110
454 111
454 100
454 150
pumpmaster 2 - 3:1 oil pump packages
APPROX.
DELIVERY
Part No.
DESCRIPTION
APPLICATION
PUMP
HOSE
DELIVERY GUN
454 110
3:1 transfer metered package
205 l drums
354 120
3 m x 1/2" (362 103)
Hose end meter 365 535
454 111
3:1 transfer package
205 l drums
354 120
3 m x 1/2" (362 103)
Oil control gun 363 115
454 100
Transfer pump with spigot valve
205 l drums
352 220 (3)
-
Oil spigot valve 361 100 and tray 736 462
454 150
3:1 transfer pump + IBC side bracket (2)
1,000 l ibc
353 120
6 m x 1/2" (362 106)
Hose end meter 365 535
12 l/min (1)
15 l/min (1)
23 l/min (1)
12 l/min (1)
(1) Delivery with SAE 30 oil at 7 bar inlet pressure and 20 ºC room temperature.
(2) Includes suction hose 745 304 with elbow and connection accessories.
(3) 2:1 pressure ratio pump.
379 003
379 000
379 300
pumpmaster 2 - 3:1 oil pump kits
PUMPMASTER 2
TANK MOUNTED PUMP KIT
PUMPMASTER 2
WALL MOUNTED PUMP KIT
PUMPMASTER 2
DRUM bung MOUNTED PUMP KIT
379 003
379 000
379 300
Part No.
APPLICATION
Tanks
205 l drums
205 l drums
353 120
353 120
354 120
1,400 mm suction tube 368 104
367 102
-
362 910
362 910
362 910
PUMP
suction kit
hose connection kit
Pump package and kit accessories
239
240
240
609
000:
200:
500:
007:
1/4" BSP (MM) connection adaptor.
Air pressure regulator, 0-12 bar, 1/4" BSP (FF).
Air filter and pressure regulator, 0-12 bar, 1/4" BSP (FF).
Pressure relief valve, 1/4" BSP (M) - 60 bar approx. opening pressure. When mounted to the pump body, prevents damage in the system
caused by over pressure produced by thermal expansion (1 ºC increase in temperature can cause up to 10 bar increase in the system pressure).
950 300: 1/2" BSP (FF) ball valve.
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 13
13
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 2 - 3:1 RATIO oil PUMPs
454 659
454 605
454 694
454 699
pumpmaster 2 - 3:1 oil pump packages
PART No.
Application
Pump
Hose
end
meter
Hose
reel
Pump
connection
kit
Suction kit
Pump Bracket
Drip
pocket
454 605
205 l drum,
drum mounted
354 120
365 535
506 202
362 910
-
-
-
454 600
205 l drum,
drum mounted
354 120
365 535
501 200
362 910
-
-
-
454 651
205 l drum, wall mounted
353 120
365 535
506 202
362 910
367 000
360 102
360 127
454 653
205 l drum, wall mounted
353 120
365 535
501 200
362 910
367 000
360 102
360 127
454 659
205 l drum, wall mounted
353 120
365 535
507 202
362 910
367 000
360 102
360 127
454 694
1,000 l IBC,
IBC top mounted
353120
365 535
506 202
-
745 300 + 745 301 + 945 572
360 102 + 360 106
-
454 695
1,000 l IBC,
IBC top mounted
353 120
365 535
501 200
-
745 300 + 745 301 + 945 572
360 102 + 360 106
-
454 699
1,000 l IBC,
IBC side mounted
353 120
365 535
506 202
-
745 301 + 745 302 + 945 572
360 102 + 360 107
-
454 697
1,000 l IBC,
IBC side mounted
353 120
365 535
501 200
-
745 301 + 745 302 + 945 572
360 102 + 360 107
-
376 300 - 376 610 - 378 120
14
01_BOMBAS DE ACEITE V216_UK.indd 14
mobile units with pumpmaster 3:1 oil pump
PART No.
APPLICATION
PUMP
HOSE
END
METER
DELIVERY
HOSE
TROLLEY
OTHER
ACCESSORIES
370 400
50 l drum
358 120
365 535
3 m x 1/2"
362 103
431 000
Drum cover 418 010
328 010
Self contained, 70 l
358 120
365 535
3 m x 1/2"
362 103
373 310
Self contained 70 l tank
376 300
205 l drum
354 120
365 535
3 m x 1/2"
362 103
432 000
-
376 610
205 l drum
353 120
365 535
3 m x 1/2"
362 103
432 814
Suction hose 367 011
378 120
205 l drum
353 120
365 535
10 m hose reel
506 202
432 814
Suction hose 367 011
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 2 accessories AND otHer MOBILE oil dispensers
PumpMaster 2 Accessories
360 102
360 120
367 000
367 011
Suction Assemblies and suction hoses
Suction assemblies for wall mounted stub
pumps. Assemblies include Ø 42 suction tube
with foot valve, height adjustable 2" bung
adaptor and 2 m x 3/4" rubber connection
hose.
360 102 Wall bracket
360 120 Floor bracket
360 001
367 000 Suction assembly for 1,000 l IBC
and 205 l drums
1,060 mm suction tube.
367 003 Suction assembly for tanks
1,600 mm suction tube.
Bung adaptors 2" (M) connection
for drum and tanks bung openings
360 000 Bung adaptor for PM2 3:1 pumps
Pump tube outside diameter: 34 mm.
360 001 Bung adaptor for PM2 1:1 pumps
Pump tube outside diameter: 52 mm.
367 011 spring reinforced transparent
suction hose
For 205 l drums and 1,000 l IBC. 3 m x 3/4".
367 012 spring reinforced transparent
suction hose with foot valve
For 205 l drums and 1,000 l IBC. 3 m x 3/4",
includes foot valve.
367 102 Pump suction kit
Includes suction assemble 367 000 and pump
bracket 360 102.
362 910
Hose connection kit
362 910 PM2 pump connection kit
1 m x 1/4" air hose 246 010, one
1/2" BSP (M) x 1/4" BSP (F) connection adapter
945 516, 1 m x 1/2" oil hose with 1/2" BSP
(MM) fittings, one automatic quick air coupling
1/4" BSP (F) 253 114 and one quick air
connector 1/4" BSP (M).
609 007
Pressure relief valve
For protection against system pressure increase
due to oil thermal expansion (1 ºC increase in
temperature can cause 10 bar increase in system
pressure). 60 bar (870 psi) valve opening pressure.
Possibility to connect either a Ø 1/4" hose with a
clamp or a hose with 1/8" BSP (F) fitting as return
line to the tank. SAMOA pumps include a 1/4"
plug that can be removed and replaced with a
pressure relief valve.
609 007 Pressure relief valve
Opens at approximately 60 bar. Possibility to
connect either a 1/4" hose with a clamp or a
hose with 1/8" BSP (F) fitting as oil return live.
other mobile oil dispensers
Pressurized lubricant
dispensers 25 litres
Mobile unit for dispense
viscous lubricants. Includes a
25 l container that must be
pressurized using a tire inflator
at maximum 7 bar (100 psi).
Includes safety valve and 1.5 m
delivery hose with oil gun.
self contained Air
operated lubricant
dispenser 25 litres
Mobile unit to dispense viscous
lubricants. Includes a 25 l capacity
tank, a 2:1 pneumatic pump,
oil meter at pump outlet, 1.5 m
delivery hose and oil gun with
non-drip tip.
324 000 Pressurized lubricant
dispenser, 25 litres.
327 020 Self contained air
operated lubricant dispenser
with meter, 25 litres.
324 010 Pressurized lubricant
dispenser, 25 litres with meter.
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 15
self contained hand
operated lubricant
dispensers 25 litres
Mobile unit to dispense viscous
lubricants. Includes a 25 l capacity
tank, a hand pump and a 1.5 m
delivery hose with angled spout.
self contained Hand
operated lubricant
dispensers 70 litres
Mobile unit to dispense viscous
lubricants. Includes a 70 l capacity
tank, a hand pump and a 1.5 m
delivery hose with angled spout.
325 000 Self contained hand
operated lubricant dispenser,
25 litres.
326 000 Self contained hand
operated lubricant dispenser,
70 litres.
325 010 Self contained hand
operated lubricant dispenser
with meter, 25 litres. Includes in
line meter at the pump outlet.
326 010 Self contained hand
operated lubricant dispenser
with meter, 70 l
Includes in line meter at the
pump outlet.
15
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 4 - 3:1 RATIO oil PUMPS
340 120
STANDARD DUTY MEDIUM PRESSURE PUMPS
Double acting air operated medium pressure high volume pumps for dispensing lubricants in
medium size installations. Pumps include height adjustable 2" BSP (M) bung adaptor for drum
and tank bung mounting. Built in port for optional pressure relief valve (PN 609 007).
fluids handled
• Synthetic and mineral based lubricants.
• Gear oil.
• Hydraulic oil.
• Transmission fluid.
Markets served
• Vehicle maintenance centres and auto dealers.
• Fleet service.
• Fast lube centres.
• Lube trucks.
• Mining and construction.
• In-plant.
Models
PART No.
Application
pump tube height
Total height
Weight
340 120
Universal stub pump
200 mm
585 mm
5.7 kg
341 120
205 l (55 gal)
drum bung mounted
910 mm
1,295 mm
7.7 kg
Technical data
Pump pressure ratio
3:1
Air pressure operating range
1.5 - 10 bar (20 to 140 psi)
Air consumption
285 NL/min (10 cfm)
(1)
Maximum fluid outlet pressure
30 bar (420 psi)
Air motor diameter
88 mm (3.5")
Air motor effective diameter
60 mm (2.4")
Air motor stroke
100 mm (4")
Delivery at 85 cycles/min.
10 l/min (2.7 US gal/min)
Maximum free flow delivery (2)
42 l/min (11.1 US gal/min)
Air inlet
3/8" BSP (F)
Fluid inlet (short pump only)
1" BSP (F)
Fluid outlet
3/4" NPSM (F)
Wetted and seal materials
Aluminium / Steel / Polyurethane / NBR / PTFE
Noise level
93 dB
(3)
(1) Air consumption with 6 bar air inlet pressure and 10 l/min delivery.
(2) Maximum free delivery at 7 bar.
(3) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
SAE 30 - 20 ºC (68 ºF) CAPACITY
20
341 120
1,295
B
385
385
C
52
52
D
200
910
5b
100
-1
00
90
ar -
150
200
250
300
350
400
ps
i
psi
70
450
5
10
15
500
psi
50
100
200
250
300
350
400
550
150
20
5
10
15
450
22
50
0
PSI
BAR
0
1
640
650
23
675
23, 8
7 bar
Gal / min
0
2
3
10
Litres / min
4
5
6
20
7
8
30
9
10
11
40
12
13
50
50
100
150
200
250
300
5
10
350
600
100
0
SCFM
Nl/min
290
SCFM
275
5
1"
01_BOMBAS DE ACEITE V216_UK.indd 16
ar -
200
c
16
6b
15
10
260
SCFM
ar
a
585
240
50
7b
300
250
d
A
215
350
b
340 120
180
Nl/min
Dimensions (mm)
Model
140
Nl/min
70
25
Air consumption
Cycles / min
Fluid Pressure
100 psi
500
510
520
530
540
550
560
18
400
15
20
6 bar
90 psi
450
16
475
16, 7
5 bar
70 psi
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 4 - 5:1 ratio oil PUMPS
Standard duty medium pressure pumps
347 120
000 000
Double action air operated medium pressure pumps for dispensing lubricants in medium to large
size installations, that include multiple outlets with simultaneous operation. Pumps include height
adjustable 2" BSP (M) bung adaptor for drum and tank bung mounting. Built in port for optional
pressure relief valve (PN 609 007).
fluids handled
• Synthetic and mineral based lubricants.
• Gear oil.
• Hydraulic oil.
• Transmission fluid.
Markets served
• Auto and truck dealers.
• Fleet service facilities.
• Mining and construction.
• Lube trucks.
• Marine.
• Railroad and mass transit.
• In-plant.
Models
Part No.
Application
pump tube height
Total height
Weight
347 120
Universal stub pump
278 mm
663 mm
5.6 kg
348 120
205 l (55 gal)
drum bung mounted
915 mm
1,300 mm
7.4 kg
Technical data
Pump pressure ratio
5:1
Air pressure operating range
1.5 - 10 bar (20 to 140 psi)
Air consumption
400 NL/min (14 cfm)
(1)
Maximum fluid outlet pressure
50 bar (700 psi)
Air motor diameter
88 mm (3.5")
Air motor effective diameter
60 mm (2.4")
Air motor stroke
100 mm (4")
Delivery at 125 cycles/min.
10 l/min (2.7 Gal/min)
Maximum free flow delivery (2)
25 l/min (6.6 Gal/min)
Air inlet
3/8" NPSM
Fluid inlet (short pump only)
1" BSP (F)
Fluid outlet
3/4" NPSM (F)
Wetted and seal materials
Aluminium / Steel / Polyurethane / NBR / PTFE
Noise level
95 dB
(3)
(1) Air consumption with 6 bar air inlet pressure and 10 l/min delivery.
(2) Maximum free delivery at 7 bar.
(3) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
SAE 30 - 20 ºC (68 ºF) CAPACITY
Fluid Pressure
Cycles / min
40
30
b
dimensions (mm)
663
348 120
20
a
A
347 120
1,300
7
B
385
385
C
42
42
D
278
915
140
175
205
240
275
300
Air consumption
325
Nl/min scfm
65
100
150 5
ba
r-
350
6
300
ba
r-
5b
ar
250
15
10
90
-7
0
200
250
300
350
400
ps
i
ps
i
450
0p
si
500
200
550
10
150
600
100
d
Model
105
435
400
25
70
50
0 0
bar psi
1"
15
16
17
18
650
gal/min
0
0
675
1
2
5
3
10
4
15
5
6
20
7
25
8
30
Nl/min scfm
65
100
150 5
200
250
300
350
400
19
20
7 bar
100 psi
16
Nl/min scfm
65
100
150 5
200
250
300
350
10
11
12
13
400
14
17
500
18
15
19
23
23’ 8
10
15
450
21
22
5
c
10
550
560
20
6 bar
90 psi
450
16
475
16’ 7
5 bar
70 psi
Litres / min
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 17
17
24/2/17 12:34
01
OIL PUMPS
pumpmaster 4 - 3:1 and 5:1 oil pumps installation kits
and accessories
Installing an oil pump in a distribution system requires more than a bare pump. SAMOA offers a range of installation kits that include all the
accessories needed to efficiently dispense or transfer lubricants. Kits can be used with 205 litre oil drums, 1,000 litre IBCs and tanks and they
provide an easy solution to common applications.
379 503
TANK MOUNTED PUMP KIT
pump ratio
379 504
379 500
WALL MOUNTED PUMP KIT
205 l DRUM MOUNTED PUMP KIT
PM4 - 3:1
PM4 - 5:1
PM4 - 3:1
PM4 - 5:1
PM4 - 3:1
PM4 - 5:1
KIT PART NUMBER
379 403
379 503
379 400
379 500
379 404
379 504
PUMP
340 120
347 120
340 120
347 120
341 120
348 120
368 105
1.400 mm suction tube
368 105
1.400 mm suction tube
367 105
367 105
-
-
362 911
362 911
362 911
362 911
362 911
362 911
SUCTION KIT
HOSE CONNECTION KIT
Pump kit accessories
239 004: 1/2" BSP (MM) connection adaptor
241 201: Air pressure regulator, 0-12 bar, 3/8" BSP (F) - 1/2" BSP (F)
241 501: Air filter and pressure regulator, 0-12 bar, 3/8" BSP (F) - 1/2" BSP (F)
609 007: Pressure relief valve, 1/4" BSP (M) - 60 bar approx. opening pressure. When mounted to the pump body, prevents damage in the system
caused by over pressure produced by thermal expansion (1 ºC increase in temperature can cause up to 10 bar increase in the system pressure).
950 303: 3/4" BSP (FF) ball valve.
PumpMaster 4 pump Accessories
360 102
360 120
367 000
362 911
609 007
360 102 Wall bracket
360 120 Floor bracket
360 002
Bung adaptor 2" (M) connection for
drum and tanks bung openings
360 001 Bung adaptor for PM4 - 3:1 pump
Pump tube outside diameter: 52 mm.
360 002 Bung adaptor for PM4 - 5:1 pumps
Pump tube outside diameter: 42 mm.
18
01_BOMBAS DE ACEITE V216_UK.indd 18
Suction Assemblies and suction hoses
Suction assemblies for wall mounted stub
pumps. Assemblies include Ø 42 suction tube
with foot valve, height adjustable 2" bung
adaptor and 2 m x 3/4" rubber connection hose.
367 000 Suction assembly for 1,000 litre
IBC and 205 litre drums
1,060 mm suction tube.
367 003 Suction assembly for tanks
1,600 mm suction tube.
362 400 1 m x 1" connection hose.
For connecting a PM4 pump to tank
1" BSP (M) connection on both sides, with a
90º connection on one side.
945 670 1" BSP (M) x 3/4" BSP (M)
connection adaptor
Required for connecting the suction assemblies
to a PM4 pump.
Hose connection kit
362 911 PumpMaster 4 pump connection kit
Includes 1 m x 3/8" air hose 247 710 with
1/2" and 3/8" BSP (M) fittings, 1.5 m x
3/4" oil hose with 3/4" BSP (MM) fittings
362301, one automatic quick air coupling
3/8" BSP (F) 253 138 and one quick air
connector 3/8" BSP (M) 259 038.
Pressure relief valve
For protection against system pressure increase
due to oil thermal expansion (1 ºC increase in
temperature can cause 10 bar increase in system
pressure). 60 bar (870 psi) valve opening pressure.
Possibility to connect either a Ø 1/4" hose with a
clamp or a hose with 1/8" BSP (F) fitting as return
line to the tank. SAMOA pumps include a 1/4"
plug that can be removed and replaced with a
pressure relief valve.
609 007 Pressure relief valve
Opens at approximately 60 bar.. Possibility to
connect either a 1/4" hose with a clamp or a
hose with 1/8" BSP (F) fitting as oil return live.
Product specifications are subject to change without prior notice
24/2/17 12:34
01
OIL PUMPS
Heavy-Duty PISTON PUMPS:
THE HEART OF A LUBRICATIon SYSTEM
SAMOA Heavy-Duty pumps are designed to deliver through long distribution lines even with multiple outlets with simultaneous operation all
kind of synthetic and petroleum based lubricants at continuous-duty and high flow rates under extreme and intensive working conditions.
These double acting, high efficiency, air powered, positive displacement piston, pumps provide the necessary confidence to offer a solution for
fast moving large volumes of oil in very large distance applications.
Pneumatic Air Motors: Mechanically
actuated pneumatic motors offer the reliability
and dependability required for assuring a
non-stalling and superb performance under
every working condition. The very simple air
valve has no energy consuming springs that
could fail due to material fatigue or pneumatic
end of stroke sensors that could get blocked
because of dirty air.
Air exhaust: The well dimensioned air
exhaust design, manufactured in efficient heat
dissipation aluminium, eliminates erratic pump
performance and ice formation at the air
exhaust. The air exhaust includes a muffler to
reduce noise levels to meet or exceed OSHAS
requirements. The muffler can be removed
for connecting a hose to the exhaust port for
expanding the air to a remote location.
Modular design: Tough modular pump
design allows multiple combination assemblies
of air motor and lower pump end. This
versatile pump construction, for easy service
and maintenance, provides a comprehensive
range of operating output pressures and flowrates to meet any lubricant volume delivery
required to each application.
Integral in-line design: The anti-corrosive,
hardened plunger and the integral in-line
configuration that aligns the air motor and the
plunger rod and piston assembly, are designed
for low-friction, to minimize the wear and
maximize tightness and seals life.
High quality materials: Aluminium die-cast
pneumatic air motor with hard anodized
aluminium cylinder; light weight drive piston;
stainless steel trip rod assembly; polyurethane
seals and piston packing; cast iron pump outlet
body; thick wall polished steel tube; high
tensile hard chrome plated steel fluid plunger
rod and piston and inlet valves seats made of
hardened steel.
PM45 - 06 MS (536 630)
Stub / Universal Pumps: Double valve stub
style pump tube used for positive priming
and pumping all grades of oil. Rigid or flexible
suction extensions screw directly onto the
pump foot valve, allowing the pump to
accommodate to different size oil containers.
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 19
19
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 35 - 5:1 RATIO oil pumps
535 530
heavy-DUTY MEDIUM PRESSURE PUMP
Double acting air operated medium pressure and reliable delivery pump for oil distribution
applications. Built in port for optional (PN 609 007) pressure relief valve. Bung adaptor.
fluids handled
• Synthetic and mineral based oil.
• Hydraulic oil.
• Gear lube.
• Transmission fluid.
Markets served
• Auto and truck dealers.
• Fleet service facilities.
• Mining and construction.
• Lube trucks.
• Railroad and mass transit maintenance.
• Marine.
• In-plant.
Models
PART No.
APPLICATION
PUMP TUBE
HEIGHT
TOTAL HEIGHT
WEIGHT
535 530
Universal stub pump
with bung adaptor
200 mm
469 mm
5.6 kg
535 580
Universal stub pump
200 mm
469 mm
5.3 kg
535 510
205 l (55 gal) drum bung
mounted
925 mm
1,194 mm
8 kg
Technical data
Pump pressure ratio
5:1
Air pressure operating range
2 to 12 bar (30 to 175 psi)
Air consumption (1)
350 Nl/min (12.4 scfm)
Maximum fluid outlet pressure
60 bar (875 psi)
Air motor effective diameter
80 mm (3.15")
Air motor stroke
80 mm (3.15")
Delivery at 80 cpm
12 l/min (3.2 gal/min)
Maximum free flow delivery
30 l/min (8 gal/min)
Air inlet
3/8" BSP (F)
Fluid inlet
1 1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted and seal materials
Hard chromed steel / Steel / Polyurethane / NBR /
Aluminium
Noise level (2)
80 dB
(1) Maximum air consumption with 5 bar (72 psi) air inlet pressure and 80 cpm.
(2) Maximum noise level measured at 1 m (3’) from the pump, 7 bar (100 psi) air pressure and free delivery.
dimensions mm
MODEL
535 530
535 580
535 510
A
469
469
1,194
269
269
269
C
50
50
50
D
200
200
925
Fluid pressure
40 580
7 ba
35 508
30 435
A
ø
70
10 145
D
20
01_BOMBAS DE ACEITE V216_UK.indd 20
psi)
Air consumption
140
175
(100
7 bar -
psi)
210
800 28
700 24.5
600 21
psi)
5 bar (72
si)
p
3
3 bar (4
psi)
(43 p
si)
500 17.5
400 14
300 10.5
200 7
100 3.5
0 0
0 0
0
0
8
105
5 72
bar psi
M
72
3 bar
15 218
C
100
ar (
25 363
70
r-(
5b
20 290
4x
Cycles/min
35
0
B
B
SAE 10, 21 ºC (70 ºF) CAPACITY CURVE
l/min
5
10
15
20
25
30
1.3
2.6
4
5.3
6.6
7.9
gal/min
Nl/min scfm
Outlet pressure
Air consumption
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 35 - 8:1 RATIO oil pump
heavy-DUTY high PRESSURE PUMP
535 830
Double acting air operated high pressure and reliable delivery pump for oil distribution applications.
Built in port for optional (PN 609 008) pressure relief valve.
fluids handled
• Synthetic and mineral based oil.
• Hydraulic oil.
• Gear lube.
• Transmission fluid.
• Corrosion protection fluids.
Markets served
• Vehicle maintenance centres.
• Fleet service.
• Mining and construction.
• Lube trucks.
• Railroad and mass transit maintenance.
• Marine.
• In-plant.
Models
PART No.
APPLICATION
PUMP TUBE
HEIGHT
TOTAL HEIGHT
WEIGHT
535 830
Universal stub pump
with bung adaptor
200 mm
487 mm
6.8 kg
535 880
Universal stub pump
200 mm
487 mm
6.4 kg
535 810
205 l (55 gal) drum bung
mounted
925 mm
1,212 mm
8.3 kg
Technical data
Pump pressure ratio
8:1
Air pressure operating range
2 to 12 bar (30 to 175 psi)
Air consumption (1)
350 Nl/min (12.4 scfm)
Maximum fluid outlet pressure
96 bar (1,400 psi)
Air motor effective diameter
80 mm (3.15")
Air motor stroke
80 mm (3.15")
Delivery at 80 cpm
7 l/min (1.9 gal/min)
Maximum free flow delivery
17 l/min (4.5 gal/min)
Air inlet
3/8" BSP (F)
Fluid inlet
1" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted and seal materials
Cast iron / Hard chromed steel / Steel / Polyurethane, NBR
Noise level (2)
80 dB
(1) Maximum air consumption with 5 psi (72 bar) air inlet pressure and 80 cpm.
(2) Maximum noise level measured at 3’ (1 m) from the pump, 100 psi (7 bar) air pressure and free delivery.
dimensions mm
535 830
535 880
535 810
A
487
487
1,212
B
287
287
287
C
42
42
42
D
200
200
925
SAE 10, 21 ºC (70 ºF) CAPACITY CURVE
Fluid pressure
0
50 725
A
ø
90
8
40
7 ba
60 870
60
C
r-(
5b
100
ar (
40 580
3 bar
30 435
20 290
D
4xM
Cycles/min
20
80
100
120
140
160
180
Air consumption
200
70 1,015
B
MODEL
72
si)
r
7 ba
psi)
0p
- (10
5 bar (72
3 psi)
3 bar (4
psi)
(43 ps
i)
psi)
10 145
0 0
800
700
28
24.5
600
21
500
400
300
17.5
14
10.5
200
7
100
0
3.5
0
Nl/min scfm
bar psi
0
2
4
6
8
10
12
14
16
0
0.5
1
1.5
2
2.6
3
3.6
4.2
18
l/min
4.7 gal/min
Outlet pressure
Air consumption
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 21
21
24/2/17 12:34
01
OIL PUMPS
pumpmaster 35 - 5:1 and 8:1 oil pumps installation kits
and accessories
Installing an oil pump in a distribution system requires more than a bare pump. SAMOA offers a range of installation kits that include all the
accessories needed to efficiently dispense or transfer lubricants. Kits can be used with 205 litre oil drums, 1,000 litre IBCs and tanks and they provide
an easy solution to common applications.
539 531
539 530
TANK MOUNTED PUMP KIT
pump ratio
539 510
WALL MOUNTED PUMP KIT
205 l DRUM MOUNTED PUMP KIT
PM35 - 5:1
PM35 - 8:1
PM35 - 5:1
PM35 - 8:1
PM35 - 5:1
PM35 - 8:1
KIT PART NUMBER
539 531
539 831
539 530
539 830
539 510
539 810
PUMP
535 530
535 830
535 530
535 830
535 510
535 810
SUCTION KIT
368 112
368 105
367 106
367 107
-
-
HOSE CONNECTION KIT
539 500
539 500
539 500
539 500
539 500
539 500
Pump kit accessories
239 004: 1/2" BSP (MM) connection adaptor
241 201: Air pressure regulator, 0-12 bar, 3/8" BSP (F) - 1/2" BSP (F)
241 501: Air filter and pressure regulator, 0-12 bar, 3/8" BSP (F) - 1/2" BSP (F)
609 007: Pressure relief valve, 1/4" BSP (M) - 60 bar approx. opening pressure. When mounted to the pump body, prevents damage in the system
caused by over pressure produced by thermal expansion (1 ºC increase in temperature can cause up to 10 bar increase in the system pressure).
609 008: Pressure relief valve, same as 609 007 but for 100 bar.
950 303: 3/4" BSP (FF) ball valve.
PumpMaster 35 pump Accessories
360 139
360 139 Wall bracket for bung adaptor (2" F)
360 140 Wall bracket for screws (4 x M8)
360 002
Bung adaptor 2" (M) connection for
drum and tanks bung openings
609 104 Bung adaptor for PM35 - 5:1 pump
Pump tube outside diameter: 50 mm.
360 002 Bung adaptor for PM35 - 8:1 pumps
Pump tube outside diameter: 42 mm.
22
01_BOMBAS DE ACEITE V216_UK.indd 22
367 006
539 500
Suction Assemblies and suction hoses
Suction assemblies for wall mounted stub
pumps. Assemblies include Ø 42 suction tube
with foot valve, height adjustable 2" bung
adaptor and 1 m x 1" rubber connection hose.
367 006 Suction assembly for 1,000 litre
IBC and 205 litre drums
1,060 mm suction tube.
362 400, 1 m x 1" connection hose.
For connecting a PM35 pump to tank
1" BSP (M) connection on one side, with a 1"
BSP (M) - 90º connection on the other side.
945 555, 1" BSP (MM) connection adaptor
Required for connecting the suction assemblies
to a PM35 - 8:1 pump.
945 681, 1" BSP (M) - 1 1/2" BSP (M)
connection adaptor
Required for connecting the suction assemblies
to a PM35 - 5:1 pump.
609 007
Hose connection kit
539 500 PM35 pump connection kit
Includes 1 m x 3/8" air hose (247 710) with
elbow (239 350), quick air coupling (253 138),
air nipple (259 038) and 1.5 m x 1/2" oil hose
(362 101) with swivel elbow (945 736).
Pressure relief valve
For protection against system pressure increase
due to oil thermal expansion (1 ºC increase in
temperature can cause 10 bar increase in system
pressure). Possibility to connect either a Ø 1/4"
hose with a clamp or a hose with 1/8" BSP (F)
fitting as return line to the tank. SAMOA pumps
include a 1/4" plug that can be removed and
replaced with a pressure relief valve.
609 007 PM35 - 5:1 Pressure relief valve
opens at approx. 60 bar. Possibility to connect
either a 1/4" hose with a clamp or a hose with
1/8" BSP (F) fitting as oil return live.
609 008 PM35 - 8:1 Pressure relief valve
Same as 609 007 but for 100 bar.
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 45 - 3:1 ratio oil pump
536 330
Heavy-Duty volume transfer pump
Double acting air operated medium pressure and high delivery pump for large volume transfer
applications. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump.
fluids handled
• Synthetic and mineral based lubricants.
• Hydraulic oil.
• Gear oil.
• Transmission fluid.
Markets served
• Construction equipment maintenance.
• Mining equipment.
• Large fleets.
• Railroad and mass transit maintenance.
• Marine.
• In plant oil distribution and transfer.
Models
PART No.
APPLICATION
PUMP TUBE
HEIGHT
TOTAL HEIGHT
WEIGHT
536 330
Universal stub pump
200 mm
702 mm
17 kg
Technical data
Pump pressure ratio
3:1
Air pressure operating range
1.5 to 12 bar (20 to 170 psi)
Air consumption (1)
800 Nl/min (28 cfm)
Maximum fluid outlet pressure
36 bar (510 psi)
Air motor effective diameter
115 mm (4 1/2")
Air motor stroke
100 mm (4")
Delivery at 80 cycles/min.
45 l/min (11.88 gal/min)
Maximum free flow delivery
120 l/min (31.70 gal/min)
Air inlet
1/2" BSP (F)
Fluid inlet
1 1/2" BSP (F)
Fluid outlet
3/4" BSP (F)
Wetted and seal materials
Cast iron / Nickel / Aluminium / Steel / Polyurethane
/ NBR
Noise level (2)
80 dB
(1) Maximum air consumption with 5 bar air inlet pressure and 80 cycles/min.
(2) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
Dimensions (mm)
SAE 10, 21 ºC ( 70 ºF) CAPACITY
0
Cycles/min.
35
18 261
70
7 ba
r-(
16 232
14 203
5b
100
ar (
12 174
3 bar
8 116
6 87
72
140
psi)
175
210
7 bar - (100 psi)
2 psi)
5 bar (7
1800 63
3 bar (43 psi)
1000 35
psi)
1600 56
1400 49
1200 42
800 28
(43 p
si)
200 7
0 0
20
40
60
80
100
120
5.3
10.6
14.8
21.1
26.4
31.7
gal/min
C
90
D
200
Nl/min scfm
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 23
10
M
4x
12
Outlet pressure
Air consumption
c
Ø1
0
l/min
502
D
0
702
B
400 14
2 29
bar psi
A
600 21
4 58
0 0
536 330
A
10 145
105
Air consumption
B
Fluid pressure
MODEL
23
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 45 - 6:1 ratio oil pumps
536 630
Heavy-Duty high flow pump
Double acting air operated medium pressure for large systems with simultaneous operation outlets
that require a high delivery pump. Built in port for optional pressure relief valve (PN 609 007).
Flange mounted pump.
Products handled
• Synthetic and mineral based lubricants.
• Hydraulic oil.
• Gear oil.
• Transmission fluid.
Markets
• Large auto and truck dealers.
• Construction equipment maintenance.
• Mining equipment maintenance.
• Large fleets.
• Railroad and mass transit maintenance.
• Marine.
• In plant oil distribution.
Models
PART No.
APPLICATION
PUMP TUBE
HEIGHT
TOTAL HEIGHT
WEIGHT
536 630
Universal stub pump
200 mm
702 mm
17 kg
Technical data
Pump pressure ratio
6:1
Air pressure operating range
1.5 to 12 bar (20 to 170 psi)
Air consumption
830 Nl/min (29 cfm)
(1)
Maximum fluid outlet pressure
72 bar (1,020 psi)
Air motor effective diameter
115 mm (4 1/2")
Air motor stroke
100 mm (4")
Delivery at 80 cycles/min.
25 l/min (6.60 gal/min)
Maximum free flow delivery
95 l/min (25.09 gal/min)
Air inlet
1/2" BSP (F)
Fluid inlet
1 1/2" BSP (F)
Fluid outlet
3/4" BSP (F)
Wetted and seal materials
Cast iron / Hard chromed steel / Steel / Polyurethane /
NBR
Noise level (2)
80 dB
(1) Maximum air consumption with 5 bar air inlet pressure and 80 cycles/min.
(2) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
Dimensions (mm)
SAE 10, 21 ºC ( 70 ºF) CAPACITY
MODEL
536 630
A
702
B
502
45 652
70
35 507
D
200
0
30 435
25 362
A
20 290
15 217
Cycles/min.
30
7
40 580
B
C
Fluid pressure
ba
60
r-
5b
ar
3b
(72
12
24
01_BOMBAS DE ACEITE V216_UK.indd 24
180
ps
psi
)
Air consumption
210
240
270
7 bar - (100 psi)
5 bar (72 psi)
1800 63
3 bar (43 psi)
1200 42
i)
1600 56
1400 49
1000 35
800 28
600 21
psi)
400 14
200 7
0 0
bar psi
D
Ø1
M
150
0 0
c
4x
00
43
5 72
10
120
(1
ar (
10 145
90
0
0
l/min
10
2,6
gal/min
Nl/min scfm
20
5.3
30
7.9
40
10.6
50
13.2
60
14.8
70
18.5
80
21.1
90
23.8
Outlet pressure
Air consumption
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 45 - 10:1 ratio oil pumps
536 010
Heavy-Duty high flow pumps
Double acting air operated moderate pressure pump for very large oil systems or when a low air
pressure or cold temperatures would limit pump performance. Built in port for optional pressure
relief valve (PN 609 007). Flange mounted pumps. Pump 536 010 can also use bung adaptor
(PN 360 006) for bung mounting.
Products handled
• Synthetic and mineral based lubricants.
• Hydraulic oil.
• Gear oil.
• Transmission fluid.
Markets
• Large auto and truck dealers.
• Construction equipment maintenance.
• Mining equipment maintenance.
• Railroad and mass transit maintenance.
• Large fleets.
• Lube trucks.
• Marine.
• In plant oil distribution.
Models
PART No.
PUMP TUBE
HEIGHT
APPLICATION
TOTAL HEIGHT
WEIGHT
16.5 kg
536 030
Universal stub pump
200 mm
702 mm
536 010
205 l (55 gal) drum bung
mounted
855 mm
1,357 mm
17 kg
Technical data
Pump pressure ratio
10:1
Air pressure operating range
1.5 to 12 bar (20 to 170 psi)
Air consumption
850 Nl/min (30 cfm)
(1)
Maximum fluid outlet pressure
120 bar (1,700 psi)
Air motor effective diameter
115 mm (4 1/2")
Air motor stroke
100 mm (4")
Delivery at 80 cycles/min.
15 l/min (4 gal/min)
Maximum free flow delivery
65 l/min (17.17 gal/min)
Air inlet
1/2" BSP (F)
Fluid inlet
1 1/2" BSP (F)
Fluid outlet
3/4" BSP (F)
Wetted and seal materials
Cast iron / Hard chromed steel / Steel / Polyurethane
/ NBR
Noise level (2)
80 dB
(1) Maximum air consumption with 5 bar air inlet pressure and 80 cycles/min.
(2) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
Dimensions (mm)
SAE 10, 21 ºC (70 ºF) CAPACITY
Cycles/min.
0
50
100
150
200
Air consumption
250
300
80 1160
7
70 1015
60 870
5b
r-
ar (
7 bar - (1
(1
00
5 bar (72 psi)
ps
72
psi) i)
3 ba
r (43
psi)
40 580
30 435
20 290
3 bar (43 psi)
2500 88
2000 70
1500 53
500 18
536 010
702
1,357
B
502
502
C
54
54
D
200
855
bar psi 0 l/min 10
20
30
40
50
60
0
5.3
8
10.6
13.2
15.8
Nl/min scfm
01_BOMBAS DE ACEITE V216_UK.indd 25
12
Product specifications are subject to change without prior notice
10
M
4x
Ø1
Outlet pressure
Air consumption
c
D
0 0
2.6
536 030
A
1000 35
10 145
gal/min
MODEL
A
50 725
00 psi)
ba
3000 106
B
Fluid pressure
25
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 60 - 6:1 ratio oil pump
537 630
Heavy-Duty high delivery pump
Double acting air operated medium pressure and high delivery pump, for large installations with
simultaneous operation outlets and applications that require large, constant delivery rates. Built in
port for optional pressure relief valve (PN 609 007). Flange mounted pump.
Products handled
• Synthetic and mineral based lubricants.
• Hydraulic oil.
• Gear oil.
• Transmission fluid.
Markets
• Very large auto and truck dealers.
• Construction equipment maintenance.
• Mining equipment maintenance.
• Large fleets.
• Railroad and mass transit maintenance.
• Marine.
• In plant oil distribution.
Models
PART No.
APPLICATION
PUMP TUBE
HEIGHT
TOTAL HEIGHT
WEIGHT
537 630
Universal stub pump
200 mm
716 mm
19 kg
Technical data
Pump pressure ratio
6:1
Air pressure operating range
1.5 to 12 bar (20 to 170 psi)
Air consumption (1)
1,100 Nl (39 cfm)
Maximum fluid outlet pressure
72 bar (1,020 psi)
Air motor effective diameter
150 mm (6")
Air motor stroke
100 mm (4")
Delivery at 60 cycles/min.
35 l/min (9.25 gal/min)
Maximum free flow delivery
100 l/min (26.42 gal/min)
Air inlet
1/2" BSP (F)
Fluid inlet
1 1/2" BSP (F)
Fluid outlet
3/4" BSP (F)
Wetted and seal materials
Cast iron / Aluminium / Nickel / Steel / Polyurethane
/ NBR
Noise level (2)
80 dB
(1) Maximum air consumption with 5 bar air inlet pressure and 60 cycles/min.
(2) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
SAE 10, 21 ºC (70 ºF) CAPACITY
Dimensions (mm)
MODEL
A
Fluid pressure
537 630
716
516
90
200
40
580
35
507
30
435
25
362
20
290
15
217
10
145
5
72
0
0
A
C
D
b
B
45
D
bar psi
Ø1
12
10
M
4x
26
01_BOMBAS DE ACEITE V216_UK.indd 26
17
34
7b
ar -
5 bar
51
68
85
102
119
136
143
170
187
7 bar - (100 psi)
(10
0p
5 bar (72 psi)
si)
3 bar (43 psi)
(72 p
si)
3 bar (4
3 psi)
0
0
c
Air consumption
Cycles/min.
0
652
l/min
88
2000
70
1500
53
1000
35
500
17
0
10
20
30
40
50
60
70
80
90
100
110
2.6
5.3
7.9
10.6
13.2
15.9
18.5
21.1
23.8
26.4
29.1
gal/min
2500
0
Nl/min scfm
Outlet pressure
Air consumption
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 60 - 12:1 ratio oil pump
537 130
Heavy-Duty high performance pump
Double acting air operated moderate pressure and high delivery for very large installation with
simultaneous operation outlets or when low air pressure would limit pump performances. Built in
port for optional pressure relief valve (PN 609 007). Flange mounted pump.
Products handled
• Synthetic and mineral based lubricants.
• Hydraulic oil.
• Gear oil.
• Transmission fluid.
Markets
• Very large auto and truck dealers.
• Construction equipment maintenance.
• Mining equipment maintenance.
• Large fleets.
• Railroad and mass transit maintenance.
• Marine.
• In plant oil distribution.
Models
PART No.
APPLICATION
PUMP TUBE
HEIGHT
TOTAL HEIGHT
WEIGHT
537 130
Universal stub pump
200 mm
716 mm
19 kg
Technical data
Pump pressure ratio
12:1
Air pressure operating range
1.5 to 12 bar (20 to 170 psi)
Air consumption (1)
1,150 Nl (41 cfm)
Maximum fluid outlet pressure
144 bar (2,040 psi)
Air motor effective diameter
150 mm (6")
Air motor stroke
100 mm (4")
Delivery at 60 cycles/min.
20 l/min (5.30 gal/min)
Maximum free flow delivery
65 l/min (17 gal/min)
Air inlet
1/2" BSP (F)
Fluid inlet
1 1/2" BSP (F)
Fluid outlet
3/4" BSP (F)
Wetted and seal materials
Cast iron / Hard chromed steel / Steel / Polyurethane
/ NBR
Noise level (2)
80 dB
(1) Maximum air consumption with 5 bar air inlet pressure and 60 cycles/min.
(2) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
Dimensions (mm)
SAE 10, 21 ºC (70 ºF) CAPACITY
Fluid pressure
0
90
1305
80
1160
70
1015
725
40
580
30
435
20
290
10
145
0
7b
ar
5b
60
72
3 ba
r (43
120
150
180
210
i)
7 bar - (100 ps
- (1
ar (
90
00
psi
)
psi)
psi)
0
l/min
88
B
70
C
70
D
200
1500
53
1000
35
500
17
10
20
30
40
50
60
70
2.6
5.3
7.9
10.6
13.2
15.9
18.5
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 27
c
10
M
4x
12
Outlet pressure
Air consumption
0
Nl/min scfm
Ø1
gal/min
516
2500
D
0
716
106
0
0
bar psi
537 130
A
3000
2000
5 bar (72 psi)
3 bar (43 psi)
MODEL
A
870
50
30
b
60
Air consumption
Cycles/min.
27
24/2/17 12:34
OIL PUMPS
01
pumpmaster 45 & 60 oil pump installation kits
539 010 - 539 031
PUMPMASTER 45 - 10:1 OIL PUMP INSTALLATION KITS
539 010 Pumpmaster 45 - 10:1 oil pump installation kits for 205 l drums
Kit includes:
536 010: PM45 - 10:1.
539 009: PM45 Connection kit.
360 006: 2" Bung adaptor Ø 54 mm.
For PM45 - 10:1 pump installation we recommend using pressure relief valve 609 008, filter
regulator 241 501, adaptor 239 004 and shut of valve 950 328.
539 031 Pumpmaster 45 - 10:1 oil pump installation kits for tanks
Kits includes:
536 030: PM45 - 10:1.
536 112: Suction tube Ø 50 mm
539 009: PM45 Connection kit.
360 006: 2" Bung adaptor Ø 54 mm.
For PM45 - 10:1 pump installation we recommend using pressure relief valve 609 008, filter
regulator 241 501, adaptor 239 004 and shut of valve 950 328.
539 130
PUMPMASTER 45 and 60 OIL PUMP INSTALLATION KITS
PumpMaster 45 & 60 pump kits for wall mounting with totes or tanks
kit PART No.
pump
539 130
PM60 - 12:1 (537 130)
539 630
PM60 - 6:1 (537 630)
539 030
PM45 - 10:1 (536 030)
539 631
PM45 - 6:1 (536 630)
539 330
PM45 - 3:1 (536 330)
Kit includes (in addition to chosen pump):
360 132: PM45 & 60 wall bracket.
362 402: 1 1/2" BSP (FM) suction hose 90°, 1,800 mm + adaptors.
539 009: PM45 & 60 connection kit.
For PM45 - 10:1 pump installation we recommend using pressure relief valve 609 008, filter
regulator 241 501, adaptor 239 004 and shut of valve 950 328.
For lower suction installation in tanks we recommend using shut of valve 950 312.
28
01_BOMBAS DE ACEITE V216_UK.indd 28
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
pumpmaster 45 & 60 oil pump installation kits
PUMPMASTER 45 - 10:1 OIL PUMP INSTALLATION KITS, FLOOR MOUNTED
539 633
PUMPMASTER 45 & 60 oil pump installation kits, floor mounted with totes or tanks
kit PART No.
pump
539 131
PM60 - 12:1 (537 130)
539 632
PM60 - 6:1 (537 630)
539 032
PM45 - 10:1 (536 030)
539 633
PM45 - 6:1 (536 630)
539 331
PM45 - 3:1 (536 330)
Kit includes (in addition to chosen pump):
360 121: PM45 & 60 floor bracket.
362 402: 1 1/2" BSP (FM) suction hose 90°, de 1,800 mm + adaptors.
539 009: PM45 & 60 connection kit.
For PM45 - 10:1 pump installation we recommend using pressure relief valve 609 008, filter
regulator 241 501, adaptor 239 004 and shut of valve 950 328.
For lower suction installation in tank we recommend using shut of valve 950 312.
PUMPMASTER 45 - 10:1 OIL PUMP INSTALLATION KITS, wall MOUNTED
539 332
PUMPMASTER 45 & 60 oil pump installation kits, wall mounted with totes or drums
kit PART No.
pump
539 033
PM45 - 10:1 (536 030)
539 634
PM45 - 6:1 (536 630)
539 332
PM45 - 3:1 (536 330)
Kit includes (in addition to chosen pump):
360 132: PM45 & 60 wall bracket.
945 724: 1 1/2" BSP (MM) Adaptor.
362 402: 1 1/2" BSP (FM) suction hose 90°, 1,800 mm + adaptors.
539 009: PM45 & 60 connection kit.
945 737: Elbow 90° 1 1/2" BSP (FF)
736 771: 1,250 mm x 1-1/2" BSP (MF) suction tube
609 104: 2" tube adaptor.
736 772: Bottom valve.
For PM45 - 10:1 pump installation we recommend using pressure relief valve 609
008, filter regulator 241 501, adaptor 239 004 and shut of valve 950 328.
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 29
29
24/2/17 12:34
OIL PUMPS
01
PUMPMASTER 45 AND 60 ACCESSORIES
539 009
HOSE CONNECTION KIT
539 009 Hose Connection kit for PM45 and PM60 oil pumps
Includes 1 m x 1/2" air hose (PN 248 018) with swivel elbow (PN 239 352), quick air coupler
(PN 251 412), air nipple (PN 255 312), and 2 m x 3/4" oil hose (PN 362 302) with swivel elbow
(PN 945 738).
360 121 - 360 132
PUMP BRACKETS
360 132 Wall bracket. For PM45 and PM60 universal stub pumps.
360 121 Floor bracket. For PM45 and PM60 universal stub pumps.
360 006
bung adaptor
For use with PM45 10:1 pressure ratio pumps only
PM45 10:1 pumps are the only pumps with a 2" pump tube and therefore the only pumps that fit
through 2" bung openings on drums and tanks. All other PM45 and PM60 pumps must be wall or
floor mounted using an adequate bracket and suction accessories.
360 006 Bung adaptor
For PM45 10:1 pumps only.
SUCTION ACCESSORIES
362 402
367 016 Suction assembly for 205 l drums and Ibcs. For use with PM45 10:1 wall
mounted universal stub pumps only.
It includes a 42 mm x 2 m suction tube with foot valve and 2 m x 3/4" hose.
362 402 Suction hose 1.800 mm x 1-1/2" rubber connection hose.
1-1/2" BSP (M) connection elbow on one side and 1-1/2" (M) straight connection on the other.
945 724 Connection adaptor, 1-1/2" BSP (MM).
945 724
945 737
945 737 Elbow, 1-1/2" BSP (FF).
609 104
609 104 Bung adaptor
Adaptor for fixing tube 736 771 to a 2" bung opening.
736 772 Suction tube
1,000 x 1-1/2", 1-1/2" BSP (MF) connection threads.
736 772 / 736 771
609 007
736 771 Suction tube
1,250 x 1-1/2", 1-1/2" BSP (MF) connection threads.
PRESSURE RELEASE VALVES
Prevent damage caused by overpressure due to oil thermal expansion. For protection against
system pressure increase due to oil thermal expansion (1 ºC increase in temperature can cause
10 bar increase in system pressure). Possibility to connect either a Ø 1/4” hose with a clamp or a
hose with 1/8” BSP (F) fitting as return line to the tank. SAMOA pumps include a 1/4” plug that
can be removed and replaced with a pressure relief valve.
609 007 Pressure release valve. Opening pressure approximate 60 bar.
609 008 Pressure release valve. Opening pressure approximate 100 bar.
30
01_BOMBAS DE ACEITE V216_UK.indd 30
Product specifications are subject to change without prior notice
24/2/17 12:34
OIL PUMPS
01
OIL PUMP ACCESSORIES
PUMP BRACKETS
PM2 and PM4 PUMP BRACKETS
360 102 Wall bracket
360 120 Floor bracket
360 106 Bracket for fixing a pump and a hose reel on top of a 1,000 l IBC
Requires pump bracket 360 102 (not included).
360 107 Bracket for fixing a pump and a hose reel laterally on a 1,000 l IBC
Requires pump bracket 360 102 (not included).
360 108 Bracket for fixing a pump laterally on a 1,000 l IBC
Requires pump bracket 360 102 (not included).
360 102
PM35 PUMP BRACKETS
360 139 Wall bracket
360 120
360 108
PM45 AND PM60 PUMP BRACKETS
360 132 Wall bracket
360 121 Floor bracket
AIR ACCESSORIES
1/4" Connection
threads
1/4"BSP (FF)
1/2" Connection
threads 1/2" BSP (FF)
with one 1/2" BSP (M) 3/8" BSP (F) adaptor
3/4" Connection
threads
3/4" BSP (FF)
Air pressure
regulator 0 - 12 bar
240 200
241 201
242 202
Combined air filter and
pressure regulator
240 500
241 501
242 302
(Filter only)
Air lubricator
240 400
Connection adapters
945 590, 1/4" BSP (MM).
945 592, 3/8" BSP (MM).
945 558, 1/2" BSP (MM).
945 551, 3/4" BSP (MM).
945 555, 1" BSP (MM).
945 724, 1 1/2" BSP (MM).
945 681, 1 1/2" BSP (M) - 1" BSP (M).
945 552 1" BSP (M) - 3/4" BSP (M).
945 554, 3/4" BSP (M) - 1/2" BSP (M).
945 557, 1/2" BSP (M) - 3/8" BSP (M).
945 567, 2" BSP (M) - 1 1/2" BSP (M).
945 565, 2" BSP (M) - 1" BSP (F).
945 513, 1 1/4" BSP (M) - 3/4" BSP (F).
945 670, 1" BSP (M) - 3/4" BSP (F).
369 900, 3/4" BSP (M) - 1/2" BSP (F).
945 556, 1/2" BSP (M) - 3/8" BSP (F).
369 601, 1/2" BSP (MM) 45º elbow.
945 572, 3/4" BSP (MF) 90º elbow.
945 548, 1/2" BSP (MM) 90º elbow.
945 738, 3/4" BSP (M) - 3/4" BSP (F) 90º elbow.
241 401
242 402
Low and Medium pressure valves
950 305, 1/4" BSP (FF), 65 bar quarter turn valve.
950 320, 3/8" BSP (FF), 65 bar quarter turn valve.
950 300, 1/2" BSP (FF), 65 bar quarter turn valve.
950 306, 1" BSP (FF), 40 bar quarter turn valve.
950 312, 1-1/2" BSP (FF), 25 bar quarter turn valve.
950 308, 2" BSP (FF), 25 bar quarter turn valve.
240 200
242 202
241 501
950 306
High pressure valves
950 304, 1/2" BSP (FF), 500 bar quarter turn valve.
950 328, 3/4" BSP (FF), 400 bar quarter turn valve.
950 329, 1" BSP (FF), 350 bar quarter turn valve.
Air line shutoff valves
950 302, Needle air valve 1/4" BSP (FF).
950 321, Air valve 1/4" BSP (FF).
950 318, Air valve 3/8" BSP (FF).
950 319, Air valve 1/2" BSP (FF).
oil hoses
950 304
362 104
Manufactured in NBR with a steel reinforcement braid. With two swaged nuts and male-male
adaptors on both ends.
362 100, 1 m x 1/2". Working pressure: 160 bar. Connection threads: 1/2" BSP (MM).
362 101, 1.5 m x 1/2". Working pressure: 160 bar. Connection threads: 1/2" BSP (MM).
362 102, 2 m x 1/2". Working pressure: 160 bar. Connection threads: 1/2" BSP (MM).
362 103, 3 m x 1/2". Working pressure: 160 bar. Connection threads: 1/2" BSP (MM).
362 104, 4 m x 1/2". Working pressure: 160 bar. Connection threads: 1/2" BSP (MM).
362 300, 1 m x 3/4". Working pressure: 100 bar. Connection threads: 3/4" BSP (MM).
362 301, 1.5 m x 3/4". Working pressure: 100 bar. Connection threads: 3/4" BSP (MM).
362 302, 1.8 m x 3/4". Working pressure: 100 bar. Connection threads: 3/4" BSP (MM).
362 303, 3 m x 3/4". Working pressure: 100 bar. Connection threads: 3/4" BSP (MM).
Product specifications are subject to change without prior notice
01_BOMBAS DE ACEITE V216_UK.indd 31
31
24/2/17 12:34
OIL PUMPS
01
oil pump accessories
OIL PUMPS MOUNTING
ACCESSORIES
REFERENCE
Iquip modit
iriusciduntQUICK
nos niam
ver ip CHART
000 000
PUMP
PUMPMASTER 2
PUMPMASTER 4
PUMPMASTER 35
PUMPMASTER 45
PUMPMASTER 60
1:1
3:1
3:1
5:1
5:1
8:1
5:1
6:1
10:1
6:1
12:1
BUNG Adaptor
360 001
360 000
360 001
360 002
609 104
360 002
(1)
(1)
360 006
(1)
(1)
CONNECTION
HOSE KIT
362 910
362 910
362 911
362 911
539 500
539 500
539 009
539 009
539 009
539 009
539 009
WALL MOUNTING
BRACKET
360 102
360 102
360 102
360 102
360 139
360 139
360 132
360 132
360 132
360 132
360 132
RATIO
FLOOR BRACKET
360 120
360 120
360 120
360 120
-
-
360 121
360 121
360 121
360 121
360 121
THERMAL
RELIEF valve
Not
needed
609 007
609 007
609 007
609 007
609 008
609 007
609 008
609 008
609 008
609 008
AIR REGULATOR
WITH GAUGE
240 200
240 200
241 201
241 201
241 201
241 201
241 201
241 201
241 201
241 201
241 201
AIR FILTER
LUBRICATOR
240 500
240 500
241 501
241 501
241 501
241 501
241 501
241 501
241 501
241 501
241 501
FRL
240 000
240 000
241 001
241 001
241 001
241 001
241 001
241 001
241 001
241 001
241 001
AIRLINE SHUTOFF
VALVE
950 302
950 321
950 318
950 318
950 318
950 318
950 319
950 319
950 319
950 319
950 319
FLUID SHUTOFF
VALVE
950 303
950 303
950 303
950 303
950 303
950 303
950 303
950 303
950 328
950 303
950 328
SUCTION KIT (*)
367 000
367 000
367 000
367 000
367 006
367 006
(2)
(2)
367 016
(2)
(2)
AIR QUICK
COUPLER
253 114
253 114
253 138
253 138
253 138
253 138
251 412
251 412
251 412
251 412
251 412
AIR QUICK
CONNECTOR
259 014
259 014
259 038
259 038
259 038
259 038
255 312
255 312
255 312
255 312
255 312
1/4" 6 mm
1/4" 6 mm
3/8" 8 mm
3/8" 8 mm
3/8" 8 mm
3/8" 8 mm
1/2" 12 mm
1/2" 12.5 mm
1/2" 12.5 mm
1/2" 12.5 mm
1/2" 12.5 mm
AIR CONNECTION
ACCESSORIES I.D.
(*) Suction kit for 200 l drum. Pump bracket not included.
(1) Pump must be wall or floor mounted.
(2) SAMOA recommends using 1-1/2" x 2 m maximum length hose as suction kit. See page 30.
PUMP INSTALLATION RECOMMENDATIONS
• Always use a ball valve between the tank outlet and the suction hose.
• Always use a ball valve between the pump outlet hose and the fluid distribution line.
PUMP INSTALLATION EXAMPLES
WALL mounted pump
32
01_BOMBAS DE ACEITE V216_UK.indd 32
FLOOR mounted pump
WALL mounted pump
Product specifications are subject to change without prior notice
24/2/17 12:34
MOBILE GREASE UNITS
WITH PUMPMASTER 3+3 PUMPS - 20 AND 50 KG.
Iquip modit iriuscidunt nos niam
02ver ipAIR
OPERATED grease PUMPs 000
and000
kits
AIR OPERATED grease PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 3 - 55:1 ratio grease pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 3 accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 35 - 60:1 ratio grease PUMPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 35 accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 25:1 ratio grease PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 40:1 ratio grease PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 - 70:1 ratio grease PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 60 - 12:1 ratio grease PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 60 - 80:1 ratio grease PUMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMPMASTER 45 & 60 installation kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 45 & 60 grease pump kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pumpmaster 35, 45 & 60 grease pump kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
grease pump accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 33
34
36
38
40
42
43
44
45
46
47
48
49
50
51
33
22/2/17 16:03
02
GREASE PUMPS
AIR OPERATED grease PUMPS
Samoa offers a range of high pressure and high delivery grease pumps to handle a wide variety of
applications. This pump offering fits original container sizes, from small pails to drums, totes and
speciality built tanks, and covers applications from mobile and portable units to large distribution
systems.
Samoa’s grease pumps are designed to provide years of dependable service. The in-line balanced
design assures maximum pump efficiency. All Samoa pumps have a double acting design,
pumping product on both the upstroke and downstroke. An effective priming piston provides
positive pump, even when used with high viscosity or tacky greases. A hardened foot valve
minimizes pump damage due to dirt. A corrosion proof air motor design tolerates moisture in
compressed air.
Heavy-Duty
utility
pump
PumpMaster 3 - 55:1
PumpMaster 35 - 60:1
Pump description
Utility high pressure
Heavy-Duty high pressure
Simultaneous
operation outlets
1 No reels - mobile units
3
Max. line length
15 m - 50'
75 m - 250'
Agriculture
Service shops
Light Industrial
Heavy-Duty service shops
Fleets
Lube trucks
Mining and construction
In-plant
Railroad and mass transit
Application
Maximum line length and number of simultaneous dispense points also depends on the line diameter, fluid viscosity and required delivery
34
02_BOMBAS DE GRASA V216_UK.indd 34
Product specifications are subject to change without prior notice
22/2/17 16:03
GREASE PUMPS
02
Heavy-Duty
PumpMaster 45 - 25:1
PumpMaster 45 - 40:1
PumpMaster 45 - 70:1
PumpMaster 60 - 12:1
PumpMaster 60 - 80:1
Heavy-Duty pressure transfer
Heavy-Duty high flow
Heavy-Duty high pressure
Heavy-Duty volume transfer
Heavy-Duty high performance
1 or more
4 or more
4 or more
1 High volume transfer
4 or more
75 m - 250'
125 m - 400'
175 m - 600'
50 m - 175'
250 m - 800'
Moderate pressure transfer
Lube trucks
Mining and construction
In-plant
Heavy-Duty service shops
Fleets
Lube trucks
Mining and construction
Railroad and mass transit
In-plant
Marine
Heavy-Duty service shops
Fleets
Lube trucks
Mining and construction
Railroad and mass transit
In-plant
Marine
Low pressure, high volume
transfer
Mining and construction
In-plant
Railroad and mass transit
Fleets
Lube trucks
Mining and construction
Railroad and mass transit
In-plant
Marine
Maximum line length and number of simultaneous dispense points also depends on the line diameter, fluid viscosity and required delivery
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 35
35
22/2/17 16:04
PUMPMASTER 3 - 55:1 ratio grease pumps
407
000000
200
000
000
Iquip modit
utility
high iriuscidunt
pressure pumps
nos niam ver ip
GREASE PUMPS
02
Light weight and effective high pressure delivery air operated pumps specially designed for use in
mobile and portable greasing units.
Pumps are available with four different suction tube lengths, to fit all commercial grease drums:
12.5 - 20 kg (40 lb), 50 kg (120 lb) and 185 kg (400 lb). They include a height adjustable 2" BSP
(M) bung adaptor.
FLUIDS HANDLED
• Grease up to NLGI-2.
MARKETS SERVED
• Agriculture.
• Service shops.
• Light industrial.
Models
Part No.
Application
pump tube height
Total height
Weight
404 100
12.5 - 20 kg (40 lb) pails
410 mm
650 mm
3.5 kg
405 100
50 kg (120 lb) drums
510 mm
710 mm
3.7 kg
407 200
50 kg (120 lb) drums
725 mm
925 mm
4.3 kg
409 200
185 kg (400 lb) drums
920 mm
1,120 mm
4.8 kg
Technical data
Pump pressure ratio
55:1
Air pressure operating range
1.5 to 10 bar (20 to 140 psi)
Air consumption (1)
165 NL/min (5.8 cfm)
Maximum fluid outlet pressure
550 bar (7,700 psi)
Air motor diameter
70 mm (2.75")
Air motor stroke
35 mm (1.4")
Delivery at 110 cpm
Maximum free flow delivery
300 g/min (0.67 lb/min)
540 g/min (1.2 lb/min)
(2)
Air inlet
1/4" NPSM (F)
Fluid outlet
1/4" NPSM (F)
Wetted and seal materials
Steel / NBR / PTFE
Noise level
92 dB
(3)
(1) Maximum air consumption with 6 bar air inlet pressure, NLGI-2 grease at 20 ºC and 110 cpm.
(2) Maximum free delivery at 7 bar. NLGI-2 grease.
(3) Maximum noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
NLGI-2, 20 ºC (68 ºF) CAPACITY
Fluid
Pressure
350
dimensions (mm)
404 100
405 100
407 200
409 200
250
A
610
710
925
1,120
200
200
200
200
150
C
26
26
26
26
100
D
410
510
725
920
E
38
38
38
38
A
200
180
Air consumption
215
150
3500
3000
17 0
5, 5
6
50 2
3
100
180
6, 5
190
150
160
200
2000
1500
210
7
7,5
220
D
50
5
5, 5
6, 5
190
0 0
bar psi
230
lb/min
0
0.2
100
0.4
200
0.6
300
0.8
1.0
400
1.2
500
7 bar
100 psi
1.4
600
8
8,12
50
2
100
3
3, 5
110
4
120
130
140
145
180
500
0
E
4
17 0 6,00
1000
C
02_BOMBAS DE GRASA V216_UK.indd 36
145
2500
B
36
110
6
4500
4000
Model
75
7
ba
b r5 ar - 100
ba
9
r - 0 p psi
70 si
ps
i
5000
B
300
Cycles / min
40
4, 5
5
150
155
5, 5
160
7
200 7,0 6
165
6 bar
90 psi
5 bar
70 psi
5,83
700
g/min
Product specifications are subject to change without prior notice
22/2/17 16:04
PUMPMASTER 3 - 55:1 ratio grease pumps
424 172 - 424 152
425 150.002
02
428 243
GREASE PUMPS
482 200
Mobile and portable units to fit 18, 20, 50 and 185 kg drums.
Application
Pump
Drum
Cover
Follower
plate
Delivery Hose
Grease gun
with Z-swivel
Trolley
Mobile unit, 12.5 to 18 kg (1)
404 100
418 013
-
2 m x 1/4" 412 102
413 080
430 000
Part No.
424 150
424 152
Mobile unit, 20 kg (1)
404 100
418 002
-
2 m x 1/4" 412 102
413 080
430 000
424 170
Portable unit, 12.5 to 18 kg (1)
404 100
418 013
-
2 m x 1/4" 412 102
413 080
-
424 170.800
Portable unit, 12.5 to 18 kg (1)
404 100
418 013
417 001
2 m x 1/4" 412 102
413 080
-
424 172
Portable unit, 20 kg (1)
404 100
418 002
-
2 m x 1/4" 412 102
413 080
-
424 172.710
Portable unit, 20 kg (1)
404 100
418 002
417 001
2 m x 1/4" 412 102
413 080
-
482 200
Mobile unit, 12.5 to 20 kg (2)
404 100
-
-
2 m x 1/4" 412 102
413 080
480 021
425 150
Mobile unit, 50 kg drum
407 200
418 004
-
3 m x 1/4" 412 103
413 080
431 000
425 150.002
Mobile unit, 50 kg drum
407 200
418 004
417 002
3 m x 1/4" 412 103
413 080
431 000
425 290
Mobile unit, 50 kg drum
407 200
418 004
-
2 m x 1/4" 412 102
413 080
430 000
482 500
Mobile unit, 50 kg drum (3)
407 200
-
-
3 m x 1/4" 412 103
413 080
480 050
428 243
Mobile unit, 185 kg drum
409 200
418 006
417 004
4 m x 1/4" 412 104
413 080
432 000
428 262
Stationary unit, 185 kg drum
409 200
418 006
417 004
4 m x 1/4" 412 104
413 080
-
(1) Includes carrying handle 741 602.
(2) Shielded unit. Includes base with 4 castors.
(3) Shielded unit. Includes base with 2 wheels and 2 castors.
Not included options:
239 000: 1/4" BSP (MM) connection adaptor.
240 500: Air filter and pressure regulator, 0-12 bar, 1/4" BSP (FF).
417 001: Follower plate 298 - 260 mm. For 12.5 and 18 kg pails.
417 002: Follower plate 370 - 330 mm. For 50 kg standard diameter drums.
417 003: Follower plate 405 - 360 mm. For 50 kg large diameter drums.
417 005: Follower plate 340 - 300 mm. For 20 kg pails.
411 100: In-line grease meter for grease control gun.
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 37
37
22/2/17 16:04
pumpmaster 3 accessories
418 004 - 417 003
GREASE PUMPS
02
drum covers and follower plates
Drum covers. Very solid construction. With 2" BSP (F) bung opening.
Part No.
Drum type
Drum external diameter (min. - max.)
418 013
12.5 to 18 kg pails
265 - 310 mm
418 002
20 kg pails
285 - 330 mm
418 016
50 kg drums
350 - 395 mm
418 004
50 kg drums
360 - 405 mm
418 006
185 kg drums
565 - 610 mm
Follower plates eliminate air pockets and aid pump prime. Rubber flange minimizes waste. With
handle for removing from empty drums.
Part No.
Drum type
Drum external diameter (min. - max.)
417 006
12.5 kg pails
190 - 260 mm
417 001
12.5 to 18 kg pails
260 - 298 mm
417 005
20 kg pails
300 - 340 mm
417 002
50 kg drums
330 - 370 mm
417 003
50 kg drums
360 - 405 mm
417 004
185 kg drums
550 - 590 mm
DRUM TROLLEYS
430 000 Trolley for 20 kg pails
Two wheel trolley with tubular frame for 20 and 50 kg drums.
431 000 Trolley for 50 and 20 kg drums
Four wheel trolley with tubular frame.
431 001 Trolley for 50 and 20 kg drums
Two wheel and two front rubber pads trolley with tubular frame.
480 050 Mobile protective drum cabinet, 50 kg
480 021 Mobile protective drum cabinet, 20 kg
430 000
432 814
432 000 Trolley for 185 kg drum
Two solid rubber wheels and one swivelling rubber wheel with brake. A hose reel and a pump can
be, mounted using optional bracket.
360 134 Pump bracket
For mounting a short pump to trolley 432 000.
360 135 Hose reel bracket
For mounting a hose reel to trolley 432 000.
432 814 Heavy-Duty trolley for 185 kg drum
Two 260 mm front tires and one swivelling solid rubber wheel with brake. A hose reel can be,
mounted using optional bracket.
360 113 Hose reel bracket
For mounting a hose reel to trolley 432 814.
431 000
432 000
38
02_BOMBAS DE GRASA V216_UK.indd 38
Product specifications are subject to change without prior notice
22/2/17 16:04
Heavy-Duty PISTON PUMPS:
THE HEART OF A LUBRICATION SYSTEM
02
GREASE PUMPS
Samoa Heavy-Duty pumps are designed to deliver through long distribution lines or to multiple dispensing points with simultaneous operation
all kind of grease at continuous duty and high flow rates under extreme and intensive working conditions.
These double acting, high efficiency, air powered, positive displacement piston pumps provide the necessary confidence to offer solutions for
moving fast the required volume of grease with the right pressure in very large distance applications.
Pneumatic air motors. Mechanically
driven air motors offer the reliability and
dependability required for assuring a nonstalling and superb performance under every
working condition. The very simple air valve
has no energy consuming springs that could
fail due to material fatigue or pneumatic end
of stroke sensors that could get to locked
because of dirty air.
Air exhaust. The well dimensioned air
exhaust design manufactured, in efficient heat
dissipation aluminium eliminates erratic pump
performance and ice formation at the air
exhaust. The air exhaust includes a muffler to
reduce noise levels to meet or exceed OSHAS
requirements. The muffler can be removed
for connecting a hose to the exhaust port for
expanding the air to a remote location.
Modular design. Tough modular pump
design allows multiple combination assemblies
of air motor and lower pump end. This
versatile pump construction, for easy service
and maintenance, provides a comprehensive
range of operating output pressures and
flow-rates to meet any amount of grease and
pressure demanded in each application.
Pump top gland seal. The anti-corrosive,
hardened plunger and the cartridge seals
packing arrangements are designed for low
friction, to minimize wear and to maximize
tightness and seals life.
High quality materials. Aluminium die-cast
pneumatic air motor with hard anodized
aluminium cylinder; light weight drive piston
and plunger with rubber-PTFE or polyurethane
seals; cast outlet body, thick-wall polished
tube, high tensile steel on rod; barrel, piston
and prime valve made of special hardened,
precision fitted, ground steel for perfect seal
and long life of grease pumps.
Pump inlet valve. Samoa offers a chopcheck priming valve that assists the entry of
heavy and sticky high viscosity grease into the
pump and improves pump efficiency. PM4525:1 ratio pump is double ball valve design
pump for the transfer of grease up to NLGI-1.
PM60 - 80 MA (532 810)
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 39
39
22/2/17 16:04
PUMPMASTER 35 - 60:1 ratio grease PUMPS
000 610
000
530
Iquip
Heavy-Duty
modit HIGH
iriuscidunt
PRESSURE
nosPUMPS
niam ver ip
GREASE PUMPS
02
Double acting pumps with high pressure and high volume delivery for use in lubrication systems.
Pumps can be used with grease up to NLGI-2 consistency. These pumps can be used in medium
length systems that include multiple outlets.
Pumps are available for cover mount to 18 kg (35 lb), 50 kg (120 lb) and 185 kg (400 lb) open drums.
FLUIDS HANDLED
• Grease up to NLGI-2.
MARKETS SERVED
• Heavy-Duty service shops.
• Fleet service.
• Lube trucks.
• Mining and construction.
• Railroad and mass transit.
• In-plant.
Models
Part No.
Application
pump tube
height
Total
height
Weight
530 610
185 kg (400 lb) drum
925 mm
1,212 mm
11 kg
530 620
50 kg (120 lb) drum
730 mm
1,017 mm
10 kg
530 630
12.5 - 20 kg (40 lb) pails
516 mm
803 mm
9 kg
Technical data
Pump pressure ratio
60:1
Continuous duty flow rate (1)
900 g/min (2 lb/min)
Maximum free flow
2 kg/min (4.4 lb/min)
Air pressure operating range
2 to 10 bar (20 to 145 psi)
Maximum outlet pressure
600 bar (8,700 psi)
Air motor effective diameter
80 mm (3.15")
Air motor stroke
80 mm (3.15")
Air consumption (2)
450 Nl/min (15.9 scfm)
Air inlet
3/8" BSP (F)
Fluid outlet
3/8" BSP (F)
Wetted and seal materials
Cast Iron / Hard chromed steel / Steel / uhmwpe /
nbr / PTFE / Viton
Noise level (3)
80 dB
(1) Delivery at 80 cycles per minute.
(2) Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 ºC (68 ºF) and 80 cpm.
(3) Noise level measured at 1 m (3’) from the pump, 7 bar (100 psi) air pressure and free delivery.
NLGI-2, 70 ºF (21 ºC) CAPACITY CURVE
dimensions (mm)
530 610
530 620
530 630
A
1,212
1,017
803
B
C
287
35
35
925
730
287
Cycles/min
0
20
40
60
80
100
120
Air consumption
140
160
450 6525
400 5800
7b
ar
350 5075
5 ba
300 4350
35
200 2900
200
00
psi)
psi
)
3 bar
5 bar (72 psi)
3 psi)
(4
3 bar (4
3 psi)
Ø
150 2175
90
C
- (1
r (72
250 3625
516
180
7 bar - (100 psi)
A
D
287
Fluid pressure
B
model
100 1450
D
50 725
0 0
0
0
40
02_BOMBAS DE GRASA V216_UK.indd 40
24.5
600
21
500
17.5
400
14
300
10.5
200
7
100
3.5
0
bar psi
M8
4x
700
200
400
600
800
1000
1200
1400
1600
1800
2000
0.44
0.88
1.32
1.76
2.2
2.65
3.1
3.53
3.97
4.4
lb/min
0
Nl/min scfm
g/min
Outlet pressure
Air consumption
Product specifications are subject to change without prior notice
22/2/17 16:04
PUMPMASTER 35 - 60 :1 ratio grease PUMPs
534 610
02
GREASE PUMPS
pumpmaster 35 - 60:1 ratio pump kits
534 620 Pumpmaster 35 - 60:1 ratio pump kit for 50 kg drums
Includes 60:1 ratio pump for 50 kg drums 530 620 with drum cover for 50 kg drum 418 004, HD
follower plate for 50 kg drum 417 014 and hose connection kit 534 600.
534 610 Pumpmaster 35 - 60:1 ratio pump kit for 185 kg drums
Includes 60:1 ratio pump for 185 kg drums 530 610 with drum cover for 185 Kg drum 418 006,
follower plate for 185 kg drums 417 012 and hose connection kit 534 600.
PUMPMASTER 35 - 60:1 RATIO packages for 185 kg, 50 kg drums and 20 & 18 kg pails
pump and hose
reel package
for 185 kg
drums
mobile package
for 185 kg
drums
mobile package
for 50 kg drums (1)
mobile package
for 50 kg drums
Mobile package
for 20 Kg pails (2)
Portable
package for
18 Kg pails
Part No.
453 612
426 244
486 510
423 160
486 210
423 021
pump
530 610
530 610
530 620
530 620
530 630
530 630
drum cover
418 006
418 006
-
418 013
-
418 013
follower plate
417 012
417 004
-
-
-
417 001
Hose
connection kit
534 600
-
-
-
-
-
Grease gun with
Z-swivel
413 080
413 080
413 080
413 080
413 080
413 080
Delivery hose
15 m Hose reel
504 351
4 m x 3/8"
412 394
3 m x 3/8"
412 393
3 m x 1/4"
412 393
2 m x 3/8"
412 390
2 m x 3/8"
412 390
Drum trolley
-
432 000
480 050 (1)
431 000
480 021(2)
-
(1) Shielded unit. Includes base with 2 wheels and 2 castors.
(2) Shielded unit. Includes base with 4 castors.
mobile extrusion unit for 12-20 kg pails
424 062
Mobile unit specially designed for its use with hard to pump sticky and high viscosity greases (up to NLGI3).
The pump’s lower end is fixed to an inductor plate and the pump is mounted to a pneumatic
piston that elevates the pump for replacing an empty pail. The pneumatic piston also acts when
the pump is in use, pushing the inductor plate against the grease, aiding the pump prime,
making possible to pump very high viscosity grease.
The unit includes a PM35 - 60:1 pressure ratio pump and it is mounted to a rolling base with 4
wheels, two of them with brake.
424 062 Mobile extrusion unit
Includes 3 m high pressure hose and a grease control gun with Z-swivel and hydraulic nozzle.
424 063 Mobile extrusion unit
Same as model 424 062 but with no outlet hose and grease control gun.
Not included options:
239 001: 1/4" BSP (M) - 3/8" BSP (M) connection adaptor.
240 500: Air filter and pressure regulator, 1/4" BSP (FF).
360 111: Hose reel pivoting bracket.
360 127: Control gun holder and drip tray.
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 41
417
417
417
417
411
001: Follower plate 298 - 260 mm. For 12.5 kg and 18 Kg pails.
002: Follower plate 370 - 330 mm. For 50 kg standard diameter drums.
003: Follower plate 405 - 360 mm. For 50 kg large diameter drums.
005: Follower pate 340 - 300 mm. For 20 Kg pail.
100: In line grease meter for grease control gun.
41
22/2/17 16:04
pumpmaster 35 accessories
418 004 - 417 003
GREASE PUMPS
02
drum covers and follower plates
Drum covers. Very solid construction. With 2" BSP (F) bung opening.
Part No.
Drum type
Drum external diameter
(min. - max.)
418 013
12,5 to 18 kg pails
265 - 310 mm
418 002
20 kg pails
285 - 330 mm
418 016
50 kg drums
350 - 395 mm
418 004
50 kg drums
360 - 405 mm
418 006
185 kg drums
565 - 610 mm
Follower plates eliminate air pockets and aid pump prime. Rubber flange minimizes waste. With
handle for removing from empty drums.
430 000 - 431 000 - 432 814 - 432 000
Part No.
Drum type
Drum external diameter
(min. - max.)
417 006
12,5 kg pails
190 - 260 mm
417 001
12,5 to 18 kg pails
260 - 298 mm
417 005
20 kg pails
300 - 340 mm
417 002
50 kg drums
330 - 370 mm
417 003
50 kg drums
360 - 405 mm
417 004
185 kg drums
550 - 590 mm
drum trolleys
430 000 Trolley for 20 kg pails
Two wheel trolley with tubular frame for 20 and 50 kg drums.
431 000 Trolley for 50 and 20 kg drums
Four wheel trolley with tubular frame.
431 001 Trolley for 50 and 20 kg drums
Two wheel and two front rubber pads trolley with tubular frame.
480 050 Mobile protective drum cabinet, 50 kg
480 021 Mobile protective drum cabinet, 20 kg
432 000 Trolley for 185 kg drum
Two solid rubber wheels and one swivelling rubber wheel with brake. A hose reel and a pump can
be, mounted using optional bracket.
360 134 Pump bracket
For mounting a short pump to trolley 432 000.
360 135 Hose reel bracket
For mounting a hose reel to trolley 432 000.
432 814 Heavy Duty trolley for 185 kg drum
Two 260 mm front tires and one swivelling solid rubber wheel with brake. A hose reel can be,
mounted using optional bracket.
360 113 Hose reel bracket
For mounting a hose reel to trolley 432 814.
42
02_BOMBAS DE GRASA V216_UK.indd 42
Product specifications are subject to change without prior notice
22/2/17 16:04
PUMPMASTER 45 - 25:1 ratio grease PUMP
531 210
02
GREASE PUMPS
Heavy-Duty PRESSURE TRANSFER PUMP
Moderate pressure, high delivery double acting pumps for transfer of grease up to NLGI-2. Also
recommended for use with low viscosity grease in centralized grease systems that do not require
a very high pressure output and in large distribution systems of high viscosity oils.
Pumps are available with tube length to fit commercial 185 kg - 400 lb drums and they are
available for cover mount to 185 kg - 400 lb open drums using a drum cover 418 017.
FLUIDS HANDLED
• Grease up to NLGI-2
• High viscosity oil.
MARKETS SERVED
• Lube trucks.
• Mining and construction.
• In-plant.
Models
Part No.
Application
pump tube
height
Total
height
Weight
531 210
185 kg (400 lb) drum
855 mm
1,357 mm
24 kg
Technical data
Pump pressure ratio
25:1
Continuous duty flow rate
6 kg/min (13.2 lb/min)
Maximum free flow
16 kg/min (35.3 lb/min)
Air pressure operating range
1.5 - 14 bar (20 - 200 psi)
Maximum outlet pressure
350 bar (5,000 psi)
Air motor effective diameter
115 mm (4.5")
Air motor stroke
100 mm (4")
Air consumption (1)
1,340 Nl/min (47 cfm)
Air inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted and seals materials
Cast Iron / Steel / Hard chromed steel / UHMWPE /
NBR
Noise level (2)
80 dB
(1) Air consumption at 5 bar air pressure, NLGI-0 grease at 20 ºC and 80 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
dimensions (mm)
NLGI-0, 21 ºC (70 ºF) CAPACITY
Fluid pressure
Cycles/min
27
54
81
108
135
Air consumption
162
189
MODEL
531 210
A
1.357
B
502
216
b
0
2900
2610
2320
2030
1740
1450
1160
870
580
290
0
2500 88
ar
5b
00
ar (
72
3 ba
r (43
2000 71
i)
5 bar (72 ps
psi
)
psi)
1500 52
3 bar (43 psi)
1000 35
psi)
C
50
D
855
500 17
0 0
bar psi
0
0
kg /min
2
4.4
lb/min
Nl/min scfm
4
8.8
6
13.2
8
17.6
10
22
02_BOMBAS DE GRASA V216_UK.indd 43
14
30.9
16
35.9
c
4x
10
M
12
Product specifications are subject to change without prior notice
12
26.5
Ø1
Outlet pressure
Air consumption
7 bar - (100 psi)
- (1
D
7b
a
200
180
160
140
120
100
80
60
40
20
0
43
22/2/17 16:04
PUMPMASTER 45 - 40:1 ratio grease PUMPS
531 410
Heavy-Duty HIGH FLOW PUMPS
GREASE PUMPS
02
High flow double acting pumps with high pressure delivery for use in lubrication systems that
require a combination of high flow and pressure delivery. Pumps can be used with grease up to
NLGI-2 viscosity. These pumps can be used in medium length systems that include simultaneous
operation outlets.
Pumps are available for cover mount to 50 kg - 120 lb and 185 kg - 400 lb open drums and for
horizontal and side mount on grease totes and bags.
MARKETS SERVED
• Heavy-Duty service shops.
• Fleets.
• Mining and construction.
• Railroad and mass transit.
• In-plant.
• Marine.
FLUIDS HANDLED
• Grease up to NLGI-2.
Models
Part No.
Application
pump tube
height
Total
height
Weight
531 410
185 kg (400 lb) drum
855 mm
1,357 mm
25 kg
531 420
50 kg (120 lb) drum
650 mm
1,152 mm
22 kg
531 430*
Bulk tote
490 mm
992 mm
26 kg
* Includes adaptor 753 110 to fit a 3" cam-lock connector for use in totes and grease bags.
Technical data
Pump pressure ratio
40:1
Continuous duty flow rate
3.5 kg/min (7.5 lb/min)
Maximum free flow
11 kg/min (24.3 lb/min)
Air pressure operating range
1.5 - 14 bar (20 - 200 psi)
Maximum outlet pressure
560 bar (8,000 psi)
Air motor effective diameter
115 mm (4.5")
Air motor stroke
100 mm (4")
Air consumption (1)
750 Nl/min (26.5 cfm)
Air inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted and seals materials
Cast Iron / Steel / Hard chromed steel / UHMW PE /
NBR / PTFE
Noise level (2)
80 dB
(1) Air consumption at 5 bar air pressure, NLGI-2 grease at 20 ºC and 80 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
NLGI-2, 21 ºC (70 ºF) CAPACITY
dimensions (mm)
531 420
531 430*
A
1,357
1,152
992
B
502
502
502
C
50
50
50
D
855
650
490
-
-
410
E
300
275
250
225
200
175
150
125
100
75
50
25
0
4351
3988
3625
3263
2900
2538
2175
1812
1450
1087
725
362
0
bar psi
C
44
02_BOMBAS DE GRASA V216_UK.indd 44
2
4
1
Ø1
10
xM
Cycles/min
0
D
E
Fluid pressure
A
531 410
B
MODEL
45
90
135
Air consumption
180
225
7 bar - (100 psi)
7 ba
r-(
100
5 ba
r (72
3 bar
0
0
5 bar (72 psi)
psi)
3 bar (43 psi)
psi)
(43 p
si)
kg/min
lb/min
2000
1800
1600
1400
1200
1000
800
600
400
200
0
70
63
56
50
42
35
28
21
14
7
0
Nl/min scfm
2
4
6
8
10
4.4
8.8
13.2
17.6
22
Outlet pressure
Air consumption
Product specifications are subject to change without prior notice
22/2/17 16:04
PUMPMASTER 45 - 70:1 ratio grease PUMPS
531 710
High pressure double acting pump for use in applications that require extra pressure output or
when cold temperatures a low air pressure could limit pump performance. Pumps can be used
with grease up to NLGI-2 viscosity. These pumps can be used in large distribution systems that
include simultaneous operation outlets.
Pumps are available for cover mount to 50 kg - 120 lb and 185 kg - 400 lb open drum and for
horizontal and side mount on grease totes and bags.
FLUIDS HANDLED
• Grease up to NLGI-2.
02
GREASE PUMPS
Heavy-Duty HIGH PRESSURE PUMPS
MARKETS SERVED
• Heavy-Duty service shops.
• Fleets.
• Lube trucks.
• Mining and construction.
• Rail road and mass transit.
• In-plant.
• Marine.
Models
Part No.
Application
pump tube
height
Total
height
Weight
531 710
185 kg (400 lb) drum
855 mm
1,357 mm
25 kg
531 720
50 kg (120 lb) drum
650 mm
1,152 mm
22 kg
531 730*
Bulk tote
490 mm
992 mm
21 kg
* Includes adaptor 753 110 to fit a 3" cam-lock connector for use in totes and grease bags.
Technical data
Pump pressure ratio
70:1
Continuous duty flow rate
2 kg/min (4.5 lb/min)
Maximum free flow
7.5 kg/min (16.5 lb/min)
Air pressure operating range
1.5 - 7 bar (20 - 100 psi)
Maximum outlet pressure
490 bar (7,000 psi)
Air motor effective diameter
115 mm (4.5")
Air motor stroke
100 mm (4")
Air consumption (1)
925 Nl/min (32.6 cfm)
Air inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted and seals materials
Cast Iron / Steel / Hard chromed steel / UHMW PE / NBR / PTFE
Noise level (2)
80 dB
(1) Air consumption at 5 bar air pressure, NLGI-2 grease at 20 ºC and and 80 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
NLGI-2, 21 ºC (70 ºF) CAPACITY
Fluid pressure
bar psi
76
114
152
190
228
266
2500 88
7 bar - (100 psi)
2000 70
ar -
5 ba
(10
r (7
5 bar (72 psi)
0p
2 ps
ar (
i)
1000 35
3 bar (43 psi)
psi)
500 17
MODEL
531 710
531 720
531 730*
A
1,357
1,152
992
B
502
502
502
C
50
50
50
D
855
650
490
E
-
-
410
E
43
1500 53
si)
A
7b
3b
B
7251
6526
5801
5076
4351
3626
2900
2175
1450
725
0
38
Air consumption
D
500
450
400
350
300
250
200
150
100
50
0
0
dimensions (mm)
Cycles/min
0
0
kg /min
0 0
Nl/min scfm
1
2
3
4
5
6
7
2.2
4.4
6.6
8.8
11
13.2
15.4
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 45
4x
M
10
12
Outlet pressure
Air consumption
C
Ø1
lb/min
45
22/2/17 16:04
PUMPMASTER 60 - 12:1 ratio grease PUMP
532 130
Heavy-Duty VOLUME TRANSFER PUMP
GREASE PUMPS
02
Moderate pressure, very high volume double acting grease pump for use in transfer applications.
These pumps can be used with all type of grease up to NLGI-2.
Pumps are available for horizontal mounting on grease totes and grease bags and they include
an adaptor to fit a 3" Cam-Lock coupler. They can be used with 185 kg - 400 lb drums when
mounted to air pneumatic inductor (see "Grease pump kits" section in this chapter.)
MARKETS SERVED
• Mining and construction.
• In-plant grease transfer.
• Rail road and mass transit.
FLUIDS HANDLED
• Grease up to NLGI-2.
Models
Part No.
Application
pump tube
height
Total
height
Weight
532 130*
Bulk tote
226 mm
742 mm
19 kg
* Includes adaptor 753 110 to fit a 3" cam-lock connector for use in totes and grease bags.
Technical data
12:1
Pump pressure ratio
Continuous duty flow rate
15 kg/min (33 lb/min)
Maximum free flow
40 kg/min (88 lb/min)
Air pressure operating range
1.5 - 7 bar (20 - 100 psi)
Maximum outlet pressure
84 bar (1,200 psi)
Air motor effective diameter
150 mm (6")
Air motor stroke
100 mm (4")
Air consumption (1)
1,100 Nl/min (39 cfm)
Air inlet
1/2" BSP (F)
Fluid outlet
1" BSP (F)
Wetted and seals materials
Cast Iron / Steel / Hard chromed steel / UHMWPE /
NBR / PTFE / Polyurethane
Noise level (2)
80 dB
(1) Air consumption at 5 bar air pressure, NLGI-2 grease at 20 ºC and 60 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
NLGI-2, 21 ºC (70 ºF) CAPACITY
dimensions (mm)
532 130
A
742
Fluid pressure
A
516
70
D
226
E
146
40
60
80
100
120
Air consumption
140
160
180
ar
70 1015
5b
- (1
00
ar (
50 725
72
40 580
3 ba
30 435
C
2500
88
2000
70
1500
53
1000
35
500
17
7 bar - (100 psi)
7b
60 870
E
C
20
90 1305
80 1160
D
B
Cycles/min
0
B
MODEL
r (43
20 290
psi
)
5 bar (72 psi)
psi)
3 bar (43 psi)
psi)
10 145
0 0
bar psi
02_BOMBAS DE GRASA V216_UK.indd 46
2
46
1
Ø1
10
M
4x
0
0
kg /min
0
5
10
15
20
25
30
35
40
45
11
22
33
44
55
66
77
88
99
lb/min
0
Nl/min scfm
Outlet pressure
Air consumption
Product specifications are subject to change without prior notice
22/2/17 16:04
PUMPMASTER 60 - 80:1 ratio grease PUMPS
532 810
Very high pressure and high volume delivery double acting pump for use in applications that
require extra pressure and volume output and where cold temperatures or low air pressure could
limit pump performance. Pumps can be used with grease up to NLGI-2 viscosity. These pumps
can be used in large distribution systems that include simultaneous operation outlets.
Pumps are available for cover mount to 50 kg -120 lb and 185 kg - 400 lb open drum and for
side mount on grease totes.
FLUIDS HANDLED
• Grease up to NLGI-2.
02
GREASE PUMPS
Heavy-Duty high performance pumps
MARKETS SERVED
• Mining and construction.
• In-plant.
• Railroad and mass transit.
• Lube trucks.
• Fleets.
Models
Part No.
Application
pump tube
height
Total
height
Weight
532 810
185 kg (400 lb) drum
855 mm
1,371 mm
27 kg
532 820
50 kg (120 lb) drum
650 mm
1,166 mm
24 kg
Technical data
Pump pressure ratio
80:1
Continuous duty flow rate
2.5 kg/min (5.5 lb/min)
Maximum free flow
8 kg/min (17.6 lb/min)
Air pressure operating range
1.5 - 7 bar (20 - 100 psi)
Maximum outlet pressure
560 bar (8,000 psi)
Air motor effective diameter
150 mm (6")
Air motor stroke
100 mm (4")
Air consumption (1)
1,000 Nl/min (35 cfm)
Air inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted and seals materials
Cast Iron / Steel / Hard chromed steel / UHMW PE /
NBR / PTFE
Noise level (2)
80 dB
(1) Air consumption at 5 bar air pressure, NLGI-2 grease at 20 ºC and 60 cpm.
(2) Noise level measured at 1 m from the pump, 7 bar air pressure and free delivery.
NLGI-2, 21 ºC (70 ºF) CAPACITY
Cycles/min
500
7251
400
5801
300
4351
200
2900
100
1450
25
7
0
r-
ar
3b
75
100
125
150
175
200
(1
00
(72
ar (
43
5 bar (72 psi)
ps
i)
3 bar (43 psi)
psi
0
0
kg/min
lb/min
532 810
532 820
A
1,371
1,166
70
B
516
516
1500
52
C
50
50
1000
35
D
855
650
500
17
2500
88
2000
)
psi)
0
bar psi
MODEL
225
7 bar - (100 psi)
ba
5b
50
D
8702
a
0
600
dimensions (mm)
Air consumption
b
Fluid pressure
0
2
3
4
5
6
7
8
9
2.2
4.4
6.6
8.8
11
13.2
15.4
17.6
19.9
02_BOMBAS DE GRASA V216_UK.indd 47
4x
10
M
2
Product specifications are subject to change without prior notice
c
1
Ø1
Outlet pressure
Air consumption
0
Nl/min scfm
1
47
22/2/17 16:04
PumpMaster 45 & 60 installation kits
534 710
pumpmaster 45 installation kits
GREASE PUMPS
02
PM45 pump kits for 50 kg and 185 kg drums, totes and grease bins.
KIT
PART No.
50 kg drum
mounted
pump kit
185 kg drum
mounted
pump kit
tank side
mounted
pump kit
tank
horizontal
mounted
pump kit
PUMP
RATIO
COVER
follower
PLATE
CONNECTION
KIT
CAMLOCK
FEMALE
CAMLOCK
MALE
534 420
531 420
40:1
418 017
(1)
534 103
-
-
534 720
531 720
70:1
418 017
(1)
534 103
-
-
534 410
531 410
40:1
418 026
417 009
534 103
-
-
534 710
531 710
70:1
418 026
417 009
534 103
-
-
534 210
531 210
25:1
418 026
417 009
534 103
-
-
534 240
531 210
25:1
-
-
534 103
950 358
753 110
534 440
531 410
40:1
-
-
534 103
950 358
753 110
534 740
531 710
70:1
-
-
534 103
950 358
753 110
534 441
531 430
40:1
-
-
534 103
950 358
(2)
534 741
531 730
70:1
-
-
534 103
950 358
(2)
(1) Use follower plate 417 010 or 417 011 as required. Follower plate not included.
(2) Included with pump.
SAMOA recommends using an air filter and pressure regulator at the pump air inlet and a high pressure needle valve
between the grease delivery hose and the grease distribution line.
534 141
pumpmaster 60 installation kits
PM60 pump kits for 50 kg and 185 kg drums, totes and grease bins.
KIT
PART No.
PUMP
RATIO
COVER
follower
PLATE
CONNECTION
KIT
CAMLOCK
FEMALE
CAMLOCK
MALE
50 kg drum
mounted
pump kit
534 820
532 820
80:1
418 017
(1)
534 103
-
-
185 kg
drum
mounted
pump kit
534 810
532 810
80:1
418 026
417 009
534 103
-
-
tank side
mounted
pump kit
534 840
532 810
80:1
-
-
534 103
950 358
753 110
tank
horizontal
mounted
pump kit
534 141
532 130
12:1
-
-
539 009
950 358
(2)
(1) Use follower plate 417 010 or 417 011 as required. Follower plate not included.
(2) Included with pump.
SAMOA recommends using an air filter and pressure regulator at the pump air inlet and a high pressure needle
valve between the grease delivery hose and the grease distribution line.
391 022
PUMP HOIST
391 022 Pump Hoist
Maximum utility air operated hoist lifts and
lowers pumps, making drum changes easier,
faster and safer. Hoist arm adjusts to fit
different pump heights and swings a full 360º,
serving one or more pumps. It can be used
with 185 kg - 400 lb and 50 kg - 120 lb drums.
Maximum height raised: 2.630 mm.
Minimum height lowered: 1.630 mm.
drum
mounted
pump
48
02_BOMBAS DE GRASA V216_UK.indd 48
tank side
mount
pump
tank
horizontal
mount pump
Product specifications are subject to change without prior notice
22/2/17 16:04
PUMPMASTER 45 and 60 GREASE PUMP KITS
534 721
02
GREASE PUMPS
Pump systems with pneumatic inductor for 185 kg drums
PumpMaster 45 and PumpMaster 60 grease pumps mounted onto an air operated
inductor plate for use with high viscosity, hard to pump greases directly from 185 kg drum.
When the double lip inductor plate is attached to the lower end of the pump tube, it exerts
pneumatic, weight and atmospheric pressure on the material forcing pump priming. The
inductor plate also serves as protection against contaminants and eliminates material waste.
The inductor system includes guide rods, drum retaining mechanism and a control box with
the following features:
• On/ Off control of the pump.
• Up / Down control of the ram for easy drum exchange.
• Two independent air pressure regulators, one for the pump and the other for the power
ram cylinders.
• Pump / Ram independent air pressure gauge.
• Empty drum shut-off safety feature.
• Automatic Vacuum release.
534 421, PM45 - 40:1 pump system with air operated double post inductor
for 185 kg drums
Includes pump 531 420.
534 721, PM45 - 70:1 pump system with air operated double post inductor
for 185 kg drums
Includes pump 531 720.
534 121, PM60 - 12:1 pump system with air operated double post inductor
for 185 kg drums
Includes pump 532 130.
534 821, PM60 - 80:1 pump system with air operated double post inductor
for 185 kg drums
Includes pump 532 820.
830
1,156
LOWERED 1,320 / RAISED 2,230
Dimensions in mm
620
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 49
355
455
980
830
771
720
600
554
104
49
22/2/17 16:04
PUMPMASTER 35, 45 and 60 GREASE PUMP KITS
Pump systems with pneumatic pump hoist and gravity inductor for 50
and 185 kg drums
534 611 - 534 811
GREASE PUMPS
02
PUMPMASTER 35, 45 and 60 grease pumps mounted onto a gravity fed follower plate and an air
operated pump hoist for use with 185 kg drums.
The air operated pump hoist lifts and lowers the pump, making drums changes easier, faster
and safer. The pump lower end is rigidly fixed to a follower plate with a single rubber lip. The
weight of the pump, pump bracket and follower plate plus the atmospheric pressure push the
assembly against the fluid eliminating channelling and air pocket, keeping lubricant free from
contaminants, minimizing waste and aiding pump priming.
534 611, PM35 - 60:1 pump system with pump hoist and gravity follower plate
for 185 kg drums
Includes pump 530 610 and hose connection kit Part No. 534 612.
534 621, PM35 - 60:1 pump system with pump hoist and gravity follower plate
for 50 kg drums
Includes pump 530 620 and hose connection kit Part No. 534 622.
534 411, PM45 - 40:1 pump system with pump hoist and gravity follower plate
for 185 kg drums
Includes pump 531 410 and hose connection kit Part No. 534 414.
534 422, PM45 - 40:1 pump system with pump hoist and gravity follower plate
for 50 kg drums
Includes pump 531 420 and hose connection kit Part No. 534 423.
534 711, PM45 - 70:1 pump system with pump hoist and gravity follower plate
for 185 kg drums
Includes pump 531 710 and hose connection kit Part No. 534 414.
534 722, PM45 - 70:1 pump system with pump hoist and gravity follower plate
for 50 kg drums
Includes pump 531 720 and hose connection kit Part No. 534 423.
534 811, PM60 - 80:1 pump system with pump hoist and gravity follower plate
for 185 kg drums
Includes pump 532 810 and hose connection kit Part No. 534 414.
LOWERED 870
RAISED 1,800
LOWERED 1,470 / RAISED 2,400
534 822, PM60 - 80:1 pump system with pump hoist and gravity follower plate
for 50 kg drums
Includes pump 532 820 and hose connection kit Part No. 534 423.
Ø 381
910.5
617
Ø 588
50
02_BOMBAS DE GRASA V216_UK.indd 50
No inductor.
Air pockets and
channels can be
formed.
With inductor plate.
Pump is permanently
primed.
Inductor plates
aid to minimize
waste left in the
drum.
Dimensions in mm
Product specifications are subject to change without prior notice
22/2/17 16:04
GREASE PUMP ACCESSORIES
417 009 - 417 010
02
741 604
GREASE PUMPS
418 026 - 418 017
Pump, follower plate, drum cover and
drum are not included.
HD DRUM COVERS
hD FOLLOWER PLATES
For PumpMaster 35, 45 and 60 pumps
Covers are made from heavy steel gauge to
withstand hard usage. Cover flange provides
rigidity and maintains solid position on drum.
Grease pump mounts in centre of cover with
four screws.
Part No.
Application
Max. - min.
drum diameter
418 026*
185 kg - 400 lb
620 - 580 mm
418 017*
50 kg - 120 lb
395 - 350 mm
*Drum cover adaptor required for PM35 pump. Part No. 360 133.
AIR AND GREASE CONNECTION KITS
For PumpMaster 35, 45 and 60 pumps
Follower plates eliminate channelling
and air pockets, keep lubricant free from
contaminants, remove all grease from the
drum and aid pump prime.
Part No.
Application
Max. - min.
drum Ø
417 009
185 kg (PM45&60)
590 - 550 mm
417 010
50 kg (PM45&60)
405 - 360 mm
417 011
50 kg (PM45&60)
370 - 330 mm
417 012
185 kg PM35
590 - 550 mm
417 013
50 kg PM35
405 - 360 mm
417 014
50 kg PM35
370 - 330 mm
HOLD DOWN KITS
Allow to fix a 185 kg or a 50 kg drum to a
lube truck bed when used together with drum
covers 418 026 and 418 017.
741 604 Hold down kit
for 185 kg - 400 lb drums
For use with drum cover 418 026.
741 605 Hold down kit
for 50 kg - 129 lb drums
For use with drum cover 418 017.
FOR PM35 PUMPS
Includes 1 m x 3/8" air hose (PN 247 710) with 3/8" - 1/2" BSP (MM) connection threads, quick air coupler 251 438,
air nipple 255 338, 1.5 m x 3/8" high pressure grease hose (412 392) with 3/8"-1/2" BSP (MM) connection threads
534 600
FOR PM45 AND PM60 PUMPS(1)
Includes 1.8 m x 1/2" air hose (248 018) with 1/2" BSP (MM) connection threads, elbow 239 352, quick air
coupler 251 412, air nipple 255 312, 1.8 m x 1/2" high pressure grease hose (412 202) with 1/2" BSP (MM)
connection threads and swivel elbow (945 736) with 1/2" BSP (MF) threads
534 103
(1) Hook up kits are valid for all PM45 and PM60 grease pumps except PM60 12:1 pressure ratio pump.
AIR ACCESSORIES
AIR ACCESSORIES
1/4" Connection
threads
1/4" BSP (FF)
753 110 - 950 358
1/2" Connection
threads 1/2" BSP (FF)
with one
1/2" BSP (M)
3/8" BSP (F) adaptor
3/4" Connection
threads 3/4" BSP (FF)
Air pressure
regulator 0-12 bar
240 200
241 201
242 202
Combined air
filter and pressure
regulator
240 500
241 501
242 302
(Filter only)
Air lubricator
240 400
241 401
242 402
240 200
241 501
LOW AND MEDIUM pressure valves
242 202
air line shutoff valves
950 305
1/4" BSP (FF), 65 bar quarter turn valve
950 318
Air valve, 3/8" BSP (FF)
950 320
3/8" BSP (FF), 65 bar quarter turn valve
950 319
Air valve, 1/2" BSP (FF)
950 300
1/2" BSP (FF), 65 bar quarter turn valve
CAM-LOCK ADAPTORS
Allow to fix a pump horizontally or vertically
to grease bags, totes and other type of
containers.
753 110 Male Cam-Lock adaptor
Fixes to the bottom end of the grease pump
body. Fits any standard 3" female Cam-Lock
connector.
950 358 Female Cam-Lock connector
Connection thread 3" BSP (F).
DRUM COVER ADAPTOR
HIGH pressure valves
950 304
1/2" BSP (FF), 500 bar quarter turn valve
950 328
3/4" BSP (FF), 400 bar quarter turn valve
950 329
1" BSP (FF), 350 bar quarter turn valve
Product specifications are subject to change without prior notice
02_BOMBAS DE GRASA V216_UK.indd 51
950 304
360 133 Drum Cover adaptor
Allows to mount a bung fixed PM35 pump to
a flange mount covers 418 026 and 418 017.
51
22/2/17 16:04
GREASE PUMP ACCESSORIES
412 103
GREASE HOSES
GREASE PUMPS
02
Manufactured in NBR with a high density steel reinforcement braid. With two swaged nuts and
male-male adaptors on both ends.
412 101, 1 m x 1/4". Working pressure: 400 bar. Connection threads: 1/4" BSP (MM).
412 190, 1.5 m x 1/4". Working pressure: 400 bar. Connection threads: 1/4" BSP (MM).
412 102, 2 m x 1/4". Working pressure: 400 bar. Connection threads: 1/4" BSP (MM).
412 103, 3 m x 1/4". Working pressure: 400 bar. Connection threads: 1/4" BSP (MM).
412 104, 4 m x 1/4". Working pressure: 400 bar. Connection threads: 1/4" BSP (MM).
412
412
412
412
412
391, 1.5 m x 3/8". Working pressure: 330 bar. Connection threads: 1/4" - 3/8" BSP (MM).
392, 1.5 m x 3/8". Working pressure: 330 bar. Connection threads: 3/8" BSP (MM).
390, 2 m x 3/8”. Working pressure: 330 bar. Connection threads: 1/4” - 3/8” BSP (MM).
393, 3 m x 3/8". Working pressure: 330 bar. Connection threads: 1/4" - 3/8" BSP (MM).
394, 4 m x 3/8". Working pressure: 330 bar. Connection threads: 1/4" - 3/8" BSP (MM).
412 202, 1.8 m x 1/2". Working pressure: 275 bar. Connection threads: 1/2" BSP (MM).
412 203, 3 m x 1/2". Working pressure: 275 bar. Connection threads: 1/2" BSP (MM).
gREASE PUMP MOUNTING ACCESSORIES QUICK REFERENCE CHART
PUMP
PUMPMASTER 3
PUMPMASTER 35
RATIO
55:1
60:1
25:1
40:1
70:1
12:1
80:1
BUNG ADAPTOR
410 000
609 106
(2)
(2)
(2)
(2)
(2)
CONNECTION
HOSE KIT
412 910
534 600
534 103
534 103
534 103
539 009
534 103
DRUM COVER
185 kg
418 006
418 006
418 026
418 026
418 026
N/A
418 026
DRUM COVER
50 kg
418 004
418 004
N/A
418 017
418 017
N/A
418 017
Hd FOLLOWER
PLATE 185 kg
417 004
417 012
417 009
417 009
417 009
N/A
417 009
Hd FOLLOWER
PLATE 50 kg
417 002
417 014
N/A
417 011
417 011
N/A
417 011
Cam-lock
ADAPTOR
N/A
N/A
N/A
753 110(3)
753 110(3)
753 110(3)
753 110(4)
CAM-LOCK
CONNECTOR
N/A
N/A
N/A
950 358
950 358
950 358
N/A
AIR REGULATOR
WITH GAUGE
240 200
241 201
241 201
241 201
241 201
241 201
241 201
AIR FILTER
LUBRICATOR
240 500
241 501
241 501
241 501
241 501
241 501
241 501
FRL
240 000
241 001
241 001
241 001
241 001
241 001
241 001
AIRLINE SHUTOFF
VALVE
950 321
950 319
950 319
950 319
950 319
950 319
950 319
FLUID SHUTOFF
VALVE
950 304
950 304
950 328
950 304
950 304
950 328
950 304
AIR QUICK
COUPLER
253 114
255 338
251 412
251 412
251 412
251 412
251 412
AIR QUICK
CONNECTOR
259 014
251 438
255 312
255 312
255 312
255 312
255 312
1/4" - 6 mm
3/8" - 9.5 mm
1/2" - 12.5 mm
1/2" - 12.5 mm
1/2" - 12.5 mm
1/2" - 12.5 mm
1/2" - 12.5 mm
AIR CONNECTION
ACCESSORIES I.D.
PUMPMASTER 45
PUMPMASTER 60(1)
(1) PM60, 12:1 pump is only available for horizontal mount on tanks, totes and grease bags.
(2) Flange mounted pumps. No bung adaptor for fixing a pump to a cover.
(3) Included in short pumps for horizontal mount on tanks, totes and grease bags. Required for vertical mount on grease tanks (long pumps).
(4) For vertical mount on grease tanks only (long pumps).
52
02_BOMBAS DE GRASA V216_UK.indd 52
Product specifications are subject to change without prior notice
22/2/17 16:04
MOBILE GREASE UNITS
WITH PUMPMASTER 3+3 PUMPS - 20 AND 50 KG.
000 service
000
OPERATED PUMPs FOR other
FLUIDS
innovative central flow technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
directflo® pump range comparative chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air operated diaphragm pumps plastic pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air operated diaphragm pumps metal pumps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
four-way evacuation valve and air operated diaphragm pumps - MIX PUMPS . . . . . . . .
air operated diaphragm pump kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
diaphragm pumps accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
air operated piston pumps for fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product specifications are subject to change without prior notice
03_BOMBAS DIAFRAGMA V216_UK.indd 53
54
55
56
57
58
59
61
62
03
OTHER FLUIDS
PUMPS
Iquip modit iriuscidunt nos niam
03ver ipAIR
53
1/3/17 15:58
innovative central flow technology
Directflo® pumps are inside out pumps, the fluid is pumped through the centre of the pump
and compressed air acts on the outside face of the diaphragms.
OTHER FLUIDS
PUMPS
03
Central flow technology
Important innovations were necessary to realise the central flow concept and, whilst developing
Directflo®, further inventions were made that built on the central flow concept. A few highlights
are described below.
better by design
•
•
•
•
•
Quick and simple maintenance
Reduced air consumption
Compact design
Smooth running
Superior all-round pumping
performance
• Simple, reliable & durable
• Robust
FLUIDS HANDLED
• Oils
• Antifreeze, coolant
• Windshield wash
• Hydraulic fluids
• Brake fluid
• Diesel
• AdBlue®/DEF
• Water
• Waste oil
• Waste antifreeze
54
03_BOMBAS DIAFRAGMA V216_UK.indd 54
Product specifications are subject to change without prior notice
1/3/17 15:58
Directflo® PUMP range
COMPARATIVE CHART
• AdBlue®/DEF.
• Water.
• Waste oil.
• Waste antifreeze.
MARKETS SERVED
• Car and truck dealers.
• Construction, mining.
• Rail way and mass transit.
• Lube trucks.
• Fleets.
03
• In-plant.
• Quick lubes.
OTHER FLUIDS
PUMPS
FLUIDS HANDLED
• Oils.
• Antifreeze, coolant.
• Windshield wash.
• Hydraulic fluids.
• Diesel.
PLASTIC PUMPS
Directflo® SERIES
dc20
DF30
DF50
DF100
DP200
pump pressure ratio
1:1
1:1
1:1
1:1
1:1
maximum free delivery(1)
20 l/min
38 l/min
50 l/min
100 l/min
200 l/min
delivery per stroke approx.(1)
0.03 litres
0.07 litres
0.1 litres
0.25 l
0.50 l
delivery per cycle (2 x strokeS)
0.06 litres
0.14 litres
0.20 litres
0.50 l
1l
air pressure operating range
1.5 to 7 bar
1.5 to 8 bar
1.5 to 8 bar
1.5 to 8 bar
1.5 to 8 bar
solids in suspension maxIMUM size
2 mm
3 mm
3 mm
4 mm
6 mm
maxIMUM dry suction head
(1)
2m
4m
6m
4.5 m
5m
maxIMUM wet suction head(1)
7m
8m
8m
7m
8m
weight
1.2 kg
1.9 kg
2.2 kg
5.1 kg
fluid inlet CONNECTION
1/4" BSPP (F)
DF30: 1/2" BSP (F)
DF50: 1/2" BSP (F)
DF30T: 2 x 3/8" BSP (F) DF50T: 2 x 3/8" BSP (F) 1" BSP (F)
DIN DN 25 and
1" ANSI flange
fluid outlet CONNECTION
Int.: 1/4" BSPP (F)
Ext.: 3/4" NPT (M)
1/2" BSP (F)
1/2" BSP (F)
1" BSP (F)
DIN DN 25 and
1" ANSI flange
air inlet CONNECTION
3/8" NPSM (F)
3/8" NPSM (F)
3/8" NPSM (F)
3/8" NPSM (F)
3/8" NPSM (F)
(1)
10.5 kg
(1) Data measured with water, air inlet pressure 7 bar (100 psi), 20 ºC (68 ºF).
METAL PUMPS
Directflo® SERIES
pump Pressure ratio
Maximum free delivery(1)
Delivery per stroke approx.
(1)
Delivery per cycle (2 x strokeS)(1)
DF50
DF100
DP200
DF250
1:1
1:1
1:1
1:1
50 l/min
100 l/min
200 l/min
250 l/min
0.1 litres
0.25 l
0.50 l
0.6 l
0.2 litres
0.5 l
1l
1.2 l
Air pressure operating range
1.5 to 8 bar
1.5 to 8 bar
1.5 to 8 bar
1.5 to 8 bar
Solids in suspension maxIMUM size
3 mm
4 mm
6 mm
6 mm
maxIMUM dry suction head(1)
6m
4.5 m
5m
5m
maxIMUM wet suction head(1)
8m
7m
8m
8m
Weight
3.5 kg
7.2 kg
11.5 kg
20 kg
Fluid inlet CONNECTION
1/2" NPSM (F)
1" BSP (F)
1" BSPP (F)
1 1/2" BSP (F) and DIN
PN-10 flange
Fluid outlet CONNECTION
1/2" BSP (F)
1" BSP (F)
1" BSPP (F)
1 1/2" BSP (F) and DIN
PN-10 flange
Air inlet CONNECTION
3/8" NPSM (F)
3/8" NPSM (F)
3/8" NPSM (F)
1/2" NPSM (F)
(1) Data measured with water. air inlet pressure 7 bar (100 psi), 20 ºC (68 ºF).
Product specifications are subject to change without prior notice
03_BOMBAS DIAFRAGMA V216_UK.indd 55
55
1/3/17 15:58
air operated diaphragm pumps - plastic pumps
000 000
Iquip
air
operated
modit iriuscidunt
diapHragmnos
Plastic
niam PUMPS
ver ip
Plastic pumps are adequate for indoor use and they can handle a wide range of fluids used
for vehicle service. Pump air valve module and lateral pump covers are manufactured in
polypropylene or conductive polypropylene depending on models.
03
Typical applications are transfering and dispensing of windshield wash and antifreeze solutions, pure
windshield wash and AdBlue®/DEF. They can be used as stand-alone pumps for transfer applications or
as systems pumps in distribution systems that include hose reels. ATEX approved pumps are available
for use in potential explosive environments and with flammable fluids like pure ethanol.
OTHER FLUIDS
PUMPS
Central flow technology
Pump Size
Part Number
Pump body
Diaphragms
Balls
Other wetted parts
Applications
DC20
(20 l/min)
556 115
Polypropylene
TPE
PTFE
FKM, Stainless steel
Antifreeze and windshield wash
solutions, AdBlue®/DEF.
DF30
(38 l/min)
553 162
Conductive
Polypropylene
PTFE
PTFE
FKM, Stainless steel
ATEX pump for pure ethanol,
pure windshield wash
552 164
Polypropylene
TPE
PTFE
FKM, Stainless steel
Antifreeze and windshield wash
solutions, AdBlue®/DEF
552 162
Conductive
Polypropylene
PTFE
PTFE
FKM, Stainless steel
ATEX pump for pure ethanol,
pure windshield wash
551 164
Polypropylene
TPE
PTFE
FKM, Stainless steel
Antifreeze and windshield wash
solutions, AdBlue®/DEF
551 162
Conductive
Polypropylene
PTFE
PTFE
FKM, Stainless steel
ATEX pump for pure ethanol,
pure windshield wash
555 115
Polypropylene
TPE
PTFE
FKM, Stainless steel
Antifreeze and windshield wash
solutions, AdBlue®/DEF
DF50
(50 l/min)
DF100
(100 l/min)
DP200
(200 l/min)
553 164
8
126
43.5
2
29
1
14.5
4b
ar
2b
ar
bar
0p
i
58
3
-9
ps
4
ar
0
72.5
6b
12
5
ar
8b
r-
87
ba
100
6
8
7
6
si
-6
90
552 164
100
6
87
-3
0p
si
)
(
i *
0 ps
r-3
2 ba
43.5
2
29
1
14.5
*( )
2.64
5.28
7.93
10.57
10
20
30
40
0
l/min
8
ba
r-
6b
ar
4b
2b
ar
12
-9
0
8b
ps
i
6b
si
4
0p
si
-3
0
-9
ar
-6
0p
si
0
r-3
a
2b
*( )
0
12
ar
0p
ar
psi
si
0p
US gal/min
0
2.64
0
l/min
10
5.28
7.93
10.57
13.21
20
30
40
50
ar
8b
0
12
6
4
ba
6b
i
3
r-
90
ps
i
ar
4b
ba
r-
60
0
-6
si
90
i
ps
i
ps
ps
43.5
i
)
2
1
29
2b
ar
r-
2 ba
-3
0p
si
(
si *
30 p
*( )
14.5
56
03_BOMBAS DIAFRAGMA V216_UK.indd 56
150
5.30
100
3.53
50
1.77
126
7
100
6
87
5
US gal/min
0
0
l/min
6.60
13.21
19.81
26.41
25
50
75
100
Air consumption
6b
ar
-9
si
72.5
58
8 bar - 120
4b
ar
1
psi
0p
-6
6 bar - 90 psi
r
4 ba
0p
43.5
si
- 60
60
17.65
450
15.89
400
14.12
350
12.36
300
10.59
250
8.83
200
7.06
150
5.30
100
3.53
50
1.77
45,89
1100
38,83
900
31,77
700
24,71
500
17,65
300
10.59
100
3.53
psi
29
r-3
14.5
0 ps
i
0
0
bar psi
500
1300
2 bar - 30 psi
2 ba
15.85
0 0
Nl/min SCFM
0
0
bar psi
Flow
7.06
0p
2
-1
ar
ps
58
8.83
200
Air consumption
r-
4
250
8
3
ba
72.5
Fluid pressure
2
100
5
10.59
4
*
126
87
12.36
300
( )
8
6
14.12
350
i
ps
-6
r
ba
400
0 0
Nl/min SCFM
551 164
7
1.77
Air consumption
i
ps
Fluid pressure
8
50
0 0
Nl/min SCFM
US gal/min
0
0
0
bar psi
Flow
3.53
i
3
5.30
100
si
ps
58
150
0p
20
72.5
4
7.06
-1
5
200
ar
7
8.83
8b
126
250
psi
Fluid pressure
8
10.59
psi
- 60
r
4 ba
20
-1
300
i
ps
0
0
bar psi
Flow
555 115
Air consumption
Fluid pressure
Flow
0 0
Nl/min SCFM
US gal/min
0
0
l/min
13.21
26.42
39.63
52.84
50
100
150
200
556 115
Outlet pressure
Air consumption
(*) 2 bar test with a PTFE (Teflon®) diaphragms pump.
Product specifications are subject to change without prior notice
1/3/17 15:58
air operated diaphragm pumps - metal pumps
000 000
Iquip
air
operated
modit iriuscidunt
diapHragmnos
METAL
niam
PUMPS
ver ip
Metal pumps are adequate for indoor and outdoor use and they can handle a wide range of fluids used
for vehicle service. Pump air valve module and lateral pump covers are manufactured in aluminium.
Typical applications are transferring and dispensing of windshield wash, antifreeze solutions,
lubricants and diesel, and for waste oil evacuation. They can be used as stand-alone pumps for
transfer applications or as systems pumps in distribution systems that include hose reels.
03
Pump Size
Part Number
Pump body
Diaphragms
Balls
DF50
(50 l/min)
552 010
Aluminium
TPE
Acetal
PTFE, NBR, Stainless steel
Antifreeze and windshield wash
solutions, lubricants
551 010
Aluminium
TPE
Acetal
PTFE, NBR, Stainless steel
Antifreeze and windshield wash
solutions, lubricants, diesel
551 030
Aluminium
NBR
NBR
PTFE, Stainless steel
Special for waste oil and diesel
evacuation (2)
555 010
Aluminium
TPE
Acetal
NBR, Stainless steel
Antifreeze and windshield wash
solutions, lubricants, diesel
555 030
Aluminium
NBR
Acetal
Stainless steel
Special for waste oil and diesel
evacuation (2)
554 010
Aluminium
TPE
Acetal
NBR, Stainless steel
Antifreeze and windshield wash
solutions, lubricants, diesel
554 020
Aluminium
PTFE
Acetal
FKM, Stainless steel
Diesel (1)
DF100
(100 l/min)
DP200
(200 l/min)
DF250
(250 l/min)
Other wetted parts
OTHER FLUIDS
PUMPS
Central flow technology
Applications
(1) Some types of diesel include additives in their formulation that might not be compatible with TPE. PTFE diaphragms are recommended in this case.
(2) Some types of diesel include additives in their formulation that might not be compatible with NBR.
Fluid pressure
552 010
8
126
7
100
6
87
5
72.5
4
58
3
43.5
2
29
1
14.5
8
ba
r-
6b
ar
0
0
12
ar
8b
ps
i
a
si
-6
4
0p
si
-3
0p
si
0
r-3
a
2b
*( )
psi
r
ba
si
0p
-6
*
US gal/min
0
2.64
10
0
l/min
5.28
7.93
10.57
13.21
15.85
20
30
40
50
60
126
ar
8b
rba
100
0
12
551 030
NBr diaphragms and valves.
Special for waste oil evacuation.
ba
r-
90
ps
i
72.5
4
58
3
43.5
2
29
1
14.5
4
r-
a
6b
i
5
87
6
ps
6
ar
4b
ba
r-
2b
ar
60
60
0
12
90
i
ps
i
ps
i
ps
100
6
87
3.53
50
1.77
15.89
400
14.12
350
12.36
i
200
r-3
0p
si
( )
i *
0 ps
2 ba
8
150
*( )
0
l/min
100
6
87
5
72.5
6.60
13.21
19.81
26.41
25
50
75
100
6
10.59
4
58
ba
r-
ba
r-
ba
r-
8.83
3
43.5
2
29
14.5
12
Air consumption
0
90
8 bar
ps
6 bar
5.30
100
3.53
1
50
1.77
0
0
bar psi
Flow
ar
56,48
1400
49.42
1200
42.36
1000
35.3
800
ps
i
28.24
r - 30
600
21.18
400
0p
si
14.12
200
7.06
i
0 ps
r-6
-3
si
- 90 p
i
2 ba
2b
1600
psi
ps
4 ba
60
- 120
i
7.06
0 0
Nl/min SCFM
US gal/min
0
8
126
7
4
ps
-3
450
Fluid pressure
( )
psi *
*( )
0 0
Nl/min SCFM
US gal/min
0
13.2
0
l/min
50
26.4
39.6
52.8
66.1
100
150
200
250
Air consumption
1300
45,89
1100
38,83
900
31,77
700
24,71
500
17,65
300
10.59
100
3.53
ar
7
5.30
100
17.65
8b
126
7.06
150
500
250
Fluid pressure
8
8.83
200
554 010
300
0
0
bar psi
Flow
10.59
250
Air consumption
8
7
12.36
300
0 0
Nl/min SCFM
Fluid pressure
8
14.12
350
( )
0
0
bar psi
Flow
400
si
0p
9
r-
6b
0p
ar
ar
12
-9
4b
2b
Air consumption
i
ps
ar
-9
4b
ar
si
-6
6 bar - 90 psi
43.5
si
i
0 ps
r-6
4 ba
0p
2 bar - 30 psi
29
2 ba
1
psi
0p
72.5
58
8 bar - 120
i
2
ps
3
20
4
-1
5
6b
r-3
14.5
0 ps
i
0
0
bar psi
Flow
555 010
0 0
Nl/min SCFM
US gal/min
0
0
l/min
Product specifications are subject to change without prior notice
03_BOMBAS DIAFRAGMA V216_UK.indd 57
13.21
26.42
39.63
52.84
50
100
150
200
Outlet pressure
Air consumption
(*) 2 bar test with a PTFE (Teflon®) diaphragms pump.
DF250 pump with a Hytrel® diaphragms.
57
1/3/17 15:58
four-way evacuation valve and
air operated diaphragm pumps - MIX PUMPS
361 300
Four-way evacuation valve
361 300 Four-way evacuation valve simplifies plumbing and allow the use of one pump to
pull and push waste fluids on/off their storage tank with the swing of a handle.
• Lube trucks
• Construction and mining
• Manufacturing facilities
The valve is manufactures in anodized aluminium and acetal and has 1" BSP (F) inlets and outlets.
OTHER FLUIDS
PUMPS
03
plastic mix pumps
DF30T and DF50T plastic diaphragm pumps with a dual inlet for 1:1 ratio mixing of fluids with
similar viscosities, like windshield wash or antifreeze with water. All dual inlet pumps have 2 x
3/8" BSP (F) inlet. All other technical features of these pumps are the same as the ones for the
DF30 and DF50 pumps.
Central flow technology
Pump Size
Part Number
Pump body
Diaphragms
Balls
Other wetted parts
DF30t
(38 l/min)
553 124
Polypropylene
TPE
PTFE
FKM, Stainless steel
1:1 ratio water / windshield or
antifreeze solutions
DF50t
(50 l/min)
552 124
Polypropylene
TPE
PTFE
FKM, Stainless steel
1:1 ratio water / windshield or
antifreeze solutions
Air consumption
Fluid pressure
553 124
72.5
ar
4b
4
58
3
43.5
2
29
1
14.5
ar
2b
ar
-9
ar
8b
bar
0p
i
5
6b
ps
87
0
6
12
100
r-
7
ba
126
8
8
Applications
6
si
90
300
10.59
250
8.83
200
7.06
150
5.30
100
3.53
50
1.77
i
ps
psi
si
60 p
r4 ba
-6
-
0
12
0p
si
-3
0p
si
)
(
i *
0 ps
r-3
2 ba
*( )
0
0
bar psi
0 0
Nl/min SCFM
Flow
US gal/min
0
0
l/min
2.64
5.28
7.93
10.57
10
20
30
40
552 124
Fluid pressure
8
7
126
8
ba
r-
100
6b
6
87
5
72.5
4
58
3
43.5
2
29
1
14.5
ar
4b
-9
ar
12
0
ps
i
ar
6b
si
-6
ar
4b
0p
-3
si
0p
si
*( )
12
r-
a
8b
0p
ar
2b
Air consumption
ar -
2b
3
si
0p
i
s
0p
14.12
350
12.36
300
10.59
250
8.83
200
7.06
150
5.30
100
3.53
50
1.77
si
-
p
90
si
0p
-6
( )
*
0
0
bar psi
Flow
400
0 0
Nl/min SCFM
US gal/min
0
2.64
0
l/min
10
5.28
7.93
10.57
13.21
15.85
20
30
40
50
60
Outlet pressure
Air consumption
* 2 bar test with a PTFE (Teflon®) diaphragms pump.
( )
58
03_BOMBAS DIAFRAGMA V216_UK.indd 58
Product specifications are subject to change without prior notice
1/3/17 15:58
AIR OPERATED DIAPHRAGM PUMP KITS
air operated diaphragm pump installation kit - df50 series
559 010 - 559 012
559 010 Air operated diaphragm pump installation kit for 205 l drum, totes or
tanks, wall mounted
Applications:
Antifreeze, Windshield wash solutions, AdBlue®/DEF.
03
OTHER FLUIDS
PUMPS
Kit includes:
552 164: DF50 diaphragm pump.
360 100: Wall bracket.
367 011: Suction hose with elbow, 3/4" BSP (M).
945 554: 3/4" BSP (M) - 1/2" BSP (M) adaptor.
362 910: Connection kit for fluid - air lines.
559 012 Atex air operated diaphragm pump installation kit for 205 l drum, totes or
tanks, wall mounted
Applications:
Antifreeze, Windshield wash solutions, AdBlue®/DEF, in explosive atmosphere.
Kit includes:
552 162: DF50 Atex diaphragm pump.
360 100: Wall bracket.
367 011: Suction hose with elbow, 3/4" BSP (M).
945 554: 3/4" BSP (M) - 1/2" BSP (M) adaptor.
362 910: Connection kit for fluid - air lines.
AIR OPERATED DIAPHRAGM PUMP MOBILE UNIT - DF50 SERIES
557 011
557 011 Air operated diaphragm pump mobile unit with hose end meter
Kit includes:
552 164: DF50 diaphragm pump.
367 011: Suction hose with elbow, 3/4" BSP (M).
945 557: 3/8" BSP (M) - 1/2" BSP (M) adaptor.
362 103: 3 m Ø 1/2" fluid hose.
365 575: Hose end meter.
432 000: 205 l drum chart.
360 100: Wall bracket.
945 595: 3/4" BSP (M) - 3/8" BSP (M) adaptor.
Product specifications are subject to change without prior notice
03_BOMBAS DIAFRAGMA V216_UK.indd 59
59
1/3/17 15:58
AIR OPERATED DIAPHRAGM PUMP KITS
557 100 - 557 101
air operated diaphragm pump installation kit - df100 series
OTHER FLUIDS
PUMPS
03
557 100 Air operated diaphragm pump installation kit for 205 l drum, totes or
tanks, wall mounted
Applications:
Lubricants, gear oils and other compatible fluids with wetted parts of the pump.
Kit includes:
551 030: DF100 diaphragm pump.
360 101: Wall bracket.
855 491: Suction hose, Ø 1".
945 599: 1" BSP (M) - 3/4" BSP (M) adaptor.
950 318: 3/8" BSP (F) air valve.
239 002: 3/8" BSP (MM) adaptor.
247 710: Ø 3/8 L=1 m 3/8" BSP air hose.
362 303: Ø 3/4" L= 3 m 3/4" BSP fluid hose.
950 303: 3/4" BSP (H) hose valve.
251 438: Air quick coupling.
255 338: Air nipple.
557 101 ATEX air operated diaphragm pump installation kit for 205 l drum, totes or
tanks, wall mounted
Applications:
Lubricants, gear oils and other compatible fluids with wetted parts of the pump in explosive
atmosphere.
Kit includes:
551 017: DF100 Atex diaphragm pump.
360 101: Wall bracket.
855 491: Suction hose, Ø 1".
689 015: 1" BSP (H) Bottom valve with brass filter.
950 318: 3/8" BSP (F) air valve.
239 002: 3/8" BSP (MM) adaptor.
247 710: Ø 3/8 L=1 m 3/8" BSP air hose.
689 021: Ø 1" L= 4 m 1" BSP (M) fluid hose.
361 000: 1" BSP (F) aluminium nozzle.
251 438: Air quick coupling.
255 338: Air nipple.
60
03_BOMBAS DIAFRAGMA V216_UK.indd 60
Product specifications are subject to change without prior notice
1/3/17 15:58
diaphragm pumps accessories
directflo® PUMP MOUNTING SPECIFICATIONS
directflo® SERIES
Dc20
DF30
DF50
DF100
(1)
A
Air connection hose
3/8" - 9.5 mm
3/8" - 9.5 mm
3/8" - 9.5 mm
B
Fluid suction hose
1/4" - 6.4 mm
1/2" - 12.5 mm
3/8" - 9.5 mm
3/8" - 9.5 mm
1/2" - 12.5 mm
1/2" - 12.5 mm
1" - 25 mm
1" - 25 mm
1-1/2" - 38 mm
1/4" - 6.4 mm
1/2" - 12.5 mm
1/2" - 12.5 mm
3/4" - 19 mm / 1" 25 mm
1" - 25 mm
1-1/2" -38 mm
3/8" - 9.5 mm
3/8" - 9.5 mm
Requires adapter
855 432
3/8" - 9.5 mm
Requires adapter
855 432
3/8" - 9.5 mm
Requires adapter
855 432
3/4" - 19 mm
Requires adapter
558 562
1" - 25.4 mm
360 100
360 100
360 100
360 101
360 142
N/A (2)
Drum / Tote bracket
N/A
360 137
360 137
360 137
N/A
N/A
Air filter and
pressure regulator(3)
240 500
240 500
240 500
241 501
240 501
241 501
Air pressure
regulator(3)
240 300
240 300
240 300
241 201
241 201
241 201
Quick air coUpler
253 138
253 138
253 138
253 138
253 138
251 412
additional silencer
kit
951 432
558 338
558 338
558 338
558 563
N/A
N/A
560 901
560 901
560 901
560 901
N/A
Fluid delivery hose
D
AIR EXHAUST VENT
HOSE
E
Wall bracket
F
DF250
(1)
ibc connector
03
OTHER FLUIDS
PUMPS
C
dp200
(1)
(1) Metal and plastic pumps.
(2) Pump to be floor or tank mounted.
(3) Always place the air treatment element close to the air pipe. Connect air nipple to the pump.
558 338
silencer kit
737 435
inlet filter
A
F
C
560 901
ibc connector
361 300
E
D
B
carbon Steel fittings
Polypropylene fittings
carbon steel low pressure
shut-off valves
945 593
1/2" BSP (MM)
689 059
1/2" BSP (MM)
950 300
1/2" BSP (FF)
945 551
3/4" BSP (MM)
689 061
1/2" BSP (F) - 3/4" BSP (F)
950 303
3/4" BSP (FF)
945 555
1" BSP (MM)
689 062
1/2" BSP (M) - 3/4" BSP (F)
950 306
1" BSP (FF)
945 567
2" - 1-1/2" BSP (MM)
689 056
3/4" BSP(F) - 1" BSP (F)
950 312
1-1/2" BSP (FF)
945 681
1-1/2" - 1" BSP (MM)
689 055
1" BSP (FF)
950 320
3/8" BSP (FF) - AIR
945 552
1" - 3/4" BSP (MM)
689 060
1" BSP (MM)
945 554
3/4" -1/2" BSP (MM)
689 079
1-1/4" BSP (M) - 3/4" BSP (F)
945 565
2" - 1" BSP (MF)
689 054
19 mm hose tail - 1/2" BSP (M)
945 670
1" - 3/4" BSP (MF)
689 058
19 mm hose tail - 3/4" BSP (F) L elbow
369 900
3/4" - 1/2" BSP (MF)
945 580
19 mm hose tail - 3/4" BSP (M)
689 045
19 mm hose tail - 1" (M)
689 072
19 mm hose tail - 1" (F)
689 046
25 mm hose tail - 1" (M)
689 073
25 mm hose tail - 1" (F)
4 way evacuation valve
361 300
4 x 1" BSP (F)
POLYPROPYLENE INLET FILTERS
737 435
1-1/4" BSP (FF)
Use hoses and accessories compatible with the pumped fluid.
Product specifications are subject to change without prior notice
03_BOMBAS DIAFRAGMA V216_UK.indd 61
61
1/3/17 15:58
AIR OPERATED PISTON PUMPS FOR FLUIDS
OTHER FLUIDS
PUMPS
03
PUMPMASTER 2
NICKEL PROTECTED PUMP
Part No.
Pump type
PUMPMASTER 4
STAINLESS STEEL PUMP
332 120
STAINLESS STEEL PUMP
331 120
333 120
Universal stub pump
Universal stub pump; divorced
Universal stub pump; divorced
pump Pressure ratio
1:1
1:1
3:1
Effective air piston diameter
35 mm (1 1/2" )
35 mm (1 1/2" )
60 mm (2 1/2" )
Piston stroke
75 mm (3" )
75 mm (3" )
75 mm (3" )
Air pressure operating range
1.5 to 10 bar (20 to 145 psi)
1.5 to 10 bar (20 to 145 psi)
1.5 to 10 bar (20 to 145 psi)
Air inlet
1/4" BSP (F)
1/4" BSP (F)
3/8" BSP (F)
Fluid inlet
1" BSP (F)
1" BSP (F)
1" BSP (F)
Fluid outlet
3/4" BSP (F)
3/4" BSP (F)
3/4" BSP (F)
Delivery at 100 cycles per minute 13.5 l/min - 3.6 gal/min
25 l/min - 6.6 gal/min
25 l/min - 6.6 gal/min
Maximum free delivery
55 l/min - 14.5 gal/min
38 l/min - 10 gal/min
40 l/min - 10.6 gal/min
Wetted materials
Nickel coated aluminium and steel,
stainless steel, acetal, NBR, polyurethane
PTFE, Viton , stainless steel
PTFE, Viton®, stainless steel
Height adjustable bung adaptor
Included
Included
Included
®
Air Operated Piston Pumps for Fluids accessory:
P.N. 331 110.002, PVC suction tube for 205 l drums.
351 121
SPECIALITY PUMP
351 121 PumpMaster 2, 1:1 pressure ratio suction pump
PumpMaster pump with 1:1 ratio with a modified air valve to allow a lower upward movement of
the piston to improve pump suction capacity and avoid pump cavitation when suctioning fluids
like waste oil through small diameter suction canes.
62
03_BOMBAS DIAFRAGMA V216_UK.indd 62
Product specifications are subject to change without prior notice
1/3/17 15:58
PUMPMASTER 2 oil pumps
pumps
Iquip modit iriuscidunt nos niam
04 ver ipAdBlue®/DEF
PUMPS AND KITS
000 000
AdBlue®/DEF pumps kits and mobile units - air operated pumps. . . . . . . . . . . . . . . . . . . . . .
AdBlue®/DEF pumps kits AND MOBILE UNITS - electric pumps . . . . . . . . . . . . . . . . . . . . . . . . .
AdBlue®/DEF pumps and kits - lever action pumps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AdBlue®/DEF accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
64
65
66
67
AdBlue®/DEF
PUMPS
04
What is AdBlue®/def?
AdBlue®/def is a solution of urea in demineralised water (32.5%) for diesel engines using SCR
(Selective Catalytic Reduction) technology.
This process reduces harmful emissions (NOx) and is used in a range of diesel vehicles from
Trucks, Farm tractors and now the family diesel car.
Product specifications are subject to change without prior notice
04_ADBLUE V216_UK.indd 63
63
15/2/17 16:59
AdBlue®/DEF pumps kits and mobile units air operated pumps
®
®
Iquip
modit iriuscidunt
niam
ver- DIRECTFLO
ip
AIR
OPERATED
PUMPS FORnos
AdBlue
/DEF
SERIES
Air operated plastic DirectFlo® pumps for dispensing AdBlue®/DEF. Are adequate for indoor use.
Pump air valve module and lateral pump covers are manufactured in conductive polypropylene.
They can be used as stand-alone pumps for transfer applications or as systems pumps in
distribution systems that include hose reels.
AdBlue®/DEF
PUMPS
04
Part Number
Pump body
Diaphragms
Balls
Other wetted
parts
DF30
(38 l/min)
553 164
Polypropylene
TPE
PTFE
FKM, Stainless steel
DF50
(50 l/min)
552 164
Polypropylene
TPE
PTFE
FKM, Stainless steel
DF100
(100 l/min)
551 164
Polypropylene
TPE
PTFE
FKM, Stainless steel
Pump Size
552 164
551 164
557 950
AdBlue®/DEF pump kits with air operated pump - directflo® series
557 950 AdBlue®/DEF pump kit with air operated diaphragm pump, Directflo®
Series, on drum with manual nozzle
Kit includes: 552 164 Air operated diaphragm pump, DF50, 50 l/min. 361 003.370 Manual
nozzle (thermoplastic) for AdBlue®/DEF, 1" (F). 360 137 Pump bracket. 560 901 CSC quick
coupling, Ø 19 mm hose barb connection. 930 507 EPDM hoses Ø 19 mm, 3 m + 1.5 m. 944
628 Clamp 26-29. 259 038 Male air nipple, 3/8" BSP (M). 689 045 Polypropylene fitting, Ø 19 mm,
1" BSP (M). 689 054 Polypropylene fitting, Ø 19 mm, 1/2” BSP (M). 689 055 Polypropylene
fitting adaptor, 1/2" BSP (FF).
557 951 AdBlue®/DEF pump kit with air operated diaphragm pump, Directflo®
Series, on drum with automatic nozzle
Same as 557 950 but with automatic nozzle (569 001).
559 011 AdBlue®/DEF pump kit with air operated diaphragm pump, Directflo®
Series, on wall
Kit includes: 552 164 Air operated diaphragm pump, DF50, 50 l/min. 360 100 Wall bracket.
560 901 CSC quick coupling, Ø 19 mm hose barb connection. 930 507 EPDM hose Ø 19 mm,
5 m. 246 010, 1 m hose, thread 1/4" BSP (H). 944 627 Clamp 19 mm. 253 114 Automatic quick
coupling 1/4" BSP (F). 259 014 Automatic quick coupling 1/4” BSP (M). 945 516 Connection
adaptor 1/2" BSP (M) -1/4” BSP (F). 689 047 Polypropylene hose tail connection kits, Ø 19 mm,
1" BSP (M) with connection clamps. 689 054 Polypropylene fitting, Ø 19 mm, 1/2” BSP (M).
AdBlue®/DEF mobile dispenser units
AdBlue®/DEF mobile dispenser units for drums with Directflo® pump, digital meter, nozzle and optionally hose reel.
557 952
557 953
PART No.
Pump
reel
Bracket
Nozzle
Meter
Suction
accessories
trolley
557 952
Diaphragm pump,
DF30 Series (553 164)
Air, 15 m
(500 115)
For pump and reel
Automatic
(569 005)
PVC In-line meter
(366 010)
Hoses and accessories
Heavy-Duty 205 litre
drum trolley (432 814)
557 953
Diaphragm pump,
DF30 Series (553 164)
-
For pump and reel
Automatic
(569 005)
PVC In-line meter
(366 010)
Hoses and accessories
Heavy-Duty 205 litre
drum trolley (432 814)
64
04_ADBLUE V216_UK.indd 64
Product specifications are subject to change without prior notice
15/2/17 16:59
AdBlue®/DEF pumps kits and mobile units electric pumps
560
000 224
000
ELECTRIC PUMPS FOR AdBlue®/DEF - SOLURA SERIES
12 and 24 VDC and 230 V 50 Hz AC multi-diaphragm pumps with no mechanical seals designed
for dispensing AdBlue®/DEF. Pumps are self priming and have a by-pass valve. Electric motors
have IP55 protection and include on/off switch, fuse and 2 m cable with crocodile clamps
(DC pumps) or plug (AC pumps).
Inlet/outlet connection: 1" BSP (M).
Maximum suction lift: 1.8 m.
Maximum delivery pressure: 1.6 bar.
Maximum delivery: up to 32 l/min.
Power Supply
Electric motor power
Maximum delivery
560 230
560 215
230 V 50 Hz AC
400 W
30 l/min
120 VAC
500 W
30 l/min
560 224
24 VDC
310 W
32 l/min
560 212
12 VDC
260 W
32 l/min
04
AdBlue®/DEF
PUMPS
Part No.
AdBlue®/DEF PUMP KITS with electric pump - SOLURA SERIES
560 304
All kits include 4 m x 19 mm EPDM delivery hose and the accessories
listed in the following table:
PART No.
Power
Supply
Application
Pump
Bracket
Nozzle
560 301
230 VAC
IBCs and drums
560 230
360 137
361 001.370 manual
560 302
230 VAC
IBCs and drums
560 230
360 137
361 001.370 manual
560 303
230 VAC
IBCs and drums
560 230
360 137
569 000 automatic
360 137
560 304
230 VAC
IBCs and drums
560 230
560 300
230 VAC
IBCs and drums
560 230
569 000 automatic
Meter
Suction accessories
1 m hose and CSC connector
366 760
1 m hose and CSC connector
1 m hose and CSC connector
366 760
1 m hose and CSC connector
361 001.370 manual
2.5 m hose and foot valve
560 310
12 VDC
IBCs and drums
560 212
361 001.370 manual
2.5 m hose and foot valve
560 320
24 VDC
IBCs and drums
560 224
361 001.370 manual
2.5 m hose and foot valve
AdBlue®/DEF mobile dispenser units
560 307
AdBlue®/DEF mobile dispenser units for drums with Solura Series electrical pump, digital meter,
nozzle and optionally cable reel.
PART No.
Pump
reel
Bracket
Nozzle
Meter
Suction
accessories
trolley
560 307
Electric pump
Solura Series
Cable, 15 m
(612 100)
For pump and reel
Automatic
(569 005)
PVC In-line meter
(366 010)
Hoses and accessories
Heavy-Duty 205 litre
drum trolley (432 814)
560 308
Electric pump
Solura Series
-
For pump and reel
Automatic
(569 005)
PVC In-line meter
(366 010)
Hoses and accessories
Heavy-Duty 205 litre
drum trolley (432 814)
Product specifications are subject to change without prior notice
04_ADBLUE V216_UK.indd 65
65
15/2/17 16:59
AdBlue®/DEF pumps and kits - lever action pumps
lever action pumps for AdBlue®/DEF
Polypropylene Lever Action Pump (EPDM seals) kit suitable for AdBlue® 205 litre drums mounting.
300 006.002
300 006.001
AdBlue®/DEF
PUMPS
04
Part No.
description
nozzle
Adaptor
300 006.001
Lever pump kit c/w 2 m PVC Hose
-
None
300 006.002
Lever pump kit c/w 2 m PVC Hose
-
2" BSP-Trisure (M)
Drum not included
Part No.
description
nozzle
connection
560 905
Gravity feed Kit c/w 3 m PVC Hose
Manual
S60 x 6 swivel IBC
connector
560 905.001
Gravity feed Kit c/w 3 m EPDM Hose
Manual
S60 x 6 swivel IBC
connector
560 905
AdBlue®/DEF PUMP KITS WITH LEVER ACTION PUMP
Polypropylene lever action pump (EPDM seals) mounted on the side of an IBC
1,000 litre container.
Part No.
description
nozzle
300 010
IBC mounted pump kit c/w 2 m PVC Hose
-
300 902
IBC mounted Pump Kit c/w 1 m EPDM Hose
Manual
IBC Containers not included.
300 902
66
04_ADBLUE V216_UK.indd 66
300 010
Product specifications are subject to change without prior notice
15/2/17 16:59
AdBlue®/DEF accessories
®
AdBluemodit
/DEF electronic
Iquip
iriuscidunt line
nos meters
niam ver ip
366 010
366 010 AdBlue®/DEF oval gear meter, 1/2" BSP (F)
Oval gear meter manufactured in PVC, stainless steel and acetal for AdBlue®/DEF. Digital display, works
with two AAA alkaline batteries. Inlet/outlet thread 1/2" BSP (F). Flow rate: 1-50 l/min.
366 760 AdBlue®/DEF meter, 1" BSP (MM)
Digital line meters provided with metering chamber with turbine system, electronic display, reset
button, partial metering function (99.999 l), resettable totalizer (999.999), calibration function.
Flow rate: 8-110 l/min. Max. pressure: 10 bar. Precision: +/- 1%. Power supply: 2 x 1,5 V batteries.
366 976 AdBlue®/DEF meter with a stainless steel female adaptor, 1" BSP (FM)
366 761 AdBlue®/DEF meter with a 2 stainless steel female adaptors, 1" BSP (FF)
689 055 Polypropylene thread adaptor, 1" BSP (FF)
945 708 Stainless steel thread adaptor, 1" BSP (FF)
AdBlue®/DEF NOZZLES
569 000
AdBlue®/DEF
PUMPS
04
AdBlue®/DEF nozzles with stainless steel and thermoplastic versions available. Depending on the
model they can be manual or automatic, with spike or thread connection.
361 003.370 Manual (thermoplastic), 90 l/min, 1" BSP (F) inlet thread
361 002.370 Manual (thermoplastic), 90 l/min, Ø 25 mm inlet hose barb
361 001.370 Manual (thermoplastic), 90 l/min, Ø 19 mm inlet hose barb
569 000 Automatic (stainless steel), 45 l/min, Ø 19 mm inlet hose barb
569 001 Automatic (stainless steel/polypropylene), 45 l/min, Ø 19 mm inlet hose barb
Special for passenger cars
569 005 Automatic (stainless steel/polypropylene), 10 l/min, Ø 19 mm inlet hose barb
569 006 Automatic (stainless steel/polypropylene), 5 l/min, 1" BSP (M) inlet thread
Integrated mis-filling prevention (Elaflex).
AdBlue®/DEF hoses
930 507
ePdm hoses
Service EPDM hoses for AdBlue®/DEF transferring or suction, sold in bulk (minimum 1 m).
930 507, Ø 19 mm / 1 m EPDM hose
930 505, Ø 13 mm / 1 m EPDM hose
pvc hoses
Transparent suction hoses made of reinforced PVC for AdBlue®/DEF transferring.
689 030, 2 m x PVC suction hose Ø 25 mm
With swaged terminals and foot valve 689 042, 1" BSP (M).
689 031, 4 m x PVC suction hose Ø 25 mm
With swaged terminals and foot valve 689 042, 1" BSP (M).
932 025, 1 m hose PVC Ø 25 mm in bulk
(Minimum 1 m).
AdBlue®/DEF ACCESSORIES
689 042 Polypropylene foot valve with filter. 1" BSP (F)
560 903 Polypropylene foot valve. 1" BSP (F)
689 041 Polypropylene filter for suction hose, Ø 25 mm hose barb connection
689 047 Polypropylene hose tail connection kits, Ø 19 mm. 1" BSP (M), with connection clamps
689 048 Polypropylene hose tail connection kits, Ø 25 mm. 1" BSP (M), with connection clamps
560 901 CSC quick coupling, Ø 19 mm hose barb connection
560 902 Suction tube for CSC connection. With 2" BSP (M) connection
560 906 Suction tube for CSC connection. With 2" TRISURE connection
560 904 1" BSP (F) check valve
360 137 Universal pump bracket
Allows fixing a pump onto a 205 litre drum or to a 1,000 litre IBC container with carrying handle and
drip pocket.
Product specifications are subject to change without prior notice
04_ADBLUE V216_UK.indd 67
689 041
560 901
360 137
67
15/2/17 16:59
04_ADBLUE V216_UK.indd 68
15/2/17 16:59
05
HOSE REELS
HOSE REEL MOUNTING RECOMMENDATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RM-12 DOUBLE PEDESTAL DOUBLE ARM HOSE REELS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RM-12S SINGLE ARM ALUMINIUM HOSE REELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RM-12CL INDIVIDUALLY ENCLOSED HOSE REELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-12l HEAVY-DUTY hose reels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-34 HEAVY-DUTY hose reels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-100 HEAVY-DUTY large capacity hose reels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rm-150 HEAVY-DUTY large delivery hose reels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
stainless steel reel and compact reels for air and cable . . . . . . . . . . . . . . . . . . . . . . .
hose reel kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
hose reel accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
71
72
73
74
75
76
77
78
79
80
83
HOSE REELS
05
05_ENROLLADORES V216_UK.indd 69
14/2/17 16:32
HOSE
HOSE REELS
REELS
05
Samoa hose reels, used around the world, are designed to be premium quality fluid reels. Hose reels are adaptable to wall, floor or ceiling
mounting, individually or in banks. They are available for high, medium and low pressure applications. Different hose capacities for maximum
flexibility in selecting a hose reel assembly to match any specific need. Samoa hose reels are designed with non-restrictive fluid passages and the
right hose diameter for each application to provide the quickest material delivery.
Samoa hose reels are spring-powered and self-retracting; a latch locks the reel at desired length and a slight pull releases latch, and the hose
retracts smoothly onto reel. Hose guide arm can be placed in different positions to accommodate any method of mounting and allow hose to be
automatically removed or retracted without kinking, reducing strain on hose and minimizing the possibility of hose damage.
C O M P R E S S E D A I R • W AT E R • D I E S E L • L U B R I C A N T S • A N T I F R E E Z E • W I N D S H I E L D W A S H • G R E A S E • A d B l u e ®/ D E F ®
Advantages of the use of hose reels
• Increased productivity.
• Reduced wear and increased life of hoses.
• Simple hose handling and storage.
• Lower risk of accidents as hose reels keep hoses out of the floor.
• Work environment improvement.
All Samoa reels have
• Superior power spring life. Special fatigue resistant steel spring guarantees long life and trouble
free operation and provides even tension at every point, when pulling or retracting hose.
• HEAVY-DUTY ratchet, with large effective radial latching area for an easier and user-friendly operation.
• Metal arms, enclosures, base and spool are epoxy powder coated for increased wear resistance.
• Samoa only uses high quality hoses, specially formulated for use in hose reels.
HOSE SPECIFICATIONS
Compressed air, low pressure water - SBR black rubber with single textile reinforcement
braid and zinc plated fittings.
Oil, antifreeze solutions - NBR black rubber with single steel reinforcement steel braid and
zinc plated fittings.
High pressure grease - NBR black rubber with single steel reinforcement high density braid and
zinc plated fittings.
Windshield wash solutions, AdBlue®/DEF - EPDM hose with single textile reinforcement
braid and stainless steel fittings.
High pressure water: SBR black rubber with single steel reinforcement braid and zinc plated fittings.
Samoa offers a wide range of brackets, racks and stands for mounting hose reels. A properly installed hose reel has an inlet hose to prevent
vibration transfer to the reel. A shut off valve is recommended at the inlet to allow the isolation of each reel for servicing.
70
05_ENROLLADORES V216_UK.indd 70
Product specifications are subject to change without prior notice
14/2/17 16:32
HOSE REEL MOUNTING RECOMMENDATIONS
• Install reels as high as possible when mounted to wall or ceiling. Minimum height from the lowest reel point to the floor must be 2.5 m (8').
• Always avoid lateral pulls of hose. In case they cannot be avoided, and for single reel installations, use a pivoting bracket.
• Hose reels allow positioning the hose outlet in different positions. Always choose the one that allows a tangential unwind of the hose.
• A shut off valve shall be installed at the inlet hose to allow the isolation of each reel for service purposes.
REAR ROLLER FLOOR MOUNT
SIDE ROLLER MOUNT
Use this position whenever the hose is pulled
perpendicularly to the mounting surface.
Typical use is when the reel is mounted to a
ceiling, a hose reel stand 360 160 or 360 165,
or inside lubrication pits. This position can also
be used when the reel is mounted to a wall
at a maximum height of 2 m. In these two
cases the use of a pivoting bracket 360 111 is
recommended to reduce torque when the reel
is submitted to lateral pulls.
Position not valid for reels rm-100 and
rm-150 because of their weight.
Use this position whenever the hose is pulled
tangentially to the mounting surface. Typical
use are on lube trucks and tanks. When
mounted to a wall, this position has the
advantage that the hose lays close to the wall,
it does not represent an obstacle and the
torque on the outlet arm created when the
hose is pulled laterally is minimum.
Because of their weight, rm-100 and
rm-150 reels shall not be mounted to a wall.
Use this position whenever the hose is pulled
parallel to the mounting surface. Typical use are
on tanks, lube trucks, workbenches, etc. It can
also be mounted to a wall at a minimum height
of 2.5 m – 8.20', however it might create an
obstacle in the shop because the hose is further
out from the wall. Additionally, increased torque
on the arm with lateral pulls might require using
a pivoting bracket 361 111.
Because of their weight, rm-100 and
rm-150 reels shall not be mounted to a wall.
05
Min. 2.5 m (8')
Min. 2.5 m (8')
HOSE REELS
HOSE
REELS
CEILING MOUNT
Mounting examples for all RM-12 series
and RM-34 reels.
Mounting examples of all RM-12 series,
RM-34 reels, RM-100 and RM-150 reels.
Product specifications are subject to change without prior notice
05_ENROLLADORES V216_UK.indd 71
Min. 2.5 m (8')
Min. 2.5 m (8')
Min. 2.5 m (8')
Max. 2 m (6 1/2')
rm-12 model does
not allow this
position.
Mounting examples of all RM-12 series,
RM-34 reels, RM-100 and RM-150 reels.
71
14/2/17 16:32
RM-12 DOUBLE PEDESTAL DOUBLE ARM HOSE REELS
501 200
10 meters maximum hose capacity
Full metal hose reels, can handle up to
10 m x 1/2" hose.
FLUIDS HANDLED
• Air.
• Water.
• Antifreeze Solutions.
• Synthetic and Mineral Oils.
• Grease.
markets / applications
• Car and truck dealers.
• Service shops.
• General manufacturing.
• Service stations.
• Quick lubes.
Mounting
• Floor.
• Wall.
• Ceiling.
• Tank.
HOSE
HOSE REELS
REELS
05
Ø 10
(3/8”)
130
(5 1/8”)
525 (20 3/4”)
220
(8 5/8”)
480 (18 7/8”)
160
(6 5/16”)
Dimensions mm (inches)
• Fatigue resistant steel spring for years of
durable performance and even load when
pulling and recoiling the hose.
• Full metal double pedestal arm construction,
epoxy powder coated for increased wear
resistance.
• Forged brass shaft ensures a leak free
operation.
• Hose reels with hose include 0.8 m inlet hose.
Part
No.
Bare
reel
Hose
in Ø
Hose
length
Connecting
Delivery
Pressure Weight
• Fatigue hose
resistant
steel spring
for years (With
of
hose inlet
outlet
rating
hose)
durable performance and even load when
AIR - WATER - ANTIFREEZE
SOLUTIONS
pulling
and recoiling the hose.
501 100
501 198
3/8"
10 m
Full metal
double
pedestal arm
construction,
1/2" BSP•(M)
1/4"
BSPT (M)
20 bar
17.9 kg
epoxy powder coated for increased wear
resistance.
1/2" BSP•(M)
1/2" BSP
(M)
bar free 20 kg
Forged brass
shaft
ensures160
a leak
operation.
GREASE
• Hose reels with hose include 0.8 m inlet hose.
MINERAL AND SYNTHETIC LUBRICANTS
501 200
501 298
1/2"
10 m
501 300
501 398
1/4"
10 m
1/2" BSP (M)
1/4" BSP (M)
400 bar
19.2 kg
(1) Bare reels include hose stopper and adaptors for connecting flow delivery and inlet hoses.
Reel with arms in ceiling mounting position.
72
05_ENROLLADORES V216_UK.indd 72
Product specifications are subject to change without prior notice
14/2/17 16:32
RM-12S SINGLE ARM ALUMINIUM HOSE REELS
15 meters maximum hose capacity
FLUIDS HANDLED
• Air.
• Water.
• Antifreeze and Windshield Wash
Solutions.
• High Pressure Hot Water.
• Synthetic and Mineral Oils.
• AdBlue®/DEF.
• Grease.
506 202
Aluminium base and arms with
composite spool hose reels, can handle
up to 15 m x 1/2" hose.
Markets / Applications
• Car and truck dealers.
• Service shops.
• Fleets.
• General manufacturing.
• Service stations.
• Lube trucks.
• Quick lubes.
130
(5 1/8”)
Ø 10
(3/8”)
488 (19 1/4”)
Ø 450 (17 3/4”)
220 (8 5/8”)
HOSE REELS
05
Mounting
• Floor.
• Wall.
• Ceiling.
• Tank.
195
(7 3/4”)
480 (19“)
Dimensions mm (inches)
Hose
length
Pressure
rating
Weight
(With
hose)
3/8" BSP (M)
20 bar
12.1 kg
3/8" BSP (M)
3/8" BSP (M)
20 bar
14.2 kg
1/2" BSP (M)
1/2" BSP (M)
20 bar
14.9 kg
Part
No.
Bare reel
Hose
in Ø
Connecting
hose inlet
506 101
506 910
3/8"
10 m
3/8" BSP (M)
506 121
506 912
3/8"
15 m
506 122
506 919
1/2"
15 m
Delivery
hose
outlet
AIR - WATER - ANTIFREEZE SOLUTIONS
WINDSHIELD AND WINDSHIELD WASH SOLUTIONS - AdBlue /DEF - DETERGENTS
®
506 762
506 976
1/2"
10 m
1/2" BSP (M)
1/2" BSP (M)
20 bar
13 kg
506 782
506 978
1/2"
15 m
1/2" BSP (M)
1/2" BSP (M)
20 bar
15.5 kg
506 202
506 920
1/2"
1/2" BSP (M)
160 bar
12.6 kg
SYNTHETIC AND MINERAL OILS
10 m
1/2" BSP (M)
506 222
506 922
1/2"
15 m
1/2" BSP (M)
1/2" BSP (M)
160 bar
14.9 kg
506 212*
506 921
1/2"
15 + 3 m
1/2" BSP (M)
1/2" BSP (M)
160 bar
15.7 kg
506 503
506 950
5/8"
1/2" BSP (M)
Vacuum
13.3 kg
506 300
506 930
1/4"
10 m
1/4" BSP (M)
1/4" BSP (M)
400 bar
12.4 kg
506 301
506 934
3/8"
10 m
3/8" BSP (M)
1/4" BSP (M)
400 bar
12.9 kg
506 321
506 936
3/8"
15 m
3/8" BSP (M)
1/4" BSP (M)
400 bar
16 kg
506 311*
506 935
3/8"
15 + 3 m
3/8" BSP (M)
1/4" BSP (M)
400 bar
17 kg
170 bar
15.1 kg
WASTE OIL SUCTION
6m
1/2" BSP (M)
• Aluminium base and guide arm provide the
rigidity to withstand the most demanding
applications while offering a reduced weight for
easy installation.
• Fatigue resistant steel spring for years of
durable performance and even load when
pulling and recoiling the hose.
• Full port shaft and swivel for no restrictions.
• Spool mounted on two permanent lubricated
and sealed ball bearings to reduce torque load
on spring for smooth retraction and longer life.
• Large effective radial latching area for easier
operation.
• Six roller guide outlet prevents hose pinching
and reduces friction.
• Hose guide arm can be placed in different
positions to accommodate any method of
mounting.
• Hose reels with hose include 0.8 m inlet hose.
GREASE AND HYDRAULIC FLUID
HIGH PRESSURE HOT WATER (UP TO 100 ºC)
506 421
506 942
3/8"
15 m
3/8" BSP (M)
1/4" BSP (M)
*15 + 3 m models shall be need in installations allowing a minimum of 3 m of hose hanging from the reel.
Product specifications are subject to change without prior notice
05_ENROLLADORES V216_UK.indd 73
Reel with arms in
ceiling mounting
position.
73
14/2/17 16:32
RM-12CL INDIVIDUALLY ENCLOSED HOSE REELS
507 202
15 meters maximum hose capacity
Aluminium enclosure with composite
spool hose reels, can handle up to
15 m x 1/2" hose.
FLUIDS HANDLED
• Air.
• Water.
• Antifreeze and Windshield Wash
Solutions.
• High Pressure Hot Water.
• Synthetic and Mineral Oils.
• AdBlue®/DEF.
• Grease.
Markets / Applications
• Car and truck dealers.
• Service shops.
• Fleets.
• General manufacturing.
• Service stations.
• Lube trucks.
• Quick lubes.
05
HOSE REELS
Mounting
• Floor.
• Wall.
• Ceiling.
• Tank.
195
(7 5/8”)
540 (21 1/4”)
510 (20 1/6”)
220 (8 2/3”)
Ø 10
(3/8”)
130
(5 1/8”)
Dimensions mm (inches)
• Corrosion resistant aluminium enclosure form
a very rigid and stable structure, with light
weight and attractive design.
• Fatigue resistant steel spring for years of
durable performance and even load when
pulling and recoiling the hose.
• Full port shaft and swivel for no restrictions.
• Spool mounted on two permanent lubricated
and sealed ball bearings to reduce torque
load on spring for smooth retraction and
longer life.
• Large effective radial latching area for easier
operation.
• Positionable mounting brackets to
accommodate any method of mounting.
• Two large lateral service windows facilitate
common maintenance operations.
• Hose reels with hose include 0.8 m inlet hose.
Part
No.
Bare reel
Hose
in Ø
507 101
507 910
3/8"
Hose
length
Connecting
hose inlet
Delivery
hose
outlet
Pressure
rating
Weight
(With
hose)
20 bar
18.4 kg
AIR - WATER - ANTIFREEZE SOLUTIONS
10 m
3/8" BSP (M)
3/8" BSP (M)
507 121
507 912
3/8"
15 m
3/8" BSP (M)
3/8" BSP (M)
20 bar
20.7 kg
507122
507 919
1/2"
15 m
1/2" BSP (M)
1/2" BSP (M)
20 bar
21.4 kg
WINDSHIELD AND WINDSHIELD WASH SOLUTIONS - AdBlue®/DEF - DETERGENTS
507 762
507 976
1/2"
10 m
1/2" BSP (M)
1/2" BSP (M)
20 bar
19 kg
507 782
507 978
1/2"
15 m
1/2" BSP (M)
1/2" BSP (M)
20 bar
20.5 kg
507 202
507 920
1/2"
160 bar
18.9 kg
SYNTHETIC AND MINERAL OILS
10 m
1/2" BSP (M)
1/2" BSP (M)
507 222
507 922
1/2"
15 m
1/2" BSP (M)
1/2" BSP (M)
160 bar
21.4 kg
507 212*
507 921
1/2"
15 + 3 m
1/2" BSP (M)
1/2" BSP (M)
160 bar
22.2 kg
507 503
507 950
5/8"
1/2" BSP (M)
Vacuum
19.1 kg
507 300
507 930
1/4"
400 bar
18.8 kg
WASTE OIL SUCTION
6m
1/2" BSP (M)
GREASE AND HYDRAULIC FLUID
Reel with arms in
ceiling mounting
position.
10 m
1/4" BSP (M)
1/4" BSP (M)
507 301
507 934
3/8"
10 m
3/8" BSP (M)
1/4" BSP (M)
400 bar
19.5 kg
507 321
507 936
3/8"
15 m
3/8" BSP (M)
1/4" BSP (M)
400 bar
22.6 kg
507 311*
507 935
3/8"
15 + 3 m
3/8" BSP (M)
1/4" BSP (M)
400 bar
23.6 kg
170 bar
22.2 kg
HIGH PRESSURE HOT WATER (UP TO 100 ºC)
507 421
507 942
3/8"
15 m
3/8" BSP (M)
1/4" BSP (M)
*15 + 3 m models shall be need in installations allowing a minimum of 3 m of hose hanging from the reel.
74
05_ENROLLADORES V216_UK.indd 74
Product specifications are subject to change without prior notice
14/2/17 16:32
RM-12L HEAVY-DUTY HOSE REELS
15 meters maximum hose capacity
FLUIDS HANDLED
• Air.
• Water.
• Antifreeze and Windshield Wash
Solutions.
• High Pressure Hot Water.
• Synthetic and Mineral Oils.
• Grease.
504 250
Full metal Intensive Duty double
pedestal hose reels, with hose capacity
up to 15 m x 1/2" hose.
Markets / Applications
• Car and truck dealers.
• Service shops.
• Fleets.
• Lube trucks.
• Mining and construction.
• Railroad and mass transit.
• General manufacturing.
Mounting
• Floor.
• Wall.
• Ceiling.
• Tank.
HOSE REELS
05
156
(6 1/8”)
545 (21 7/16”)
Ø 515
(20 1/4”)
130
(5 1/8”)
Ø 10 (3/8”)
168
(6 5/8”)
220 (8 2/3”)
542 (21 1/2”)
Dimensions mm (inches)
Part
No.
Bare reel
Hose
in Ø
Hose
length
Connecting
hose inlet
Delivery
hose
outlet
Pressure
rating
Weight
(With
hose)
20 bar
24 kg
160 bar
24 kg
AIR - WATER - ANTIFREEZE SOLUTIONS
504 150
504 159
1/2"
504 250
504 259
1/2"
504 350
504 359.001
1/4"
15 m
1/4" BSP (M)
1/4" BSP (M)
400 bar
27.5 kg
504 351
504 359
3/8"
15 m
3/8" BSP (M)
1/4" BSP (M)
400 bar
26 kg
170 bar
26 kg
15 m
1/2" BSP (M)
1/2" BSP (M)
SYNTHETIC AND MINERAL OILS
15 m
1/2" BSP (M)
1/2" BSP (M)
GREASE AND HYDRAULIC FLUID
HIGH PRESSURE HOT WATER (UP TO 100 ºC)
504 450
504 459
3/8"
15 m
3/8" BSP (M)
1/4" BSP (M)
• Very tough construction able to stand regular
use and abuse in Intensive Duty applications.
• Fatigue resistant steel spring for years of
durable performance and even load when
pulling and recoiling the hose.
• Full port shaft and swivel for no restrictions.
• Spool mounted on two permanent
lubricated and sealed ball bearings to reduce
torque load on spring for smooth retraction
and longer life.
• Large effective radial latching area for easier
operation.
• Hose guide arm can be placed in different
positions to accommodate any method of
mounting.
• Narrow footprint allows accommodating
more reels on the same surface.
• Hose reels with hose include 0.8 m inlet hose.
Reel with arms in
ceiling mounting
position.
Product specifications are subject to change without prior notice
05_ENROLLADORES V216_UK.indd 75
75
14/2/17 16:32
RM-34 HEAVY-DUTY HOSE REELS
505 224
15 and 20 meters maximum hose capacity
Full metal, Intensive Duty double
pedestal hose reels with hose capacity
up to 15 m x 3/4" and 20 m x 1/2" hose.
FLUIDS HANDLED
• Air.
• Water.
• Antifreeze and windshield wash solutions.
• Synthetic and mineral oils.
• AdBlue®/DEF.
• Waste Oil Evacuation.
• Diesel.
• Grease.
Markets / Applications
• Truck dealers.
• Service shops.
• Fleets.
• Lube trucks.
• Mining and construction.
• Railroad and mass transit.
• General manufacturing.
05
Ø 551
(21 3/4”)
226
(8 7/8”)
594 (23 3/8”)
HOSE REELS
Mounting
• Floor.
• Wall.
• Ceiling.
• Tank.
560 (22 1/16”)
130
(5 1/8”)
Ø 10 (3/8”)
220
(8 2/3”)
Dimensions mm (inches)
• Very tough construction able to stand regular
use and abuse in Intensive Duty applications.
• Fatigue resistant steel spring for years of
durable performance and even load when
pulling and recoiling the hose.
• Full port shaft and swivel for no restrictions.
• Spool mounted on two permanent lubricated
and sealed ball bearings to reduce torque
load on spring for smooth retraction and
longer life.
• Large effective radial latching area for easier
operation.
• Hose guide arm can be placed in different
positions to accommodate any method of
mounting.
• Narrow footprint allows accommodating
more reels on the same surface.
• Hose reels with hose include 0.8 m inlet hose.
76
05_ENROLLADORES V216_UK.indd 76
Part
No.
Bare
reel
Hose
in Ø
Hose
length
Connecting
hose inlet
Delivery
hose
outlet
Pressure
rating
Weight
(With
hose)
AIR - WATER - ANTIFREEZE SOLUTIONS - DIESEL - LUBRICANTS
505 232
505 932
1/2"
20 m
3/4" BSP (F)
1/2" BSP (M)
160 bar
36 kg
505 224
505 924
3/4"
15 m
3/4" BSP (M)
3/4" BSP (M)
125 bar
38 kg
AdBlue /DEF - Windshield wash solutions - Washing solutions
®
505 524
505 529
3/4"
15 m
3/4" BSP (F)
3/4" BSP (F)
20 bar
39 kg
400 bar
39 kg
GREASE AND HYDRAULIC FLUID
505 332
505 339
1/2"
20 m
1/2" BSP (M)
1/2" BSP (M)
Product specifications are subject to change without prior notice
14/2/17 16:32
RM-100 HEAVY-DUTY LARGE CAPACITY HOSE REELS
15, 20, 25 and 30 meters maximum hose capacity
FLUIDS HANDLED
• Air.
• Water.
• Antifreeze solutions.
• Synthetic and mineral oils.
• Waste Oil Evacuation.
• Diesel.
508 225
Full metal, Intensive Duty, double
pedestal hose reels, with hose capacity
up to 15 m x 1", 20 m or 25 m x 3/4"
hose and 30 m x 1/2" hose.
Markets / Applications
• Fleets.
• Lube trucks.
• Mining and construction.
• Railroad and mass transit.
• General manufacturing.
Mounting
• Floor.
• Tank.
05
669 (26 3/8”)
HOSE REELS
315,3
(12 3/8”)
290
(11 3/8”)
380 (15”)
635 (25”)
Ø 13 (1/2”)
320 (12 5/16”)
Dimensions mm (inches)
Part
No.
Bare
reel
Hose
in Ø
Hose
length
Connecting
hose inlet
Delivery
hose
outlet
Pressure
rating
Weight
(With
hose)
25 bar
50 kg
AIR - WATER - ANTIFREEZE SOLUTIONS - DIESEL
508 125
508 925
1"
15 m
1" BSP (F)
1" BSP (F)
LUBRICANTS - WASTE OIL EVACUATION
508 225
508 925
1"
15 m
1" BSP (F)
1" BSP (F)
90 bar
56 kg
508 234
508 924
3/4"
20 m
1" BSP (F)
3/4" BSP (F)
100 bar
55 kg
508 244
508 944
3/4"
25 m
1" BSP (F)
3/4" BSP (F)
100 bar
57 kg
508 252
508 942
1/2"
30 m
1" BSP (F)
1/2" BSP (F)
160 bar
55 kg
Product specifications are subject to change without prior notice
05_ENROLLADORES V216_UK.indd 77
• Very tough construction large capacity
reels, able to stand regular use and abuse in
Intensive Duty applications.
• Fatigue resistant steel spring for years of
durable performance and even load when
pulling and recoiling the hose.
• Full port shaft and swivel for no restrictions.
• Spool mounted on two permanent
lubricated and sealed ball bearings to reduce
torque load on spring for smooth retraction
and longer life.
• Large effective radial latching area for easier
operation.
• Hose guide arm can be placed in different
positions to accommodate any method of
mounting.
• Narrow footprint allows accommodating
more reels on the same surface.
• Hose reels with hose include 0.8 m inlet hose.
77
14/2/17 16:32
RM-150 HEAVY-DUTY LARGE DELIVERY HOSE REELS
508 810
15 meters maximum hose capacity
Full metal, Intensive Duty, hose reel with
hose capacity up to 15 m x 1-1/2" hose.
FLUIDS HANDLED
• Water.
• Diesel.
Markets / Applications
• Fleets.
• Lube trucks.
• Mining and construction.
• Railroad and mass transit.
• General manufacturing.
Mounting
• Floor.
• Tank.
15 1/2” (394)
775 (30 1/2”)
14 1/4” (363)
Ø 364 (14 3/8”)
05
HOSE REELS
721,5 (28 1/4”)
Ø 635
(25”)
380 (15”)
Ø 13 (1/2”)
290
(11 7/16”)
Dimensions mm (inches)
• Very tough construction large delivery
reels, able to stand regular use and abuse in
Intensive Duty applications.
• Fatigue resistant steel spring for years of
durable performance and even load when
pulling and recoiling the hose.
• Full port shaft and swivel for no restrictions.
• Spool mounted on two permanent
lubricated and sealed ball bearings to reduce
torque load on spring for smooth retraction
and longer life.
• Large effective radial latching area for easier
operation.
• Hose guide arm can be placed in two
different positions to accommodate any
method of mounting.
• Narrow footprint allows accommodating
more reels on the same surface.
78
05_ENROLLADORES V216_UK.indd 78
Part
No.
Bare
reel
Hose
in Ø
Hose
length
Connecting
hose inlet
Delivery
hose
outlet
Pressure
rating
Weight
(With
hose)
1-1/2" BSP (F)
20 bar
87 kg
WATER - DIESEL
508 810
508 890
1-1/2"
15 m
1-1/2" BSP (F)
Product specifications are subject to change without prior notice
14/2/17 16:32
sainless steel reel and compact reels for air and cable
503 120
Stainless steel hose reels (AISI 304) for air,
water and corrosive fluids.
Ideal for food industry.
0.8 m inlet hose included.
500 115
612 400
Compact enclosed reels for compressed
air, manufactured in steel. All reels include
pivoting wall bracket for an easy and
convenient installation. Reels are supplied with
PVC hose and they have a maximum working
pressure of 15 bar (285 psi).
Compact reels with high resistance
thermoplastic enclosure. Compact design,
with wide outlet for a comfortable and friction
free cable extension. All reels include pivoting
bracket, cable specified for each model,
and cable overload breaker.
For use with 230 V - 50 Hz only.
HOSE REELS
05
Dimensions mm:
Dimensions mm
RM-12SS STAINLESS STEEL
HOSE REELS
Compact reels for air
rm-38 series
503 120 Stainless steel hose reel,
20 m x 1/2" hose
Hose reel for low pressure, air and water (up to
80 ºC). Food industry.
Inlet thread: 1/2" BSP (M).
Outlet thread 1/2" BSP (M).
Maximum working pressure: 10 bar.
500 115 Compact hose reel for air
15 m x 8 mm hose
Compact reel for air with 15 m x 8 mm hose.
Includes 0.8 m inlet hose and pivoting bracket.
Inlet thread: 3/8" BSP (M).
Outlet thread: 1/4" BSP (M).
Working pressure: 15 bar.
503 400 Stainless steel hose reel,
20 m x 3/8" hose
Hose reel for high pressure air and water (up to
150 ºC). Food industry.
Inlet thread: 1/2" BSP (M).
Outlet thread 3/8" BSP (M).
Maximum working pressure: 250 bar.
500 116 Compact hose reel for air
12 m x 10 mm hose
Compact reel for air with 12 m x 10 mm hose.
Includes 0.8 m inlet hose and pivoting bracket.
Inlet thread: 3/8" BSP (M).
Outlet thread: 3/8" BSP (M).
Working pressure: 15 bar.
Dimensions mm
cable reels - rm-power series
612 400 - 230 V, 50 Hz cable reel with
230 VAC to 24 VDC transformer with
LED lamp
15 m H05RN-F 2x1 mm2 cable hose reel.
Includes a 230 VAC to 24 VDC transformer and
a 900 LUMEN LED light.
612 100 - 230 V, 50 Hz cable reel
Includes 15 m H05VV-F 3x1,5 mm2 cable, 230
V - 50 Hz. Maximum power: 800 W with the
cable coiled and 2,000 W with the cable fully
extended because of heat dissipation.
612 200 - 230 V, 50 Hz cable reel with
230 VAC to 24 VDC transformer
Includes 15 m H05VV-F 2x1 mm2 cable.
Maximum power: 60 W Includes a 230 VAC to
24 VDC transformer. For use with an E27 24
VDC lamp (lamp not included).
612 300 - 230 V, 50 Hz cable reel with
230 VAC to 12 VDC transformer
Includes 15 m H05VV-F 2x1 mm2 cable.
Maximum power: 60 W Includes a 230 VAC to
12 VDC transformer. For use with an E27 12
VDC lamp (inspection lamp included, bulb not
included).
Product specifications are subject to change without prior notice
05_ENROLLADORES V216_UK.indd 79
79
14/2/17 16:32
hose reel kits
511 255
double pedestal, double arm hose reels, rm-12 series
PART No.
Hose reel
included
HOSE
511 101
501 100
10 m x 3/8"
CONTROL GUN
COMPRESSED AIR
Air coupling
LOW PRESSURE WATER
511 150
501 200
10 m x 1/2"
Low pressure water gun
OIL - ANTIFREEZE
511 200
501 200
10 m x 1/2"
Oil control gun (363 115)
511 255
501 200
10 m x 1/2"
Hose end meter (365 535)
511 252
501 200
10 m x 1/2"
Preset hose end meter (365 300)
GREASE
511 300
501 300
10 m x 1/4"
Grease control gun with z swivel (413 080)
HOSE REELS
05
513 259
heavy-Duty hose reels, Rm-12l series
PART No.
Hose reel
included
HOSE
513 154
504 150
15 m x 1/2"
513 155
504 150
15 m x 1/2”
513 248
504 250
15 m x 1/2”
Oil control gun (363 115)
513 259
504 250
15 m x 1/2”
Hose end meter (365 535)
513 249
504 250
15 m x 1/2”
CONTROL GUN
COMPRESSED AIR
Air coupling
LOW PRESSURE WATER
Low pressure water gun
OIL - ANTIFREEZE
Preset hose end meter (365 300)
GREASE
513 350
515 201
504 350
15 m x 1/4”
Grease control gun with z swivel (413 080)
heavy-duty hose reels, rm-34 series
PART No.
Hose reel
included
HOSE
515 216
505 232
20 m x 1/2”
CONTROL GUN
OIL
Oil control gun (363 115)
515 214
505 232
20 m x 1/2”
Hose end meter (365 535)
515 215
505 232
20 m x 1/2”
Preset hose end meter (365 300)
515 210
505 224
15 m x 3/4”
Hose end meter (365 535)
515 201
505 224
15 m x 3/4”
High delivery hose end meter (365 653)
515 213
505 224
15 m x 3/4”
Preset hose end meter (365 300)
OIL - DIESEL
80
05_ENROLLADORES V216_UK.indd 80
Product specifications are subject to change without prior notice
14/2/17 16:32
hose reel kits
single arm Hose reel, rm-12S series
PART No.
Hose reel
included
HOSE
516 101
506 101
10 m x 3/8"
Air coupling control gun
516 121
506 121
15 m x 3/8"
Air coupling control gun
516 122
506 122
15 m x 1/2"
Air coupling control gun
CONTROL GUN
COMPRESSED AIR
LOW PRESSURE WATER
516 150
506 101
10 m x 3/8"
Low pressure water gun
516 151
506 122
15 m x 3/8"
Low pressure water gun
516 152
506 122
15 m x 1/2"
Low pressure water gun
OIL
506 202
10 m x 1/2"
Oil control gun (363 115)
506 202
10 m x 1/2"
Hose end meter (365 535)
516 252
506 202
10 m x 1/2"
Preset hose end meter (365 300)
516 222
506 222
15 m x 1/2"
Oil control gun (363 115)
516 272
506 222
15 m x 1/2"
Hose end meter (365 535)
516 282
506 222
15 m x 1/2"
Preset hose end meter (365 300)
516 212
506 212
18 m x 1/2"
Oil control gun (363 115)
516 213
506 212
18 m x 1/2"
Hose end meter (365 535)
516 214
506 212
18 m x 1/2"
Preset hose end meter (365 300)
516 262
506 202
10 m x 1/2"
Fluid control gun (186 300)
516 292
506 222
15 m x 1/2"
Fluid control gun (186 300)
516 215
506 212
18 m x 1/2"
Fluid control gun (186 300)
05
516 202
HOSE REELS
516 202
516 242
ANTIFREEZE - AIR - WATER
WINDSHIELD WASHER - DEGREASERS (STAINLESS STEEL SHAFT AND SWIVEL)
516 602
506 602
10 m x 1/2"
516 622
506 622
15 m x 1/2"
Fluid control gun (186 300)
Fluid control gun (186 300)
GREASE
516 300
506 300
10 m x 1/4"
Grease control gun (413 080)
516 321
506 321
15 m x 3/8"
Grease control gun (413 080)
516 300
Product specifications are subject to change without prior notice
05_ENROLLADORES V216_UK.indd 81
81
14/2/17 16:32
hose reel kits
enclosed hose reel, rm-12CL series
PART No.
Hose reel
included
HOSE
CONTROL GUN
compressed air
517 101
507 101
10 m x 3/8"
Air coupling
517 121
507 121
15 m x 3/8"
Air coupling
517 122
507 122
15 m x 1/2"
Air coupling
LOW PRESSURE WATER
517 150
507 101
10 m x 3/8"
Low pressure water gun
517 151
507 121
15 m x 3/8"
Low pressure water gun
517 152
507 122
15 m x 1/2"
Low pressure water gun
517 202
507 202
10 m x 1/2"
517 242
507 202
10 m x 1/2"
Hose end meter (365 535)
517 252
507 202
10 m x 1/2"
Preset hose end meter (365 300)
OIL
HOSE REELS
05
517 202
Oil control gun (363 115)
517 222
507 222
15 m x 1/2"
Oil control gun (363 115)
517 272
507 222
15 m x 1/2"
Hose end meter (365 535)
517 282
507 222
15 m x 1/2"
Preset hose end meter (365 300)
517 212
507 212
15 m x 1/2"
Oil control gun (363 115)
517 213
507 212
15 m x 1/2"
Hose end meter (365 535)
517 214
507 212
15 m x 1/2"
Preset hose end meter (365 300)
ANTIFREEZE - AIR - WATER
517 262
507 202
10 m x 1/2"
Fluid control gun (186 300)
517 292
507 222
15 m x 1/2"
Fluid control gun (186 300)
517 215
507 212
15 m x 1/2"
Fluid control gun (186 300)
WINDSHIELD WASHER - DEGREASERS (STAINLESS STEEL SHAFT AND SWIVEL)
517 602
507 602
10 m x 1/2"
Fluid control gun (186 300)
517 622
507 622
15 m x 1/2"
Fluid control gun (186 300)
517 300
507 300
10 m x 1/4"
Grease control valve & z swivel (413 080)
517 321
507 321
15 m x 3/8"
Grease control valve & z swivel (413 080)
GREASE
517 300
82
05_ENROLLADORES V216_UK.indd 82
Product specifications are subject to change without prior notice
14/2/17 16:32
HOSE REEL ACCESSORIES
360 117
SINGLE REEL BRACKETS
MULTIPLE REELS BRACKET
For use with all RM-12 and
RM-34 hose reels.
360 111 Pivoting wall
bracket
360 110 Stainless Steel
pivoting wall bracket
For RM-12SS hose reel.
360 119 Single reel bracket.
360 113 One reel bracket for
432 814 trolley
Not for RM-34 hose reels.
360 135 One reel bracket for
432 000 trolley
Not for RM-34 hose reels.
For use with all RM-12 hose reels.
360 114, 2 hose reel bracket
Dimensions: 550 x 308 x 75 mm.
360 115, 3 hose reel bracket
Dimensions 825 x 308 x 75 mm.
360 117, 5 hose reel bracket
Dimensions 1,375 x 308 x 75 mm.
360 118 Bracket for I beams
Allow fixing a multiple reel bracket
to an"I" beam (100/175 mm)
without drilling. Two are required
for the two and three reel bracket
and three for the five reel bracket.
360 122
360 127
DRIP POCKETS
360 122 Drip pocket
360 127 Drip pocket and gun holder
05
HOSE REELS
360 111 - 360 119
360 161
360 162
TWO HOSE REEL STAND
THREE HOSE REEL STAND
360 161 Two hose reel stand
For use with any pair of RM-12
hose reels. Height: 2,375 mm.
360 162 Three hose reel stand
For use with all RM-12 models, includes drip tray.
Dimensions: 1,200 x 400 x 2,220 mm.
Product specifications are subject to change without prior notice
05_ENROLLADORES V216_UK.indd 83
83
14/2/17 16:32
HOSE REEL ACCESSORIES
360 163
360 160
five HOSE REEL STAND
six HOSE REEL STAND
HOSE REELS
05
360 163 Five hose reel stand
For use with all RM-12 reel models, includes
drip tray.
Dimensions: 1,750 x 400 x 2,220 mm.
Very solid construction, allows mounting six RM-12 or RM-34 hose reels depending on models.
Two extra reels can be mounted using the optional accessory. Six reel stands include perforated
internal side panels and drip tray.
360 160 Six reel stand
Narrow model for use with RM-12, RM-12S, RM-12L reels.
Dimensions: 1,543 x 760 x 2,600 mm.
360 165 Six reel Heavy Duty stand
Wide model for use with RM-12CL and RM-34 reels.
Dimensions: 1,972 x 760 x 2,600 mm.
360 164
360 160
360 166
360 165
SIX HOSE REEL STANDS ACCESSORIES
For use with 360 160 and 360 165 stands as mentioned.
360 164 Height extension kit
The kit allows rising 500 mm the stand height. For use with 360 160 and 360 165 stands.
360 166 Additional bracket for two hose reel
The additional bracket allows mounting two additional hose reels on one side of a six reel stand 360 160 and 360 165.
360 168 Additional drip tray
For use on one side of a six reel stand 360 160 and 360 165 when equipped with the 360 166 additional bracket.
736 229 Drawers kit
The kit allows mounting two drawers with lock to the six reel stand 360 160.
84
05_ENROLLADORES V216_UK.indd 84
Product specifications are subject to change without prior notice
14/2/17 16:33
PUMPMASTER
oil pumps
MOBILE
GREASE2 UNITS
pumps
WITH
PUMPMASTER 3+3 PUMPS - 20 AND 50 Kg.
Iquip modit iriuscidunt nos niam
06 ver ipfluid
000 000
dispense valves and meters
CONTROL VALVES FOR dispensing OIL and other fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ELECTRONIC METERED CONTROL VALVES FOR dispensing OIL and other fluids. . . . . . . . . . . .
MECHANICAL METERED CONTROL VALVES FOR dispensing OIL and other fluids . . . . . . . . . . .
in-line meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pulse transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
other meters and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
grease guns and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OIL BARS, SPIGOT VALVES AND OTHER FLUID DISPENSE GUNS . . . . . . . . . . . . . . . . . . . . . . . . . . .
86
88
90
92
93
94
95
96
VALVES &
METERS
06
Product specifications are subject to change without prior notice
06_VALVE AND METERS V216_UK.indd 85
85
17/2/17 17:18
CONTROL VALVES FOR dispensing OIL and other fluids
000 115
363
000
Iquip -modit
PA40
OIL CONTROL
iriuscidunt
VALVE,
nos
40niam
L/MINver ip
Samoa control valves are used at end of hose assembly to dispense lubricants and antifreeze
solutions.
FLUIDS HANDLED
• Synthetic and mineral based lubricants.
• Gear Oil.
• Hydraulic oil and fluids.
• ATF.
• Antifreeze solutions.
MARKETS SERVED
• Car and truck dealerships.
• Fast lube and maintenance shops.
• Fleet service.
• Mining and construction.
• Lube trucks.
durability and performance
• Extensively and rigorously field tested. Reliable performance.
• Aluminium body with light weight ergonomic design. Soft grip valve for comfort.
• Cam and piston valve design for minimum flow resistance.
• Large inlet swivel and inlet filter.
• Swivel and outlet covers.
• Safety latch must be depressed before product can be dispensed. Trigger can be locked open
for dispensing large volumes.
• Wide selection of outlets available
Technical data
VALVES &
METERS
06
40 l/min (11 gal/min)
Maximum working pressure
100 bar (1,450 psi)
Operating temperature range
-10 ºC to 70 ºC (14 to 160 ºF)
Fluid inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted parts
Aluminium / Zinc plated steel / TPU / Polyamide
Fluid compatibility
Lubricants, ATF, antifreeze (Glycol) and antifreeze
water solutions
Weight
470 g (1 lb)
ordering information
REGISTERED DESIGN
Part No.
106
143
Maximum flow rate
Dimensions (mm)
Included Outlet
PART no.
OUTLET NOZZLE TYPE
363 100
No outlet
363 116
60º rigid outlet and quarter turn non-drip tip
369 232
(A)
363 115
Flexible outlet with 90º tube and automatic non-drip tip
369 230
(B)
-
363 114
Flexible outlet with 90º tube and quarter turn non-drip tip
369 228
(C)
363 112
Flexible outlet and automatic non-drip tip
369 224
(D)
363 117
Formable outlet and quarter turn non-drip
369 234
(E)
363 118
Formable outlet and quarter turn narrow non-drip (Ø 8 mm)
369 241
(F)
Non-drip tips are manufactured in brass.
Closed
Open
182 mm (with swivel)
(A)
369 232
(B)
369 230
Locked
Safety
(C)
369 228
Easy-release
The new cam actuated piston-valve is designed for
unrestricted flow and superb control. It incorporates an
ergonomic trigger with safety, locking and easy-release
functions.
106 mm
143 mm
(D)
(E)
369 224
(F)
369 234
369 241
86
06_VALVE AND METERS V216_UK.indd 86
Product specifications are subject to change without prior notice
17/2/17 17:18
CONTROL VALVES FOR dispensing OIL and other fluids
000 000
PA70 - HIGH FLOW OIL CONTROL VALVE, 70 L/MIN
363 053
Samoa large delivery control valves are used at end of hose assembly to dispense large volumes
of lubricants and antifreeze solutions.
FLUIDS HANDLED
• Synthetic and mineral based lubricants.
• Gear Oil.
• Hydraulic oil and fluids.
• ATF.
• Antifreeze solutions.
MARKETS SERVED
• Truck dealerships.
• Fleet service.
• Mining and construction.
• Lube trucks.
• Railroad and mass transit vehicles.
durable and high flow performance
• Extensively and rigorously field tested. Reliable performance.
• Heavy Duty aluminium pressure cast body to stand the toughest working conditions.
• High flow pressure balanced valve for comfortable use.
• Large port inlet swivel (1" and 3/4"). Inlet filter with large screen surface.
• Safety guard avoids accidental openings.
• Trigger can be blocked open for dispensing large volumes.
• Outlets have 3/4" BSP (M) connection thread and use a bonded seal washer to assure a leak free operation.
Technical data
Maximum flow rate
90 l/min (24 gal/min)
Maximum working pressure
100 bar (1,450 psi)
Operating temperature range
-10 ºC to 70 ºC (14 to 160 ºF)
Fluid inlet
3/4" BSP (F) or 1" BSP (F)
Fluid outlet
3/4" BSP (F)
Wetted parts
Aluminium / Zinc plated steel and brass / NBR
Fluid compatibility
All type of synthetic and mineral oils, antifreeze
solutions, hydraulic fluid
Weight
2.05 kg (4.5 lb)
VALVES &
METERS
06
ordering information
Part No.
inlet swivel
thread
OUTLET NOZZLE TYPE
363 053
30º rigid with semiautomatic non-drip tip
3/4" BSP (F)
(A)
363 054
Flexible outlet with semiautomatic non-drip tip
3/4" BSP (F)
(B)
363 055
30º rigid with semiautomatic non-drip tip
1" BSP (F)
(A)
363 056
Flexible outlet with semiautomatic non-drip tip
1" BSP (F)
(B)
REGISTERED DESIGN
265
369 237
(A)
(B)
369 236
265 mm
Dimensions (mm)
Closed
Open
Locked
Safety
Easy-release
The new pressure balanced spool valve is designed for unrestricted flow, superb control and comfortable use.
The control valve incorporates hand-guard for safety and an ergonomic trigger with locking function.
Product specifications are subject to change without prior notice
06_VALVE AND METERS V216_UK.indd 87
87
17/2/17 17:18
ELECTRONIC METERED CONTROL VALVES
FOR dispensing OIL and other fluids
000 534
365
000
Iquip -modit
EC30
OVAL iriuscidunt
GEAR WITH DIGITAL
nos niam
DISPLAY
ver ip
HAND HELD METER, 30 L/MIN
Samoa metered control valves are used at end of hose assembly for measured dispensing of
lubricants and antifreeze solutions.
FLUIDS HANDLED
• Synthetic and mineral based lubricants.
• Gear Oil.
• Hydraulic oil and fluids.
• ATF.
• Antifreeze solutions.
MARKETS SERVED
• Car and truck dealerships.
• Fast lube and maintenance shops.
• Fleet service.
• Mining and construction.
• Lube trucks.
ACCURACY, durability and higher flow performance
• Extensively and rigorously field tested. Reliable performance.
• High precision machined measuring chamber with tight tolerances, quality gears and stainless
steel shafts eliminate the need of calibration to adjust for fluid viscosity.
• Sealed battery compartment and isolated electronic register for extended life.
• Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
• Rough TPE boot surrounds the entire meter for even greater durability.
• Replaceable AAA batteries.
Technical data
VALVES &
METERS
06
Maximum flow rate
30 l/min (8 gal/min)
Accuracy
+/- 0.5 %
Maximum working pressure
100 bar (1,450 psi)
Operating temperature range
-10 ºC to 60 ºC (14 to 140 ºF)
Fluid inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted parts
Acetal / Aluminium / Stainless steel / NBR / Zinc plated
steel / TPU / Polyamide
Fluid compatibility
Lubricants, ATF, antifreeze (Glycol) and antifreeze water solutions
Weight
1.30 kg (2.86 lb)
ordering information
hose end
meter PART No.
REGISTERED DESIGN
93
143
106
OUTLET NOZZLE
PART no.
OUTLET NOZZLE TYPE
365 521
Hose end meter with no outlet
365 536
60º rigid with quarter turn opening non-drip tip
369 232
(A)
365 535
Flexible outlet with 90º angled nozzle with automatic
non-drip tip
369 230
(B)
365 534
Flexible outlet with 90º angled nozzle with quarter turn
opening non-drip tip
369 228
(C)
365 532
Flexible outlet with automatic non-drip tip
369 224
(D)
365 537
Formable outlet with quarter turn opening non-drip tip
369 234
(E)
365 538
Formable outlet with quarter turn opening narrow
non-drip tip (Ø 8 mm)
369 241
(F)
-
Non-drip tips are manufactured in brass.
(A)
182 mm (with swivel)
369 232
Dimensions (mm)
Closed
(B)
Open
369 230
(C)
369 228
106 mm
Safety
Easy-release
Locked
The new cam actuated piston-valve is designed for
unrestricted flow and superb control. It incorporates an
ergonomic trigger with safety, locking and easy-release
functions.
88
06_VALVE AND METERS V216_UK.indd 88
143 mm
93 mm
(D)
(E)
(F)
369 224
369 234
369 241
Product specifications are subject to change without prior notice
17/2/17 17:18
ELECTRONIC METERED CONTROL VALVES
FOR dispensing OIL and other fluids
EC70 - OVAL GEAR WITH DIGITAL DISPLAY HAND HELD HIGH FLOW METER, 70 L/MIN
365 655
Samoa High Flow metered control valves are used at end of hose assembly for measured
dispensing large volume of lubricants and antifreeze solutions done at high flow rates.
FLUIDS HANDLED
• Synthetic and mineral based lubricants.
• Gear Oil.
• Hydraulic oil and fluids.
• ATF.
• Antifreeze solutions.
MARKETS SERVED
• Truck dealerships.
• Fleet service.
• Mining and construction.
• Lube trucks.
• Railroad and Mass Transit Vehicles.
ACCURACY, durability and high flow performance
• Extensively and rigorously field tested. Reliable performance.
• High precision machined measuring chamber with tight tolerances, quality gears and stainless
steel shaft eliminate the need of calibration to adjust for fluid viscosity.
• Sealed battery compartment and isolated electronic register for extended life.
• Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
• Rough TPE boot surrounds the entire meter for even greater durability.
• Replaceable AAA batteries.
Technical data
Maximum flow rate
70 l/min (19 gal/min)
Accuracy
+/- 0.5%
Maximum working pressure
100 bar (1,450 psi)
Operating temperature range
-10 ºC to 60 ºC (14 to 140 ºF)
Fluid inlet
3/4" BSP (F) or 1" BSP (F)
Fluid outlet
3/4" BSP (F)
Wetted parts
Acetal / Aluminium / Stainless steel / Zinc plated steel
and brass / NBR
Fluid compatibility
All type of synthetic and mineral oils, antifreeze
solutions, hydraulic fluid
Weight
2.85 kg (6.30 lb)
VALVES &
METERS
06
ordering information
hose end
meter PART No.
inlet swivel
thread
OUTLET NOZZLE TYPE
365 655
30º rigid with semiautomatic non-drip tip
3/4" BSP (F)
(A)
365 654
Flexible outlet with semiautomatic non-drip tip
3/4" BSP (F)
(B)
365 657
30º rigid with semiautomatic non-drip tip
1" BSP (F)
(A)
365 656
Flexible outlet with semiautomatic non-drip tip
1" BSP (F)
(B)
REGISTERED DESIGN
(A)
369 237
93
280
(B)
369 236
265 mm
93 mm
Closed
Open
Dimensions (mm)
Safety
Locked
The new pressure balanced spool valve is designed for unrestricted flow, superb control and comfortable use.
The control valve incorporates hand-guard for safety and an ergonomic trigger with locking function.
Product specifications are subject to change without prior notice
06_VALVE AND METERS V216_UK.indd 89
89
17/2/17 17:18
MECHANICAL METERED CONTROL VALVES
FOR dispensing OIL and other fluids
000
365 000
803
Iquip modit
iriuscidunt
nos HELD
niam METER,
ver ip 30 L/MIN
MC30
- ROTARY
PISTON HAND
Samoa mechanical metered control valves are used at end of hose assembly for measured
dispensing of lubricants and antifreeze solutions in tough, intensive use applications.
FLUIDS HANDLED
• Synthetic and mineral based lubricants.
• Gear Oil.
• Hydraulic oil and fluids.
• ATF.
• Antifreeze solutions.
• Special model for antifreeze solutions available.
MARKETS SERVED
• Car and truck dealerships.
• Fast lube and maintenance shops.
• Fleet service.
• Mining and construction.
• Lube trucks.
• Railroad and Mass Transit Vehicles.
ACCURACY, durability with proven performance
• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob
guarantee maximum integrity of the meter against drops and impacts and provide superb
protection against humidity.
• Fully mechanical register.
• Simple and easy to read dial includes 5-digit totalizer.
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• PA40 control valve is flange coupled to eliminate the use of adaptors and eliminate leaks.
Technical data
VALVES &
METERS
06
Maximum flow rate
30 l/min (8 gal/min)
Accuracy
+/- 0.65 %
Maximum working pressure
100 bar (1,450 psi)
Operating temperature range
-10 ºC to 60ºC (-14 to 140 ºF)
Fluid inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted parts
Aluminium / Zinc alloy / Stainless steel / NBR / Brass /
Steel / TPU / Polyamide
Fluid compatibility
Synthetic and mineral oils, ATF, Antifreeze, Gear oils
Weight
1.7 kg (3.74 lb)
ordering information
hose end
meter PART No.
OUTLET NOZZLE TYPE
OUTLET NOZZLE
PART no.
METRIC METERS. 0 - 10 Litters dial, Totalizer in Litters - Lubricants
99
151
106
365 801
No outlet. Includes inlet swivel with shroud
-
365 803
Flexible outlet with automatic non-drip tip
369 224
Formable outlet with quarter turn opening non-drip tip
369 234
365 804
METRIC METERS. 0 - 10 Litters dial, Totalizer in Litters - Antifreeze
365 824
Formable outlet with quarter turn opening non-drip tip
369 234
QUARTS/GALLONS METERS. 4 - 16 Quarts dial, Totalizer in Gallons - Lubricants
Dimensions (mm)
Open
Closed
365 802
No outlet. Includes inlet swivel with shroud
-
365 805
Formable outlet with automatic non-drip tip
369 224
365 806
Formable outlet with quarter turn opening non-drip tip
369 234
QUARTS/GALLONS METERS. 4 - 16 Quarts dial, Totalizer in Gallons - Antifreeze
365 826
Safety
Locked
Formable outlet with quarter turn opening non-drip tip
369 234
Non-drip tips are manufactured in brass.
All models include inlet swivel with shroud and the outlet listed for each model.
Easy-release
The new cam actuated piston-valve is designed for
unrestricted flow and superb control. It incorporates an
ergonomic trigger with safety, locking and easy-release
functions.
90
06_VALVE AND METERS V216_UK.indd 90
Product specifications are subject to change without prior notice
17/2/17 17:19
MECHANICAL METERED preset CONTROL VALVES FOR
dispensing OIL and other fluids
365 811
MP30 - ROTARY PISTON HAND HELD PRESET METER, 30 L/MIN
Samoa mechanical preset metered control valves allow automatic filling of large crankcases,
engines and other lubricant reservoirs. For automatic operation, set the dial pointer to the
quantity needed, actuate the trigger for automatic latching and the valve will deliver exactly the
volume required and then shut off.
FLUIDS HANDLED
• Synthetic and mineral based lubricants.
• Gear Oil.
• Hydraulic oil and fluids.
• ATF.
MARKETS SERVED
• Truck dealerships.
• Fleet service.
• Mining and construction.
• Lube trucks.
• Railroad and Mass Transit Vehicles.
ACCURACY, DURABILITY AND EXTRA PERFORMANCE
• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob
guarantee maximum integrity of the meter against drops and impacts and provide superb
protection against humidity.
• The reset mechanism incorporates a safety clutch for preserving the preset mechanism in case
the knob is turned in the wrong direction.
• Mechanical shut-off mechanism. High wear and stress resistant shut off mechanism.
• Simple and easy to read dial includes 5-digit totalizer.
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• PA40 Control valve is flange coupled to eliminate the use of adaptors and eliminate leaks.
06
VALVES &
METERS
Technical data
Maximum flow rate
30 l/min (8 gal/min)
Accuracy
+/- 0.65 %
Maximum working pressure
100 bar (1,450 psi)
Operating temperature range
-10 ºC to 60 ºC (14 to 140 ºF)
Fluid inlet
1/2" BSP (F)
Fluid outlet
1/2" BSP (F)
Wetted parts
Aluminium / Zinc alloy / Stainless steel / NBR / Brass /
Steel / TPU / Polyamide
Fluid compatibility
Synthetic and mineral oils, ATF, Antifreeze
Weight
2 kg (4.40 lb)
ordering information
hose end
meter PART No.
OUTLET NOZZLE TYPE
OUTLET NOZZLE
PART no.
99
151
106
METRIC METERS. 0 - 60 litters dial, totalizer in litters
365 811
Rigid outlet with semiautomatic non-drip tip
369 244
QUARTS/GALLONS METERS. 0 - 60 quarts dial, totalizer in gallons
365 812
Rigid outlet with semiautomatic non-drip tip
369 244
QUARTS/GALLONS METERS. 0 - 60 gallons dial, totalizer in gallons
365 813
Rigid outlet with semiautomatic non-drip tip
Closed
Product specifications are subject to change without prior notice
06_VALVE AND METERS V216_UK.indd 91
369 244
Dimensions (mm)
Open
91
17/2/17 17:19
IN-LINE METERS
000 000 - 366 010 - 366 020
366
IquipIN-LINE
1/2"
modit METERS
iriuscidunt
C30, nos
30 - niam
50 l/min
ver ip
Oval gear meters for use as in-line meters with oil, AdBlue®/DEF, windshield wash solution or antifreeze solution, depending on the meter wetted materials. They can be wall mounted in the fluid
line or at the pump outlet.
Meters include an electronic register controlled by wetted magnets and powered with two AAA
alkaline batteries. It is shock proof and isolated from the fluid handled. Meter display is multifunction, showing the volume dispensed per delivery, and has a permanent and a resettable (trip
function) totalizers. The display can be programmed to show delivery in litters, quarts, pints and
US gallons. The assembly is enclosed in TPE moulded shroud.
MODELS AND Technical data
366 000
VALVES &
METERS
06
REGISTERED DESIGN
366 060
366 010
366 020
Wetted parts
Aluminium, acetal,
AISI 316 stainless steel,
NBR
PVC, acetal, AISI 316
stainless steel, Viton®
AISI 316 Stainless
steel, acetal, Viton®
Applications
Medium pressure
dispense of lubricants up
to 5.000 mPa
Low pressure dispense of
AdBlue®/DEF, windshield
wash and antifreeze
solutions
Medium pressure
dispense of AdBlue®/DEF,
windshield wash and
antifreeze solutions
Connection threads
1/2" BSP (F)
1/2" BSP (F)
1/2" BSP (F)
Flow range
1 - 30 l/min
1 - 50 l/min
1 - 50 l/min
Pulses per litre
164 ppl
150 ppl
164 ppl
Accuracy
+/- 0.5 %
+/- 0.5 %
+/- 0.5 %
Maximum operating
pressure
100 bar
30 bar
100 bar
Temperature range
(fluid)
-10 ºC to 60 ºC
-10 ºC to 60 ºC
-10 ºC to 70 ºC
Calibration
Can be calibrated
Can be calibrated
Can be calibrated
Weight
0.53 kg
0.50 kg
0.85 kg
3/4" HIGH VOLUME IN-LINE METER C70, 80 L/MIN
Oval gear meter for use as in-line meters with oil or diesel. It can be wall mounted in the fluid line
or at the pump outlet.
Meter includes an electronic register controlled by wetted magnets and powered with two AAA
alkaline batteries. It is shock proof and isolated from the fluid handled and the display is multifunction, showing the volume dispense per delivery and has a permanent and a resettable (trip
function) totalizers. The display can be programmed to show delivery in litters, quarts, pints and
US gallons. The assembly is enclosed in TPE moulded shroud. It can also be set to show the flow
rate in units of measure per minute.
MODELS AND Technical data
366 060
REGISTERED DESIGN
92
06_VALVE AND METERS V216_UK.indd 92
Wetted parts
Aluminium, acetal, AISI 316 stainless steel, NBR
Applications
Medium pressure dispense of diesel and lubricants up
to 5,000 mPa
Connection threads
3/4" BSP (F)
Flow range
8 - 80 l/min
Pulses per litre
109 ppl
Accuracy
+/- 0.5 %
Maximum operating pressure
100 bar
Temperature range (fluid)
-10 ºC to 60 ºC
Calibration
Can be calibrated
Weight
0.80 kg
Product specifications are subject to change without prior notice
17/2/17 17:19
PULSE TRANSMITTERS
366 050 - 366 053 - 366 055
1/2" PULSE TRANSMITTERS, 30 - 50 L/MIN
Oval gear meters for use as in-line meters for oil, AdBlue®/DEF, windshield wash solution or antifreeze solution lines depending on the meter wetted materials. They can be wall mounted in the
fluid line or at the pump outlet.
Meters are shock proof and isolated from the fluid handled and the assembly is enclosed in a TPE
moulded shroud.
Meter has a led light that indicates when the solenoid valve linked with the meter is open when
used in an Inventory Management System.
MODELS AND Technical data
366 053
366 055
Wetted parts
Aluminium, acetal,
AISI 316 stainless steel,
NBR
PVC, acetal, AISI 316
stainless steel, Viton®
AISI 316 Stainless
steel, acetal, Viton®
Applications
Medium pressure
dispense of lubricants up
to 5.000 mPa
Low pressure dispense of
AdBlue®/DEF, windshield
wash and antifreeze
solutions
Medium pressure
dispense of AdBlue®/DEF,
windshield wash and
antifreeze solutions
Connection threads
1/2" BSP (F)
1/2" BSP (F)
1/2" BSP (F)
Flow range
1 - 30 l/min
1 - 50 l/min
1 - 50 l/min
Pulses per litre
328 ppl
320 ppl
320 ppl
Accuracy
+/- 0.5 %
+/- 0.5 %
+/- 0.5 %
Maximum operating
pressure
100 bar
30 bar
100 bar
Temperature range
(fluid)
-10 ºC to 60 ºC
-10 ºC to 60 ºC
-10 ºC to 70 ºC
06
VALVES &
METERS
366 050
REGISTERED DESIGN
3/4" HIGH VOLUME PULSE TRANSMITTER, 80 L/min
366 057
Oval gear meter for use as in-line meters for oil and diesel. It can be wall mounted in the fluid
line or at the pump outlet. Double reed switch circuit board makes possible detecting when
meter counts backwards.
Meters are shock proof and isolated from the fluid handled and the assembly is enclosed in a TPE
moulded shroud.
Meter has a led light that indicates when the solenoid valve linked with the meter is open when
used in an Inventory Management System.
MODELS AND Technical data
366 057
Wetted parts
Aluminium, acetal, AISI 316 stainless steel, NBR
Applications
Medium pressure dispense of diesel and lubricants up
to 5,000 mPa
Connection threads
3/4" BSP (F)
Flow range
8 - 80 l/min
Pulses per litre
109 ppl
Accuracy
+/- 0.5 %
Maximum operating pressure
100 bar
Temperature range (fluid)
-10 ºC to 60 ºC
Product specifications are subject to change without prior notice
06_VALVE AND METERS V216_UK.indd 93
REGISTERED DESIGN
93
17/2/17 17:19
OTHER METERS AND ACCESSORIES
365 575
186 300
HOSE END METER FOR WATER
BASED FLUIDS
DELIVERY GUN FOR WATER
BASED FLUIDS
365 575 Hose end meter for water based fluids
Oval gear hose end meter with electronic
display for measured delivery of windshield
washer, coolant and antifreeze solutions.
Display is powered with two easy to replace
1,5 V AAA alkaline batteries. Meter can
measure in litters, quarts, pints and US gallons.
The meter is flange coupled delivery gun 186
300.
Fluid inlet: 1/2" BSP (F).
Maximum flow: 30 l/min.
Maximum working pressure: 30 bar.
Operating temperature range:
10 to 60 ºC (14 to 140 ºF).
186 300 Delivery gun for water based fluids
Delivery gun with reinforced polyamide body
and stainless steel valve mechanism for use
with fluids like windshield wash solutions,
glycol solution (anti-freeze and other water
based solutions. Includes brass inlet swivel with
1/2" BSP (F) connection thread and flexible
outlet with 90º angled nozzle with quarter turn
opening / closing non-drip tip.
365 300
PRESET DIGITAL METER
VALVES &
METERS
06
365 300 Preset digital meter
Oval gear hose end meter with preset
function. Preset mode dispensing allows
hands off operation as the meter automatically
shuts off once the preset volume is delivered.
Meter with digital display, works with four
easy to replace 1.5 V AAA alkaline batteries.
Includes inlet swivel and rigid outlet with nondrip nozzle.
Accessories 1/2" CONNECTION THREAD OUTLETS
They fit all metered and non-metered oil guns EC30, PA40, MC30 and MP30. Connection thread:
1/2" BSP (M). Non-drip tips are manufactured in brass.
369 224
369 228
369 230
369 224 Flexible outlet with automatic opening / closing non-drip tip.
369 228 Flexible outlet with 90º angled nozzle with quarter turn opening / closing non-drip tip.
369 230 Flexible outlet with 90º angled nozzle with automatic opening / closing non-drip tip
369 232, 60º rigid outlet with quarter turn opening / closing non-drip tip.
369 234 Formable outlet with quarter turn opening / closing non-drip tip.
369 241 Formable outlet with quarter turn opening / closing narrow (Ø 8 mm) non-drip tip.
369 244 Rigid straight outlet with semiautomatic non-drip tip. For MP30 mechanical preset meter.
369 232
369 606 Pack of four colour coded protectors. For mounting at the EC30 meters and PA40 oil gun
outlets.
369 234
369 241
369 606
369 244
369 236 - 369 237
Accessories 3/4" CONNECTION THREAD OUTLETS
They fit all EC70 and PA70 metered and non-metered guns. Connection thread: 3/4" BSP (M) and
bonded washer seal.
369 236 Flexible outlet with semiautomatic non-drip tip.
369 237, 30º angled rigid outlet with semiautomatic non-drip tip.
94
06_VALVE AND METERS V216_UK.indd 94
Product specifications are subject to change without prior notice
17/2/17 17:19
grease guns and accessories
415 002
grease control guns
413 077 Grease control gun
Grease control gun with rigid outlet with 3 jaw
connector (PN 121 050).
413 080 Grease control gun with z-swivel
Grease control gun with z-swivel (PN 414 300),
rigid outlet and 3 jaw connector assembly
(PN 741 300).
High pressure grease control guns with
ergonomic body and trigger designed to
reduce operator hand fatigue. Manufactured in
aluminium with steel insert for high pressure.
Maximum working pressure: 500 bar (7,150
psi). Inlet thread: 1/4" BSP (F).
Outlet thread: 1/8" BSP (F).
413 081 Grease control gun
Grease control gun with 450 mm double steel
braid reinforced rubber hose (PN 140 050) with
3 jaw connector (PN 121 050).
140 050 - 741 300
Grease control gun swivels
414 100 Straight grease swivel. 1/4" BSP (MF).
414 200 "L" grease swivel. 1/4" BSP (MF).
414 300 "Z" grease swivel. 1/4" BSP (MF).
Grease control gun outlets
741 306 Rigid outlet with hydraulic grease
connector.
741 300 Rigid outlet with 3 jaw hydraulic
grease connector (121 050).
140 050 Double steel braid reinforced grease
hose, 450 mm.
741 304 Rigid outlet.
Product specifications are subject to change without prior notice
06_VALVE AND METERS V216_UK.indd 95
415 002 High pressure grease
electronic-metered control gun
Includes:
Double steel braid reinforce rubber hose
(400 mm) with hydraulic grease connector
and z-swivel.
06
415 000 High pressure grease
electronic-metered control gun
Includes:
Z-swivel, with no outlet accessories.
413 082 Grease control gun with z-swivel
Grease control gun with z-swivel (PN 414 300)
and 450 mm double steel braid reinforced
rubber hose (PN 140 050) with 3 jaw
connector (PN 121 050).
414 300 - 414 100
Equipped with ball bearings for easy articulation
even at high pressure. For best results, use
a straight swivel between the pump and
distribution hose and Z swivel between the hose
and grease control gun. Maximum working
pressure: 500 bar (7,150 psi).
electronic-metered grease
control guns
VALVES &
METERS
413 077
411 100
ovar gear in line grease meter
with electronic digital display
411 100 In line grease meter
High pressure oval gear meter with digital
display. Batch display in grams (up to 9999 g)
and permanent totalizer in kilograms (up to
999999 kg).
Works with two 1,5 V AAA alkaline batteries.
Maximum pressure: 500 bar (7,140 psi).
Maximum flow range: up to 1 kg/min (2.2
lb/min). Accuracy: ± 3,0 %. Inlet and outlet
connections: 1/8" BSP (F).
95
17/2/17 17:19
OIL BARS, SPIGOT VALVES AND OTHER FLUID DISPENSE GUNS
361 200 - 361 100
186 000 - 185 001 - 186 010
187 000 - 187 001
OIL BAR AND SPIGOT VALVE
WATER GUNS
SPRAY GUNS
361 200 Oil bar
Oil bar to dispense up to four products.
Delivered with one outlet, up to three
additional outlets can be mounted.
For use only with water and antifreeze
solutions.
186 000 Water gun
Maximum working pressure 10 bar,
connection thread 1/4" BSP (F).
361 110 Additional outlet for oil bars
366 550 In-line meter kit for oil bars
VALVES &
METERS
06
361 100 Oil spigot valve
For connecting to pumps outlet. Connection
thread 3/4" BSP (M).
186 010 Water bib
Maximum working pressure 10 bar,
connection thread 1/4" BSP (F)
185 001 Wash gun
Maximum working pressure 30 bar,
connection thread 1/2" BSP (F).
187 000 Spray gun
Min. - max. pressure: 3 to 10 bar, connection
thread 1/4" BSP (F). Aluminium gun body and
1 litre aluminium container.
187 001 Spray gun
Min. - max. pressure: 3 to 10 bar, connection
thread 1/4" BSP (F). Aluminium gun body,
metal outlet and 1 litre plastic container.
184 000 Spray gun
Min. - max. pressure: 4 to 10 bar, connection
thread 1/4" BSP (F). Plastic gun body, metal
outlet and 0.75 litre plastic container.
184 050 Spray gun
Min.- max. pressure: 4 to 10 bar, connection
thread 1/4" BSP (F). Plastic gun body, plastic
outlet and 0,75 litre plastic container.
188 000 - 188 100
184 200 - 184 201
199 800
INDUSTRIAL QUALITY BLOW GUNS
THERMOPLASTIC BLOW GUNS
TIRE INFLATOR GUNS
Aluminium blow guns with anti-slide grip.
High air flow and wide range of accessories.
Maximum minimum pressure: 3 to 8 bar,
connection thread: 1/4" BSP (F). Includes
extra-quite nozzle.
188 000 Heavy Duty blow gun
188 100 Compact blow gun
Blow guns accessories:
180 801 High flow nozzle
180 802 Extra-quite nozzle (standard in
Industrial Quality blow guns).
180 803 Anti splash protection
180 800, 150 mm extension tube
Two or more tubes can be combined for
getting an extra large tube.
96
06_VALVE AND METERS V216_UK.indd 96
184 200 Thermoplastic blow gun
1/4" BSP (F).
184 201 Thermoplastic blow gun with
flow regulator
1/4" BSP (F).
195 000 Tyre inflator gun EEC approved
Tyre inflator with trigger filling and pressure
release button. Pressure gauge, officially approved
and calibrated in accordance with directive
86 / 217 EEC. Connection for Ø 8 mm, hose.
Inlet thread: 1/4" BSP (M).
195 100 Approved tire inflator
Tire inflator approved following 86 / 217
EEC directive. 500 mm rubber hose with
connecting clip.
Connection thread: 1/4" BSP (F).
199 800 Standard tire inflator
650 mm rubber hose with connecting clip.
Connection thread: 1/4" BSP (F).
Product specifications are subject to change without prior notice
17/2/17 17:19
advanced monitoring system
5
7
3
1
GEAR OIL
MOTOR OIL
MOTOR OIL
ANTIFREEZE
2
4
6
8
9
1 AMS, Access Keypad with amm, Application software Memory Module (PN 381 000 + PN 381 600)
2 AMS, Access Keypad without printer (PN 381 000)
3 ifcu, intelligent flow control unit (PN 381 500)
4 ifDM, intelligent fluid dispense manager (PN 381 550)
5 fcu, FLUID CONTROL UNIT for fluids (380 551)
6 ntpc, Network protocol converter (PN 381 351 BASIC), (PN 381 352 PROFESSIONAL), (PN 381 353 PREMIUM)
7 trm, TANK ROOM MANAGER (PN 382 100 + PN 382 120)
8 acp platform (PN 381 66x)
9 dms, data management systems server
The AMS is designed to satisfy the needs of:
A - The user, who will be guided during the delivery transaction by a rolling menu and who will have access to innovative functions such as:
automatic identification by coded key, multi-fluid delivery under one work order and top up option on request.
B - The supervisor, who will have access to a wide variety of parameters that will allow him to set up the system management criteria which best
meets his specific needs. Through easy to use PC software, he will be able to modify operator authorizations, adjust tank levels and access a
wide range of statistics.
C - The installer, he will be able to easily install and set up the system. Directly connected to the main electricity supply (115 / 230 VAC), the
AMS keypad has an internal 24 VDC power supply that provides the electrical power to between 1 and 8 outlets maximum, depending on
the distance. The number of keypads in a system depends on the layout of the workshop and is not limited. The AMS can manage up to 100
outlets, each equipped with an Intelligent Flow Control Unit.
Product specifications are subject to change without prior notice
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 99
MANAGEMENT
SYSTEMS
07
99
14/2/17 17:09
ADVANCED MONITORING SYSTEM. basic components
381 000 - 381 600 - 381 950
381 500
381 352
access keypads
access keypad
Intelligent flow control
unit (IFCU)
AMS WIN PC 3.0 + NETWORK
PROTOCOL CONVERTER (NPTC)
To be mounted in the workshop to provide
technicians with remote access to outlets or
reels. Access keypads include a coded key
reader for user identification. As an option, a
bar code reader can be connected to the access
keypad for user identification, job order or job
description registration. The access keypad
also includes a slot for housing the application
software memory module (PN 381 600): One
software memory module is required for each
installation.
Sturdy metal casing for durability, 25 key
alphanumeric keyboard and 2 x 16 digit back
lighted LCD display.
MANAGEMENT
SYSTEMS
07
381 000 AMS Access keypad (Voltage
input: 115 - 230 VAC)
381 600 AMM, Application software
memory module
To be inserted into its slot in the access keypad,
includes the system operating software. One
memory module must be used with every
system.
381 950 Cable for Can Bus, 1 m
The IFCU controls all parameters related with the
distribution of fluids and integrates in one single
module all of the following elements:
• A large capacity filter, easily accessed for cleaning.
• A double channel pulse transmitter for accurate
and reliable metering.
• A solenoid valve to control the fluid line.
• A microprocessor CPU for the fluid outlet management.
• A large 3 digit high visibility display that shows
the volume dispensed during the transaction
and the outlet number when the outlet is not
in use.
• Three LED lights that show the IFCU status.
The IFCU connection to the fluid distribution
line is done through 1/2" threaded ports. Its
connection to the electronic network is done
through 2 standard plug-in electrical connectors
(network IN / network OUT).
381 500 Intelligent Flow Control Unit with
CAN controller 100 PPL and installation
accessories
Includes electrical connectors and two 90º
fittings for connection to the fluid distribution
line. Connection threads: 1/2" BSP (F).
The network protocol converter allows reliable
communication with a PC through an USB
connector.
The AMS Win PC software is delivered with
the NTPC. The software runs on a WINDOWS
operating system and uses ACCESS database.
THREE LEVELS / VERSIONS OF SOFTWARE
381 351 Basic version
This version allows:
• System parameters configuration.
• Declining balance Inventory Control and
manual adjustment.
• List and sort of transaction.
381 352 Professional version
Includes all features in Basic version Plus:
• Automatic, real time, inventory control and
adjustment using additional TRM or ATS.
• Export transactions to an excel file.
381 353 Premium version
Includes all features in Professional version Plus:
• Unlimited transactions prepared in advance (VPT).
• DMS Integration using ACP (.TXT; OBDC; XML).
381 351
basic
381 352
PROFESSIONAL
381 353
100
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 100
Product specifications are subject to change without prior notice
14/2/17 17:09
ADVANCED COMMUNICATION PLATFORM AND ACCESSORIES
acp interface (web service)
• The ACP program allows the AMS Win PC Software to interconnect with the most popular data
management systems (DMS) in the market, offering an efficient bidirectional communication.
• Web service interface developed using communication standards (SAOP, XML, WSDL).
• Single or multiple validation of transactions (ex: Job Number, Oil Type, Litres, etc.).
• Export of all transactions data to the customer DMS.
• Other communication formats available (only single validation), such as:
Text Files (.TXT) or Database (.ODBC)
• Contact your SAMOA Distributor who will assist you with the ACP software you need.
Validation, Single or multiple fields
Job number: 5008441
Oil
Product:
10,50
Quantity:
data export to dms, Transaction completed
Job number: 5008441
Oil
Product:
10,50
Quantity:
Date:
2015-05-07
User:
Operator
381 102
381 700
381 550
MANAGEMENT
SYSTEMS
07
381 102 Additional power supply box
Each access keypad has a power supply box
that provides energy to the system for opening
and closing up to eight solenoid valves. An
additional power net box is required when one
single keypad needs to control more than eight
hose reels or if the distance between the keypad
and the last IFCU is too long.
381 905
381 700 Remote display unit (rdu)
High visibility 3-digit display, identical to the
IFCU display. It displays in real time the delivery
details of any transaction in a remote location.
It is particularly useful when a hose reel is
mounted onto a frame, which can be used from
both sides. One RDU can display the delivery of
any IFCU present on the network.
381 901
381 550 Intelligent fluid dispenser
Manager (IFDM)
The IFDM manages the flow control units
whenever the system requires a special pulse
meter or solenoid valve (type of fluid, flow
rate, pressure, etc.). It has the same electronic
management functions as the IFCU.
381 912
736 349
ACCESSORIES
381 905 Five coded keys set
381 901 Bar coded reader
381 200 Thermal ticket printer Ticket printer for installation inside the access keypad.
381 950 Cable for CAN bus Communications cable to connect system elements, adequate in most installations.
736 353 Wall bracket for 381 000 or 381 001 Keypads for wall mounted applications.
381 912 IFCU bracket for open reels (501 and 504 series) for wall mounted applications.
736 349 Bracket for mounting up to 6 IFCUs (381 500) on top of a six hose reel stand (360 160). Requires brackets 381 911 and 381 910.
381 911 IFCU bracket. Use together with 736 349.
381 910 IFDM or remote display (RDU) bracket. Use together with 736 349.
736 377 Cover It covers the open area of bracket 736 349 when no IFCU is installed.
Product specifications are subject to change without prior notice
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 101
101
14/2/17 17:09
tank level control solutions
000
382 000
100
TANK
Iquip ROOM
modit MANAGER
iriuscidunt nos niam ver ip
Control module to monitor the volume in up to four tanks using barometric level sensors. The level
sensors provide accurate measurement of the volume in each tank. The system can work as a standalone unit (TRM S/A) or as part of the Advanced Monitoring System AMS (TRM-NET). Four System
modules can be connected together to monitor up to 16 tanks.
TRM-NET
When used with an AMS system, the TRM-NET is connected directly via the CAN-BUS network to
any keypad of the installation (AMM version 3.1.3 or higher) and it transmits automatically accurate
real time information about the level in the oil tanks increasing system security and reliability of the
oil inventories. This way manual inventory adjustment is no longer required, for example when new
oil is supplied into a tank.
Additionally the TRM-NET can open and close the compressed air supply valves up to four individual
air operated pumps (using solenoid valves PN 389 013 or PN 389 012) securing that the fluid pipe
line will be under pressure only when there is a request of fluid coming from one of the keypads.
The TRM-NET can also control one general air solenoid valve.
382 120
382 100 Tank Management System module TRM-NET
382 120 Level sensor
Tank maximum depth 400 cm.
389 013 Compressed air solenoid valve, 1/2" BSP (FF)
10 bar working pressure. For PM4, PM45 and PM60 pumps.
389 012 Compressed air solenoid valve, 1/4" BSP (FF)
10 bar working pressure. For PM2 pumps.
389 013
MANAGEMENT
SYSTEMS
07
TRM-S/A
When used as a stand-alone unit, the system is set up using an access keypad (PN 382 110). This
keypad is used to set up tank parameters and minimum alert levels. Optionally, the TRM S/A can
be controlled and set up from a PC using the AMS-WinPC Professional software pack (PN 382 352)
that includes the network protocol converter (NTPC) to communicate with a PC through a USB
serial port.
382 101 Tank Management System module TRM S/A
382 110 Tank Management System access keypad
382 120 Level sensor
Tank maximum depth 400 cm.
381 352 PC software kit
Includes software and NTPC.
102
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 102
Product specifications are subject to change without prior notice
14/2/17 17:09
TANK level CONTROL SOLUTIONS
382 001
TANK ALERT SYSTEM
Protects the waste oil tanks from overflow and the air operated pumps for new oil tanks from
running dry. The module can accept up to four tank level contact sensors, e.g. three low level
sensors in fresh oil tanks and one high level sensor in a waste oil storage tank. The unit includes four
LED indicators and an acoustic alarm signal warning when each of the tanks reaches a critical level.
It has two 24 V outlet for controlling solenoid valves and one 12 V outlet for connecting to a remote
flash and acoustic alarm (PN 382 005).
The system can work as a stand-alone unit (ATS Basic+) or as part of the Advanced Monitoring
System AMS (ATS-NET).
ATS Basic+
When used as a stand-alone unit, the system can control up to two solenoid valves. On a waste oil
tank it prevents overflow by closing a driven valve (PN 389 020). With new oil tanks it can open
and stop the compressed air supply to the air operated pumps (using a solenoid valve PN 389 013)
preventing the pumps from running dry.
382 001 Tank Alert stand alone module
382 201
382 201 Height adjustable contact level sensor
With 5 m cable and 2"BSP (M) connection.
382 005 Remote flash and acoustic alarm
389 020 Driven valve 1 1/2" BSP (F) kit
Air solenoid valve 24 VAC included. For controlling waste oil delivery into the waste oil storage tank.
382 005
ATS-NET
When used with an AMS system, the ATS-NET is connected directly via the CAN-BUS network to
any keypad of the installation (AMM version 3.1.3 or higher) and it transmits automatically an alarm
signal, increasing system security, and preventing running out of stock. Additionally the ATS-NET
can open and close the general compressed air supply to all air operated pumps (using a solenoid
valve PN 389 013).
382 050 Tank Alert module ATS-NET
07
MANAGEMENT
SYSTEMS
382 201 Height adjustable contact level sensor
With 5m cable and 2"BSP (M) connection.
382 005 Remote flash and acoustic alarm
389 013 Compressed air solenoid valve
389 020
Product specifications are subject to change without prior notice
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 103
ANTIFREEZE
WASTE OIL
ALARM TECH SUPERVISOR
103
14/2/17 17:09
INVENTORY MANAGEMENT CONSOLE
381 002
2
1
2
2
2
1
IMC COMPONENTS
MOTOR OIL
GEAR OIL
3
1 PULSE METER (Max. 2)
2 SOLENOID VALVE (Max. 10)
3 KEYPAD MODULE
MANAGEMENT
SYSTEMS
07
This single keypad system is designed for shops
that want simple control of their fluids. IMC
offers ease of operation, great value and several
features not previously available in entry level
Fluid Management and Control System.
IMC works with one pulse meter at each
pump (maximum two pulse meters) and a
solenoid valve at each fluid outlet (maximum
10 solenoid valves in total). The system does
not allow simultaneous operation of outlets
with the same fluid; however different fluids
can be dispensed simultaneously.
An upgraded Inventory Management
Console, which allows connection to a PC, is
available. PC connection makes setting and
maintaining the system parameters easier and
it is a powerful inventory control tool that
allows tank level monitoring to alert the oil
vendor or the shop purchase department with
an email when the oil inventory level is low.
366 050
366 050, 1/2" Pulse meter for oil
Oval gear meter for use with oil, or antifreeze.
Meters are shock proof and isolated from the
fluid handled and the assembly is enclosed in
a PTE molded shroud. For being connected at
each pump outlet.
Inlet - Outlet: 1/2" BSP (FF).
Min. - Max. flow rate: 1 - 30 l/min.
Max. working pressure: 100 bar.
Pulses per litre: 328.
104
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 104
IMC standard features and capabilities are:
• Controls one or two fluids and up to 10
dispense points. Manages simultaneous
dispensing of two different fluids.
• Up to 200 users, system access through pin
number or coded key.
• Allows control of one air valve, so air supply is
only available during service operating hours.
• Inventory management on a declining
balance: allows initial inventory to be entered
and deducts for each dispense. Manager
needs to enter each delivery and the console
alerts when inventory level is low.
• Two operation levels, user and manager
levels. At user level it is only possible to order a
dispense. At manager level is possible to adjust
inventory levels, set inventory warning levels
and perform other management functions.
• The system requires 115 or 230 VAC mains power.
• Can work with metric or US units of measure.
366 055
381 002 Inventory management console
module - 230 V
Access keypad designed to monitor and control
fluid dispenses in a workshop from a single or
central location. It can control a total of 10
different outlets with two different fluids. The
unit tracks fluid dispenses for every single work
order and provides additional information
regarding each fluid such as current stock,
reorder level and stop level. The IMC can also
manage a solenoid valve to control the air
powering the pumps, either according to a
service planning schedule or from a command
entered on the keypad by a manager. Four float
type level switches provide the signals to control
waste fluid levels in two waste fluid tanks and
prevent overflow of used oil by disabling the
waste product pump.
381 004 Inventory management console
module - 115 V
Same as 381 002 for 115 V.
381 003 Inventory management console
module with PC connection - 230 V
Similar to model 381 002 plus includes a
validation chip and PC software that enables the
setting and maintaining of system parameters
through a PC. Also, the PC can alert the oil
vendor or shop Purchasing Department with an
email when the oil inventory level is low.
381 005 Inventory management console
module with PC connection - 115 V
Same as 381 003 for 115 V.
389 001
366 055, 1/2" Stainless steel pulse meter
Oval gear meter for use with windshield wash
solutions, antifreeze or AdBlue®/DEF. Meters
are shock proof and isolated from the fluid
handled and the assembly is enclosed in a PTE
molded shroud. For being connected at each
pump outlet.
Inlet - Outlet: 1/2" BSP (FF).
Min. - Max. flow rate: 1 - 50 l/min.
Max. working pressure: 100 bar.
Pulses per litre: 320.
389 001 Solenoid valve
24 VDC solenoid valve for oil and antifreeze (glycol).
Inlet - Outlet: 1/2" BSP (F).
Max. working pressure: 50 bar (715 psi).
389 004 Solenoid valve
24 VDC Solenoid valve made in Stainless steel
for AdBlue®/DEF or windshield wash.
Inlet-outlet 1/2" BSP (FF).
Working pressure: 10 Bar.
Product specifications are subject to change without prior notice
14/2/17 17:09
special ams version
ADVANCED MONITORING SYSTEM 12 V 000 000
This AMS version enables to control and measure the fluid dispensed through up to 6 hose reels
per MFDM-LD 12 V (PN 382 113) . It is required a 12 VDC solenoid valve and pulse meter per
hose reel.
System requires a 12 V AMS access keypad (PN 381 013) and an AMM, Advance Module
Memory (PN 381 600). A display included in the MFDM-LD-12 V shows the number of
the corresponding hose reels when the unit is inactive, and the quantity dispensed when a
transaction is being performed.
Simultaneous dispenses can be performed, but only the first one will be showed in the display
(one or more RDUs can be used too). Two or more MFDM-LD 12 V can be connected to the
same network.
The system can be used in vans and trucks providing 12 VDC power supply. This AMS version
can be connected to a PC through a standard Samoa NTPC and any of the software version level
(PN 381 351 - PN 381 352 - PN 381 353)
381 013 AMS, Access keypad with ticket printer (Voltage input: 12 VDC)
382 113 MFDM, Multi-Fluid Dispense Manager with 4 digits display
(Voltage input: 12 VDC)
To be used with 12 V Access keypad (PN 381 013). Provides control to up 6 outlets.
1
2
6
8
07
MANAGEMENT
SYSTEMS
9
3
4
7
5
1 remote display unit
2 multidispense fluid manager
3 solenoid valves 12 v
4 pulse meter
5 hose reels
6 ams, access keypad 12 v + amm
7 12 vdc power supply
8 network protocol Converter
9 pc running ams - win Pc software
Product specifications are subject to change without prior notice
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 105
105
14/2/17 17:09
preset dosing module
000
381 000
030
Iquip modit preset
iriuscidunt
nosmodule
niam ver
ip
ELECTRONIC
dosing
dps-16
381 030 Electronic preset dosing module
Preset dosing unit for industrial applications that helps you to accurately deliver the correct amount
of fluid. It reduces the amount of key/button inputs required to obtain the required volume
delivered. It can be used with a wide variety of fluids.
The module consists on a very robust, «vandal proof», button box (nickel coated brass buttons)
and a remote display that shows the volume dispensed and the preset program selected. Buttons
are used to select the preset program and to program the system. It can store up to 16 different
pre-set volumes.
It is an open system and it can work with a wide range of fluids. It accepts any pulse meter from
1 to 6553 pulses per unit and can also work with 24 VDC solenoid valves in different sizes and
materials to control the fluid delivery either by closing the fluid line or the pump air supply.
Technical specification
Power supply
100 - 230 VAC 50/60 Hz
Solenoid valve output
24 VDC, max. 1 A
Pulse per unit
1 - 9999
Calibration
From buttons
Pre-set adjust
From buttons
Number of pre-sets
16
Number of decimals
0, 1, 2, 3, 4, or AUTO
Time out
4 minutes
FLUIDS HANDLED
Mineral and synthetic based lubricants, grease
hydraulic and transmission fluids, cutting oils
antifreeze and coolant solutions, detergents,
Solvents
APPLICATION
Assembly lines in general industry
Filling stations
MANAGEMENT
SYSTEMS
07
106
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 106
Product specifications are subject to change without prior notice
14/2/17 17:09
control master oil monitoring system
1
1
3
1
3
2
GEAR OIL
MOTOR OIL
MOTOR OIL
2
4
1 Flow control unit
(max. 6 per Input / Output box)
2 Input/output box with remote display
3 Access keypad
4 Network protocol converter NTPC
Modular fluid monitoring and security system for small to medium size applications. It can be
used to cover applications from a single access point keypad control system through to a multidispense point, multi-access, PC linked system.
SYSTEM COMPONENTS
381 060 Access keypad
Alphanumerical keypad to be mounted in the workshop allowing technician remote access to
outlets / reels using numerical ID authorisation. It also allows.
381 150 Input / output control unit
Provides control to up to 6 outlets and communication between different keypads. Several Input
/ Output Control Units can be used in a system whenever there are more than six outlets in the
system. Includes power supply unit. Voltage input: 110 - 240 V.
07
MANAGEMENT
SYSTEMS
381 300 Network protocol converter and software (NTPC)
The network protocol converter allows reliable communication with a PC, through a RS232 serial
port connector.
The PC software delivered with the NTPC is user-friendly and it takes full advantage of the
flexibility and the wide possibilities of the fluid monitoring System. This software supports both
daily operations and statistical analysis, to help develop sales and increase profit. The software
runs on a PC, in a WINDOWS environment and uses an ACCESS database.
PULSE METERs
366 050 In line pulse meter for oil
366 055 In line pulse meter in stainless steel for windshield wash, antifreeze or
AdBlue®/DEF
Solenoid valve
389 001 Solenoid valve for oil and antifreeze
389 004 Solenoid valve in stainless steel for AdBlue®/DEF or windshield wash
Fluid control units
Line meter solenoid valve assembly. The line meter monitors the fluid flow and sends electronic
pulses to the Input/Output unit. The solenoid valve opens and closes the hose reel selected. Meter
and valve are constructed and tested to guarantee accurate and safe function.
380 501 Fluid control unit for oil and antifreeze
Includes line meter 366 050 and solenoid valve 389 001. Unit also includes Y strainer at the fluid
inlet. Connection threads: 1/2" BSP (MM) with 60º cone seal. 328 pulses per litre.
380 551
380 551 Fluid control unit for windscreen washer and detergents
Includes line meter 366 055 and solenoid valve 389 001. Unit also includes Y strainer at the fluid
inlet. Connection threads: 1/2" BSP (MM) with 60º cone seal. 320 pulses per litre.
Product specifications are subject to change without prior notice
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 107
107
14/2/17 17:09
07_INVENTORY MANAGEMENT SYSTEMS V216_UK.indd 108
14/2/17 17:09
08
WASTE OIL EQUIPMENT
used fluid collection units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WASTE OIL suction and GRAVITY RECEIVERS, 100 AND 70 Litres . . . . . . . . . . . . . . . . . . . . . .
waste oil drain units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
waste oil evacuation pump kits and evacumaster suction unit . . . . . . . . . . . . . . . . . . .
waste oil equipment accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
109
111
112
113
114
WASTE OIL
EQUIPMENT
08
08_WASTE OIL V216_UK.indd 109
15/2/17 17:04
used fluid collection units
M
obile units designed for the collection of used
fluids like motor oil, gear oil, antifreeze and
coolant fluids as well as other no aggressive
A-III class automotive fluids.
Models for gravity collection are fitted with a telescopic
bowl and they can be used under vehicle hoists or inside
lubrication pits for collection of the used fluid.
Models fitted with a pneumatic vacuum pump can be
used for extracting waste oil though the vehicle motor
oil dipstick tube using an adequate adaptor or suction
cane. The pneumatic suction pump has no moving,
no wear parts, and can achieve up to 80% vacuum.
Suction units include a complete set of suction canes
and adaptors.
Once full, the reservoir can be discharged either using a
remote pump through a hydraulic type connector fitted
to the bottom of the unit, with a piston pump attached
to the unit or pressurizing the unit reservoir at 0.5 bar
(3.5 psi) maximum with a tire inflator.
100
litres
WASTE OIL
EQUIPMENT
08
common features
70
620
litres
common features
1,300
Min. 1,600 Max. 2,000
350
640
Ø 440
860
340
550
630
• 100 litres (26 gallons) capacity steel reservoir, with side level gauge.
• Tray for tools, washers, plugs, etc. on top of the reservoir.
• One piece molded spoiler for securing the discharge hose in
pressure discharge models.
• Two reinforced casters and two reinforced fixed wheels.
• Steel tank with epoxy powder coating.
• Models for gravity collection include a telescopic collection bowl,
with an oversized 360º positionable composite extension for wider
reach, and an anti splash grid that can hold used filters for draining.
110
08_WASTE OIL V216_UK.indd 110
1.200
750
Dimensions (mm)
1,370
500
470
475
580
Dimensions (mm)
• 70 litres (17 gallons) capacity steel reservoir, with side level gauge.
• Two reinforced casters and two reinforced fixed wheels
• Steel tank with epoxy powder coating.
Product specifications are subject to change without prior notice
15/2/17 17:04
WASTE OIL suction and GRAVITY RECEIVERS, 100 AND 70 Litres
USED
COLLECTION UNITS - SUCTION COLLECTION
Iquip modit iriuscidunt nos niam
verFLUID
ip
000 000
Combined waste oil suction and gravity collection units, with
transparent chamber. Units with a 10 litres transparent chamber
that can be used as a vacuum reservoir and allows an immediate
inspection of the extracted waste oil. They can be used remotely once
vacuum is created inside the steel reservoir. Discharge through a 1.5 m
discharge hose pressurizing the unit. Includes safety valve to avoid over
pressurization.
Combined waste oil suction and gravity collection units. They
can be used remotely once vacuum is created inside the steel reservoir.
Discharge is done through a 1.5 m discharge hose pressurizing the unit.
Includes safety valve to avoid over pressurization.
372 000, 100 litres combined waste oil suction and gravity
collection unit, with transparent chamber
373 500, 70 litres combined waste oil suction and gravity
collection unit
372 500, 100 litres combined waste oil suction and gravity
collection unit
373 000, 70 litres combined waste oil suction and gravity
collection unit, with transparent chamber
WASTE OIL
EQUIPMENT
08
Waste oil suction collection units with transparent chamber.
Units include a 10 litres transparent chamber that can be used as a
vacuum reservoir and allows an immediate inspection of the extracted
waste oil. They can be used remotely once vacuum is created inside the
steel reservoir. Discharge through a 1.5 m discharge hose pressurizing
the unit. Includes safety valve to avoid over pressurization.
Waste oil suction collection units. They can be used remotely once
vacuum is created inside their steel reservoir. Discharge through a 1.5 m
discharge hose pressurizing the unit (except model 371 600). Includes
safety valve to avoid over pressurization.
372 100, 100 litres waste oil suction collection unit with
transparent chamber
373 600, 70 litres waste oil suction collection unit
372 600, 100 litres waste oil suction collection unit
371 600, 24 litres waste oil suction collection unit
373 100, 70 litres waste oil suction collection unit with
transparent chamber
Product specifications are subject to change without prior notice
08_WASTE OIL V216_UK.indd 111
111
15/2/17 17:04
WASTE OIL drain units
000 000
Iquip
drain
modit
UNITSiriuscidunt
- GRAVITY COLLECTION
nos niam ver ip
Gravity collection with pressure discharge. Discharge is done
through a 1.5 m hose pressurizing the unit at 0.5 bar (3.5 psi). Includes
a safety valve to avoid over pressurization.
372 400, 100 litres gravity waste oil drainer. Pressure discharge
373 400, 70 litres gravity waste oil drainer. Pressure discharge
Gravity collection with pump discharge. Discharge is done through
a 1:1 pressure ratio pneumatic piston pump attached to the back of the
unit reservoir and 1.5 m hose with a hydraulic type coupler.
372 200, 100 litres gravity waste oil drainer. Pump discharge
373 200, 70 litres gravity waste oil drainer. Pump discharge
Gravity collection with remote pump discharge. Discharge is
done connecting the unit to a wall mounted discharge pump kit though a
hydraulic coupler located at the bottom of the reservoir.
372 300, 100 litres gravity waste oil drainer.
Remote pump discharge
373 300, 70 litres gravity waste oil drainer.
Remote pump discharge
USED FLUID COLLECTION UNITS - SPECIALTY DRAINERS
WASTE OIL
EQUIPMENT
08
Low level mobile drainers for gravity collection
of waste oil and used automotive fluids such
as antifreeze solutions. Recommended to use
when a hoist or a service pit is not available.
Gravity discharge through a drain valve or
using an evacuation pump kit (PN 559 100)
through a dry break hydraulic connector
(PN 950 352, not included).
435 000 Low level mobile drainer, 20 litres
20 litres (5.2 US gallons) unit for use with
passenger cars and small vans.
436 000 Low level mobile drainer, 95 litres
95 litres (25 US gallons) unit for use with
passenger cars, vans, tractors, commercial
vehicles, etc.
436 100 Anti-freeze recovery unit
Low level-waste oil drainer 436 000 equipped
with a DF50 diaphragm pump. Allows draining
the antifreeze when a pit or lift is not available.
Thanks to the diaphragm pump and the
delivery gun is possible to reuse the antifreeze.
112
08_WASTE OIL V216_UK.indd 112
437 300 Motor Bike waste oil drainer,
35 litres
Unit incorporates a low profile pivoting
bowl for gravity collection from motorbikes
on service lifts. When the unit is connected
to a compressed air supply, the waste oil is
automatically discharged through an openend 1.5 m hose. The hose also serves as level
gauge. The unit is fitted with a safety valve
and an air pressure regulator, factory set to
guarantee a low pressure and safe discharge
of the unit. Maximum/minimum height of the
top edge of the bowl: 1,000 / 700 mm (Not
suitable for use with any outlet self-sealing
connections).
439 100 Pit rolling drainer, 95 Litres
Rolling drainer for being installed between pit
rails with minimum / maximum width of 1,040
/ 1,450 mm. 95 litres (25 US gallons) capacity.
Unit includes antisplash grid, four vertical and
four horizontal rollers for easy rolling and an
1-1/4" outlet with ball valve. The unit allows
the connection of a hydraulic connector for
discharging the unit once full with a discharge
pump kit.
Product specifications are subject to change without prior notice
15/2/17 17:04
waste oil evacuation pump kits AND EVACUMASTER
SUCTION UNIT
waste oil evacuation pump kit
559 101 Waste oil evacuation pump kit
DF100 double diaphragm pump kit for discharging waste oil drainers through a hydraulic coupler.
Kit includes: DF100 double diaphragm pump (551 030: Improved suction performance, nbr
diaphragms) with wall bracket, 1.5 m air connection hose with quick coupler and connector, 1.5
m discharge hose and 1.5 m transparent suction hose with hydraulic connector 950 352.
379 100 Waste oil evacuation pump kit
Similar to model 559 100, includes a PM2 ratio 1:1 pressure ratio piston pump instead of 1"
diaphragm pump.
559 101
WASTE OIL
Recommended accessories:
950 303, 3/4" BSP (FF) shut off valve.
950 353, 3/4" hydraulic coupler.
WASTE OIL
240 500 Air line filter and pressure regulator
239 001, 3/8" BSPT (M) x 1/4" BSPT (M) adaptor.
945 551, 3/4" BSP (MM) adaptor.
Waste oil drain and evacuation kit for construction
and mining vehicles
379 100
559 111
559 111 Waste oil drain and evacuation kit for construction and mining vehicles
15 m x 1" high volume hose reel with its inlet hose connected to a DF100 double diaphragm
pump. The kit is used for clean, fast and efficient waste oil evacuation from large construction and
mining vehicles when connected to the vehicle’s engine with a connector compatible with the
one at the vehicle drain plug (cam-lock or hydraulic coupler).
The kit includes a 15 m x 1" hose reel, a DF100 aluminium diaphragm pump (551 030: Improved
suction performance, nbr diaphragms), 1.5 x 3/4" discharge hose and 1.5 m air connection hose
with quick coupler and connector.
Recommended accessories:
950 303, 3/4" BSP (FF) shut off valve.
950 353, 3/4" hydraulic coupler.
240 500, air line filter and pressure regulator.
239 001, 3/8" BSPT (M) x 1/4" BSPT (M) adaptor.
945 551, 3/4" BSP (MM) adaptor.
EVACUMASTER WASTE OIL SUCTION UNIT
379 710
08
WASTE OIL
EQUIPMENT
Single point waste oil suction unit for collecting waste oil directly from the vehicle’s engine
using a suction cane inserted into the engine oil dip stick tube. The unit is installed alongside the
service bay and provides the cleanest method for waste oil collection.
Direct from engine to storage tank eliminates operator contact with waste oil and eliminates
splashes and spills of waste oil. It also eliminates the use of mobile units and removes all leaking
drain plugs issues.
An air operated pump, specially designed for suction applications, extracts the waste oil and
pumps it to a remote storage tank. The unit can be used together with a waste oil hose reel
(506 503 or 507 503) for extended reach.
The unit includes a special piston pump for waste oil suction, on/off valve, air filter with pressure
regulator, vacuum gauge for monitoring the unit performance, extra large capacity suction filter,
3 m suction hose and complete kit of suction canes and adaptors.
379 711 Wall mounted waste oil suction unit
379 710 Pedestal mounted waste oil suction unit
See next page for Evacumaster accessories
Product specifications are subject to change without prior notice
08_WASTE OIL V216_UK.indd 113
AIR
B
C
WASTE OIL
TYPICAL INSTALLATION
Maximum installation distances:
A: Maximum distance 12 m, including hose reel hose
fully extended.
B: Maximum suction height, 2.5 m.
C: Maximum height between pump
outlet and engine
oil sump
level, 1 m.
A
113
15/2/17 17:04
WASTE OIL EQUIPMENT ACCESSORIES
372 003
372 002 - 743 305
506 503 - 507 503
WASTE OIL SUCTION ACCESSORIES
WASTE OIL COLLECTION BOWLS
WASTE OIL SUCTION HOSE REELS
372 003 Transparent chamber kit
10 litres transparent chamber, mounts on
70 and 100 litres waste oil suction units.
Completes with vacuum pump, vacuum gauge
and 2 m suction hose with rubber grip and
connector for Mercedes Benz vehicles.
737 967 Suction hose kit
2 m transparent suction hose with rubber grip,
shut-off valve and connector for Mercedes Benz
vehicles.
372 002. Collection bowl for 100 litres
waste oil receivers
Includes 20 litres metal bowl, oversized extension
and antisplash grid, tube, shut-off valve, swivel
and adapter for fixing the tube to receivers.
373 002 Collection bowl for 100 litres
waste oil receivers
Includes 20 l metal bowl, tube, shut-off valve,
swivel and adapter for fixing the tube to receivers.
For use with EVACUMASTER units.
506 503 Aluminium single arm waste oil
hose reel
Includes 6 m x 5/8" suction hose and
0.8 m x 5/8" connection hose.
507 503 Individually enclosed waste oil
hose reel
Includes 6 m x 5/8" suction hose and
0.8 m x 5/8" connection hose.
743 305, 20 litres collection bowl
20 l metal bowl with tube and 2" bung
adaptor for fixing to an empty drum.
SUCTION CANES AND ADAPTERS
INDIVIDUAL WANDS AND AdaptorS
WASTE OIL
EQUIPMENT
08
737 950 Suction canes and adaptors set
Includes canes Part No. 739 949, 737 952, 737
953, 737 954, 737 955 and adapters
Part No. 737 947 and 737 948.
737 972 Suction canes and adaptors set
with canes holder
Canes and adaptors set Part No. 737 950 with
a suction canes holder.
Part No.
Type
Description OD x ID x Length
737 952
Flex
6 x 4 x 700 mm
737 953
Flex
8 x 6 x 700 mm
737 954
Rigid Copper
5 x 4 x 700 mm
737 955
Rigid Copper
6 x 5 x 700 mm
737 949
Flex
7 x 5 x 1,000 mm
737 958
Flex
6 x 4 x 1,200 mm
737 959
Flex
8 x 6 x 1,200 mm
737 946
Flex
8 x 6 x 1,700 mm
737 947
Adaptor
AUDI, VOLKSWAGEN GROUP
737 948
Adaptor
PSA GROUP
HYDRAULIC CONNECTORS
AND COUPLERS
drum trolleys
Four-way
evacuation valve
950 352, 3/4" BSP (F) hydraulic connector.
950 353, 3/4" BSP (F) hydraulic coupler.
432 000
431 000
950 354, 1" BSP (F) hydraulic connector.
950 355, 1" BSP (F) hydraulic coupler.
950 356, 1 1/2" BSP (F) hydraulic connector.
950 357, 1 1/2" BSP (F) hydraulic coupler.
432 000, 185 kg / 200 litres drum trolley
431 000, 50 kg drum trolley
114
08_WASTE OIL V216_UK.indd 114
945 551, 3/4" BSP (MM) connection adaptor.
945 513, 1 1/4" BSP (M) - 3/4" BSP (F)
connection adapter.
361 300 Four-way evacuation valve
simplifies plumbing and allow the use of one
pump to pull and push waste fluids on/off their
storage tank with the swing of a handle.
• Lube trucks
• Construction and mining
• Manufacturing facilities
The valve is manufactures in anodized aluminium
and acetal and has 1" BSP (F) inlets and outlets.
Product specifications are subject to change without prior notice
15/2/17 17:04
PUMPMASTER
oil pumps
MOBILE
GREASE2 UNITS
pumps
WITH
PUMPMASTER 3+3 PUMPS - 20 AND 50 Kg.
Iquip modit iriuscidunt nos niam
09 ver ipELECTRIC
PUMPS FOR OIL AND DIESEL
000 000
dc DIESEL PUMPS AND KITS - POLUX SERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ac DIESEL PUMPS and KITS - POLARIS SERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIESEL PUMP ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
oil pumps WITH ELECTRIC MOTOR - flowstar series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
oil electric pump kits - Flowstar series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
116
117
119
120
121
ELECTRIC
PUMPS
09
Product specifications are subject to change without prior notice
09_ELECTRIC PUMPS V216_UK.indd 115
115
15/2/17 17:08
dc DIESEL PUMPS AND KITS - POLUX SERIES
000 530
684
000 - 684 451
Iquip modit iriuscidunt nos niam ver ip
12 & 24 V DC ROTARY VANE PUMPS - POLUX SERIES
12 and 24 VDC rotary vane pumps for diesel
Self priming pumps with self-adjustable vanes. Pump body made of cast-iron with rustproof
treatment, rotor of sintered steel and vanes of acetyl resin. The pump includes a by-pass valve and
a built in filter with easy access for cleaning. The pump can be mounted vertically or horizontally,
has a carrying handle and 2 m cable with crocodile clamps.
Inlet / outlet connection: 1” BSP (F) or flange coupling.
Maximum suction lift: 2.5 m.
Electric DC motor with IP-55 protection, allows intermittent operation duty with maximum cycles
of 30 minutes.
On/off switch and fuse.
684 512 - 684 514
PART No.
SUPPLY
CURRENT
POWER
PRESSURE
FLOW RATE
684 530
12 VDC
22 A
140 W
0,8 bar
40 l/min
684 451
12 VDC
38 A
220 W
0,8 bar
60 l/min
684 531
24 VDC
13 A
160 W
0,8 bar
43 l/min
684 450
24 VDC
25 A
240 W
0,8 bar
65 l/min
12 V PUMP - POLUX SERIES diesel transfer kits
Portable transfer kit with 12 VDC Polux Series pump, delivery hose, nozzle, meter, fittings and
suction kit depending on the model.
Order suction accessories separately when not included.
PART No.
PUMP
OUTLET HOSE
NOZZLE
684 512
684 530
4 m (689 024)
Standard (361 000)
-
684 951
684 530
4 m (689 024)
Standard (361 000)
2 m (689 030)
684 514
684 530
4 m (689 024)
Standard + Meter
(361 000) + (366 976)
2 m (689 030)
684 461
684 451
4 m (689 021)
Automatic (688 300)
-
4 m (689 021)
Automatic + Meter
(688 300) + (366 976)
2 m (689 030)
684 465
684 451
SUCTION KIT
ELECTRIC
PUMPS
09
684 460 - 684 464
24 V PUMP - POLUX SERIES diesel transfer kits
Portable transfer kit with 24 VDC Polux Series pump, delivery hose, nozzle, meter, fittings and
suction kit depending on the model.
Order suction accessories separately when not included.
116
09_ELECTRIC PUMPS V216_UK.indd 116
PART No.
PUMP
OUTLET HOSE
NOZZLE
SUCTION KIT
684 524
684 531
4 m (689 024)
Standard (361 000)
-
684 526
684 531
4 m (689 024)
Standard (361 000)
2 m (689 030)
2 m (689 030)
684 527
684 531
4 m (689 024)
Standard + Meter
(361 000) + (366 976)
684 460
684 450
4 m (689 021)
Automatic (688 300)
-
684 464
684 450
4 m (689 021)
Automatic + Meter
(688 300) + (366 976)
2 m - (689 030)
Product specifications are subject to change without prior notice
15/2/17 17:08
Ac DIESEL PUMPS and KITS - POLARIS SERIES
230 V - 50 Hz AC ROTARY VANE PUMPS - POLARIS SERIES
685 720 - 685 722
230 VAC - 50 Hz rotary vane pumps for diesel
Self priming pumps with self-adjustable vanes. Pump body made of cast-iron with rustproof
treatment, rotor of sintered steel and vanes of acetyl resin. The pump includes a by-pass valve and
a built in filter with easy access for cleaning. The pump can be mounted vertically or horizontally
and has 1,8 m cable with plug.
Inlet/outlet connection: 1” BSP (F) or flange coupling
Maximum suction lift: 2.5 m
Electric AC motor with IP-55 protection, allows continuous operation duty.
On / off switch and fuse.
PART No.
SUPPLY
CURRENT
POWER
PRESSURE
FLOW RATE
685 720
230 VAC
2.2 A
370 W
1.7 bar
50 l/min
685 721
230 VAC
3A
500 W
1.7 bar
70 l/min
685 722*
230 VAC
4.6 A
750 W
1.7 bar
95 l/min
* Does not include built in filter.
230 V PUMP - POLARIS SERIES diesel transfer kits
685 741 - 685 742
230 VAC Polaris Series pump kits, include delivery hose and nozzle, fittings and suction kit
depending on the model.
Order suction accessories separately when not included.
PART No.
PUMP
OUTLET HOSE
NOZZLE
SUCTION KIT
685 741
685 720
4 m (689 024)
Standard (361 000)
-
685 974
685 720
4 m (689 024)
Standard (361 000)
2 m (689 030)
685 742
685 720
4 m (689 021)
Automatic (688 300)
-
685 743
685 720
4 m (689 021)
Automatic (688 300)
2 m (689 030)
685 771
685 721
4 m (689 024)
Standard (361 000)
-
685 772
685 721
4 m (689 021)
Automatic (688 300)
-
685 750 - 685 752
