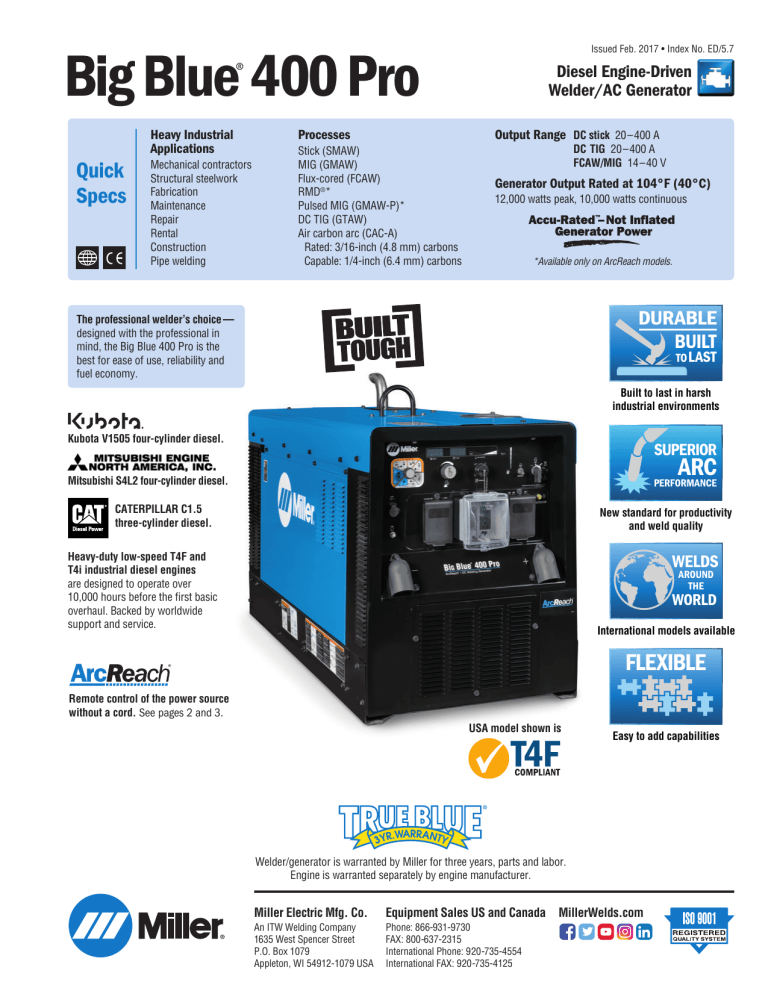

Issued Feb. 2017 • Index No. ED/5.7
Big Blue 400 Pro
®
Heavy Industrial
Applications
Quick
Specs
Mechanical contractors
Structural steelwork
Fabrication
Maintenance
Repair
Rental
Construction
Pipe welding
Processes
Diesel Engine-Driven
Welder/AC Generator
Output Range DC stick 20–400 A
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
RMD®*
Pulsed MIG (GMAW-P)*
DC TIG (GTAW)
Air carbon arc (CAC-A)
Rated: 3/16-inch (4.8 mm) carbons
Capable: 1/4-inch (6.4 mm) carbons
DC TIG 20–400 A
FCAW/MIG 14–40 V
Generator Output Rated at 104°F (40°C)
12,000 watts peak, 10,000 watts continuous
*Available only on ArcReach models.
DURABLE
BUILT
The professional welder’s choice —
designed with the professional in
mind, the Big Blue 400 Pro is the
best for ease of use, reliability and
fuel economy.
TO LAST
Built to last in harsh
industrial environments
Kubota V1505 four-cylinder diesel.
SUPERIOR
Mitsubishi S4L2 four-cylinder diesel.
PERFORMANCE
ARC
CATERPILLAR C1.5
three-cylinder diesel.
New standard for productivity
and weld quality
WELDS
Heavy-duty low-speed T4F and
T4i industrial diesel engines
are designed to operate over
10,000 hours before the first basic
overhaul. Backed by worldwide
support and service.
AROUND
THE
WORLD
International models available
FLEXIBLE
Remote control of the power source
without a cord. See pages 2 and 3.
USA model shown is
Easy to add capabilities
Welder/generator is warranted by Miller for three years, parts and labor.
Engine is warranted separately by engine manufacturer.
Miller Electric Mfg. Co.
Equipment Sales US and Canada MillerWelds.com
An ITW Welding Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
Big Blue 400 Pro Features and Controls
®
Digital meters with SunVision™
technology enable welding parameters
to be viewed with greater clarity than
analog meters — at virtually any angle.
Meters can be seen clearly even in
direct sunlight.
Meters display
• Process settings for quick and easy
setup
• Preset and actual amperage
Arc control is beneficial when welding
with stick and solid wires for easier
fine-tuning of tough-to-weld materials
and out-of-position applications.
Standard 14-pin receptacle with
Auto-Remote Sense™ for simple
connection of remote controls and
wire feeders.
Simple-to-set controls require no
elaborate procedure — just select
process and weld!
POWERFUL
GENERATOR
Industrial USB port.
Quickly upload the
latest software and
download machine
log files to retrieve
in-depth information such as
diagnostics and machine statistics.
10,000 watts of pure generator
power. Plug in an extra Miller®
inverter-based power source for a
second welding arc!
HD
Low OCV Stick (VRD) reduces the
open-circuit voltage to 15 volts when
the welding power source is not in use,
increasing operator safety without
compromising arc starts.
Thermal overload protection prevents
machine damage if the duty cycle is
exceeded or airflow is blocked.
POWDER
COAT
HD powder coat with zinc-rich primer
protects sheet metal from rust and
corrosion.
Standard features include adjustable Hot Start,™ output contactor
control, automatic idle and 120-volt block heater.
Quiet operation. Improves worksite
communication.
™
ArcReach Remote Control Technology
ArcReach
SuitCase feeder
or Stick/TIG
Remote
ArcReach
engine drive
2
Remote control of the power
source without a cord
An ArcReach system allows you to
change weld settings from your SuitCase
wire feeder or ArcReach Stick/TIG
Remote, saving a trip to the power
supply. ArcReach technology uses the
existing weld cable to communicate
welding control information between the
feeder or remote and the power source.
This technology eliminates the need for
control cords, and their associated
problems and costs.
Big Blue 400 Pro ArcReach Additional Features
®
ArcReach provides remote amperage and voltage control at the weld joint without needing a control cord.
MORE
WELDS
IN LESS
TIME
Increased productivity
BETTER
WELDS
WITH LESS
REWORK
More arc-on time and reduced exposure to workplace
hazards for operators can be realized using ArcReach
because less time is spent going back to the welding power
supply to set process and arc amperage or voltage.
Auto-Process Select.™ Depending on connected accessory,
the system automatically changes to stick or MIG/FCAW
(with gas) if electrode positive polarity is detected or TIG or
FCAW (no gas) if electrode negative polarity is detected,
when ArcReach communication is established between the
accessory and the Big Blue 400 Pro — reducing the need
to access the power supply.
CABLES
TO MAINTAIN
Less operator fatigue by not needing to move or reposition
heavy secondary weld leads bundled with control cords on
the jobsite. Control cables are not used.
Operator can precisely set arc amperage or voltage at the
weld joint and monitor the actual arc voltage and current
delivered to the weld using the digital meters on the
accessory. This removes guesswork when it comes to
adhering to weld procedures.
Remote override of Big Blue 400 Pro. When an ArcReach
accessory is connected to a Big Blue the accessory has
full control and the Big Blue controls are disabled. While
under ArcReach control, process and voltage/amperage
adjustments are locked out, preventing accidental changes
by personnel other than the welding operator.
Save time by no longer needing to troubleshoot welding
system problems that result from damaged control cords.
Eliminate costly control cord repairs because control
cords are not used.
Cross platform compatible. The same ArcReach
accessories that work on engine-driven equipment can also
be used on select ArcReach-equipped XMT®, Dimension™
and PipeWorx 350 FieldPro™ power sources.
Reverse compatible. ArcReach-equipped power sources
work with non-ArcReach accessories; however, the
complete ArcReach benefit is only realized with the
ArcReach system.
Improved weld quality
FEWER
Automatic return to panel settings. System automatically
returns to Big Blue 400 Pro setting when ArcReach
communication is terminated. For example, if the Big Blue
is set to gouging at 350 amps and an ArcReach feeder is
connected, the Big Blue will go to a MIG/FCAW process. If
the feeder is disconnected, the Big Blue will go back to its
previous setting (gouging at 350 amps).
Reduced maintenance
FLEET COMPATIBILTY
Improved flexibilty
™
Big Blue 400 Pro ArcReach System and Accessories
®
Big Blue 400 Pro ArcReach system
(Kubota 907732001 or Mitsubishi 907733001)
with SuitCase X-TREME 12VS ArcReach feeder
and Bernard S-Gun (951588), ArcReach
Stick/TIG Remote (301325), and ArcReach Smart
Feeder (300935) with Bernard PipeWorx 300
MIG gun (195400).
Note: ArcReach is only available on USA models.
SuitCase X-TREME 8VS/12VS
ArcReach feeders for MIG or
flux-cored welding
• Remote voltage control
• Polarity indication
• Auto-Process Select™
ArcReach Smart Feeder
for advanced wire processes
• RMD and pulsed MIG processes
• Remote voltage control
• Store and recall weld settings
ArcReach Stick/TIG Remote for stick or TIG welding
• Remote amperage control • Arc control for stick
• Polarity indication
• Auto-Process Select™
3
Specifications (Subject to change without notice.)
Weld
Output
Range
Weld Output Rated
at 100% Duty Cycle
at 104°F (40°C)
Max. OpenCircuit
Voltage
Generator Power Output
Rated at 104°F (40°C)**
CC/DC
(TIG)
20–400 A
85 VDC
15 VDC*
12,000 watts peak,
10,000 watts continuous
CC/DC
(Stick)
20–400 A
300 A at 32 VDC
350 A at 27 VDC
400 A at 24 VDC
CV/DC
(FCAW/MIG)
14–40 V
Weld Mode/
Process
1-phase, 84/42 A,
120/240 VAC, 60 Hz
Sound Levels
at Rated Output,
23 ft. (7 m)
Kubota
Idle: 66 dB (91 Lwa)
Weld: 71.6 dB (96 Lwa)
Mitsubishi
Idle: 68.7 dB (93 Lwa)
Weld: 72.1 dB (97 Lwa)
CAT
Idle: 65 dB (90 Lwa)
Weld: 71.2 dB (96 Lwa)
*Sense voltage for stick and Lift-Arc™ TIG. **Will operate either 60 Hz or 50/60 Hz power tools, lights, etc.
Dimensions
Net Weight
(without fuel)***
H: 32 in.
(813 mm)
W: 26.25 in.
(667 mm)
D: 56 in.
(1,422 mm)
Kubota
950 lb. (431 kg)
Mitsubishi
993 lb. (450 kg)
CAT
1,010 lb. (458 kg)
***Additional 82 lb. (37 kg) when fuel tank is full.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards. Meets NEMA and IEC output ratings.
CAT and Kubota powered international models are
approved.
Engine Specifications (Engines warranted separately by the engine manufacturer.)
Features
HP
Type
Engine Speeds
Capacities
Automatic Engine
Shutdown
Mitsubishi
S4L2
EPA Tier 4 Final compliant,
includes 120 V block heater
24.7
Four-cylinder,
liquid-cooled,
industrial diesel
Idle: 1,500 rpm
Weld: 1,800 rpm
Fuel: 11.5 gal. (43.5 L)
Oil: 5.8 qt. (5.5 L)
Coolant: 10 qt. (9.5 L)
Low oil pressure,
high coolant temperature,
low fuel level
Kubota V1505
EPA Tier 4 Final compliant,
includes 120 V block heater
20.2
Four-cylinder,
liquid-cooled,
industrial diesel
Idle: 1,500 rpm
Weld: 1,800 rpm
Fuel: 11.5 gal. (43.5 L)
Oil: 6 qt. (5.7 L)
Coolant: 6 qt. (5.7 L)
Low oil pressure,
high coolant temperature,
low fuel level
CATERPILLAR
C1.5
EPA Tier 4i compliant,
includes 120 V block heater
21.7
Three-cylinder,
liquid-cooled,
industrial diesel
Idle: 1,500 rpm
Weld: 1,800 rpm
Fuel: 11.5 gal. (43.5 L)
Oil: 5.9 qt. (5.6 L)
Coolant: 6 qt. (5.7 L)
Low oil pressure,
high coolant temperature,
low fuel level
Int’l
USA
Engine Brand
Performance Data
Simultaneous Welding And Power
1.50
4.73
1.25
Weld
Amperes
Total Aux. Power
Available (Watts)
120 V
240 V
1.00
25 A
10,000
83.3
41.6
0.75
75 A
10,000
83.3
41.6
125 A
10,000
83.3
41.6
175 A
9,000
75
37.5
225 A
7,500
62.5
31.3
300 A
4,500
37.5
18.8
350 A
1,000
8.3
4.2
3.79
2.84
1.89
Us Gal./Hr.
Liters/Hr.
Fuel Consumption Curve
5.68
0.50
0.95
0.25
0.00
0.00
Idle
0
50
100
150
200
250
300
350
DC Weld Amperes at 100% Duty Cycle
4
400
Function Guide
1. Self-calibrating digital weld meters with
fault code indication display preset or
actual weld parameters.
2. Pushbutton main control knob used for
adjusting amperage/voltage, adjusting arc
control, and accessing the service menu.
3. LED process indicator. Front panel process
selections are illuminated with an LED that
identifies the active process. This enables
the selected weld process to be seen at a
distance from the power source.
1
7
8
9
10
2
3
11
4
12
5
4. Lift-Arc ™ TIG with Auto-Stop™ and
Auto-Crater.™
5. USB port allows software updates from a
USB drive. A summary file of recoded data
from the unit will be saved to a USB drive
that is inserted.
13
6
6. Weatherproof Lexan® nameplate is super
durable and resists cracking and fading.
14
USA Model
7. Adjustable arc control adjusts DIG when
process control is in stick mode and adjusts
inductance when process control is in
FCAW or MIG mode. The amount of DIG
determines how much amperage (heat)
varies with stick arc length. Inductance
determines the “wetness” of the weld puddle.
15
8. Maintenance interval reminder. Yellow
and red indicator lights let an operator know
when the machine is approaching and
finally in need of routine maintenance.
9. Fuel indicator gauge. Low fuel shutdown
shuts engine off prior to running out of fuel
to prevent loss of fuel in the system, and
make restarts easy.
International Model Receptacles
ARC START with Lift-Arc
™
Touch or scratch
Shielding
gas
10. Glow plugs assist in cold weather starting.
11. Engine control switch is used to start the
engine and then select between auto idle
and high speed lock.
12. Standard 14-pin receptacle for simple
connection of remote controls and wire
feeders. Includes Auto Remote Sense™
which automatically switches from panel to
remote amperage/voltage (A/V) control with
remote connected. Eliminates confusion of
a panel/remote switch.
13. 50 A, 120/240 V receptacle and 20 A, 120 V
GFCI receptacles with circuit breakers
Note: For matching 240 V plug, order 119172.
14. Weld output terminals
Arc
Shielding
gas
• Reduces or eliminates sticking
• Reduces or eliminates electrode/
work contamination
• Low open-circuit voltage
Workpiece
ARC END with Auto-Stop
™
For Auto-Stop, lift up to terminate arc
While welding
Shielding
gas
Lift up
until arc
ends
Arc ends
without
flare
Move back
down to
maintain gas
coverage
Arc
• Eliminates need for a remote
control
• Maintains shielding gas coverage
• Eliminates tungsten and
workpiece contamination
• Eliminates unwanted arc strikes
outside the weld area
Workpiece
ARC END with Auto-Crater
While welding
15. International receptacle panel with 16 A,
240 V receptacle, 20 A 120 V GFCI
receptacle and 32 A, 240 V receptacle
with circuit breakers
Note: For matching 240 V, 16 A plug, order 255416
and for matching 240 V, 32 A plug, order 255418.
Lift at any angle
Shielding
gas
Arc
™
To start Auto-Crater, press
momentary contact switch
Welding
current
ramps
down
Maintain
shielding
gas
coverage
• Maintains shielding gas coverage
• Eliminates tungsten and workpiece
contamination
• Auto-Crater time allows for
addition of filler
• Eliminates unwanted arc strikes
outside the weld area
Workpiece
5
Genuine Miller Accessories
®
Replacement 110 V Receptacle Panel
195356 Field
For International models only. Replaces
complete auxiliary power panel with one
110-volt, 16-amp and one 110-volt, 32-amp
receptacle and Earth Leakage Circuit Breaker
(ELCB) supplementary protector.
MIG (GMAW) or Flux-cored (FCAW)
XR™ Wire Feeders and Guns
Push-pull system designed to handle difficultto-feed soft alloy wires such as aluminum.
See literature M/1.7– M/1.74.
Female
Receptacle
Full KVA Adapter Cord 300517 Field
NEMA 14-50P to NEMA 6-50R. Adapts engine
drive 120/240 V plug to common Millermatic®
and Spectrum® 240 V plug.
Full KVA Plug Kit
119172 Field
120/240 V, 50 A plug
(NEMA 14-50P) to fit full
KVA receptacle.
SuitCase® X-TREME™ 8VS Wire Feeder
951582
SuitCase® X-TREME™ 12VS Wire Feeder
951543
Lightweight, voltage-sensing wire feeders include
secondary contactor, gas valve, drive roll kit and
MIG gun. See literature M/6.42.
®
SuitCase 12RC Wire Feeder
951580
Lightweight and flexible enough
to run a variety of wires up to
.062-inch diameter. Includes
remote voltage control, drive
roll kit and MIG gun. See literature M/6.5.
International Plugs Field
255418 1-phase,
240 V, 32 A plug
255416 1-phase,
240 V, 16 A plug
Engine Filter Kits
246987 Field. For CAT
253901 Field. For Kubota
252782 Field. For Mitsubishi
Includes all filters required for proper engine
maintenance. Oil filter, primary and secondary
fuel filter, and primary air filter.
Spark Arrestor (Muffler)
Kit 300585 Field
Prevents particles from
leaving the muffler that
could potentially start a
fire. Mandatory when
operating on California grasslands, brush, or
forest-covered land, and in all national forests.
For other areas, check your state and local laws.
Meets U.S. Forest Service Standard 5100-1B.
FA-1D Lockable Flame Arrestor
Fuel Cap 043947 Field
Fuel cap can be padlocked to
prevent vandalism. A built-in flame
arrestor prevents flames or sparks
from entering the fuel tank.
Protective Cover
195301 Field
Blue water-resistant
cover with Miller logo
resists stains and
mildew, and protects the
finish of your welder.
6
PipeWorx Memory Cards
For use with ArcReach Smart Feeder only.
301230 System Software
For free download, visit MillerWelds.com
300557 Calibration
Used to calibrate the PipeWorx System. For free
download, visit MillerWelds.com
300744 Inconel
Pulsed MIG, .045-inch diameter wire, 100% argon
300460 Range Locks
Provides ability to set nominal parameter values
and ranges for wire feed processes.
300667 Accu-Power™
Displays instantaneous power during welding to
meet the new ASME requirement for calculating
heat input on complex waveform processes
(RMD® and pulsed MIG).
SuitCase® X-TREME™ 8VS ArcReach®
951588 With Bernard™ S-Gun™
951584 With Bernard™ BTB Gun 300 A
SuitCase® X-TREME™ 12VS ArcReach®
951589 With Bernard™ S-Gun™
951581 With Bernard™ BTB Gun 300 A
Portable feeder designed to run off of arc
voltage. When paired with an ArcReach power
sources provides remote control of the power
source without a cord — saving time and
money. See literature M/6.42.
ArcReach® Smart Feeder
300935
For use with ArcReach models
only. For MIG, FCAW, and
advanced RMD® and pulse
processes. See page 3 for more
information.
MIG (GMAW)/Flux-cored (FCAW) Guns
Miller produces a complete line of dependable
MIG guns. See literature AY/15.0, AY/16.0 and
AY/17.0.
Spoolmatic® 30A
Spool Gun 130831
Air-cooled, 200-amp,
one-pound spool gun
for aluminum and
stainless MIG. See literature M/1.73. Requires
WC-24 Control (137549).
301035 Trigger Select/Hold Option
Enables trigger select while welding to change
processes and parameters without stopping.
AC TIG (GTAW) Welding
The Dynasty 210 power sources can be run off the
engine drive’s generator to provide two arcs with only
one engine.
Dynasty® 210 Series
For portable AC/DC
TIG. See literature
AD/4.81.
Multiple Operator Welding
The XMT 350 and CST 280 power sources can be run
off the engine drive’s generator to provide two arcs
with only one engine.
XMT® 350 Series
See literature DC/18.93.
CST ™ 280
See literature DC/29.55.
Genuine Miller Accessories (Continued)
®
Plasma Cutting
Stick/TIG Remote Controls
ArcReach®
Stick/TIG Remote
301325
When paired with
an ArcReach power
source, provides
remote control of
the power source
without a cord —
saving time and money. See literature AY/14.5.
Spectrum 375 X-TREME and 625 X-TREME shown.
Spectrum® 375 X-TREME™ 907529
See literature PC/9.2.
Spectrum® 625 X-TREME™ 907579
See literature PC/9.6.
Spectrum® 875 907583
See literature PC/9.8.
Wireless Remote Hand
Control 300430
For remote current, voltage
and contactor control.
Receiver plugs directly into
the 14-pin receptacle of
Miller machine. 300-foot
(91.4 m) operating range.
The Spectrum 375 X-TREME and 625 X-TREME
come complete with protective X-CASE™
(not shown).
Wireless Antenna Kit 300749
Recommended for improved reception.
RHC-14 Hand Control
242211020
Miniature hand control for
remote current, voltage and
contactor control.
Dimensions: 4 x 4 x 3.25 in.
(102 x 102 x 82 mm).
Includes 20-foot (6 m) cord and 14-pin plug.
Trailers and Hitches (Note: Trailers are shipped unassembled.)
RMS-14 On/Off Control 187208
Momentary-contact switch for contactor control.
Rubber-covered pushbutton dome switch
ideal for repetitive on-off applications. Includes
26.5-foot (8 m) cord and 14-pin plug.
RCC-14 Remote Contactor and Current Control
151086
East/west rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
PRHC-14 Hand Control
195511
Complete current or voltage
control brings 120 volts GFCI
power to work area in a single
cord. Housed in a durable,
light aluminum case and
includes 125-foot (38 m) cord with plugs.
Extension Cables for 14-Pin Remote Controls
or 24 VAC Wire Feeders
242208025 25 ft. (7.6 m)
242208050 50 ft. (15.2 m)
242208080 80 ft. (24.4 m)
Mounting Specifications
F
A
HWY-Mid Frame Trailer 301438
1,424-pound (646 kg) capacity highway trailer
with welded steel tubing frame, heavy-duty
axle with roller bearing hubs and leaf-spring
suspension. Includes jack stand, fenders, lights,
and dual hitch with 2-inch (50 mm) ball hitch
and 3-inch (76 mm) lunette eye.
B
4 holes
Front Panel
Dual Hitch 301441
Combination 2-inch (50 mm) ball hitch
and 3-inch (76 mm) lunette eye in one
reversible assembly.
C
D
E
2-In-1 Document/
Fire Extinguisher Holder
301236
Stores documents and holds
a 5-pound fire extinguisher.
Note: Holder shown mounted
on trailer. Fire extinguisher
not included.
Cable Tree 043826
Provides an area to conveniently wrap weld
cables and extension cords.
A. 27.75 in. (705 mm)
B. 26.25 in. (667 mm)
C. 52.25 in. (1,327 mm)
D. 2 in. (51 mm)
E. 56 in. (1,422 mm)
F. .562 in. (14 mm) dia.
Height: 32 in. (813 mm)
Width: 26.25 in. (667 mm)
Depth: 56 in. (1,422 mm)
Trailer Specifications (Subject to change without notice.)
Model
Gross Axle
Weight Rating
Gross Vehicle
Weight Rating
Net
Payload
Height
of Bed
Road
Clearance
Track (Center
to center of
tires)
Standard Tires
(Standard rating
or P-size rating)
Dimensions
Net
Weight
HWY-Mid
Frame
1,605 lb.
(728 kg)
1,424 lb.
(646 kg)
1,424 lb.
(646 kg)
19.5 in.
(495 mm)
8 in.
(203 mm)
46 in.
(1,168 mm)
ST175/80D-13
Load Range C
Length: 101 in. (2,565 mm)
Width: 55 in. (1,397 mm)*
181 lb.
(82 kg)
*Width at outside of fenders.
7
Ordering Information
Equipment and Options
Stock No.
Description
Big Blue 400 Pro
907732
907733
Kubota. USA model
Mitsubishi. USA model
Big Blue® 400 Pro ArcReach™
907732001
907733001
Kubota. USA model
Mitsubishi. USA model
Big Blue® 400X Pro
907630
907631
CAT (CE). International model
Kubota (CE). International model
195356
300517
119172
Field. For International models only. 110 V, 16/32 A with ELCB
Field
120/240 V. Field
Field. See page 5
Field. For CAT, includes air, oil and fuel filters
Field. For Kubota, includes air, oil and fuel filters
Field. For Mitsubishi, includes air, oil and fuel filters
Field
Field
Field
®
Field Accessories
Replacement 110 V Receptacle Panel
Full KVA Adapter Cord
Full KVA Plug Kit
International Plugs
Engine Filter Kit
Spark Arrestor (Muffler) Kit
FA-1D Lockable Flame Arrestor Fuel Cap
Protective Cover
MIG/Flux-cored Welding
SuitCase® X-TREME™ 8VS
SuitCase® X-TREME™ 12VS
SuitCase® 12RC
SuitCase® X-TREME™ 8VS ArcReach®
(For use with ArcReach models only)
SuitCase® X-TREME™ 12VS ArcReach®
(For use with ArcReach models only)
ArcReach® Smart Feeder
(For use with ArcReach models only)
Bernard™ PipeWorx 300 MIG Gun
MIG (GMAW) and Flux-cored (FCAW) Guns
Spoolmatic® 30A Spool Gun
WC-24 Control
XR™ Wire Feeder Control and Guns
PipeWorx Memory Cards
246987
253901
252782
300585
043947
195301
951582
951543
951580
951588
951584
951589
951581
300935
195400
130831
137549
With Bernard™ BTB Gun 300 A. See literature M/6.42
With Bernard™ BTB Gun 300 A. See literature M/6.42
With Bernard™ BTB Gun 300 A. See literature M/6.5
With Bernard™ BTB Gun S-Gun.™ See literature M/6.42
With Bernard™ BTB Gun 300 A. See literature M/6.42
With Bernard™ BTB S-Gun.™ See literature M/6.42
With Bernard™ BTB Gun 300 A. See literature M/6.42
MIG/FCAW/RMD®/pulse feeder, Tweco®-style connectors.
See literature PWS/6.0
See literature PWS/6.0
See literature AY/15.0, AY/16.0 and AY/17.0
Requires WC-24 Control. See literature M/1.73
See literature M/1.5
See literature M/1.7 through M/1.74
For use with ArcReach Smart Feeder only. See page 6
TIG Welding
See page 6
Multiple Operator Welding
See page 6
Plasma Cutting
See page 7
Stick/TIG Remote Controls
ArcReach® Stick/TIG Remote
Wireless Remote Hand Control
Wireless Antenna Kit
RHC-14 Hand Control
RMS-14 On/Off Control
RCC-14 Remote Contactor and Current Control
PRHC-14 Hand Control
Extension Cables
Qty.
301325
300430
300749
242211020
187208
151086
195511
For use with ArcReach models only
Hand control with wireless 300 ft. (91.4 m) operating range
Recommended for improved reception
Hand control with 20 ft. (6 m) cord
Remote contactor control
Fingertip control
Hand control with 120 V GFCI receptacle, 125 ft. (38 m)
See page 6
Trailers and Hitches
HWY-Mid Frame
Cable Tree
Dual Hitch
301438
043826
301441
2-In-1 Document/Fire Extinguisher Holder
301236
Trailer with lights, fenders and dual hitch. For highway use
Trailer-mounted cable holder
Combination 2-inch (50 mm) ball hitch and 3-inch (76 mm) lunette eye in
one reversible assembly
Stores documents and holds a 5-pound fire extinguisher
Date:
Distributed by:
© 2017 Miller Electric Mfg. Co.
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
