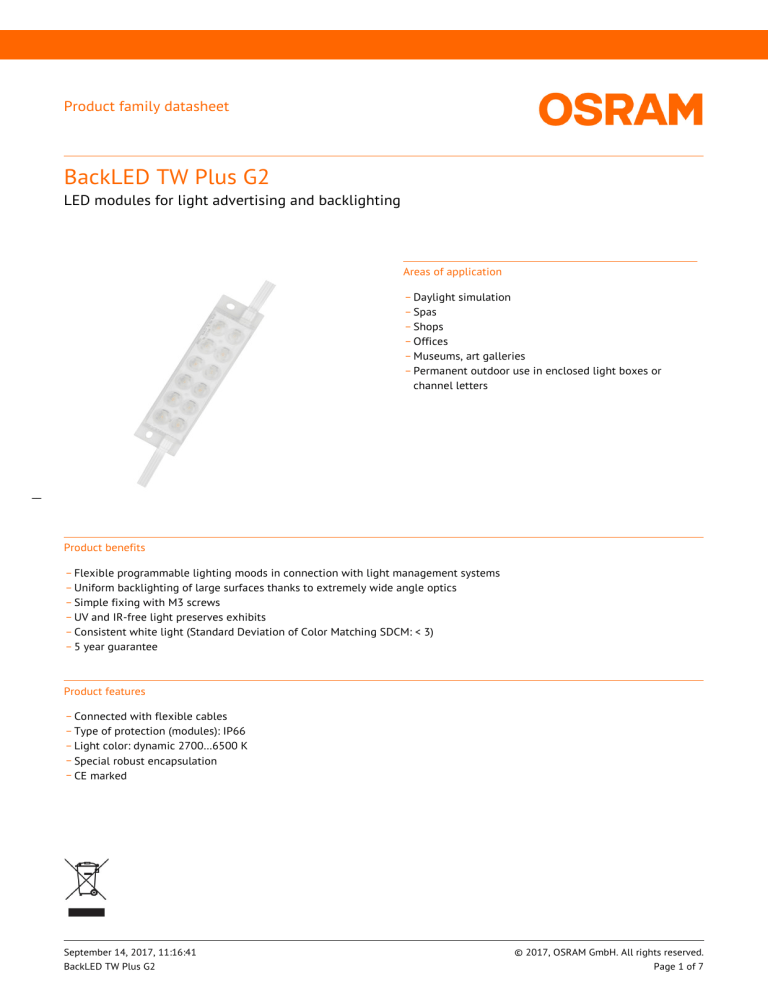

BackLED TW Plus G2

BackLED TW Plus G2
Product family datasheet
BackLED TW Plus G2
LED modules for light advertising and backlighting
Areas of application
_ Daylight simulation
_ Spas
_ Shops
_ Offices
_ Museums, art galleries
_ Permanent outdoor use in enclosed light boxes or
channel letters
__
Product benefits
_ Flexible programmable lighting moods in connection with light management systems
_ Uniform backlighting of large surfaces thanks to extremely wide angle optics
_ Simple fixing with M3 screws
_ UV and IR-free light preserves exhibits
_ Consistent white light (Standard Deviation of Color Matching SDCM: < 3)
_ 5 year guarantee
Product features
_ Connected with flexible cables
_ Type of protection (modules): IP66
_ Light color: dynamic 2700…6500 K
_ Special robust encapsulation
_ CE marked
September 14, 2017, 11:16:41
BackLED TW Plus G2
© 2017, OSRAM GmbH. All rights reserved.
Page 1 of 7
Product family datasheet
Technical data
Electrical data
Product description
Nominal
voltage
Nominal
wattage
per chain
Nominal
wattage
per LED
module
Reverse
Voltage
Input voltage
range
Type of
current
BA-TW-PL 827-865 G2 1)
24.0 V
96.00 W
4.8 W
24 V
23.5…24.5 V
DC
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Photometrical data
__
Product description
Color
temperature
Color
rendering index
Ra
Light color
(designation)
Light color
LED
Luminous
flux per
module
chain
Luminous flux
per LED
module
BA-TW-PL 827-865 G2 1)
2700 K
80
White
Tunable White
9200 lm
460 lm
Product description
Luminous
efficacy
Standard
deviation of
color
matching
BA-TW-PL 827-865 G2 1)
95.8 lm/W
≤3 sdcm
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Light technical data
Product description
Beam
angle
BA-TW-PL 827-865 G2 1)
150 °
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
LED module information
Product description
Number of
LEDs per
module
Number of LED modules
per chain
Minimum
operable
number of
LED
modules
BA-TW-PL 827-865 G2 1)
12
20
1
September 14, 2017, 11:16:41
BackLED TW Plus G2
© 2017, OSRAM GmbH. All rights reserved.
Page 2 of 7
Product family datasheet
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Dimensions & weight
Product description
Length
Width
Height
Product
weight
BA-TW-PL 827-865 G2 1)
130.0 mm
35.0 mm
12.3 mm
1400.00 g
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Product line drawing
__
BA-TW-PL 827-865 G2
Temperatures & operating conditions
Product description
Temperature
range in
operation
BA-TW-PL 827-865 G2 1)
-25…55 °C
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
September 14, 2017, 11:16:41
BackLED TW Plus G2
© 2017, OSRAM GmbH. All rights reserved.
Page 3 of 7
Product family datasheet
Lifespan
Product description
Lifespan
BA-TW-PL 827-865 G2 1)
50000 h
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Capabilities
Product description
Dimmable
Dimming range
BA-TW-PL 827-865 G2 1)
Yes
5…100 %
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Certificates & standards
__
Product description
Energy
consumption
Energy
efficiency
class
Type of
protection
BA-TW-PL 827-865 G2 1)
6 kWh/1000h
A+
IP66
Product description
Standards
BA-TW-PL 827-865 G2
1)
CE
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Logistical data
Product description
Temperature
range at
storage
BA-TW-PL 827-865 G2 1)
-25…85 °C
1) Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information, see
www.osram.com/led-systems/All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above
for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from
the typical values
Equipment / Accessories
_ Seven types of OPTOTRONIC 24 V power supplies available
_ BoxLED mounting profile BX-MP
September 14, 2017, 11:16:41
BackLED TW Plus G2
© 2017, OSRAM GmbH. All rights reserved.
Page 4 of 7
Product family datasheet
Application advice
For more detailed application information and graphics please see product datasheet.
Additional product information
_ Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.
_ Installation by qualified electrician only.
_ Please see the relevant application guides and instructions sheets for more detailed safety and mounting information.
Additional information is available on request.
_ Complies with IEC/EN 61547
_ Complies with IEC/EN 61000-3-2
_ Complies with EN 55015, CISPR 15
_ Complies with IEC/EN 61347-1
_ Complies with IEC/EN 61347-2-13
_ LED modules are dimmable by means of PWM (pulse width modulation). It is recommended using the following OSRAM
control gears: OPTOTRONIC OT DIM or OPTOTRONIC 24 V power supplies with integrated 1…10 V dimming interface.
_ Parallel connection is mandatory for safe electrical operation. Serial connection of LED modules is stronly discouraged.
Unbalanced voltage drop in serial connection can cause hazardous overload and damage the LED module.
_ Electrical contact is achieved with the contact cables or the terminals of the module. Please refer to the technical data for
maximum number of LED modules that can be operated on one control gear.
_ In order to operate OSRAM LED modules safely, it is absolutely necessary to operate them with an electronically stabilized
power supply that protects against short circuits, overload and overheating.
_ In case other power supplies than OSRAM OPTOTRONIC are used, compliance to the neccessary operating parameters
__
(voltage, current, power) has to be ensured.
_ Pay attention to polarity! Wrong polarity can cause destruction or malfunction of the module.
_ Conducting paths on the circuit board must not be damaged or destroyed during installation.
_ The LED module itself and all its components must not be stressed mechanically.
_ Operation in or under water is prohibited.
_ To avoid mechanical damage, the LED modules have to be attached securely to the intended mounting surface. It is
recommended to avoid heavy vibration.
_ In case that the LED module is equipped with a pre-mounted double-sided adhesive tape, OSRAM assumes no liability and
provides no guarantee for a permanent adherence of the modules to the surface. OSRAM recommends fixation of the modules
by means of suitable screws.
_ Complies with IEC 61347-1 cl. 18.3, cl. 18.4, IEC 60695-2-10, IEC 60695-11-5, IEC 60695-11-10 (classification V-0)
_ All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting
diodes, the specified typical values for the technical LED parameters are merely statistical values that do not necessarily
correspond to the actual technical parameters of an individual product; individual products may vary from the typical values.
_ Module contains no PVC material.
_ To ensure uniform illumination, a reflective matt white surface is generally recommended for all internal frame walls and back
panels of light boxes.
_ The module may cause noises during dimming. If a dimming operation is required, it is recommended to check the dimming
operation for noises before final installation.
Sales and Technical Support
Sales and Technical Support www.osram.com
Download Data
September 14, 2017, 11:16:41
BackLED TW Plus G2
© 2017, OSRAM GmbH. All rights reserved.
Page 5 of 7
Product family datasheet
File
User instruction
UI BackLED TW and RGBW Plus G2
Declarations of conformity
727530_EC BackLED PLUS
Declarations of conformity
727532_Manufacturer´s Declaration BackLED PLUS
CAD data
728688_CAD BackLED TW Plus G2.DWG
CAD data
728689_CAD BackLED TW Plus G2.IGS
CAD data 3-dim
728690_CAD BackLED TW Plus G2.STEP
CAD data PDF
728631_CAD BackLBackLED TW Plus G2_PDF
Eulumdat
728626_BackLED TW Plus G2_BA-TW-PL_2700K_4052899452954
Eulumdat
728627_BackLED TW Plus G2_BA-TW-PL_2700K+6500K_4052899452954
Eulumdat
728628_BackLED TW Plus G2_BA-TW-PL_6500K_4052899452954.ldt
IES data
IES_BackLED TW Plus G2
__
IES data
IES_BackLED TW Plus G2
IES data
IES_BackLED TW Plus G2
Logistical Data
Product code
Product description
Packaging unit (Pieces/Unit)
Dimensions (length x width x
height)
Volume
Gross weight
4052899452954
BA-TW-PL 827-865 G2
Shipping carton box
5
473 mm x 328 mm x 292 mm
45.30 dm³
9777.00 g
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or
more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.
References / Links
For more information on the multi-level guarantee and the terms and conditions of the guarantee visit
www.osram.com/system-guarantee
Disclaimer
September 14, 2017, 11:16:41
BackLED TW Plus G2
© 2017, OSRAM GmbH. All rights reserved.
Page 6 of 7
Product family datasheet
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
