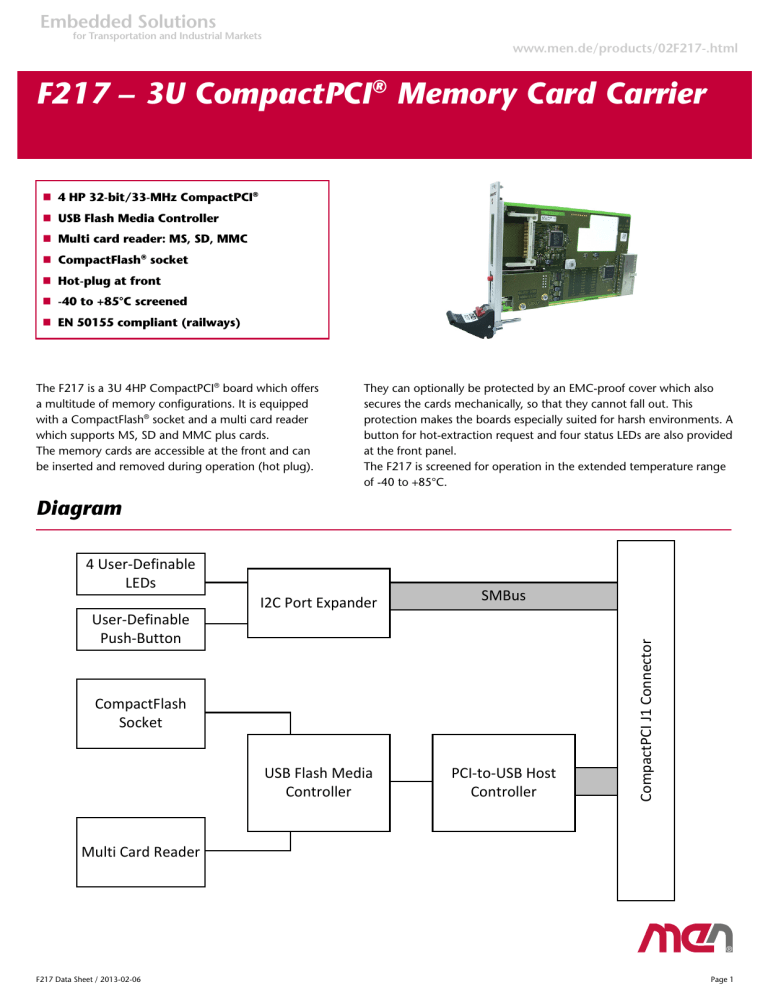

F217 – 3U CompactPCI® Memory Card Carrier

F217 – 3U CompactPCI® Memory Card Carrier
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F217-.html
F217 – 3U CompactPCI® Memory Card Carrier
n 4 HP 32-bit/33-MHz CompactPCI®
n USB Flash Media Controller
n Multi card reader: MS, SD, MMC
n CompactFlash® socket
n Hot-plug at front
n -40 to +85°C screened
n EN 50155 compliant (railways)
The F217 is a 3U 4HP CompactPCI® board which offers
a multitude of memory configurations. It is equipped
with a CompactFlash® socket and a multi card reader
which supports MS, SD and MMC plus cards.
The memory cards are accessible at the front and can
be inserted and removed during operation (hot plug).
They can optionally be protected by an EMC-proof cover which also
secures the cards mechanically, so that they cannot fall out. This
protection makes the boards especially suited for harsh environments. A
button for hot-extraction request and four status LEDs are also provided
at the front panel.
The F217 is screened for operation in the extended temperature range
of -40 to +85°C.
4 User-Definable
LEDs
I2C Port Expander
SMBus
USB Flash Media
Controller
PCI-to-USB Host
Controller
User-Definable
Push-Button
CompactFlash
Socket
CompactPCI J1 Connector
Diagram
Multi Card Reader
F217 Data Sheet / 2013-02-06
Page 1
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F217-.html
Technical Data
Memory
n
n
CompactPCI® Bus
n
n
n
Electrical Specifications
n
n
Mechanical Specifications
n
n
n
Environmental Specifications
One CompactFlash® card interface
o Type I/II
o UDMA Mode 0..4
o PIO Mode 0..6
o Via USB Flash media controller
One multi card reader
o MS (Memory Stick 1.43)
o SD/SDHC (Secure Digital 2.0)
o MMC plus (Multi Media Card 4.2)
o Via USB Flash media controller
Compliance with CompactPCI® Core Specification PICMG 2.0 R3.0
Peripheral slot
V(I/O): +3.3 V
Isolation voltage:
o 1000 VAC between GND and SHIELD
Supply voltage/power consumption:
®
o +3.3 V (-3%/+5%), 1.06 W (with CompactFlash and SD card)
Dimensions: conforming to CompactPCI® specification for 3U boards
Front panel: 4 HP with ejector
Weight: 124 g (without cards)
n
Temperature range (operation):
o -40..+85°C (screened, depending on the cards used)
o Airflow: 1.0 m/s
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to + 3,000 m
Shock: 15 g, 11 ms
Bump: 10 g, 16 ms
Vibration (sinusoidal): 1 g, 10..150 Hz
Conformal coating on request
MTBF
n
1,190,023h @ 40°C according to IEC/TR 62380 (RDF 2000)(without CompactFlash®)
Safety
n
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
n
Conforming to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst)
Software Support
n
Windows®
Linux
For more information on supported operating system versions and drivers see Downloads.
n
n
n
n
n
n
n
n
n
n
F217 Data Sheet / 2013-02-06
Page 2
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F217-.html
Configuration & Options
Standard Configurations
Article No.
Memory
EMC cover
02F217-00
CompactFlash, multicard slot
no
Options
Mechanics
n
Front panel cover for EMC and mechanical protection
Cooling Concept
n
Also available with conduction cooling in MEN CCA frame
Please note that some of these options may only be available for large volumes. Please ask our sales staff for more information.
Ordering Information
Standard F217 Models
02F217-00
Software: Windows®
This product is designed to work under Windows®. See below for all available separate software packages.
13Y004-70
Memory card carrier for CF, SD, MMC Cards, -40..+85°C screened
MDIS4/2004 / MDIS5 Windows® driver (MEN) for SMBus devices for F14, F15, F17, F18,
D9, D601, F600, F601 and F217
For operating systems not mentioned here contact MEN sales.
Documentation
Compare Chart 3U CompactPCI® / PlusIO CPU cards » Download
Compare Chart 3U CompactPCI® / PlusIO peripheral cards » Download
20F217-00
F217 Data Sheet / 2013-02-06
F217 User Manual
Page 3
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/02F217-.html
Contact Information
Germany
France
USA
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone +49-911-99 33 5-0
Fax +49-911-99 33 5-901
MEN Mikro Elektronik SAS
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone +33 (0) 450-955-312
Fax +33 (0) 450-955-211
MEN Micro Inc.
860 Penllyn Blue Bell Pike
Blue Bell, PA 19422
Phone (215) 542-9575
Fax (215) 542-9577
[email protected]
www.men.de
[email protected]
www.men-france.fr
[email protected]
www.menmicro.com
The date of issue stated in this data sheet refers to the Technical Data only. Changes in ordering information given herein do not affect the date of issue. All brand or product names are
trademarks or registered trademarks of their respective holders.
MEN is not responsible for the results of any actions taken on the basis of information in the publication, nor for any error in or omission from the publication.
MEN expressly disclaims all and any liability and responsibility to any person, whether a reader of the publication or not, in respect of anything, and of the consequences of anything,
done or omitted to be done by any such person in reliance, whether wholly or partially, on the whole or any part of the contents of the publication.
The correct function of MEN products in mission-critical and life-critical applications is limited to the environmental specification given for each product in the technical user manual.The
correct function of MEN products under extended environmental conditions is limited to the individual requirement specification and subsequent validation documents for each product
for the applicable use case and has to be agreed upon in writing by MEN and the customer.Should the customer purchase or use MEN products for any unintended or unauthorized
application, the customer shall indemnify and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses,
and reasonable attorney fees arising out of, directly or indirectly, any claim or personal injury or death associated with such unintended or unauthorized use, even if such claim alleges
that MEN was negligent regarding the design or manufacture of the part.
In no case is MEN liable for the correct function of the technical installation where MEN products are a part of.
Copyright © 2015 MEN Mikro Elektronik GmbH. All rights reserved.
