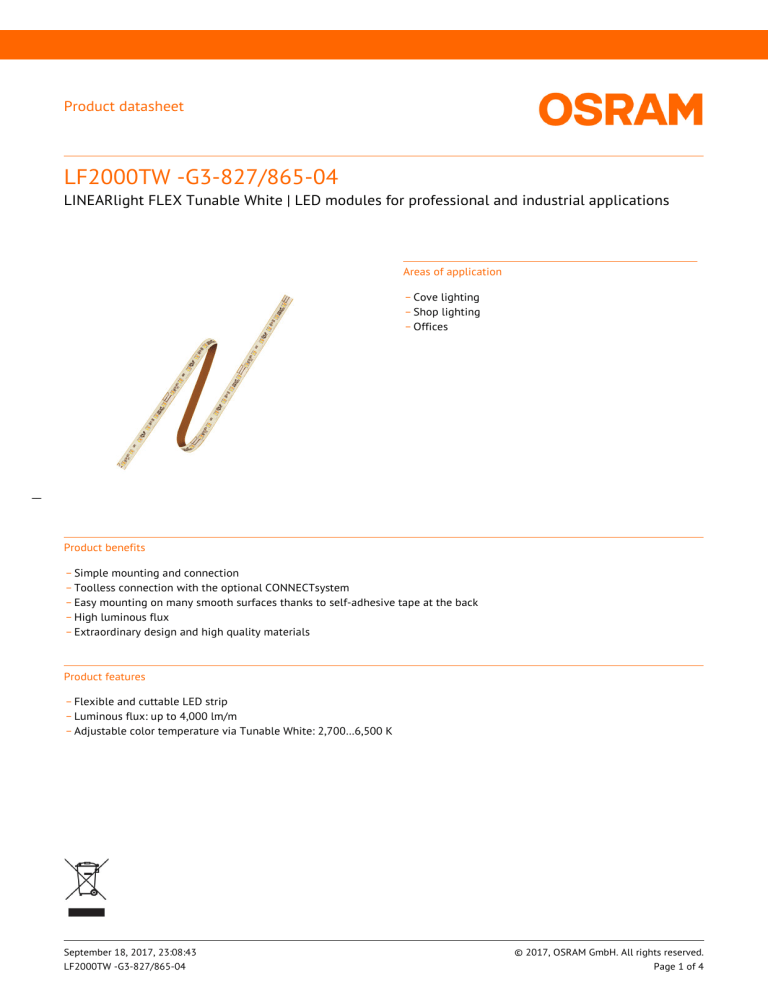

Product datasheet
LF2000TW -G3-827/865-04
LINEARlight FLEX Tunable White | LED modules for professional and industrial applications
Areas of application
_ Cove lighting
_ Shop lighting
_ Offices
__
Product benefits
_ Simple mounting and connection
_ Toolless connection with the optional CONNECTsystem
_ Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
_ High luminous flux
_ Extraordinary design and high quality materials
Product features
_ Flexible and cuttable LED strip
_ Luminous flux: up to 4,000 lm/m
_ Adjustable color temperature via Tunable White: 2,700…6,500 K
September 18, 2017, 23:08:43
LF2000TW -G3-827/865-04
© 2017, OSRAM GmbH. All rights reserved.
Page 1 of 4
Product datasheet
Technical data
Electrical data
Nominal voltage
24.0 V
Rated wattage
83.20 W
Nominal wattage
83.20 W
Reverse Voltage
25 V
Input voltage range
23…25 V
Nominal wattage per meter
18.5 W
Photometrical data
Color temperature
2700 K
Light color (designation)
Dynamic White
Light color LED
Tunable White
Luminous flux per meter
2000 lm
Luminous efficacy
108 lm/W
Color rendering index Ra
>80
Light technical data
__
Beam angle
120 °
LED module information
Number of LEDs per module
720
Number of LEDs per meter
160
Dimensions & weight
Length
4500 mm
Width
8.0 mm
Height
1.45 mm
September 18, 2017, 23:08:43
LF2000TW -G3-827/865-04
© 2017, OSRAM GmbH. All rights reserved.
Page 2 of 4
Product datasheet
Product weight
53.00 g
Temperatures & operating conditions
Temperature range in operation
-20…85 °C
Additional product data
Product remark
Modules perfectly matched to OSRAM OPTOTRONIC
LED drivers (see relevant table)/For current
photometric data and important safety, installation
and application information, see www.osram.com/ledsystems/All the technical parameters apply to the
entire module. In view of the complex manufacturing
process for light emitting diodes, the typical values
given above for the technical LED parameters are
merely statistical values that do not necessarily
correspond to the actual technical parameters of an
individual product; individual products may vary from
the typical values
Capabilities
__
Lowest bending radius
20 mm
With end piece
No
With connection set
Yes
Self-adhesive
Yes
Certificates & standards
Standards
UL
Logistical data
Temperature range at storage
-40…85 °C
Equipment / Accessories
_ Simplified connection with optional matching CONNECTsystem
_ Quick installation with optional SLIM TRACK System
_ Perfectly matched with OPTOTRONIC OTi DALI 50/220…240/24 TW
_ Perfectly matched with OPTOTRONIC OTi DALI 80/220…240/24 TW
Download Data
File
Product Datasheet
727335_LINEARLIGHT FLEX POWER TUNABLE WHITE TECHNICAL DATASHEET
Certificates
EAC Certificate
September 18, 2017, 23:08:43
LF2000TW -G3-827/865-04
© 2017, OSRAM GmbH. All rights reserved.
Page 3 of 4
Product datasheet
Certificates
UL Certificate
Eulumdat
727189_LF2000TW-G3-827-865-04_LDT
IES data
727188_LF2000TW-G3-827-865-04_IES
Logistical Data
Product code
Product description
Packaging unit (Pieces/Unit)
Dimensions (length x width x
height)
Volume
Gross weight
4052899953284
LF2000TW -G3-827/86504
Shipping carton box
8
241 mm x 195 mm x 205 mm
9.63 dm³
1357.00 g
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or
more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.
Disclaimer
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
