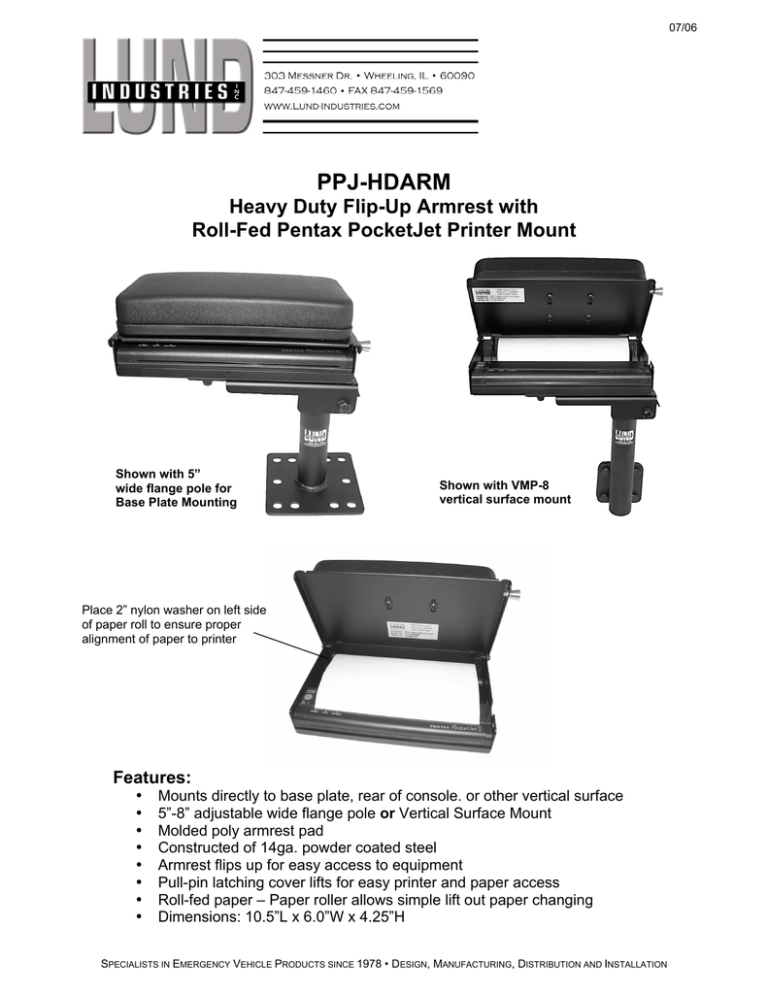

07/06
PPJ-HDARM
Heavy Duty Flip-Up Armrest with
Roll-Fed Pentax PocketJet Printer Mount
Shown with 5”
wide flange pole for
Base Plate Mounting
Shown with VMP-8
vertical surface mount
Place 2” nylon washer on left side
of paper roll to ensure proper
alignment of paper to printer
Features:
•
•
•
•
•
•
•
•
Mounts directly to base plate, rear of console. or other vertical surface
5”-8” adjustable wide flange pole or Vertical Surface Mount
Molded poly armrest pad
Constructed of 14ga. powder coated steel
Armrest flips up for easy access to equipment
Pull-pin latching cover lifts for easy printer and paper access
Roll-fed paper – Paper roller allows simple lift out paper changing
Dimensions: 10.5”L x 6.0”W x 4.25”H
SPECIALISTS IN EMERGENCY VEHICLE PRODUCTS SINCE 1978 • DESIGN, MANUFACTURING, DISTRIBUTION AND INSTALLATION
