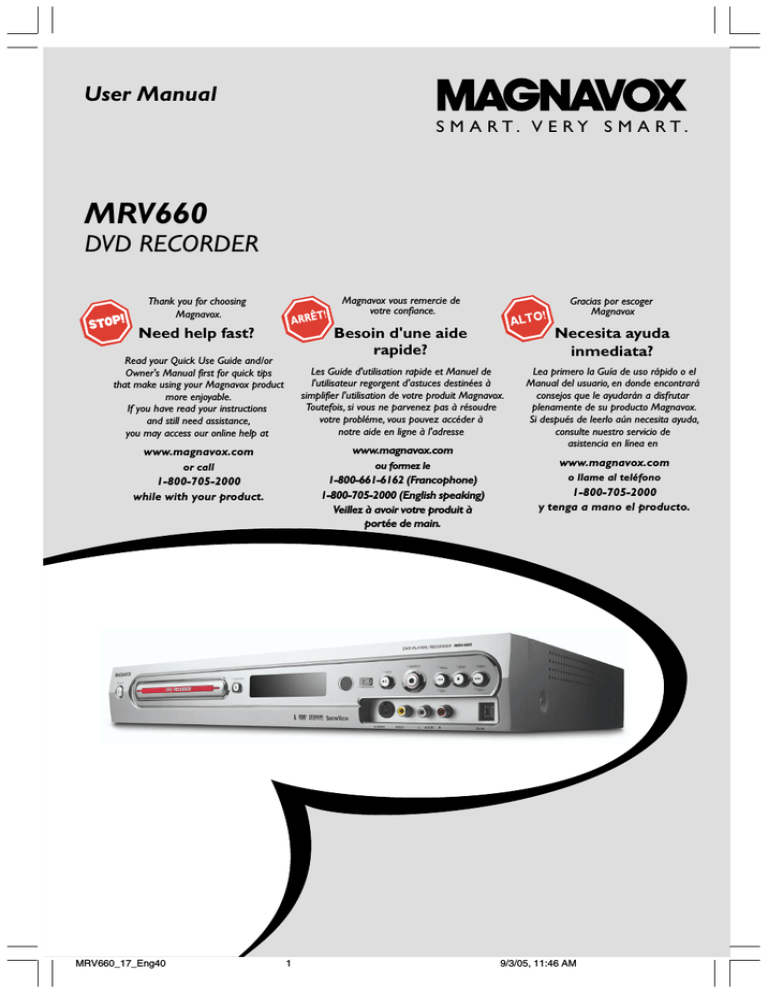

Magnavox MRV660 User's Manual

User Manual
S M A RT. V E RY S M A RT.
MRV660
DVD RECORDER
Magnavox vous remercie de
votre confiance.
Thank you for choosing
Magnavox.
Gracias por escoger
Magnavox
Besoin d'une aide
Make your own DVD
rapide?
Necesita ayuda
inmediata?
Need help fast?
Read your Quick Use Guide and/or
Owner's Manual first for quick tips
that make using your Magnavox product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
Les Guide d'utilisation rapide et Manuel de
l'utilisateur regorgent d'astuces destinées à
simplifier l'utilisation de votre produit Magnavox.
Toutefois, si vous ne parvenez pas à résoudre
votre probléme, vous pouvez accéder à
notre aide en ligne à l'adresse
www.magnavox.com
www.magnavox.com
Lea primero la Guía de uso rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar
plenamente de su producto Magnavox.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
or call
ou formez le
www.magnavox.com
1-800-705-2000
while with your product.
1-800-661-6162 (Francophone)
1-800-705-2000 (English speaking)
Veillez à avoir votre produit à
portée de main.
o llame al teléfono
MRV660_17_Eng40
1
1-800-705-2000
y tenga a mano el producto.
9/3/05, 11:46 AM
Return your Product Registration Card today
to get the very most from your purchase.
Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits listed
below, so don't miss out. Complete and return your Product Registration Card at once to ensure:
*Proof of
Purchase
*Product Safety
Notification
Returning the enclosed card
guarantees that your date of
purchase will be on file, so no
additional paperwork will be
required from you to obtain
warranty service.
By registering your product,
you'll receive notification directly from the manufacturer in the rare case of a product
recall or safety defect.
*Additional
Benefits
of Product
Ownership
Registering your product guarantees that you'll receive all of
the privileges to which you're
entitled, including special
money-saving offers.
Know these
safety
symbols
Congratulations on your purchase,
and welcome to the “family!”
Dear MAGNAVOX product owner:
Thank you for your confidence in MAGNAVOX.
You’ve selected one of the best-built, best-backed
products available today.We’ll do everything in our
power to keep you happy with your purchase for
many years to come.
As a member of the MAGNAVOX “family,” you’re
entitled to protection by one of the most comprehensive warranties and outstanding service networks
in the industry.What’s more, your purchase guarantees you’ll receive all the information and special
offers for which you qualify, plus easy access to accessories from our convenient home shopping network.
Most importantly, you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome - and thanks
for investing in a MAGNAVOX product.
This “bolt of lightning” indicates
uninsulated material within your
unit may cause an electrical shock. For
the safety of everyone in your household,
please do not remove product covering.
The “exclamation point” calls
attention to features for which
you should read the enclosed literature
closely to prevent operating and maintenance problems.
WARNING: To reduce the risk of fire
or electric shock, this apparatus should
not be exposed to rain or moisture, and
objects filled with liquids, such as vases,
should not be placed on this apparatus.
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot,
fully insert.
ATTENTION: Pour éviter les choc
électriques, introduire la lame la plus large
de la fiche dans la borne correspondante
de la prise et pousser jusqu’au fond.
t
s
For Customer Use
P.S. To get the most from your MAGNAVOX
purchase, be sure to complete and return your
Product Registration Card at once.
2
MRV660_17_Eng36
Enter below the Serial No. which is
located on the rear of the cabinet.
Retain this information for future
reference.
Model No. ____________________
Serial No. ____________________
Visit our World Wide Web Site at http://www.magnavox.com
2
2/14/05, 11:46 AM
3139 246 XXXXX
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
12.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near
water.
Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer or sold with
the apparatus.When a cart is
used, use caution when moving
the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning
6. Clean only with dry cloth.
storms or when unused for long periods of
time.
7. Do not block any ventilation
openings. Install in accordance with
the manufacturer´s instructions.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
8. Do not install near any heat sources
such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the
safety purpose of the
polarized or
AC Polarized
Plug
grounding-type plug.
A polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided plug
does not fit into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11.Only use attachments/accessories
specified by the manufacturer.
15.Battery usage CAUTION – To
prevent battery leakage which may result in
bodily injury, property damage, or damage
to the unit:
●
Install all batteries correctly, + and - as
marked on the unit.
●
Do not mix batteries (old and new or
carbon and alkaline, etc.).
●
Remove batteries when the unit is not used
for a long time.
16.Apparatus shall not be exposed to
dripping or splashing.
17.Do not place any sources of danger
on the apparatus (e.g. liquid filled
objects, lighted candles).
18.This product may contain lead and mercury.
Disposal of these materials may be regulated
due to environmental considerations.
For disposal or recycling information,
please contact your local authorities
or the Electronic Industries Alliance :
www.eiae.org.
EL 6475-E005: 04/01
3
MRV660_17_Eng40
3
9/3/05, 10:24 AM
3139 246 XXXXX
Canada
English:
This digital apparatus does not exceed
the Class B limits for radio noise
emissions from digital apparatus as set
out in the Radio Interference
Regulations of the Canadian
Department of Communications.
Français:
Cet appareil numérique n'emet pas de
bruits radioélectriques dépassant les
limites applicables aux appareils
numériques de Class B prescrites dans
le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère
des Communications du Canada.
This warning label is located on the rearside
and inside this laser product.
: INVISIBLE
LASER RADIATION
WHEN OPEN. DO NOT STARE INTO BEAM.
CAUTION
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby
Laboratories.
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.’
INVISIBLE LASER RADIATION WHEN OPEN.
DANGER:AVOID DIRECT EXPOSURE TO BEAM.
JA SUOJALUKITUS OHITETTAESSA OLET
VARO! AVATTAESSA
ALTTIINANAKYMATTOMAALLE LASERSATEILYLLE. ALA
KATSO SATEESEEN.
VARNING!
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.
OCH SPARREN AR URKOPPLAD.BETRAKTA EJ STRÅLEN.
LASER
Type
or
DANGER - Invisible laser radiation when open.
AVOID DIRECT EXPOSURE TO BEAM.
For Customer Use:
Wave length
Output Power
Beam divergence
Read carefully the information located at
the bottom or rear of your DVD Recorder
and enter below the Serial No. Retain this
information for future reference.
Model No. MRV 660
Serial No. _______________
Semiconductor laser
InGaAlP (DVD)
AIGaAs (CD)
658 nm (DVD)
790 nm (CD)
30 mW (DVD+RW write)
1.0 mW (DVD read)
1.0 mW (CD read)
84 degrees (DVD)
61 degrees (CD)
Declaration of Conformity
Model
Trade Name
Responsible Party
MRV 660
Magnavox
Philips Consumer
Electronics North America
P. O. Box 671539
Marietta, GA 30006-0026
1-800-705-2000
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
4
MRV660_17_Eng40
4
9/3/05, 10:24 AM
3139 246 XXXXX
Special Functions
Using the ‘Digital Photo
Manager’, you can view and
modify JPEG pictures from a
Picture CD, DVD, or a CD ROM.
You can create slide shows and
play them on a DVD player.
This feature is only available for
DVD+RW only. By holding
down the REC button, the
recording will be made at the
end of all other recordings. This
helps to avoid overwriting
previous recordings.
This connection is also known
as 'FireWire' and 'IEEE 1394.'
This connection is used for the
transfer of high bandwidth
digital signals as used by digital
video (DV) camcorders. Audio
and video signals are
transmitted using a cable.
English
Your DVD recorder has a number of special functions that will make day-to-day use of
your new DVD recorder easier for you.
This product incorporates
copyright protection technology
that is protected by method
claims of certain US patent and
other intellectual property
rights owned by Macrovision
Corporation and other rights
owners. Use of this copyright
protection technology must be
authorized by Macrovision
Corporation, and is intended for
home and other limited viewing
uses only unless otherwise
authorized by Macrovision
Corporation. Reverse
engineering or disassembly is
prohibited.
(U.S. Patent Number 4,631,603,
4,577,216, 4,819,098 and
4,907,093, 5,315,448 and
6,516,132.)
5
MRV660_17_Eng40
5
9/3/05, 10:24 AM
3139 246 XXXXX
Table of Contents
English
Special Functions ................................... 5
Front Panel ................................................. 23
Jacks behind the flap .................................... 23
Care and Safety Information
Setup .............................................................. 8
Cleaning discs ............................................... 8
About recycling ........................................... 8
General Information
Introduction ................................................. 9
Accessories supplied .................................. 9
Region codes ................................................ 9
Installing the DVD Recorder
First Installation ................................... 24-25
TV channel programming ........................ 26
Automatic TV channel search .................... 26
Setting favorite TV channels ....................... 26
Selecting the channel input signal ............. 27
Setting the time and date ........................ 28
Manual time/date settings ........................... 28
Automatic time/date settings ..................... 28
Setting the language .................................. 29
Connecting to TV
General ........................................................ 10
Selecting a suitable connection
to your TV .................................................... 10
Setting the TV to the correct video in
channel .......................................................... 10
Option 1 : Using Y Pb Pr jacks ......... 11-12
Option 2 : Using S-Video (Y/C) jack ..... 13
Option 3 : Using Video (CVBS) jack ...... 14
Option 4 : Using Antenna jack only ...... 15
Connecting to Additional
Devices
Using the input jacks (IN-EXT 1
or IN-EXT2) ............................................... 16
Connecting a Satellite Receiver/
Cable Box .................................................... 16
Connecting a VCR/DVD player ................. 17
Connecting a camcorder to the
front jacks ................................................... 18
Option 1: Using DV In jack ......................... 18
Option 2: Using S-VIDEO In or
VIDEO In jack ............................................ 18
Using analog audio output jacks ............ 19
Using digital audio output jacks ............. 19
Remote Control ............................. 20-21
Inserting batteries ..................................... 22
Playback
Playable discs .............................................. 30
Inserting a disc ........................................... 30
Starting disc playback ............................... 31
Playing a DVD video disc ............................ 31
Playing (Super) Video CDs .......................... 31
Playing an audio CD ..................................... 31
Playing a DVD+R(W) disc .......................... 32
Playing an MP3 CD ....................................... 32
Playing a picture disc (slide show) ............ 32
Playable JPEG picture disc .......................... 32
Additional Playback Features
Using Toolbar options .............................. 33
Time search ................................................... 33
Changing subtitle language ......................... 33
Changing audio soundtrack language ....... 34
Switching camera angles .............................. 34
Zooming in ..................................................... 34
Changing to another title/chapter/
track ............................................................. 35
Searching forwards/backwards ............... 35
Pausing playback / slow motion play ..... 35
Selecting various play mode .................... 36
Repeat play ..................................................... 36
Repeating a specific segment (A-B) .......... 36
Shuffle play ...................................................... 36
Scan disc ......................................................... 36
Using the remote control to operate
the system ...................................................... 22
Using the alphanumeric keypad to
enter the characters .................................... 22
6
MRV660_17_Eng40
6
9/3/05, 11:46 AM
3139 246 XXXXX
Recording
System Menu - Preferences
Discs for recording ................................... 37
Recording settings ..................................... 37
Accessing the Preferences options ....... 53
Recording mode ........................................... 38
Recording language ...................................... 38
Inserting chapter markers .......................... 38
Filter mode ..................................................... 39
Manual recording ................................. 39-40
Manual recording with automatic
turn-off (one touch recording) .............. 40
Deleting a recording ................................. 40
Timer Recording
Introduction ............................................... 41
Programming recordings ................... 41-42
Programming recording from a
Satellite Receiver/Cable Box ................... 42
Changing a programmed recording ...... 43
Deleting a programmed recording ........ 43
Editing/Finalizing Recording
About editing ............................................. 44
Color coded buttons functions ................. 44
Index Picture screen .................................... 44
Changing the disc/title name .................. 45
Making the editing compatible
(DVD+RW) ................................................ 45
Playing your recording on other DVD
player (DVD+R) ......................................... 45
Video editing .............................................. 46
Hiding unwanted chapter ........................... 46
Editing chapter (merge/split/hide) ............. 47
Editing title (divide/append/
index picture) .......................................... 47-48
Deleting chapter markers ........................... 48
Recording ....................................................... 53
Sound .............................................................. 53
Disc .................................................................. 54
Access ............................................................. 54
Features .......................................................... 54
System Menu - Setup
Accessing the Setup options .................. 55
System ....................................................... 55-56
Time-date ....................................................... 56
Analog channels ............................................ 56
Video output ............................................ 56-57
Audio output ................................................. 57
Language ......................................................... 57
Setting Access Control
About Access Control ............................. 58
Setting or changing the pin code ........... 58
Setting the country of origin .................. 58
Activating/Deactivating the child lock .. 59
Authorizing discs .......................................... 59
Restricting playback by Parental
Control ........................................................ 60
Specifications ........................................... 61
Troubleshooting ............................. 62-65
Display panel symbols/
messages ................................................ 66-67
Glossary ......................................................... 68
Photo editing .............................................. 48
Using the Browser
Browsing the disc ...................................... 49
Color coded buttons functions ................. 49
Browsing the picture disc ........................ 50
Adding pictures to an album ...................... 50
Changing the picture order within
an album ......................................................... 51
Deleting an album ......................................... 51
Deleting picture in an album ...................... 51
Changing the slide show settings .............. 52
7
MRV660_17_Eng40
7
9/3/05, 11:46 AM
3139 246 XXXXX
English
Table of Contents
Care and Safety Information
English
CAUTION!
High voltage! Do not open.
You run the risk of getting an
electric shock.
The machine does not contain any
user-serviceable parts. Please leave
all maintenance work to qualified
personnel.
Setup
Finding a suitable location
– Place the set on a flat, hard and stable
surface. Do not place the set on a carpet.
– Do not position the set on top of
other equipment that might heat it up
(e.g., receiver or amplifier).
– Do not put anything under the set
(e.g., CDs, magazines).
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4.5”)
clearance from the rear and the top of
the set and 5cm (2.3”) from the left and
right to prevent overheating.
5cm (2.3")
10cm (4.5")
10cm (4.5")
Cleaning discs
Some problems occur because the disc
inside the recorder is dirty (frozen
picture, sound disruptions, picture
distortions). To avoid these problems,
discs should be cleaned on a regular
basis.
To clean a disc, use a micro fibre cleaning
cloth and wipe the disc from the center
to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene,
thinner, commercially available cleaners,
or anti-static sprays intended for discs.
Since the optical unit (laser) of the DVD
recorder operates at a higher power than
regular DVD or CD players, cleaning CDs
intended for DVD or CD players may
damage the optical unit (laser). Therefore,
refrain from using a cleaning CD.
About recycling
These operating instructions have been
printed on non-polluting paper. This
electronic equipment contains a large
number of materials that can be recycled.
If you are disposing of an old machine,
please take it to a recycling center. Please
observe the local regulations regarding
disposal of packaging materials, exhausted
batteries, and old equipment.
5cm (2.3")
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger on
the apparatus (e.g., liquid filled objects,
lighted candles).
8
MRV660_17_Eng40
8
9/3/05, 10:24 AM
3139 246 XXXXX
Introduction
Accessories supplied
Your DVD recorder allows you to record
the TV programs or duplicate camcorder
recordings to a DVD+RW or DVD+R
and play pre-recorded DVDs. The
recordings you make on the Recorder
will play on some DVD players and DVDROM drives. The DVD+R discs have to
be finalized before they can be played on
other DVD players.
–
–
–
–
Please take the time to read this user
manual before using your DVD recorder.
It contains important information and
notes regarding operation.
Helpful Hints:
– If you have questions or if problems come
up during operation, please see the chapter
'Troubleshooting'.
– If you need further assistance, please call
the customer support service for your
country. The corresponding telephone
numbers and e-mail addresses are given in
the guarantee booklet.
English
General Information
Remote control and batteries
Audio/Video (AV) cables
Antenna cable
Quick Use Guide
Region codes
DVD films are usually not released at the
same time in all regions of the world, thus
all DVD players are keyed to a specific
region code.
This device will only play
Region 1 DVDs or DVDs
manufactured to be played in all
regions (‘ALL’.) DVDs from
other regions cannot be played
on this DVD recorder.
ALL
1
9
MRV660_17_Eng40
9
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting to TV
English
General
The necessary cable connections must be
made before you can record or playback
TV programs using your DVD recorder.
Setting the TV to the correct video
in channel
1 Press STANDBY-ON 2 on the DVD
recorder to turn it on.
2 Turn on the TV and set it to the correct
Selecting a suitable connection to
your TV
When you install your DVD recorder for
the first time, select one of the following
options to connect the DVD recorder
and your TV.
● Option 1: Using Y Pb Pr jacks
Select this if your TV is equipped with
component video jacks. It provides the
best picture quality (see pages 11~12.)
● Option 2: Using S-Video (Y/C) jack
Select this if your TV is equipped with a
S-Video (SVHS) jack. It provides
excellent picture quality (see page 13.)
● Option 3: Using Video (CVBS) jack
Select this if your TV is equipped with a
Video (CVBS) jack. It provides good
picture quality (see page 14.)
● Option 4: Using Antenna In jack
Select this if your TV is equipped with an
Antenna In jack only (see page 15.)
video-in channel. You should see the blue
DVD background screen or the first
installation screen on the TV.
➜ Usually this channel is between the
lowest and highest channels and may be
called FRONT, A/V IN, VIDEO. See your
TV’s manual for more details.
➜ Or, you may go to channel 1 on your
TV, then press the Channel down button
repeatedly until you see the Video In
channel.
➜ Or, the TV remote control may have a
button or switch that chooses different
video modes.
➜ Or, set the TV to channel 3 or 4 if you
are using an RF modulator.
If the TV shows a blank screen or
distorted picture,
it may be due to the DVD recorder’s
video output setting does not match with
the video connection. You can reset the
system as below :
1 Disconnect the DVD recorder’s
~MAINS from the power supply.
2 Press and hold ∞ while you reconnect
it’s ~ MAINS to the power supply.
IMPORTANT!
When you complete the connections
and turn on the DVD recorder for
the first time, you must complete
the First Installation. This set up TV
channels, menu languages and other
features (see pages 24~25.)
10
MRV660_17_Eng40
10
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting to TV (cont’d)
English
Option 1: Using Y Pb Pr jacks
Antenna or
Satellite/Cable TV signal
1
2
4
3
5
The Component Video (Y Pb Pr) method
of transmitting pictures produces the
highest quality as the video signal is split
into its Y (brightness), Pb and Pr (blue
minus brightness, red minus brightness)
components. The signals are transmitted
via separate cables. The cables and the
associated jacks are mostly colored red,
green and blue.
Have the following cables ready:
1) Antenna cable
2) Component video cable (red/green/blue,
not supplied)
3) Audio cables (red/white)
1 Turn off your TV and remove the antenna
cable from your TV (or Satellite Receiver/
Cable Box.) Insert it to the ANTENNA
input jack at the back of the DVD
recorder.
2 Use the supplied antenna cable to
connect the DVD recorder’s TV output
jack to the antenna input jack at the back
of your TV set.
3 Use the component video cable to
connect the DVD recorder’s
COMPONENT VIDEO (OUT 1) jacks
to the corresponding component video
input jacks (or labeled as YUV or
Y Pb/Cb Pr/Cr) at the back of your TV set.
4 Use an audio cable (red/white) to
connect the DVD recorder’s
AUDIO L/R (OUT 1) jack to the audio
input jack at the back of your TV set (or
labeled as AV In or Audio In.)
5 Connect the power cable from the DVD
recorder’s ~ MAINS to the power supply.
6 Press STANDBY-ON 2 on the DVD
recorder to turn it on.
➜ The message 'IS THE TV ON?'
appears on the display panel.
7 Turn on the TV power. Select the correct
Video In channel at the TV (see page 10.)
➜ The first installation menu
{ Language and Country } will appear
on the TV.
8 Proceed to page 24 to continue the first
installation.
11
MRV660_17_Eng40
11
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting to TV (cont’d)
English
IMPORTANT!
– The progressive scan video quality
is only available through Y Pb Pr
connection and a progressive TV is
required. Turn on the progressive
scan feature after complete the first
installation (see page 24.)
– Before enabling the progressive
scan function, you must ensure that
your TV progressive scan function is
turned on (refer to your TV owner’s
manual.)
Helpful Hint:
– To switch between interlaced and
progressive scan output, press and hold ∞
while reconnect its ~ MAINS to the power
supply. The display panel will show
“Progressive Scan” if the progressive scan
function is enabled.
12
MRV660_17_Eng40
12
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting to TV (cont’d)
English
Option 2 : Using S-Video
(Y/C) jack
Antenna or
Satellite/Cable TV signal
1
2
4
3
5
This connecting cable, also known as the
SVHS cable, is used to transmit the
brightness signal (Y signal) and color
signal (C signal) separately. This mini DIN
jack is also called a Hosiden jack.
Have the following cables ready:
1) Antenna cable
2) S-Video (SVHS) cable (not supplied)
3) Audio cables (red/white)
1 Turn off your TV and remove the antenna
cable from your TV (or Satellite Receiver/
Cable Box.) Insert it to the ANTENNA
input jack at the back of the DVD
recorder.
2 Use the supplied antenna cable to
connect the DVD recorder’s TV input
jack to the antenna input jack at the back
of your TV set.
3 Use an S-Video (SVHS) cable to connect
4 Use an audio cable (red/white) to
connect the DVD recorder’s
AUDIO L/R (OUT 2) jack to the audio
input jack at the back of your TV set (or
labeled as AV In or Audio In.)
5 Connect the power cable from the DVD
recorder’s ~ MAINS to the power
supply.
6 Press STANDBY-ON 2 on the DVD
recorder to turn it on.
➜ The message 'IS THE TV ON?'
appears on the display panel.
7 Turn on the TV power. Select the correct
Video In channel at the TV (see page 10.)
➜ The first installation menu
{ Language and Country } will appear
on the TV.
8 Proceed to page 24 to continue the first
installation.
the DVD recorder’s S-VIDEO (Y/C)
(OUT 2) jack to the S-Video In jack at
the back of your TV set (or labeled as
S-Video In or SVHS.)
13
MRV660_17_Eng40
13
9/3/05, 11:46 AM
3139 246 XXXXX
Connecting to TV (cont’d)
English
Option 3 : Using Video
(CVBS) jack
Antenna or
Satellite/Cable TV signal
1
2
4
3
5
This cable, usually featuring yellow cinch
plugs, is used for transmitting the
Composite Video signal (FBAS, CVBS.) In
this method of transmission, the color
signal and the brightness signal are
transmitted on the same cable.
Have the following cables ready:
1) Antenna cable
2) AV cables (yellow/red/white)
1 Turn off your TV and remove the antenna
cable from your TV (or Satellite Receiver/
Cable Box.) Insert it to the ANTENNA
input jack at the back of the DVD
recorder.
2 Use the supplied antenna cable to
connect the DVD recorder’s TV output
jack to the antenna input jack at the back
of your TV set.
3 Use the supplied AV cables (yellow plug)
4 Use the supplied AV cables (red/white
plugs) to connect the DVD recorder’s
AUDIO L/R (OUT 2) jack to the audio
input jack at the back of your TV set (or
labeled as AV In or Audio In.)
5 Connect the power cable from the DVD
recorder’s ~ MAINS to the power
supply.
6 Press STANDBY-ON 2 on the DVD
recorder to turn it on.
➜ The message 'IS THE TV ON?'
appears on the display panel.
7 Turn on the TV power. Select the correct
Video In channel at the TV (see page 10.)
➜ The first installation menu
{ Language and Country } will appear
on the TV.
8 Proceed to page 24 to continue the first
installation.
to connect the DVD recorder’s VIDEO
(CVBS) (OUT 2) jack to the Video In
jack at the back of your TV set (or
labeled as Video In, AV In or Composite.)
14
MRV660_17_Eng40
14
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting to TV (cont’d)
Antenna or
Satellite/Cable TV signal
1
English
Option 4 : Using Antenna
jacks only
TV
2
3
Use this connection only if your TV set
has a single Antenna In jack and does
not have any audio/video jacks. For this
type of connection, you need to set the
channel of the TV set to follow that of
the DVD recorder.
Have the following cable ready:
1) Antenna cable
1 Turn off your TV and remove the
antenna cable from your TV (or Satellite
Receiver/Cable Box.) Insert it to the
ANTENNA input jack at the back of
the DVD recorder.
2 Use the supplied antenna cable to
connect the DVD recorder’s TV output
jack to the antenna input jack at the back
of your TV set.
3 Connect the power cable from the DVD
recorder’s ~ MAINS to the power
supply.
4 Press STANDBY-ON 2 on the DVD
recorder to turn it on.
➜ The message 'IS THE TV ON?'
appears on the display panel.
5 Turn on the TV power. Select the correct
Video In channel at the TV (see page 10.)
➜ To switch between channel 3 and 4,
hold down button {3} or {4} on the
remote control to select the respective
channel.
➜ The first installation menu
{ Language and Country } will appear
on the TV.
6 Proceed to page 24 to continue the first
installation.
Helpful Hints:
– If the {LANGUAGE AND COUNTRY}
menu does not appear, check the cable
connections.
– To toggle between channel 3 and channel
4, you can press § button at the DVD
recorder front panel while plug in the main
cord of the DVD recorder to the power
supply.
15
MRV660_17_Eng40
15
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting to Additional Devices
English
Using the input sockets
(IN-EXT 1 or IN-EXT2)
Connecting a Satellite Receiver/
Cable Box
1 If your Satellite Receiver/Cable Box has
only a single antenna output (RF OUT or
TO TV,) use the antenna cable to connect
it with the ANTENNA input jack at the
back of the DVD recorder.
You can connect a video cassette
recorder (VCR,) DVD player, decoder,
satellite receiver or cable box to the
input jacks at the back of the DVD
recorder (IN-EXT 1 or IN-EXT 2.)
The possible connection is depending on
the capabilities of the additional devices.
Switching between S-Video input and
Video (CVBS) input takes place
automatically. If both are used for
connecting to external devices, the signal
from S-Video socket has priority.
The COMPONENT VIDEO (IN-EXT1)
jacks are designed only for ‘interlaced’
signals. Progressive Scan input signals
cannot be processed by the DVD
recorder.
Satellite
Receiver/
Cable Box
2 For complete connection to your TV set,
see pages 11~15 for details.
● Alternatively, you can connect it to the
VIDEO (CVBS) (or S-VIDEO (Y/C))
and AUDIO L/R input jacks at the back
of the DVD recorder if your Satellite
Receiver/Cable Box has the same output
jacks.
➜ To watch/record the programs, press
TUNER on the remote control, then
press 3 4 to select ‘EXT1’ as the input
channel.
Satellite
Receiver/
Cable Box
INT IN
TO TV VIDEO AUDIO OUT
OUT
R
L
CH3 CH4
16
MRV660_17_Eng40
16
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting a VCR/DVD player
You will need this connection if you want
to record the video tapes or discs to a
DVD+R(W)s.
Option 1
1 Use a component video cable (red/green/
blue) to connect the DVD recorder’s
COMPONENT VIDEO (IN-EXT1)
input jacks to the corresponding
component video output jacks on the
VCR/DVD player.
1
Option 2
Use a S-video cable to connect the DVD
recorder’s S-VIDEO (Y/C) (IN-EXT2)
input jack to the corresponding S-VHS
output jack on the VCR/DVD player (as
shown on the below illustration.)
OR
Use a video (CVBS) cable to connect the
DVD recorder’s VIDEO (CVBS)
(IN-EXT2) input jack to the
corresponding video output jack on the
VCR/DVD player.
2 Use an audio cable (red/white) to
2 Use an audio cable (red/white) to
connect the DVD recorder’s AUDIO
L/R (IN-EXT1) input jacks to the audio
output jack on the VCR/DVD player.
VCR/DVD player
connect the DVD recorder’s AUDIO
L/R (IN-EXT2) input jacks to the audio
output jack on the VCR/DVD player.
VCR/DVD player
Y
Y
Pr
Pr
Pb
Pb
COMPONENT
VIDEO OUT
COMPONENT
VIDEO OUT
Before you start operating, press
TUNER on the remote control, then
press 3 4 to select ‘EXT1’ as the input
channel. For recording, see pages 39~40.
Before you start operating, press
TUNER on the remote control, then
press 3 4 to select ‘EXT 2’ as the input
channel. For recording, see pages 39~40.
Helpful Hints:
– Most prerecorded video cassettes and
DVDs are copy-protected. If you try to copy
them, the message 'COPY PRO' appears on
the display panel.
– Connect the DVD recorder directly to the TV
set. If there is a video recorder or an
additional device in between, the picture
quality may be poor because of the copy
protection system built into the DVD recorder.
17
MRV660_17_Eng40
17
9/3/05, 10:24 AM
3139 246 XXXXX
English
Connecting Additional Devices (cont’d)
Connecting Additional Devices (cont’d)
English
Connecting a camcorder to
the front jacks
S-VIDEO OUT
DV OUT
VIDEO OUT
AUDIO OUT
L
1
2
R
OR
You can use the front jacks to copy
camcorder recordings.
Option 1: Using DV IN jack
Use this connection if you have a Digital
Video or Digital 8 camcorder. The DV
jack will conforms to the i.LINK standard.
It provides the best picture quality.
● Use an i.LINK 4-pin cable to connect the
DVD recorder’s DV IN jack to the
appropriate DV output jack on the
camcorder.
Before you start operating, select ‘CAM 2’
as the input channel.
For recording, see pages 39~40.
Helpful Hints:
– The DV IN jack does not support
connection to a Personal Computer.
– The DV jack on this recorder can only
receive input signals, it cannot output signals.
Option 2: Using S-VIDEO In or
VIDEO In jack
Use S-VIDEO connection if you have a
Hi8 or S-VHS(C) camcorder. It provides
very good picture quality.
Alternatively, you can use VIDEO
connection if your camcorder has only a
single video output (Composite Video,
CVBS.) It provides good picture quality.
1 Use a S-video cable to connect the DVD
recorder’s S-VIDEO input jack to the
appropriate S-VHS output jack on the
camcorder.
OR
Use a video cable (yellow plug) to
connect the DVD recorder’s VIDEO
input jack to the appropriate video
output jack on the camcorder.
2 Use an audio cable (red/white) to
connect the DVD recorder’s
AUDIO L/R input jack to the audio
output jack on the camcorder.
Before you start operating, select ‘CAM1’
as the input channel.
For recording, see pages 39~40.
18
MRV660_17_Eng40
18
9/3/05, 10:24 AM
3139 246 XXXXX
Connecting to Additional Devices (cont’d)
STEREO
Using digital audio output
jacks
English
Using analog audio output
jacks
AUDIO IN
COAXIAL
DIGITAL IN
L
R
You can connect the DVD recorder to a
two channel stereo system or receiver in
order to enjoy the stereo sound system.
● Use an audio cable to connect
AUDIO L/R (OUT 2) (red/white) jacks
to one of the following devices with the
same input jacks :
– a stereo system (for example, mini system
or TV)
– a receiver with Dolby Surround Pro Logic
– a receiver with two channel analog stereo
Before you start operating, set the Analog
Output accordingly (see page 53.)
Choose a sound mode setting that is
most compatible with the connected
devices.
CAUTION!
Do not use the ‘Phono’ input on an
amplifier to connect to the DVD
recorder. This input jack is designed only
for record players without preamplifiers.
The DVD recorder or the amplifier may
be damaged as a result.
You can connect the DVD recorder to an
A/V receiver or amplifier in order to
enjoy the home theater system’s
surround sound capabilities.
● Use a coaxial cable to connect
COAXIAL jack to one of the following
devices with the same input jack:
– an A/V receiver or an A/V amplifier with a
digital multi-channel sound decoder
– a receiver with two channel digital stereo
(PCM)
Before you start operating, set the Digital
Output accordingly (see page 57.) If the
Digital Output setting does not match
your stereo’s capabilities, the stereo may
produce a strong, distorted sound or no
sound at all.
Helpful Hints:
– Digital multi-channel sound offers the best
possible sound quality. You will need a multichannel A/V receiver or amplifier that
supports at least one of the audio formats of
the DVD recorder (MPEG2, Dolby Digital.)
See your receiver’s manual for details.
– Playback in six-channel digital surround
sound is only possible if the receiver has a
digital multi-channel sound decoder.
19
MRV660_17_Eng40
19
9/3/05, 10:24 AM
3139 246 XXXXX
Remote Control
English
3 Alphanumeric keypad
1
2
– Enter numbers or letters in appropriate
entry fields.
– Select a chapter/track number to play.
– Select a TV channel while in internal
tuner mode.
4 TIMER
3
4
5
6
7
8
9
0
!
@
#
– Access or exit the timer recording menu.
5∞ §
– Skip to previous or next Chapter/Track.
– Holding down the button for fast reverse
or fast forward function.
6 RECORD 0
– Start recording the current TV channel or
the current video input source.
7 PLAY 2
– Play a disc.
8 PAUSE ;
– Pause the playback or recording.
– Press repeatedly to advance a paused
picture one frame at a time.
9 OK
– Store or confirm an entry.
0 1 2: Cursor buttons for moving to the
left or right.
34: Cursor buttons for moving up/down
or change TV channel at the recorder in
Tuner mode.
! SYSTEM-MENU
– Access or exit the system menu.
@ RETURN
– Return to the previous menu on a video
CD (VCD) or some DVDs.
# REC MODE
1 STANDBY-ON 2
– Turn on or off the DVD recorder.
2 TUNER
– Switch to TUNER mode.
– Select a recording speed : M2, M2x, M3,
M4, M6 or M8. This determines the
quality of the recording and the amount/
length of time you can record on a
DVD+R(W.)
20
MRV660_17_Eng40
20
9/3/05, 10:24 AM
3139 246 XXXXX
Remote Control (cont’d)
English
$ TV/DVD
– Switch between the DVD recorder and
the antenna signal. This function operates
when the DVD recorder is connected to
the TV with only an antenna cable.
$
% T/C (Title/Chapter)
– Select a 'T'(title)/'C'(chapter) directly on
the menu bar.
^ STOP 9
– Stop playback/recording.
– Holding down the button will open and
close the disc tray.
%
& BROWSER
– Display the on-screen Media Browser
that allows you to browse through and
manage the contents stored in the
current disc.
^
* DISC-MENU
&
– Access to DVD’s disc menu or Index
Picture screen of a DVD+R(W.)
( SELECT
– Select a function.
– Toggle between upper and lower case
characters while using the alphanumeric
keypad.
) EDIT
– Access or exit the edit menu.
*
(
)
¡
¡ Color coded buttons
– A number of functions are available via
the color coded button. These functions
are displayed in the bottom of the onscreen menu wherever applicable.
21
MRV660_17_Eng40
21
9/3/05, 10:24 AM
3139 246 XXXXX
Remote Control (cont’d)
English
Inserting Batteries
Using the remote control to
operate the system
1 Aim the remote control
3
directly at the remote
sensor (iR) on the front
panel.
1
2
2 Select the source you
1 Open the battery compartment.
2 Insert two batteries type R03 or AAA,
following the indications (+-) inside
the compartment.
3 Close the cover.
Caution!
– Remove batteries if they are
exhausted or if the remote is not to
be used for a long time.
– Do not use old and new or
different types of batteries in
combination.
– Batteries contain chemical
substances, so they should be
disposed of properly.
wish to control by
pressing one of the
source select buttons on
the remote control (for
example TV, TUNER.)
BROWSER
REC MODE
3 Then select the desired
function (for example
S, T.)
Using the alphanumeric keypad to
enter the characters
ABC
DEF
JKL
TUV
– Press a number button as often as the
required character or the number
appears.
– To enter language-dependent characters,
press ∞ or § on the corresponding
character.
– To enter a space, press button {1.}
22
MRV660_17_Eng40
22
9/3/05, 10:24 AM
3139 246 XXXXX
1
2
3
4
56 7
0!
@
89
#
1 STANDBY-ON 2
0 S-VIDEO
– Turn on or off the DVD recorder.
2 Disc tray
– S-video input for SVHS/Hi8 camcorders
or SVHS/Hi8 video recorders (input
channel number 'CAM 1'.)
3 OPEN/CLOSE ç
! VIDEO
– Open or close the disc tray.
4 Display panel
– Show information about the current
status of the DVD recorder.
– Video input for camcorders or video
recorders (input channel number
'CAM 1'.)
@ L/R AUDIO
– Play a disc.
– Audio input for camcorders or video
recorders (input channel number
'CAM 1'.)
6 RECORD 0
# DV IN
5 PLAY 2
– Start recording the current TV channel or
the current video input source.
7 PREV/CH- ∞
– Input for digital camcorders or other
suitable devices using this connector
(input channel number 'CAM 2'.)
– Go to the previous chapter track, do a
reverse search, or go to the previous
channel.
8 STOP 9
– Stop playback/recording.
9 NEXT/CH+ §
– Go to the next chapter track, do a
forward search, or go to the next
channel.
23
MRV660_17_Eng40
23
9/3/05, 10:25 AM
3139 246 XXXXX
English
Front Panel
Installing the DVD Recorder
6 Press 4 to select { Done } and press OK
English
First Installation
The First Installation menu will appear
the very first time you turn on the DVD
recorder. These settings will help you set
up the basic DVD recorder features
easily, including TV channels and language
options.
IMPORTANT!
– You have to turn on your TV and
select the correct Video In channel
to see the First Installation menu.
– You have to complete the First
Installation before you start
operating the DVD recorder.
to continue.
➜ The { TV Shape } menu appears on
the TV.
TV SHAPE
Select your TV shape
TV Shape
Done
4:3 Panscan
4:3 Letterbox
16:9
7 Select { TV Shape } and press 2.
1 Press STANDBY-ON 2 to turn on the
16:9
DVD recorder.
➜ The { Language and Country }
menu appears on the TV.
4:3 Letterbox
LANGUAGE AND COUNTRY
Select Language and Country
Language
Country
Menu
English
Spanish
French
4:3 Panscan
Done
2 Select { Language } and press 2.
3 Press 3 4 to select the desired language
for the on-screen display (OSD) menu,
then press 1 to confirm.
4 Press 4 to select { Country } and press
2 to enter the selection field.
5 Press 3 4 to select the country of your
8 Press 3 4 to select the desired TV
screen format, then press 1 to confirm.
➜ The format you selected will only be
used if you insert a DVD that contains
the same format.
9 Press 4 to select { Done } and press OK
to continue.
➜ The { Channel Search } menu
appears on the TV.
residence, then press 1 to confirm.
TIPS:
Press OK to exit the initial installation menu.
Press RETURN to go back to previous menu item.
24
MRV660_17_Eng40
24
9/3/05, 10:25 AM
3139 246 XXXXX
CHANNEL SEARCH
Automatic channel search will find and
store all channels. Make sure to connect
the antenna.
Search channels
Start
Skip Search
Note: Make sure you have successfully
made all the required connections to the
DVD recorder, the TV and Satellite
Receiver/Cable Box (if any) and switched
them on. The automatic channel search
will detect the signals and save all the
available program channels.
Helpful Hints:
– If the DVD recorder cannot find any TV
stations, select program number {1} on the
TV set or check the cable connection from
the antenna jack to the DVD recorder and
TV set.
– If the sound or picture is distorted on any
of the stored TV channels, see pages 26~27
“TV channel programming” for manual TV
search.
0 Press OK again to start automatic TV
channel search.
! When TV channel search is complete,
press OK to continue.
➜ The { Time and Date } menu appears
on the TV.
TIME AND DATE
Please check the Date and if incorrect, navigate
right to correct the Date.
Time
09:00 PM
Date
06.30.2004
Done
OK
" Check if the information on the menu is
correct.
➜ If required changes, follow steps 4~8
of “Setting the time and date” on page 28.
§ Press 4 to select { Done } and press OK
to save the changes.
The DVD recorder is ready for use!
TIPS:
Press OK to exit the initial installation menu.
Press RETURN to go back to previous menu item.
25
MRV660_17_Eng40
25
9/3/05, 10:25 AM
3139 246 XXXXX
English
Installing the DVD Recorder (cont’d)
Installing the DVD Recorder (cont’d)
English
TV channel programming
Although the DVD recorder selects
available TV channels during first
installation, you may want to repeat the
process later if more channels become
available in your area or if you are
reinstalling the DVD recorder.
Setting favorite TV channels
You can set your favorite TV channels for
quick access by using the channel up/
down button on the remote control.
1 Press SYSTEM-MENU.
➜ The system menu appears on the TV.
2 Press 4 repeatedly to select { Set-up .}
Automatic TV channel search
This will erase and replace all previously
stored TV channels.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 Press 4 repeatedly to select { Set-up .}
3 Press 2 repeatedly to select { Analog Ch. }
DVD-VIDEO-TITLE 04|CO1
Ch.}
4 Press 4 repeatedly to select { Add/del.
Ch. } and press 2 to confirm.
➜ A list of TV channel programs appears.
Add/del Ch
1 C001
2 C002 NBC
3 C003
4 C004
5 C005
6 C006 MTV
7 C007
STOP
Analog Ch. Video output Audio output
Set-up
Auto channel
Add/del. Ch.
VCR Plus+ Ch.
Connection
Preset
4 Press 4 to select { Auto channel } and
press 2 to confirm.
➜ The automatic TV channel search
starts. This allows the DVD recorder to
save all available TV channels.
➜ This process may take several minutes.
Once complete, the total number of
channels found appears on the TV.
TIPS:
3 Press 2 repeatedly to select { Analog
5 Press 3 4 to select the TV channel, then
press OK to choose delete from or add
to the list.
➜ The ‘add’ channels are ‘marked,’ you
can access these channels by pressing
3 4 on the remote control.
➜ The ‘delete’ channels are ‘unmarked,’
you can only access these channels by
pressing the corresponding number
button on the remote control.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
26
MRV660_17_Eng40
26
9/3/05, 10:25 AM
3139 246 XXXXX
Installing the DVD Recorder (cont’d)
English
Selecting the channel input signal
The DVD recorder will detect whether
you connected an Antenna or Cable TV
signal. If you are not receiving the
correct channels, you can use this
function to select the type of connection
you are using and allow the DVD
recorder to reset the channels.
1 Press SYSTEM-MENU.
➜ The system menu appears on the TV.
2 Press 4 repeatedly to select { Set-up .}
3 Press 2 repeatedly to select { Analog
Ch.}
4 Press 4 repeatedly to select
{ Connection } and press 2 to confirm.
5 Press 3 4 to select the connection the
TV is using.
➜ { Auto } : Select this to enable the
DVD recorder to detect the input signal
automatically.
➜ { Cable } : Select this if you have
connected a cable signal.
➜ { Antenna } : Select this if you have
connected an antenna signal.
6 Press OK to confirm.
➜ The TV channel search starts.
TIPS:
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
27
MRV660_17_Eng40
27
9/3/05, 10:25 AM
3139 246 XXXXX
Installing the DVD Recorder (cont’d)
English
Setting the time and date
Manual time/date settings
If the DVD recorder has not set the time
and date correctly, set the clock manually
by following the steps below. Manual
clock setting overrides automatic clock
setting.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 Press 4 repeatedly to select { Set-up .}
3 Press 2 repeatedly to select
{ Time-date .}
1 Select { Smart Clock } and press 2 to
confirm.
2 Press 3 4 to select a PBS channel for
transferring the time/date information,
then press 1 to confirm.
➜ If you do not know your PBS channel
number, select { Auto } to allow the
DVD recorder to detect the channel
automatically.
3 Press 4 to select { Time Zone } and
DVD-VIDEO-TITLE 04|CO1
STOP
Time-date Analog Ch. Video output Audio output
Set-up
Smart Clock
Time
Date
Time Zone
DST
4 Press 4 to select { Time } and press 2
to enter the time field.
➜ { 00 : 00 AM/PM } (hours : minutes.)
5 Press 3 4 to change the first digit and
press 2 to go to the next digit field.
6 Repeat step 5 until the time is entered
correctly, then press OK to confirm.
7 Press 4 to select { Date } and press 2
to enter the date field.
➜ { 00-00-0000 } (month : day : year.)
8 Repeat step 5 until the date is entered
correctly, then press OK to confirm.
TIPS:
Automatic time/date settings
The DVD recorder can set the time and
date automatically by referring to a PBS
station, using the information transmitted
by the selected PBS channel.
press 2 to enter its options.
4 Press 3 4 to choose your time zone and
press 1 to confirm.
➜ Select { Auto } if you want the DVD
recorder to detect the time zone
automatically.
➜ If the PBS channel broadcasts from a
different time zone than the one in which
you live, be sure to select your time zone.
5 Press 4 to select { DST } (Daylight
Saving Time) and press 2 to enter its
options.
6 Press 3 4 to select an option and press
1 to confirm.
➜ The factory default setting of Daylight
Saving Time is on.
➜ Select { Auto } if you want the DVD
recorder to set according to the PBS
station’s daylight saving time schedule.
Helpful Hint:
– If you store a TV channel that transmits
PBS on program channel ‘P01,’ the date and
time will automatically be transmitted and
constantly updated when in standby.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
28
MRV660_17_Eng40
28
9/3/05, 10:25 AM
3139 246 XXXXX
Setting the language
You can select the language for subtitles
and audio for DVD playback. For some
DVDs, the subtitle/audio language can only
be changed via the DVD disc menu. If the
selected language is not available on the
disc, the disc’s default setting language will
be used instead.
Helpful Hint:
– For bilingual TV programs, you can switch
between stereo (original) and additional
language (SAP) for recording. See page 38
“Recording - Recording language.”
The menu language (on-screen display)
for the system will remain as you set it.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 Press 4 repeatedly to select { Set-up .}
3 Press 2 repeatedly to select
{ Language .}
DVD-VIDEO-TITLE 04|CO1
STOP
Language
Set-up
Menu
Audio
Subtitle
Country
4 Press 3 4 to select one of the options
below at a time, then press 2.
– { Menu }: language of the OSD menu
– { Audio }: playback language
– { Subtitle }: subtitle language
– { Country }: location
5 Press 3 4 to select a desired language
and press 1 to confirm.
6 Repeat steps 4~5 for other settings.
TIPS:
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
29
MRV660_17_Eng40
29
9/3/05, 10:25 AM
3139 246 XXXXX
English
Installing the DVD Recorder (cont’d)
Playback
English
Playable discs
Using this DVD Recorder, you can play
and record on the following discs:
Recording and Playback
DVD+RW (DVD ‘plus’
Rewritable;) can be recorded on
over and over.
DVD+R (DVD ‘plus’ Recordable;)
can be recorded only once.
Playback only:
DVD Video (Digital Versatile
Disc)
IMPORTANT!
– If the inhibit icon (error) appears
on the TV screen when a button is
pressed, it means the function is not
available on the current disc or at
the current time.
– DVD discs and players are
designed with regional restrictions.
Before playing a disc, make sure the
disc is for the same zone as your
player.
– Do not push on the disc tray or
put any objects other than discs on
the disc tray. It may cause the disc
player to malfunction.
DVD-R (DVD ‘minus’Recordable);
can only be played back when the
recording was made in 'video mode'
and the recording was finalized.
Inserting a disc
1 Press STANDBY-ON 2 to turn on the
DVD recorder.
DVD-RW (DVD ’minus’
2 Press OPEN CLOSE / on the front of
Rewritable); can only be played
back when the recording was made
in 'video mode' and the recording
was finalized.
the DVD recorder.
➜ The disc tray opens.
Digital Audio)
● You can also hold down the STOP 9
button on the remote control to open
and close the disc tray.
MP3-CD
3 Carefully place the disc into the tray with
Audio CD (Compact Disc
the label facing up, then press
OPEN CLOSE /.
➜ Make sure the disc label is facing up.
For double-sided discs, load the side
which you want to play facing up.
Video CD
(Formats 1.0, 1.1, 2.0)
Super Video CD
4 Turn on the TV power. Select the correct
CD-R (CD-Recordable) Audio/
MP3 contents
Video In channel at the TV.
Recordable
CD-RW (CD-Rewritable) Audio/
MP3 contents
TIPS:
ReWritable
5 Playback will start automatically or a
dialog will appear on the TV (see next
page.)
Some discs can not be played on this DVD recorder due to the configuration and
characteristics of the disc, or due to the condition of recording and authoring software.
30
MRV660_17_Eng40
30
9/3/05, 10:25 AM
3139 246 XXXXX
Starting disc playback
● If a dialog appears on the TV showing :
{ Do you want to access the disc
content? }
➜ Select { Yes } to show the disc content
menu (see page 49’ “Browsing the discs”.)
➜ Select { No } to switch to the last
active mode.
➜ If you want to remove this dialog for
the next playback, you have to enable the
{ Auto play } function (see page 54.)
● If the pin code entry dialog appears on
the TV, this means that the child lock/
parental control was activated for the
inserted disc (see pages 58~60.)
➜ Use the alphanumeric keypad 0-9 on
the remote control to enter your pin
code (password.)
● For more playback features, see pages
33~36 “Additional Playback Features.”
Playing a DVD video disc
Normally the DVD disc is formatted with
a disc menu. You may have to make your
selection (e.g., subtitle or audio language)
within the disc menu.
1 Insert a DVD.
To access the disc menu
● Press DISC-MENU on the remote
control. Use alphanumeric keypad
0-9 to input your selection or use 3 4
to select a play option and press OK to
confirm.
Playing a (Super) Video CDs
(Super) Video CDs may feature 'PBC'
(Play Back Control). This allows you to
play the video CDs interactively, following
the menu on the display.
1 Insert a (Super) Video CD.
2
If the ‘PBC’ is on, the disc index
menu will appear on the TV
Use alphanumeric keypad 0-9 to input
your selection or use 3 4 to select a play
option and press OK to confirm.
● Press RETURN on the remote control
will return to the previous menu.
3 To stop playback, press STOP 9.
Helpful Hint:
– 'PBC' mode is turned off by default. If you
want to view the disc index menu, you have
to turn on the 'PBC' mode (see page 56.)
Playing an audio CD
1 Insert an audio CD.
➜ Playback may start automatically. If not,
press PLAY 2 to start playback.
2 To stop playback, press STOP 9.
➜ The track number and total play time
appear on the display panel.
Helpful Hint:
– If the TV is turned on, the Audio CD display
will appear on the screen. During playback,
the number of the current track will be
shown on the TV screen and display panel.
To select the previous or next
chapter/title marker
● During playback, press T/C on the
remote to select ‘Title’ or ‘Chapter,’ then
press ∞ / §.
2 To stop playback, press STOP 9.
TIPS:
Some discs can not be played on this DVD recorder due to the configuration and
characteristics of the disc, or due to the condition of recording and authoring software.
31
MRV660_17_Eng40
31
9/3/05, 10:25 AM
3139 246 XXXXX
English
Playback (cont’d)
Playback (cont’d)
English
Playing a DVD+R(W) disc
Playing a picture disc (slide show)
You can display JPEG pictures in the
selected roll automatically one after the
other at adjustable intervals.
1 Insert a DVD+RW or DVD+R disc.
2
If the disc content menu appears on
the TV
Use 1 2 3 4 to navigate within the
menu and select a title to play, then press
PLAY 2.
3 To stop playback, press STOP 9.
Helpful Hint:
– If the message 'EMPTY DISC' appears
on the display panel, this means that there
are no recordings on this disc.
Playing an MP3 CD
1 Insert an MP3 CD.
2
If the disc content menu appears on
the TV
Use 1 2 3 4 to navigate within the
menu and select the album and track to
play, then press PLAY 2.
3 During playback, you can press ∞ / § to
select the next/previous track.
4 To stop playback, press STOP 9.
➜ The number of albums or tracks
appears on the display.
Helpful Hints:
– Only the first session of a multi-session CD
will play back.
– Further information on the album, track
and artist will also be displayed on the TV if
included in the ID tag.
TIPS:
1 Insert a JPEG picture disc (CD, DVD+RW,
DVD+R.)
2
If the picture overview appears on
the TV
Use 1 2 3 4 to navigate within the
menu and select a photo roll folder to
play.
3 Press PLAY 2 to start the slide show
playback.
OR
● Press OK to show 12 thumbnail pictures.
You can use 1 2 3 4 to select a picture
file, then press PLAY 2 to begin playback.
4 During playback, you can select to zoom,
flip or rotate the picture.
Press EDIT and followed by the
matching color coded button on the
remote control.
5 To stop playback, press STOP 9.
➜ The picture overview appears.
Playable JPEG picture disc
This DVD recorder can read JPEG
pictures stored on a CD-ROM, Picture
CD, or DVD.
File format:
– The file extension has to be '*.JPG' and not
'*.JPEG.'
– It can only display DCF-standard still pictures
or JPEG pictures e.g. TIFF. It cannot play back
moving pictures, Motion JPEG, progressive JPEG
and other formats, or pictures in formats other
than JPEG, or pictures associated with sound
e.g. AVI-files.
– It may require longer time for the DVD
recorder to display the disc content on the TV
due to the large number of songs/pictures
compiled into one disc.
Some discs can not be played on this DVD recorder due to the configuration and
characteristics of the disc, or due to the condition of recording and authoring software.
32
MRV660_17_Eng40
32
9/3/05, 10:25 AM
3139 246 XXXXX
Additional Playback Features
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 At { Toolbar ,} press 2 to select
STOP
Options
2 Press 3 4 to change the digit and press
2 to go to the next digit field.
Toolbar
● You may also use the alphanumeric
keypad 0-9 to enter the correct digit
directly.
Subtitle
Audio
Angle
Zoom
Time search
[PLAY] [EDIT] [OK] = PLAY
Audio
1 Press 4 to select { Time search } and
press 2 to enter the time field.
➜ The time shows the elapsed playing
time of the current disc (hours : minutes.)
{ Options .}
DVD-VIDEO-TITLE 04|CO1
Time search
This option allows you to skip to a
specific point in the current disc.
English
Using Toolbar options
Subtiltle
Repeat
Repeat A-B
3 Press OK to confirm.
➜ Playback skips to the selected time.
3 Press 3 4 to select the setting you want
to adjust.
➜ If the selection in the menu is grayed
out, that means the feature is not
available or not possible to change at the
current state.
➜ Instructions for adjusting the settings
are provided in the following pages.
4 To exit, press SYSTEM-MENU.
Changing subtitle language
This operation works only on DVDs with
multiple subtitle languages, you can
change the language you want while
playing DVD.
This function can also be accessed via the
Green button on the remote control.
1 Press 4 to select { Subtitle } and press
2 to enter its options.
2 Press 4 repeatedly until the language you
want is selected, then press 1 to confirm.
➜ The languages may be numbered or
abbreviated, such as “En” for English.
➜ If the language selected is not available
on the disc, the disc’s default setting
language will be used instead.
Helpful Hint:
– Some DVDs discs allow subtitle language
changes only via the DVD disc menu. To
access the disc menu, press DISC-MENU
TIPS:
The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
33
MRV660_17_Eng40
33
9/3/05, 10:25 AM
3139 246 XXXXX
Additional Playback Features (cont’d)
English
Changing audio soundtrack
language
This operation works only on DVDs with
multiple soundtrack language or VCDs
with multiple audio channel.
This function can also be accessed via the
Red button on the remote control.
1 Press 4 to select { Audio } and press 2
to enter its options.
2 For DVD, press 4 repeatedly until the
audio language you want is selected, then
press 1 to confirm.
➜ The languages may be numbered or
abbreviated, such as “En” for English.
➜ If the language selected is not available
on the disc, the disc’s default setting
language will be used instead.
Helpful Hint:
– Some DVDs allow soundtrack language
changes only via the DVD disc menu. To
access the Disc Menu, press DISC-MENU.
In TV programming mode:
● It can be used for changing the audio
language setting temporarily - { SAP } or
{ Off }, if the additional language is
available in the TV programs.
Once the DVD recorder is turned off and
on again, it will return to the default
settings (see page 38.)
Switching camera angles
This option is only available with DVDs
that contain sequences recorded from
different camera angles. This allows you
to view the picture from different angles.
1 Press 4 to select { Angle } and press 2
to enter its options.
➜ The camera angles available for
selection appears.
2 Press 3 4 to select the camera angle you
want to switch to, then press 1 to
confirm.
Zooming in
This option allows you to enlarge the
picture on the screen and to pan through
the enlarged picture.
1 Press 4 to select { Zoom } and press 2
to enter zoom in mode.
➜ The zoom status bar appears and
displays the zoom factor.
Zoom 2
[CURSOR][OK] = Zoom In, [RETURN]=Zoom Out, [ZOOM] = Exit
End
Zoom Out
Zoom In
2 Press OK on the remote to zoom in or
RETURN to zoom out.
3 Use 1 2 3 4 to pan through the zoomed
picture.
4 To exit zoom mode, press
SYSTEM-MENU.
TIPS:
The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
34
MRV660_17_Eng40
34
9/3/05, 10:25 AM
3139 246 XXXXX
Changing to another title/
chapter/track
Searching forwards/
backwards
When a disc contains more than one
track, title or chapter, you can change to a
different track, title or chapter as follows.
You can fast forward or fast reverse a
disc at four, eight or thirty two times
normal playback speed.
During playback,
● Press § to go to the next title/chapter/
track.
● Press ∞ to return to the start of the
current title/chapter/track. Pressing ∞
twice can return to the start of the
previous title/chapter/track.
OR
● Use the alphanumeric keypad 0-9 to
input the title/chapter/track number.
OR
● Press T/C on the remote control to
select “T” (title) or “C” (chapter.)
OR
● Press BROWSER on the remote
control to display the titles list. Then
press 3 4 to select a title and press OK
to confirm.
English
Additional Playback Features (cont’d)
1 During playback, hold down ∞ (reverse)
or § (forward) to switch to the search
function.
➜ The Search status bar appears. It
displays the Search speed (-32-, -8x, -4x,
4x, 8x or 32x.)
➜ The sound will be mute.
2 Press the ∞ (reverse) or § (forward)
button to cycle through the search
speeds.
3 To resume normal playback, press
PLAY 2.
Pausing playback / slow
motion play
1 During playback, press PAUSE ; to
pause playback and display a still picture.
2 Hold down ∞ (reverse) or § (forward)
to start reverse or forward slow motion
playback.
➜ Pressing ∞ or § repeatedly to switch
between different slow motion speed
(-1/2, -1/4, -1/8, 1/2, 1/4 or 1/8.)
3 To resume normal playback, press
PLAY 2.
TIPS:
The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
35
MRV660_17_Eng40
35
9/3/05, 10:25 AM
3139 246 XXXXX
Additional Playback Features (cont’d)
English
Selecting various play mode
Repeat play
You can select a Chapter, Track, Title or
the entire disc for repeat playback.
1 Press Yellow button { REPEAT }
repeatedly on the remote control to
select one of the repeat options.
➜ Repeat chapter (DVD, DVD+R[W]
only)
➜ Repeat track/title
➜ Repeat album/playlist (if applicable)
➜ Repeat entire disc (video CD, audio
CD, DVD+R[W] only)
➜ Repeat off
2 To cancel repeat playback, select Repeat
off or press STOP 9.
Shuffle play
Select shuffle play mode to allow the
DVD recorder to randomly select and
play tracks on the disc (MP3 and audio
CDs only.)
1 Press Green button { SHUFFLE } on the
remote control.
➜ It will start playback of all the chapters
within the title in a random order.
2 To cancel shuffle playback, press Green
button again.
Scan disc
This function allows you to preview the
first 10 seconds of each track (CD, VCD
DVD+RW only) on the disc.
1 During playback, press Red button
Repeating a specific segment (A-B)
You can repeat the playback of a specific
segment within a title/chapter/track. To
do this, you must mark the start and end
of the segment you want.
1 During playback, press Blue button
{ REPEAT A-B } on the remote control.
➜ This indicates that the start point has
been marked.
{ SCAN } on the remote control.
➜ The DVD recorder skips to the next
track after 10 seconds of playback.
2 To exit Scan disc mode, press Red button
again.
➜ Normal playback resumes at the
current track.
2 Press Blue button (REPEAT A-B) on the
remote control again to mark the end of
the segment.
➜ A visual marker is placed on the
program bar.
➜ Playback skips to the start of the
marked segment.
3 To cancel repeat playback, press Blue
button again.
TIPS:
The operating features described here might not be possible for certain discs.
Always refer to the instructions supplied with the discs.
36
MRV660_17_Eng40
36
9/3/05, 10:25 AM
3139 246 XXXXX
Discs for recording
Two different formats of DVD recordable
discs can be used with this DVD
recorder:
DVD+RW (DVD ‘plus’ Rewritable)
– Discs are re-writable can be used for
multiple recordings once existing data is
erased.
– To prevent accidental loss of
recordings, when you starting recording,
hold down the RECORD button until
‘SAFE RECORD’ message appears.
IMPORTANT!
Unrecordable pictures
Television programs, films, video tapes,
discs, and other materials may be
copyrighted and therefore they cannot be
recorded on this recorder.
Recording settings
Before recording, you may have to set up
the recording mode or select the settings
that best suit your needs and
requirements.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on TV.
2 Press 4 to select { Preferences .}
3 Press 2 to select { Recording .}
DVD+R (DVD ‘plus’ Recordable)
– Discs can only be used for a single
recording. Each new recording is always
added at the end of all previous
recordings as existing recordings cannot
be overwritten.
– Editing can be made on DVD+R discs
as long as they have not been finalized. It
is also possible to create additional
chapter markings.
– You can also delete unwanted
recordings. However, the disc space
occupied by the deleted recordings
cannot be recovered for further
recording.
– To play a DVD+R disc on other DVD
player, it must be finalized (see page 45
“Playing your recording on other DVD
player (DVD+R)”.) After this is done, no
more data can be added to the disc.
TIPS:
DVD-VIDEO-TITLE 04|CO1
STOP
Recording
Preferences
Record mode
M2
Language
Chapters
Filter
[PLAY] [EDIT] [OK] = PLAY
4 Press 3 4 to select the setting for
recording.
➜ Instructions for adjusting the settings
are provided in the following pages.
5 To exit, press SYSTEM-MENU.
To play1 atoDVD+R
DVD
players,
seePress
“Finalizing
disc (DVD+R)”.
Press
go backon
toother
previous
menu
item.
SYSTEM-MENU
to exit the menu.
37
MRV660_17_Eng40
37
9/3/05, 10:25 AM
3139 246 XXXXX
English
Recording
Recording (cont’d)
English
Recording mode
The recording mode defines the picture
quality of recordings and the maximum
recording time for a disc. During
playback, the correct picture quality will
automatically be selected.
This function can also be accessed via the
REC MODE button on the remote
control.
1 Press 4 to select { Record mode } and
press 2 to enter its options.
2 Press 3 4 to select one of the following
M2
M2x
M3
M4
M6
M8
When you play the recording, you can
play only in the audio you recorded.
1 Press 4 to select { Language } and press
2 to enter its options.
2 Press 2 to select one of the options.
record modes.
Record
Mode
Recording language
Some TV programs broadcast additional
audio language (SAP - second audio
program.) Usually, second audio means
the program has a second language
available. For example, if a program is
available in English and Spanish, with being
the SAP option.
Picture Quality
Maximum Recording
Time per Disc
DVD quality-Standard Play (SP)
DVD quality-Standard Play Plus (SP+)
S-VHS quality-Long Play (LP)
2 hours
2.5 hours
3 hours
VHS quality-Extended Play (EP)
VHS quality-Super Long Play (SLP)
VHS quality-Super Extended Play (SEP)
4 hours
6 hours
8 hours
3 Press 1 to confirm.
➜ { SAP } : Select second language
(SAP) for recording. This setting is only
available if the TV program is available in
stereo or SAP.
➜ { Off } : Select stereo for recording.
3 Press 1 to confirm.
Inserting chapter markers
You can insert a chapter markers within a
title during recording. This lets you
access specific points on the recorded
disc as you would choose a chapter on a
DVD.
1 Press 4 to select { Chapters } and press
2 to enter its options.
2 Press 3 4 to select one of the options.
➜ { Off } : Disable this feature.
➜ { Standard } : A chapter marker will
be automatically inserted during
recording, the interval will depend on the
recording mode selected.
➜ { Smart } : Automatic chapter marker
generation.
3 Press 1 to confirm.
TIPS:
To play a DVD+R
other
DVD default
players,setting.
see “Finalizing disc (DVD+R)”.
Underlined
optionon
is the
factory
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
38
MRV660_17_Eng40
38
9/3/05, 10:25 AM
3139 246 XXXXX
Filter mode
Manual recording
For long play or extended play recording,
you can select a suitable filter mode to
optimize the video recording. The setting
does not influence high quality or
standard play recording mode.
Use the 'Manual recording' function to
start recording immediately (e.g., to
record a TV show already in progress.)
1 Press 4 to select { Filter } and press 2
to enter its options.
2 Press 2 to select one of the options.
➜ { Standard } : Recording quality is as
the recording mode selected.
➜ { Sport } : Improve recording of
images that move quickly. Optimize the
picture quality in record mode M3~M8.
English
Recording (cont’d)
1 Turn on the TV power. Select the correct
Video In channel at the TV.
2 Insert a DVD+R(W).
➜ The contents of this disc is checked.
➜ If a DVD+RW was inserted that
already contains recordings, press 3 4
to select the location where the
recording should be started.
3 Press TUNER on the remote control to
see the TV programs, then press 3 4 to
select the program number you wish to
record.
3 Press 1 to confirm.
● To record from external device, press
button {0} on the remote control and
followed by 4 to select the correct input
channel that matches the socket to which
you connected to the DVD recorder.
➜ { CAM 2 } : DV IN socket at the front
➜ { CAM 1 } : S-VIDEO or VIDEO with
AUDIO L/R sockets at the front
➜ { EXT 2 } : IN-EXT2, S-VIDEO (Y/C)
or VIDEO (CVBS) sockets at the back
➜ { EXT 1 } : IN-EXT1, COMPONENT
VIDEO sockets at the back
4 Press RECORD 0 to start recording.
● For DVD+RW disc, to prevent accidental
loss of recordings, hold down the
RECORD 0 until the message ‘SAFE
RECORD’ appears on the display panel.
TIPS:
To play a DVD+R
other
DVD default
players,setting.
see “Finalizing disc (DVD+R)”.
Underlined
optionon
is the
factory
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
39
MRV660_17_Eng40
39
9/3/05, 10:25 AM
3139 246 XXXXX
Recording (cont’d)
English
5 For recording from external device, you
have to first start play on the external
device.
Manual recording with
automatic turn-off (One
Touch Recording)
● While recording in progress, you can
press OK to insert a chapter marker
wherever necessary.
1 Follow the steps 1~3 of “Manual
6 To stop the recording, press STOP 9.
2 Press RECORD 0 on the remote
➜ ‘MENU UPDATE’ or ‘CREATE MENU’
appears on the display panel to indicate
that the DVD recorder is writing the list
of contents. Wait until the message
disappears before removing the
DVD+R(W).
● If the end of a disc is reached during
recording, recording will stop and the
DVD recorder will turn off automatically.
1
Pausing a recording
During recording, press PAUSE ;.
➜ You can use this function to avoid
recording commercials.
Recording” on pages 39~40.
control twice to start 30 minutes
recording.
Each time you press RECORD 0 you
will add 30 minutes to the recording
time.
➜ The recorder will stop recording at
the designated end time and turn off
automatically.
● If you wish to delete the recording, press
STOP 9 while the display showing the
recording time.
● To check the remaining recording time
while recording in progress, press
SYSTEM-MENU.
2 To continue recording, press RECORD 0.
Helpful Hints:
– If you insert recordings between existing
recordings, check the lengths of the old and
new recordings. If the new recording is too
long the subsequent recording (title/chapter)
will be overwritten.
– The length of recording available depends
on the current recording mode and the
amount of time available on the disc.
Deleting a recording
You can delete a specific recording from
the DVD+R(W).
1 Insert a recorded DVD+RW or an
unfinalized DVD+R.
➜ The Index Picture screen or disc
content menu appears on the TV.
2 Use 1 2 3 4 to select an entry in the
menu.
3 Press the matching color coded button on
the remote control to select { Delete }
➜ The current recording will be deleted.
➜ For DVD+RW only, a new recording
can now be made here.
● To delete all the recordings, see pages
53~54 “Accessing to the Preferences
options - Disc” and select { Delete all .}
TIPS:
To play a DVD+R on other DVD players, see “Playing your recording on other DVD player
(DVD+R).”
40
MRV660_17_Eng40
40
9/3/05, 10:25 AM
3139 246 XXXXX
Introduction
Programming recordings
Use 'Timer Recording’ to automatically
start and stop a recording at a later date/
time. The DVD recorder will tune to the
right program number and begin
recording at the specified time.
With this DVD recorder, you can preprogram up to six recordings within a
period of 15 days.
–
–
–
–
To make a programmed recording,
your DVD recorder needs to know:
The date you want to make the
recording.
The program number of the TV channel.
The start and end time of the recording.
The recording mode (M2/M2x/M3/ M4/
M6/M8,) see page 38.
1 Turn on the TV power. Select the correct
Video In channel at the TV.
2 Press TIMER on the remote control.
➜ The timer overview appears.
● If the time has not set yet, the { Time
and Date } menu will appear on the
screen, see page 28.
3 Press the matching color coded button
on the remote control to select { NEW
TIMER }.
➜ The timer entry screen appears.
TIMER
11.55 PM
11:56 PM
Start time
Stop time
12:26 PM
Date
06-30-2004
Channel
CH001
Repeat
Once
Record Mode
M1
{ } Change start time
Clear all
Store
Cancel
4 Press 3 4 to select an entry in the menu
and press 2 to confirm.
5 Press 3 4 to select an option or make an
entry (character/number.)
➜ Press 1 2 to move to the previous or
next entry field if necessary.
{ Start time }
– Enter the start time of recording and
press OK to confirm.
{ Stop time }
– Enter the end time of recording and
press OK to confirm.
{ Date }
– Enter the date for recording (Month/
Day/Year) and press OK to confirm.
{ Channel }
– Select the channel and press OK to
confirm.
TIPS:
To play a DVD+R on other DVD players, see page 45.
During timer recording, press STANDBY-ON will stop recording.
41
MRV660_17_Eng40
41
9/3/05, 10:25 AM
3139 246 XXXXX
English
Timer Recording
Timer Recording (cont’d)
English
{ Repeat }
– Select {Weekly}, {Once} or {Mo.-Fr.}
(Monday to Friday) recordings and press
OK to confirm.
{ Record mode }
– Select a record mode and press OK to
confirm. See pages 37~38 “Recording
settings - Recording mode”.)
● To clear the timer entries, press the
matching color coded button on the
remote control to select { Clear all }
➜ All the settings in the timer menu are
cleared.
● To cancel the timer programming, press
the matching color coded button on the
remote control to select { Cancel }
➜ The timer overview appears.
6 Press the matching color coded button on
the remote control to select { Store }
➜ The system will store the timer entry
and return to the timer overview screen.
7 To exit, press TIMER.
8 Insert a DVD+R(W).
9 Press STANDBY-ON to switch off the
DVD recorder.
➜ The DVD recorder must be in standby
mode in order for the timer recording to
occur. If not, a warning message will
appear ten minutes before the recording
starts.
➜ If you ignore the warning message, the
DVD recorder will switch to standby
mode automatically before the
programmed recording begin.
➜ The 'TIMER’ icon will light up on the
display panel if a timer recording is set.
TIPS:
Helpful Hints:
– Set the timer recording one minute ahead
of the program’s start time. This helps
ensure the entire program is recorded as the
disc requires about 30 seconds to prepare
for recording.
– Program timer recording from {CAM2}
external input source is not possible.
Programming recording from a
Satellite Receiver/Cable Box
If you have a Satellite Receiver/Cable Box
connected to the DVD recorder’s via the
‘IN-EXT 2’ connection, S-VIDEO (Y/C)
or VIDEO (CVBS) (see page 16,) follow
the steps described below to program
the recordings.
1 Select the channel you want to record at
the Satellite Receiver/Cable Box.
2 Program the recording with the required
information. Follow the steps 1~9 of
“Programming Recording” on pages
41~42.
{ Channel }
– Select { EXT2 } as the input channel
and press OK to confirm.
3 Leave the Satellite Receiver/Cable Box on
for the recording.
To play a DVD+R on other DVD players, see page 45.
During timer recording, press STANDBY-ON will stop recording.
42
MRV660_17_Eng40
42
9/3/05, 10:25 AM
3139 246 XXXXX
Changing a programmed
recording
1 Turn on the TV power. Select the correct
Video In channel at the TV.
➜ The timer overview appears.
TIMER
11.55 PM
Stop time
12:26 PM
Date
06-30-2004
Channel
CH001
Once
Record Mode
M1
2 Press TIMER on the remote control.
➜ The timer overview appears.
3 Press 3 4 to select a timer program
which you want to delete.
11:56 PM
Repeat
1 Turn on the TV power. Select the correct
Video In channel at the TV.
2 Press TIMER on the remote control.
Start time
Deleting a programmed
recording
4 Press the matching color coded button on
the remote control to select { Delete }
➜ The current selected timer program is
deleted from the list.
{ } Change start time
Clear all
Store
Cancel
3 Press 3 4 to select a timer program
which you want to change.
4 Press the matching color coded button
on the remote control to select
{ Change }
➜ The timer entry screen of the current
selected timer program appears.
5 Follow the steps 4~9 of “Programming
recordings” on pages 41~42 to make the
necessary changes.
TIPS:
To play a DVD+R on other DVD players, see page 45.
During timer recording, press STANDBY-ON will stop recording.
43
MRV660_17_Eng40
43
9/3/05, 10:25 AM
3139 246 XXXXX
English
Timer Recording (cont’d)
Editing/Finalizing Recording
English
About editing
You can change disc contents and settings
for a recorded DVD+RW or unfinalized
DVD+R from the edit menu screen.
Photo editing is limited to edit the
information on a roll or album. These
editing changes are available for the DVD
recorder, but may not be accessible when
you play the disc on other DVD player.
The edit menu contains the following
editable items :
– Disc name of a DVD+R(W)
– Make DVD compatible (DVD+RW
only)
– Finalize disc (DVD+R only)
– Title name of a title on a DVD+R(W)
– Video editing
+RW
Disc Name
Compatible
Finalise
Title Name
Video Edit
Clear
Index Picture screen
The Index Picture screen shows your
recordings on a DVD+RW or DVD+R.
STOP
+RW | MY MOVIES
MY MOVIES
1
7
8
00:22:08
M4
14:01:03
01:20:00
M4
21:02:03
00:32:02
M4
28:06:03
1-7
Static lights
The Pianist
The island of lost dream
Lord of the Rings, The T
Habla Con Ella
The Ring
...
02:20:16
00:00
2
3
4
5
6
[PLAY] [EDIT][OK] = PLAY
Delete
Protect
An Index Picture screen represents each
recording information saved :
1 Name of recording (or channel number and
time).
2 Title’s index picture
3 Length of recording
4 Recording mode
5 Date of the recording
6 Disc bar (represents the recordings, erased
titles, protected title and blank space at the
end of the disc)
7 Support function guidance
8 Four color coded buttons supported
functions.
Color coded buttons functions
In the edit mode, a number of functions
are available via the color coded buttons
on the remote control.
REC MODE
color coded buttons
(red, green, yellow, blue)
These functions are displayed in the
bottom of the menu wherever applicable.
{ Clear }
– Press this button to clear the entry on
the currently selected menu item.
TIPS:
No further recording and editing can be carried out on a finalized DVD+R.
Press RETURN to go back to previous menu item. Press EDIT to exit the menu.
44
MRV660_17_Eng40
44
9/3/05, 11:46 AM
3139 246 XXXXX
Changing the disc/title name
1 Insert a recorded DVD+RW or an
unfinalized DVD+R.
➜ The Index Picture screen or disc
content menu appears on the TV.
2 Press EDIT on the remote control.
➜ The edit menu appears.
3 Press 3 4 to select { Disc name } or
{ Title name } in the menu.
4 Press 3 4 to change the character/
number or make an entry by using the
alphanumeric keypad 0-9.
➜ Press 1 2 to move to the previous or
next field.
5 Press OK to confirm the changes.
➜ The info panel is now updated.
Making the editing
compatible (DVD+RW)
This function allows you to make an
edited version DVD+RW compatible.
This is required to enable the edited
information to be seen on other DVD
players.
Playing your recording on
other DVD player (DVD+R)
This function is necessary for a DVD+R
in order to be played back on a DVD
player. Otherwise, the DVD+R will play
only on this DVD recorder.
After finalized, no further recording
or editing can be made to the disc.
Make sure that you have complete
all the recordings and editing before
finalizing it. Unfinalize a DVD+R is
not possible.
1 Insert an unfinalized DVD+R.
➜ The Index Picture screen or disc
content menu appears on the TV.
2 Press EDIT on the remote control.
➜ The edit menu appears.
3 Press 3 4 to select { Finalize } in the
menu and press OK to confirm.
➜ A dialog will appear showing the
required process time.
➜ Once complete, the Index Picture
screen appears.
1 Insert a recorded DVD+RW.
➜ The Index Picture screen or disc
content menu appears on the TV.
2 Press EDIT on the remote control.
➜ The edit menu appears.
3 Press 3 4 to select { Compatible } in
the menu and press OK to confirm.
Helpful Hint:
– If the {Compatible} not available for
selection, it means that the disc is already
compatible.
TIPS:
No further recording and editing can be carried out on a finalized DVD+R.
Press RETURN to go back to previous menu item. Press EDIT to exit the menu.
45
MRV660_17_Eng40
45
9/3/05, 10:25 AM
3139 246 XXXXX
English
Editing/Finalizing Recording (cont’d)
Editing/Finalizing Recording (cont’d)
English
Video editing
In the edit video mode, the entire
recording will be played back regardless
of whether they are hidden or not.
1 Insert a recorded DVD+RW or an
unfinalized DVD+R.
➜ The Index Picture screen appears on
the TV.
2 Press 3 4 to select a recording.
3 Press EDIT on the remote control.
➜ The edit menu appears.
4 Press 3 4 to select { Video edit } in the
menu and press OK to confirm.
➜ The video edit menu appears.
OR
● While playing the recorded DVD+R(W),
you can press EDIT to direct access to
the video edit menu.
Hiding unwanted chapter
You can choose to hide certain scene for
playback (e.g. commercial skipping) or
make them visible again.
1 Follow the steps 1~4 of “Video editing”
on page 46.
2 Press PLAY 2 or ∞ / § to search for
the beginning of the chapter you want to
hide.
➜ The selection of chapters can only be
done within a title, make sure that you do
not jump into the next title.
3 Press the matching color coded button
on the remote control to select
{ Hide }
➜ It will set the chapter for hide.
➜ The hiding chapters will only reflect
after exit video editing mode.
To cancel the hidden chapters
PAUSE
+RW | SHREK | EDIT MODE
4 Press ∞ or § to search for the
beginning of the chapter you want to
unhide.
5 Press the matching color coded button
00:01:02
00:00
[EDIT] = Exit
No Chapters
Chapter
Title
Hide
on the remote control to select
{ Show }.
➜ It will set the chapter for unhide.
Disc bar
About edit bar
In the disc bar, the record playback head
represents the actual position of the
playback on the disc.
TIPS:
No further recording and editing can be carried out on a finalized DVD+R.
Press RETURN to go back to previous menu item. Press EDIT to exit the menu.
46
MRV660_17_Eng40
46
9/3/05, 10:26 AM
3139 246 XXXXX
Editing/Finalising Recording (cont’d)
1 Start playback a recorded DVD+RW or
an unfinalized DVD+R.
2 Press EDIT on the remote control.
3 Press the matching color coded button
on the remote control to select
{ Chapter }
➜ The chapter editing menu appears.
Editing title (divide/append/Index
picture)
English
Editing chapter (merge/split/hide)
1 Start playback a recorded DVD+RW or
an unfinalized DVD+R.
2 Press EDIT on the remote control.
3 Press the matching color coded button on
the remote control to select { Title }.
➜ The title editing menu appears.
PAUSE
+RW | SHREK | EDIT MODE
PAUSE
+RW | SHREK | EDIT MODE
00:01:02
00:01:02
00:00
00:00
[EDIT] = Exit
Merge
Back
Split
Hide
4 Press the matching color coded button
on the remote control to make your
editing.
{ Merge }
– Select this to merge the current
chapter with the chapter before it.
If the two chapters were hidden, then the
joined chapter will also be hidden. If only
one of the chapters is hidden, then the
joined chapter will not be hidden.
{ Back }
– Select this will return to the previous
screen.
{ Split }
– Select this to insert a chapter marker,
it will cut the current chapter to two.
When the playback is in a chapter which
is marked for hiding, then both new
chapters will be hidden.
{ Hide }
– Select this to hide the current chapter.
TIPS:
[EDIT] = Exit
Divide
Append
Back
Index Pic.
4 Once you have found the scene that you
want to use for title editing, press the
matching color coded button on the
remote control to make your editing.
{ Divide }
– Select this to divide the current title
into two new titles (for DVD+RW only).
Each of these titles is characterized by its
own index picture.
Warning! Once a title is divided, it
cannot be reversed.
{ Back }
– Select this will return to the previous
screen.
{ Index Pic. }
– Select this to use the current scene as
the title’s index picture.
Note: In the Index Picture screen,
normally the first frame of a recording is
shown as the title’s index picture.
No further recording and editing can be carried out on a finalized DVD+R.
Press RETURN to go back to previous menu item. Press EDIT to exit the menu.
47
MRV660_17_Eng40
47
9/3/05, 10:26 AM
3139 246 XXXXX
Editing/Finalising Recording (cont’d)
English
{ Append } - for DVD+RW only
– Select this to append record to the
existing recording from the position of
the playback. Continue steps 5~7.
For append recording only:
5 Press 3 4 to select the input channel to
append : { preset program number },
{ EXT1 }, { EXT 2 } or { CAM1 .}
6 Press RECORD 0 to start append
recording.
Warning! Once the recording started,
any prior recording from the point of the
playback onwards will be overwritten.
7 To stop append recording, press
STOP 9.
Photo editing
The Photo (JPEG picture) recordings on a
DVD+R(W) are limited to edit the
information.
The editable information items are :
– Title of the currently selected item
– Album edit name
– Photo edit date
1 Insert a recorded DVD+RW or an
unfinalized DVD+R.
2 Use 1 2 3 4 to select an entry in the
menu.
3 Press EDIT on the remote control.
➜ The relevant edit menu appears.
Deleting chapter markers
You can choose to delete all the chapter
markers in the current recording.
1 Follow the steps 1~3 of “Video editing”
on page 46.
2 Press the matching color coded button
on the remote control to select { No
Chapters .}
4 Press 3 4 to change the character/
number or make an entry by using the
alphanumeric keypad 0-9.
➜ Press 1 2 to move to the previous or
next entry field.
5 Press OK to confirm the changes.
➜ The info panel is now updated.
During photo (JPEG picture) playback,
you can modify the photo display.
However, the changes cannot be stored in
the disc.
1 During playback, press EDIT.
2 Press 2 to select { Photo options } on
the screen, then press 4 to select
{ Filter } or { Color Adjust .}
3 Press 2 to access to the menu, then press
3 4 to select the available setting.
Helpful Hint:
– Editing of the audio content is not possible.
For information on organizing the
JPEG pictures, see pages 50~52
“Browsing the picture disc.”
TIPS:
No further recording and editing can be carried out on a finalized DVD+R.
Press RETURN to go back to previous menu item. Press EDIT to exit the menu.
48
MRV660_17_Eng40
48
9/3/05, 10:26 AM
3139 246 XXXXX
Browsing the disc
You can view and manage possible
contents within your discs by using an
on-screen console called the Media
Browser.
1 Insert a disc into the DVD recorder.
REC MODE
➜ The Index Picture screen or disc
content menu appears on the TV.
(example of an DVD)
(example of an DVD+RW)
DVDV/Title1
STOP
+RW | MY MOVIES
TITLES
INFO
Title1
Length@
Title2
Date@
MY MOVIES
0:1:14
Static lights
The Pianist
The island of lost dream
0:0:0
Child Lock
Title3
Title Name
Lord of the Rings, The T
Habla Con Ella
The Ring
...
Title 1
Title4
Title5
00:22:08
M4
14:01:03
01:20:00
M4
21:02:03
00:32:02
M4
28:06:03
1-7
Short Content Description
Title6
02:20:16
00:00
[PLAY] [RETURN], [BROWSER] = EXIT
[PLAY] [EDIT][OK] = PLAY
Delete
Protect
● Alternatively, you can press BROWSER
on the remote control to access the disc
content menu.
2 Press 2 to move to the previous/next
level of information in the menu (e.g.
SOURCE, ALBUM, TRACK.)
DVDV/
DVDV/Title1
SOURCE
Disctray DVD-V
TITLES
Title1
Title2
Title3
Title4
Title5
Title6
[PLAY] [RETURN], [BROWSER] = EXIT
TITLES
=
Color coded buttons functions
In the Media Browser mode, a number of
functions are available via the color coded
buttons on the remote control.
INFO
Title1
Length@
0:1:14
Title2
Date@
0:0:0
color coded buttons
(red, green, yellow, blue)
These functions are displayed in the
bottom of the menu wherever applicable.
{ DELETE }
– Delete the currently selected menu
item.
{ PROTECT } / { UNPROTECT }
– Protect/unprotect the disc. Overwrite
or edit on the disc is not possible if
protected.
{ TO ALBUM }
– Add photo(s) to album.
{ SELECT }
– Add to the selection.
Child Lock
Title3
Title Name
Title 1
Title4
Title5
Short Content Description
Title6
{ SELECT ALL }
– Add all items to the selection.
[PLAY] [RETURN], [BROWSER] = EXIT
3 Press 3 4 to view the detailed overview
of the selected title/chapter.
➜ The content is displayed within two
panels, left panel displays the titles of the
media and right panel displays the
information of the current title.
4 To start playback of the current title,
press PLAY 2.
● To change the disc content information,
press EDIT (see page 45 “Changing the
disc/title name”.)
{ MOVE }
– Move photos within photo album.
{ REMOVE }
– Remove the selected item in the list.
{ ROTATE }
– Rotate the selected photo in 90
degree clockwise increments.
{ ZOOM }
– Activate zoom mode.
{ CANCEL }
– Cancel the operation.
Helpful Hints:
– The information showed on the display
panel varies for different types of media.
TIPS:
Press RETURN to go back to previous menu item. Press BROWSER to exit the menu.
49
MRV660_17_Eng40
49
9/3/05, 10:26 AM
3139 246 XXXXX
English
Using the Browser
Using the Browser (cont’d)
English
Browsing the picture disc
06/06/2004
DVD / Photo / Rolls / Roll KYZ
The Media Browser allows you to view
the JPEG pictures discs or playback as a
slide show or store them in an album.
JPEG Photo can handle up to 100 photos
in one album on a DVD+RW or DVD+R
from this DVD recorder, depends on the
JPEG file parameters.
The supported functions are shown
at the bottom of the disc content
menu via the color coded buttons
on the remote control.
Adding pictures to an album
Photo roll is a folder for storing original
JPEG pictures and they are protected. It
is comparable with a conventional 35mm
film for cameras. Rolls will be created
automatically from the digital cameras.
Photo album contains different pictures
on the rolls. You can delete an album
without deleting the pictures of the rolls.
1 Press BROWSER on the remote
control.
➜ The disc content menu appears.
2 Press 1 2 to select photo roll menu and
press 3 4 to select a desired photo roll
folder.
DVD / Photo / Photo Rolls
All Photo Rolls
Stop
01.02.2003 - 1
01.02.2003 - 1
00:00
[PLAY] [OK] [RETURN] [EDIT] [BROWSER]
To Album
Select All
Select
Rotate
4 Use 1 2 3 4 to select the photo which
you wish to add to the album.
➜ To make a multiple selection, press the
matching color button on the remote
control to select { Select } to confirm
each selected photo.
➜ Select { Select All } to add all photos
to the selection.
➜ Select { Rotate } to rotate the
selected photo in 90 degree clockwise
increments.
5 Press the matching color button on the
remote control to select { to Album .}
➜ The ‘Add to Photo Album’ menu
appears.
6 Press 3 4 to select an album or create a
new album folder which you want to add
photo(s) to it, then press OK to confirm.
➜ The selected photo(s) is/are now
stored in the album.
Helpful Hint:
– Do not pay attention to the order of the
pictures. You can change it later in the
album.
01.02.2003 - 2
01.02.2003 - 3
Berwang
Davoux
Sylvia
01.02.2003
42 photos
[PLAY] [RETURN] [BROWSER]. For overview press [OK]
To Album
3 Press OK to display the picture overview.
➜ The 12 roll thumbnails picture screen
appears.
TIPS:
Press RETURN to go back to previous menu item. Press BROWSER to exit the menu.
50
MRV660_17_Eng40
50
9/3/05, 10:26 AM
3139 246 XXXXX
Changing the picture order within
an album
You can re-arrange the picture position in
the album in order to create the desired
order of the slide show. The order of the
pictures in the photo roll remains
unchanged.
1 Press BROWSER on the remote
control.
➜ The disc content menu appears.
2 Press 1 2 to select photo album menu
and press 3 4 to select a desired photo
album folder.
5 Press the matching color button on the
remote control to select { Move }.
➜ A ‘navigator’ will appear on the menu
enable you to select the position between
the photos.
6 Use 1 2 3 4 to move the ‘navigator’
around the menu and press OK to
confirm the position where you want to
insert the photo(s.)
➜ To cancel the move operation and
return to the original entry point, press
the matching color button on the remote
control to select { Cancel }.
Deleting an album
DVD / Photo / Photo Albums
All Photo Albums
Stop
Princess
Princess
1 Press BROWSER on the remote
control.
➜ The disc content menu appears.
Paris
National Day
2 Press 1 2 to select photo album menu
My home
Baby
02.03.2004
48 photos
Sylvia
and press 3 4 to select the photo album
folder to delete.
[PLAY] [RETURN] [EDIT]. For overview press [OK]
Delete
3 Press OK to display the picture overview.
➜ The 12 roll thumbnails picture screen
appears.
3 Press the matching color button on the
remote control to select { Delete }.
Deleting picture in an album
06/06/2004
DVD / Photo / Albums / Album XYZ
AUS
1 Follow steps 1~3 of “Changing the
picture order within an album” on page
51 .
2 Use 1 2 3 4 to select the photo which
00:00
[PLAY] [OK] [RETURN] [EDIT] [BROWSER]
Remove
Move
Select
Rotate
4 Use 1 2 3 4 to select the photo which
you wish to move to a different position.
➜ To make a multiple selection, press the
matching color button on the remote
control to select { Select } to confirm
each selected photo.
➜ Select { Rotate } to rotate the
selected photo in 90 degree clockwise
increments.
TIPS:
you wish to delete.
➜ To make a multiple selection, press the
matching color button on the remote
control to select { Select } to confirm
each selected photo.
3 Press the matching color button on the
remote control to select { Remove }.
Press RETURN to go back to previous menu item. Press BROWSER to exit the menu.
51
MRV660_17_Eng40
51
9/3/05, 10:26 AM
3139 246 XXXXX
English
Using the Browser (cont’d)
Using the Browser (cont’d)
English
Changing the slide show settings
You can adjust the various slide show
settings to your individual needs.
1 Press BROWSER on the remote
control.
➜ The disc content menu appears.
2 Press 1 2 to select photo roll/album
menu and press 3 4 to select a desired
photo roll/album folder.
3 Press PLAY 2 to start slide show play.
Album 001/Photo 001
[PAUSE] [EDIT] [RETURN] [STOP] [BROWSER]
Zoom
Repeat
Speed Up
Speed Down
{ Zoom }
– Select this to activate zoom mode.
In zoom mode,
– Use 1 2 3 4 to pan through the zoomed
image.
– Press the matching color buttons
{ ZOOM OUT } or { ZOOM IN }
repeatedly to select the desired zoom ratio
(2x, 4x, 8x)
– Select { End } to exit zoom mode.
{ Repeat }
– Select this to toggle between repeat
on and off.
{ Speed Down } / { Speed Up }
– Select this to change the slide show
speed :
{ SLOW } – 10 seconds interval,
{ MEDIUM } – 5 seconds interval,
{ FAST } – 3 seconds interval.
TIPS:
Press RETURN to go back to previous menu item. Press BROWSER to exit the menu.
52
MRV660_17_Eng40
52
9/3/05, 10:26 AM
3139 246 XXXXX
System Menu - Preferences
1 Switch on the TV set. Select the correct
Video In channel at the TV.
2 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on TV.
3 Press 4 to select { Preferences .}
Recording
For more information on this menu,
please see pages 37~39 “Recording
settings.”
English
Accessing the Preferences
options
Sound
DVD-VIDEO-TITLE 04|CO1
STOP
Sound
Preferences
Sound Mode
Navigate to menu item
Recording YesDVD Sound
STOP
Night Mode
Disc
Preferences
Set-up
[SYSTEM] = Exit
4 Press 2 repeatedly to select one of the
options from { Preferences } and press 4
to select a setting you want to adjust.
➜ Instructions for adjusting the settings
are provided in the following pages.
5 Press 2 to enter its options and use
1 2 3 4 to make your selection.
➜ If the selection in the menu is grayed
out, that means the feature is not
available or not possible to change at the
current state.
6 Press 1 to confirm.
7 To exit, press SYSTEM-MENU.
{ Sound mode }
You can select from the following settings
how sound will be played back by devices
connected to the analog outputs (L/R
AUDIO OUT.)
– { Stereo } : To hear sound from the left and
right audio channels. Use this setting when
the DVD recorder is connected to a stereo
TV.
– { Surround } : For audio device that is
compatible with Dolby Surround. Dolby
Digital and MPEG-2 multi-channel are
mixed to a Dolby Surround-compatible
two-channel output signal.
{ Night mode }
Allows you to optimize the sound
dynamics at low volume. This causes less
disturbance in quiet environments. This
setting only functions with Dolby Digital
Audio on DVDs.
– { On } : Select this to level out the volume.
High volume outputs will be softened and
low volume outputs are brought upward to
an audible level.
– { Off } : Select this when you want to enjoy
the surround sound with its full dynamic
range.
TIPS:
Underlined option is the factory default setting.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
53
MRV660_17_Eng40
53
9/3/05, 10:26 AM
3139 246 XXXXX
System Menu - Preferences (cont’d)
English
Disc
DVD-VIDEO-TITLE 04|CO1
STOP
Disc
Preferences
Access
For more information on this menu,
please see pages 58~60 “Setting Access
Control.”
Adapt menu
Delete all
Features
DVD-VIDEO-TITLE 04|CO1
STOP
Features
Preferences
{ Adapt menu }
If a DVD+RW has been recorded in a
computer drive or in another DVD
recorder, the Picture Index screen may
not be displayed correctly. This feature
allows you to change the format
supported by this DVD recorder.
– Select { Adapt menu } and press OK.
A message to confirm your action will
appear on the TV, press OK again to
proceed. Otherwise, press 1 to exit.
{ Delete all }
Allows you to delete all the recordings
from the current DVD+RW or DVD+R.
– Select { Delete all } and press OK.
A message to confirm your action will
appear on the TV, press OK again to
proceed. Otherwise, press 1 to exit.
Auto resume
Auto play
Dealer demo
{ Auto resume }
Auto resume affects the last 20 DVDs
and Video CDs you played.
– { On } : Play resumes where you last
stopped playing the disc.
– { Off } : Play starts at the beginning of the
disc.
{ Auto play }
When auto play is active, the system will
directly initial auto play of the disc.
– { On } : Play starts automatically once you
inserted the disc.
– { Off } : A dialog appears on the TV once
you insert in the disc.
{ Dealer demo }
Allows you to display your demo
according to the following options:
– { Off } : Turn off dealer mode.
– { On } : The DVD recorder’s display panel
will show various features offered by the
system while in standby mode.
TIPS:
Underlined option is the factory default setting.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
54
MRV660_17_Eng40
54
9/3/05, 10:26 AM
3139 246 XXXXX
System Menu - Setup
System
1 Turn on the TV set. Select the correct
DVD-VIDEO-TITLE 04|CO1
Video In channel at the TV.
English
Accessing the Setup options
STOP
System
2 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on TV.
3 Press 4 repeatedly to select { Set-up }.
Set-up
Auto standby
Second RC
OSD
Display
➜ Playback will pause.
DVD-VIDEO-TITLE 04|CO1
STOP
System Time-date Analog Ch. Video output
PBC
Version Info
Set-up
4 Press 2 repeatedly to select one of the
options from { Set-up } and press 4 to
select a setting you want to adjust.
➜ Instructions for adjusting the settings
are provided in the following pages.
5 Press 2 to enter its options and use
1 2 3 4 to make your selection.
➜ If the selection in the menu is grayed
out, that means the feature is not
available or not possible to change at the
current state.
6 Press 1 to confirm.
7 To exit, press SYSTEM-MENU.
{ Auto standby }
The system will automatically turn on to
standby mode if you do not press any
buttons within 15 minutes after a disc has
stopped playing or in Browser mode.
This is a power-saving feature,
– { On } : Turn on Auto standby mode.
– { Off } : Turn off Auto standby mode.
{ Second RC }
Allows you to control the DVD recorder
with a second remote control (not
supplied.)
– { On } : Enable second RC control.
– { Off } : Disable second RC control.
{ OSD }
Select the level of On-screen display
information.
– { Full } : Complete information always
display during use.
– { Reduced } : The help text and button bar
will remove from the display.
– { Normal} : The help text will remove from
the display.
TIPS:
Underlined option is the factory default setting.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
55
MRV660_17_Eng40
55
9/3/05, 10:26 AM
3139 246 XXXXX
System Menu - Setup (cont’d)
English
{ Display }
Allows you to change the brightness of
the DVD recorder display panel.
– { Bright } : Normal brightness.
– { Dimmed } : Medium brightness.
– { Off } : Turn off the display.
Video output
DVD-VIDEO-TITLE 04|CO1
STOP
Video output
Set-up
TV shape
@
Black level
{ PBC } - for Video CDs only
Play Back Control allows you to play
Video CDs (2.0) interactively, following
the menu on the display.
– { On } : The index menu (if available) will
appear on the TV once you insert a VCD.
– { Off } : The VCD will skip the index menu
and playback directly from the beginning.
Time-date
For more information on this menu,
please see page 28 “Setting the Time and
Date.”
Analog channels
For more information on this menu,
please see pages 26~27 “TV Channel
Programming.”
Horizontal
Progressive
{ TV shape }
The picture shape can be adjusted to fit
your TV.
– { 4:3 Letterbox } :
For a 'wide-screen' display
with black bars on the top
and bottom.
– { 4:3 Panscan } :
For a full-height
picture with the sides
trimmed.
– { 16:9 } : For widescreen TV (frame
ratio 16:9.)
{ Black level }
Adapts the color dynamic for NTSC disc.
– { Normal } : Normal color contrast.
– { Enhance } : Improve the color
contrast and brighten the picture of NTSCcompatible DVD.
{ Horizontal }
Allows you to adjust the horizontal
position of the picture on your TV
screen.
– Press 1 2 to scroll the slider to the left or
right. When you are satisfied with the
position of the picture, press 4 to exit.
TIPS:
Underlined option is the factory default setting.
Press 1 to go back to previous menu item. To exit, press SYSTEM-MENU.
56
MRV660_17_Eng40
56
9/3/05, 10:26 AM
3139 246 XXXXX
{ Progressive }
Allow you to turn on the progressive
scan function if the DVD recorder is
connected to a TV with progressive scan.
– { On } : Select this to enable progressive
scan function.
– { Off } : Select this to disable the
progressive scan function.
Audio output
After connecting the DVD recorder to
your TV and other devices, you may need
to change the digital output setting.
Adjust the Digital Output only if you use
the DVD recorder’s COAXIAL jack.
DVD-VIDEO-TITLE 04|CO1
{ 96 kHz }
– { 96 kHz } : Select this if the optional audio
device is capable of processing digital signal
input with sampling rates of 96 kHz.
– { 48 kHz } : Select this if the optional audio
device is incapable of processing 96 kHz
digital signal input. The signal will then be
converted to a standard signal with
sampling rates of 48 kHz.
Language
For more information on this menu,
please see page 29 “Setting the language.”
STOP
Audio output
Set-up
Digital output
96 kHz
{ Digital output }
– { All } : Select this if you use the
COAXIAL socket to connect the DVD
recorder to a stereo receiver that has a
built-in Multi-Channel decoder.
– { PCM } : Select this if the connected
audio equipment is not capable of decoding
multichannel audio. Dolby Digital and
MPEG-2 multi-channel signals are converted
to PCM (Pulse Code Modulation.)
– { Off } : Select this to deactivate the digital
audio output. For example, if you use the
AUDIO OUT sockets to connect the DVD
recorder to a TV or Stereo system.
TIPS:
Underlined option is the factory default setting.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
57
MRV660_17_Eng40
57
9/3/05, 10:26 AM
3139 246 XXXXX
English
System Menu - Setup (cont’d)
Setting Access Control
English
About Access Control
Access Control limits viewing of discs
that exceed the limits you set. We cannot
guarantee the availability of Access Control
with all discs, and therefore denies any
liability associated with unintended
watching of discs.
Setting or changing the pin
code
The same pin code (password) is used for
both Parental Control and Child Lock.
Enter your four-digit password to play a
prohibited disc or if prompted for a pin
code.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 Press 4 to select { Preferences }.
3 Press 2 repeatedly to select { Access }
and press 4 to confirm.
4 Use the alphanumeric keypad 0-9 to
enter your four-digit pin code.
➜ When doing this for the first time,
enter any four-digit you prefer. You must
enter the same pin code a second time to
confirm it.
➜ If you forgot your four-digit pin code,
use the alphanumeric keypad 0-9 on
the remote control to key in ‘1504’ and
followed by OK button. Then, enter any
four-digit you prefer.
5 Press 4 repeatedly to select
6 Use the alphanumeric keypad 0-9 to
enter your new four-digit pin code. You
must enter the same pin code a second
time to confirm it.
➜ To cancel your change, press 4 to
select { Cancel } and press OK to
confirm.
Setting the country of origin
The Parental control levels depend on the
country in which the DVD was
manufactured. Therefore, it is necessary
that you enter the country for which
these filter values apply.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 Press 4 to select { Preferences }.
3 Press 2 repeatedly to select { Access }
and press 4 to confirm.
4 Use the alphanumeric keypad 0-9 to
enter your four-digit pin code (see page
58 “Setting and changing the pin code”).
5 Press 4 to select { DVD country } and
press 2 to enter its options.
DVD-VIDEO-TITLE 04|CO1
STOP
Access
Preferences
Child lock
Level
DVD country
American Samoa
Change pin
[PLAY] [EDIT] [OK] = PLAY
{ Change pin } and press 2 to confirm.
6 Press 3 4 to select the country for
Please enter New Pin
New Pin
Pin Code
****
Cancel
TIPS:
which the disc is coded and press 1 to
confirm.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
58
MRV660_17_Eng40
58
9/3/05, 10:26 AM
3139 246 XXXXX
Activating/Deactivating the
child lock
This function can prevent children from
viewing discs. This DVD recorder can
memorize settings for 50 discs. When in
use, a four-digit pin code must be entered
in order to play a disc.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 Press 4 to select { Preferences }.
3 Press 2 repeatedly to select { Access }
and press 4 to confirm.
4 Use the alphanumeric keypad 0-9 to
enter your four-digit pin code (see page
58 “Setting and changing the pin code”).
5 Press 4 to select { Child lock }.
DVD-VIDEO-TITLE 04|CO1
STOP
1
Alternatively, we can lock the disc while
in browser mode;
Press the BROWSER on the remote
control.
➜ The disc content menu appears.
2 Press the matching color coded button
on the remote control to select
{ ChildLock .}
➜ The disc is now locked. You must
enter the four-digit pin code the next
time when you insert the disc.
Helpful Hint:
– Two-sided DVDs and multi-volume discs
may have a different ID for each side/
volume. To completely unlock these discs, you
must authorize each side/volume separately.
Authorizing discs
You can enable playback of a locked disc
by entering the four-digit pin code,
however, it will only allow play once.
Access
1 Insert the disc.
Preferences
Child lock
Off @
➜ If the disc has been locked (child lock
on,) the pin code entry menu will appear
on the TV.
On
Level
DVD country
Change pin
2 Use the alphanumeric keypad 0-9 to
[PLAY] [EDIT] [OK] = PLAY
6 Press 2 to select { On } or { Off } setting
and press 1 to confirm.
➜ If you turn on the child lock feature,
you will need to enter the four-digit pin
code in order to play locked discs.
TIPS:
enter your four-digit pin code (see page
58 “Setting and changing the pin code”.)
➜ Playback will begin.
If you later decide to unlock the disc
and allow play always;
● Follow the steps described in ‘Activating/
Deactivating the child lock’ and select
{ Off } in the menu.
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
59
MRV660_17_Eng40
59
9/3/05, 10:26 AM
3139 246 XXXXX
English
Setting Access Control (cont’d)
Setting Access Control (cont’d)
Rating explanations
English
Restricting playback by
Parental Control
{ – } – Parental Control is not active.
Some DVDs may have a parental level
assigned to the complete disc or to
certain scenes on the disc. This feature
lets you set a playback limitation level.
The rating levels are from 1 to 8 and are
country dependent. You can prohibit the
playing of certain discs that are not
suitable for your children, or have certain
discs played with alternative scenes.
1 Press SYSTEM-MENU on the remote
control.
➜ The system menu appears on the TV.
2 Press 4 to select { Preferences .}
3 Press 2 repeatedly to select { Access }
and press 4 to confirm.
4 Use the alphanumeric keypad 0-9 to
enter your four-digit pin code (see page
58 “Setting and changing the pin code”.)
5 Press 4 to select { Level } and press 2
to enter its options.
DVD-VIDEO-TITLE 04|CO1
STOP
Access
Preferences
Child lock
Level
Level
DVD country
Change pin
1
2
{ 1 } – Childsafe; acceptable for viewers of all
ages.
{ 3 } – Parental Guidance suggested.
{ 4 } – Unsuitable for children under age 13.
{ 6 } – Restricted; recommended that parents
restrict children under 17 from viewing
or allow to view only when supervised
by a parent or adult guardian.
{ 7 } – No children under age 17; not
recommended viewing for children
under age 17.
{ 8 } – Mature material; should be viewed only
by adults due to graphic sexual
material, violence or language.
● DVDs that are rated higher than the level
you selected will not play unless you
enter your four-digit pin code.
Helpful hints:
– This feature will not limit viewing if the
disc manufacturer did not code the disc.
– VCD, SVCD, CD have no level indication, so
parental control has no effect on these type
of discs. This also applies to most illegal
DVDs.
– Some DVDs are not coded with a rating
though the movie rating may be printed on
the Disc cover. The rating level feature does
not prohibit play of such Discs.
3
4
[PLAY] [EDIT] [OK] = PLAY
6 Press 3 4 to select the desired parental
level and press 1 to confirm.
➜ To disable Parental controls and allow
all discs to play, select { – .}
TIPS:
Press 1 to go back to previous menu item. Press SYSTEM-MENU to exit the menu.
60
MRV660_17_Eng40
60
9/3/05, 10:26 AM
3139 246 XXXXX
Disc types
Front Connections
Recording : DVD+RW/+R
Playing : DVD-Video,Video CD,
SuperVCD,Audio CD, MP3 CD, Picture CD,
CD-R/RW, DVD-R, DVD-RW
–
–
–
–
Record modes
Timer Recording
recording time / picture quality
M2: 120 minutes / DVD quality
M2x: 150 minutes / DVD quality
M3: 180 minutes / S-VHS quality
M4: 240 minutes / VHS quality
M6: 360 minutes / VHS quality
M8: 480 minutes / VHS quality
– 1-month timer programming, 6 events
– weekly repeat recording
TV systems
Digital Photo Manager
Playback:
Recording:
Internal tuner:
Playback
Video Editing Functions
– Automatic/Manual Chapter Marker insertion
– Append
– Divide
Power Supply
10 bit, 54 MHz
10 bit, 54 MHz
– 110 - 130 VAC ~60 Hz
– 27 W power consumption (operation)
– 4 W power consumption (eco standby)
Cabinet
Audio
Recording
i.LINK DV in (IEEE 1394 4-pin)
S-video in
Video in
Audio left/right in
– Create albums
– Zoom, Rotate, Flip
NTSC
NTSC
NTSC
Video Performance
AD Converter
DA Converter
English
Specifications
Dolby Digital
2-channel
Dolby Digital, DTS.
MPEG2 Multichannel,
MPEGI layer 3 (MP3), PCM
Dimensions (wxhxd) : 435 x 65 x 285 mm
Net Weight
: 3.5 kg
Audio Performance
DA Converter
AD Converter
Signal / Noise (1kHz)
Dynamic range (1kHz)
Cross-talk (1kHz)
Distortion / Noise (1kHz)
24 bit, 192 kHz
24 bit, 96 kHz
105 dB
90 dB
105 dB
90 dB
Rear Connections
–
–
–
–
–
–
–
–
Component Video Out/In
S-video Out/In
Video (CVBS) Out/In
Audio left/right out
Digital audio out (coaxial)
RF antenna in
RF TV out
Mains
61
MRV660_17_Eng40
61
9/3/05, 10:26 AM
3139 246 XXXXX
Troubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If
you are unable to remedy a problem by following these hints, consult your dealer for
help.
Problem
Solution
No power.
– Press STANDBY-ON button on the front of the DVD recorder
to turn on the system.
– Make sure the AC outlet has power.
The message “IS THE TV
ON?” appears on the display
panel.
– The DVD recorder will not operate until you complete the first
installation. Read chapter “Installing the DVD Recorder - First
Installation” for details.
The buttons on the DVD
recorder do not work.
– The DVD recorder may be in Dealer mode, all buttons on the
front of the DVD recorder are locked. To deactivate the dealer
mode :
1) Disconnect the power cord from the power outlet.
2) Press and hold STOP button and OPEN CLOSE / on the
front of the recorder while you reconnect the power cord to the
power supply.
3) As soon as the time or '00:00' appears on the display (within
6-10 seconds), release the buttons.
– There is a technical problem. Disconnect the DVD recorder
from the power outlet for 30 seconds, then connect again. If the
DVD recorder still will not operate, then reset it to the default
factory settings :
1) Disconnect the DVD recorder from the power outlet.
2) Press and hold down STANDBY-ON button on the front of
the recorder while reconnecting to the power outlet.
3) Release STANDBY-ON button when “IS THE TV ON?”
appears on the display. All the information stored in the
memory (programs, time) will be cleared. Complete the
first installation again and reset any items you have adjusted
during your use of the recorder.
Remote control does not
work.
– Aim the remote control directly at the sensor on the front of the
DVD recorder (not towards TV). If the DVD recorder receives a
signal from the remote control, icon D will appear on the
display.
– Remove any obstacles between DVD recorder and the remote
control.
– Batteries are weak, replace the batteries.
– Press TUNER on the remote control.
62
MRV660_17_Eng40
62
9/3/05, 11:46 AM
3139 246 XXXXX
Problem
Solution
Disc will not play.
– Insert the disc with the label facing up.
– The child lock is on. Read chapter “Setting Access Control Activating/Deactivating the child lock” for details.
– Wrong region code. The DVD must be coded for ALL regions or
Region 1 in order to play on this DVD recorder.
– There is no recording on the disc or wrong disc type. Read
chapter “Playback - Playable discs” for details.
– Make sure the disc is not scratched or warped. Clean the disc or
replace a new one.
– Check if the disc is defective by trying another disc.
No picture.
– Turn on your TV and set to the correct Video In channel. Change
the TV channel until you see the DVD screen. Read chapter
“Connecting to TV - General” for details.
– Check the video connection between the DVD recorder and the
TV.
– PAL input signal received from external device is not supported.
The picture is distorted or
black and white during
playback.
– The disc does not match with the TV color system standard
(PAL/NTSC).
– The disc is dirty, clean the disc.
– Sometimes a small amount of picture distortion may appear. This
is not a malfunction.
– If you set the Record Mode to a low-quality speed, change to a
higher-quality speed after you finish recording. Leaving the DVD
recorder set to a low-quality speed may affect the picture quality
when playing DVDs later. Read chapter “Recording - Recording
settings” for details.
– The recording can be made in color only when the TV channels
or the connected additional device sends a color signal. In some
situations, programs that are broadcast in black and white cannot
be recorded.
Distorted sound coming
from a connected hi-fi
amplifier.
– Do not connect any cables from the DVD recorder to the
'Phono' input of your amplifier.
– Do not connect the DVD recorder’s Coaxial DIGITAL AUDIO
OUT jack to an analog jack (red/white) on the connecting
devices.
No sound.
– Check the audio connections, the red and white jacks. Read
chapters “Connecting to TV” or “Connecting to Additional
Devices” for details.
– You cannot hear MP3 playback if you are using the Coaxial
DIGITAL AUDIO OUT jack for sound from the DVD recorder.
– Set the Analog output or Digital output correctly, based on the
equipment you connected to the DVD recorder. Read chapter
“System Menu - Setup” for details.
– PAL input signal received from external device is not supported.
63
MRV660_17_Eng40
63
9/3/05, 10:26 AM
3139 246 XXXXX
English
Troubleshooting (cont’d)
Troubleshooting (cont’d)
English
Problem
Solution
Recordings are not
occurring as scheduled.
New recordings cannot be
made.
– The TV channel you want to record is not stored or you selected
the wrong program number. Check TV channels stored.
– If you adjust the clock after you set a timer recording, reset the
timer recording.
– If the DVD recorder cannot read the disc, you cannot record.
– You cannot use the DVD recorder to duplicate copyrighted
materials (DVDs or videotapes) onto a DVD+RW/+R, “COPY
PROTECT” will be displayed.
– A finalized DVD+R has been inserted. Change disc.
A DVD+RW or DVD+R
recorded on this DVD
recorder will not play on a
DVD player.
– If a recording is too short, it is possible that a DVD player cannot
detect it. Please observe the following 'minimum recording
times'. Recording mode : {M2}– 10 minutes, {M2x} – 13 minutes,
{M3} – 15 minutes, {M4} – 20 minutes, {M6} – 30 minutes,
{M8} - 30 minutes.
– Some DVD players cannot playback DVD+RW recordings. You
can solve this problem by using a special function :
1) Press OPEN CLOSE / on the DVD recorder to open the disc
tray.
2) Insert the disc but do not close the tray.
3) Hold down the number button {2} on the remote control until
the tray closes. The disc is modified.
4) If this fails to produce the desired result, repeat the procedure
using the number button {3} on the remote control.
5) You can restore the disc to its original condition by pressing
and holding number button {1}.
Warning! There is a risk that you can no longer play the disc on
other DVD players after the following procedure. Therefore,
apply this function with particular care.
The index screen flickers
when a DVD+R is inserted.
– You can finalize the disc using the following function:
1) Press OPEN CLOSE / on the DVD recorder to open the disc
tray.
2) Insert the disc but do not close the tray.
3) Hold down button number {4} on the remote control until the
tray closes. ‘FINALISING' appears on the display panel.
4) If finalizing has been successful, the Picture Index screen will
appear.
Picture is fuzzy and
brightness varies when
copying DVD Video discs or
prerecorded video cassettes.
– This happens if you try to copy DVDs or video cassettes that
have been copy-protected. Even though the picture on the TV is
fine, but the recording on a DVD+R(W) is faulty. This
interference is unavoidable with copy-protected DVDs or video
cassettes.
– The DVD+R(W) has recording lifetime, please change a new disc
for recording.
64
MRV660_17_Eng40
64
9/3/05, 10:26 AM
3139 246 XXXXX
Problem
Solution
The message ‘NO SIGNAL’
appears.
– Check that the cable is plugged in firmly.
– If a recording is made from a video recorder, change the tracking
on the video recorder.
– The DVD recorder may not be able to recognize the video input
signal if this signal is poor or does not comply with relevant
standards.
The message 'Recording of
<XX> will start within 1
minute' appears.
–
–
–
Select { Switch now } to switch the DVD recorder to standby
mode. A programmed timer recording will only start recording if
the DVD recorder is in standby mode.
Select { Suspend } will suspend the timer recording.
Select { Cancel recording } will cancel the timer recording.
The message 'Insert
recordable disc' appears.
–
Either no disc was inserted or a disc was inserted that cannot
be used for recordings. Insert a disc that can be recorded upon.
Locate on the disc the right position for the recording. Press
STOP button. Turn off the DVD recorder by pressing
STANDBY-ON button.
The message 'Maximum
number of timers reached'
appears.
–
It has reached the maximum programmed, no more recordings
are allowed. Press TIMER button, select the programmed
recording (TIMER block) you want to check or clear using 3 4
button.
The message 'Collision'
appears.
–
–
The timer recording overlaps with another timer recording.
If you ignore this warning, the programmed recording with the
early start time will start first.
The second recording will then lack the beginning.
Change the information for one of the two recordings.
Delete one of the two recordings.
–
–
65
MRV660_17_Eng40
65
9/3/05, 10:26 AM
3139 246 XXXXX
English
Troubleshooting (cont’d)
Display panel symbols/messages
English
The following symbols/messages may
appear on your DVD recorder display:
● COMPATIBLE
The DVD Recorder is busy making changes to
make the disc DVD-compatible.
● CLOSING
Disc tray is closing.
● 00:00
Multifunction display/text line
– Title/track number
– Total/elapsed/remaining title/track time
– Disc/title name
– Error or warning messages
– Additional information regarding the disc
– TV channel number or source of video
– Clock (This is displayed in Standby mode).
– TV program title
● ||||||||||||||||||||||||||||||
– Disc bar: Displays the current position on
the disc.
– Play/Record: The single flashing segment
represents the current position of the disc
pointer.
– Pause: Indicated by the flashing segment on
both sides of the current position.
– Stop: Indicated by the flashing segment at
the current position.
● ¡
Tuner is selected as visible source.
● COPY PRO
The DVD/video cassette you are trying to
copy is copy-protected.
● DISC ERR
An error occurred when writing the title. If
this happens often, please clean the disc or use
a new one.
● DISC FULL
Disc is full. There is no room for new
recordings.
● DISC UPDATE
– Updating of disc is done after the editing is
complete.
– Entire disc is being erased.
● DISC WARN
An error occurred when writing the title. The
recording will continue, but the error will be
skipped.
● EMPTY DISC
Inserted disc is new or has been completely
erased (no recordings present).
●
Disc is the current active source.
● TV
Modulator is turned off. The antenna signal (RF
signal) is only connected to the TV when the
modulator is turned off.
● D
● FINALIZE
The DVD+R disc is being finalized. The
progress bar on the LED shows the status of
the finalization process.
● EMPTY TITLE
An empty title was selected.
Remote control command for the DVD
recorder has been received.
● INFO DVD
Information on the inserted DVD is displayed
on the screen.
● X TIMER
A timer recording has been programmed or is
active.
● BLOCKED
The disc tray cannot be opened or closed due
to some mechanical obstruction.
● CREATE MENU
After the first recording has been successfully
complete on a new disc, the menu structure is
created.
66
MRV660_17_Eng40
66
9/3/05, 10:26 AM
3139 246 XXXXX
Display panel symbols/messages (cont’d)
● POST FORMAT
The DVD Recorder is currently in the first
installation mode. Turn on your TV and read
the section, 'First installation', in the chapter
'Installing the DVD Recorder'.
English
● IS THE TV ON?
The disc is being prepared after the menu
structure has been created.
● PROTECTED
Disc is copy-protected and cannot be
recorded.
● MAX TITLE
The maximum number of titles has been
reached for the disc. Each disc can have a
maximum of 49 titles.
● READING
Disc is being recognized by the DVD recorder.
● RECORDING
● MAX CHAP
The maximum number of chapters per title/
disc has been reached. The maximum number
of chapters per title is 99, and 255 per disc.
● SYS MENU
The on-screen menu display is on.
● MENU UPDATE
After a successful recording, the list of disc
contents is updated.
A recording is currently in progress.
● SAFE RECORD
The new recording will be added to the end of
all recordings.
● INSTALL
After the automatic channel search, the menu
for setting the time/date appears on the
screen.
● STANDBY
● NO DISC
No disc has been inserted. If a disc has been
inserted, then it is possible that the disc cannot
be read.
● NO SIGNAL
No signal or poor signal strength.
● NTSC DISC
A disc with NTSC recordings has been
inserted and an attempt was made to record a
PAL signal. Insert a new disc or use a disc
containing PAL recordings.
● OPENING
The DVD recorder has been turned off.
● TRAY OPEN
Disc tray is open.
● VCD
A VCD has been loaded into the DVD
recorder.
● WAIT
Please wait until this message disappears. The
DVD Recorder is busy processing an
operation.
● TV DIRECT
Disc tray is opening.
Modulator is turned off. The antenna (RF)
signal is now fed to the TV.
● PAL DISC
A disc with PAL recordings has been inserted
and an attempt was made to record an NTSC
signal. Insert a new disc or use a disc
containing NTSC recordings.
● PHOTO MMM/NNN
Number of the current photo (for Photo
mode). MMM represents the order of the
current photo, NNN represents the total
number of photos in the album. If the number
exceeds 999, '999' will be displayed instead.
67
MRV660_17_Eng40
67
9/3/05, 10:26 AM
3139 246 XXXXX
Glossary
English
Analog: Sound that has not been turned into
numbers. Analog sound varies, while digital sound
has specific numerical values. These jacks send
audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and horizontal
sizes of a displayed image. The horizontal vs.
vertical ratio of conventional TVs. is 4:3, and that of
wide-screens is 16:9.
AUDIO OUT Jacks: Red and white jacks on the
back of the system that send audio to another
system (TV, Stereo, etc.).
Chapter: Sections of a picture or a music piece
on a DVD that are smaller than titles. A title is
composed of several chapters. Each chapter is
assigned a chapter number enabling you to locate
the chapter you want.
Component Video Out Jacks: Jacks on the
back of the DVD System that send high-quality
video to a TV that has Component Video In jacks
(R/G/B, Y/Pb/Pr, etc.).
Digital: Sound that has been converted into
numerical values. Digital sound is available when
you use the DIGITAL AUDIO OUT COAXIAL.
These jacks send audio through multiple channels,
instead of just two channels as analog does.
Disc menu: A screen display prepared for
allowing selection of images, sounds, subtitles,
multi-angles, etc recorded on a DVD.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing up to
six channels of digital audio (front left and right,
surround left and right, center and subwoofer).
Index Picture Screen: A screen that gives an
overview of a DVD+RW or DVD+R. An Index
Picture represents each recording.
JPEG: A very common digital still picture format. A
still-picture data compression system proposed by
the Joint Photographic Expert Group, which
features small decrease in image quality in spite of
its high compression ratio.
MPEG: Motion Picture Experts Group. A
collection of compression systems for digital audio
and video.
Multichannel: DVDs are formatted to have each
sound track constitute one sound field.
Multichannel refers to a structure of sound tracks
having three or more channels.
PBC: Playback Control. Refers to the signal
recorded on video CDs or SVCDs for controlling
playback. By using menu screens recorded on a
Video CD or SVCD that supports PBC, you can
enjoy interactive playback and searching.
PCM: Pulse Code Modulation. A digital audio
encoding system.
Parental control: Limits Disc play according to
the age of the users or the limitation level in each
country. The limitation varies from disc to disc;
when it is activated, playback will be prohibited if
the software’s level is higher than the user-set
level.
Region code: A system allowing discs to be
played only in the region designated. This unit will
only play discs that have compatible region codes.
You can find the region code of your unit by
looking on the product label. Some discs are
compatible with more than one region (or ALL
regions).
S-Video: Produces a clear picture by sending
separate signals for the luminance and the color.
You can use S-Video only if your TV has an S-Video
In jack.
Surround: A system for creating realistic threedimensional sound fields full of realism by
arranging multiple speakers around the listener.
Title: The longest section of a movie or music
feature on DVD. Each title is assigned a title
number, enabling you to locate the title you want.
VIDEO OUT jack: Yellow jack on the back of
the DVD system that sends the DVD picture video
to a TV.
MP3: A file format with a sound data compression
system. “MP3” is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio Layer
3. By using the MP3 format, one CD-R or CD-RW
can contain about 10 times more data then a
regular CD.
68
MRV660_17_Eng40
68
9/3/05, 10:26 AM
3139 246 XXXXX
MAGNAVOX LIMITED WARRANTY
One (1) Year Labor and Parts Repair (Facility)
MAGNAVOX warrants this product against defect in material
or workmanship, subject to any conditions set forth as follows:
PROOF OF PURCHASE:
You must have proof of the date of purchase to receive warranted repair on the product. A sales receipt or other document showing the product and the date that you purchased the
product as well as the authorized retailer included, is considered such proof.
COVERAGE:
(If this product is determined to be defective)
LABOR: For a period of one (1) year from the date of purchase, Magnavox will repair or replace the product, at its
option, at no charge, or pay the labor charges to the Magnavox
authorized repair facility (see warranty service phone numbers
in next column). After the period of one (1) year, Magnavox
will no longer be responsible for charges incurred.
PARTS: For a period of one (1) year from the date of purchase,
Magnavox will supply, at no charge, new or rebuilt replacement
parts in exchange for defective parts. Magnavox authorized service facility will provide removal and installation of the parts for
one (1) year.
EXCLUDED FROM WARRANTY COVERAGE
Your warranty does not cover:
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Magnavox.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifications.
• Damage occurring to product during shipping when improperly packaged or costs associated with packaging.
• Product lost in shipment and no signature verification of
receipt can be obtained.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Products sold AS IS or RENEWED.
SHIP-IN WARRANTY:
For Ship-In warranty repair, ship the product to a Magnavox
authorized repair facility for repair in its original carton and
packing material. If you do not have the original carton or packing material, have your product professionally packed for shipping. Ship product via a traceable carrier. When it is necessary
for you to ship the product to Magnavox for repair, you will
pay the shipping cost for shipment to Magnavox. Magnavox will
pay the shipping costs when returning the product to you.
TO OBTAIN WARRANTY SERVICE IN THE U.S.A.,
PUERTO RICO, OR U.S.VIRGIN ISLANDS…
Contact Magnavox Customer Care Center at:
1-800-705-2000
TO OBTAIN WARRANTY SERVICE IN CANADA…
1-800-661-6162 (French Speaking)
1-800-705-2000 (English or Spanish Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. MAGNAVOX SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT IS LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. In addition, if you enter into a
service contract agreement with the MAGNAVOX partnership
within ninety (90) days of the date of sale, the limitation on
how long an implied warranty lasts does not apply.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Magnavox, P.O. Box 671539, Marietta, GA. 30006-0026
(Warranty: 4835 710 27900)
69
MRV660_17_Eng40
69
9/3/05, 10:26 AM
3139 246 XXXXX
DVD RECORDER 660
CLASS 1
LASER PRODUCT
3139 246 14762
Printed in China
SgpJP-0511-17-1
70
MRV660_17_Eng40
70
9/3/05, 10:26 AM
3139 246 XXXXX

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
