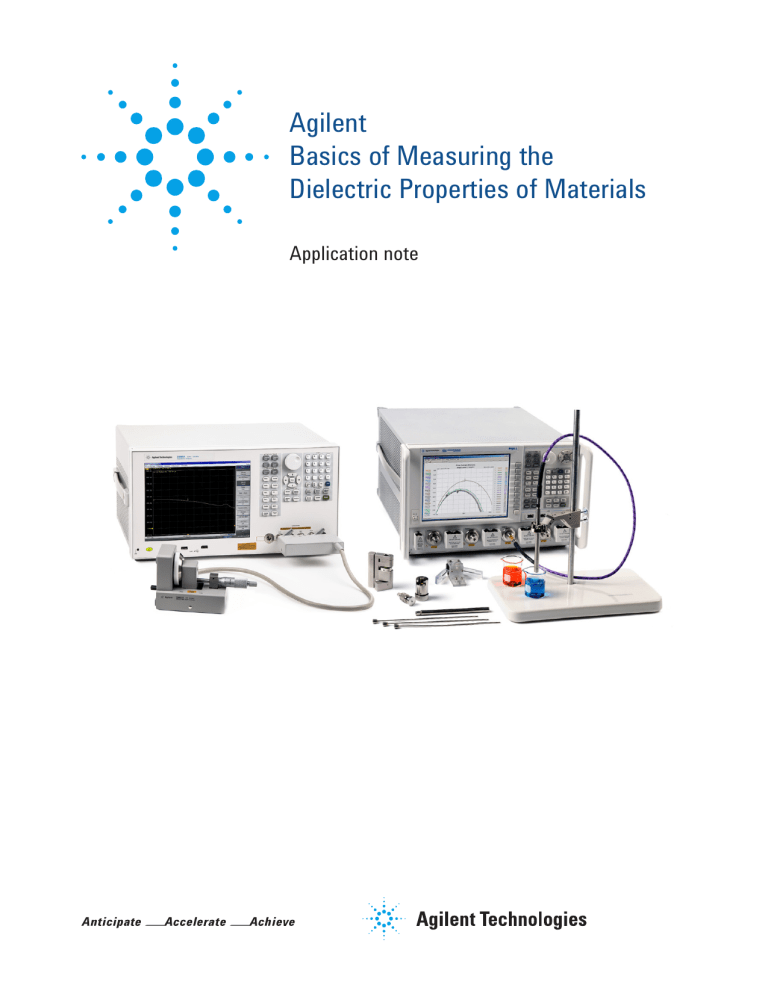

Agilent

Basics of Measuring the

Dielectric Properties of Materials

Application note

Contents

Introduction ..................................................................................................................3

Dielectric theory .........................................................................................................4

Dielectric constant................................................................................................4

Permeability ...........................................................................................................7

Electromagnetic propagation ....................................................................................8

Dielectric mechanisms ...........................................................................................10.

Orientation (dipolar) polarization .....................................................................11

Electronic and atomic polarization ..................................................................11

Relaxation time ...................................................................................................12

Debye relation .....................................................................................................12

Cole-Cole diagram ...............................................................................................13

Ionic conductivity ................................................................................................13

Interfacial or space charge polarization ........................................................ 14

Measurement systems ............................................................................................15.

Network analyzers .............................................................................................15.

Impedance analyzers and LCR meters ............................................................16.

Fixtures .................................................................................................................16.

Software ...............................................................................................................16.

Measurement techniques .......................................................................................17

Coaxial probe .......................................................................................................17

Transmission line ................................................................................................20.

Free space ............................................................................................................23

Resonant cavity ..................................................................................................26.

Parallel plate .......................................................................................................29.

Inductance measurement method ...................................................................30.

Comparison of methods ..........................................................................................31

Agilent solutions .......................................................................................................32

References .................................................................................................................33

Web resources ..........................................................................................................34

2

Introduction

A wide variety of industries need a better understanding of the materials they are working with to shorten design cycles, improve incoming inspection, process monitoring, and quality assurance. Every material has a unique set of electrical characteristics that are dependent on its dielectric properties.

Accurate measurements of these properties can provide scientists and engineers with valuable information to properly incorporate the material into its intended application for more solid designs or to monitor a manufacturing process for improved quality control.

A dielectric materials measurement can provide critical design parameter information for many electronics applications. For example, the loss of a cable insulator, the impedance of a substrate, or the frequency of a dielectric resonator can be related to its dielectric properties. The information is also useful for improving ferrite, absorber and packaging designs. More recent applications in the area of aerospace, automotive, food and medical industries have also been found to benefit from knowledge of dielectric properties.

Agilent Technologies Inc. offers a variety of instruments, fixtures, and software to measure the dielectric properties of materials. Agilent measurement instruments, such as network analyzers, impedance analyzers and LCR meters range in frequency up to 1.1THz. Fixtures to hold the material under test (MUT) are available that are based on coaxial probe, parallel plate, coaxial/waveguide transmission lines, free space and resonant cavity methods. The table below shows product examples that can be measured by Agilent’s material test solutions.

Table 1. Materials measurement applications example

Industry Applications/Products

Electronics Capacitor, substrates, PCB, PCB antenna, ferrites, magnetic recording heads, absorbers, SAR phantom materials, sensor

Aerospace/Defense

Industrial materials

Stealth, RAM (Radiation Absorbing Materials), radomes

Ceramics and composites: IC package, aerospace and automotive components, cement, coatings, bio-implants

Polymers and plastics: fibers, substrates, films, insulation materials

Hydrogel: disposable diaper, soft contact lens

Food & Agriculture

Liquid crystal: displays

Rubber, semiconductors and superconductors

Other products containing these materials: tires, paint, adhesives, etc.

Food preservation (spoilage) research, food development for microwave, packaging, moisture measurements

Forestry & Mining Moisture measurements in wood or paper, oil content analysis

Pharmaceutical & Medical Drug research and manufacturing, bio-implants, human tissue characterization, biomass, chemical concentration, fermentation

3

Dielectric Theory

The dielectric properties that will be discussed here are permittivity and permeability. Resistivity is another material property which will not be discussed here. Information about resistivity and its measurement can be found in the Agilent Application Note 136.9.-1 and permeability are not constant. They can change with frequency, temperature, orientation, mixture, pressure, and molecular structure of the material.

1

. It is important to note that permittivity

Dielectric constant

A material is classified as “dielectric” if it has the ability to store energy when an external electric field is applied. If a DC voltage source is placed across a parallel plate capacitor, more charge is stored when a dielectric material is between the plates than if no material (a vacuum) is between the plates. The dielectric material increases the storage capacity of the capacitor by neutralizing charges at the electrodes, which ordinarily would contribute to the external field. The capacitance with the dielectric material is related to dielectric constant. If a DC voltage source v is placed across a parallel plate capacitor (Figure 1), more charge is stored when a dielectric material is between the plates than if no material (a vacuum) is between the plates.

C

0.

=

=

A t

κ

κ ε

r

'

=

C

C

0.

V t

+

-

+

-

-

+

-

+

A

-

+

+

-

-

+

+

+

-

Figure 1. Parallel plate capacitor, DC case

Where C and C

0.

are capacitance with and without dielectric, k

’ = e

’ r

is the real dielectric constant or permittivity, and A and t are the area of the capacitor plates and the distance between them (Figure 1). The dielectric material increases the storage capacity of the capacitor by neutralizing charges at the electrodes, which ordinarily would contribute to the external field. The capacitance of the dielectric material is related to the dielectric constant as indicated in the above equations. If an AC sinusoidal voltage source V is placed across the same capacitor (Figure 2), the resulting current will be made up of a charging current I c

and a loss current I with a capacitor (C).

l

that is related to the dielectric constant.

The losses in the material can be represented as a conductance (G) in parallel

4

ω

0.

κ

κ

ω = 2 f

+

I

V t

-

+

+

-

A

+

-

+ -

+

+

+

-

Figure 2. Parallel plate capacitor, AC case

C G

The complex dielectric constant k consists of a real part the storage and an imaginary part k k

’ which represents

’’ which represents the loss. The following notations are used for the complex dielectric constant interchangeably k

= k

* = e r

= e

* r

.

From the point of view of electromagnetic theory, the definition of electric displacement (electric flux density) D f

is:

D f

= ε

E

where e e r

= e

*

= e

0.

e r is the absolute permittivity (or permittivity), and E is the electric field.

ε ≈

36.

1

Π

×

10.

− 9.

Permittivity describes the interaction of a material with an electric field E and is a complex quantity.

κ

=

ε

ε

0.

=

ε

r

ε

j

ε

r

''

Dielectric constant (k) is equivalent to relative permittivity (e permittivity (e) relative to the permittivity of free space (e mittivity (e r

0.

r

) or the absolute

). The real part of per-

’) is a measure of how much energy from an external electric field is stored in a material. The imaginary part of permittivity (e electric field. The imaginary part of permittivity (e r

’’) is called the loss factor and is a measure of how dissipative or lossy a material is to an external and is usually much smaller than (e r r

”) is always greater than zero both dielectric loss and conductivity.

’). The loss factor includes the effects of

5.

When complex permittivity is drawn as a simple vector diagram (Figure 3), the real and imaginary components are 9.0.° out of phase. The vector sum forms an angle d with the real axis (e r

’). The relative “lossiness” of a material is the ratio of the energy lost to the energy stored.

=

ε

ε

r

''

r

1

Q

Energy lost per cycle

Energy stored per cycle

Figure 3. Loss tangent vector diagram

The loss tangent or tan d is defined as the ratio of the imaginary part of the dielectric constant to the real part. D denotes dissipation factor and Q is quality factor. The loss tangent tan d is called tan delta, tangent loss or dissipation factor. Sometimes the term “quality factor or Q-factor” is used with respect to an electronic microwave material, which is the reciprocal of the loss tangent.

For very low loss materials, since tan d ≈ d, the loss tangent can be expressed in angle units, milliradians or microradians.

6.

Permeability

Permeability (µ) describes the interaction of a material with a magnetic field. A similar analysis can be performed for permeability using an inductor with resistance to represent core losses in a magnetic material (Figure 4). If a DC current source is placed across an inductor, the inductance with the core material can be related to permeability.

µ

µ

'

=

L

L

0.

R

L

Figure 4. Inductor

In the equations L is the inductance with the material, L

0.

is free space inductance of the coil and µ’ is the real permeability. If an AC sinusoidal current source is placed across the same inductor, the resulting voltage will be made up of an induced voltage and a loss voltage that is related to permeability.

The core loss can be represented by a resistance (R) in series with an inductor

(L). The complex permeability (µ* or µ) consists of a real part (µ’) that represents the energy storage term and an imaginary part (µ’’) that represents the energy loss term. Relative permittivity µr is the permittivity relative to free space:

µ

r

=

µ

µ

0.

=

µ

r

j

µ

r

''

µ

0.

=

π

Some materials such as iron (ferrites), cobalt, nickel, and their alloys have appreciable magnetic properties; however, many materials are nonmagnetic, making the permeability very close to the permeability of free space (µr = 1). All materials, on the other hand, have dielectric properties, so the focus of this discussion will mostly be on permittivity measurements.

7

Electromagnetic Wave Propagation

In the time-varying case (i.e., a sinusoid), electric fields and magnetic fields appear together. This electromagnetic wave can propagate through free space

(at the speed of light, c = 3 x 10.

8

m/s) or through materials at slower speed.

Electromagnetic waves of various wavelengths exist. The wavelength l of a signal is inversely proportional to its frequency f (λ = c/f), such that as the frequency increases, the wavelength decreases. For example, in free space a

10. MHz signal has a wavelength of 30. m, while at 10. GHz it is just 3 cm. Many aspects of wave propagation are dependent on the permittivity and permeability of a material. Let’s use the “optical view” of dielectric behavior. Consider a flat slab of material (MUT) in space, with a TEM wave incident on its surface

(Figure 5.). There will be incident, reflected and transmitted waves. Since the impedance of the wave in the material Z is different (lower) from the free space impedance η (or Z

0.

) there will be impedance mismatch and this will create the reflected wave. Part of the energy will penetrate the sample. Once in the slab, the wave velocity v, is slower than the speed of light c. The wavelength λ shorter than the wavelength λ

0.

d

is

in free space according to the equations below.

Since the material will always have some loss, there will be attenuation or insertion loss. For simplicity the mismatch on the second border is not considered.

h or Z

0

Z = h e r

'

Z

=

η

ε

r

'

η

=

Z

0.

=

µ

0.

ε

0.

=

120.

π

λ

d

=

λ

0.

ε

r

'

v = c

ε

r

'

TEM

Air e

0

'

MUT e r

'

Impedance lower

Wavelength shorter

Velocity slower

Magnitude attenuated

Figure 5. Reflected and transmitted signals

8

Figure 6. depicts the relation between the dielectric constant of the Material Under Test

(MUT) and the reflection coefficient |G| for an infinitely long sample (no reflection from the back of the sample is considered). For small values of the dielectric constant

(approximately less than 20.), there is a lot of change of the reflection coefficient for a small change of the dielectric constant. In this range dielectric constant measurement using the reflection coefficient will be more sensitive and hence precise. Conversely, for high dielectric constants (for example between 70. and 9.0.) there will be little change of the reflection coefficient and the measurement will have more uncertainty.

1

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

10 20 30 40 50 60

Dielectric constant

70 r

'

Figure 6. Reflection coefficient versus dielectric constant

80 90 100

9.

Dielectric Mechanisms

A material may have several dielectric mechanisms or polarization effects that contribute to its overall permittivity (Figure 7). A dielectric material has an arrangement of electric charge carriers that can be displaced by an electric field. The charges become polarized to compensate for the electric field such that the positive and negative charges move in opposite directions.

At the microscopic level, several dielectric mechanisms can contribute to dielectric behavior. Dipole orientation and ionic conduction interact strongly at microwave frequencies. Water molecules, for example, are permanent dipoles, which rotate to follow an alternating electric field. These mechanisms are quite lossy – which explains why food heats in a microwave oven. Atomic and electronic mechanisms are relatively weak, and usually constant over the microwave region. Each dielectric mechanism has a characteristic “cutoff frequency.”

As frequency increases, the slow mechanisms drop out in turn, leaving the faster ones to contribute to e’. The loss factor (e r

’’) will correspondingly peak at each critical frequency. The magnitude and “cutoff frequency” of each mechanism is unique for different materials. Water has a strong dipolar effect at low frequencies – but its dielectric constant rolls off dramatically around 22 GHz.

PTFE, on the other hand, has no dipolar mechanisms and its permittivity is remarkably constant well into the millimeter-wave region.

A resonant effect is usually associated with electronic or atomic polarization. A relaxation effect is usually associated with orientation polarization.

r

'

Dipolar

(Rotational)

+

-

Ionic

+

-

Atomic r

''

10

3

10

6

10

9

MW

10

12

IR

Figure 7. Frequency response of dielectric mechanisms

+

-

Electronic

10

V

15

UV f, Hz

10.

Orientation (dipolar) polarization

A molecule is formed when atoms combine to share one or more of theirs electrons. This rearrangement of electrons may cause an imbalance in charge distribution creating a permanent dipole moment. These moments are oriented in a random manner in the absence of an electric field so that no polarization exists. The electric field E will exercise torque T on the electric dipole, and the dipole will rotate to align with the electric field causing orientation polarization to occur (Figure 8). If the field changes the direction, the torque will also change.

T

E

F

F

+

Figure 8. Dipole rotation in electric field

The friction accompanying the orientation of the dipole will contribute to the dielectric losses. The dipole rotation causes a variation in both e r

’ and e the relaxation frequency which usually occurs in the microwave region. As mentioned, water is an example of a substance that exhibits a strong orientation polarization.

r

’’ at

Electronic and atomic polarization

Electronic polarization occurs in neutral atoms when an electric field displaces the nucleus with respect to the electrons that surround it. Atomic polarization occurs when adjacent positive and negative ions “stretch” under an applied electric field. For many dry solids, these are the dominant polarization mechanisms at microwave frequencies, although the actual resonance occurs at a much higher frequency. In the infrared and visible light regions the inertia of the orbiting electrons must be taken into account. Atoms can be modeled as oscillators with a damping effect similar to a mechanical spring and mass system (Figure 7). The amplitude of the oscillations will be small for any frequency other than the resonant frequency. Far below resonance, the electronic and atomic mechanisms contribute only a small constant amount to e r

’ and are almost lossless. The resonant frequency is identified by a resonant response in e r

’ and a peak of maximum absorption in e the contribution from these mechanisms disappears.

r

’’. Above the resonance,

11

Relaxation time

Relaxation time t is a measure of the mobility of the molecules (dipoles) that exist in a material. It is the time required for a displaced system aligned in an electric field to return to 1/e of its random equilibrium value (or the time required for dipoles to become oriented in an electric field). Liquid and solid materials have molecules that are in a condensed state with limited freedom to move when an electric field is applied. Constant collisions cause internal friction so that the molecules turn slowly and exponentially approach the final state of orientation polarization with relaxation time constant t. When the field is switched off, the sequence is reversed and random distribution is restored with the same time constant. The relaxation frequency f c

is inversely related to relaxation time:

τ

=

ω

1

c

=

2 π

1

f c

At frequencies below relaxation the alternating electric field is slow enough that the dipoles are able to keep pace with the field variations. Because the polarization is able to develop fully, the loss (e

9.). As the frequency increases, e r r

’’) is directly proportional to the frequency (Figure

’’ continues to increase but the storage (e begins to decrease due to the phase lag between the dipole alignment and the electric field. Above the relaxation frequency both e r

’’ and e r r

’)

’ drop off as the electric field is too fast to influence the dipole rotation and the orientation polarization disappears.

r

'

,

r

''

For

For

ω

ω

=

ε

=

= ∞ ∞ =

ε

ε

s

=

+

ε

1

s

+

ε

j

ωτ

60

40

' r

20

0.1

Figure 9. Debye relaxation of water at 30º C

1 10 r

"

100 f, GHz

Debye relation

Materials that exhibit a single relaxation time constant can be modeled by the

Debye relation, which appears as a characteristic response in permittivity as a function of frequency (Figure 9.). e r

’ is constant above and below the relaxation with the transition occurring near the relaxation frequency (22 GHz). Additionally, e small above and below relaxation and peaks in the transition region at the relaxation frequency.

r

’’ is

In calculating the above curves the static (DC) value of the dielectric constant is e s

= 76..47, the optical (infinite frequency) value of the dielectric constant is e and the relaxation time t = 7.2 ps.

= 4.9.

12

Cole-Cole diagram

The complex permittivity may also be shown on a Cole-Cole diagram by plotting the imaginary part (e r

’’) on the vertical axis and the real part (e r

’) on the horizontal axis with frequency as the independent parameter (Figure 10.). A

Cole-Cole diagram is, to some extent, similar to the Smith chart. A material that has a single relaxation frequency as exhibited by the Debye relation will appear as a semicircle with its center lying on the horizontal e r

’’ = 0. axis and the peak of the loss factor occurring at 1/τ. A material with multiple relaxation frequencies will be a semicircle (symmetric distribution) or an arc

(nonsymmetrical distribution) with its center lying below the horizontal e r axis.

’’= 0.

ε

s

2

ε

∞ will be equal to the radius. The frequency moves counter clockwise on the curve.

rmax

"r

30

20 r

" max

= s

-

2

= 35 .

8

Increasing f (GHz)

10

0 10

= 4 .

9

20

Center

30 40

Figure 10. Cole-Cole diagram of Figure 9

50 60 e

70 s

= 76 .

47

'r

Ionic conductivity

The measured loss of material can actually be expressed as a function of both dielectric loss (e rd

’’) and conductivity (s).

ε

r

''

=

ε ''

rd

+

σ

ωε

0.

At low frequencies, the overall conductivity can be made up of many different conduction mechanisms, but ionic conductivity is the most prevalent in moist materials. e r

’’ is dominated by the influence of electrolytic conduction caused by free ions which exist in the presence of a solvent (usually water). Ionic conductivity only introduces losses into a material. At low frequencies the effect of ionic conductivity is inversely proportional to frequency and appears as a 1/f slope of the e r

’’ curve.

13

Interfacial or space charge polarization

Electronic, atomic, and orientation polarization occur when charges are locally bound in atoms, molecules, or structures of solids or liquids. Charge carriers also exist that can migrate over a distance through the material when a low frequency electric field is applied. Interfacial or space charge polarization occurs when the motion of these migrating charges is impeded. The charges can become trapped within the interfaces of a material. Motion may also be impeded when charges cannot be freely discharged or replaced at the electrodes. The field distortion caused by the accumulation of these charges increases the overall capacitance of a material which appears as an increase in e r

’.

Mixtures of materials with electrically conducting regions that are not in contact with each other (separated by non-conducting regions) exhibit the

Maxwell-Wagner effect at low frequencies. If the charge layers are thin and much smaller than the particle dimensions, the charge responds independently of the charge on nearby particles. At low frequencies the charges have time to accumulate at the borders of the conducting regions causing e r

’ to increase. At higher frequencies the charges do not have time to accumulate and polarization does not occur since the charge displacement is small compared to the dimensions of the conducting region. As the frequency increases, e r

’ decreases and the losses exhibit the same 1/f slope as normal ionic conductivity.

Many other dielectric mechanisms can occur in this low frequency region causing a significant variation in permittivity. For example, colloidal suspension occurs if the charge layer is on the same order of thickness or larger than the particle dimensions. The Maxwell-Wagner effect is no longer applicable since the response is now affected by the charge distribution of adjacent particles.

14

Measurement System

Network Analyzers

A measurement of the reflection from and/or transmission through a material along with knowledge of its physical dimensions provides the information to characterize the permittivity and permeability of the material. Vector network analyzers such as the PNA family, ENA series and FieldFox make swept high frequency stimulusresponse measurements from 9. kHz to 1.1 THz. (Figure 12). A vector network analyzer consists of a signal source, a receiver and a display (Figure 11). The source launches a signal at a single frequency to the material under test. The receiver is tuned to that frequency to detect the reflected and transmitted signals from the material. The measured response produces the magnitude and phase data at that frequency. The source is then stepped to the next frequency and the measurement is repeated to display the reflection and transmission measurement response as a function of frequency. More information on the network analyzer functioning and architecture is available in the application notes 1287-1

2

and 1287-2

3

.

Simple components and connecting wires that perform well at low frequencies behave differently at high frequencies. At microwave frequencies wavelengths become small compared to the physical dimensions of the devices such that two closely spaced points can have a significant phase difference. Low frequency lumped-circuit element techniques must be replaced by transmission line theory to analyze the behavior of devices at higher frequencies. Additional high frequency effects such as radiation loss, dielectric loss and capacitive coupling make microwave circuits more complex and expensive. It is time consuming and costly to try to design a perfect microwave network analyzer.

Incident

Fixture

MUT

Transmitted

Source

Reflected

Reflected

(A)

Signal separation

Transmitted

(B)

Receiver/detector

Processor/display

Figure 11. Network analyzer

Instead, a measurement calibration is used to eliminate the systematic (stable and repeatable) measurement errors caused by the imperfections of the system.

Random errors due to noise, drift, or the environment (temperature, humidity, pressure) cannot be removed with a measurement calibration. This makes a microwave measurement susceptible to errors from small changes in the measurement system. These errors can be minimized by adopting good measurement practices, such as visually inspecting all connectors for dirt or damage and by minimizing any physical movement of the test port cables after a calibration. More information on the network analyzer calibration is available in the

Application Note 1287-3

4

.

15.

Impedance analyzers and LCR meters

Impedance analyzers and LCR meters such as the ones listed in Figure 12 are used to measure the material properties at lower frequencies. The material is stimulated with an AC source and the actual voltage across the material is monitored. Material test parameters are derived by knowing the dimensions of the material and by measuring its capacitance and dissipation factor.

DC

10

1

PNA family

Network analyzers

ENA series

E4990A

E4980A , 4285A

FieldFox Handheld VNA

E4991B

Impedance/Material

Analyzer

Impedance Analyzer

LCR meters

10

2

10

3

10 4 10 5 10 6 10 7 10 8 10 9 10 10 10 11

Figure 12. Frequency coverage of Agilent Technologies instruments used for dielectric measurements

Fixtures

Before the dielectric properties of a material can be measured with network analyzer, impedance analyzer, or LCR meter, a measurement fixture (or sample holder) is required to apply the electromagnetic fields in a predictable way and to allow connection to the measurement instrument. The type of fixture required will depend on the chosen measurement technique and the physical properties of the material (solid, liquid, powder, gas).

Software

The measured data from the instrument is not always presented in the most convenient terminology or format. In this case, software is required to convert the measured data to permittivity or permeability. Software may also be required to model any interaction between the fixture and MUT to allow the extraction of the bulk material properties.

16.

Measurement Techniques

Coaxial probe

Method features

• Broadband

• Simple and convenient (non-destructive)

• Limited er accuracy and tan d low loss resolution

• Best for liquids or semi-solids

Material assumptions

• “Semi-infinite” thickness

• Non-magnetic

• Isotropic and homogeneous

• Flat surface

• No air gaps

The open-ended coaxial probe is a cut off section of transmission line. The material is measured by immersing the probe into a liquid or touching it to the flat face of a solid (or powder) material. The fields at the probe end “fringe” into the material and change as they come into contact with the MUT

(Figure 13). The reflected signal

5.

(S

11

) can be measured and related to e r

*.

A typical measurement system using a coaxial probe method consists of a network or impedance analyzer, a coaxial probe and software. Both the software and the probe are included in the 85.0.70.E dielectric probe kit. An external computer is needed in many cases to control the network analyzer through GP-IB. The 8235.7A USB to GPIB interface provides a convenient and flexible way to realize this connection. For the PNA family and the ENA series of network analyzers, the software can be installed directly in the analyzer and there is no need for an external computer.

Solids

Semisolids (powder)

Liquids

Reflection

S

11

Figure 13. Coaxial probe method

17 r

(a)

Figure 14 shows the three probes that are available in the 85.0.70.E kit; the high temperature probe (a), the slim form probe (b), and the performance probe (c).

The high temperature probe (a) is shown with the shorting block to the right.

Three slim probes are shown at the bottom of (b) with the short on the top and a couple of other accessories. The performance probe (c) is shown with the shorting block to the top.

(b)

Short

(c)

Short

Flange

Aperture

High temperature probe

Short

Performance Probe

Slim probes

Figure 14. Three dielectric probe configurations

Rugged in design, the high temperature probe (a) features a hermetic glass-tometal seal, which makes it resistant to corrosive or abrasive chemicals. The probe withstands a wide –40. to +20.0. °C temperature range, which allows measurements versus frequency and temperature. The large flange allows measurements of flat surfaced solid materials, in addition to liquids and semisolids. The slim form probe (b) features a slim design, which allows it to fit easily in fermentation tanks, chemical reaction chambers, or other equipment with small apertures. The slim design also allows it to be used with smaller sample sizes. This probe is best used for liquids and soft semi-solids. For castable solids, the probe is economical enough to be cast into the material and left in place. Because of the consumable nature of this design, these probes are offered in sets of three. The slim form probe kit comes with a sealed slim form holder that adapts a 2.2 mm outer diameter to 10. mm inner diameter bracket included in the kit as well as commercially available “Midi” sized adapters and bushings. The performance probe (c) combines rugged, high temperature and frequency performance in a slim design, perfect for your most demanding applications. The probe is sealed on both the probe tip and the connector end, which makes it our most rugged probe. The probe withstands a wide –40. ºC to +20.0. ºC temperature range, which allows measurements versus frequency and temperature. The probe can be autoclaved, so it is perfect for applications in the food, medical, and chemical industries where sterilization is a must. The slim design allows it to fit easily in fermentation tanks, chemical reaction chambers, or other equipment with small apertures. The small diameter also allows it to be used with the smallest sample sizes of all

Agilent’s probes. It is useful for measuring liquid, semi-solid, as well as flat surfaced solid materials. Additional detailed information is available in the

Dielectric Probe Technical Overview

6.

and Software Online Help

7

.

18

The dielectric probes are compatible with the Agilent network analyzers and the E49.9.1B impedance analyzer. With the impedance analyzer the high temperature probe is specified from 10. MHz.

Before measuring, calibration at the tip of the probe must be performed. A three-term calibration corrects for the directivity, tracking, and source match errors that can be present in a reflection measurement. In order to solve for these three error terms, three well-known standards are measured. The difference between the predicted and actual values is used to remove the systematic (repeatable) errors from the measurement. The three known standards are air, a short circuit, and distillate and de-ionized water. Even after calibrating the probe, there are additional sources of error that can affect the accuracy of a measurement. There are three main sources of errors:

• Cable stability

• Air Gaps

• Sample thickness

It is important to allow enough time for the cable (that connects the probe to the network analyzer) to stabilize before making a measurement and to be sure that the cable is not flexed between calibration and measurement. The automated Electronic Calibration Refresh feature recalibrates the system automatically, in seconds, just before each measurement is made. This virtually eliminates cable instability and system drift errors.

For solid materials, an air gap between the probe and sample can be a significant source of error unless the sample face is machined to be at least as flat as the probe face. For liquid samples air bubbles on the tip of the probe can act in the same way as an air gap on a solid sample.

The sample must also be thick enough to appear “infinite” to the probe. There is a simple equation

6.

to calculate the approximate thickness of the sample for the high temperature probe sample and suggested thickness for the slim probe sample. A simple practical approach is to put a short behind the sample and check to see if it affects the measurement results.

Figure 15. shows a comparison of measurements of dielectric constant and loss factor of methanol at room temperature (25. °C) using the high temperature probe, with theoretical calculations using the Cole-Cole model. The following parameters are used in the Cole-Cole calculations:

ε

s

=

19.

(a)

20

10 r

'

30

0.1

Theory

1 r

"

Measurement

10

5

Theory

Measurement

10 f, GHz

0.1

1 10 f, GHz

(b)

Figure 15. Measured dielectric constant (a) and loss factor (b) of methanol at 25 ºC compared with Cole-Cole model

A disadvantage of the dielectric probe method is the limited accuracy, under some conditions, when compared to other methods like the transmission line method using the 85.0.71E and resonator method.

Transmission line

Transmission line methods involve placing the material inside a portion of an enclosed transmission line. The line is usually a section of rectangular waveguide or coaxial airline (Figure 16.). er* and µr* are computed from the measurement of the reflected signal (S

11

) and transmitted signal (S

21

).

Material assumptions

• Sample fills fixture cross section

• No air gaps at fixture walls

• Smooth, flat faces, perpendicular to long axis

• Homogeneous

Method features

• Broadband – low end limited by practical sample length

• Limited low loss resolution (depends on sample length)

• Measures magnetic materials

• Anisotropic materials can be measured in waveguide

20.

Waveguide l

Reflection

(S )

Coax

S

11

S

21

Figure 16. Transmission line method; waveguide and coaxial line case

Transmission

µ r r

Coaxial transmission lines cover a broad frequency range, but a toroid shaped sample is more difficult to manufacture (Figure 17(a)). Waveguide fixtures extend to the mm-wave frequencies and the samples are simpler to machine, but their frequency coverage is banded (Figure 17(b)). A typical measurement system using a transmission line technique consists of a vector network analyzer, a coaxial airline or waveguide section, software such as the 85.0.71E to perform the conversion to er* and μr*. An external computer can be used to control the network analyzer, interfacing over LAN, USB or through GP-IB. The

8235.7B USB to GPIB interface provides a convenient and flexible way to realize this connection. For the PNA family and the ENA series of network analyzers, the software can be installed directly in the analyzer and there is no need for an external computer. Additional information about the 85.0.71E Materials

Measurement software can be found in the Technical Overview

8

and Software

Online Help

9.

.

(a) (b)

Figure 17. Coaxial 7 mm air line with samples (a) and X-band waveguide straight section with samples (b)

The 5.0. Ohm airline from Agilent verification kits (Figure 17(a)) is the recommended coaxial sample holder. Every waveguide calibration kit in the

116.44A family contains a precision waveguide section (Figure 17(b)), recommended for a waveguide sample holder.

21

2.56

(a)

2.54

r

'

2.58

Figure 18 shows measurement results of permittivity (a) and loss tangent (b) of two Plexiglas samples with lengths of 25. mm and 31 mm respectively, in an

X-band waveguide. The sample holder is the precise waveguide section of 140. mm length that is provided with the X116.44A calibration kit (Figure 17(b)). The network analyzer is a PNA, the calibration type is TRL and the precision NIST algorithm

9.

is used for calculation. In both graphs below there are two pairs of traces for two different measurements of the same samples. The top two measurements of each graph are performed for the case when the sample holder is not calibrated out.

9 tan

25 mm

25 mm

31 mm

25 mm

31 mm

10

0.005

31 mm calibrated out sample holder

11 12 f, GHz

0.004

0.003

9

25 mm

31 mm

10 11 calibrated out sample holder

12 f, GHz

(b)

Figure 18. Measurement of two Plexiglas samples, 25 mm and 31 mm long in a X-band waveguide

In this case based on the sample length and sample holder length, the 85.0.71E software will rotate the calibration plane correctly to the sample face, but will not compensate for the losses of the waveguide. The bottom two measurements of the same samples are performed for the case when the sample holder is part of the calibration and the waveguide losses and electrical length are calibrated out. As expected, the loss tangent curves (b) show lower values when the sample holder is calibrated out and they are more constant with respect to frequency. This is due to the fact that the waveguide losses are no longer added to the sample’s losses. With the PNA network analyzer, besides calibrating out the sample holder, it is possible to perform fixture de-embedding, which will lead to the same results. This approach requires measuring the empty sample holder after the calibration.

22

Free space

Material assumptions

• Large, flat, parallel-faced samples

• Homogeneous

Method features

• Non-contacting, non-destructive

• High frequency – low end limited by practical sample size

• Useful for high temperature

• Antenna polarization may be varied for anisotropic materials

• Measures magnetic materials

Free-space methods use antennas to focus microwave energy at or through a slab or sheet of material (Figure 19.). This method is non-contacting and can be applied to materials to be tested under high temperatures and hostile environments. Figure 19. shows two typical freespace measurement setups: an

S-parameter configuration (upper) and the NRL arch (lower). A typical measurement system using a free-space method consists of a vector network analyzer, a free space fixture (antennas, tunnels, arches, etc.), and 85.0.71E software. An external computer can be used to control the network analyzer, interfacing over LAN, USB or through GP-IB. The 8235.7B USB to GPIB interface provides a convenient and flexible way to realize this connection. For the PNA family and the ENA series of network analyzers, the software can be installed directly in the analyzer and there is no need for an external computer.

Material Sample

To Port 1 of network analyzer

To Port 2 of network analyzer

To Port 1 of network analyzer

To Port 2 of network analyzer

Figure 19. Free space measurement setups

23

High temperature measurements are easy to perform in free space since the sample is never touched or contacted (Figure 20.). The sample can be heated by placing it within a furnace that has “windows” of insulation material that are transparent to microwaves. Agilent Technologies does not provide the furnace needed for such a type of measurement. Figure 20. illustrates the basic set up.

Heating panels

Furnace

Thermal insulation

Sample

Figure 20. High temperature measurement in free space

Thermocouple

Calibrating the network analyzer for a free space measurement is challenging.

Free space calibration standards present special problems since they are

“connector-less”. A calibration can be as simple as a response calibration or as complex as a full two-port calibration depending on the convenience and accuracy desired.

The 85.0.71E software offers an optional free space calibration method called

GRL (Gated match, Reflect, Line). This calibration routine increases the ease of use and reduces the costs associated with some other calibration methods, such as TRM (Thru, Reflect, Match) and TRL (Thru, Reflect, Line). Use of this option requires a network analyzer with the time domain option, an appropriate free space fixture, and a metal calibration plate. This option also includes a gated isolation/response calibration, which reduces errors from diffraction effects at the sample edges and multiple residual reflections between the antennas. The 85.0.71E software automatically sets up all the free space calibration definitions and network analyzer parameters, saving engineering time. A guided calibration wizard steps the user through the easy calibration process.

24

2.6

r

'

2.5

2.4

45 50 55 f, GHz

Figure 21. Measurement of Rexolite sample in a U-band (40 – 60 GHz)

Figure 21 depicts the result of a GRL calibration measuring Rexolite material in

U-band (40.-6.0. GHz) with a PNA network analyzer and 85.0.71E software. The fixture was made with standard gain horns and a readily available, domestic use, shelving unit to demonstrate that when doing a GRL calibration, even with the simplest set up, it is still possible to perform reasonable measurements. For precise measurements, more rigid fixtures with focused horns are recommended.

Figure 22. 330-500 GHz Thomas Keating Ltd. Quasi-Optical Table with Gaussian beam horns, focusing mirrors and sample holder.

At mm-wave and submm-wave frequencies, Quasi-Optical Tables are ideal. They can be purchased from Thomas Keating Ltd, or through Agilent Special Handling

Engineering. Agilent model numbers:

6.0.-9.0. GHz 85.0.71E E0.2

75.-110. GHz 85.0.71E E0.1

9.0.-140. GHz 85.0.71E E22

140.-220. GHz 85.0.71E E23

220.-325. GHz 85.0.71E E18

325.-5.0.0. GHz 85.0.71E E24

Additional frequencies, as well as tables covering multiple frequency bands may be available on request.

25.

Resonant Cavity

Resonant versus broadband techniques

Resonant techniques

• High impedance environment

• Reasonable measurements possible with small samples

• Measurements at only one or a few frequencies

• Well suited for low loss materials

Broadband techniques

• Low impedance environment

• Requires larger samples to obtain reasonable measurements

• Measurement at “any” frequency

Resonant cavities are high Q structures that resonate at specific frequencies.

A piece of sample material inserted into the cavity affects the resonant frequency (f) and quality factor (Q) of the cavity. From these parameters, the complex permittivity of the material can be calculated at a single frequency. A typical measurement system consists of a network analyzer, a resonant cavity fixture and software to make the calculations.

There are many different methods and types of fixtures. Agilent 85.0.71E option

20.0. Resonant Cavity Software automates three methods: Split Cylinder method,

Split Post Dielectric Resonator method and ASTM D25.20.

10.

Cavity Perturbation method. An external computer can be used to control the network analyzer, interfacing over LAN, USB or through GP-IB. For the PNA family and the ENA series of network analyzers, the software can be installed directly in the analyzer and there is no need for an external computer. Agilent also offers high

Q resonant cavity fixtures for the Split Cylinder

13

and Split Post

14

methods.

Split cylinder resonator

Figure 23. Agilent 85072A 10 GHz split cylinder resonator

26.

The split cylinder resonator is a cylindrical resonant cavity separated into two halves. The sample is loaded in a gap between the two cylinder halves. One cylinder half is fixed, and the other adjusts allowing the gap to accommodate varying sample thicknesses. The real part of permittivity, e’, and loss tangent or tan delta, tand, are calculated from the sample thickness, cylinder length, and

S-parameter measurements of the split cylinder resonator, both empty and loaded with the sample. Using a mode matching model developed at NIST in

Boulder, Colorado

10. GHz TE

TE

0.np

0.11

modes

14

permittivity and loss tangent can be calculated at the

2

mode. It may also be possible to measure at some higher order

where no interfering modes exist. This method was adopted by the IPC as TM-6.5.0. 2.5..5..13 standard test method.

15.

Split post dielectric resonator

Figure 24. QWED 5 GHz split post dielectric resonator, available from Agilent as 85071E-E04

Split Post Dielectric Resonators from QWED, use low loss dielectric materials which make it possible to build resonators having higher Q-factors and better thermal stability than traditional all-metal cavities. This method is one of the easiest and highest accuracy methods for measuring complex permittivity and loss tangent of low loss and thin sheet materials

16.

. The relatively inexpensive fixtures can be purchased from QWED or through Agilent Special Handling

Engineering in single frequencies from 1 to 22GHz.

Agilent model numbers:

1.1 GHz 85.0.71E E19.

2.5. GHz 85.0.71E E0.3

5. GHz 85.0.71E E0.4

15. GHz 85.0.71E E15.

22 GHz 85.0.71E E0.7

Additional frequencies may be available on request.

27

Cavity perturbation (ASTM D25.20.)

ε

r

' =

+ 1

ε

r

''

=

V

c

4V Q

1

s

Q

1

c

Iris-coupled end plates

Sample

V is the volume index c is for the empty cavity, index s is for the sample loaded f

Q

Figure 25. Resonant cavity measurement

Q

S

Q

0 r or

µ

r f

S f

C f

The ASTM 25.20.

10.

cavity perturbation method uses a rectangular waveguide with iris-coupled end plates, operating in TE10.n mode (Figure 25.). For a dielectric measurement, the sample should be placed in a maximum electric field. Although Agilent Technologies does not provide a ready-made resonator fixture for the cavity perturbation method, it is not difficult to adapt a precision waveguide straight section, such as those available in the116.44A series waveguide calibration Kits. A hole needs to be drilled exactly in the middle of the waveguide length and the two iris-coupled end plates need to be manufactured. The dimension of the iris hole is b/2.2, where b is the narrow dimension of the waveguide cross section. If the sample is inserted through a hole in the middle of the waveguide length, then an odd number of half wavelengths will bring the maximum electric field to the sample location, so that the dielectric properties of the sample can be measured. (An even number of half wavelengths will bring the maximum magnetic field to the sample location so that magnetic properties of the sample can also be measured.)

The cavity perturbation method requires a very small sample such that the fields in the cavity are only slightly disturbed to shift the measured resonant frequency and cavity Q. This assumption allows simplifying the theory to use the equations above to calculate the dielectric properties of the material.

28

Parallel plate

The parallel plate method, also called the three terminal method in ASTM standard D15.0.

12

, involves sandwiching a thin sheet of material or liquid between two electrodes to form a capacitor. The measured capacitance is then used to calculate permittivity. In an actual test setup, two electrodes are configured with a test fixture sandwiching dielectric material. The impedancemeasuring instrument would measure vector components of capacitance (C) and dissipation (D) and a software program would calculate permittivity and loss tangent. The method works best for accurate, low frequency measurements of thin sheets or liquids. A typical measurement system using the parallel plate method consists of an impedance analyzer or LCR meter and a fixture such as the 16.45.1B and 16.45.3A dielectric test fixture, which operates up to 1 GHz. The 16.45.2A test fixture is offered for measuring liquids. More information about the parallel plate method and other Agilent Technologies low frequency materials measurement solutions are available in Application Note

136.9.-1 (P/N 5.9.80.-286.2EN)

1

and 380.-1

11

.

Electrodes (Area=A)

Solid

Thickness = t

Figure 26. Parallel plate method

Liquid

Cp

Equivalent Circuit

G

Y = G + j C p

= j C

0



C

C p

− j

0

Co : Air Capacitance

G

C

0

 r

* =

C

C p

0

− j

G

C

0

r r

′′

=

= t

A

C

p

R

0 p

t

A

0

Figure 27. Agilent 16451B and 16453A dielectric test fixture with impedance analyzer

29.

Inductance measurement method

Relative permeability of magnetic material derived from the self-inductance of a cored inductor that has a closed loop (such as the toroidal core) is often called effective permeability. The conventional method of measuring effective permeability is to wind some wire around the core and evaluate the inductance with respect to the ends of the wire. This type of measurement is usually performed with an impedance analyzer. Effective permeability is derived from the inductance measurement result. The Agilent 16.45.4A magnetic material test fixture provides an ideal structure for single-turn inductor, with no flux leakage when a toroidal core is inserted in it. More information about the inductance measurement method is available in the Application Note 136.9.-1 (P/N 5.9.80.-

286.2EN)

1

.

16454A h b c

No magnetic flux leakage where, relative permeability measured inductance with MUT measured inductance without MUT permeability of free space height of MUT (Material Under Test) outer diameter of MUT inner diameter of MUT

Figure 28. Inductance measurement method

30.

Comparison of Methods

Many factors such as accuracy, convenience, and the material shape and form are important in selecting the most appropriate measurement technique. Some of the significant factors to consider are summarized here:

• Frequency range

• Expected values of er and μr

• Required measurement accuracy

• Material properties (i.e., homogeneous, isotropic)

• Form of material (i.e., liquid, powder, solid, sheet)

• Sample size restrictions

• Destructive or nondestructive

• Contacting or non-contacting

• Temperature

• Cost

Figure 29. provides a quick comparison between the measurement methods that have been discussed already.

Coaxial Probe r

Transmission Line r

and µ

r

Free Space r

and µ

r

Resonant Cavity r

Parallel Plate r

Inductance measurement

µ

r

Broadband, convenient, non-destructive

Best for lossy MUTs; liquids and semi-solids

Broadband

Best fpr lossy to low loss MUTs; machineable solids

Broadband; Non-contacting

Best for flats sheets, powders, high temperatures

Single frequency; Accurate

Best for low loss MUTs; small samples

Accurate

Best for low frequencies; thin, flat sheets

Accurate, simple measurement, a toroidal core sturcture is required

Figure 29. Summary of the measurement techniques

31

Agilent solutions

Agilent Technologies offers a wide variety of test fixtures to measure the dielectric properties of materials which covers most material types. Figure 30. shows the coverage of Agilent test fixtures depending on material types and frequency ranges.

Material types

Liquid

Materials measurement software

85071E

Gel

16452A

Liquid test fixture

85070E Dielectric probe

Semi-solids

(Powder)

Solid

Substrate

Toroidal core

DC

16451B

16453A

85072A

10 GHz split cylinder resonator

Dielectric test fixture

16454A

1 kHz 1 MHz

85071E -Exx

Split post dielectric resonators (SPDR)

Magnetic material test fixture

1 GHz 10 GHz 20 GHz 50 GHz 100 GHz

Frequency

Figure 30. Materials measurement fixtures

Agilent also offers powerful software to help customers automate complex permittivity and permeability measurement analysis. The 85.0.71E materials measurement software streamlines the process of measuring complex permittivity and permeability with an Agilent network analyzer. The easy-to-use software guides the user through setup and measurement, instantly converting

S-parameter network analyzer data into the data format of your choice and displaying the results within seconds. Results can be charted in a variety of formats: e r

’, e r

”, tan δ, μ r

’, μ r

”, tan δ m

and Cole-Cole

A variety of measurement methods and mathematical models are provided to meet most application needs.

A free space calibration option provides Agilent’s exclusive gated reflect line

(GRL) calibration for measuring materials in free space. The arch reflectivity option automates popular NRL arch method for measuring reflections off the surface of a sample. The resonant cavity option offers the highest loss tangent accuracy and resolution.

Figure 31 summarizes Agilent fixtures and compatible measurement instruments.

32

85.0.70.E

Dielectric probe kit ● ● ● ●

85.0.71E Exx Split post dielectric resonators (SPDR) ● ● ●

85.0.72A

16.45.1B

10. GHz split cylinder resonator

Dielectric material test fixture

● ●

16.45.2A

16.45.3A

16.45.4A

Liquid test fixture

Dielectric material test fixture

Magnetic material test fixture

Coaxial probe

Resonant cavity

Resonant cavity

● ● ● Parallel plate

● ●

● ● ● Parallel plate

Parallel plate

Inductance

Figure 31. Agilent Technologies instruments and fixtures

1

1. Refer to "Agilent LCR Meters, Impedance Analyzers and Test Fixtures, Selection guide"

(5952-1430E) and "8507x series supported analyzers" (http://na.tm.agilent.com/materials/docs/

SupportedVNAs.pdf) for more detail

References

1. Application Note 1369-1, Solutions for Measuring Permittivity and Permeability with LCR Meters and

Impedance Analyzers, Agilent Literature Number 5980-2862EN

2. Application note 1287-1, Understanding the Fundamental Principles of Vector Network Analysis, Agilent literature number 5965-7707E

3. Application note 1287-2, Exploring the Architectures of Network Analyzers, Agilent literature number

5965-7708E

4. Application note 1287-3, Applying Error Correction to Network Analyzer Measurements,

Agilent literature number 5965-7709E

5. D. V. Blackham, R. D. Pollard, An Improved Technique for Permittivity Measurements Using a Coaxial Probe,

IEEE Trans. on Instr. Meas., vol. 46, No 5, Oct. 1997, pp. 1093-1099

6. Technical Overview, Agilent 85070E Dielectric Probe Kit, Agilent literature number 5989-0222EN

7. Online Help for 85070 software, http://na.tm.agilent.com/materials/downloads.html

8. Technical Overview, Agilent 85071E Materials Measurement Software,

Agilent literature number 5988-9472EN

9. Online Help for 85071 software, http://na.tm.agilent.com/materials/downloads.html

10. ASTM Test methods for complex permittivity (Dielectric Constant) of solid electrical insulating materials at microwave frequencies and temperatures to 1650°, ASTM Standard D2520, American Society for Testing and Materials

11. Application Note 380-1, Dielectric constant measurement of solid materials using the 16451B dielectric test fixture, Agilent literature number 5950-2390

12. ASTM, “Test methods for A-C loss characteristics and permittivity (dielectric constant) of solid electrical insulating materials,” ASTM Standard D 150, American Society for Testing and Materials

13. Technical Overview, Agilent 85072A 10GHz Split Cylinder Resonator. Agilent literature number 5989-6182EN

14. M.D. Janezic, ‘‘Nondestructive Relative Permittivity and Loss Tangent Measurements using a Split-Cylinder

Resonator,’’ Ph.D. Thesis, University of Colorado at Boulder, 2003.

15. IPC TM-650 2.5.5.13 Relative Permittivity and Loss Tangent Using a Split-Cylinder Resonator

16. Application Note Split Post Dielectric Resonators for Dielectric Measurements of Substrates.

Agilent literature number 5989-5384EN

17. Agilent LCR Meters, Impedance Analyzers and Test Fixtures, Selection guide,

Agilent literature number 5952-1430E

33

Web Resources

Visit our web sites for additional product information and literature.

Materials Test Equipment: www.agilent.com/find/materials

Network Analyzers: www.agilent.com/find/na

Impedance Analyzers & LCR meters: www.agilent.com/find/impedance

Electronic Calibration (ECal) modules: www.agilent.com/find/ecal

myAgilent www.agilent.com/find/myagilent

A personalized view into the information most relevant to you.

Three-Year Warranty www.agilent.com/find/ThreeYearWarranty

Beyond product specification, changing the ownership experience.

Agilent is the only test and measurement company that offers three-year warranty on all instruments, worldwide

www.agilent.com/quality

Agilent Electronic Measurement Group

DEKRA Certified ISO 9.0.0.1:20.0.8

Quality Management System

Agilent Channel Partners www.agilent.com/find/channelpartners

Get the best of both worlds: Agilent’s measurement expertise and product breadth, combined with channel partner convenience.

www.agilent.com

For more information on Agilent

Technologies’ products, applications or services, please contact your local Agilent office. The complete list is available at:

www.agilent.com/find/contactus

Americas

Canada

Brazil

(877) 89.4 4414

(11) 419.7 36.0.0.

Mexico 0.180.0. 5.0.6.4 80.0.

United States (80.0.) 829. 4444

Asia Pacific

Australia

China

Hong Kong

India

Japan

Korea

Malaysia

Singapore

1 80.0. 6.29. 485.

80.0. 810. 0.189.

80.0. 9.38 6.9.3

1 80.0. 112 9.29.

0.120. (421) 345.

0.80. 76.9. 0.80.0.

1 80.0. 888 848

1 80.0. 375. 810.0.

Taiwan 0.80.0. 0.47 86.6.

Other AP Countries (6.5.) 375. 810.0.

Europe & Middle East

Belgium

Denmark

Finland

France

32 (0.) 2 40.4 9.3 40.

45. 45. 80. 12 15.

35.8 (0.) 10. 85.5. 210.0.

0.825. 0.10. 70.0.*

Germany

*0..125. €/minute

49. (0.) 70.31 46.4 6.333

Ireland 189.0. 9.24 20.4

Israel 9.72-3-9.288-5.0.4/5.44

Italy

Netherlands

Spain

Sweden

39. 0.2 9.2 6.0. 8484

31 (0.) 20. 5.47 2111

34 (9.1) 6.31 330.0.

0.20.0.-88 22 5.5.

United Kingdom 44 (0.) 118 9.27 6.20.1

For other unlisted countries:

www.agilent.com/find/contactus

(BP-09-27-13)

Product specifications and descriptions in this document subject to change without notice.

© Agilent Technologies, Inc. 20.13 - 20.14

Published in USA, May 16., 20.14

5.9.89.-25.89.EN

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals
