Philips M100/12 User manual

Philips M100/12 User manual

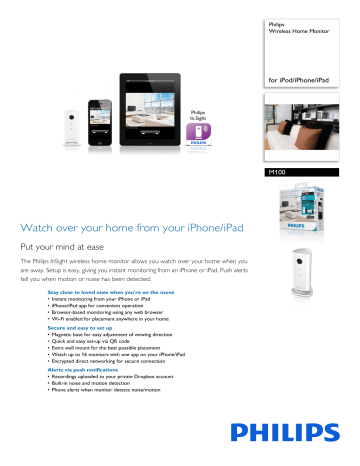

Wireless Home Monitor
for iPod/iPhone/iPad
Watch over your home from your iPhone/iPad
Put your mind at ease
The Philips InSight wireless home monitor allows you watch over your home when you
are away. Setup is easy, giving you instant monitoring from an iPhone or iPad. Push alerts
tell you when motion or noise has been detected.
Stay close to loved ones when you're on the move
• Instant monitoring from your iPhone or iPad
• iPhone/iPad app for convenient operation
• Browser-based monitoring using any web browser
• Wi-Fi enabled for placement anywhere in your home
Secure and easy to set up
• Magnetic base for easy adjustment of viewing direction
• Quick and easy set-up via QR code
• Extra wall mount for the best possible placement
• Watch up to 16 monitors with one app on your iPhone/iPad
• Encrypted direct networking for secure connection
Alerts via push notifications
• Recordings uploaded to your private Dropbox account
• Built-in noise and motion detection
• Phone alerts when monitor detects noise/motion
Wireless Home Monitor
for iPod/iPhone/iPad
Wi-Fi enabled
Browser-based monitoring
The InSight wireless home monitor also allows
you to find out what's going on at home in real
time from your favorite web browser, be it
Chrome, Internet Explorer, Safari or Firefox,
on a PC or Mac.
you to rotate and adjust your monitor to any
Extra wall mount
Easy set-up
The In.Sight wireless home monitor is a Wi-Fi
enabled monitor, it uses your home wireless
network to stream live video and audio with
monitors that you can set up anywhere you
Instant monitoring
Quick and easy set-up allows you to pair the
InSight wireless home monitor with an iPhone
or iPad. Place the QR code image in front of
the monitor lens to activate the InSight app.
The monitor is ready to use when light turns
solid green.
InSight wireless home monitor comes with a
wall mounting bracket. Use it to easily mount
your monitor to any wall or ceiling. The base
itself pivots and turns, so you can still
reposition the InSight wireless home monitor
when it is mounted.
Encrypted direct networking
Watch up to 16 monitors
Once you have set up your InSight wireless
home monitor on your local network, you can
access the video stream from your iPhone or
iPad anywhere in the world over Edge, 3G and
wireless networks instantly. There's no limit to
where and how you view your video.
InSight app for Apple
With one app, you can watch up to 16 Philips
InSight wireless home monitors. Place as many
monitors as you like, anywhere you like.
Philips In.Sight wireless home monitor uses
highly secure encryption to provide you with
privacy at all times. In.Sight wireless home
monitor uses a unique encryption key each
time it makes a connection.
Noise and motion detection
Direction adjustable
Philips InSight wireless home monitor is a
cutting-edge app-based wireless video monitor
that lets you see and hear what's happening at
home, from anywhere in the world.
Completely free, the dedicated InSight app can
be downloaded from the App Store, directly
right from your iPhone or iPad.
Philips InSight wireless home monitor has a
magnetic base that holds the monitor, allowing
It's impossible to predict when something
might happen. InSight wireless home monitor
keeps watch with adjustable noise and motion
detection. You will be alerted anytime noise or
motion is detected.
Wireless Home Monitor
for iPod/iPhone/iPad
Lens & Sensor
• Sensor: VGA
• Focus mode: Fixed
• Focus range: 0.4M to infinity
Video Quality
VGA streaming
Formats: H.264 video compression
White Balance: Automatic white balance
Exposure: Automatic exposure control
• Wi-Fi: 802.11 b/ g/ n (2.4GHz), 802.11 a (5GHz)
not supported
• Motion detection
• Noise detection
• LED indicator
• Magnetic base: Direction adjustable
• Reset button
• Screw holes: Yes, 1
Installation: via App
Automatic App update
Web browser support
System supported: iOS4.3 or above
iPad compatibility: iPad, iPad 2, New iPad, iPad with
Retina display, iPad mini
• iPhone compatibility: iPhone 3GS, iPhone 4, iPhone
4S, iPhone 5
• iPod compatibility: iPod Touch 4th generation & up
Accessories included
Extra wall mount
USB power adapter
USB cable: Yes, 2.5 m
Screws / wall anchors: 3
Quick Start Guide
Input and Output
• Microphone: High-senstitive, Mono
• USB: Mini-USB port
Minimum Requirements
• Windows: Windows XP, Windows Vista,
Windows 7, Internet Explorer 6.0, PENTIUM 4 2.8 GHz processor, 1GB RAM and 64 MB Video
MACINTOSH 10.6, MAC 1.66 Ghz Intel Core
Duo, Safari 1.1
• Packaging dimensions (W x H x D):
158 x 160 x 58 mm
• Product dimensions (W x H x D):
45 x 95 x 45 mm
• World Wide Warranty leaflet
Issue date 2013-12-23
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Version: 12.2.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 90506
EAN: 87 12581 64571 7
* Viewing live video over your home Wi-Fi network using the In.Sight
wireless home monitor is free and unrestricted. Viewing live video
remotely (either over an external Wi-Fi network or 3G network) is
also free for unlimited sessions, but subject to a limit of 5 minutes
per session.
* Longer remote viewing session times and other premium features
are available for purchase from the App. These conditions are
subject to change.
