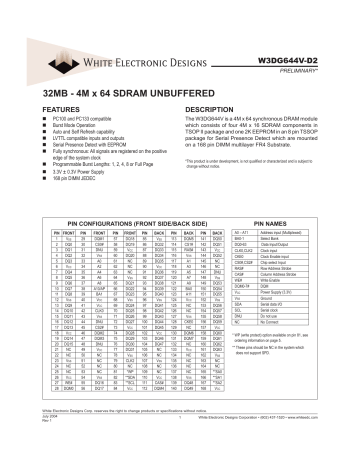

White Electronic Designs
W3DG644V-D2
PRELIMINARY*
32MB - 4M x 64 SDRAM UNBUFFERED
FEATURES
„
„
„
„
„
„
„
„
„
DESCRIPTION
PC100 and PC133 compatible
Burst Mode Operation
Auto and Self Refresh capability
LVTTL compatible inputs and outputs
Serial Presence Detect with EEPROM
Fully synchronous: All signals are registered on the positive
edge of the system clock
Programmable Burst Lengths: 1, 2, 4, 8 or Full Page
3.3V ± 0.3V Power Supply
168 pin DIMM JEDEC
The W3DG644V is a 4M x 64 synchronous DRAM module
which consists of four 4M x 16 SDRAM components in
TSOP II package and one 2K EEPROM in an 8 pin TSSOP
package for Serial Presence Detect which are mounted
on a 168 pin DIMM multilayer FR4 Substrate.
*This product is under development, is not qualified or characterized and is subject to
change without notice.
PIN CONFIGURATIONS (FRONT SIDE/BACK SIDE)
PIN FRONT
1
VSS
2
DQ0
3
DQ1
4
DQ2
5
DQ3
6
VCC
7
DQ4
8
DQ5
9
DQ6
10
DQ7
11
DQ8
12
VSS
13
DQ9
14 DQ10
15 DQ11
16 DQ12
17 DQ13
18
VCC
19 DQ14
20 DQ15
21
NC
22
NC
23
VSS
24
NC
25
NC
26
VCC
27
WE#
28 DQM0
PIN
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
FRONT
DQM1
CS0#
DNU
VSS
A0
A2
A4
A6
A8
A10/AP
BA1
VCC
VCC
CLK0
VSS
DNU
CS2#
DQM2
DQM3
DNU
VCC
NC
NC
NC
NC
VSS
DQ16
DQ17
PIN
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
FRONT
DQ18
DQ19
VCC
DQ20
NC
NC
NC
VSS
DQ21
DQ22
DQ23
VSS
DQ24
DQ25
DQ26
DQ27
VCC
DQ28
DQ29
DQ30
DQ31
VSS
CLK2
NC
*WP
**SDA
**SCL
VCC
PIN
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
BACK
VSS
DQ32
DQ33
DQ34
DQ35
VCC
DQ36
DQ37
DQ38
DQ39
DQ40
VSS
DQ41
DQ42
DQ43
DQ44
DQ45
VCC
DQ46
DQ47
NC
NC
VSS
NC
NC
VCC
CAS#
DQM4
PIN
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
BACK
DQM5
CS1#
RAS#
VSS
A1
A3
A5
A7
A9
BA0
A11
VCC
NC
NC
VSS
CKE0
NC
DQM6
DQM7
NC
VCC
NC
NC
NC
NC
VSS
DQ48
DQ49
PIN
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
PIN NAMES
BACK
DQ50
DQ51
VCC
DQ52
NC
NC
DNU
VSS
DQ53
DQ54
DQ55
VSS
DQ56
DQ57
DQ58
DQ59
VCC
DQ60
DQ61
DQ62
DQ63
VSS
NC
NC
**SA0
**SA1
**SA2
VCC
A0 – A11
BA0-1
DQ0-63
CLK0,CLK2
CKE0
CS0#,CS2#
RAS#
CAS#
WE#
DQM0-7#
VCC
VSS
SDA
SCL
DNU
NC
Address input (Multiplexed)
Select Bank
Data Input/Output
Clock input
Clock Enable input
Chip select Input
Row Address Strobe
Column Address Strobe
Write Enable
DQM
Power Supply (3.3V)
Ground
Serial data I/O
Serial clock
Do not use
No Connect
* WP (write protect) option available on pin 81, see
ordering information on page 5.
** These pins should be NC in the system which
does not support SPD.
White Electronic Designs Corp. reserves the right to change products or specifications without notice.
July 2004
Rev 1
1
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
White Electronic Designs
W3DG644V-D2
PRELIMINARY
FUNCTIONAL BLOCK DIAGRAM
CSO#
DQM0
DQM4
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
LDQM
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
UDQM
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQM1
CS#
LDQM
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
UDQM
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQM5
U0
U2
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
CS2#
DQM2
CS#
DQM6
LDQM
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
UDQM
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQM3
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
CS#
U1
A0–A11,BA0 &1
RAS#
CAS#
WE#
CKE0
VCC
VCC
SDRAMU0–U3
SDRAMU0–U3
SDRAMU0–U3
SDRAMU0–U3
SDRAMU0–U3
10Ω
U3
SERIAL PD
SCL
47Ω
Every DQpin of SDRAM
TWO 0.1 uF CAPACITORS
PER EACH SDRAM
CS#
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ0-63
LDQM
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
UDQM
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQM7
WP
SDA
A0
A1
A2
SA0
SA1
SA2
To all SDRAMS
White Electronic Designs Corp. reserves the right to change products or specifications without notice.
July 2004
Rev 1
2
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
White Electronic Designs
W3DG644V-D2
PRELIMINARY
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Value
Units
Voltage on any pin relative to VSS
VIN, VOUT
-1.0 ~ 4.6
V
Voltage on VCC supply relative to VSS
VCC, VCCQ
-1.0 ~ 4.6
V
TSTG
-55 ~ +150
°C
Storage Temperature
Power Dissipation
PD
4
W
Short Circuit Current
IOS
50
mA
Note: Permanent device damage may occur if "ABSOLUTE MAXIMUM RATINGS" are exceeded.
Functional operation should be restricted to recommended operating condition.
Exposure to higher than recommended voltage for extended periods of time could affect device reliability.
RECOMMENDED DC OPERATING CONDITIONS
Voltage Referenced to: VSS = 0V, 0°C ≤ TA ≤ 70°C
Parameter
Symbol
Min
Typ
Max
Unit
Supply Voltage
VCC
3.0
Input High Voltage
VIH
2.0
Input Low Voltage
VIL
Output High Voltage
VOH
Output Low Voltage
VOL
Input Leakage Current
ILI
Note
3.3
3.6
V
3.0
VCCQ+0.3
V
-0.3
—
0.8
V
2
2.4
—
—
V
IOH= -2mA
—
—
0.4
V
IOL= -2mA
-10
—
10
A
3
1
Note:
1.
VIH (max)= 5.6V AC. The overshoot voltage duration is ≤ 3ns.
2.
VIL (min)= -2.0V AC. The undershoot voltage duration is ≤ 3ns.
3.
Any input 0V ≤ VIN ≤ VCCQ
Input leakage currents include Hi-Z output leakage for all bi-directional buffers with Tri-State outputs.
CAPACITANCE
TA = 23°C, f = 1MHz, VCC = 3.3V, VREF=1.4V ± 200mV
Parameter
Symbol
Max
Unit
Input Capacitance (A0-A12)
CIN1
25
pF
Input Capacitance (RAS#,CAS#,WE#)
CIN2
25
pF
Input Capacitance (CKE0)
CIN3
25
pF
Input Capacitance (CLK0,CLK2)
CIN4
13
pF
Input Capacitance (CS0#,CS2#)
CIN5
15
pF
Input Capacitance (DQM0-DQM7)
CIN6
8
pF
Input Capacitance (BA0-BA1)
CIN7
25
pF
Data input/output capacitance (DQ0-DQ63)
COUT
10
pF
White Electronic Designs Corp. reserves the right to change products or specifications without notice.
July 2004
Rev 1
3
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
White Electronic Designs
W3DG644V-D2
PRELIMINARY
OPERATING CURRENT CHARACTERISTICS
(VCC = 3.3V, 0°C ≤ TA ≤ 70°C)
Parameters
Symbol
Conditions
Versions
Operating Current
(One bank active)
ICC1
Burst Length = 1
tRC ≥ tRC(min)
IOL = 0mA
Precharge Standby Current
in Power Down Mode
ICC2P
CKE ≤ VIL(max), tCC = 10ns
ICC2PS
133
100
300
300
4
Units
Note
mA
1
mA
CKE & CK ≤ VIL(max), tCC = ∞
4
mA
ICC2N
CKE ≥ VIH(min), CS ≥ VIH(min), tCC =10ns
Input signals are charged one time during 20
48
mA
ICC2NS
CKE ≥ VIH(min), CK ≤ VIL(max), tCC= ∞
Input signals are stable
24
mA
Active standby current in powerdown mode
ICC3P
CKE ≥ VIL(max), tCC = 10ns
8
mA
ICC3PS
CKE & CK ≤ VIL(max), tCC = ∞
8
Active standby in current non
power-down mode
ICC3N
CKE ≥ VIH(min), CS ≥ VIH(min), tCC = 10ns
Input signals are charged one time during 20ns
80
mA
ICC3NS
CKE ≥ VIH(min), CK ≤ VIL(max), tCC = ∞
input signals are stable
40
mA
Precharge Standby Current
in Non-Power Down Mode
ICC4
Io = mA
Page burst
4 Banks activated
tCCD = 2CK
460
Refresh current
ICC5
tRC ≥ tRC(min)
360
Self refresh current
ICC6
Operating current (Burst mode)
4
CKE ≤ 0.2V
460
mA
1
360
mA
2
mA
Notes: 1. Measured with outputs open.
2. Refresh period is 64ms.
White Electronic Designs Corp. reserves the right to change products or specifications without notice.
July 2004
Rev 1
4
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
White Electronic Designs
W3DG644V-D2
PRELIMINARY
ORDERING INFORMATION
Part Number
Speed
CAS Latency
Height*
W3DG644V10D2
100MHz
CL=2
25.40 (1.00")
W3DG644V7D2
133MHz
CL=2
25.40 (1.00")
W3DG644V75D2
133MHz
CL=3
25.40 (1.00")
Part Number
Note: Modules are available in industrial temperature - 40°C ≤ TA ≤ 85°C.
Add an "I" to the end of the part number.
Speed
CAS Latency
Height*
W3DG634V10D2
100MHz
CL=2
25.40 (1.00")
W3DG634V7D2
133MHz
CL=2
25.40 (1.00")
W3DG634V75D2
133MHz
CL=3
25.40 (1.00")
Note: Available with WP (write protect) on pin 81.
PACKAGE DIMENSIONS
3.81
(0.150)
MAX.
133.48 (5.255) MAX.
0.00 (0.125) (2X)
278
3.99
(0.157)
(2X)
17.78
(0.700)
P1
11.43
(0.450)
8.89
(0.350)
25.40
(1.000)
MAX
15.60 (0.614)
36.83 (1.450)
54.61 (2.150)
6.35 (0.250)
57.79 (2.275)
3.99
(0.157)
MIN
1.27 ± 0.10
(0.050 ± 0.0039)
115.57 (4.550)
* ALL DIMENSIONS ARE IN MILLIMETERS AND (INCHES)
White Electronic Designs Corp. reserves the right to change products or specifications without notice.
July 2004
Rev 1
5
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
White Electronic Designs
W3DG644V-D2
PRELIMINARY
Document Title
32MB - 4Mx64 SDRAM UNBUFFERED
Revision History
Rev #
History
Release Date
Status
Rev 0
0.1 Created
7-2004
Advanced
7-2004
Preliminary
0.2 Updated CAP and IDD specs.
Rev 1
Moved from Advanced to Preliminary
White Electronic Designs Corp. reserves the right to change products or specifications without notice.
July 2004
Rev 1
6
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
