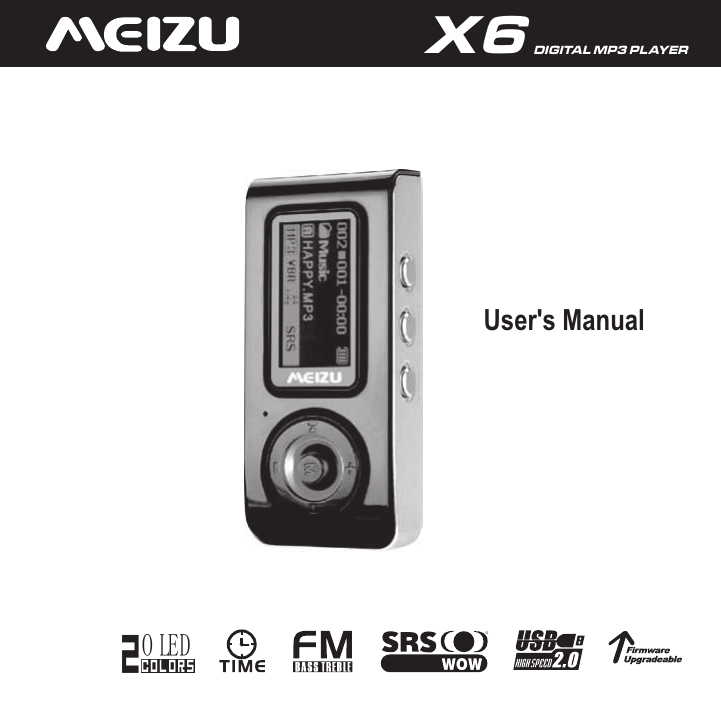

X6
DIGITAL MP3 PLAYER
User's Manual
2OLED
Colors
X6
■ Supports WMA/MP3/WAV File Formats
■ FM Bass/Treble & FM Recording
■ Direct MP3 Encoding (CD Line-in)
■ Digital Voice Recorder/A-B Repeat
■ USB Flash Drive, USB 2.0 High Speed
■ Dual colors OLED, Electron Clock
3
Precautions
Do not drop player or apply
impact. Shock is the major
cause of breakdown.
Touching the product with
wet hands may cause a malfunction. Do not keep it in
high temperatures or dispose
in direct sunlight.
Keep away from places of
dust and cigarette ash.
Make sure that the player does
not get in contact with chemicals
such as benzene or thinner.
When leaving the player not
used for a long time, be sure
to take out the battery.
Do not disassemble the player
Keep away from impact, do
not contact with the static
objects.
Please keep the SN of your
player to register on Meizu's
website or for your future's
reference.
SN
4
Copyright Notice
Thank you for purchasing MEIZU product!
Please read this manual carefully before use.
We recommend you to keep it for future reference.
Trademark
This product is the registered trademark of Meizu Electronic Technology Co., Ltd..
Notice
The various examples, drawings and specifications included in this User Manual
are subject to change without prior notice when new product enhancements
become available.
is the registered trademark of SRS Labs, Inc.
SRS、TruBass、FOCUS and Headphone technology is incorporated
under license from SRS Labs, Inc..
5
Product Features
■ Plays MP3,WMA, WAV formats. Voice recording. FM radio broadcast with Bass
and Treble adjustable. FM radio recording. Direct MP3 encoding ( CD Line-in ).
Mobile Disk. Synchronized song lyric showing. Text view.
■ Stylish design and Super Mini Aluminum body
■ High speed USB2.0 Interface. 4 Line graphic LCD
■ Stylish black base screen with yellow and blue dual colors OLED screen
■ Clock setting, Screen saver settings
■ Up to 12 hours of long playback with built-in chargeable Li-polymer battery
(The playing time may be shortened if visualization is used.)
■ 128MB/256MB/512MB/1GB flash Memory chip available
■ First class electronic components coupled with 6 layers PCB ensure the clearness of sound quality.
■ Enhanced Integrated Navigator
■ Play/Stop/Power OFF, Recording/ A-B, Hold function
■ Next Track/Previous Track, Fast Forward/Fast Rewind
■ Infinite Loop. 40 levels of digital volume
■ Rich and super sound quality, Various EQ and sound field effects
User adjustable 5-band EQ
Normal, Rock, Jazz, Classic, POP, Bass, User EQ
SRS, WOW, TruBass, 3D Surround Support
■ Resume function. Auto Power OFF
■ Scroll speed. MP3 folder. Content manager
■ Multi-language Support
■ Firmware download & Logo download. ID3V2, ID3V1, Filename support
■ Product info display (Firmware version, Memory usage)
6
Contents
CONTENTS
PRECAUTIONS
04
COPYRIGHT NOTICE
05
PRODUCT FEATURES
06
PACKAGE
10
CONTROLS
11-12
CONNECTING THE PLAYER TO A PC
13
CONNECTING THE PLAYER TO A USB CHARGER
14
LCD WINDOW
15
BASIC CONTROLS
16
BASIC OPERATION
17-20
FOUR OPERATING MODES
21
NAVIGATION MODE
22
7
Contents
CONTENTS
OPERATING THE CONTROLS
23-26
REPEATING PROCEDURES
27
MENU LIST
28
DETAILED FEATURES BY MENU
29-41
INSTALL SOFTWARE ON THE PC
42-44
DOWNLOADING FROM THE PC
45-46
PLAY MUSIC
47
FM RADIO BROADCAST
48
AUTO SEARCH RADIO BROADCASTS
49
RESERVE THE CURRENT STATION
50
LISTEN TO THE MEMORIZED STATION
51
DELETE THE MEMORIZED STATION
52
8
Contents
CONTENTS
RECORDING FM
53
RECORDING VOICE
54
LINE-IN RECORDING
55
PLAY RECORDING FILE
56
DISPLAYING LYRIC
57
TEXT VIEW
58
FIRMWARE UPGRADE
59-62
FORMAT
63-65
HANDLING INSTRUCTIONS
66
TROUBLE SHOOTING
67
PRODUCT SPECIFICATIONS
68
69-71
MEMO
9
Package
Earphone
MP3 Player Main Body
Installation CD
USB Charger
User's Manual / Warranty Card
Fashionable Necklace
10
USB Cable / Simple USB
Connection Jack
Line-in Recording Cable
Pouch
Controls
LCD Window
Front Side
Volume+
FF
NAVI/MENU
Volume REW
Microphone
Reset
Reset
Back Side
X6 Series
2.0
HOLD
11
Controls
Right Side
REC / A-B
Power ON/ 4-Mode/ EQ
Play / Stop / Power OFF
Left Side
USB Connection Port
Neck Strap
Line-in Jack
Earphone Jack
Top
Bottom Side
12
Connecting the Player and A PC
Connecting the Player and a PC
Caution: Before connecting the USB cable to the player, stop playback.
With the USB cable(provided), connect the USB port of the player and your PC.
USB Cable
USB port on the PC
USB port on the player
In the normal Windows environment, as soon as the cable or simple
USB jack is connected, the messeage " Searching for new device "
appears and the USB driver for the player is installed automatically
(It may not appear the message during switching on " HOLD " .)
The drive installation window may not appear on the screen
depending on the status of Windows.
Connecting to a PC
Connect the player and the PC, it
appears on the LCD of the player
as figure:
During connecting the USB cable and your PC,
USB port can be used as power supply. It takes
about two and a half hours to charge the player.
During connecting, it cannot play the music.
Disconnect the cable before your listening to
music.
OK
HIGH SPEED
13
Connecting the Player and USB Charger
Connecting the Player and USB Charger
Connect the USB Chargeable cable(provided) and the player.
Put down the USB cover, connect the player to power
supply. During the connecting, USB port is used as
power supply.
Power Supply Jack
USB Chargeable Cable
USB port on the player
Connect the player and power
supply, it appears on the LCD of
the player as this figure:
Switch to Hold mode, the player is
charged via the USB power supply.
==< HOLD >==
It takes about two and a half hours
to charge the player.
14
LCD Window
Track Number
Play Time
Play Status
Song Total
Battery Indicator
Folder name
Artist/Title name
Play Mode
Equalizer
Current Time
Sampling Rate
File Format
Bite Rate
Two-Line Display of Song Title
Progress/
Status Bar
15
Basic Controls
Reset
⑦
PLAY/OFF
①
⑩
⑨
2.0
⑧
⑥
⑤
③
④
X6 Series
②
1 LCD window
6
To increase volume
2 To select the previous music for MP3
7
To select HOLD function
8
To select REC/A-B repeat
9
To select turn ON, 4-mode, EQ
10
To select Power OFF/Play/Pause/Stop
HOLD
or station for FM.
3 To decrease volume
4
To select the next music for MP3 or
REC/A-B
station for FM.
5
To select NAVI/MENU function.
16
Basic Operation
When using Menu
Click
C li c k
When using Navigation
Long Click
Long
3S
C li c k
Power ON / Power OFF
During power OFF, click the button
and turn on the player.
Long click the button
for about 3 seconds, it displays the message to power off.
Increase / Decrease Volume
E2
I・MENU・VO
L
NAV
Press "+ " on volume button to increase volume
and press "- " on button to decrease volume.
Click
17
Basic Operation
Selecting Modes
Long Click
Click
Finished
function
Function
function
MP3 - FM - VOICE - REPEAT Changing
Selecting Songs
During play music, press
or
button to search music.
Switch to the next track.
If
is pressed after 5 seconds into the track, the track is played again from the
beginning and the button is pressed before 5 seconds, the previous track plays.
EQ Selecting
During play music, press
to select and change EQ modes.
Click
EQ icon is changed accordingly
during selecting
18
Basic Operation
Hold
Using hold function to make buttons inoperative and prevents unwanted action
caused by accidental pressing.
① Switch to hold: Function
button to switch to Hold.
Function
==<HOLD>==
② Release: While holding, function
button to release.
Function
==<RELEASE>==
While switch to hold function, all the buttons cannot be operated.
It is irrelevant to listen music or FM stations.
19
Basic Operation
Turning Power Off
Press
button for more than 3 seconds to turn the play power off.
Power cannot be turned off during the player being connected to your PC
through USB cable.
Play, Stop
Press
button to play tracks, and again to pause, press for more than 2 seconds
to stop. When the player is stopped, Repeat Section disable automatically.
Moving within Track
Press the FF button
for more than 1 second to fast forward. If the FF button
is pressed until the end of the track, the position returns back to the start of the
next track and fast forwards from thereon.
Control Volume
Use +VOL
or VOLto control volume.
Keep pressing the button to change the volume continuously.
20
Four Operating Modes
Switching Different Modes
There are four modes, MP3 Mode, FM Radio, Voice Recorder and Repeat Mode.
Long press
button into four mode selecting. You can switch to the desired
mode by using the button
and
.
Long Click
Click
Enter the desired
mode!
Function
The LCD displays four different modes
Modes Selecting
Play Music
FM Radio
Voice Recorder
Repeat Mode
A
21
Navigation Mode
Navigation Mode
① During MP3 mode
, long click the Menu button
and select Music Folder
.
Long Click
② Press the Menu button and find the desired track by
pressing
or
button.
To move to the upper folder, push the
switch.
If there is no upper folder, Navigation exits.
③ Press the Menu button, it appears the function list
as below,
Play Folder
Favorites
Delete
Exit
22
Operating the Controls
MP3 Mode
In "Key Action", indicates pressing the button for a short second and
for more than 1 second.
Button Key Action
●
3S
●
indicates pressing the button
Playing
Paused
Play current track
Pause current track
Inefficacy
Stop current track
Turn power off
Turn power off
Move to previous track
After 5 seconds into track, moves to the start of
track. Before 5 seconds, plays previous track.
Rewind
Rewind
Move to next track
Play next track
Fast forward
Fast forward
Volume Up
Volume Up
Volume Up Continuously Volume Up Continuously
Volume Down
Volume Down
Volume Down Continuously Volume Down Continuously
Enter Menu
Enter Menu
Navigation
Navigation
Selecting Point A
Repeat A-B
① MIC Recording
MIC Recording
EQ Mode Selecting
EQ Mode Selecting
4 Modes Selecting
4 Modes Selecting
① While recording, long click
Only
button to stop. When finish recording, it returns to voice mode.
can be controlled during recording.
23
Operating the Controls
FM Radio Mode
In "Key Action", indicates pressing the button for a short second and
for more than 1 second.
Button Key Action
FM Mode
FM Preset Mode
Enter Frequency preset mode
3S
indicates pressing the button
Exit Frequency preset mode
Inefficacy
Inefficacy
Turn power off
Turn power off
Decrease FM frequency
Move to previous preset
Rapidly decrease FM frequency
Automatically move to previous
preset continuously
Increase FM frequency
Move to next preset
Rapidly increase FM frequency
Automatically move to next
preset continuously
Volume up
Volume up continuously
Volume up
Volume up continuously
Volume down
Volume down continuously
Volume down
Volume down continuously
Enter FM Menu
Enter the Preset Mode
Enter FM Menu
Enter the Preset Mode
Adjusting Treble
Adjusting Treble
Recording FM radio
Recording FM radio
Adjusting Bass
Adjusting Bass
4 Modes Selecting
4 Modes Selecting
Earphones function as the antenna.
24
Operating the Controls
Repeat Mode
In "Key Action", indicates pressing the button for a short second and
for more than 1 second.
Button Key Action
3S
indicates pressing the button
Playing
Paused
Play current track
Pause current track
Inefficacy
Turn power off
Stop current track
Turn power off
Move to previous track
After 5 seconds into track, moves to the start of
track. Before 3 seconds, plays previous track.
Rewind
Rewind
Move to next track
Play next track
Fast forward
Fast forward
Volume Up
Volume Up
Volume Up Continuously
Volume Up Continuously
Volume Down
Volume Down
Volume Down Continuously Volume Down Continuously
Inefficacy
Inefficacy
Inefficacy
Inefficacy
Selecting Point A
Repeat A-B
Start Recording
Start Recording
EQ Mode Selecting
EQ Mode Selecting
4 Modes Selecting
4 Modes Selecting
Select the point B before start the recording.
25
Operating the Controls
Navigator Mode
In "Key Action", indicates pressing the button for a short second and
for more than 1 second.
Selecting the Folder
Button Key Action
Start playing the music
Start playing the music
3S
Start playing the music
Exit
Exit
Start playing the music
Start playing the music
Move to previous track
Move to previous continuously
Move to next track
Move to next continuously
Display the playback menu
Display the playback menu
Inefficacy
Inefficacy
Inefficacy
Inefficacy
26
indicates pressing the button
Repeating Operation Procedures
Repeating Operation Procedures
Move to:
Repeat Mode
Press
Play Music
Press
Note: If A or AB is selected, clear AB
before operating
or
controls.
Select A
Press
Select B
Long Press
Start Recording
Long Press
Stop recording and repeat
the current track and the
AB section.
Long Press
Press
Press
Delete the current record
Play the record from B
Move to Pause
Long Press
Move to Stop
27
Menu List
General
Sound Effect
Play Mode
Jog Lamp
Resume
EQ
Boundary
Time
Auto Play
SRS WOW
Repeat
Screen Off - Spark
Shuffle
Menu Button
Clock
Load Default
Display
Power Manage
Record
FM Radio
Play Time
Screen Saver Pic
Record Mode
Stereo
Song Title
Screen Savers
Voice bps
Auto Scan
FM Recording
Progress Bar
Turn Off Screen
Voice Gain
Scroll Speed
Auto Off
FM Radio bps
Page Sliding
Sleep
L-in bps
Displaying Lyric
FM/L-in Gain
Language
FM/L-in Auto Sync
Contrast
Information
28
Detailed Features by Menu
General
1. Resume
・This is the feature to recall the last played position (track).
・
On
Off
・Select 'Resume' and press the 'Menu' button.
2. Auto Play
・This is the feature to play the player immediately after it powers on.
・
On
Off
・Select 'Auto Play' and press the 'Menu' button.
3. MENU Button
・This is the menu to switch for the feature of long / short pressing the
MENU button.
・Select 'MENU-NAVI', short click the Menu button to menu mode; Long
click it to switch to navigation mode.
・Select 'NAVI-MENU', short click the Menu button to navigation model;
Long click to menu model. ・When you select and option with the '+' and '-', press the 'Menu'
button, the selection is applied.
29
Detailed Features by Menu
4. Clock
Check date / time
・This is the feature to view the date and time.
・Select the ' Check date/time ' option, and press the ' Menu ' button. ・It displays the week, date, time.
・Press the 'Menu' and return.
Set time
・This is the feature to set the time.
・Select the ' Set time ' option, and press the ' Menu ' button. ・When you select and option with the '+' and '-', press the 'Menu' button, the selection is applied. and
buttons to select it and press the 'Menu' button.
・Push
Set date
・This is the feature to set the date.
・Select the ' Set date ' option, and press the ' Menu ' button. ・When you select and option with the '+' and '-', press the 'Menu' button, the selection is applied.
and
buttons to select it and press the 'Menu' button.
・Push
5. Load Default
・This is the menu to resume the default setting originally.
・Select 'Load Default' option, push the '+' and '-' to select 'Yes' or
'Cancel' option, and press the 'Menu' button.
30
Detailed Features by Menu
Sound Effect
1. EQ
・There are following sound field effects available,
Normal, Rock, Jazz, Classic, Pop, Bass, User, TruBass, SRS, WOW. ・With the '+' and '-' buttons to select the EQ, press the 'Menu' button to confirm.
User EQ
・You can use the User EQ to adjust it.
・Select 'USER EQ' and press the 'Menu' button.
・Change the values with the '+' and '-' button.
・With
and
buttons to select it and press the 'Menu' button.
31
Detailed Features by Menu
2. SRS WOW
WOW Level
・This is the feature to set SRS, WOW sound effect. ・Function the '+' and '-' to select ' WOW Effect ' , press the 'Menu' button.
・You can choose a number between 0 and 10.
・Push
and
to adjust it , and press the 'Menu'.
Trubass Sound Effect
・This is the feature to enhance the bass effect.
・Function the '+' and '-' to select ' Trubass ' , press the 'Menu' button.
・You can choose a number between 0 and 10.
・Push
and
to adjust the value , and press the 'Menu'.
Speaker Type
・This is the feature to set the type of the speakers.
・You can choose: 'Earphone', 'Headphone', 'Speaker'. ・When you select and option with the '+' and '-', press the 'Menu'
button, the selection is applied.
Brightness
・This is the feature to adjust SRS, WOW sound effect.
・Function the '+' and '-' to select 'Brightness' , press the 'Menu' button.
・You can set 'Low', 'Middle' and 'High'.
・Push
and
to adjust it , and press the 'Menu'.
32
Detailed Features by Menu
Play Mode
1. Boundary
・This menu is for setting various modes of play.
・Select 'Play Mode' and press the 'Menu' button.
・This function is for selecting the boundary,
・All, Folder, Favorite
2. Repeat
・This menu is for adjusting the repeat value to apply to the tracks to
be played.
3. Shuffle
・Normal
・Repeat All
・Repeat One
・This sets whether or not to play randomly within the boundary
specified in the 'Play' mode.
・
On
Off
・Select 'Shuffle' and press the 'Menu' button.
Jog Lamp
・This sets to set the Jog Lamp.
・Select the time of backlight, press
the 'Menu' button.
and
to adjust the value ,
and press the 'Menu'.
・Push
Jog Lamp
Backlight Time
33
Detailed Features by Menu
Display
1. Play Time
・Display and change the time information of the played track.
・When you select the option and press the 'Menu' button, the
selection is applied.
2. Song Title
・This is the feature to decide how to display file names.
・ On Off
・When you select the option and press the 'Menu' button, the
selection is applied.
3. Progress Bar
・This is the feature to display the progress of the playing.
・ On
Off
・When you select the option and press the 'Menu' button, the
selection is applied.
4. Scroll Speed
・This is the feature to adjust the scroll speed of texts on the LCD display.
・When you select the option and press the 'Menu' button, the selection
is applied.
・Using the
and
34
buttons to adjust it.
Detailed Features by Menu
5. Page Sliding
・This is the feature to control the animation effect for the smooth
opening and closing of menus.
・You can choose: Fast, Normal, or Smooth.
・Select a value and press the 'Menu' button to apply it.
6. LYRIC display
・This is the feature to set the LYRIC display.
specified in the 'Play' mode.
・
On
Off
・Select 'LYRIC' and press the 'Menu' button.
7. Language
・This is the feature to change the menu language.
・You can choose: English, Chinese(Simp), Chinese(Trad).
・When you select the option and press the 'Menu' button, the
selection is applied.
8. Contrast
・This is the feature to adjust the brightness of the LCD display.
・You can choose a number between 0 and 10.
・Select Contrast and press the 'Menu ' button. Choose a value
with the
and
35
buttons press the 'Menu ' button.
Detailed Features by Menu
Power Manage
1. Screen Saver Pic
・When there is no button operation, using Power Manage can save
battery and extend the playback time.
・Function the '+' and '-' to select ' Screen Saver Pic ' , press the
'Menu' button.
・Select a value and press the 'Menu' button to apply it.
・This feature is to set the screen picture while there is no button operation.
・You can select 'Clock', 'Internal Pic1', 'Internal Pic2'.
・Function the '+' and '-' to select it , and press the 'Menu' button.
2. Screen Savers
3. Turn off Screen
・The screen picture can be displayed automatically after a preset time.
・You can choose '10Sec', '30Sec', '1Min', '5Min' or 'Disable'.
・Function
and
to select it , and press the 'Menu' button.
・The screen picture can be automatically turn off after a preset time
while it is playing.
・You can choose '10Sec', '30Sec', '1Min', '5Min' or 'Disable'.
・Function
and
to select it , and press the 'Menu' button.
36
Detailed Features by Menu
4. Auto Off
・When there is no button operation during a preset time while the
player is stopped, it is automatically turned off.
・You can choose: Off, 1 Min, 2 Min, 5 Min, 10 Min
・Select Auto OFF and press the 'Menu ' button. Then choose a value
with the
and
buttons.
5. Sleep
・The player can be set to automatically turn off after a preset time
OFF
while it is playing.
・ You can choose: Off, 10 Min, 20 Min,30 Min,60 Min,90 Min,120 Min.
・ Select Sleep and press the 'Menu ' button. Then choose a value
with the
and
37
buttons.
Detailed Features by Menu
Record
1. Record Mode
・This is the feature to set the mode of the recording.
・Mic Recording
・Line-in Recording
2. Voice bps
・This is the menu for setting the transmission rate (quality) of the
MP3 files recorded via the built-in microphone on the top of the player.
・You can choose: 32Kbps, 64 Kbps, 96Kbps, 128 Kbps.
・Select 'Voice bps ' and press the 'Menu ' button. Then choose a
value with the
3. Voice Gain
button.
・This adjust the volume level of the sound input to the built-inmicrophone.
・You can choose: 0dB, 6dB,12dB,18dB
・Select 'Mic Volume ' and press the 'Menu ' button. Then choose a
value with the
4. FM Radio bps
and
and
button.
・This is the menu for setting the transmission rate (quality) of the MP3
files recorded by pressing the 'REC' button while listening to FM.
・ You can choose: 32Kbps, 64 Kbps, 96Kbps, 128 Kbps.
・ Select 'FM Radio bps 'and press the 'Menu ' button. Then choose a
value with the
and
38
button.
Detailed Features by Menu
5. L-in bps
・This is the menu for setting the transmission rate (quality) of the
MP3 files recorded via Line In.
・You can choose: 32Kbps, 64 Kbps, 96Kbps, 128 Kbps.
・Select 'Line-in bps ' and press the 'Menu ' button. Then choose a
value with the
6. FM/L-in Gain
and
button.
・This adjusts the volume level of the sound input(recording level)
from the direct encoding jack.
・You can choose: 0dB, 6dB,12dB,18dB
・Select 'Line-in bps ' and press the 'Menu ' button. Then choose a
value with the
7. FM/L-in Auto sync
and
button.
・This is the feature to automatically detect the sound input from
the Line-in jack and recognize blanks between tracks to save the
tracks separately as individual files.
・Select 'Line-in bps ' and press the 'Menu ' button.
On
Off
Note: It is only valid during FM/L-in for MP3 encoding.
39
Detailed Features by Menu
FM Radio
1. Stereo
・This is the menu for selecting stereo or mono while listening to
the FM radio.
On
Off
・Select 'Stereo ' and press the 'Menu ' button.
2. Auto Scan
・This is the menu for scanning the FM radio broadcast.
・Select 'Auto Scan ' and press the 'Menu ' button.
3. FM Recording
・This is the menu for recording the FM radio broadcast.
・Select 'FM Recording ' and press the 'Menu ' button.
40
Detailed Features by Menu
Information
1. Information
This is feature to display the information:
Firmware Version
Memory
・Information on the flash memory in the Player is displayed.
・You can check usage and remaining memory size.
・Some of the flash memory in the Player is used for system area.
Therefore, when we exclude the system area essential for normal
operation of the Player, the actual capacity of the flash memory is
somewhat reduced.
・For example, with a 256MB product, about 243MB of memory
capacity is normal.
Free Memory Space
41
Install Software on the PC
Insert the installation CD into the CD-ROM drive. The following screen appears
after inserting the CD.
When installation is automatically not
started, execute the setup.exe under the
Root folder of the installation CD, and then
the Manager program is automatically setup.
The installation CD contains the following
contents:
- MP3 Driver for Windows98 or lower
- Firmware Package
- LOGO DIY tool
You can update the features of the player by downloading from the internet.
It is not need to install the program of USB Port Driver for Windows 2000 SP3
system or higher.
You can use LOGO DIY program to make the desired LOGO interface by yourself.
System Requirement
■ Pentium 133MHz or faster
■ CD-ROM Drive
■ 32MB Main Memory or Higher
■ USB Port
■ 15MB Hard Disk Space or More
■ Windows 98SE / ME / 2000 / XP
42
Install Software on the PC
Install the Manager Software
Set up the player manager software on your PC for the following situations:
MP3 player Formatting; Firmware Upgrade; the player can not be connected to PC.
Insert the player Installation CD to the
CD-ROM in your PC. Click Meizu MP3 Drive
to start the installation.
Click [Next>] .
Click [Yes].
Select the folder to Install. Click [Next>] .
Generally assigned as [C Driver ->
Program File -> SigmaTel -> MSCN].
43
Install Software on the PC
Click [Next>].
Then necessary files will be copied into
your hard disk and updated the driver information.It will take you a few seconds.
Click [Finish]. Complete the installation
of the player Manager Software.
After finishing the setup, from START,
it appears [SigmaTelMSCN Audio
Player] item as shown in the figure.
To uninstall the the player Manager Software, select the Start - Programs SigmaTel MSCN Audio Player-Uninstall
44
Downloading from the PC
MP3 files can be downloaded to the player by the following steps.
Click the [Edit] menu on your PC window.
Select the desired music on the PC to
download to the player.
Double click [My Computer], then click and open the [Mobile Disk].
The player is shown as the Mobile Disk
on your PC.
45
Downloading from the PC
Select the [Paste].
It appears on your PC as shown as
follows for the " Flash Memory Window " .
After finishing copy, it appears the music files on the Mobile Disk. Disconnect the player and
your PC, then you can listen the music. You can also download the files by dragging and
dropping them onto the " Flash Memory Window " .
You cannot upload general music files from the player to the PC according to copyright laws.
You can upload files made by the player or general data files besides music files.
46
Play Music
Play Music
Connect the earphones as below.
Turn the player on by pressing the ON
button
. Then press
button to start playing music.
Click
Click
Note: Put the HOLD switch to "OFF".
To select music
To adjust the volume
To increase volume
To select the previous music
To decrease volume
To select the next music
Function
Function
By turning Hold ON, the buttons on the player will not function.
It plays the music automatically after turning on accordingly to the setting of "Auto Play"
on the MENU.
47
FM Radio Broadcast
While playing MP3 music, press the button
.
Long Click
The four modes selecting displays on the LCD.
Push the
,
button to select FM radio
button to confirm.
Modes Selecting
. Press the NAVI/MENU
Click
Function
Press
,
stations .
Function
to switch to
During FM radio, press
adjust BASS. Press
TREBLE.
button to
button to adjust
Note: Auto memory may not work within weak
transmission areas.
48
Auto Search Radio Broadcasts
Save the auto searching channels
(Memory Function).
① During the FM mode, press the Menu button
to enter Menu.
Click
② Push
then press
and
to select the Auto Scan mode
button.
,
③ I t displays the picture as the right finger on the
LCD. Up to 50 channels can be memorized.
④ After finished, the player turn to FM preset mode
and start playing channel 01.
49
Reserve the Current Station
Manual Reserving the Current Station
① During FM mode, long click the Menu button
to enter Menu.
Long Click
② Press
or
Menu button
.
to select the channels, then click the
③ Press
or
to select Save mode, then press
the Menu button to memory it.
④ Press the Menu button to start listening radio.
Note: You will select the location 1-16 to reserve the
stations if the current location come to 15.
50
Listen to the Reservation Station
Preset mode
To select a channel saved in memory, press the Navi/Menu button and find the channel by
pushing
or
switch to the left or right. It displays CH** on the LCD during preset mode.
Preset Channel
How to enter Preset mode
PLAY/OFF
During FM mode press the ON/OFF button
to enter preset mode. Press it again and exit.
Click
PLAY/OFF
How to select channels
To select a memorized channel, with
channel.
and
to switch to the previous or the next
Function
51
Delete the Reservation Station
Delete saved channels (Memory delete function)
① During FM mode, long click the Menu button
to enter.
Long Click
② Push
and
the Menu button
to select the channel, then press
.
③ Push
or
button to finish.
to select Delete mode, then press
④ Press
button and exit.
52
Recording FM
To Record FM
① Long press the button
to enter FM radio
.
, push
and
Long Click
② Press
or
to select the desired music.
For details of FM Radio and Listen to the Memorized Station,
see the related pages in this User Guide.
③ Long press
button to start FM recording. The
recorded file is saved as 'M***.MP3' under 'REC' folder in a
certain sequence. (***: A3-digit serial number)
④ Long press
and stop recording. And return to
FM Radio automatically to continue to listen.
You can listen FM radio while FM recording in the
meantime. Volume is not controlled during recording.
53
Recording Voice
Please make sure that the battery volume is enough during Voice Recording.
Shortcut Recording: During MP3 mode, press
button for 2 seconds and recording starts.
Stop Recording
Starting Recording
Press
button for more than 2 seconds
to start recording.
Press
button for more than 2 seconds
again to stop the recording.
Long Click
Long Click
The recorded file MP3 format (during FM recording, LINE-IN and Microphone recording)
and ADPCM format during the Microphone recording are saved in the REC folder under
ROOT. ADPCM format for LINE-IN and FM recording is saved in the FM folder under ROOT.
If it displays The Memory is Full on the LCD, to record, delete files and/or folders on the
player in order to make some space available.
WAV format is recommended to use during MIC recording to get high
quality recording. Only
button is useable during recording.
54
Line-in Recording
Line-in Recording
① During four mode selecting, select Voice Record
.
Long Click
② Push
or
to select Record mode, press the
NAVI/MENU button
.
③ With
and
to select MIC/LINE-IN. Press the
NAVI/MENU button. Double click
to switch to the recording
interface, and long press
to start the recording.
Long Click
④ After finishing the recording, long press
to stop it.
Long Click
Too high volume level may amplify surrounding
noise, degrading the recording quality.
55
Play Recording File
Click the Menu button, select the Mode and click it.
Long Click
The four modes selecting displays on the LCD.
Push
to select the MP3 mode
, press the Menu button
Click
Function
Push
playing.
to select a Rec file in the REC folder, press
Function
56
PLAY/OFF
to start
.
Displaying Lyric
Displaying Lyric
Download the lyric files from the internet to the PC. The lyric file is the format of Irc. as suffix.
Connect the player and your PC via USB
cable.
Turn off the player and take out the
battery.
PLAY/OFF
Long Click
3S
Press the button
for about 3 seconds
to turn off the player.
Copy the lyric files from your PC to the Player.
insatiable.lrc
Insatiable.lrc
Saved the lyric files and the songs on the same
content. The files names should be also the same ones
57
Text View
View the TEXT files (txt. format)
① During the MP3 mode
, long press the Menu
.
Long Click
② Select the Music Folder
. With
and
select the TEXT file.
Return to the upper folder, press the button
.
③ Press the Menu button. Press it again, display the
function list as below,
To bookmark
Set bookmark
Auto/Manual
Exit Ebook
Move to Bookmark
Set Bookmark
Auto/Manual
Exit Ebook
58
to
Firmware Upgrade
The latest firmware upgrade file
E2
A. What is Firmware?
Firmware is a program embedded in the hardware, which activates various features. By upgrading, you can
enhance the features and eliminate the bugs.
B. Notice for Legal Limitations and Responsibilities Regarding Firmware
The performance and menu of MP3 Player may change without prior notice through firmware upgrades of
regular or beta versions supported by the manufacturer.
When you upgrade the firmware, all the date in the flash memory is deleted. Therefore, users should
personally back up important MP3 files and data saved in MP3 player to their PC before upgrading the
firmware.
All firmware upgrades are intended for overall enhancement of performance. The upgrades will be
provided when available based on our company's judgment.
Some beta versions of the firmware included in our development roadmap may have minor bugs that will
be corrected in the official versions of the firmware. We are warning you beforehand of this possibility
through this Guide.
C. Conditions for Firmware Upgrade
Upgrading the firmware requires the basic environment where the USB feature of the Windows OS works
properly.
You can check "mobile Disk" in 'My Computer' on Windows 98/ME/XP/2000/2003.
Either 'Mobile Disk' must be displayed or a firmware upgrade to be possible. If it is not displayed, we
recommend that you check the menu that asks whether or not to use a USB Device from the main board
CMOS, or reinstall Windows, or have the USB port on the main board examined.
59
Firmware Upgrade
MEIZU Update
Download Meizu Update package from Meizu's website ( Take note of the model no. and
version.) Unzip and copy it to the directory of the manager software.
Installing directory
C:\Program Files\SigmaTel\MSCN
4.000.rar
Firmware upgrade package
Turn your player off
Connecting the player to your PC through
the USB cable.
Long Click
3S
Long click
to turn off.
for more than 3 seconds
60
Firmware Upgrade
Select START-[Program]-[SigmaTel
MSCN Audio Player]-[ firmware
Download]
After connecting your PC and the player,
the PC identify with it automatically.
PLAY/OFF
It appears the message to find a
new hardware on your PC for the
first time to update.
Select the Format Data Area
Enable :Format ME, then update programs.
Disable: Update program only.
Update is running.
61
Firmware Upgrade
While finishing, click [Close] to exit.
Click [Start] to begin to update.
After finish the above procedures, disconnect your PC and the player, then connect the
m again to finish.
If the player is not able to be used, take out the battery and select Format Data Area, then
redo the updating again to clear it.
Latest Firmware Upgrade
Visit Meizu's website to get the latest firmware.
62
Format
Formatting the Flash Memory
The flash Memory of the player can be formatted. If the flash Memory is formatted,
all data stored within is lost. Take notice of this fact, examine the following procedures.
Prepare the followings before formatting,
Finished installation of the player manager program
Connecting the player to your PC.
Operating procedures
Connect the player and your PC via USB
connection cable.
Double click My Computer.
63
Format
Click the [Start].
Select the Mobile Disk and right click it,
then select and click [Format]
The formatting is start running.
It appears the warning window, select
[OK] to continue.
64
Format
Exit the formatting, click [Close] to exit.
While finishing, click [OK] to finish.
It is easy to format your MP3 player, please refer to Windows instruction to
format on your PC.
65
Handling Instructions
Do not subject the player to severe impact or jarring.
Vibration experienced during walking or exercising will not affect the player. However,
dropping a heavy object on the player may result in damage or sound distortion.
Be careful when storing the set and do not use or place it at the following places:
■ Places with high huthe playerdity;
■ Places with strong magnetic fields;
■ Places with extreme temperatures;
■ Directly under the sunshine or near the equipment that generates heat;
■ Inside a car with closed windows especially in summer.
It is necessary to prevent strong shock when reading files or operating, otherwise
files may be damaged or deleted.
Please do not repair or disassemble this product by yourself.
Please do not use this product in the place where forbid to use for electronics
products.
Please do not operate this product while driving.
Please backup the important information on your note book, any repair result from
electricity shock, static electricity, change of battery or incorrect using may cause
change, damage or delete the files stored in the product.
66
Trouble Shooting
Trouble Shooting
Check that the battery 's polarity is correct.
Check the voltage of battery.
Take out the battery for a short while and reinsert.
No Power
No sound from earphones
Check whether VOLUME is set to "0". Connect the earphones/
remote plug firmly.
Check whether plug is dirty. Clean the plug with a dry and
soft cloth.
Corrupted MP3 or WMA files may make a static noise & the sound
may cut off.
Check your files on the PC to see if they are corrupted.
Characters in LCD are
corrupted
Check whether you select the correct language.
Poor FM reception
Adjust the position of the player and earphones.
Turn off the power of other electric devices nearby the player.
Earphones function as the antenna.
Failed download of MP3 file
Check the condition of the battery.
Check the connection between your computer and the player to
ensure that the cable is secure.
Check the Manager program to make sure it is operating.
Check whether the player 's Memory is full.
Should any problem persist after you have checked these symptoms, consult the
distributors.
67
Product Specifications
Product Specifications
Dimensions
63.3mm×27.3mm×15mm (H×W×T)
Weight
33g (Including Battery)
LCD
128x64 dot, dual colors OLED screen
PC Interface
USB2.0 High Speed
Flash Memory
Built-in basic Memory (128MB ~1GB according to product)
Battery
Chargeable Li-polymer Battery
Maximum 12 hrs of continuous playback
Record
Sampling Rate
32KHz, 44.1KHz
Recording Format
MP3 ADPCM
Recording Mode
MIC FM LINE-IN
Recording Time
MP3 6hrs (32KHz, 96kbps, 256MB)
Earphone's Output
(L) 12mW (R) 12mW(32 Ohm)
ADPCM 18hrs (8KHz, 32kbps, 256MB)
MP3/WMA
FM Radio
Operational Temperature
MP3 Bit Rate
8kbps - 384kbpS
WMA Bit Rate
5kbps - 192kbps
Output Frequency Band
20Hz ~ 20kHz
S/N Ratio
> 95dB
Distortion Rate
< 0.05%
FM Receiving Frequency
76MHz ~ 108MHz
FM Reserve Channels
50
Earphone's Output
(L) 12mW (R) 12mW(32 Ohm)
S/N Ratio
> 50dB
-5 degrees ~ 40 degrees Celsius
68
Memo
69
Memo
70
Memo
71
DIGITAL MP3 PLAYER
Meizu Electronic Technology Limited
Add.: 3/F, 7th Pingxi 5 Road, Nanping Technology Park Zhuhai, Gongdong, P.R.China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
