SAFETY INFORMATION
ed
• Clean the player with a soft cloth, or a damp chamois leather. Never use solvents.
• Make sure that you keep your set away from water and high temperatures.
• Do not use your system immediately after transporting it from a cold place to a
warm place, as condensation may cause the system to malfunction.
• To prevent personal injury, do not reverse any batteries and do not mix battery
types.
• The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal.
• The rating plate is located at the back cabinet of apparatus.
• Do not throw batteries in fire!
nb
de
an
.v
w
w
w

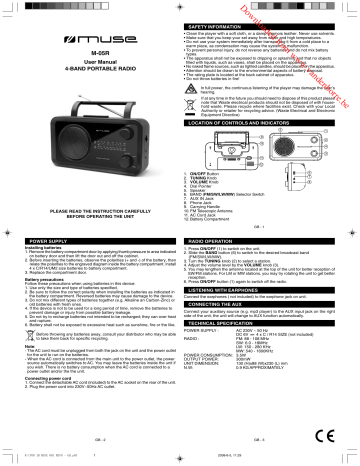

User Manual
4-BAND PORTABLE RADIO
m
fro
M-05R
or
In full power, the continuous listening of the player may damage the user’s
hearing.
.b
re
If at any time in the future you should need to dispose of this product please
note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice. (Waste Electrical and Electronic
Equipment Directive)
PLEASE READ THE INSTRUCTION CAREFULLY
BEFORE OPERATING THE UNIT
1. ON/OFF Button
2. TUNING Knob
3. VOLUME Knob
4. Dial Pointer
5. Speaker
6. BAND (FM/SW/LW/MW) Selector Switch
7. AUX IN Jack
8. Phone Jack
9. Carrying Handle
10. FM Telescopic Antenna
11. AC Cord Jack
12. Battery Compartment
GB - 1
POWER SUPPLY
RADIO OPERATION
Installing batteries
1. Remove the battery compartment door by applying thumb pressure to area indicated
on battery door and then lift the door out and off the cabinet.
2. Before inserting the batteries, observe the polarities (+ and -) of the battery, then
relate the polarities to the engraved diagram inside the battery compartment. Install
4 x C/R14/UM2 size batteries to battery compartment.
3. Replace the compartment door.
Battery precautions
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in
the battery compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline an Carbon-Zinc) or
old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to
prevent damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can over heat
and rupture.
6. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
1. Press ON/OFF (1) to switch on the unit.
2. Slide the BAND button (6) to switch to the desired broadcast band
(FM/SW/LW/MW).
3. Turn the TUNING knob (2) to select a station.
4. Adjust the volume level by the VOLUME knob (3).
5. You may lengthen the antenna located at the top of the unit for better reception of
SW/FM stations. For LM or MW stations, you may try rotating the unit to get better
reception.
6. Press ON/OFF button (1) again to switch off the radio.
LISTENING WITH EARPHONES
Connect the earphones ( not included) to the earphone jack on unit.
CONNECTING THE AUX
Connect your auxiliary source (e.g. mp3 player) to the AUX input jack on the right
side of the unit, the unit will change to AUX function automatically.
TECHINCAL SPECIFICATION
POWER SUPPLY :
Before throwing any batteries away, consult your distributor who may be able
to take them back for specific recycling.
Note:
- The AC cord must be unplugged from both the jack on the unit and the power outlet
for the unit to run on the batteries.
- When the AC cord is connected from the main unit to the power outlet, the power
source automatically switches to AC. You may leave the batteries inside the unit if
you wish. There is no battery consumption when the AC cord is connected to a
power outlet and/or the the unit.
AC 230V ~ 50 Hz
DC 6V
4 x C / R14 SIZE (not included)
RADIO :
FM: 88 - 108 MHz
SW: 6.0 - 18MHz
LW: 150 - 280 KHz
MW: 540 - 1600KHz
POWER CONSUMPTION: 3.5W
OUTPUT POWER:
300mW
UNIT DIMENSION:
130 (H)x88 (W)x230 (L) mm
0.9 KG APPROXIMATELY
N.W:
Connecting power cord
1. Connect the detachable AC cord (included) to the AC socket on the rear of the unit.
2. Plug the power cord into 230V~50Hz AC outlet.
GB - 2
R-1700 IB MUSE 001 REV0 - GB.p65
1
GB - 3
2008-6-5, 11:29
e
LOCATION OF CONTROLS AND INDICATORS
