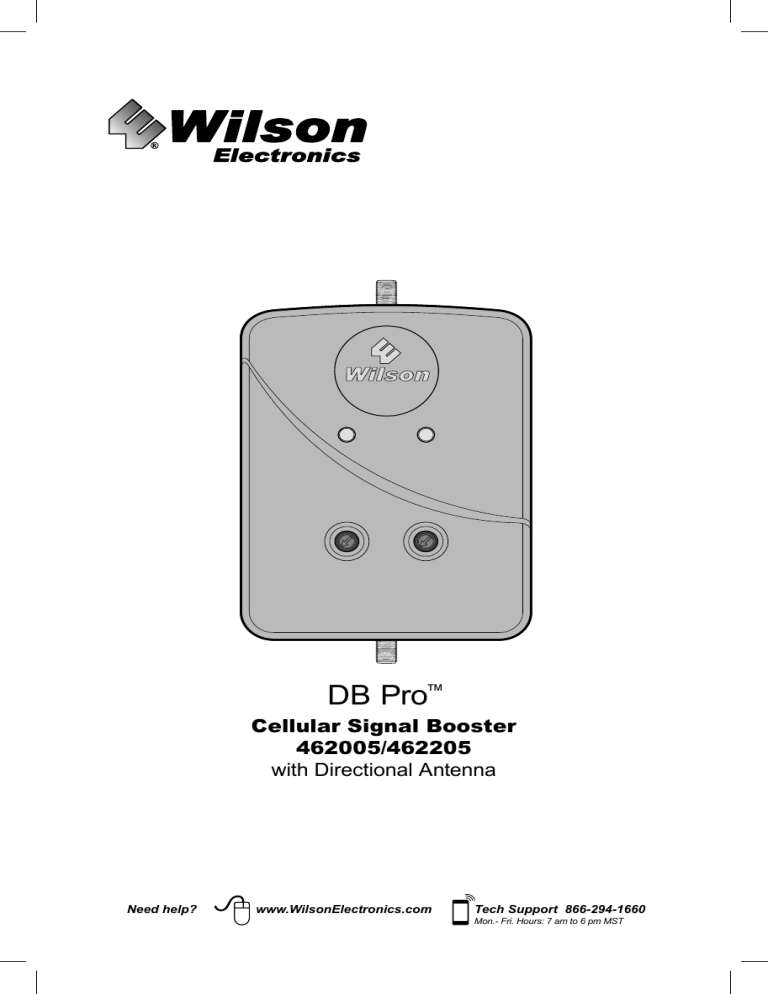

DB Pro™
Cellular Signal Booster
462005/462205
with Directional Antenna
Need help?
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
IT IS VERY IMPORTANT
TO POWER YOUR SIGNAL
BOOSTER USING A SURGE
PROTECTED AC POWER
STRIP WITH AT LEAST A 1000
JOULE RATING.
!
FAILURE TO DO THIS WILL VOID YOUR WARRANTY
IN THE EVENT OF A POWER SURGE OR LIGHTNING
STRIKE.
THE SIGNAL BOOSTER UNIT IS DESIGNED
FOR USE IN AN INDOOR, TEMPERATURECONTROLLED ENVIRONMENT (LESS
THAN 150 DEGREES FAHRENHEIT). IT IS
NOT INTENDED FOR USE IN ATTICS OR SIMILAR
LOCATIONS SUBJECT TO TEMPERATURES IN
EXCESS OF 150°F.
!
Installation Instructions for the Following Wilson Electronics Signal Booster:
DB Pro™ Adjustable Gain 800/1900 MHz In-Building Wireless
Smart Technology ™ Signal Booster
Model # 460005 FCC ID: PWO460005
Contents
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Find the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Quick Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Signal Booster Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Inside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Powering Up the Signal Booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Troubleshooting & Understanding Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Additional FAQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety Guidelines & Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
2
Need help?
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Package Contents
AC Power Supply
6V / 2.5A
DBPro
(Not included with some models)
(859912)
Pole Mount Bracket
Outside Antenna Kit
75 Ohm Wide Band Antenna
30’ RG6 coax cable
(314475-0630)
Panel Antenna Kit
Inside Panel Antenna
30’ RG6 coax cable
(311155-0630)
Wall Mount Bracket
Tools Required for Installation:
(depending on your particular installation, you will need the following tools)
1. Pole mount - 10 mm open-end wrench or adjustable wrench
2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver
Before Getting Started
Find the Strongest Cellular Signal
Before you install your DB Pro and start
enjoying improved cellular reception in
your facility, please do the following:
Before you install your DB Pro signal
booster, you must determine the location of
the best available cellular signal. This will
affect the location of your Outside Antenna
and will help you get the best performance
from your DB Pro. You can find the
strongest signal outside your building,
typically at the highest point available, using
any of the following methods:
1.
Read through all the installation
steps. This will help you know what to
expect from start to finish.
2.
Watch the YouTube video
demonstrating the DB Pro installation
at wilsonelectronics.com/DBProvideo.
3.
Familiarize yourself with all materials
in your product package. This will
allow you to know which pieces are
referenced in the instructions.
4.
Identify the location of your best
available cellular signal. See
instructions that follow.
5.
Determine the best installation
locations for your Outside Antenna,
Signal Boost, and Inside Antenna.
Test the function of your DB Pro
system before finalizing installation.
Need help?
1.
www.WilsonElectronics.com
Best method:
Connect the Outside Antenna to the DB
Pro signal booster, and the DB Pro to
the Inside Antenna. Have one person
outside (on the roof for best results)
rotate the Outside Antenna with a
second person inside the building near
the Inside Antenna watching the signal
strength on a phone. This allows you
to read the signal strength from nearby
cell towers.
a. The person inside should have
the phone in test mode so the
numerical signal strength can be
read. This is more accurate than
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
3
the bar indicator. Go to www.
wilsonelectronics.com/test-modeinstructions for help in finding the
test mode for your phone.
3.
b. The person on the roof should turn
the Outside Antenna 45 degrees
at a time. Allow 30 seconds for the
phone to register with each turn.
Acceptable method: Check the bar
indicator on your cell phone display
and note where the signal appears
the strongest. (Note: cell phone bars
are only an approximation of signal
strength and vary from phone to
phone.) Phones can take up to 30
seconds to reset to a new reading. Be
patient and repeat your signal check
several times.
Cell Tower
WAIT 30
SECONDS
e
Rotat
Outside Directional
Antenna
c. The person inside should note the
readings on the phone with each
turn. Signal readings usually appear
as a negative number. The closer the
number gets to zero, the stronger the
signal (for example, -86 dB would be
a moderately good reading while -55
dB would be an excellent reading,
and -110 dB would be a weak, or
unusable signal).
-80 dB
For additional instructions on finding
the strongest cellular signal, watch the
installation video at: wilsonelectronics.com/
DBProvideo.
Installation Details
As you plan your installation, keep the
following guidelines in mind to maximize
your signal strength:
1.
Maintain a vertical distance of at least
20 feet or a horizontal distance of at
least 50 feet between the Outside
Antenna to the Inside Antenna.
2.
If possible, place the Inside Antenna
directly beneath the placement of
the Outside Antenna location. This
creates a maximized signal zone
within the room where the Inside
Antenna is located.
Outside Directional
Antenna
Cell Tower
Rotat
e
d. Once you have determined which
direction provides the strongest
outside signal, you can install the
Outside Antenna in that general
direction.
2.
Good methods:
a. Place calls from several locations
outside your building. As you move
to different locations, note where
you get the best reception.
b. If you have a smart phone, you
can download apps that help you
identify locations of cell phone
towers or the strongest signal. Go
to the App Store and search for
“cell signal” to find available apps
for your device.
4
Need help?
www.WilsonElectronics.com
Outside Directional
Antenna
Place the inside antenna
directly beneath the
placement of the Outside
Antenna location
At least 20 feet of vertical or
50 horizontal separation
Inside Panel Antenna
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
3.
Be sure the Inside Antenna is NOT
facing toward the Outside Antenna.
This creates potential oscillation
or feedback and reduces the
effectiveness of the DB Pro.
4.
If you do not know how to mount
hardware or run coax cable through
walls, ceilings and floors, get help
from a Wilson Certified Installer
at www.wilsonelectronics.com/wci
or from a qualified contractor or
electrician.
4.
Run the coax cable from the Outside
Antenna to the Signal Booster and
attach it to the connector labeled
“Outside Antenna.” Connect another
coax cable to the connector labeled
“Inside Antenna” and run it to the
Inside Antenna. NOTE: Be careful
not to bend the center pins on
the connectors when securing
connections.
5.
Once you have ensured all
connections are tight, connect the
Signal Booster to a surge protected
power strip with at least a 1000 Joule
rating to protect your equipment from
power surges and lightning strikes.
(See page 11 for information on
lightning protection)
6.
If your DB Pro is working correctly,
the lights will be green. If the
lights are orange or red, see the
“Troubleshooting” section starting on
page 7.
We recommend you install the Lightning
Surge Protector (859992). Attach the cable
from the Outside Directional Antenna to
the surge protector and ground the surge
protector. The LSP is sold separately (see
page 11 for more info).
Quick Install
For more detailed instructions on
installation, read the description later
in this guide or watch the video at
wilsonelectronics.com/DBProvideo.
NOTE: Create a “soft” install first by testing
components in your proposed locations
before securing them with hardware.
1.
Select a location on the roof of
the building to install the Outside
Antenna. Make sure the antenna is
clear of obstructions that could block
the signal from the nearest cellular
tower.
2.
Select a location to install the Signal
Booster that is well ventilated and
away from excessive heat, moisture,
and direct sunlight.
3.
Select a location for the Inside
Antenna that is in the center of the
area where the signal needs to
be amplified and a minimum of 20
vertical feet or 50 horizontal feet from
the Outside Antenna.
Outside Antenna Installation
1.
Select a location on the roof or an
outside wall where the Outside
Antenna can be mounted without
obstruction (at least three feet of
clearance in all directions) and with at
least 20 feet of vertical or 50 feet of
horizontal separation from the Internal
Antenna.
2.
After connecting the coax cable to the
antenna, run it underneath the down
side of your roof’s flashing if mounted
on the roof. Tip: Often you can follow
the route used by satellite TV cables.
If you attach the Outside Antenna to a
wall, run the cable along the outside
of the wall to the area where you want
the cable to appear on the inside of
the building, then drill a hole through
the wall where the cable will enter
the building. Caution: Before drilling
holes for the cable, be sure there are
no electrical outlets, wiring, or sewer
or water pipes you could puncture or
sever.
3.
Seal any holes with silicone, cable
bushings or other waterproof sealant.
Outside Directional
Antenna
Inside Panel
Antenna
DBPro
Need help?
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
5
Signal Booster Installation
1.
Select a location for the Signal
Booster that is away from excessive
heat, direct sunlight, moisture and
well ventilated. The enclosure must
NOT be air tight. Also, be sure the
location is near a power source.
2.
Connect the coax cables to the
Signal Booster from the Outside
Antenna and Inside Antenna at the
designated ports.
3.
Face inside
antenna
away from
the outside
antenna.
Inside
Antenna
4.
3.
Do NOT connect the Signal Booster
to the power source until all cables
are connected.
2.
Select a location in the center of
the area where you want cellular
signals improved to mount the Inside
Antenna. If you have multiple rooms
with poor signal, you may need
multiple Inside Antennas. These
can attach to the Signal Boost by
using a splitter (sold separately).
Contact Wilson Electronics for more
information.
Ensure a minimum of 20 feet vertical
or 50 horizontal feet separation from
the Outside Antenna.
Outside Directional
Antenna
Place the inside antenna
directly beneath the
placement of the Outside
Antenna location
At least 20 feet of vertical or
50 horizontal separation
Use the mounting hardware included
in the package to secure the Inside
Antenna to the selected location.
Powering Up The Signal
Booster
1.
Ensure the cables to both the Outside
Antenna and Inside Antenna are
securely connected before powering
up the Signal Booster.
2.
Plug the power supply into the Signal
Booster input marked “POWER” and
then into a surge protector power strip
with a minimum 1000 Joule rating.
Inside Antenna Installation
1.
Inside Antennas can be mounted
above ceiling drywall, on a ceiling
inside a room, or on a wall inside a
room. Ensure the Inside Antenna
is facing AWAY from the Outside
Antenna to avoid oscillation
(feedback).
!
3.
The lights on the Signal Booster
should remain green . If the
lights are red or orange, see the
“Troubleshooting” section on page 7.
4.
If you know that only one frequency
band (800 MHz or 1900 MHz) is available
in your coverage area, reduce the gain
control on the frequency band that is NOT
in use to the lowest setting.This will reduce
power consumption of the Signal Booster.
For illustrations of these installation steps,
view the install video at wilsonelectronics.
com/DBProvideo.
Inside Panel Antenna
6
Need help?
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Troubleshooting &
Understanding Lights
3.
If the coverage area is not large
enough with a reduced gain, you
need to increase the distance
between the Outside Antenna and
the Inside Antenna by moving them
horizontally and/or vertically farther
apart. If the light is green after
separating the antennas, increase
the gain until the red light comes on.
Then slightly decrease the gain until
the green light appears. This ensures
maximum coverage.
4.
If your coverage area is still too small
after separating the antennas contact
the Wilson Electronics Technical
Support Team for assistance: 866294-1660.
The Signal Boost includes two indicator
lights, one for the 800 MHz band and the
other for the 1900 MHz band (see FAQ for
explanation of MHz bands). Both indicator
lights will be green, red, or orange.
Green indicates the unit is powered
and working properly. You always
want the lights to be green.
Red indicates the DB Pro has
shut down to prevent oscillation
(feedback).
Orange indicates the DB Pro is
overloaded because it is too close to
a cell tower.
Note: All red light issues must be resolved
before orange light issues.
Fixing Orange Light Issues
If one or both lights on the Signal Booster
are orange:
1.
Turn down the gain control (described
in the red light instructions above)
until you get a green light.
2.
If the gain is not adequate for good
coverage, move the Outside Antenna
away from the strongest cellular
signal in small increments until the
light turns green. If the Signal Booster
will not respond, turn the gain down
in 5 dB increments and move the
Outside Antenna. Continue to adjust
the gain and antenna positions until
the light turns green.
Fixing Red Light Issues
If one or both lights on the Signal Boost are
red:
1.
Make sure all connections are tight.
2.
Reduce the gain of the Signal Booster
by rotating the gain control knob
corresponding with the red light. This
is done by turning the knob counterclockwise in small increments, waiting
5 seconds between each adjustment
for the Signal Booster to reset.
Continue this adjustment until the
light turns green.
Wait 5 seconds
between each
adjustment
Move the outside antenna
away from the strongest
cellular signal in small
increments
3.
If the light remains orange, contact
the Wilson Electronics Technical
Support Team for assistance: 866294-1660.
Fixing Blinking Red & Orange Light Issues
IMPORTANT NOTE: Reducing the gain
decreases the inside coverage area. If the
amount of coverage area is sufficient when
the green light comes on, your installation
is complete.
Need help?
If one or more of the lights on Signal
Booster are blinking red and orange,
it indicates that the Signal Booster is
experiencing extreme receiver overload
and has shutoff.
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
7
a)
Turn away Outside Antenna from the
cell tower until lights no longer flash.
Contact Wilson Electronics Technical
Support Team for assistance.
Fixing Blinking Red Light Issues
If one or more of the lights on Signal
Booster are blinking red, this means that
the Signal Booster has shutoff.
a)
Increase the distance between
the cellular device and the Inside
Antenna.
Increase the distance
Additional FAQ:
What hours can I contact tech support?
Technical Support can be reached
from 7:00am to 6:00pm MST, by calling
(866-294-1660), or by email, at [email protected]
wilsonelectronics.com
How does weather affect the
performance of my Outside Antenna?
Water vapor (e.g. rain, fog, snow or
other precipitation) creates an effective
filter to cellular signal. In times of
heavy precipitation, you may see less
performance.
What’s the difference between the 800
MHz and the 1900 MHz bands? How do
I know which MHz band my cell phone
uses?
Lights Off
If one or more of the lights on Signal
Booster are off verify power to your surge
protected power strip. If power and lights
are still off this means that the gain has
been turned all the way down and the
band is in Power Save Mode. Increase
the gain until the light turns on. If there are
bands that are not being used in the local
coverage area, we recommend turning
these frequencies off. This will reduce
enegy consumption.
NOTE: The Signal Booster can be reset by
disconnecting and reconnecting the power
supply.
For additional descriptions on
troubleshooting, see the install video at
wilsonelectronics.com/DBProvideo .
The DBPro works with all major North
American cellular providers on the 800
& 1900 MHz frequencies. Traditionally,
800/1900MHz are associated with
voice and 3G data; while 700MHz
and 1700/2100MHz are associated
with 4G data. For more detail, refer to
wirelessadvisor.com.
Inside Antenna Expansion Kit
Kit 309900-50N
• 2 - Wall Panel antennas
• 1 - 50 ohm 3-Way Splitter
Kit 309905-50N
• 3 - Wall Panel Antennas
• 3 - 2-Way 50 Ohm Splitters
Kit 309902-75F
• 2 - Wall Panel Antennas
• 1 - 3-Way 75Ohm Splitter
Kit 309903-75F
• 3 - Wall Panel Antennas
• 3 - 2-Way 75Ohm Splitters
Kit 309904-75F
• 1 - Wall Panel Antenna
• 1 - 2-Way 75 Ohm Splitter
Inside Antenna Kits
Kit 301121-40010
• 50 Ohm Dome Antenna
• 10’ LMR400
Kit 311135-40060
• 50 Ohm Wall Panel Antenna
• 60’ LMR400
8
Need help?
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Kit 301151-0610
• 75 Ohm Dome Antenna
• 10’ RG6 Cable
Kit 311135-5820
• 50 Ohm Wall mount Panel Antenna
• 20’ RG58 Cable
Kit 311155-40060
• 50 Ohm Wall Mount Panel Antenna
• 60’ LMR400 Cable
Kit 301151-1110
• 75 Ohm Dome Antenna
• 10’ RG11 cable
Kit 311155-1150
• 75 Ohm Wall mount Panel Antenna
• 50’ RG11 Cable
Kit 301213
• Desktop Antenna w/ 5’ RG174
50 Ohm Outside Antenna Kits
Kit 314453-5825
• 50 Ohm Pole Mount Panel Antenna
• 25’ RG58 Cable
Kit 314411-5825
• 50 Ohm Wide Band Directional
• 25’ RG58 Cable
Kit 301111-5850
• Yagi Directional Antenna
• 50’ RG58 Cable
Kit 311124-5840
• 1900 MHz Yagi Directional
• 40’ RG58 Cable
Kit 311203-5820
• Omni-Directional antenna
• 20’ RG58 Cable
Kit 311129-5830
• 800 MHz Yagi Antenna
• 30’ RG58 Cable
Kit 311203-40020
• Omni-Directional antenna
• 20’ LMR400 Cable
Kit 301111-400170
• Yagi Directional w/ N-Female
• 170’ LMR400
Kit 311124-400100
• 1900 MHz Yagi Directional
• 100’ LMR400 Cable
Kit 311129-400100
• 800 MHz Yagi Antenna
• 100’ LMR400 Cable
Kit 314411-40075
• 50 Ohm Wide Band Directional Antenna
• 75’ LMR400 Cable
Kit 314453-40075
• 50 Ohm Pole Mount Panel Antenna
• 75’ LMR400 Cable
Need help?
75 Ohm Outside Antenna Kits
Kit 301111-0675
• Yagi Directional Antenna
• 75’ RG6 Cable
• N-Male to F-Female adapter
Kit 311124-0660
• 1900 MHz Yagi Directional
• 60’ RG6 Cable
• N-Male to F-Female adapter
Kit 311129-0650
• 800 MHz Yagi Directional
• 50’ RG6 Cable
• N-Male to F-Female adapter
Kit 314473-0640
• 75 Ohm Pole Mount Panel Antenna
• 40’ RG6 Cable
Kit 311141-0620
• 75 Ohm Grey Brick Antenna
• 20’ RG6 Cable
Kit 301111-11140
• Yagi Directional Antenna
• 140’ RG11 Cable
• N-Male to F-Female adapter
Kit 311201-1120
• Omni Directional w/ F-Female
• 20’ RG11 Cable
Kit 311124-11110
• 1900 MHz Yagi Directional
• 110’ RG11 Cable
• N-Male to F-Female adapter
Kit 311129-1180
• 800 MHz Yagi Directional
• 80’ RG11 Cable
• N-Male to F-Female adapter
Kit 314473-1175
• 75 Ohm Pole Mount Panel Antenna
• 75’ RG11 Cable
Kit 314475-0630
• 75 Ohm Wide Band Directional
• 30’ RG6 Cable
Kit 314475-1175
• 75 Ohm Wide Band Directional
• 75’ RG11 Cable
Kit 311141-1120
• 75 Ohm Grey Brick Antenna
• 20’ RG11 Cable
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
9
Safety Guidelines
WARNING:
To uphold compliance with network protection standards, all active cellular devices must maintain
at least 6 feet of separation distance from Panel and Dome antennas and 4 feet of separation
distance from desktop antennas.
WARNING:
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the
cell phone.
WARNING:
Use only the power supply provided in this package. Use of a non-Wilson Electronics product
may damage your equipment.
WARNING:
The Signal Booster unit is designed for use in an indoor, temperature-controlled environment
(less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject
to temperatures in excess of that range.
WARNING:
Take care to ensure that neither you nor the pole comes near any power lines during installation.
RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider
and have your provider’s consent. Most wireless providers consent to the use of
signal boosters. Some providers may not consent to the use of this device on their
network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by
the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any
person.
You MUST cease operating this device immediately if requested by the FCC or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate
for calls served by using this device.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the
authority to operate this equipment.
10
Need help?
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Signal Booster Specifications
SIGNALBOOST™ DT™ Specifications
Model Number
460005
Outside antenna connectors
F-Female
Outside antenna impedance
75 Ohms
Inside antenna connectors
F-Female
Inside antenna impedance
75 Ohms
Dimensions
6.5 x 4.25 x 1.75 inch (16.5 x 10.7 x 4.4 cm)
Weight
0.47 lbs (0.213 kg)
Frequency
824-894 MHz / 1850-1990 MHz
Power output
800 MHz
1900 MHz
Power output for single cell phone (uplink) dBm
24.9
22.5
Power output for single received channel (downlink) dBm
-2.2
Noise Figure (typical)
-2.1
3.5 dB nominal / 6 dB nominal
Isolation (uplink/downlink)
> 90 dB
Power Requirements
110-240 V AC, 50-60 Hz, 8 W
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory reprogramming or disabling
the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal
Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects an
oscillation, the Signal Booster will automatically turn the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation
after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted
by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.
!
RECOMMENDED: INSTALLING THE LIGHTNING SURGE PROTECTOR
To Outside
Antenna
Lightning
Surge Protector
(sold separately)
Ground Wire
(not included)
(SOLD SEPARATELY)
INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE TO THE SIGNAL
BOOSTER. ATTACH THE CABLE FROM THE OUTSIDE ANTENNA TO THE
SURGE PROTECTOR. ENSURE THE LSP IS PROPERLY GROUNDED.
#859992-75 OHM MAY BE PURCHASED AT WWW.WILSONELECTRONICS.COM
OR BY CALLING 800-204-4104.
To Signal Booster
Need help?
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
11
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If for any
reason the performance of any product is not acceptable, simply return the product directly to the reseller with a
dated proof of purchase.
2-Year Warranty
Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials.
Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of
purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics
shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or
replaced product back to the original consumer if located within the continental U.S.
This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected to
misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
Disclaimer: The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no
responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from its use.
Copyright © 2014 Wilson Electronics, LLC All rights reserved.
U.S. Patent Nos.– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,033; 8,583,034
3301 East Deseret Drive, St. George, UT 84790
web: www.WilsonElectronics.com email: [email protected]
phone: 866-294-1660
local: 435-673-5021
fax: 435-656-2432
111281_DBProDirectional_Rev01_01.22.14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
