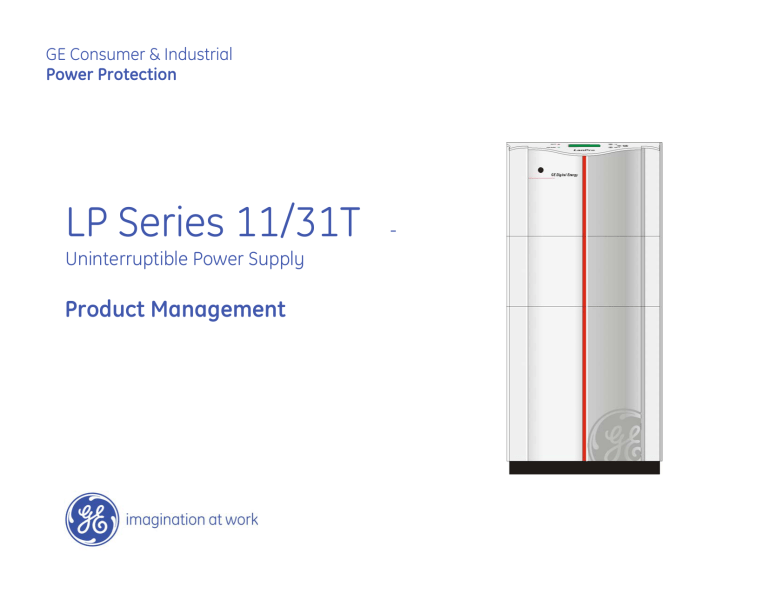

LanPro-U Techn descr + FBA

GE Consumer & Industrial

Power Protection

LP Series 11/31T

-

Uninterruptible Power Supply

Product Management

LP Series

On-line hardwired

UPS single phase

3-10kVA

CE Marked

Introduction

Contents

Range

Product description

“Hot buttons”

Specifications

Features & Benefits

Options

RPA ( Redundant Parallel Architecture)

Segments and Applications

Range

LP-11 Series 3/5/6/8/10:

230 Volt single phase in and out

LP-31T Series 5/6/8/10:

400 Volt three phase in and

230 Volt single Phase out

Product Description

True on-line double conversion

Power factor 0.99 at input

Electronic and manual bypass

Fully isolated output

Easy maintenance

Product Description

LP Series

Product Description

LP Series

DC connector for additional battery packs

Manual bypass switch

I/O terminals

Three option slots

LC display, 2 LEDs

3 push-buttons

Input fuses

Hot Buttons

Power factor corrected input

Automatic bypass

Maintenance bypass switch

Maintenance bypass preserves voltage conversion & isolation

Cold start (unit can be started with no AC present)

Multi language display

Unique RPA

Hot Buttons (continued)

LCD screen

Automatic battery testing –every 500 hrs.

No load shutdown

No load inrush current

Superior overload handling

Easy to service

Backfeed relay in 31T versions

Specifications

LP Series 3-11

LP Series 5-11 / 31T

3 kVA- 2.4 kW

5 kVA - 4 kW

LP Series 6-11 / 31T 6 kVA - 4.8 kW

LP Series 8-11 / 31T 8 kVA - 6.4 kW

LP Series 10-11 / 31T 10 kVA - 8 kW

Specifications

Voltages and Frequencies

Input Voltage LP 11 Input Voltage LP 31T

187 - 285 Vac I phase 340 - 470 Vac 3-ph / 4 wire

Output Voltage LP 11 and LP 31T

220 / 230 / 240 Vac 1 phase

Output Frequency

45-65 Hz

Specifications

Voltage and Frequency Independent

True On-Line - double conversion

HF PWM technique

No load (< 2%) shutdown with no utility

Bypass enable / disable

Programmable frequency tracking range

(2%, 4%, 6%)

Features & Benefits

Superior Battery Management

Automatic battery test

Battery calibration test

Boost charging

Temp. compensated charger

Load dependent EOD voltage

No-load shutdown

Features & Benefits

Superior Battery Management

Automatic battery test

Deep calibration test

Boost charging

Temp. compensated charger

Load dependent EOD voltage

No load shutdown

Maximum Up-time

Prevents Damage

Prolonged Battery Lifetime

No Surprises

Features & Benefits

ECO-mode

High efficiency (97%) , low energy costs

On board event logging

Easy and fast diagnostic

Multi-lingual LC display

Shows all operational parameters in language to choose from GB / NL / D / IT / ES

Design front

Elegant design, fits with all modern ICT products

Features & Benefits

Emergency power off (standard)

Emergency shutdown in case of fire or water alarms

Excellent Overload Behavior

Withstands most toughest conditions

Isolation transformer

Ultimate protection from disturbances

Tracking speed is selectable

Optimized for generator supply

Options

Redundant Parallel Architecture

Unique RPA system

SNMP plug-in card (web enabled)

For direct integration into networks

Relay card (plug-in)

Integration into third party systems

Additional battery packs

Longer runtimes

Backfeed protection relay

Safe maintenance

RPA

Redundant Parallel Architecture

Up to 4 units in parallel

Bypass and batteries redundant

Control logic redundant

Field-upgradeable (single>parallel)

RPA

Reliability

Flexibility

Serviceability

MAINS

LOAD

As well as the UPS, the bypass, the batteries and the control logic are redundant. This provides real redundancy. The result is a high system reliability.

RPA

Reliability

Flexibility

Serviceability

MAINS

LOAD

By adding units you can upgrade the total power rating of the system. This can be performed on-site by a service engineer.

RPA

Reliability

Flexibility

Serviceability

MAINS

LOAD

In a redundant system 1 unit can be removed for service purposes.

The other units still supply the load, providing full protection.

Segments and Applications

SEGMENTS AND APPLICATIONS

LP Series

Main Segments

Industry

Information Technology

Telecom

Industry

Industry applications:

Airports/Railroads

Tunnels

Building Control

Process Automation

Industry

Requires:

Easy installation

Low operational cost

Service friendliness

Information on the spot

Compatibility with other

systems

Generator operation

LP Series offers:

Small and light

SBM and ECO-mode

Complete UPS on one

printed circuit board

Multi-lingual LCD

Intelligent interface,

relay contacts, EPO

Adjustable bypass window

and tracking rate, optimal for genset

Contractors

Like it because it is simple to install…

Small and lightweight

Low cost wiring:

Powerfactor =1 input & easy to service.

Standard maintenance Bypass

LCD shows operational parameters

Information Technology

IT applications:

Server rooms

Business critical applications

Midrange computer systems

Back offices

Information Technology

Requires: LP Series offers:

24x7 power availability

High reliability

Remote management

Floor space

Elegant appearance

SBM, manual bypass

RPA (true redundancy)

JUMP is bundled for free

Small footprint

Nice! Isn’t it?

EDP Managers

Want a managed solution...

Easy to connect to any network

Remote modem and snmp management

to prevent any disaster.

Regular automatic self test

Superior Battery Management

Telecom

Telecom applications:

Mobile communication

Central switch boards

Telecom

Requires:

High reliability

Battery care

Maximal runtimes and fast

recharging

Low distortions

Isolation from mains

LP Series offers:

RPA

SBM and wide input voltage

window

Battery packs (easy to

install) and increased charger current available

(5/6kVA)

PF 0.99 at input and

THD < 2% at output

Standard isolation

transformer

Telecom

Desire approved specifications…

Complying to the world’s highest standards

Most reliable design & remote solutions.

Extended runtime versions up to hours

Remote diagnostics and service

Conclusion

Strengths of LP Series :

Excellent specifications

Standard equipped with

many features

Low operational costs

A winner in tenders
