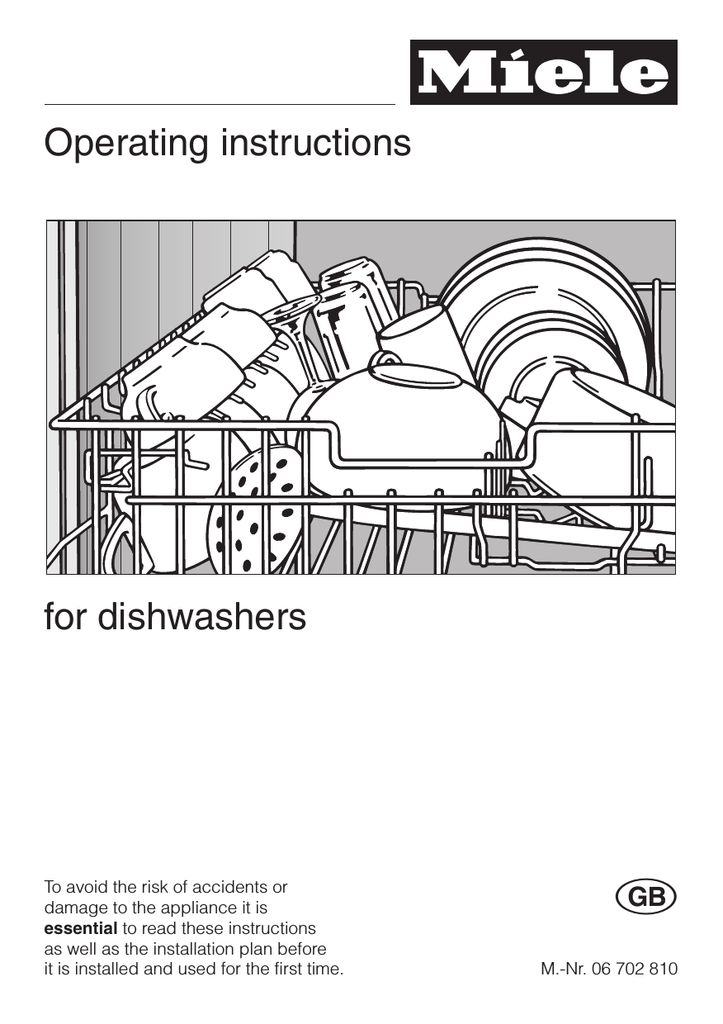

Miele 06 702 810 User's Manual

Operating instructions
for dishwashers
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the first time.
G
M.-Nr. 06 702 810
Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To programme the water hardness level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To call up the water hardness level in the display . . . . . . . . . . . . . . . . . . . . . . . . . 15
Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 16
Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Hinged cup rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Positioning rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Hinged spiked insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
To remove the hinged spike insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Bottle holder (depending on model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cutlery tray (depending on model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cutlery basket (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2
Contents
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Programme sequence indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tab function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Factory default setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Adjust sensor wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the door front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cleaning the filters in the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
The dishwasher does not fill/drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Unsatisfactory washing result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cleaning the drain pump and non-return valve . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3
Contents
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
For testing institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
4
Description of the appliance
Appliance overview
a Upper spray arm (not visible)
g Filter combination
b Cutlery tray (depending on model)
h Data plate
c Upper basket
i Child safety lock in door grip (not
visible)
d Middle spray arm
e Air inlet for drying
(depending on model)
f Lower spray arm
j Rinse aid reservoir
k Dual compartment detergent
dispenser
l Salt reservoir
5
Description of the appliance
Control panel
a Programmes
f Check/Refill indicators
b Display
g Start/Stop button with indicator light
c Tab indicator
h Delay start button
with indicator light
d Programme sequence indicators
e On/Off button s
i Tab button
j Programme selector button
This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 1220 etc. = G 1XXX
G 2220 etc. = G 2XXX
The model numbers G 1XXX and G 2XXX used in this book refer to the model
designation specified on the data plate of the appliance (and not the
description on the control panel).
The data plate is located at the top right hand side of the door.
6
Warning and Safety instructions
Delivery
This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property. To
avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.
Correct usage
This dishwasher is intended
exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the appliance would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.
Transport
Should you ever need to move the
dishwasher, e.g. when moving
house, note the following:
– Empty the dishwasher,
Before setting up the appliance,
check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.
Please ensure that the packaging
material is offered for recycling.
Installation
The dishwasher must be installed
and connected in compliance with
the installation plan.
The dishwasher must only be
plugged into the electricity supply
via a suitable switched socket. The
electrical socket must be easily
accessible after the dishwasher is
installed so that it can be disconnected
from the electricity supply at any time.
(See "Electrical connection").
There must be no electrical
sockets behind the dishwasher.
Danger of overheating and fire risk if
the dishwasher were to be pushed up
against a plug.
In order to ensure stability,
built-under and integrated
dishwashers must only be installed
under a continuous worktop which is
secured to adjacent cabinetry.
– Secure any loose parts, e. g. hoses,
mains cable, cutlery baskets, lower
basket
– Transport the dishwasher in the
upright position only.
7
Warning and Safety instructions
The dishwasher must not be
installed under a hob. The high
radiant temperatures which are
sometimes generated by a hob could
damage the dishwasher. For the same
reason it should not be installed next to
open fires or other appliances which
give off heat, such as heaters etc.
If you want to convert your
freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.
Do not connect the dishwasher to
the mains supply until it has been
fully installed.
Before connecting the appliance,
check that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system. It is most important that this
basic safety requirement is regularly
tested and where there is any doubt,
the electrical system in the house
should be checked by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
8
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
A damaged appliance could be
dangerous. Switch off at the mains
and call your Miele supplier or the Miele
Service Department.
The plastic housing of the water
connection contains an electrical
component. The housing must therefore
not be dipped in water.
There are live wires in the water
inlet hose. Never cut the water inlet
hose, even if it is too long.
Do not connect the appliance to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Use
Do not use solvents in the
dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher
detergent! Dishwasher detergents
can cause burning in the nose, mouth
and throat if swallowed, or inhibit
breathing. Consult a doctor immediately if detergent has been swallowed or
inhaled.
Warning and Safety instructions
Avoid leaving the door open
unnecessarily, as you could trip
over it.
Do not sit or lean on the opened
door. This could cause the
dishwasher to tip and be damaged and
you could get injured.
Only use detergent and rinse aid
formulated for domestic
dishwashers. Do not use washing-up
liquid.
In an appliance with a cutlery
basket (depending on model)
cutlery is cleaned and dried more
efficiently if placed in the basket with
the handles downwards. However, to
avoid the risk of injury place knives and
forks etc. with the handles upwards.
Please only use special coarse
grained dishwasher salt for
reactivation, as other salts may contain
insoluble additives which can impair
the functioning of the softener.
Plastic items which cannot
withstand being washed in hot
water, such as disposable plastic
containers, or plastic cutlery and
crockery should not be cleaned in the
dishwasher. The high temperatures in
the dishwasher may cause them to melt
or lose shape.
On models with "Delay start", make
sure that the dispenser is dry
before adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispensed.
Do not use liquid detergent when
selecting Delay start, as it can run into
the dishwasher before it is required.
Safety with children
This appliance is not a toy! To
avoid the risk of injury do not allow
children to play in or around the
dishwasher, or to operate it. There is
also a danger that children playing
might shut themselves in the
dishwasher.
Keep children away from
detergents. Dishwasher detergents
can cause burning in the mouth, nose
and throat if swallowed, or inhibit
breathing. Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.
9
Warning and Safety instructions
To avoid damage to the
appliance and other materials
Do not fill the rinse aid reservoir
with powder or liquid detergent.
This will cause serious damage to the
reservoir.
Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads to
serious damage to the water softener.
Make sure you have picked up the
correct packet of dishwasher salt
before filling the salt reservoir!
Do not use commercial or industrial
detergents as these may damage
material and there is a risk of severe
chemical reaction.
The Miele Waterproof System offers
protection from water damage,
provided the following conditions are
met:
– The dishwasher is correctly installed
and plumbed in.
– The dishwasher is properly
maintained and parts are replaced
where it can be seen that this is
necessary.
– The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during
holidays).
The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.
10
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.
Repairs and maintenance
Repairs may only be carried out by
suitably qualified and competent
technicians in accordance with current
local and national safety requirements.
Repairs and other work by unqualified
persons could be dangerous.
Always disconnect the appliance
from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).
If the connection cable is damaged
it must be replaced with a Miele
cable by a Miele approved service
technician only.
Disposal of your old appliance
When disposing of an old
dishwasher first make it unusable.
Disconnect, cut off the cable and the
plug from the cable. Make the door lock
inoperative by unscrewing the Torx
screw, so that children cannot
accidentally shut themselves in. Make
appropriate arrangements for the
disposal of the appliance.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled. Ensure
that any plastic wrappings, bags etc.
are disposed of safely and kept out of
the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.
Energy saving washing
This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:
^ If your household water system is
suitable, this dishwasher can be
connected to a hot water supply, for
further economies. If the water is
heated by for example, solar panels,
this would be energy efficient.
However, if your water is heated by
electricity we would recommend
connection to cold water.
^ For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^ Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^ Select the Energy save programme
for energy-saving dishwashing.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
^ Follow the detergent manufacturer’s
recommendations on detergent
dosage.
^ When using powder or liquid
detergent you can use 1/3 less
detergent if baskets are only half full.
11
Before using for the first time
To open the door
Child safety lock
^ Press the release catch inside the
door grip and pull forward.
Use the child safety lock to prevent
children opening the dishwasher door.
If the door is opened during operation
all functions are automatically
interrupted.
^ To lock the door, push the slide
underneath the door grip to the right.
To close the door
^ Push the baskets right in.
^ Then lift the door upwards and push
until it clicks into position.
12
^ To unlock the door, push the slide to
the left.
Before using for the first time
Water softener
In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d - German
scale) needs to be softened. This takes
place automatically in the integrated
water softener.
The dishwasher is programmed at
the factory for a water hardness level
of 2.7 mmol/l (15 °d).
If this setting corresponds to the
hardness of your water you do not need
to do anything more.
If your water is harder or softer, you will
need to programme the water hardness
level. See following section.
– The water softener requires
dishwasher salt.
If you use "3 in 1" products in your
dishwasher, you should still add salt
in order to achieve optimum results.
– The dishwasher must be
programmed for the water hardness
in your area.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
Where the water hardness fluctuates
e.g. between 6.7 - 9.0 mmol/l (37 -50 °d
- German scale) always programme the
dishwasher to the higher value
(9.0 mmol/l in this example).
In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.
^ Enter the water hardness below:
mmol/l or °d
13
Before using for the first time
To programme the water hardness
level
Each time a button is pressed one of
the indicator lights will flash and light
up in the control panel. However, only
the indicator lights mentioned in the
following programming process stages
are significant.
The programming procedure can be
cancelled at any time by pressing the
On/Off button s. The procedure can
then be re-started from the beginning
again.
^ Switch the dishwasher off with the
On/Off button s.
^ Press the Start/Stop button in and
whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.
If this does not happen, start the
procedure from the beginning again.
^ Press the Delay start button twice.
The "Delay start" indicator will flash
briefly twice at intervals.
14
The characters "p 1 5" will flash one
after the other in the display.
This means that the water hardness
level has been set at 15 °d (2.7 mmol/l)
(factory setting).
The value which has been set for the
water hardness is shown as a figure
after the "p" in the display (see chart).
^ Use the Start/Stop button to select
the value which equates to your
water hardness level.
Each press on the button moves you
up a level. When the highest water
hardness level is reached, the setting
starts from the beginning again.
^ Switch the dishwasher off with the
On/Off button s.
Before using for the first time
°d
German
scale
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37-45
46-60
61-70
mmol/l
°f
2
0.2
4
0.4
5
0.5
7
0.7
9
0.9
11
1.1
13
1.3
14
1.4
16
1.6
18
1.8
20
2.0
22
2.2
23
2.3
25
2.5
27
2.7
29
2.9
31
3.1
32
3.2
34
3.4
36
3.6
38
3.8
40
4.0
41
4.1
43
4.3
45
4.5
47
4.7
49
4.9
50
5.0
52
5.2
54
5.4
56
5.6
58
5.8
59
5.9
61
6.1
63
6.3
65
6.5
66-80
6.7-8.1
8.3-10.8 82-107
11.0-12.6 109-125
Value displayed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
45
60
70
To call up the water hardness
level in the display
^ Switch the dishwasher off with the
On/Off button s.
^ Press the Start/Stop button in and
whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.
^ Press the Delay start button six times.
The "Delay start" indicator will flash
briefly six times at intervals.
Characters will flash in sequence in the
display.
The figure(s) after the "p" is the value for
the water hardness level which has
been set (see chart).
^ Switch the dishwasher off with the
On/Off button s.
15
Before using for the first time
Before using the appliance for
the first time you require:
– approx. 2 litres of water,
– approx. 2 kg dishwasher salt,
– domestic dishwasher detergent,
– rinse aid formulated for domestic
dishwashers.
Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been previously
used.
Filling the salt reservoir
The water softener requires
dishwasher salt. If you use "3 in 1"
tablets in your dishwasher you
should still add salt in order to
achieve optimum results. The
amount of salt used is reduced to
between 1/4 and 1/3 of the normal
amount if the "3 in 1" function is
selected.
16
If the water in your area is very soft
and constantly lower than
0.7 mmol/l (4 °d) you do not need
to add dishwasher salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area.
Important: Before filling the salt
reservoir with dishwasher salt for the
first time, you must fill it with
approx. 2 litres of water to enable
the salt to dissolve. Once the
dishwasher has been used, there is
always sufficient water in the
reservoir.
,Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads
to serious damage to the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!
,Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the
functioning of the water softener.
Before using for the first time
^ Remove the lower basket and
unscrew the salt reservoir cap.
Salt indicator
Only open the salt reservoir when
you want to fill it with dishwasher salt
as water or salt solution will run out
of the reservoir when the cap is
removed.
^ Fill the reservoir with approx. 2 litres
of water (first use only).
^ Fill the salt reservoir with dishwasher
salt when the salt indicator light
comes on. (If it comes on during a
programme, wait until the end of the
programme).
^ Place the funnel provided over the
salt reservoir and carefully fill with salt
until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt
depending on the brand used.
As the salt reservoir is filled, displaced
water will overflow.
^ Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.
After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.
,After filling the salt reservoir, run
the "Quick wash" programme
immediately (without any crockery in
the dishwasher) to remove any
traces of salt water from the cabinet.
^ Run the "Quick wash" programme
immediately (without any crockery in
the dishwasher) to remove any traces
of salt water from the cabinet.
17
Before using for the first time
Rinse aid
Adding rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.
,Inadvertently filling the rinse aid
reservoir with powder or liquid
detergent always causes serious
damage to the reservoir. Only pour
rinse aid formulated for domestic
dishwashers into the reservoir.
Alternatively, it is possible to use
– Household vinegar with a max. 5%
acid content
or
– Liquid citric acid up to 50% acid
content.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
,Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.
If you only ever use "2 in 1" or "3 in 1"
products in your dishwasher you do
not need to add rinse aid.
18
^ Press the button on the lid of the
rinse aid reservoir in the direction of
the arrow until the flap springs open.
Before using for the first time
Rinse aid indicator
When the light comes on the reservoir
contains sufficient rinse aid for 2 - 3
programmes only.
^ Add rinse aid only until it is visible in
the opening.
The rinse aid reservoir holds approx.
110 ml.
^ Close the flap firmly so that it clicks
into place. Otherwise water would
enter the rinse aid reservoir during a
programme.
^ Wipe up any spilled rinse aid. This
prevents over-foaming occurring
during the next programme.
^ Add rinse aid in plenty of time.
If the "2 in 1" or "3 in 1" function has
been selected, the Rinse aid
indicator does not light up (see
"Operation - Tab function").
19
Before using for the first time
Setting the rinse aid dosage
You can adjust the rinse aid dosage for
best results.
The rinse aid dosage can be set from
approx. 0-6 ml. It is set to a
recommended setting of approx. 3 ml
at the factory.
^ Press the Delay start button three
times.
The "Delay start" indicator will flash
briefly three times at intervals.
p 3 will flash in the display.
This means that the rinse aid dosage
has been set at 3 ml at the factory.
If spots appear on crockery and
glassware:
The dosage set will show in the display
after the p.
^ Increase the rinse aid dosage.
^ Use the Start/Stop button to select
the rinse aid dosage you want.
The dosage amount alters each time
you press the button.
If clouding or smearing appears on
crockery and glassware:
^ Decrease the rinse aid dosage.
^ Switch the dishwasher off with the
On/Off button s.
^ Press the Start/Stop button in and
whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.
If this does not happen, start the
procedure from the beginning again.
20
The programmed rinse aid dosage is
now stored in memory.
^ Switch the dishwasher off with the
On/Off button s.
Loading the dishwasher
Note
Remove coarse food residues from
crockery.
There is no need to rinse items under
running water.
,Do not wash items soiled with
ash, sand, wax, lubricating grease
or paint in the dishwasher. Ash does
not dissolve and is distributed in the
wash cabinet. Wax, sand, lubricating
grease and paint cause damage to
the dishwasher.
Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:
– Do not place crockery and cutlery
inside other pieces where they may
be concealed.
– Load the crockery so that water can
access all surfaces. This ensures
that it is properly cleaned.
– Deep based items should be placed
at an angle so that water can run off
them freely.
– The spray arms must not be blocked
by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.
– Make sure that small items cannot
fall through the holders in the
baskets. Small items, e.g. lids,
should therefore be placed in the
cutlery tray or cutlery basket
(depending on model).
Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
ketchup. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the appliance on the
crockery. The stability of plastic
items is not affected by this
discolouration.
– Make sure that all items are securely
positioned.
– Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.
– Tall, narrow, hollow items, e.g.
champagne glasses, should be
placed in the centre of the basket to
ensure better water coverage.
21
Loading the dishwasher
Items not suitable for
dishwashers:
– Wooden cutlery and crockery or
items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.
– Craft items, antiques, valuable vases
and decorative glassware are also
not suitable for dishwashers.
– Plastic items which are not heat
resistant. The high temperatures in
the dishwasher may cause them to
melt or lose shape.
– Copper, brass, tin and aluminium
items may discolour or become matt.
– Colours painted over a glaze may
fade after a number of washes.
– Clouding may occur on glasses after
frequent washing. Do not wash
delicate glassware, or glassware
containing lead crystal in a
dishwasher.
We recommend:
– When purchasing new crockery and
cutlery, make sure they are
dishwasher-proof.
– If delicate glassware is washed in the
dishwasher ensure that only very low
temperatures are used (see
programme chart), or a special
glass-care programme is used
(depending on model). This will
reduce the risk of clouding.
– Wash particularly delicate glassware
by hand.
Please note
Silverware previously cleaned with a
silver polish may still be damp or
spotted at the end of a programme,
where water has not run off smoothly. It
may need rubbing dry with a soft cloth.
Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.
,Aluminium components (e.g.
grease filters) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage the material, or in
extreme cases, cause a severe
chemical reaction. See section
"Adding detergent" for information
on suitable detergents.
22
Loading the dishwasher
Upper basket
,For safety reasons, do not
operate the dishwasher without the
upper and lower baskets in place.
Hinged cup rack
^ To make room for tall items raise the
rack upwards.
Positioning rail (depending on model)
Glasses can be arranged along the
positioning rail to give them some
support during the programme.
^ Use the upper basket for small,
lightweight and delicate items such
as cups, saucers, glasses, dessert
bowls, etc. Shallow pans or casserole
dishes can also be placed in the
upper basket.
^ Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.
^ Raise the rail, and lean the glasses
against it.
The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.
23
Loading the dishwasher
Adjusting the upper basket
In order to gain more space for taller
pieces of crockery in the bottom or
upper basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.
Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.
Dishwasher with cutlery tray
(see data plate for model number)
The upper basket can also be set at an
angle with one side high and the other
side low. Ensure however, that the
basket can slide smoothly into the
cabinet. It is better to adjust the basket
before loading it.
Upper
basket
level
Plate Ø in cm
Top
15
19
31
^ Pull out the upper basket.
Middle
17
21
29
Bottom
19
23
27
Upper basket
G1XXX G2XXX
Lower
basket
Dishwasher with cutlery basket
(see data plate for model number)
Upper
basket
level
Plate Ø in cm
Upper basket
G1XXX G2XXX
^ Pull upwards on the levers at either
side of the upper basket.
^ Adjust the basket to the desired
height.
^ Then push the levers securely back
down into position.
24
Lower
basket
Top
20
24
31
Middle
22
26
29
Bottom
24
28
27
Loading the dishwasher
Lower basket
Hinged spiked insert
For larger and heavier items such as
plates, serving platters, saucepans,
bowls, etc.
Small items such as saucers can also
be placed in the lower basket.
Do not place thin, delicate glassware in
the lower basket.
This insert is used for washing plates
and saucers.
Both sides of the rear section of the
spiked insert can be lowered to make
more room for large items, e.g. pots,
pans and dishes.
Dishwashers with cutlery tray
^ Press the yellow lever downwards a
and then lower the spikes b.
Dishwashers with cutlery basket
25
Loading the dishwasher
To remove the hinged spike insert
Bottle holder (depending on model)
You can remove the spiked insert to
make more room for larger items of
crockery, e.g. a large, shallow pot, or
for another type of insert.
The bottle holder can be used to wash
narrow items, e.g. milk and baby
bottles.
To remove an insert a
^ Pull upwards by the handle as
shown.
To refit it b
^ Fit the insert into the lower basket
with the hooks going under the long
cross piece as illustrated.
^ Press down on the handle until the
insert is securely held in position.
26
^ Place the bottle holder as shown in
the bottom basket. If placed
anywhere else, water will not be able
to access the bottle properly, and
cleaning results will be impaired.
Loading the dishwasher
Cutlery
Cutlery tray (depending on model)
If spoon handles do not fit between the
holders, then place them the other way
round.
^ Arrange the cutlery in the tray as
shown.
To make unloading much easier, cutlery
should be grouped in zones, one for
knives, one for forks, one for spoons,
etc.
Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them freely.
The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).
The cutlery tray insert is removable.
27
Loading the dishwasher
Cutlery basket (depending on model)
^ To avoid the risk of injury, knives and
forks should be placed with the
handles upwards in the basket.
However, cutlery placed handle
down in the basket will come out
cleaner and drier.
^ Fit it into the cutlery basket if
required.
^ Place small spoons in the individual
slots to either side of the cutlery
basket.
Cutlery insert for the cutlery basket
Use the insert supplied for heavily
soiled spoons.
The insert separates the items so that
they can be more easily accessed by
water.
28
^ Insert cutlery with the handles facing
downwards, and distribute them
evenly along the insert.
Operation
Detergent
,Only use detergents formulated
for domestic dishwashers. Do not
use washing up liquid.
^ You can use conventional powder
detergent, tablets or liquid
dishwasher detergent.
Refer to the dosing instructions given
by the manufacturer on the
packaging.
^ Put the detergent into the dispenser
compartment.
^ Do not use tablet detergent on the
"Quick" programme, as the tablets
will not dissolve properly.
Failure to dispense the
recommended amount of detergent
may impair cleaning results.
,Avoid inhalation of powder
detergents and do not ingest
dishwasher detergent. Dishwasher
detergents can cause burning in the
nose, mouth and throat if swallowed,
or inhibit breathing. Consult a doctor
immediately if detergent has been
swallowed or inhaled.
Keep detergent and other
household agents out of the reach of
children at all times. Keep children
away from the dishwasher when the
door is open. There could still be
detergent residues in the cabinet. To
avoid the danger of children coming
into contact with the dishwasher
detergent, only add detergent just
before starting the programme and
close the door, activating the child
safety lock (if your dishwasher is
fitted with one).
29
Operation
Adding detergent
For information
Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml.
There are markings in compartment II
to assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a
horizontal position.
^ Press the opening catch on the
detergent dispenser. The flap will
spring open.
The flap is always open at the end of a
programme.
^ Add the required amount of
detergent and close the flap.
^ Make sure that the detergent
packaging is properly closed after
use to avoid it getting damp and
becoming lumpy.
30
Operation
Switching on
Starting a programme
^ Make sure the spray arms are not
obstructed.
^ Select the programme required using
the programme selector button.
^ Close the door.
The indicator light for the programme
selected comes on.
The programme duration will appear in
the hours and minutes in the display.
^ Open the stopcock, if it is closed.
^ Switch the dishwasher on with the
On/Off button s.
The Start/Stop indicator light flashes
and the indicator light comes on next to
the last programme selected.
Selecting a programme
Choose your programme according to
the type of load and how dirty it is.
The different programmes and their
uses are described in the programme
chart later on in this booklet.
You can now select an additional
function (see "Additional functions").
^ Press the Start/Stop button.
The programme cycle will begin. The
Start/Stop and Wash/Rinse indicators
and the indicator for the programme
selected will light up.
If the "2 in 1-Tab" or "3 in 1-Tab" function
has been selected, the corresponding
indicator will light up as well.
A programme can only be cancelled
in the first few minutes. Otherwise
the programme must continue to the
end so that important programme
stages (e.g. reactivating the water
softener) are not omitted.
31
Operation
Display
At the end of a programme
The duration of the programme
selected appears in hours and minutes
in the display before the programme
begins. During the programme, the
time left until the end of the programme
is displayed.
A programme has finished when a "0"
appears in the display and the "End"
programme sequence indicator lights
up.
The time displayed may vary with the
same programme. This is partly
because of the water inlet temperature
at each intake, and partly because of
the amount and soiling level of the
crockery.
When a programme is selected for the
first time, the display shows an average
time for a cold water intake.
The times shown in the programme
chart refer to standard test loads and
temperatures.
Each time a programme is run, the
electronic unit takes the new conditions
into account, and calculates the time
required.
Programme sequence
indicators
After a programme has been started,
the current stage of the programme is
indicated by the programme sequence
indicator lights.
32
The dishwasher can now be opened
and unloaded (see "Unloading the
dishwasher").
,To prevent the risk of steam
damage to the worktop edging
above the dishwasher, it is advisable
to leave the door closed until you are
ready to unload the crockery.
Alternatively you can open the door
fully until the crockery is cool
enough to unload. Do not leave the
door only partially open.
Switching off
At the end of a programme:
^ Switch the dishwasher off with the
On/Off button s.
The dishwasher will continue to use
electricity until the On/Off button s
is switched off.
If the dishwasher is not to be used for a
longer period of time, e. g. whilst on
holiday, the stopcock should be turned
off.
Operation
Unloading the dishwasher
Interrupting a programme
Dishes tend to break and chip more
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.
A programme is interrupted as soon as
the door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.
If you open the door fully after switching
off, the dishes will cool much faster.
^ First unload the lower basket, then
the upper basket and cutlery tray
(depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.
,Water in the dishwasher may be
hot. Danger of scalding!
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before
closing the door again, leave it ajar
for approx. 20 seconds. This will
enable the temperature in the wash
cabinet to settle. Then close the
door firmly making sure that it clicks
into place.
Changing a programme
Important:
If the detergent dispenser flap has
already opened, do not change the
programme.
If a programme has already started and
you wish to change it, proceed as
follows:
^ Press the Start/Stop button for at
least one second.
The programme will be cancelled.
^ Select the programme you want and
then start it.
33
Operation
Additional functions
Tab function
You can programme your dishwasher to
ensure excellent results when using
tablet detergents by simply selecting
the "2 in 1" or "3 in 1" function using the
Tab button.
The programme sequence will be
adjusted to the type of detergent
selected. Depending on the
programme, the duration can be
considerably longer.
"2 in 1":
When the "2 in 1" function is selected,
the programme sequence is adjusted
for "2 in 1" tabs (detergent containing
rinse aid).
The dispensing of rinse aid and the
rinse aid refill indicator light are
deactivated.
"3 in 1":
When the "3 in 1" function is selected,
the programme sequence is adjusted
for "3 in 1" tabs (detergent containing
rinse aid and salt substitutes).
The dispensing of rinse aid and the
rinse aid refill indicator light are
deactivated.
Salt consumption in the water softener
is reduced to between 1/4 and 1/3 of the
normal amount.
34
Do not select the "3 in 1" function if:
– using "2 in 1" tabs (detergent with
rinse aid)
– your water hardness level is above
3.8 mmol or 21 °d.
Follow the detergent manufacturer's
instructions.
The washing and drying
performance of these types of
detergent can vary enormously.
^ Switch the dishwasher on with the
On/Off button s.
The Start/Stop indicator light will flash.
^ Press the Tab button until the
detergent type of your choice ("2 in 1"
or "3 in 1") lights up.
If neither of the indicators lights up, the
dishwasher is set for normal detergent.
The function selected is active on all
programmes until the setting is
changed.
^ You can now start a programme or
switch the dishwasher off using the
On/Off button s.
Operation
Delay start
The start time of a programme can be
delayed, e.g. to benefit from economy
rates of electricity. A delay start time of
between 30 minutes and 24 hours can
be selected.
With a delay start time of between
30 minutes and 9 hours 30 minutes, the
time is set in 30 minute stages. For
10 hours or more it is set in one hour
stages.
When using the Delay start function,
make sure that the compartment is
dry before adding detergent. Wipe
dry with a cloth if necessary. If the
compartment is wet, powder
detergent can become lumpy and
stick to the dispenser, with the result
that it is not fully dispensed.
Do not use liquid detergent when
selecting Delay start, as it can run
into the dishwasher before it is
required.
^ Switch the dishwasher on with the
On/Off button s.
The Start/Stop indicator light will flash.
^ Select the programme required using
the programme selector button.
^ Press the Delay start button.
The last Delay start time used will
appear in the display. The Delay Start
indicator light comes on.
^ Set the time required using the Delay
start button.
^ Press the Start/Stop button.
The Start/Stop indicator light will come
on.
35
Operation
The time starts counting down until the
programme start time: in 1 hour steps
for delay start periods of over 10 hours,
and in minutes for delay start periods of
under 10 hours.
Starting a programme before the
Delay start period has elapsed
At the end of the delay period, the
programme selected begins
automatically. The time left for a
programme to run then shows in the
display, the Delay start indicator light
goes out and the Start/Stop indicator
light comes on.
^ Press the Start/Stop button for at
least one second.
How the Delay start time is shown in
the display:
The programme cycle will begin. The
Start/Stop indicator light will light up
constantly.
up to 59 minutes:
e.g. 30 minutes = 30
between 1 hour and 9 hours 30
minutes:
e.g. 5 hours = 5.00
10 hours and over:
e.g. 15 hours = 15^
,To prevent children coming into
contact with dishwasher detergent
do not fill the detergent dispenser
until just before starting the
programme, i.e. before pressing the
Start/Stop button, and activate the
child safety lock.
36
A programme can be started before the
Delay start period has elapsed.
Proceed as follows:
The Delay start indicator light will go out
and the Start/Stop indicator light will
flash.
^ Press the Start/Stop button again.
Operation
Factory default setting
If you have altered any settings from
the factory default, you can re-set them
back to the factory default settings as
follows:
The characters flashing in the display
show whether a setting other than the
factory default setting has been set.
– "p 1": All settings are set to factory
default settings.
^ Switch the dishwasher off with the
On/Off button s.
– "p 0": At least one setting has been
changed.
^ Press the Start/Stop button in and
whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
Start/Stop indicator light comes on.
^ Press the Start/Stop button if you
wish to re-set all the factory default
settings.
^ Switch the dishwasher off with the
On/Off button s.
If this does not happen, start the
procedure from the beginning again.
^ Press the Delay start button twelve
times.
The Delay start indicator light will give
one long flash and two brief flashes at
intervals and "p 0" or "p 1" will flash in
the display.
37
Operation
Adjust sensor wash
You can adjust the sensor wash
programme so that it will remove
stubborn soiling in a lightly soiled load.
^ Switch the dishwasher off with the
On/Off button s.
^ Press the Start/Stop button in and
whilst holding it in switch the
dishwasher on using the On/Off
button s.
Keep the Start/Stop button pressed in
for at least four seconds until the
"Start/Stop" indicator light comes on.
If this does not happen, start the
procedure from the beginning again.
^ Press the Delay start button five
times.
The "Delay start" indicator will flash
briefly five times at intervals.
38
The characters flashing in the display
show whether the "Adjust sensor wash"
function is activated or deactivated.
– "p 1": The "Adjust sensor wash"
function is activated.
– "p 0": The "Adjust sensor wash"
function is deactivated.
^ To change the setting, press the
Start/Stop button.
Switch the dishwasher off with the
On/Off button s.
Cleaning and care
Cleaning the door front
Check your dishwasher regularly
(approx. every 4 - 6 months). This
way faults and problems can be
avoided.
Cleaning the wash cabinet
The wash cabinet is largely
self-cleaning, provided that the correct
amount of detergent is always used.
If, however, there are limescale or
grease deposits in the cabinet these
can be removed with a proprietary
dishwasher cleaner, such as the Miele
dishwasher cleaner (available from the
Miele UK Spare Parts Department).
Cleaning the door and the door
seal
^ Wipe the door seals regularly with a
damp cloth to remove food deposits.
^ When the dishwasher is being
loaded, food and drink residue may
drip onto the sides of the dishwasher
door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms. Any
soiling should be wiped off these
surfaces before the door is closed.
,Do not use any cleaning agents
containing ammonia or thinners.
These would damage the surface
structure.
^ Clean the front using a Miele E-cloth
or with suitable cleaning agent for the
type of material the front is made of.
Follow the manufacturer's
instructions.
^ Door fronts made from wood should
only be cleaned using a damp cloth,
and then dried with a soft cloth.
^ Door fronts made of stainless steel
should be cleaned using a damp
cloth and a little washing up liquid, or
a proprietary non-abrasive cleaning
agent designed specifically for use
on stainless steel.
^ To help prevent re-soiling, a
proprietary conditioning agent for
stainless steel, such as Neoblank
(available from the Miele UK Spare
Parts Department) can also be used.
Follow the manufacturer's instructions
on the label and apply sparingly with
an even pressure following the
direction of the grain.
E-Cloth
^ A microfibre "E-Cloth" is available
from the Miele UK Spare Parts
Department, which is suitable for
cleaning surfaces such as stainless
steel, glass, plastic and chrome
without the use of chemicals.
39
Cleaning and care
Cleaning the control panel
,Do not use abrasive cleaning
agents, glass cleaning agents or
all-purpose cleaners. Because of
their chemical composition they
could cause serious damage to
surfaces.
Plastic panels:
^ This type of control panel should only
be wiped with a damp cloth or
suitable cleaning agent designed for
use on plastic.
Stainless steel panels:
^ Control panels made of stainless
steel should be cleaned using a
damp cloth and a little washing up
liquid, or a proprietary non-abrasive
cleaning agent designed specifically
for use on stainless steel (do not use
it on the controls).
^ To help prevent re-soiling, a
proprietary conditioning agent for
stainless steel, such as Neoblank
(available from the Miele UK Spare
Parts Department) can also be used.
Follow the manufacturer's instructions
on the label and apply sparingly with
an even pressure following the
direction of the grain.
Aluminium panels:
^ Clean aluminium panels with a damp
cloth and a little washing up liquid.
Aluminium is affected by the way that
light falls on it, by the surrounding
environment and by the angle you
observe it from.
40
,Stainless steel and aluminium
surfaces and controls are
susceptible to scratching and
abrasion, and must be treated with
due care. They may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling immediately.
Cleaning and care
Cleaning the filters in the wash
cabinet
The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.
,The dishwasher must not be
used without all the filters in place.
Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.
Check the condition of the filters
regularly and clean them if necessary.
^ Switch the dishwasher off.
^ Turn the handle anti-clockwise to
release the filter combination a.
^ Lift the filter combination out of the
dishwasher b. Remove any coarse
particles and rinse the filter well
under running water. Use a nylon
brush if necessary.
41
Cleaning and care
To clean the inside of the filter, the flap
must be opened:
^ Press together the catches in the
direction of the arrows a as shown,
and open the filter b.
^ Rinse all the filters under running
water.
^ Then close the flap so that the catch
engages.
42
^ Replace the filter combination so that
it lies flat in the base of the wash
cabinet.
^ Then turn the handle clockwise to
lock the filter combination in place.
,Take care when you are fitting
the filter combination that it is
secured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.
Cleaning and care
Cleaning the spray arms
^ Remove the lower basket.
Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).
^ Switch the dishwasher off.
Remove the spray arms as follows:
^ Take out the cutlery tray (if your
dishwasher is fitted with one).
^ Push the top spray arm upwards to
engage the inner ratchet. Then
unscrew the spray arm.
^ Push the middle spray arm upwards
a to engage the ratchet. Then
unscrew the spray arm b.
^ Pull the lower spray arm firmly
upwards to remove it.
^ Use a pointed object to push food
particles into the spray arm jets.
^ Rinse thoroughly under running
water.
^ Replace the spray arms and check
that they rotate freely.
43
Problem solving guide
With the aid of the following guide, minor problems can be easily corrected
without calling in a Miele service technician, saving you both time and money.
The following guide may help you to find the reason for a fault, and to correct it.
You should, however, note the following:
,Repairs should only be carried out by a suitably qualified and trained
person in accordance with current local and national safety regulations.
Unauthorised or incorrect repairs could cause personal injury or damage the
appliance.
Technical problems
Problem
The Start/Stop indicator
does not flash after the
dishwasher has been
switched on using the
On/Off button s.
The dishwasher stops
during a programme.
44
Possible cause
The appliance is not
plugged in.
The fuse is defective or
has tripped.
The fuse is defective or
has tripped.
Remedy
Insert the plug and switch
on at the socket.
Reset or replace the fuse.
Reset or replace the fuse.
Problem solving guide
Problem
Possible cause
Remedy
The Wash/Rinse,
There may be a
Drying and End
technical fault.
indicator lights flash
simultaneously.
Fault code FXX shows
in the display.
– Switch the dishwasher off
with the On/Off button s.
After a few seconds:
– Switch the dishwasher back
on.
– Select the programme
required with the
programme selector button.
– Press the Start/Stop button.
If the programme sequence
indicator lights flash again,
there is a technical fault.
– Call the Service
Department.
The drain pump works Fault F70:
– Turn off the stopcock.
even when the door is The Waterproof System – Call the Service
open.
has reacted.
Department.
45
Problem solving guide
The dishwasher does not fill/drain
Problem
The Inlet/Drain
check indicator
flashes.
The dishwasher
stops during a
programme.
The Inlet/Drain
check indicator
flashes.
Fault code FXX
shows in the display.
46
Possible cause
The stopcock is
closed.
Remedy
Open the stopcock fully.
Before rectifying the problem
you must:
– Switch the dishwasher off with
the On/Off button s.
Fault F12/F13:
– Open the stopcock fully.
Water inlet restricted.
– Clean the water inlet filter (see
"Problem solving").
– The water pressure at the
intake is lower than 30 kPa
(0.3 bar).
Seek professional advice.
Fault F11:
– Clean the filter combination.
See "Cleaning and Care".
Water outlet is
restricted, water
– Clean the drain pump. See
remains in the wash
"Problem solving".
cabinet at the end of a – Clean the non-return valve.
programme.
See "Problem solving".
– Remove any kink in the drain
hose.
Problem solving guide
General problems
Problem
Detergent residue is left
in the dispenser at the
end of a programme.
The detergent lid
cannot be closed
properly.
At the end of a
programme there is a
film of moisture on the
inside of the door and
the interior walls.
Water remains in the
wash cabinet at the end
of a programme.
Possible cause
The dispenser was still
damp when detergent was
added.
Clogged detergent
residue is blocking the
catch.
This is caused by the
drying system and does
not indicate a fault.
Remedy
Make sure the dispenser
is dry before adding
detergent.
Clean the detergent from
the catch.
The moisture will dissipate
after a short while.
Before rectifying the
problem you must:
– Switch the dishwasher
off with the On/Off
button s.
The filter combination in
the wash cabinet is
clogged.
Clean the filter
combination. See
"Cleaning and Care".
The drain pump or
non-return valve may be
blocked.
The drain hose is kinked.
Clean the drain pump or
the non-return valve. See
"Problem solving".
Remove any kink from the
drain hose.
47
Problem solving guide
Noises
Problem
Knocking noise in the
wash cabinet.
Possible cause
A spray arm is knocking
against an item in a
basket.
Remedy
Interrupt the programme,
and rearrange the items
which are obstructing the
spray arm.
Rattling noise in the
wash cabinet.
Items of crockery are
insecure in the wash
cabinet.
This may be caused by
the on-site installation or
the cross-section of the
piping.
Interrupt the programme,
and rearrange the items of
crockery.
This has no influence on
dishwasher function. If in
doubt, contact a suitably
qualified plumber.
Knocking noise in the
water pipes.
48
Problem solving guide
Unsatisfactory washing result
Problem
Possible cause
The dishes are not The dishes were not loaded
clean.
correctly.
The programme was not
powerful enough.
Remedy
See notes in "Loading the
dishwasher"
Select a more intensive
programme. See
"Programme chart".
There is some stubborn
Use the "Adjust sensor wash"
soiling although most of the function (see "Additional
crockery is only lightly soiled functions").
(e.g. with tea stains).
Not enough detergent was
Use more detergent, or
dispensed.
change your detergent.
Items are blocking the path Rearrange the items so that
of the spray arms.
the spray arms can rotate
freely.
The filter combination in the Clean and/or fit the filter
base of the wash cabinet is combination correctly. Clean
not clean or is not correctly the spray arm jets. See
fitted. This may cause the
"Cleaning and care".
spray arm jets to get
blocked.
The non-return valve is open Clean the drain pump and
and blocked. Dirty water has the non-return valve. See
flowed back into the wash
"Cleaning the drain pump
and non-return valve".
cabinet.
Smearing appears The rinse aid dosage is set
on glassware and too high.
cutlery, there is a
bluish sheen on
the surface of
glassware; film can
be wiped off.
Reduce the dosage. See
"Before using for the first
time".
49
Problem solving guide
Problem
Possible cause
Remedy
Dishes, cutlery
and glasses are
not dry or are
flecked.
The rinse aid amount may
be insufficient or the rinse
aid reservoir empty.
Replenish the reservoir,
increase the dosage or
change the brand of rinse aid.
See "Before using for the first
time".
Leave it in for longer. See
"Operation".
Set the Tab function (if
present) to "Normal", and
replenish the rinse aid.
Crockery was taken out of
the cabinet too soon.
You are using "2 in 1" or
"3 in 1" tablets, which do
not have a strong enough
drying performance.
The "2 in 1/3 in 1 Tab"
function (if present) is
switched on, even though
tablets are not being used.
Not enough rinse aid was
used.
There is no salt in the salt
reservoir.
White residue is
visible on cutlery
and crockery,
clouding occurs
on glassware; film
The salt reservoir cap has
can be wiped off.
not been screwed on
correctly.
An unsuitable "2 in 1" or
"3 in 1" tablet has been
used.
The water softener is
programmed to a setting
which is too low.
50
Set the Tab function (if
present) to the detergent
product being used (see "Tab
function").
Increase the dosage. See
"Before using for the first time".
Fill the salt reservoir. See
"Before using for the first time".
Replace it, making sure that it
screws back on correctly.
Change your detergent. Use a
standard liquid, tablet or
powder detergent, and refill
the salt and rinse aid
reservoirs in the dishwasher.
Select a higher water softener
setting. See "Before using for
the first time".
Problem solving guide
Problem
Possible cause
Glassware has a
brown or blue tinge,
and film cannot be
wiped off.
Glassware is dull and
discoloured; film
cannot be wiped off.
This may be caused by the Change your detergent.
detergent.
Tea or lipstick stains
have not been
completely removed.
Plastic items are
discoloured.
There are rust stains
on cutlery.
Remedy
The glassware is not
dishwasher-proof. The
surfaces are affected.
The wash temperature of
the selected programme
was too low.
The bleaching effect of the
detergent used is too low.
Natural dyes e.g. from
carrots, tomatoes or
ketchup may be the cause.
The amount of detergent
used or its bleaching effect
was not sufficient to deal
with natural dyes.
There is no remedy.
Purchase glassware which
is dishwasher-proof.
Select a programme with a
higher wash temperature.
The affected items are not
corrosion resistant.
There is no remedy.
Purchase cutlery which is
dishwasher-proof.
The "Quick wash"
programme was not run
after dishwasher salt was
added. Traces of salt have
got into the wash cycle.
Always run the "Quick
wash" programme, without
any crockery in the
dishwasher, after adding
dishwasher salt.
The salt reservoir cap has
not been screwed on
correctly.
Replace it, making sure
that it screws back on
correctly.
Change your detergent.
Use more detergent. See
"Operation".
Discolouration is irrevers
-ible.
51
Problem solving
Cleaning the water inlet filter
A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.
,The plastic housing of the water
connection contains an electrical
component. It must not be dipped in
water.
Recommendation
If the mains water contains a large
number of insoluble substances, we
recommend fitting a large-area filter in
the connection between the stopcock
and the water inlet hose threaded
union. This filter is available from the
Miele Spares Parts dept.
Cleaning the filter:
^ Disconnect the dishwasher from the
mains supply. Switch off at the mains
socket and withdraw the plug.
^ Turn off the stopcock.
^ Unscrew the inlet hose.
52
^ Carefully remove the seal.
^ Withdraw the filter using pointed
pliers and rinse clean under running
water.
^ Replace the filter and seal, making
sure they are sitting correctly.
^ Reconnect the inlet hose to the
stopcock, making sure it goes on
correctly and is not cross-threaded.
^ Turn on the stopcock gradually to test
for leaks. If there is a leak, the inlet
hose might not be on securely, or it
may have been screwed on at an
angle. Unscrew and reconnect the
water inlet valve correctly.
Problem solving
Cleaning the drain pump and
non-return valve
If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean. Watch out for glass or bone
splinters which could cause injury.
^ Disconnect the dishwasher from the
mains supply. Switch off at the mains
socket and withdraw the plug.
^ Take the filter combination out of the
wash cabinet (see "Cleaning and
care", "Cleaning the filters in the wash
cabinet").
^ Scoop the water out of the cabinet
using a suitable container or utensil.
The drain pump is situated under the
non-return valve (see arrow).
^ Remove all foreign objects from the
drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause
injury). Turn the drain pump impeller
by hand to check that there are no
more obstructions. You will feel a little
resistance when you turn the impeller.
^ Carefully replace the non-return
valve, and secure it with the catch.
,Ensure that the catch engages.
^ Press the catch for the non-return
valve inwards a.
^ Lift out the non-return valve b and
rinse well under running water.
^ Remove all foreign objects from the
non-return valve.
53
After sales service
Repairs
Future updates (PC)
In the event of any faults that you
cannot remedy yourself, please
contact:
The programme update function (PC) is
designed to enable a service
technician to update your appliance’s
electronics in keeping with advances in
technology.
– your Miele dealer, or
– the Miele Service Department
(see back cover for contact details).
^ When contacting your Dealer or the
Miele Service Department, please
quote the model type and number of
your appliance, both of which are
shown on the data plate on the right
hand side of the door.
Please note that telephone calls may
be monitored and recorded for
training purposes.
The "PC" indicator light is used as the
interface for this programming.
For testing institutes
The "Comparison tests" document
gives information regarding loads and
programmes used for comparison
testing.
This document can be ordered by
e-mail from:
– testinfo|miele.de
^ Please give your postal address, as
well as the model type and number of
your dishwasher (see data plate).
54
Optional accessories
To make the most of your dishwasher
Optional accessories for particular purposes are available from your Miele dealer
or from the Spare Parts Department (some may be supplied as standard
depending on model).
If you would like to …
you will need to order …
… wash long-stemmed glassware
… a glassware insert for the upper
basket
... wash a Miele Cappuccinatore
… a Cappuccinatore insert for the
upper basket
... wash bottles,
e. g. milk or baby bottles
… a bottle holder
… wash additional items of cutlery
… a small cutlery basket for the lower
basket
... wash a lot of glasses
… a glassware insert for the bottom
basket
... wash large plates
... an insert for plates up to:
- 33 cm diameter
- 35 cm diameter
55
Programme chart
Programme
Sensor wash
When to use
Sensor controlled programme
for normally soiled crockery
Quick wash 40 °C "Quick programme" for lightly soiled crockery, e.g. party crockery;
for flushing out salt residues after replenishing the salt reservoir;
includes sensor controlled3) glass care;
not suitable for tablet detergents.
Sensor wash
gentle :
Sensor controlled3) gentle programme
for lightly soiled and temperature sensitive crockery and glassware;
reduce detergent by 50%
Energy save 1)
for normal everyday loads,
energy saving programme which uses a low temperature and long programme
duration;
includes sensor controlled3) glass care
Pots & pans 75 °C for normally soiled pots, pans, dishes etc with dried on soiling;
for very heavy soiling, add 20% more detergent than recommended
Pre-wash
for rinsing crockery to avoid smells, if a complete cycle is not yet needed
1) Standard programme for energy labelling.
2) See "Operation, Display".
3) Depending on model.
56
Programme chart
Programme sequence
Consumption
Energy kWh
Duration
Water
Hot water Litres
connection
(55 °C)
Interim
rinse
1
2
Final
rinse
Drying
Cold
water
connection
(15 °C)
if
X
if
required 45 °- 65 ° required
X
65 °
X
1.0-1.5
0.65-0.8
13-22
X
40 °
X
50 °
0.75
0.22
13
Prewash
1
2
Main
wash
X
h:min 2)
Cold
water
connection
(15 °C)
Hot water
connection
(55 °C)
1:39-2:34 1:24-2:08
0:33
0:22
if
X
if
required 37 °- 48 ° required
X
55 °
X
0.85-1.0
0.4-0.5
13-22
X
45 °
X
X
60 °
X
1.05
0.7
13
2:56
2:44
X
75 °
X
X
65 °
X
1.6
1.0
17
2:46
2:30
0.02
0.02
5
0:12
0:12
X
X
1:25-1:55 1:14-1:36
On G 2XXX models (see data plate), the max. energy consumption is 0.1 kWh and the water
consumption is up to 1 litre higher, except on the Pre-wash programme.
The durations given can vary depending on individual circumstances.
Values quoted are in accordance with EN 50242. Results may differ, depending on individual
conditions and the level of soiling.
57
Electrical connection
Electrical connection U.K.
,All electrical work must be
carried out by a suitably qualified
and competent person, in
accordance with current local and
national safety regulations (BS 7671
in the UK).
Ensure power is not supplied to the
appliance until after installation work
has been carried out.
The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply. Please ensure the connection
data quoted on the data plate match
the household mains supply.
Connection should be made via a
suitable switched socket which is easily
accessible after installation.
For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA (in accordance
with DIN VDE 0664, VDE 0100 Section
739).
Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
58
Non-rewireable plugs BS 1363
The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).
Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.
WARNING: THIS APPLIANCE
MUST BE EARTHED
Plumbing
Connection to the water supply
,Water in the dishwasher must
not be used as drinking water.
– The dishwasher may be connected
to a cold or hot water supply, max.
60 °C. We would only recommend
connection to a hot water supply if it
is economical, e.g. a solar powered
supply. When connected to a hot
water supply all programme stages
which would otherwise be carried out
with cold water will be carried out
with hot water.
– The inlet hose is approx. 1.5 m long.
A 1.5 metre long flexible metal
extension hose, pressure tested to
14000 kPa/ 140 bar, is available as
an optional accessory if required.
!The inlet hose must not be
shortened or damaged in any way
as it contains electrical components
(see illustration).
– A stopcock with a 3/4 " male thread
must be provided on site.
– This appliance is constructed to
comply with IEC/EN/DIN 61770 //
VDE 0700 Section 600, and may be
connected to a suitable supply
without an extra non-return valve if
national regulations permit.
– The water pressure (flow pressure at
the take-off point) must be between
30 and 1000 kPa (0.3 and 10 bar).
If the water pressure is too high, a
pressure reducing valve must be
fitted.
59
Plumbing
Drainage
Venting the drainage system
– The appliance drainage system is
fitted with a non-return valve, which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.
If the on-site drain connection is
situated lower than the guide path for
the bottom basket rollers in the open
door the drainage system must be
vented. Otherwise a siphoning effect
during a programme can cause the
appliance to empty itself of water.
– The dishwasher is supplied with
approx. 1.5 m of flexible drain hose
with an internal diameter of 22 mm.
– The drain hose can be extended
using a connection piece to attach a
further length of hose.
The drainage length must not be
longer than 4 m, and the delivery
head must not exceed 1 m.
To vent it:
^ Open the dishwasher door fully.
^ Pull the lower spray arm firmly
upwards to remove it.
– If the hose is to be directly fitted to
the drainage outlet on site, use the
hose clip supplied.
– The hose can be directed to the left
or the right of the appliance.
– The on-site connector for the drain
hose can be adapted to different
widths of hose. If the connector
protrudes too far into the drain hose,
it will need to be shortened.
Otherwise the drain hose may
become blocked.
– The drain hose must not be
shortened.
– Make sure that there are no kinks in
the hose, and that it is not squashed
or stretched.
60
^ Cut off the top of the vent valve in the
wash cabinet.
Technical data
Dishwasher model
G 1XXX
G 2XXX
Height freestanding
84.5 cm
(adjustable +3.5 cm)
-
Height built-in
80.5 cm
(adjustable + 6.5 cm)
84.5 cm
(adjustable + 6.5 cm)
Height of building-in
recess
min. 80.5 cm (+ 6.5 cm)
min. 84.5 cm (+ 6.5 cm)
Width
59.8 cm
59.8 cm
Width of building-in
recess
60 cm
60 cm
Depth:
Freestanding
Built-in
60 cm
57 cm
57 cm
Weight:
Freestanding
Built-under
Integrated
approx. 61.0 kg
approx. 55.0 kg
approx. 53.0 kg
approx. 57.0 kg
approx. 55.0 kg
Voltage
Connected load
See data plate on right hand side of door.
Fuse rating
See plug.
Test certificates awarded
KEMA, VDE, radio and
television suppressed
KEMA, VDE, radio and
television suppressed
Water pressure (flow rate)
30 - 1000 kPa
(0.3 - 10 bar)
30 - 1000 kPa
(0.3 - 10 bar)
Hot water connection
up to max. 60 °C
up to max. 60 °C
Delivery head
max. 1 m
max. 1 m
Drainage length
max. 4 m
max. 4 m
Mains cable
approx. 1.7 m
approx. 1.7 m
Capacity
12 place settings
14 place settings
61
62
63
Alteration rights reserved /
G1220/G1230/G1290/G1291/G2220/G2230/G2290/2291 / 1106
M.-Nr. 06 702 810 / 02
en - GB

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
