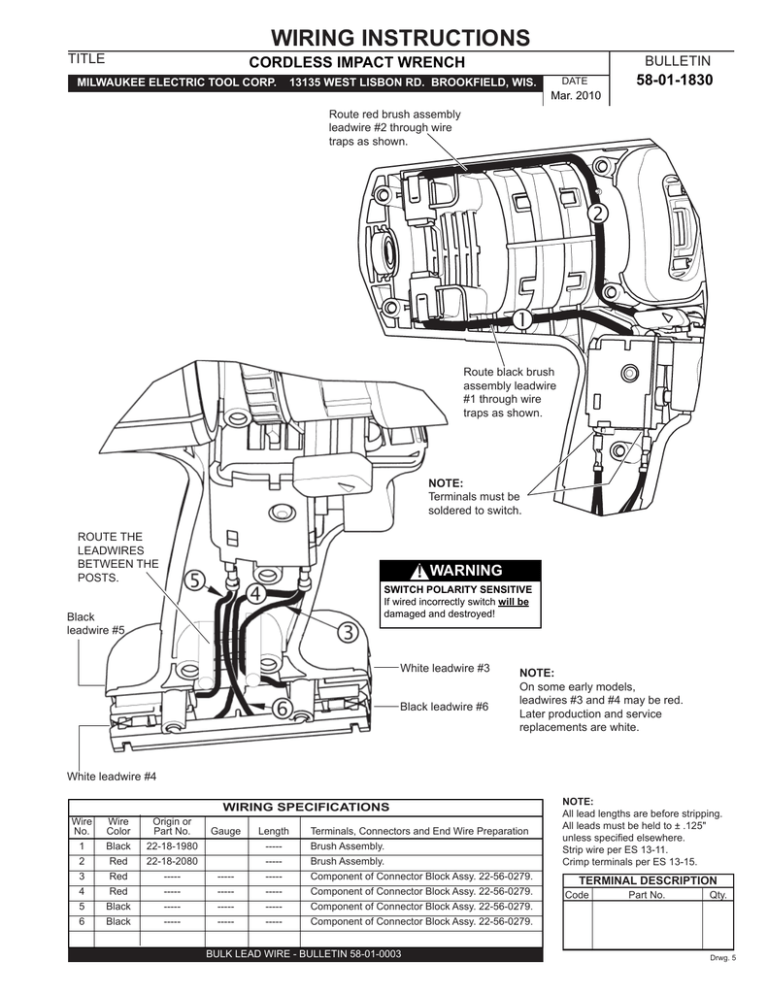

WIRING INSTRUCTIONS
TITLE
BULLETIN
CORDLESS IMPACT WRENCH
MILWAUKEE ELECTRIC TOOL CORP.
DATE
13135 WEST LISBON RD. BROOKFIELD, WIS.
58-01-1830
Mar. 2010
Route red brush assembly
leadwire #2 through wire
traps as shown.
Route black brush
assembly leadwire
#1 through wire
traps as shown.
NOTE:
Terminals must be
soldered to switch.
ROUTE THE
LEADWIRES
BETWEEN THE
POSTS.
! WARNING
SWITCH POLARITY SENSITIVE
If wired incorrectly switch will be
damaged and destroyed!
Black
leadwire #5
White leadwire #3
Black leadwire #6
NOTE:
On some early models,
leadwires #3 and #4 may be red.
Later production and service
replacements are white.
White leadwire #4
WIRING SPECIFICATIONS
Wire
No.
1
2
3
4
5
6
Wire
Color
Black
Red
Red
Red
Black
Black
Origin or
Part No.
22-18-1980
22-18-2080
-----------------
Gauge
-----------------
Length
-------------------------
Terminals, Connectors and End Wire Preparation
Brush Assembly.
Brush Assembly.
Component of Connector Block Assy. 22-56-0279.
Component of Connector Block Assy. 22-56-0279.
Component of Connector Block Assy. 22-56-0279.
Component of Connector Block Assy. 22-56-0279.
BULK LEAD WIRE - BULLETIN 58-01-0003
NOTE:
All lead lengths are before stripping.
All leads must be held to ± .125"
unless specified elsewhere.
Strip wire per ES 13-11.
Crimp terminals per ES 13-15.
TERMINAL DESCRIPTION
Code
Part No.
Qty.
Drwg. 5
