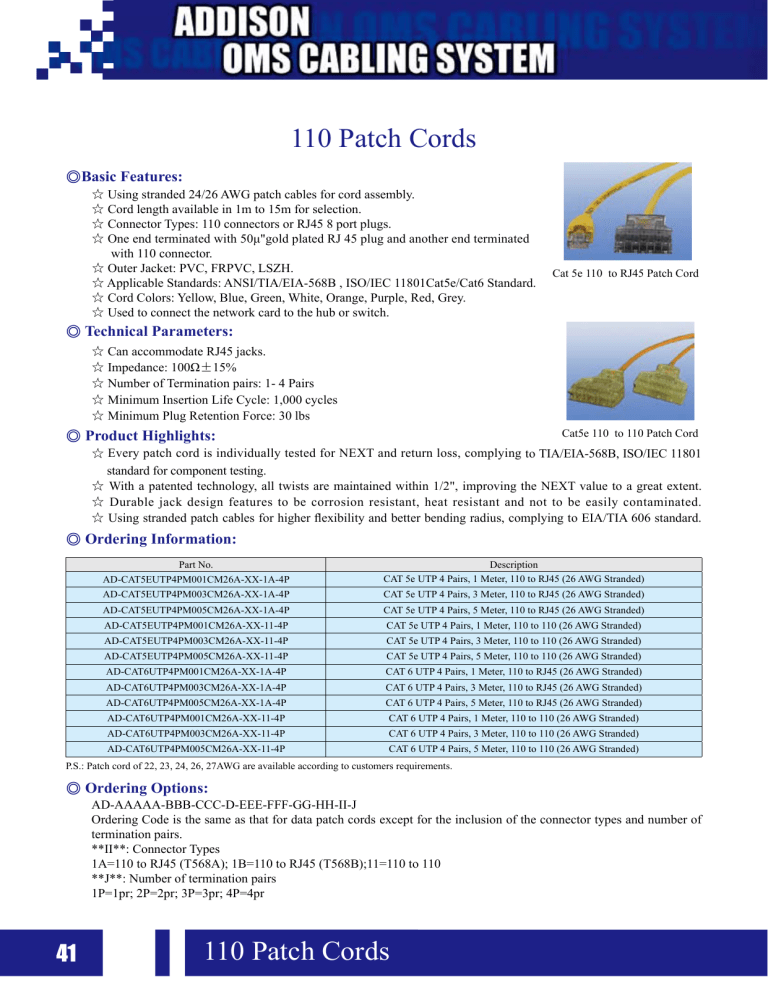

110 Patch Cords
◎Basic Features:
☆ Using stranded 24/26 AWG patch cables for cord assembly.
☆ Cord length available in 1m to 15m for selection.
☆ Connector Types: 110 connectors or RJ45 8 port plugs.
☆ One end terminated with 50μ"gold plated RJ 45 plug and another end terminated
with 110 connector.
☆ Outer Jacket: PVC, FRPVC, LSZH.
☆ Applicable Standards: ANSI/TIA/EIA-568B , ISO/IEC 11801Cat5e/Cat6 Standard.
☆ Cord Colors: Yellow, Blue, Green, White, Orange, Purple, Red, Grey.
☆ Used to connect the network card to the hub or switch.
Cat 5e 110 to RJ45 Patch Cord
◎ Technical Parameters:
☆ Can accommodate RJ45 jacks.
☆ Impedance: 100Ω±15%
☆ Number of Termination pairs: 1- 4 Pairs
☆ Minimum Insertion Life Cycle: 1,000 cycles
☆ Minimum Plug Retention Force: 30 lbs
◎ Product Highlights:
Cat5e 110 to 110 Patch Cord
☆ Every patch cord is individually tested for NEXT and return loss, complying to TIA/EIA-568B, ISO/IEC 11801
standard for component testing.
☆ With a patented technology, all twists are maintained within 1/2", improving the NEXT value to a great extent.
☆ Durable jack design features to be corrosion resistant, heat resistant and not to be easily contaminated.
☆ Using stranded patch cables for higher flexibility and better bending radius, complying to EIA/TIA 606 standard.
◎ Ordering Information:
Part No.
AD-CAT5EUTP4PM001CM26A-XX-1A-4P
Description
CAT 5e UTP 4 Pairs, 1 Meter, 110 to RJ45 (26 AWG Stranded)
AD-CAT5EUTP4PM003CM26A-XX-1A-4P
CAT 5e UTP 4 Pairs, 3 Meter, 110 to RJ45 (26 AWG Stranded)
AD-CAT5EUTP4PM005CM26A-XX-1A-4P
CAT 5e UTP 4 Pairs, 5 Meter, 110 to RJ45 (26 AWG Stranded)
AD-CAT5EUTP4PM001CM26A-XX-11-4P
CAT 5e UTP 4 Pairs, 1 Meter, 110 to 110 (26 AWG Stranded)
AD-CAT5EUTP4PM003CM26A-XX-11-4P
CAT 5e UTP 4 Pairs, 3 Meter, 110 to 110 (26 AWG Stranded)
AD-CAT5EUTP4PM005CM26A-XX-11-4P
CAT 5e UTP 4 Pairs, 5 Meter, 110 to 110 (26 AWG Stranded)
AD-CAT6UTP4PM001CM26A-XX-1A-4P
CAT 6 UTP 4 Pairs, 1 Meter, 110 to RJ45 (26 AWG Stranded)
AD-CAT6UTP4PM003CM26A-XX-1A-4P
CAT 6 UTP 4 Pairs, 3 Meter, 110 to RJ45 (26 AWG Stranded)
AD-CAT6UTP4PM005CM26A-XX-1A-4P
CAT 6 UTP 4 Pairs, 5 Meter, 110 to RJ45 (26 AWG Stranded)
AD-CAT6UTP4PM001CM26A-XX-11-4P
CAT 6 UTP 4 Pairs, 1 Meter, 110 to 110 (26 AWG Stranded)
AD-CAT6UTP4PM003CM26A-XX-11-4P
CAT 6 UTP 4 Pairs, 3 Meter, 110 to 110 (26 AWG Stranded)
AD-CAT6UTP4PM005CM26A-XX-11-4P
CAT 6 UTP 4 Pairs, 5 Meter, 110 to 110 (26 AWG Stranded)
P.S.: Patch cord of 22, 23, 24, 26, 27AWG are available according to customers requirements.
◎ Ordering Options:
AD-AAAAA-BBB-CCC-D-EEE-FFF-GG-HH-II-J
Ordering Code is the same as that for data patch cords except for the inclusion of the connector types and number of
termination pairs.
**II**: Connector Types
1A=110 to RJ45 (T568A); 1B=110 to RJ45 (T568B);11=110 to 110
**J**: Number of termination pairs
1P=1pr; 2P=2pr; 3P=3pr; 4P=4pr
41
110 Patch Cords
