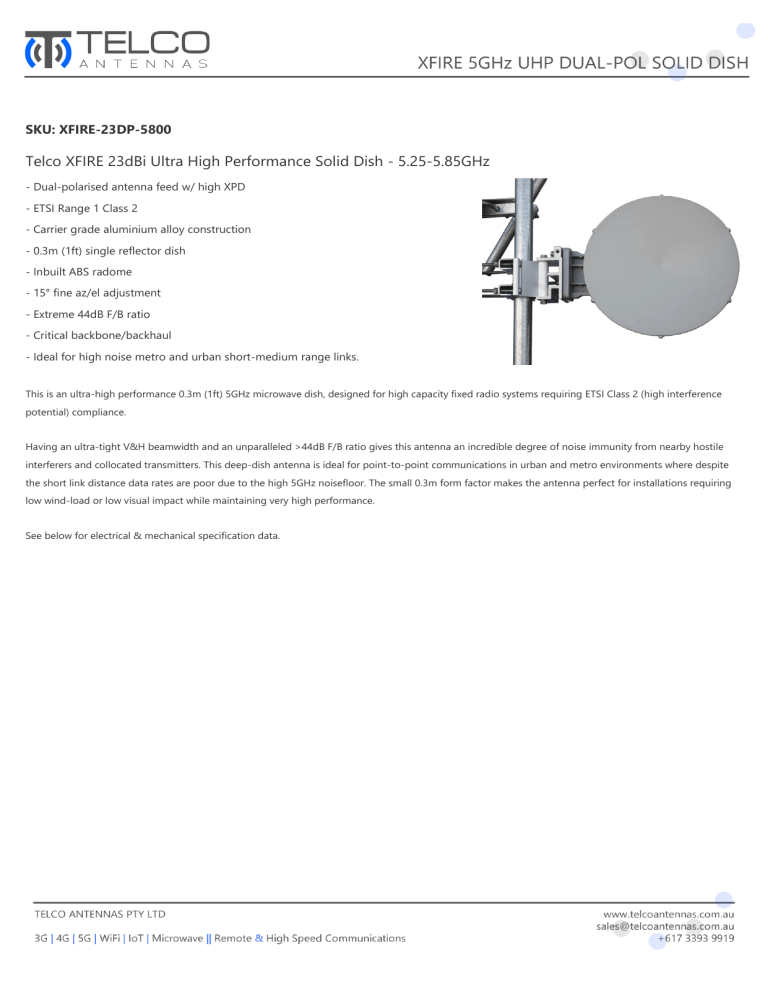

Telco XFIRE 23dBi Ultra High Performance Solid

Telco XFIRE 23dBi Ultra High Performance Solid
SKU: XFIRE-23DP-5800
Telco XFIRE 23dBi Ultra High Performance Solid Dish - 5.25-5.85GHz
- Dual-polarised antenna feed w/ high XPD
- ETSI Range 1 Class 2
- Carrier grade aluminium alloy construction
- 0.3m (1ft) single reflector dish
- Inbuilt ABS radome
- 15° fine az/el adjustment
- Extreme 44dB F/B ratio
- Critical backbone/backhaul
- Ideal for high noise metro and urban short-medium range links.
This is an ultra-high performance 0.3m (1ft) 5GHz microwave dish, designed for high capacity fixed radio systems requiring ETSI Class 2 (high interference
potential) compliance.
Having an ultra-tight V&H beamwidth and an unparalleled >44dB F/B ratio gives this antenna an incredible degree of noise immunity from nearby hostile
interferers and collocated transmitters. This deep-dish antenna is ideal for point-to-point communications in urban and metro environments where despite
the short link distance data rates are poor due to the high 5GHz noisefloor. The small 0.3m form factor makes the antenna perfect for installations requiring
low wind-load or low visual impact while maintaining very high performance.
See below for electrical & mechanical specification data.
Electrical Specifications
Frequency Range:
5250-5850MHz
Input Impedance:
50Ω
VSWR:
<1.8:1
Polarisation:
V&H
Vertical Beamwidth:
9° (± 1°)
Horizontal Beamwidth:
9° (± 1°)
Front to Back Ratio:
>44dB
XPD Discrimination:
>30dB
Port Isolation
PIM IMD (3rd Order):
>35dB
N/A
Radiation:
Directional
Compliance:
ETSI EN 302 217-4-2 Range 1 Class 2
Radiation Patterns
Co Pol (5850MHz):
Cross Pol (5850MHz):
Vertical Polarity
Horizontal Polarity
Test Item
Frequency Range
3dB Beamwidth
VSWR
Front to Back Ratio
XPD
Gain
Technical Requirement
5250-5850
9 (± 1)
<1.8:1
≥35
>30
16
Unit
MHz
°
-
dB
dB
dBi
Tested
Frequency
Result
V
Whole frequency
H
5250-5850
band
5250MHz
9.28
9.96
5550MHz
8.44
9.93
5850MHz
7.79
9.31
-
1.78
1.59
5250MHz
43.74
44.25
5550MHz
44.03
48.59
5850MHz
44.88
45.26
5250MHz
39.92
35.19
5550MHz
31.91
40.30
5850MHz
38.26
33.98
5250MHz
23.18
22.90
5550MHz
23.64
23.40
5850MHz
24.05
23.90
Mechanical/Environmental Specifications
Construction:
ABS Radome, One-Piece Aluminium Reflector, Aluminium Bracket, Galvanised U-Bolts
Cable:
none
Connector:
2x N-Type Female (Low-PIM White Bronze)
Operational Wind Rating:
162km/hr
Survival Wind Rating:
Wind Forces @ Survival:
Operational Temperature:
250km/hr
FA: 430N
-45°C +75°C
Ice-Load:
Weight:
25.4mm
8.2kg
Weight with Ice:
Dimensions:
15.0kg
420 x 135 x 45mm (L x W x D)
Mounting
51-114mm Ø pole
FS: 235N
MT: 180Nm
CAD Drawing
Rear View
Plan View
Document Control: TA-SS-XFIRE-23DP-5800_rev1
Revision Date: 06/06/2016
Telco Antennas makes no warranty on the completeness or accuracy of this document. For all enquiries related to this document please contact our
Australian sales office by email [email protected]
