Single Board Computer

Embedded Board

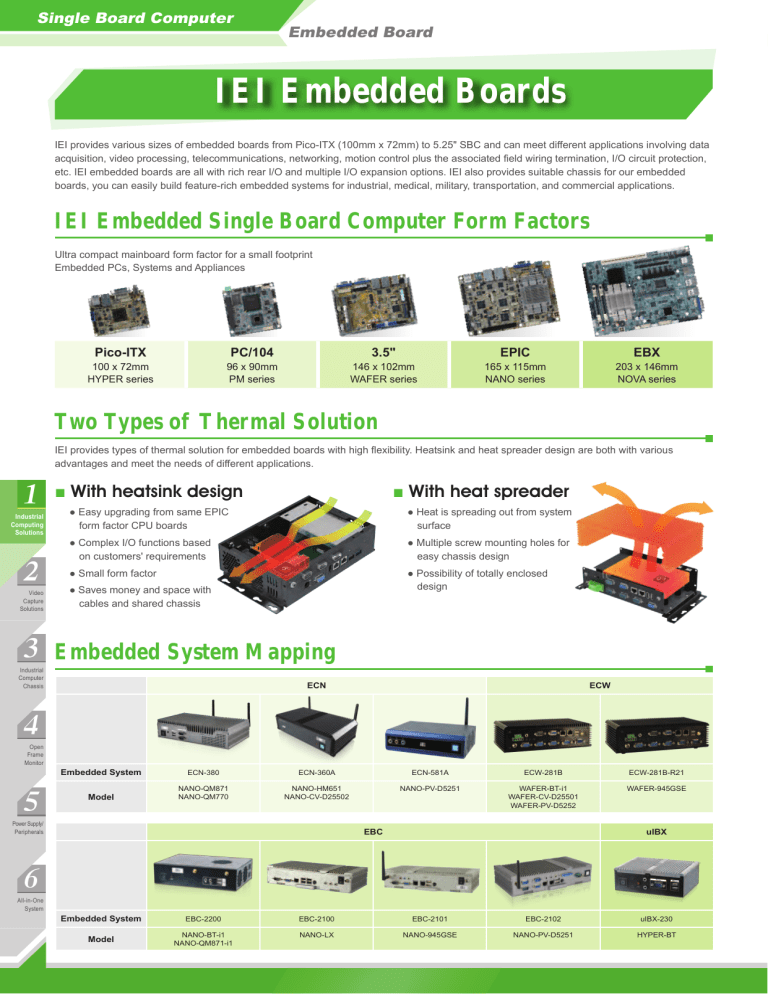

IEI Embedded Boards

IEI provides various sizes of embedded boards from Pico-ITX (100mm x 72mm) to 5.25" SBC and can meet different applications involving data acquisition, video processing, telecommunications, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc. IEI embedded boards are all with rich rear I/O and multiple I/O expansion options. IEI also provides suitable chassis for our embedded boards, you can easily build feature-rich embedded systems for industrial, medical, military, transportation, and commercial applications.

IEI Embedded Single Board Computer Form Factors

Ultra compact mainboard form factor for a small footprint

Embedded PCs, Systems and Appliances

Pico-ITX

100 x 72mm

HYPER series

PC/104

96 x 90mm

PM series

3.5"

146 x 102mm

WAFER series

EPIC

165 x 115mm

NANO series

EBX

203 x 146mm

NOVA series

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

Two Types of Thermal Solution

IEI provides types of thermal solution for embedded boards with high flexibility. Heatsink and heat spreader design are both with various advantages and meet the needs of different applications.

With heatsink design

● Easy upgrading from same EPIC form factor CPU boards

● Complex I/O functions based on customers' requirements

● Small form factor

● Saves money and space with cables and shared chassis

With heat spreader

● Heat is spreading out from system surface

● Multiple screw mounting holes for easy chassis design

● Possibility of totally enclosed design

3

Industrial

Computer

Chassis

Embedded System Mapping

ECN ECW

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

Embedded System

Model

ECN-380

NANO-QM871

NANO-QM770

ECN-360A

NANO-HM651

NANO-CV-D25502

EBC

ECN-581A

NANO-PV-D5251

ECW-281B

WAFER-BT-i1

WAFER-CV-D25501

WAFER-PV-D5252

ECW-281B-R21

WAFER-945GSE

uIBX

6

All-in-One

System

Embedded System

Model

EBC-2200

NANO-BT-i1

NANO-QM871-i1

EBC-2100

NANO-LX

EBC-2101

NANO-945GSE

EBC-2102

NANO-PV-D5251 uIBX-230

HYPER-BT

Single Board Computer

Embedded Board

5.25" NOVA Selection Guide

Model Name

CPU Socket

CPU Type

Chipset

Memory

NOVA-PV-D5251

On board

Intel® Atom™ D525 1.8GHz

ICH8M

2 x 204-pin 800 MHz 2 GB DDR3 SO-DIMM

(system max. 4 GB)

NOVA-945GSE-R20

On board

Intel® Atom™ N270 1.6GHz

Intel® 945GSE + ICH7M

1 x 200-pin 400/533 MHz 1 GB DDR2 SO-DIMM

(system max. 2 GB)

Dual display supported

1 x VGA

1 x 18-bit dual-channel LVDS

Display Interface

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit dual-channel LVDS

Ethernet

Four PCIe Realtek RTL8111E GbE controllers, LAN1 with ASF 2.0 support

iRIS Remote

Management

Module

Dual LAN: Realtek PCIe 8111CP GbE controller

N/A

I/O Interface

1 x KB/MS by pin header

1 x LPT

1 x RS-232/422/485

1 x TPM connector

5 x RS-232

8 x USB 2.0

Drive Interface

2 x SATA 3Gb/s

1 x CF Type II

1 x KB/MS by pin header

1 x LPT

1 x RS-232/422/485

1 x TPM connector

3 x RS-232

6 x USB 2.0

Audio

Realtek ALC662 HD Audio codec

Digital I/O

24-bit digital I/O (12-bit input / 12-bit output)

Power

Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with two 1 GB DDR3)

2 x SATA

1 x IDE

1 x CF Type II

Realtek ALC655 with AC'97 codec

8-bit digital I/O (4-bit input / 4-bit output)

[email protected] (Intel® Atom™ N270 with 1 GB DDR2)

Watchdog Timer

Operating

Environment

Expansion Slots

CPU Cooler

Temperature Range: -10°C~60°C (14°F~140°F)

Relative Humidity: 5% ~ 95% non-condensing

1 x PCI Slot

2 x PCIe Mini card slot

Heatsink

Software programmable and supports 1~255 sec. system reset

Temperature Range: 0°C~60°C (32°F~140°F)

Relative Humidity: 5% ~ 95% non- condensing

1 x PC/104+ (ISA+PCI Bus)

1 x PCI

2 x PCIe Mini card

Heatsink

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

6

All-in-One

System

Single Board Computer

Embedded Board

NOVA-PV-D5251

5.25” SBC, Intel® Atom™ D425/D525, DDR3, 18-bit+48-bit LVDS/VGA, Dual

PCIe Mini, Quad PCIe GbE, USB 2.0, SATA 3Gb/s, Audio, RoHS

DIO

4 x COM

LPT

Dual LVDS

4 PCIe GbE

24-bit DIO

SMBus

TPM

8 x USB

LAN1

IDE

4 x LAN

PCIe Mini card

2 x SATA 3Gb/s

DDR3 800 MHz

12V input

Dual PCIe

Mini card slot

COM

VGA

Audio

24-bit dual-channel LVDS

18-bit single-channel LVDS

Solder side

NOVA-945GSE

5.25” SBC, Intel® Atom™ N270 1.6GHz, LVDS/VGA/HDTV, Dual PCIe Mini,

Dual PCIe GbE, USB 2.0, SATA, RoHS

18-bit LVDS TPM DIO COM1~4

18/24-bit dual-channel

LVDS support

Power

Intel® Atom™

N270

ICH7M

Intel®

945GSE

LPT

Dual LAN

6 x USB

Audio

CRT

TV-out PC/104 Dual PCIe Mini Card

Solder side

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Fanless

Features

CF Type II

TPM 1.2 Support

● 5.25” SBC supports Intel® Atom™ D525/D425 processor

● 800/1066 MHz DDR3 supports up to 4 GB

● VGA/18-bit single-channel/24-bit dual-channel LVDS for dual independent display support

● Quad PCIe Ethernet, two SATA 3Gb/s, and six RS-232 serial port connectors

● TPM V1.2 hardware security function supported by TPM module

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

1.8GHz Intel® Atom™ D525 dual-core processor with 1MB L2 cache

Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

Two 204-pin 800 MHz DDR3 SDRAM SO-

DIMM supports up to 4 GB

Ethernet

LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

LAN2~4: Realtek RTL8111E PCIe GbE controller

Graphics

GMA 3150

Graphic core speed 400 MHz for D525

External I/O Interface: 1 x RS-232

Internal I/O Interface

1 x CF Type II 1 x KB/MS (1x6 pin)

1 x IDE 1 x LPT (2x13 pin, P=2.0)

3 x RS-232 for NOVA-PV-D5251-G2L2-R11

(2x5 pin, P=2.0)

4 x RS-232 for NOVA-PV-D5251-G4-R11 (2x5 pin, P=2.0)

1 x RS-232/422/485 (2x5 pin, P=2.0) (Auto flow control)

2 x SATA 3Gb/s with 5V SATA power connector

(no RAID)

8 x USB 2.0 (2x4 pin, P=2.0)

TPM: 1 x TPM connector (2x10 pin)

SMBus: 1 x SMBus (1x4 pin)

Packing List

Expansion

1 x PCI-104

2 x Full-size PCIe Mini card slot

1 x PCI

Digital I/O

1 x 24-bit digital I/O (2x15 pin)

Super IO: Fintek F81865

Display Output

Dual display supported

VGA (up to [email protected])

18-bit single-channel LVDS (up to

[email protected])

24-bit dual-channel LVDS (up to

[email protected])

Audio

Realtek ALC662 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x3 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Atom™ D525 1.8GHz with two 800 MHz 1 GB DDR3 SO-DIMM)

Operating Temperature: -10°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 203 mm x 146 mm

Weight: GW: 1000g/NW: 400g

1 x NOVA-PV-D5251 single board computer

1 x Audio cable

1 x KB/MS Y cable

1 x Quad port RS-232 cable

1 x SATA with power cable kit

1 x USB cable

Ordering Information

1 x VGA cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Part No.

Description

NOVA-PV-D5251-G4-R12

NOVA-PV-D5251-G2L2-R12

5.25" SBC, Intel® Atom™ D525 dual-core 1.8GHz, DDR3, 18bit LVDS/VGA, dual PCIe Mini, quad PCIe GbE, USB 2.0, SATA

3Gb/s, audio, RoHS

5.25" SBC, Intel® Atom™ D525 dual-core 1.8GHz, DDR3,

18+48-bit LVDS/VGA, dual PCIe Mini, dual PCIe GbE, USB 2.0,

SATA 3Gb/s, audio, RoHS

19FFD124010HB2A7-000001-RS CPU fan (40mm x 40mm x 10mm)

32200-000009-RS

32200-015100-RS

32200-026500-RS

34000-000510-RS

44-pin 2.5" IDE cable, 400mm, P=2.0

LPT cable, 280mm, P=2.0

RS-232/422/485 cable, 290mm, P=2.0

TPM-IN01-R11

30mm higher heatsink

20-pin Infineon TPM module, software management tool, firmware v3.17

TPM 1.2 Support

SO-DIMM CF Type II

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA PCIe GbE 5V only

Features

● 1.6GHz Intel® Atom™ N270 processor with fanless support

● 400/533 MHz DDR2 SO-DIMM memory up to 2 GB

● Support dual PCIe Mini card/PCI slot for expansion

● Dual LVDS support dual display output

● CF socket for storage expansion

● TPM support

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ N270 (1.6GHz, single-core,

512KB cache)

Chipset: Intel® 945GSE+ICH7M

BIOS: AMI BIOS

Memory

One 200-pin 400/533 MHz DDR2 SDRAM SO-

DIMM supports up to 2 GB

Ethernet

Dual LAN: Realtek PCIe 8111CP GbE controller

Graphics

Intel® Graphics Media Accelerator 950

Internal I/O Interface

1 x IDE 1 x KB/MS (1x6 pin)

1 x LPT (2x13 pin, P=2.0)

3 x RS-232 (2x5 pin, P=2.0)

1 x RS-232/422/485 (2x5 pin, P=2.0)

2 x SATA 3Gb/s with 5V SATA power connector

(no RAID)

6 x USB 2.0 (2x4 pin, P=2.0)

Expansion

1 x PC/104+ (ISA+PCI bus)

2 x Full-size PCIe Mini card slot

1 x PCI

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Packing List

1 x NOVA-945GSE-R20 single board computer

1 x Audio cable

1 x KB/MS Y cable

1 x VGA cable

2 x SATA cable

4 x RS-232 cable

Infrared Interface

1 x Infared interface (1x5 pin)

Super IO: ITE IT8718F

Display Output

VGA (up to [email protected])

HDTV supported by component interface

Audio: AC’97 ALC655 codec

SSD: CF Type II

Watchdog Timer

Software programmable supports 1~255 sec. system reset

TPM: 1 x TPM connector (2x10 pin)

Power Supply

5V only DC input

1 x Internal power connector (1x4 pin)

Support AT/ATX mode

12V output for LCD/ system fan

Power Consumption

[email protected] (Intel® Atom™ N270 with one 533 MHz

512MB DDR2 SO-DIMM)

Operating Temperature

0°C ~ 60°C (32°F~140°F)

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 203mm x 146mm

Weight: GW:1000g, NW:400g

1 x USB cable

1 x One Key Recovery CD

1 x Mini jumper pack

1 x Utility CD

1 x QIG

Ordering Information

Part No.

Description

32102-000100-200-RS

32200-000009-RS

32200-015100-RS

32200-833600-RS

WMPCIE-V01-R30

WMUSB-V01-R20

SATA power cable, 150mm, P=5.08

44-pin 2.5" IDE cable, 400mm, P=2.0

LPT cable, 280mm, P=2.0

RS-422/485 cable, 290mm, P=2.0

802.11b/g PCIe Mini card wireless LAN module

802.11b/g USB embedded module

Single Board Computer

Embedded Board

EPIC NANO Selection Guide

Model Name

CPU Socket

CPU Type

Chipset

Memory

NANO-ULT3 NANO-BT-i1/BTW2 NANO-SE/KBN-i1 NANO-QM871-i1 NANO-QM770

On board

Intel® Core™ i7/i5/i3, Celeron®

ULT processor

On board

Intel® Atom™/Celeron® onboard SoC

On board On board

AMD® Embedded G-Series SoC Intel® QM87

Socket G2

Intel® Core™ i7/i5/i3, Celeron®

ULT processor

Intel® Atom™, Celeron® SoC

AMD® Embedded G-Series SoC Intel® Core™ i7/i5/i3, Celeron®

Mobile processor

Intel® Core™ i7/i5/i3, Celeron®

Mobile processor

Intel® QM77

2 x 260-pin 2133/1867 MHz dual-channel DDR4 SO-DIMMs

(system max. 32 GB)

1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM

(system max. 8 GB)

1 x 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L

SO-DIMM (system max. 8 GB)

1 x 204-pin 1600/1333 MHz dual-channel DDR3/DDR3L SO-

DIMM (system max. 8 GB)

1 x 204-pin 1600/1333 MHz

DDR3 SO-DIMM

(system max. 8 GB)

Display Interface

Triple independent display

2 x HDMI

1 x 18/24-bit dual-channel LVDS

1 x iDP interface

Dual display supported

1 x VGA

1 x HDMI

1 x 18/24-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x HDMI

1 x 18/24-bit dual-channel LVDS

Dual display supported

1 x VGA

2 x HDMI

1 x 18/24-bit dual-channel LVDS

Dual display supported

1 x DVI-I

2 x HDMI

1 x 24-bit dual-channel LVDS

Ethernet

LAN1: Intel® I219-LM PHY with

Intel® AMT 11.0 supported

LAN2: Intel® I211-AT PCIe GbE

Controller

LAN1: Intel® I210-AT PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

LAN1: Intel® I210-AT PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

LAN1: Intel® I217-LM PHY with

Intel® AMT 9.0 supported

LAN2: Intel® I211-AT PCIe GbE controller

LAN1: Intel® 82583V PCIe controller

LAN2: Intel® 82579 PHY with

Intel® AMT 8.0 supported

iRIS Remote

Management

Module

N/A

1 x iRIS-1010 slot 1 x iRIS-1010 slot 1 x iRIS-1010 slot

N/A

1

Industrial

Computing

Solutions

I/O Interface

1 x PS/2 KB/MS

1 x RS-232/422/485

2 x RS-232

2 x USB 2.0

4 x USB 3.0

1 x PS/2 KB/MS

1 x RS-422/485

1 x USB 3.0

3 x RS-232

3 x USB 2.0

1 x PS/2 KB/MS

1 x RS-422/485

2 x USB 3.0

5 x RS-232

6 x USB 2.0

1 x PS/2 KB/MS

1 x RS-422/485

2 x RS-232

2 x USB 3.0

4 x USB 2.0

1 x I²C

1 x Infrared

1 x PS/2 KB/MS

1 x RS-422/485

1 x SMBus

1 x TPM connector

2 x RS-232

2 x USB 2.0

4 x USB 3.0

2

Video

Capture

Solutions

2 x SATA 3Gb/s with 5V SATA power connector

(no RAID)

2 x SATA 6G/s with 5V SATA power connector

1 x mSATA

2 x SATA

2 x SATA 6Gb/s

Drive Interface

Audio

2 x SATA 6G/s with 5V SATA power connector (RAID 0,1)

1 x 8 GB eMMC (optional)

Realtek ALC662 HD Audio codec Realtek ALC892 HD Audio codec Realtek ALC662 HD Audio codec

3

Industrial

Computer

Chassis

Digital I/O

8-bit digital I/O (4-bit input / 4-bit output)

Power

Consumption

Watchdog Timer

[email protected] (Intel® Core™ i3-

6100U CPU)

[email protected] (Intel® Atom™

Processor J1900 CPU with one 8

GB 1333 MHz DDR3L memory)

[email protected] (AMD GX-415GA

1.5GHz CPU with 1600 MHz 8

GB DDR3 memory)

[email protected] (Intel® 4th Gen.

2.0GHz CPU with one 1333HMz

DDR3 4 GB memory)

[email protected] (Intel® 1.8GHz

CPU with 1333 MHz DDR3 4 GB memory)

4

Open

Frame

Monitor Software programmable and supports 1~255 sec. system reset

Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

Operating

Environment

Temperage Range:

-20°C ~ 60°C (-4°F ~ 140°F)

Relative Humidity:

5% ~ 95%, non-condensing

Temperature Range:

NANO-BT-i1: -20°C ~ 60°C

(-4°F~140°F)

NANO-BTW2: -40°C ~ 85°C

(-40°F~185°F)

Relative Humidity:

5% ~ 95% non-condensing

Temperature Range:

0°C ~ 60°C (32°F ~ 140°F)

Relative Humidity:

5% ~ 95% non-condensing

5

Power Supply/

Peripherals

Expansion Slots

1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)

1 x Half-size PCIe Mini card slot

1 x Full-size PCIe Mini card slot

(supports mSATA co-lay SATA port 2)

1 x PCI-104 slot (PCI signal)

1 x Full-size PCIe Mini card slot

(supports mSATA co-lay SATA port 2)

1 x Full-size PCIe Mini card slot with mSATA support

1 x PCIe Mini card slot with mSATA support

CPU Cooler

Heat Spreader

N/A

GX-415GA (with hearsink)

GX-210HA (with cooler)

XCF-479B-RS /

CF-989B-RS-R11

CF-989A-RS-R12 /

CF-989B-RS-R11

6

All-in-One

System

Single Board Computer

Embedded Board

EPIC NANO Selection Guide

Model Name

CPU Socket

CPU Type

Chipset

Memory

NANO-HM651 NANO-HM650 NANO-CV-D25502/N26002 NANO-CV-D25501/N26001 NANO-PV-D4251/N4551/D5251

On Board

Socket G2

On Board On Board On board

Intel® Celeron® 847E 1.1GHz

Intel® Core™ i7/i5/i3/Celeron® mobile processor

Intel® Atom™ D2550 1.86GHz

Intel® Atom™ N2600 1.6GHz

Intel® Atom™ D2550 1.86GHz

Intel® Atom™ N2600 1.6GHz

Intel® Atom™ D525 1.8GHz

Intel® Atom™ D425 1.8GHz

Intel® Atom™ N455 1.66GHz

Intel® HM65 Intel® HM65

Intel® NM10 Intel® NM10

Intel® ICH8M

2 x 204-pin 1066/1333 MHz dual-channel DDR3 SO-DIMMs

(system max. 16 GB)

1 x 204-pin 1066/1333 MHz

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 8 GB)

1 x 204-pin 1066 MHz 4 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 4 GB) for D2550

1 x 204-pin 800 MHz 2 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 2 GB) for N2600

1 x 204-pin 1066 MHz 4 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 4 GB) for D2550

1 x 204-pin 800 MHz 2 GB

DDR3/DDR3L (1.35V) SO-DIMM

(system max. 2 GB) for N2600

1 x 204-pin 800 MHz 4 GB

DDR3 SO-DIMM (system max. 4

GB) for D525/D425

1 x 204-pin 800 MHz 2 GB

DDR3 SO-DIMM (system max. 2

GB) for N455

Display Interface

Dual display supported

1 x VGA

2 x HDMI

1 x 24-bit dual-channel LVDS

Dual LAN: Realtek RTL8111E

PCIe GbE controller with ASF

2.0 support

Dual display supported

1 x VGA

1 x HDMI

1 x 24-bit dual-channel LVDS

Dual display supported

VGA1: Integrated in Intel® CPU

VGA2: Integrated in NXP

PTN3392

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2 (D2550)

Dual display supported

1 x VGA

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2 (D2550)

1 x 24-bit dual-channel LVDS

1 x HDMI

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

Dual Realtek RTL8111E PCIe GbE controller with ASF 2.0 support Dual PCIe GbE by Realtek

RT8111E support ASF 2.0

1

Industrial

Computing

Solutions

Ethernet iRIS Remote

Management

Module

N/A

2

Video

Capture

Solutions

I/O Interface

1 x I²C

1 x PS/2 KB/MS

1 x RS-422/485

1 x SMBus

1 x TPM connector

2 x RS-232

2 x USB 3.0

4 x USB 2.0

1 x PS/2 KB/MS

1 x RS-422/485

2 x RS-232

8 x USB 2.0

1 x KB/MS

1 x RS-422/485

3 x RS-232

6 x USB 2.0

1 x KB/MS

1 x RS-422/485

1 x TPM connector

2 x USB 3.0

5 x RS-232

6 x USB 2.0

1 x KB/MS

1 x LPT

1 x RS-232/422/485

1 x TPM connector

4 x RS-232

8 x USB 2.0

3

Industrial

Computer

Chassis

Drive Interface

Audio

2 x SATA 6Gb/s 2 x SATA 6Gb/s 2 x SATA 3Gb/s or

1 x SATA 3Gb/s + 1 x mSATA

Realtek ALC662 HD Audio codec

2 x SATA 3Gb/s or

1 x SATA 3Gb/s + 1 x mSATA

1 x microSD

2 x SATA 3Gb/s

1 x CF Type II

Realtek ALC888 HD Audio codec

4

Open

Frame

Monitor

Digital I/O

Power

Consumption

5

Power Supply/

Peripherals

Watchdog Timer

Operation

Environment

Temperature Range: -10°C ~

60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

6

All-in-One

System

Expansion Slots

1 x PCIe Mini card slot with mSATA support

8-bit digital I/O (4-bit input / 4-bit output)

[email protected] (Intel® Celeron®

847E 1.1GHz with 1333 MHz 4

GB memory)

[email protected] (2.6GHz Intel®

Core™ i5-2540M with 1333 MHz

4 GB DDR3 DIMM)

[email protected] (Intel® dual core

D2550 CPU with 1333 MHz 4

GB DDR3 memory)

[email protected] (Intel® dual core

N2600 CPU with 1333 MHz 4

GB DDR3 memory)

Temperature Range: -10°C ~

60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

1 x PCIe Mini card slot with mSATA support

1 x PCI-104 slot

[email protected] (1.86GHz Intel®

D2550 CPU with DDR3 1333

MHz 2 GB DIMM)

[email protected] (1.6GHz Intel®

N2600 CPU with DDR3 1333

MHz 2 GB DIMM)

Software programmable and supports 1~255 sec. system reset

1 x PCIe Mini card slot with mSATA support

1 x Half-size PCIe Mini card slot

1 x PCIe Mini card slot

1 x PC-104+ slot (PCI + ISA)

8-bit digital I/O

(4-bit input/4-bit output)

[email protected] (Intel® Atom™ D525 with 2 GB 1066 MHz DDR3)

[email protected] (Intel® Atom™ D425 with 2 GB 1066 MHz DDR3)

[email protected] (Intel® Atom™ N455 with 2 GB 1066 MHz DDR3)

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor

Relative Humidity: 5% ~ 95%, non-condensing

1 x PCI-104 slot

1 x PCIe Mini card Slot

CPU Cooler

Heat Spreader CF-989A-RS-R12 /

CF-989B-RS-R11

Heat Spreader Heatsink Heatsink

Single Board Computer

Embedded Board

EPIC NANO Selection Guide

Model Name NANO-PV-D5252 NANO-9452-R40 NANO-945GSE-R20 NANO-945GSE2 NANO-LX-R12

CPU Socket

CPU Type

Chipset

Memory

On board

Intel® Atom™ D525 1.8GHz

Socket M On board On board On board

Intel® Core™2 Duo, Core™

Duo/Solo, Celeron® M processor

Intel® Atom™ N270 1.6GHz

Intel® Atom™ N270 1.6GHz

AMD Geode™ LX800

Intel® ICH8M Intel® 945GME + ICH7M Intel® 945GSE + ICH7M Intel® 945GSE + ICH7M AMD Geode™ LX800 + AMD

CS5536

1 x 204-pin 800 MHz 4 GB DDR3 SO-

DIMM (system max. 4 GB) for D525/

D425

1 x 204-pin 800 MHz 2 GB DDR3 SO-

DIMM (system max. 2 GB) for N455

1 x 200-pin 400/533/667 MHz

2 GB DDR2 SO-DIMM (system max. 2 GB)

1 x 200-pin 2 GB (max.)

400/533 MHz DDR2 SO-DIMM

1 x 200-pin 2 GB (max.)

400/533 MHz DDR2 SO-DIMM

1 x 200-pin 1 GB (max.)

333/400 MHz DDR SO-DIMM

Display Interface

Ethernet

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit dual-channel LVDS

Dual display supported

1 x VGA

1 x 18/24-bit dual-channel

LVDS

1 x HDTV

Dual display supported

1 x VGA

1 x 18-bit dual-channel LVDS

1 x 24-bit dual-channel LVDS

1 x HDTV

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit TTL (LVDS to TTL)

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

1 x 24-bit TTL (LVDS to TTL)

Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

LAN2: Realtek RTL8111E PCIe GbE controller

Dual LAN: Realtek PCIe

8111CP GbE controller

LAN: 10/100Mbps Realtek

RTL8100C

iRIS Remote

Management

Module

N/A

1

Industrial

Computing

Solutions

I/O Interface

1 x KB/MS

1 x LPT

1 x RS-232/422/485

4 x RS-232

8 x USB 2.0

1 x Infrared interface

1 x LPT

1 x PS/2 for KB/MS

1 x RS-232/422/485

3 x RS-232

6 x USB 2.0

1 x Infrared interface

1 x LPT

1 x PS/2 for KB/MS

1 x RS-232/422/485

3 x RS-232

6 x USB 2.0

1 x Infrared interface

1 x LPT

1 x PS/2 for KB/MS

1 x RS-232/422/485

3 x RS-232

6 x USB 2.0

1 x Infrared interface

1 x LPT

1 x PS/2 for KB/MS

1 x RS-422/485

4 x USB 2.0

6 x RS-232

2

Video

Capture

Solutions

Drive Interface

2 x SATA 3Gb/s

1 x CF Type II

Audio

CPU Cooler

Realtek ALC888 HD Audio codec

2 x SATA 1.5Gb/s

1 x IDE

1 x CF Type II

2 x SATA 1.5Gb/s

1 x IDE

1 x CF Type II

AC-KIT-892HD-R10

AC-KIT08R

2 x SATA 1.5Gb/s

1 x CF Type II

2 x SATA 1.5Gb/s RAID

1 x IDE

1 x CF Type II

Realtek ALC655 with AC’97 codec

Realtek ALC203 with AC’97 codec

3

Industrial

Computer

Chassis

Digital I/O

Power

Consumption

Watchdog Timer

Operating

Environment

Expansion Slots

1 x PCI-104 slot

1 x PCIe Mini card slot

8-bit digital I/O (4-bit input/4-bit output)

[email protected] (Intel® Atom™ D525 with

2 GB 1066 MHz DDR3)

[email protected] (Intel® Atom™ D425 with

2 GB 1066 MHz DDR3)

[email protected] (Intel® Atom™ N455 with

2 GB 1066 MHz DDR3)

[email protected] (Intel® Core™2

Duo T2500 2.0GHz, 2 GB

800 MHz DDR2)

[email protected] (Intel® Atom™

N270 1.6GHz, 2 GB DDR2

533 MHz)

[email protected] (Intel® Atom™

N270 1.6GHz, 1 GB DDR2

533 MHz)

[email protected] (AMD LX800,

256 MB 400 MHz DDR)

Temperature Range:

-10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity:

5% ~ 95% non-condensing

Software programmable and supports 1~255 sec. system reset

Temperature Range:

0°C ~ 60°C (32°F ~ 140°F)

Relative Humidity:

5% ~ 95% non- condensing

1 x PCI-104 slot

1 x PCIe Mini card slot

Temperature Range:

0°C ~ 60°C (32°F ~ 140°F)

-20°C ~ 70°C (W)

Relative Humidity: 5% ~ 95% non- condensing

1 x PCI-104 slot

1 x PCIe Mini card slot

1 x PC/104-Plus

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

Temperature Range:

0°C ~ 60°C (32°F ~ 140°F)

Relative Humidity:

5% ~ 95% non- condensing

1 x PC/104-Plus

6

All-in-One

System

Heatsink XCF-479B-RS Heatsink Heatsink Heatsink

Single Board Computer

Embedded Board

NANO-ULT3

RS-232/422/485 USB 2.0

Audio

2 x RS-232

DIO

2 x USB 2.0

2 x SATA 6Gb/s

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s, mSATA , COM, Audio and RoHS

12V power input

2 x RJ-45

2 x USB 3.0

2 x HDMI

PCIe Mini w/

SIM slot

Front panel

USB

USB 3.0

SATA 6Gb/s

KB/MS

mSATA Jumper-less iDP

Heat Spreader

PCIe GbE

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

PCIe Mini iDP

Specifications

SoC

6th generation Intel® mobile ULT on-board SoC

Intel® Core™ i7-6500U (up to 3.1GHz, dual-core, 4MB cache, TDP=15W)

Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)

Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)

Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)

BIOS

AMI UEFI BIOS

Memory

Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.

32 GB)

Graphics Engine

Intel® HD Graphics Gen 9 Engine with 16 low-power execution units, supporting DX11/12,

OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0

Display Output

Triple independent display

2 x HDMI (up to [email protected])

1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to [email protected])

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x [email protected]) (colay with HDMI1)

Ethernet

LAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported

LAN2: Intel® I211-AT PCIe GbE controller

External I/O Interface

4 x USB 3.0

Internal I/O Interface

1 x 8 GB eMMC (optional) 1 x USB 2.0 (180° Type-A)

1 x KB/MS (1x6 pin)

1 x RS-232/422/485 (2x5 pin, P=2.0)

2 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6G/s with 5V SATA power connector (RAID 0,1)

SMBus

1 x SMBus (1x4 pin)

Audio

Realtek ALC662 HD codec

1 x Analog audio (2x5 pin)

Front panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED

2 x LAN LED (1x2 pin)

Expansion

1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)

1 x Half-size PCIe Mini card slot

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Fan Connector

1 x CPU fan connector (1x4 pin)

1 x System fan connector (1x4 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Consumption

[email protected] (Intel®

Core™ i3-6100U CPU with two 8 GB memory)

Operating Temperature: -20°C ~ 60°C

Storage Temperature: -30°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 115mm x 165mm

Weight: GW:850g / NW:350g

LVDS

Features

● EPIC SBC with 6th generation Intel® ULT proccessor supports dual-channel DDR4 SO-

DIMMs

● Triple independent display support

● Easy assembly heat spreader for thermal management

● Full-size PCIe Mini slot with SIM sockets for 3G/LTE expansion

● COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 and audio support

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x NANO-ULT3 single board computer with heatspreader

1 x Audio cable

1 x Power cable

1 x RS-232 cable

1 x SATA with power cable kit

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

NANO-ULT3-i7-R10

NANO-ULT3-i5-R10

NANO-ULT3-i3-R10

NANO-ULT3-C-R10

32000-023800-RS

32000-070301-RS

Description

EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7-

6600U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual

PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA, COM,

Audio and RoHS

EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i5-

6300U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual

PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA, COM,

Audio and RoHS

EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i3-

6100U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual

PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA, COM,

Audio and RoHS

EPIC SBC supports Intel® 14nm 6th Generation Mobile Celeron®

3955U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual

PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA, COM,

Audio and RoHS

PS/2 KB/MS cable, 135mm, P=2.0

Dual-port USB cable, 210mm, P=2.0

Single Board Computer

Embedded Board

NANO-

BTW2

BT-i1

12V DC input LVDS PCI-104 Audio

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC with VGA, HDMI, LVDS, Dual Intel® PCIe GbE, USB 3.0, Dual PCIe

Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS

Highly efficient and power optimized multi-format codec engine

SATA 3Gb/s

● Full HW Acceleration for

Video Decoding

H.264, VC1 MPEG2, MVC, VP8,

MPEG-4/H.263 MJPEG formats

Bay Trail

SoC

Intel ®

Bay Trail

SoC

RS-422/485

Front panel

● Video Encoding

» Full HW acceleration for H.264

» Hybird HW acceleration of MPEG2

3 x RS-232

PS/2 KB/MS

Combo RJ-45: LAN1 / IPMI

2 x USB 2.0

Bay Trail

SoC

microSD slot (E38XX SKU only)

Slot for iRIS-1010 module in the bottom side

Specifications

SoC

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)

Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)

Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)

Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)

Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)

Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)

Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

BIOS: AMI UEFI BIOS

Memory

One 204-pin 1066/1333 MHz single-channel unbuffered DDR3L SDRAM SO-DIMM supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

Graphics Engine

Intel® HD Graphics Gen 7 Engine with four execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2

Display Output

Dual independent display

VGA (up to [email protected] Hz)

HDMI (up to [email protected] Hz)

18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to [email protected])

Ethernet

» NANO-BT-i1

LAN1: Intel® I210-AT PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

» NANO-BT-E38XX1W2

LAN1: Intel® I210-IT PCIe controller with NCSI support

LAN2: Intel® I210-IT PCIe controller

Super I/O: Fintek F81866

External I/O Interface

1 x PS/2 KB/MS

1 x USB 2.0

1 x USB 3.0

Internal I/O Interface

1 x RS-422/485 (1x4 pin, P=2.0)

2 x SATA 3Gb/s with 5V SATA power connector (no RAID)

2 x USB 2.0 (2x4 pin, P=2.0)

3 x RS-232 (2x5 pin, P=2.0)

iRIS Remote Management Module: 1 x iRIS-1010 slot

SMBus: 1 x SMBus (1x4 pin)

Audio

Realtek ALC662 HD Audio codec

1 x Analog audio (2x5 pin)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Expansion

1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)

1 x PCI-104 slot (PCI signal)

1 x microSD slot (E38XX SKU only)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector

1 x CPU smart fan (1x3 pin)

1 x System smart fan (1x3 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Atom™ processor J1900 with one 8 GB 1333 MHz DDR3 memory)

Watchdog Timer: Software programmable, support 1~255 sec. system reset

Operating Temperature: -20°C ~ 60°C, -40°C ~ 85°C (NANO-BT-E38XX1W2)

Storage Temperature: -30°C ~ 70°C, -40°C ~ 85°C (NANO-BT-E38XX1W2)

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 115mm x 165mm

Weight: GW:850g / NW:350g

VGA

Jumper-less

Features

● EPIC SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC

● Supports dual independent display with LVDS, VGA and HDMI

● 1.35V DDR3L 1333/1066 MHz SDRAM support up to 8 GB

● Support IPMI 2.0 with iRIS-1010 module

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

HDMI

USB

USB 3.0

Ordering Information

LAN2 USB 2.0

USB 3.0

PCIe GbE mSATA

1 x NANO-BT single board computer with heatsink

1 x Power cable

2 x RS-232 cable

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

2 x SATA with power cable kit 1 x Utility CD

Part No.

NANO-BT-E38451W2-R11

NANO-BT-E38XX1W2-R11

NANO-BT-i1-J19001-R11

NANO-BT-i1-N29301-R11

NANO-BT-i1-N28071-R11

NANO-BT-i1-E38XX1-R11 iRIS-1010-R10

32000-070301-RS

32006-000300-100-RS

32205-003800-300-RS

**

**

NANO-BT-J19001-ECO-R10

Description

EPIC SBC supports Intel® 22nm quad-Core Atom™ E3845 1.91GHz

(10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB

3.0, Dual PCIe Mini, SATA 3Gb/s, mSATA , COM, audio and RoHS,

-40~85°C

EPIC SBC supports Intel® 22nm single-Core Atom™ E381XX onboard SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual

PCIe Mini, SATA 3Gb/s, mSATA , COM, audio and RoHS, -40~85°C

EPIC SBC supports Intel® 22nm quad-core J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0,

PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS

EPIC SBC supports Intel® 22nm quad-core N2930 1.83GHz (7.5W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0,

PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS

EPIC SBC supports Intel® 22nm dual-core N2807 1.58GHz (4.3W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0,

PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS

EPIC SBC supports Intel® Atom™ E38XX on-board SoC with VGA/

HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, iRIS-1010, Audio and RoHS

Intel® 22nm Quad-Core J1900 2.0GHz (10W) on-board

SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA, mSATA , COM, Audio, ECO packing and RoHS

(10 pcs/pack)

IPMI 2.0 adapter card with AST1010 BMC chip (w/o KVM over IP function) for PCIe Mini socket interface

Dual-port USB 2.0 cable, 210mm, P=2.0

PS/2 KB/MS Y-cable without bracket, 140mm/120mm

RS-422/485 cable, 200mm, P=2.0

** By order production, MOQ: 100

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

NANO-

SE-i1

KBN-i1

SATA 6Gb/s

Single-channel DDR3

1600/1333 MHz

Front panel

12V power input

RS-422/485

EPIC SBC supports AMD® Embedded G-Series SoC with VGA/HDMI/

LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA,

COM, iRIS-1010, HD Audio and RoHS

5 x RS-232

Lower thermal design power with high performance

● Upgraded AMD® Embedded G-Series SoC provides lower TDP and higher overall performance-per-watt

● Integrated AMD's next generation graphics core architecture for discrete-class graphic processing

● Available in dual or quad-core processor

● Integrated security solution to protect system at the hardware level

Multiple screw mounting holes provide flexibility for all thermal solutions.

DIO

Audio

TPM

Combo RJ-45:

LAN1 / IPMI 2 x USB 3.0

LAN2 2 x USB 2.0

HDMI VGA

PCIe Mini

(supports mSATA)

4 x USB 2.0

Slot for iRIS-1010 module

LVDS

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Specifications

SoC

» AMD® Embedded G-Series "Steppe Eagle" SoC

GX-424CC on-board Soc (2.4GHz, quad-core, 2MB cache, TDP=25W)

GX-412HC on-board Soc (1.2GHz, quad-core, 2MB cache, TDP=7W)

GX-212JC on-board Soc (1.2GHz, dual-core, 1MB cache, TDP=6W)

GX-411GA on-board Soc (1.0GHz, quad-core, 2MB cache, TDP=15W)

GX-209HA on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=9W)

» AMD® Embedded G-Series "eKabini" SoC

GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W)

GX-210HA on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=9W)

GX-420CA on-board Soc (2.0GHz, quad-core, 2MB cache, TDP=25W)

GX-217GA on-board Soc (1.65GHz, dual-core, 1MB cache, TDP=15W)

BIOS: AMI UEFI BIOS

Memory

One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SO-

DIMM slot supports up to 8 GB

Graphics Engine

Support DX11.1, OpenGL 4.1 and OpenCL1.2

UVD4.2 decode for H.264, MPEG2/4, VC1, MVC

VCE 2.0 encode for H.264, VCE

Display Output

Dual independent display

VGA (up to [email protected])

HDMI (up to [email protected])

18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to [email protected])

Ethernet

LAN1: Intel® I210-AT PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

Super I/O: Fintek F81866

External I/O Interface

2 x USB 2.0

2 x USB 3.0

Internal I/O Interface

1 x KB/MS (1x6 pin)

1 x RS-422/485 (1x4 pin, P=2.0)

4 x USB 2.0 (2x4 pin, P=2.0)

5 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6G/s with 5V SATA power connector (no RAID)

iRIS Remote Management Module: 1 x iRIS-1010 slot

TPM: 1 x TPM (2x10 pin)

SMBus: 1 x SMBus (1x4 pin)

I²C: 1 x I²C (1x4 pin)

Audio

Realtek ALC892 HD Audio codec

1 x S/PDIF (1x4 pin)

1 x Analog audio (2x5 pin)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Expansion: 1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)

Watchdog Timer: Software programmable, support 1~255 sec. system reset

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector: 1 x System smart fan (1x4 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8 GB DDR3 memory)

Operating Temperature: 0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 115mm x 165mm

Weight: GW:850g / NW:350g

TPM 1.2 Support

Heat Spreader

USB

USB 3.0

SATA 6Gb/s PCIe GbE mSATA

Features

● EPIC SBC supports AMD® Embedded G-Series SoC

● Dual independent display support

● 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8 GB

● HD Audio supported by S/PDIF

● Support IPMI 2.0 with iRIS-1010 module

● COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x NANO-KBN/SE-i1 single board computer with enclosure heatsink

1 x Audio cable

1 x Power cable

2 x RS-232 cable

2 x SATA with power cable kit

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

NANO-SE-i1-4241-R10

NANO-KBN-i1-4151-R10

NANO-KBN-i1-2101-R10

Description

EPIC SBC supports AMD® 28nm quad core GX-424CC 2.4GHz (25W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual

PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio, iRIS-1010 and

RoHS

EPIC SBC supports AMD 28nm quad-core GX-415GA 1.5GHz (15W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA 6Gb/s, mSATA, COM, iRIS-1010, HD Audio and RoHS

EPIC SBC supports AMD 28nm dual-core GX-210HA 1.0GHz (9W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA 6Gb/s, mSATA, COM, iRIS-1010, HD Audio and RoHS iRIS-1010-R10

IPMI 2.0 adapter card with AST1010 BMC chip (w/o KVM over

IP function) for PCIe Mini socket interface

PS/2 KB/MS cable, 135mm, P=2.0

32000-023800-RS

32000-070301-RS

32205-003800-300-RS

TPM-IN01-R11

Dual-port USB cable, 210mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

20-pin Infineon TPM module, software management tool, firmware v3.17

Note: Models with other CPUs not listed in the table are requested by MOQ - 100 pcs/lot.

Single Board Computer

Embedded Board

NANO-QM871-i1

EPIC SBC supports 4th Generation Intel® Mobile Processor with

VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, SATA 6Gb/s,

PCIe Mini, iRIS-1010, Audio and RoHS

PCIe Mini card slot

(compatible with mSATA)

12V DC input Front panel

Solder Side

Slot for iRIS-1010 module

SMBus

5V SATA power

4th Gen.

CPU

QM87

2 x SATA 6Gb/s

KB/MS

RS-422/485

TPM

2 x RS-232

DIO

2 x USB 2.0

Audio I/F

DDR3 SO-DIMM 1333/1066 MHz

LVDS

Specifications

2 x LAN LED

CPU

Intel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support

(2.4GHz, quad-core, 6MB cache, TDP=47W)

Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support

(2.7GHz, dual-core, 3MB cache, TDP=37W)

Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache, TDP=37W)

Intel® mobile Celeron® 2000E on-board processor (2.2GHz, dual-core, 2MB cache, TDP=37W)

Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support

(1.6GHz, dual-core, 3MB cache, TDP=25W)

Intel® mobile Core™ i3-4102E on-board processor

(1.6GHz, dual-core, 3MB cache, TDP=25W)

Intel® mobile Celeron® 2002E on-board processor

(1.5GHz, dual-core, 2MB cache, TDP=25W)

System Chipset: Intel® QM87

BIOS: UEFI BIOS

Memory

One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM supports up to 8 GB

Graphics Engine

Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2

Full MPEG2, VC1, AVC Decode

Display Output

VGA (up to 192[email protected])

18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to [email protected])

Dual HDMI (up to [email protected])

Ethernet

LAN1: Intel® I217-LM PHY with Intel® AMT 9.0 support

LAN2: Intel® I210-AT PCIe controller

Super I/O: Fintek F81866

External I/O Interface

2 x USB 2.0

2 x USB 3.0

Internal I/O Interface

1 x KB/MS (1x6 pin)

1 x RS-422/485(1x4 pin, P=2.0)

2 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6G/s with 5V SATA power connector (RAID 0,1 supported)

iRIS Remote Management Module: 1 x iRIS-1010 slot

TPM: 1 x TPM connector (2x10 pin)

SMBus: 1 x SMBus (1x4 pin)

Audio: Realtek ALC662 HD Audio codec

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Expansion

1 x Full-size PCIe Mini card slot (supports mSATA, SATA 6 GB/s signal only)

1 x PCIe/104 Type 2 slot (optional)

Watchdog Timer: Software programmable, support 1~255 sec. system reset

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x4 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Core™ i7-4770EQ 2.4GHz CPU with 4 GB 1333 MHz DDR3 memory)

Operating Temperature: -10°C ~ 60°C

Storage Temperature: -20°C ~ 60°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 115 mm x 165 mm

Weight: GW:850g / NW:350g

2 x HDMI

2 x USB 2.0

2 x USB 3.0

GbE2 / IPMI

GbE1 VGA

TPM 1.2 Support

Jumper-less

USB

USB 3.0

SATA 6Gb/s PCIe GbE mSATA

Features

● 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor

● IEI jumper-less function

● Triple independent display via dual HDMI+VGA, dual HDMI+LVDS or HDMI+LVDS+VGA

● DDR3/DDR3L 1600/1333 MHz SDRAM support up to 8 GB

● COM, USB 3.0, SATA 6Gb/s and audio support

● Intel® GbE LAN with Intel® AMT 9.0 support

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● Support IPMI 2.0 with iRIS-1010 module

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

Packing List

1 x NANO-QM871-i1 single board computer

1 x Audio cable

1 x Power cable

2 x RS-232 cable

2 x SATA with power cable kit

1 x CPU cooler

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

3

Industrial

Computer

Chassis

Ordering Information

Part No.

NANO-QM871-i1-i7-R10

NANO-QM871-i1-i5-R10

NANO-QM871-i1-i3-R10

NANO-QM871-i1-C-R10 iRIS-1010-R10

Description

EPIC SBC supports Intel® 22nm Mobile Core™ i7-4700EQ on-board

Processor with VGA/Dual HDMI/LVDS, Dual PCIe GbE, AMT 9.0, PCIe

Mini, USB 3.0, SATA 6Gb/s, iRIS-1010, Audio and RoHS

EPIC SBC supports Intel® 22nm Mobile Core™ i5-4400E on-board

Processor with VGA/Dual HDMI/LVDS, Dual PCIe GbE, AMT 9.0, PCIe

Mini, USB 3.0, SATA 6Gb/s, iRIS-1010, Audio and RoHS

EPIC SBC supports Intel® 22nm Mobile Core™ i3-4100E on-board

Processor with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA 6Gb/s, iRIS-1010, Audio and RoHS

EPIC SBC supports Intel® 22nm Celeron 2000E on-board Processor

(37W) with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA 6Gb/s, iRIS-1010, Audio and RoHS

IPMI 2.0 adapter card with AST1010 BMC chip (W/O KVM over

IP function) for PCIe Mini socket interface

PS/2 KB/MS cable, 135mm, P=2.0

32000-023800-RS

32000-070301-RS

32205-003800-300-RS

TPM-IN01-R11

Dual-port USB 2.0 cable, 210mm. P=2.0

RS-422/485 cable, 200mm, P=2.0

20-pin Infineon TPM module, software management tool, firmware v3.17

Note: Models with other CPUs not listed in the table are requested by MOQ - 100 pcs/lot.

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

NANO-QM770

SATA 6Gb/s

12V DC input

EPIC SBC Supports Socket G2 for Intel® 22nm Mobile CPU, DVI-I/Dual

HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s and Audio

Triple independent display supported under Win7 OS

PCIe Mini card slot

DDR3 SO-DIMM supports up to 8 GB

KB/MS

DIO

Socket G2

PGA988B

QM77

2 x RS-232

2 x USB 2.0

RS-422/485

TPM

SMBus

Audio I/F

Solder side

LAN2: PHY support Intel® AMT 8.0

LVDS Inverter

TPM 1.2 Support

4 x USB 3.0

LAN1

HDMI DVI-I (DVI+VGA)

Features

● EPIC SBC with Socket G2 for Intel® 22nm mobile processor

● Triple independent display supports with dual HDMI+DVI/dual HDMI+LVDS (HDMI V1.3a compliant)

● 1066/1333/1600 MHz DDR3 SDRAM supports up to 8 GB

● Supports three COM, four USB 3.0, two SATA 6Gb/s and audio

● Intel® GbE LAN with Intel® AMT 8.0 supported

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

USB

USB 3.0

Specifications

SATA 6Gb/s PCIe GbE mSATA

CPU

Socket G2 for 3rd generation 22nm Intel® mobile processor

PCH

Intel® QM77

BIOS

UEFI BIOS

Memory

One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SO-

DIMM slot supports up to 8 GB

Graphics

Intel® HD Graphics Gen 7 with 12 execution units

DirectX 11, OpenGL 3.1, OpenCL 1.1

Display Output

Analog CRT and DVI by DVI-I connector (up to [email protected])

18/24-bit dual-channel LVDS (up to [email protected])

Dual HDMI (up to [email protected])

Ethernet

LAN1: Intel® 82583V PCIe controller

LAN2: Intel® 82579 PHY with Intel® AMT 8.0 support

Super I/O

Fintek F81866

External I/O Interface

4 x USB 3.0

Internal I/O Interface

1 x KB/MS (1x6 pin)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6G/s with 5V SATA power connector (RAID 0,1 supported)

TPM

1 x TPM connector (2x10 pin)

Audio

Realtek ALC662 HD codec

Expansions

1 x Full-size PCIe Mini card slot (supports mSATA)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Programmable I/O

8-bit digital I/O

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x3 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® 1.8GHz CPU with one 1333 MHz 4 GB DDR3 SO-DIMM)

Operating Temperature

-10°C ~ 60°C

Storage Temperature

-20°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

115 mm x 165 mm

Weight

GW: 850g/NW: 350g

Packing List

1 x NANO-QM770 single board computer

1 x Audio cable

1 x Power cable

2 x RS-232 cable

2 x SATA with power cable kit

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

NANO-QM770-R10

32000-023800-RS

32000-044300-RS

32205-003800-300-RS

CF-989A-RS-R12

TPM-IN01-R11

Description

EPIC SBC supports Socket G2 for Intel® 22nm mobile CPU,

DVI-I/dual HDMI/LVDS, dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and Audio

PS/2 KB/MS cable, 135mm, P=2.0

Dual port USB cable, 210mm, P=2.54

RS-422/485 cable, 200mm, P=2.0

CPU cooler for mobile socket-G (PGA988) up to 55W processor, copper, 60 x 60 x 27.6mm, RoHS

20-pin Infineon TPM module, software management tool, firmware v3.17

Single Board Computer

Embedded Board

NANO-CV-D25502/N26002

EPIC SBC with Intel® Atom™ D2550 1.86GHz/ N2600 1.6GHz, DDR3, Dual VGA/

LVDS, Dual GbE, USB 2.0, Dual PCIe Mini, SATA 3Gb/s, mSATA and Audio

Half-size PCIe

Mini card slot

Front panel 9V~28V DC input

NANO-CV-D25501/N26001

EPIC SBC with Intel® D2550/N2600, DDR3, VGA/HDMI/Dual LVDS, Dual GbE, USB

3.0, mSATA, SATA 3Gb/s, Audio and RoHS

9V ~ 28V

DC input

LVDS2

LVDS1

Inverter1

Inverter2 PCI-104 DIO

Audio I/F

SATA 3Gb/s

5V SATA power

KB/MS

RS-422/485

3 x RS-232

NM10

Audio I/F

2 x SATA 3Gb/s

5V SATA power

KB/MS

RS-422/485

3 x RS-232

PCIe Mini card slot is compatible with mSATA

2 x USB 2.0

2 x USB 2.0

LAN1

USB 2.0

DDR3 SO-DIMM

1066/800 MHz

Inverter

LVDS

LAN1

PCIe Mini card slot

(compatible with mSATA)

Heat Spreader

1st VGA 2nd VGA

Dual LAN 4 x USB 2.0

Features

● EPIC form fator with Intel® Atom™ dual core D2550 1.86GHz/N2600 1.6GHz proccessor supporting DDR3 memory

● Dual display support by dual VGA and 18/24-bit single-channel LVDS

● 1066/800HMz DDR3 SO-DIMM supports up to 4 GB

● Easy assembly heat spreader for thermal management

● Wide power voltage range supports 9V ~ 28V power input

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D2550 (1.86GHz, dual-core, 1MB cache)

Intel® Atom™ N2600 (1.6GHz, dual-core, 1MB cache)

Intel® Atom™ N2800 (1.86GHz, dual-core, 1MB cache)

Chipset: Intel® NM10

BIOS: UEFI BIOS

Memory

1 x 1066 MHz DDR3 SO-DIMM supporting up to 4

GB (for D2550 and N2800)

1 x 800 MHz DDR3 SO-DIMM supporting up to 2

GB (for N2600)

Graphics Engine

GMA 3650 at 640 MHz graphics core speed

(for N2550 and N2800)

GMA 3600 at 400 MHz graphics core speed (for

N2600)

Display Output

VGA1 integrated in the CPU

(up to [email protected])

VGA2 driver via the NXP PTN3392

(up to [email protected])

24-bit single-channel LVDS (D2550)

(up to [email protected])

18-bit single-channel LVDS (N2600/N2800)

(up to [email protected])

Ethernet

Dual PCIe LAN controller by Realtek RTL8111E with ASF 2.0 support

Super I/O: Fintek F81866

Audio

Realtek ALC662 HD codec (Line-in, Line-out, Mic)

Packing List

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

I/O Interface

1 x RS-422/485 3 x RS-232

1 x 6-pin wafer for PS/2 KB/MS

6 x USB 2.0 (4 on rear, 2 by pin header)

2 x SATA 3Gb/s with SATA 5V power connector

(SATA1 and mSATA shares SATA signal)

Expansions

1 x Full-size PCIe Mini card slot (supports mSATA, co-lay with SATA1)

1 x Half-size PCIe Mini card slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Fan Connector (smart fan support)

1 x CPU smart fan (1x3 pin)

1 x System smart fan (1x3 pin)

Power Supply

9~28V DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Atom™ D2550 dual-core

CPU with 1333 MHz 4 GB DDR3 memory)

[email protected] (Intel® Atom™ D2600 dual-core

CPU with 1333 MHz 4 GB DDR3 memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Storage Temperature: -30°C ~ 80°C

Operating Humidity: 5% ~ 95%, noncondensing

Dimensions: 115 mm x 165 mm

Weight: GW: 850g/NW: 350g

1 x NANO-CV-D25502/N26002 single board computer

1 x Audio cable

1 x Heat spreader

1 x Power cable

1 x RS-232 cable

1 x SATA with 5V output cable kit

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

NANO-CV-D25502-R10

NANO-CV-N26002-R10

NANO-CV-N28002-R10

**

32000-023800-RS

32000-070301-RS

32200-000049-RS

32205-003800-300-RS

Description

EPIC SBC with Intel® Atom™ D2550 1.86GHz, DDR3, dual VGA/LVDS, dual GbE, USB 2.0, dual PCIe Mini, SATA 3Gb/s, mSATA and Audio

EPIC SBC with Intel® Atom™ N2600 1.6GHz, DDR3, dual VGA/LVDS, dual GbE, USB 2.0, dual PCIe Mini, SATA 3Gb/s, mSATA and Audio

EPIC SBC with Intel® Atom™ N2800 1.86GHz, DDR3, dual VGA/LVDS, dual GbE, USB 2.0, dual PCIe Mini, SATA 3Gb/s, mSATA and Audio (by project support, MOQ 100pcs / lot)

PS/2 KB/MS cable, 135mm, P=2.0

Dual-port USB cable, 210mm, P=2.0

RS-232 cable, 200mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

microSD PC/104

Features

VGA HDMI Dual LAN

2 x USB 3.0

● EPIC form factor with Intel® D2550/N2600 dual-core proccessor supporting DDR3/

DDR3L (1.35V) memory

● Wide range 9V ~ 28V DC input design

● Flexible VGA, dual LVDS and HDMI with dual-display support

● Supports PC/104-Plus and PCIe Mini card slot compatible with mSATA SSD storage

● Complete I/O with six USB, two SATA 3Gb/s, four COM and audio

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D2550 (1.86GHz, dual-core, 1MB cache)

Intel® Atom™ N2600 (1.6GHz, dual-core, 1MB cache)

Intel® Atom™ N2800 (1.86GHz, dual-core, 1MB cache)

Chipset: Intel® NM10

Audio: Realtek ALC662 HD Audio codec

I/O Interface

1 x RS-422/485

2 x USB 3.0

3 x RS-232

4 x USB 2.0

1 x 6-pin wafer for PS/2 KB/MS

1 x microSD (only for boot up to DOS)

2 x SATA 3Gb/s with 5V power connector

(SATA1 and mSATA shares SATA signal)

BIOS: UEFI BIOS

Memory

1 x 1066 MHz DDR3 SO-DIMM slot support up to 4

GB (for D2550/N2800)

1 x 800 MHz DDR3 SO-DIMM slot support up to 2

GB (N2600)

Graphics

GMA 3650 at 640 MHz graphics core speed (for

N2550 and N2800)

GMA 3600 at 400 MHz graphics core speed (for

N2600)

Display Output

Dual display supported

VGA (up to [email protected])

(Due to Intel GMA driver limitation, the monitor connected to the VGA connector may not have signal to it or become extended desktop after restarting from the graphics driver installation. To solve this problem, press the Ctrl+Alt+F1 hotkey to switch the primary screen to CRT mode.)

HDMI (up to [email protected])

24-bit single-channel LVDS1 (D2550)

(up to [email protected])

18-bit single-channel LVDS1 (N2600/N2800)

(up to [email protected])

24-bit dual-channel LVDS2 (up to [email protected])

DP to LVDS converter (up to 1920x1200(D2550) or

1600x1200(N2600/N2800)@60Hz)

Ethernet

Dual LAN by Realtek RTL8111E controllers

Expansions

1 x Full-size PCIe Mini card slot (supports mSATA, co-lay with SATA1)

1 x PC/104 slot (ISA)

1 x PCI/104 slot (PCI)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector (smart fan support)

1 x CPU smart fan (1x3 pin)

1 x System smart fan (1x3 pin)

Power Supply

9~28V DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

One internal 4-pin (2x2) power connector

Power Consumption

[email protected] (Intel® D2550 1.86GHz CPU with 1333 MHz 2 GB DDR3 memory)

[email protected] (Intel® N2600 1.6GHz CPU with 1333 MHz 2 GB DDR3 memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Storage Temperature: -30°C ~ 80°C

Operating Humidity: 5% ~ 95%, noncondensing

Weight: GW: 670g/NW: 350g

Packing List

1 x NANO-CV-D25501/N26001 single board computer

1 x Audio cable 1 x USB cable

1 x Power cable

1 x PS/2 KB/MS Y cable

1 x RS-232 cable

1 x SATA with 5V output cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

Description

NANO-CV-D25501-R10

NANO-CV-N26001-R10

NANO-CV-N28001-R10

**

EPIC SBC with Intel® Atom™ D2550 1.86GHz, DDR3, VGA/

HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s,

Audio, RoHS

EPIC SBC with Intel® Atom™ N2600 1.6GHz, DDR3, VGA/HDMI/ dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio,

RoHS

EPIC SBC with Intel® Atom™ N2800 1.86GHz, DDR3, VGA/

HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3Gb/s, Audio and RoHS (by project support, MOQ 100pcs / lot)

19FFD124010HB2A7-000001-RS CPU fan (40mmx40mmx10mm)

32200-000049-RS

32205-003800-300-RS

34000-000510-RS

RS-232 cable, 200mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

30mm higher heatsink

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

NANO-HM651

EPIC SBC with on-board Intel® Celeron® Dual Core 847E 1.1GHz CPU, Dual

HDMI/VGA/ LVDS, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s and Audio

Dual-channel DDR3

SO-DIMM 1333/1066 MHz

12V DC input

PCIe Mini card slot

(compatible with mSATA)

Front panel

SATA 6Gb/s

5V SATA power

Inverter

LVDS

2 x RS-232

DIO

RS-422/485

2 x USB 2.0

Embedded Board

NANO-HM650

EPIC SBC Supports Socket G2 for 2nd Generation Intel® Core™ i7/i5/i3 and

Celeron® CPU, VGA/HDMI, Dual PCIe GbE, USB 2.0, PCI-104, SATA 6Gb/s and Audio

12V DC input TPM DIO PCI-104 5V SATA power

DDR3 SO-DIMM supports up to 8 GB

PCIe Mini card slot

Socket G2

PGA988B

HM65

2 x SATA 6Gb/s

5V SATA power

2 x RS-232

4 x USB 2.0

Solder side

2 x USB 2.0

VGA HDMI

Dual LAN

4 x USB 2.0

SMBus

Audio I/F

VGA

Dual LAN

2 x HDMI

2 x USB 3.0

Audio I/F

KB/MS LDVS

RS-422/485

Inverter

PS/2 KB/MS

Fanless PCIe GbE

Heat Spreader

Features

● EPIC SBC with on-board mobile 32nm Intel® Celeron® dual-core 847E 1.1GHz processor

● Dual HDMI/VGA with dual display support

● Dual-channel 204-pin 1333/1066 MHz DDR3 SO-DIMMs support up to 8 GB

● Easy assembly heat spreader for thermal management

● Supports three COM, four USB 3.0, two SATA 6Gb/s and audio

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

Specifications

CPU

1.1GHz Intel® Celeron® 847E dual-core processor

PCH

Intel® HM65

BIOS

UEFI BIOS

Memory

Two 204-pin 1333/1066 MHz dual-channel

DDR3 SO-DIMMs support up to 16 GB

Graphics

Intel® HD Graphics Gen 6 supports DX10.1 and

OpenGL 3.0

Full MPEG-2, VC1, AVC Decode

Display Output

VGA integrated in the Intel® HM65 (up to

[email protected])

Dual channel 24-bit LVDS integrated in the

Intel® HM65 (up to [email protected])

Dual HDMI (up to [email protected])

Ethernet

Dual LAN: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD codec

Front Panel

1 x Front panel (1x10 pin)

Expansions

1 x Full-size PCIe Mini card slot (supports mSATA)

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

5

Power Supply/

Peripherals

Packing List

1 x NANO-HM651 single board computer

1 x Audio cable

1 x Power cable

1 x SATA with power cable kit

2 x Plastic shaft for securing half-size PCIe Mini card

2 x RS-232 cable

External I/O Interface

2 x USB 2.0

2 x USB 3.0

Internal I/O Interface

1 x KB/MS (1x6 pin)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

2 x USB 2.0 (2x4 pin, P=2.0)

2 x SATA 6G/s with 5V SATA power connector

(RAID 0,1 supported)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x4 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Celeron® with two 1333

MHz 4 GB DDR3 SO-DIMM)

Operating Temperature

-10°C ~ 60°C

Storage Temperature

-20°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

115 mm x 165 mm

Weight

GW: 850g/NW: 350g

1 x Heat spreader

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

6

All-in-One

System

Ordering Information

Part No.

NANO-HM651-847E-R10

32000-070301-RS

Description

EPIC SBC supports Intel® Celeron® dual core 847E 1.1GHz

CPU, dual HDMI/VGA/LVDS, dual GbE, USB 3.0, PCIe Mini,

SATA 6Gb/s and Audio

Dual-port USB cable, 210mm, P=2.0

PCIe GbE

Features

● EPIC SBC with Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® processor

● VGA/24-bit dual-channel LVDS/HDMI for dual display support

● 1066/1333HMz DDR3 SDRAM supported (system max. 8 GB)

● Supports three COM, eight USB 2.0, two SATA 6Gb/s, PCI-104 and audio

● TPM V1.2 hardware security function supported by TPM module

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Socket G2 for 2nd generation Intel® Core™ i7/ i5/i3 and Celeron® mobile processor

Chipset

Intel® HM65

BIOS

UEFI BIOS

Memory

One 204-pin 1066/1333 MHz DDR3 SDRAM

SO-DIMM slot supports up to 8 GB

Display Output

Dual display supported

VGA (up to [email protected])

HDMI (up to [email protected])

18/24-bit dual-channel LVDS

(up to [email protected])

Ethernet

Dual LAN: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support

I/O Interface

1 x 6-pin header for KB/MS

1 x RS-422/485

2 x RS-232

2 x SATA 6Gb/s with 5V SATA power connector

8 x USB 2.0

Super I/O

Fintek F81866

Audio

Realtek ALC662 HD Audio codec

Packing List

1 x NANO-HM650 single board computer

1 x Audio cable

1 x Power cable

2 x RS-232 cable

2 x SATA with power cable

Expansions

1 x Full-size PCIe Mini card slot

1 x PCI-104 slot (PCI signal)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Programmable GPIO

8-bit digital I/O (4-bit input / 4-bit output)

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x3 pin)

Power Supply

1 x Internal power connector (2x2 pin)

12V only DC input, support AT/ATX mode

Power Consumption

[email protected] (2.6GHz Intel® Core i5-2540M with

1333 MHz 4 GB DDR3 memory)

Operating Temperature

-10°C ~ 60°C

Storage Temperature

-20°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

115 mm x 165 mm

Weight

GW: 850g/NW: 350g

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

NANO-HM650-R11

Description

EPIC SBC supports Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® CPU, VGA/HDMI, USB 2.0, dual PCIe

GbE, PCI-104, SATA 6Gb/s and Audio

PS/2 KB/MS cable, 135mm, P=2.0

32000-023800-RS

32000-070301-RS

32205-003800-300-RS

CF-989A-RS-R12

Dual-port USB cable, 210mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

CPU cooler for mobile socket-G up to 55W processor, copper,

60mm x 60mm x 27.6mm

Single Board Computer

Embedded Board

NANO-PV-D4251/N4551/D5251

EPIC SBC with Intel® Atom™ D425/N455/D525, DDR3, VGA/LVDS,

Dual GbE, USB 2.0, CF Type II, Audio and SATA 3Gb/s, RoHS

Inverter

18-bit LVDS

PCI-104 LPT

PCIe Mini card slot

DDR3 800 MHz up to 2 GB

Dual LAN

Support

NANO-PV-D4252/N4552/D5252

EPIC SBC with Intel® Atom™ D425/N455/D525, DDR3, VGA/Dual LVDS,

PCIe GbE, CF Type II, SATA 3Gb/s

Inverter

18-bit LVDS

PCI-104 LPT PCIe Mini card slot

DDR3 800 MHz up to 2 GB

Dual L

VDS

Support

Intel® ICH8M

6 x USB

2 x RS-232

DIO

CF Type II

Solder side

KB/MS

Intel® ICH8M

6 x USB

2 x RS-232

DIO

CF Type II

LAN

Solder side

KB/MS

LAN1

RS-232/422/485

TPM

RS-232

RS-232/422/485

COM

VGA

Dual LAN USB

24-bit LVDS

VGA

COM USB

Fanless 12V only

Features

● EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor

● 800 MHz DDR3 SDRAM supported (system max. 2 GB)

● Support VGA and 18-bit single-channel LVDS with dual display

● Support PCI-104 and PCIe Mini card slot TPM 1.2 Support

● Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket

● TPM V1.2 hardware security function support by TPM module

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D525 (1.8GHz, dual-core, 1MB cache)

Intel® Atom™ D425 (1.8GHz, single-core,

512KB cache)

Intel® Atom™ N455 (1.66GHz, single-core,

512KB cache)

Chipset: Intel

® ICH8M

BIOS: UEFI BIOS

Memory

One 204-pin 800 MHz DDR3 SDRAM SO-

DIMM slot supports up to 4 GB (D525/D425) or

2 GB (N455)

Graphics

GMA 3150

Graphic core speed 400 MHz for D525/D425

Graphic core speed 200 MHz for N455

Display Output

VGA (up to 2048x1536(D525) or

1400x1050(N455)@60Hz)

18-bit single-channel LVDS (up to

1366x768(D525) or 1024x768(N455)@60Hz)

Super IO: Fintek F81865

Audio: Realtek ALC888 HD Audio codec

SMBus: 1 x SMBus (1x4 pin)

TPM: 1 x TPM (2x10 pin)

Expansion

1 x PCI-104 slot

1 x PCIe Mini card slot

Packing List

Ethernet

LAN1: Realtek RTL8111E PCIe GbE controller with

ASF 2.0 support

LAN2: Realtek RTL8111E PCIe GbE controller

I/O Interface

1 x CF Type II socket

2 x KB/MS

1 x LPT

2 x SATA 3Gb/s

4 x RS-232 8 x USB 2.0

1 x RS-232/422/485 (COM3) with auto flow control

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector

1 x CPU smart fan (1x3 pin)

1 x System smart fan (1x3 pin)

Power Supply

1 x Internal power connector (2x2 pin)

12V only DC input, support AT/ATX mode

Power Consumption

[email protected]21A (Intel® Atom™ D525 with one 2 GB

1066 MHz DDR3 memory)

[email protected] (Intel® Atom™ D425 with one 2 GB

1066 MHz DDR3 memory)

[email protected] (Intel® Atom™ N455 with one 2 GB

1066 MHz DDR3 memory)

Operating Temperature:

-10°C ~ 60°C

Storage Temperature: -20°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Weight: GW: 670g/NW: 350g

1 x NANO-PV-D4251/N4551/D5251 single board computer

1 x Audio cable

2 x RS-232 cable

1 x Dual port USB cable

1 x KB/MS Y cable

1 x Power cable

1 x SATA with 5V output cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

NANO-PV-D5251-R10

NANO-PV-D4251-R10

NANO-PV-N4551-R10

EPIC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/LVDS, Dual

GbE, USB 2.0, CF Type II, audio and SATA 3Gb/s, RoHS

EPIC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/LVDS, Dual

GbE, USB 2.0, CF Type II, audio and SATA 3Gb/s, RoHS

EPIC with Intel® Atom™ N455 1.66GHz, DDR3, VGA/LVDS,

Dual GbE, USB 2.0, CF Type II, audio and SATA 3Gb/s, RoHS

19FFD124010HB2A7-000001-RS CPU fan (40mmx40mmx10mm)

32000-062800-RS

32200-015100-RS

32200-026500-RS

34000-000510-RS

Description

SATA (7-pin to 7-pin) cable, 500mm

LPT cable, 280mm, P=2.0

RS-232/422/485 cable, 290mm, P=2.0

TPM-IN01-R11

30mm higher heatsink

20-pin Infineon TPM module, software management tool, firmware v3.17

D5252 Heatsink D425/N455 Heatsink

Fanless

Features

● EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor and DDR3 solution

● 12V only single voltage design for AT/ATX mode

● Support dual LVDS

● Support PCI-104 and PCIe Mini card slot

● Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D525 (1.8GHz, dual-core, 1MB cache)

Intel® Atom™ D425 (1.8GHz, single-core, 512KB cache)

Intel® Atom™ N455 (1.66GHz, single-core, 512KB cache)

Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

One 204-pin 800 MHz DDR3 SDRAM SO-DIMM slot supports up to 4 GB (D525/D425) or 2 GB

(N455)

Graphics

GMA 3150

Graphic core speed 400 MHz for D525/D425

Graphic core speed 200 MHz for N455

Display Output

VGA (up to 2048x1536(D525) or

1400x1050(N455)@60Hz)

18-bit single-channel LVDS (up to 1366x768(D525) or 1024x768(N455)@60Hz)

24-bit dual-channel LVDS (up to

[email protected])

Super IO: Fintek F81865

Audio: Realtek ALC662 HD codec

TPM (optional)

On-board Infineon SLB9635TT1.2

Ethernet

LAN: Realtek RTL8111E PCIe GbE controller with

ASF 2.0 support

Packing List

I/O Interface

1 x CF Type II

2 x KB/MS

1 x LPT

2 x SATA 3Gb/s

4 x RS-232 8 x USB 2.0

1 x RS-232/422/485 (COM3) with auto flow control

Expansion

1 x PCI-104 slot

Watchdog Timer

Software programmable supports 1~255 sec. system reset by Super I/O

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector

1 x CPU smart fan (1x3 pin)

1 x System smart fan (1x3 pin)

Power Supply

1 x Internal power connector (2x2 pin)

12V only DC input, support AT/ATX mode

Power Consumption

[email protected] (Intel® Atom™ D525 with 2 GB

1066 MHz DDR3)

[email protected] (Intel® Atom™ D425 with 2 GB

1066 MHz DDR3)

[email protected] (Intel® Atom™ N455 with 2 GB

1066 MHz DDR3)

Operating Temperature:

-10°C ~ 60°C

Storage Temperature: -20°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Weight: GW: 650g/NW: 340g

1 x NANO-PV-D4252/N4552/D5252 single board computer

1 x Audio cable

2 x RS-232 cable (P/N: 32200-000049-RS)

1 x Dual port USB cable

1 x KB/MS Y cable

1 x Power cable (P/N: 32100-087100-RS)

1 x SATA with 5V output cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

Ordering Information

Part No.

NANO-PV-D5252-R11

NANO-PV-D4252-R11

NANO-PV-N4552-R11

Description

EPIC SBC with Intel® Atom™ D525 1.8GHz/1MB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s

EPIC SBC with Intel® Atom™ D425 1.8GHz/512KB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s

EPIC SBC with Intel® Atom™ N455 1.66GHz/512KB L2,

VGA/Dual LVDS, PCIe GbE, CF Type II, SATA 3Gb/s

19FFD124010HB2A7-000001-RS CPU fan (40mmx40mmx10mm)

32000-062800-RS

32200-015100-RS

32200-026500-RS

SATA (7-pin to 7-pin) cable, 500mm

LPT cable, 280mm, P=2.0

RS-232/422/485 cable, 290mm, P=2.0

6

All-in-One

System

Single Board Computer

Embedded Board

NANO-945GSE-R20

EPIC SBC with Intel® Atom™ Processor, VGA/Dual LVDS/Dual PCIe GbE,

CF Type II, SATA

HDTV 36-bit LVDS 5V output

PCI-104 IDE

18+24 bits dual-channel

LVDS support

2 x SATA

4 x USB

Solder Side

DIO

LPT

2 x RS-232

IR

RS-232/422/485

AC97/HD Audio kit

CF Type II

DDR2 533 MHz up to 2 GB

PCIe Mini card

NANO-945GSE2

EPIC SBC with Intel® Atom™ Processor, VGA/LCD/Dual PCIe GbE, CF Type II,

SATA, PC/104-Pus

RS-422/485

2 x SATA 4 x USB 2.0

PC/104 Plus

Industrial data collector and controller

5V output

36-bit

LVDS

24-bit

TTL

RS-232

DIO

RS-232

LPT

Audio

Solder Side

48-bit LVDS

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

COM

VGA

Fanless

Dual LAN USB KB/MS

Features

● Intel® Atom™ processor N270 1.6GHz CPU for ultra low voltage fanless support

● Single 12V power input, 5V output for SATA device

● Dual LVDS supports dual independent display

● Support four COM, six USB, two SATA

● Support PCIe Mini card, PCI-104 for expansion

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

1.6 GHz Intel® Atom™ N270 (1.6GHz, single-core, 512KB cache)

Chipset

Intel® 945GSE

Intel® 82801 GBM/ICH7M

BIOS: AMI BIOS

System Memory

One 200-pin 533 MHz DDR2 SDRAM SO-

DIMM slot supports up to 2 GB

Ethernet

Dual LAN: Realtek RTL8111E PCIe GbE controlle

I/O Interface

1 x CF Type II

1 x IDE

1 x LPT

1 x RS-232/422/485

2 x SATA

3 x RS-232

1 x PS/2 for KB/MS 6 x USB 2.0

Infrared Interface

1 x Infared Interface (1x5 pin)

Expansions

1 x PCI-104 (PCI Bus)

1 x Full-size PCIe Mini card slot

Super IO: ITE IT8718

Packing List

1 x NANO-945GSE single board computer

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Audio

5.1-channel audio kit with Realtek ALC655 AC'97 codec

7.1-channel HD Audio kit with Realtek ALC888 codec supports dual audio stream

Display Output

VGA (up to QXGA [email protected])

18-bit dual-channel LVDS (up to UXGA

[email protected])

18/24-bit dual-channel LVDS (up to [email protected])

Watchdog Timer

Software programmable supports 1~255 sec. system reset by super I/O

Power Supply

1 x Internal power connector (2x2 pin)

12V only DC input, support AT/ATX mode

Power Consumption

[email protected] (Intel® Atom™ N270 with one 2 GB 533

MHz DDR2 memory)

Operating Temperature

0°C ~ 60°C (NANO-945GSE-N270-R20)

-20°C ~ 70°C (NANO-945GSE-N270W-R20)

Storage Temperature: -30°C ~ 80°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 165 mm x 115 mm

Weight: GW: 700g NW 350g

2 x SATA cable

1 x KB/MS cable

1 x Power cable

2 x RS-232 cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

NANO-945GSE-N270-R20

NANO-945GSE-N270W-R20

32000-044300-RS

32010-000700-100-RS

32102-000100-200-RS

32102-022200-100-RS

32200-000009-RS

32200-015100-RS

32200-026500-RS

32221-001700-100-RS

32801-000201-300-RS

AC-KIT08R-R10

AC-KIT-892HD-R10

Description

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/18-bit dual-channel LVDS, dual GbE, CF Type II, USB, SATA

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/18-bit dual-channel LVDS, dual GbE, CF Type II, USB, SATA , -20~70°C

Dual port USB cable, 210mm, P=2.54

HDTV out cable, 200mm

SATA power cable, 150mm, P=5.08

ATX power cable, 300mm

44-pin 2.5" IDE cable

LPT cable, 280mm, P=2.0

RS-232/422/485 cable, 290mm, P=2.0

44-pin to 2.5"/3.5" IDE cable

SATA 5V power output cable kit for NANO series

5.1-channel AC'97 audio kit with realtek ALC655 codec

7.1-channel HD Audio kit with realtek ALC888 codec support dual audio stream

Features

Part No.

COM

NANO-945GSE2-N270-R10

NANO-945GSE2-

N270W-R10

32000-070301-RS

32102-000100-200-RS

32102-022100-100-RS

32200-015100-RS

32200-833600-RS

32801-000201-300-RS

VGA

Fanless

Dual LAN

CERTIFIED

Hi-Speed

USB

USB 2.0

USB 2.0 KB/MS

● 1.6 GHz Intel® Atom™ N270 CPU with ultra low voltage fanless support

● Single 12V power input, 5V output for SATA device

● Dual display supported by VGA+LVDS, VGA+TTL

● Support four COM, six USB, two SATA and CF Type II socket

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

Ordering Information

Description

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/LVDS/TTL, dual

GbE, CF Type II, USB, SATA and PC/104+

EPIC SBC with Intel® Atom™ processor N270 1.6 GHz, VGA/LVDS/TTL, dual

GbE, CF Type II, USB, SATA and PC/104+ , -20~70°C

Dual-port USB cable, 210mm, P=2.0

SATA power cable, 150mm, P=5.08

ATX power cable, 300mm

LPT cable, 280mm, P=2.0

RS-422/485 cable

SATA

SATA 5V power output cable kit for NANO series

CF Type II

DDR2 533 MHz up to 2 GB

PCIe GbE

CPU

1.6 GHz Intel® Atom™ N270 (1.6GHz, single-core, 512KB cache)

Chipset

Intel® 945GSE

Intel® 82801 GBM/ICH7M

BIOS: AMI BIOS

System Memory

One 200-pin 533 MHz DDR2 SDRAM

SO-DIMM slot supports up to 2 GB

Ethernet

Dual LAN: Realtek PCIe 8111CP GbE controlle

I/O Interface

1 x CF Type II

1 x LPT

1 x PS/2 for KB/MS 6 x USB 2.0

1 x RS-232/422/485 (RS-232, RS-422/485 shared with COM3)

2 x SATA

3 x RS-232

Infrared Interface

1 x Infared Interface (1x5 pin)

Expansion: 1 x PC/104-Plus

Super IO: ITE IT8718

Packing List

1 x NANO-945GSE2 single board computer

1 x Audio cable

1 x KB/MS cable

1 x Power cable

2 x RS-232 cable

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Audio

Realtek ALC655 with AC'97 codec

Display Output

Intel® Graphics media accelerator 950

VGA (up to [email protected])

18-bit dual-channel LVDS (up to [email protected])

24-bit TTL

Watchdog Timer

Software programmable supports 1~255 sec. system reset by super I/O

Power Supply

1 x Internal power connector (2x2 pin)

12V only DC input, support AT/ATX mode

Power Consumption

[email protected]

(Intel® Atom™ processor N270 with one 1 GB 400

MHz DDR2 memory)

Operating Temperature

0°C ~ 60°C (NANO-945GSE2-N270-R10)

-20°C ~ 70°C (NANO-945GSE2-N270W-R10)

Storage Temperature: -30°C ~ 80°C

Operation Humidity: 5% ~ 95%, non-condensing

Dimensions: 165 mm x 115 mm

Weight: GW: 700g NW 350g

2 x SATA cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Single Board Computer

Embedded Board

NANO-9452

EPIC SBC with Intel® Core™2 Duo/Core™ Duo/Solo Processor, SATA,

Dual PCIe GbE, CF Type II, IDE, USB 2.0 & audio

LVDS

Intel® 945GME

PCI-104

ICH7M

IDE

18/24-bit dual-channel

LVDS support

2 x SATA

4 x USB 2.0

Solder Side

NANO-LX

EPIC SBC with AMD LX800 CPU, Audio, VGA/LVDS, SATA and RAID

0, 1, JBOD Function Support

LPT

COM 3

COM 2

Audio

RAM

PCIe Mini card slot

CF Type II

COM

TTL LCD

Digital I/O

LPT

12V power input PC/104-Plus

Solder Side

Socket 479 Intel® Core

�™2

Duo processor

Infrared interface

SATA

IDE

COM

LVDS

COM

VGA

Dual LAN USB KB/MS

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s PCIe GbE

Features

● Support Intel® Core™2 Duo, Core™ Duo/Solo processor with 667 MHz FSB

● VGA integrated in Intel® 945GME supports 1080i HDTV-out, 18/24-bit dual-channel LVDS

● DDR2 667/533/400 MHz SO-DIMM socket supports up to 2 GB

● Dual Broadcom BCM5787M PCIe GbE chipset

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Socket M Intel® Core™2 Duo, Core™ Duo/

Solo processor

Celeron® M processor (Yonah Core)

Chipset

Intel® 945GME + ICH7M

BIOS

AMI BIOS

System Memory

One 200-pin 667/533/400 MHz DDR2 SDRAM

SO-DIMM

Ethernet

Dual LAN: Realtek RTL8111E PCIe GbE controller

External I/O Interface

1 x PS/2 for KB/MS

1 x RS-232

2 x USB 2.0

Internal I/O Interface

1 x CF Type II

1 x IDE

1 x LPT

1 x RS-232/422/485

2 x RS-232

2 x SATA

4 x USB 2.0

Infrared Interface

1 x Infared Interface (1x5 pin)

Expansion

1 x PCI-104 (PCI bus)

Super I/O

ITE IT8712F

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Audio

1 x Audio I/F (2x5 pin)

Display Output

VGA integrated in Intel® 945GME

Support HDTV resolution up to 1080i by component interface

18/24-bit dual-channel LVDS

Watchdog Timer

Software programmable supports 1~255 sec. system reset by super I/O

Power Supply

1 x Internal power connector (2x2 pin)

12V only DC input, support AT/ATX modes

Power Consumption

[email protected] (Intel® Core™2 Duo T2500 2.0GHz,

2 GB 800 MHz DDR2)

Operating Temperature: 0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Humidity Operating: 5% ~ 95%, non-condensing

Dimensions: 165 mm x 115 mm

Packing List

1 x NANO-9452 single board computer

1 x IDE cable

1 x KB/MS cable

1 x Power cable

1 x SATA power cable

2 x RS-232 cable

2 x SATA cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

Description

NANO-9452-R40

EPIC SBC, Intel® Core™2 Duo, Core Duo/Solo FSB 667 MHz with VGA/LVDS/HDTV-out, dual PCIe GbE, SATA and audio

19800-004300-100-RS RS-232 and RS-422/485 cable, 250mm, P=2.0

32000-044300-RS

Dual port USB cable, 210mm, P=2.54

32010-000700-100-RS HDTV out cable, 200mm

32102-022200-100-RS ATX power cable, 300mm

32200-015100-RS

LPT cable, 280mm, P=2.0

AC-KIT08R-R10

AC-KIT-892HD-R10

XCF-479B-RS

5.1-channel AC’ 97 Audio kit with Realtek ALC655 codec

7.1-channel HD Audio kit with realtek ALC888 codec support dual audio streams

High performance Socket-479 Pentium® M CPU colloer (50x50)

COM

VGA

KB/MS

LAN 4 x USB 2.0

Features

CF Type II

RAM socket

● EPIC form factor AMD LX800 processor embedded board with RoHS compliant

● DDR 400 MHz SO-DIMM SDRAM up to 1 GB

● VGA, 24-bit TTL, and 18-bit single-channel LVDS

Fanless

● SATA RAID 0, 1, JBOD function support

● Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

AMD Geode™ LX800 (500 MHz) processor

Chipset: AMD Geode LX800 + AMD CS5536

BIOS: AWARD

System Memory

One 200-pin 400/333 MHz DDR SDRAM

SO-DIMM supported (system max. 1 GB)

Ethernet

LAN: 10/100Mbps Realtek RTL8100C

External I/O Interface

1 x PS/2 for KB/MS

1 x RS-232

4 x USB 2.0

Internal I/O Interface

1 x CF Type II

1 x LPT

1 x IDE

1 x RS-232/422/485

4 x USB 2.0 5 x RS-232

2 x SATA (VIA VT6421A RAID 0, 1 function support)

Expansion: 1 x PC/104-Plus

Audio: Realtek ALC203 with AC’97 codec

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Dimensions

(Unit: mm)

Infrared Interface

1 x Infared interface (1x5 pin)

Super I/O: Winbond W83627EHG

Display Output

VGA integrated in AMD LX800

24-bit single-channel TTL

18-bit single-channel LVDS

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

1 x Internal power connector (2x2 pin)

12V only DC input, support AT/ATX mode

Power Consumption

[email protected]

(AMD LX800 with 400 MHz 256MB DDR RAM)

Operating Temperature : 0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 115 mm x 165 mm

Weight: GW: 950 g; NW: 350 g

Packing List

1 x NANO-LX single board computer

1 x Audio cable

1 x IDE flat cable 44p/44p

1 x KB/MS Y cable

1 x Power cable

1 x SATA power cable

2 x RS-232 port cable

2 x SATA cable

1 x Mini iumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

NANO-LX-800-R12

Description

EPIC SBC, AMD LX800 500 MHz processor, VGA/LVDS/TTL,

LAN, SATA and Audio

32102-022100-100-RS ATX power cable, 300mm

32200-015100-RS

LPT cable, 280mm, P=2.0

32200-026500-RS RS-232 and RS-422/485 cable, 290mm, P=2.0

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

EPIC NANO Dimensions

(Unit: mm)

NANO-BTW2/NANO-BT-i1 NANO-CV-D25501/N26001

NANO-SE-i1/NANO-KBN-i1

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

NANO-QM871-i1

6

All-in-One

System

NANO-CV-D25502/N26002

28.5

60 60 28.5

177

9-6#32 BR

21

14

7

NANO-HM651

28.50

60 60 28.50

177

9-6#32 BR

21

14

7

Single Board Computer

Embedded Board

EPIC NANO Dimensions

(Unit: mm)

NANO-HM650 NANO-945GSE-R20

NANO-PV-D4251/N4551/D5251 NANO-945GSE2

NANO-PV-D5252 NANO-9452-R40

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

6

All-in-One

System

Single Board Computer

Embedded Board

3.5" WAFER Selection Guide

Model Name

CPU Socket

CPU Type

Chipset

Memory

WAFER-BW WAFER-BTW2

On board On board

Intel® Pentium®/Celeron®

SoC

Intel® Atom™/Celeron®

SoC

Intel® Pentium®/Celeron®

SoC

Intel® Atom™/Celeron®

SoC

1 x 204-pin 1333/1600 MHz single-channel DDR3L

SDRAM unbuffered SO-

4 GB solder-down

1066/1333 MHz DDR3L

DIMM slot (system max. 8

GB) memory (for E3845)

2 GB solder-down

1066/1333 MHz DDR3L memory (for E3825)

WAFER-ULT2/ULT-i1

On board

WAFER-BT-i1

On board

WAFER-KBN-i1

On board

WAFER-CV-D25502/

N26002

On board

Intel® Mobile ULT processor

Intel® Atom™/Celeron®

SoC

AMD® Embedded

G-Series SoC

Intel® Atom™ D2550

1.86GHz

Intel® Atom™ N2600

1.6GHz

Intel® Lynx Point SoC Intel® Atom™/Celeron® on-board SoC

AMD® Embedded

G-Series SoC

Intel® NM10

2 x 204-pin 1600/1333

MHz dual-channel DDR3L

SO-DIMMs (system max.

16 GB)

1 x 204-pin 1066/1333

MHz dual-channel DDR3L

SO-DIMMs (system max. 8

GB)

1 x 204-pin 1600/1333

MHz dual-channel DDR3 &

DDR3L SO-DIMM (system max. 8 GB)

On-board 2 GB 1066 MHz

DDR3 SDRAM

1

Industrial

Computing

Solutions

Display Interface

Triple independent display

2 x HDMI

1 x 18/24-bit dual-channel

LVDS

1 x iDP interface

Dual independent dispaly

1 x VGA

1 x 18/24-bit dual-channel

LVDS

1 x iDP interface

Dual display supported

1 x VGA

1 x 18/24-bit dual-channel

LVDS

1 x iDP interface

Dual display supported

1 x VGA

1 x 18/24-bit dual-channel

LVDS

1 x iDP interface

Dual display supported

1 x VGA

1 x 18/24-bit dual-channel

LVDS

1 x iDP interface

Dual display supported

1 x VGA integrated in

Intel® CPU

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2

(D2550)

Ethernet

LAN1: Realtek RTL8111GN

LAN1: Intel® I210-IT PCIe controller

LAN2: Realtek RTL8111GN controller

LAN2: Intel® I210-IT PCIe controller controller

LAN1: Intel® I218LM

PHY with Intel® AMT 9.0 support

LAN1: Intel® I210-AT

PCIe controller with NCSI support

LAN2: Intel® I210-AT PCIe

GbE controller

LAN2: Intel® I211-AT PCIe controller

LAN1: Intel® I210-AT

PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

Dual LAN: Realtek

RTL8111E controllers

iRIS Remote

Management

Module

N/A N/A

1 x iRIS-1010 slot 1 x iRIS-1010 slot 1 x iRIS-1010 slot

N/A

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

I/O Interface

Drive Interface

Audio

1 x PS/2 KB/MS

2 x RS-232/422/485

2 x USB 3.0

4 x RS-232

4 x USB 2.0

1 x PS/2 KB/MS

1 x RS-422/485

2 x USB 3.0

3 x RS-232

6 x USB 2.0

1 x PS/2 KB/MS

1 x RS-422/485

2 x USB 2.0

2 x USB 3.0

3 x RS-232

2 x SATA 6G/s with 5V

SATA power connector (no

RAID)

1 x 8 GB eMMC (optional)

2 x SATA 3Gb/s with 5V

SATA power connector (no

RAID)

1 x 4 GB on-borad SSD

(optional)

1 x microSD

1 x mSATA

2 x SATA 6Gb/s with 5V power connector

1 x PS/2 KB/MS

1 x RS-422/485

1 x USB 3.0

3 x RS-232

5 x USB 2.0

1 x PS/2 KB/MS

1 x RS-422/485

2 x USB 3.0

3 x RS-232

4 x USB 2.0

2 x SATA 3Gb/s with 5V

SATA power connector (no

RAID)

2 x SATA 6G/s with 5V

SATA power connector

1 x mSATA

Realtek ALC662 HD Audio codec

1 x PS/2 KB/MS

1 x RS-422/485

4 x USB 2.0

5 x RS-232

2 x SATA 3Gb/s or

1 x SATA 3Gb/s + 1 x mSATA

Digital I/O

Power

Consumption

8-bit digital I/O (4-bit input / 4-bit output)

[email protected] (Intel® [email protected] (Intel® Atom™

Pentium® processor

N3710 with 8 GB 1600MHz

DDR3L memory) processor E3845 with onboard 2 GB 1333 MHz

DDR3L memory)

[email protected] (Intel® Core™ i5-4300U CPU with two

8 GB 1600 MHz DDR3 memory)

[email protected] (Intel®

Celeron® Processor J1900

CPU with one 8 GB 1333

MHz DDR3L memory)

[email protected] (AMD GX-

415GA 1.5GHz CPU with

1333 MHz 4 GB DDR3 memory)

[email protected] (1.86GHz

Intel® D2550 with on-board

1066 MHz 1 GB SDRAM)

[email protected] (1.6GHz Intel

N2600 with on-board 1066

MHz 1 GB SDRAM)

Watchdog Timer

Operating

Environment

Expansion Slot

Recommended

CPU Cooler

Heat Spreader Heatsink

Software programmable and supports 1~255 sec. system reset

Temperage Range: -20°C ~ 60°C ( -4°F~140°F)

Relative Humidity: 5% ~ 95%, non-condensing

Temperature Range:

-10°C ~ 60°C (14°F~140°F)

Relative Humidity:

5% ~ 95% non-condensing

Temperature Range:

-20°C ~ 60°C

Relative Humidity:

5% ~ 95%, non-condensing

Temperature Range:

0°C ~ 60°C (32°F~140°F)

Relative Humidity:

5% ~ 95% non-condensing

-20°C ~ 60°C with free air,

-20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air,

-20°C ~ 75°C with force air for N2600 processor

Relative Humidity:

5% ~ 95%, non-condensing

2 x Full/Half-size PCIe Mini card slot (one with SIM holder)

2 x Full-size PCIe Mini card 1 x Full-size PCIe Mini card 1 x Full-size PCIe Mini card slot (one with SIM holder) slot with mSATA support slot (supports mSATA co-

1 x Full-size PCIe Mini card

1 x Full/Half-size PCIe slot (supports mSATA coMini card slot with mSATA lay STA port 2) lay SATA port 2) support

1 x PCI-104 slot supports

PCI singal

Heat Spreader

N/A

GX-415GA (with hearsink)

GX-210HA (with cooler)

Specific Heatsink

Single Board Computer

Embedded Board

3.5" WAFER Selection Guide

Model Name

CPU Socket

WAFER-CV-D25501/

N26001

On board

WAFER-PV-N4552/D5252

On board

WAFER-945GSE-R20

On board

WAFER-945GSE2-R20

On board

WAFER-LX-R12

On board

CPU Type

Chipset

Memory

WAFER-LX2-R12

On board

Intel® Atom™ D2550

1.86GHz

Intel® Atom™ N2600

1.6GHz

Intel® Atom™ D525

1.8GHz

Intel® Atom™ N455

1.66GHz

Intel®

ICH8M

Intel® Atom™ N270

1.6GHz

Intel® Atom™ N270

1.6GHz

AMD Geode™ LX800 AMD Geode™ LX800

NM10

Intel® 945GSE + ICH7M Intel® 945GSE + ICH7M AMD Geode™ LX800 +

AMD CS5536

AMD Geode™ LX800 +

AMD CS5536

1 x 204-pin 1066 MHz 4

GB (max.) DDR3/DDR3L

(1.35V) SO-DIMM (D2550)

1 x 204-pin 800 MHz 2

GB (max.) DDR3/DDR3L

(1.35V) SO-DIMM (N2600)

1 x 204-pin 800 MHz 4 GB

(max.) DDR3 SO-DIMM

(D525/ D425)

1 x 204-pin 800 MHz 2 GB

(max.) DDR3 SO-DIMM

(N455)

1 x 200-pin 400/533 MHz.

2 GB (max.) DDR2 SO-

DIMM

On-board 1 GB DDR2

SDRAM

1 x 200-pin 333/400 MHz.

1 GB (max.) DDR SO-

DIMM

1 x 200-pin 400 MHz. 1 GB

(max.) DDR SO-DIMM

Display Interface

Dual display supported

1 x VGA

1 x Single-channel 18-bit

(N2600)/24-bit LVDS2

(D2550)

1 x 24-bit dual-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

Dual display supported

1 x VGA

1 x 18-bit dual-channel

LVDS

Ethernet

Dual LAN: Realtek

RTL8111E controllers

Dual display supported

1 x VGA

1 x 18-bit dual-channel

LVDS

Dual LAN: Realtek RTL8111E controllers

iRIS Remote

Management

Module

I/O Interface

Drive Interface

Audio

Digital I/O

Power

Consumption

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

1 x 24-bit TTL

Dual display supported

1 x VGA

1 x 18-bit single-channel

LVDS

1 x 24-bit TTL

Dual LAN: 10/100Mbps

RTL8100C Ethernet

Controller

LAN1: 10/100Mbps

RTL8100C Ethernet

Controller

1

Industrial

Computing

Solutions

N/A

1 x KB/MS

1 x RS-422/485

3 x RS-232

6 x USB 2.0

1 x KB/MS

1 x RS-232/422/485

5 x RS-232

8 x USB 2.0

1 x PS2 for KB/MS

1 x RS-232/422/485

5 x RS-232

6 x USB 2.0

1 x PS2 for KB/MS

1 x RS-232

1 x RS-232/422/485

6 x USB 2.0

1 x LPT

1 x PS/2 for KB/MS

1 x RS-422/485

2 x RS-232

4 x USB 2.0

1 x RS-232/422/485

4 x USB 2.0

7 x RS-232

2

Video

Capture

Solutions

2 x SATA 3Gb/s

1 x mSATA

[email protected] (1.86GHz

Intel® D2550 with 1 GB

DDR3 1066 MHz)

[email protected] (1.6GHz

Intel® N2600 with 1 GB

DDR3 1066 MHz)

2 x SATA 3Gb/s

1 x CF Type II

2 x SATA 1.5Gb/s

1 x CF Type II

Realtek ALC662 HD Audio codec

2 x SATA 1.5Gb/s

1 x CF Type II

2 x SATA 1.5Gb/s RAID

1 x IDE

1 x CF Type II

1 x IDE

1 x CF Type II

Realtek ALC203 with AC’97 codec

3

Industrial

Computer

Chassis

8-bit digital I/O (4-bit input / 4-bit output)

[email protected]

(Intel® Atom™ D525 with 2

GB 1066 MHz DDR3)

[email protected]

(Intel® Atom™ N270

1.6GHz, 2 GB DDR2 533

MHz)

[email protected]

(Intel® Atom™ N270

1.6GHz, 1 GB DDR2 533

MHz)

[email protected] (AMD Geode™

LX 800 1 GB 400 MHz

DDR)

[email protected] (AMD Geode™

LX800 512MB 333 MHz

DDR)

4

Open

Frame

Monitor

Watchdog Timer

Operating

Environment

Software programmable and supports 1~255 sec. system reset

-20°C ~ 60°C with free air,

-20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air,

-20°C ~ 75°C with force air for N2600 processor

Relative Humidity: 5% ~

95%, non-condensing

Temperature Range:

-10°C ~ 60°C (14°F~140°F)

Relative Humidity:

5% ~ 95% non-condensing

Temperature Range:

0°C ~ 60°C,

-20°C ~ 70°C (W),

-40°C ~ 85°C (W2)

Relative Humidity:

5% ~ 95% non- condensing

Temperature Range:

0°C ~ 60°C,

-20°C ~ 70°C (W)

Relative Humidity:

5% ~ 95% non- condensing

Temperature Range: 0°C ~ 60°C (32°F~140°F)

Relative Humidity: 5% ~ 95% non- condensing

Expansion Slot

Recommended

CPU Cooler

1 x PCIe Mini card slot

Heat Spreader

1 x PCIe Mini card slot

Heat Spreader

1 x PCIe Mini card slot

Heat Spreader

1 x PC/104

Heatsink

1 x PC/104

Heatsink

1 x PC/104

Heatsink

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

WAFER-BW

Front panel iDP LVDS Audio

3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC with Dual HDMI and LVDS,

Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM, Audio and RoHS

PCIe Mini

2 x USB 3.0

2 x RJ-45 2 x HDMI RS-232

2 x SATA 6Gb/s

4 x USB 2.0

DIO

RS-232/422/485

PCIe Mini w/

SIM slot

KB/MS

Fanless SATA 6Gb/s Dual GbE mSATA

12V power input

RS-232/422/485 3 x RS-232

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Specifications

SoC

Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)

Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)

Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)

Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)

BIOS

AMI UEFI BIOS

Memory

One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB

Graphics Engine

Intel® HD Graphics Gen 8 Engine with 16 low-power execution units, supporting DX11.1,

OpenGL 4.2 and OpenCL1.2

Display Output

Triple independent display

2 x HDMI (up to [email protected])

1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to

[email protected])

1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to [email protected])

Ethernet

LAN1: Realtek RTL8111GN controller

LAN2: Realtek RTL8111GN controller

External I/O Interface

1 x RS-232

2 x USB 3.0 (on rear I/O)

Internal I/O Interface

1 x 8 GB eMMC (optional)

1 x KB/MS (1x6 pin)

2 x SATA 6G/s with 5V SATA power connector (no RAID)

3 x RS-232 (1x9 pin, P=1.25)

1 x mSATA 4 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232/422/485 (2 by pin header) (1x9 pin, P=1.25)

SMBus

1 x SMBus (1x4 pin)

I²C

1 x I²C (1x4 pin)

Audio

Realtek ALC662 HD codec

1 x Analog audio (2x5 pin)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED

2 x LAN LED (1x2 pin)

Expansion

2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from port 1)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector: 1 x Smart fan connector (1x4 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory)

Watchdog Timer: Software programmable supports 1~255 sec. system reset

Operating Temperature: -20°C ~ 60°C

Storage Temperature: -30°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146mm x 102mm

Weight: GW: 600g/ NW:250g

Features

● 3.5" SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC

● Triple independent display support

● 1.35V DDR3L 1333/1600 MHz SDRAM up to 8 GB

● COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and Audio support

● Two full-size PCIe Mini slots (one with SIM holder for WLAN/WWAN expansion)

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(Unit: mm)

Packing List

1 x WAFER-BW single board computer

1 x Audio cable

1 x Power cable

1 x RS-232/422/485 cable

2 x SATA with power cable kit

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

WAFER-BW-N4-R10

WAFER-BW-N3-R10

WAFER-BW-N2-R10

WAFER-BW-N1-R10

**

32000-070301-RS

32006-000300-100-RS

Description

3.5” SBC supports Intel® Pentium® quad-core processor N3710 up to 2.56GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE,

PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS

3.5” SBC supports Intel® Celeron® quad-core processor N3160 up to 2.24GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE,

PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS

3.5” SBC supports Intel® Celeron® dual-core processor N3060 up to 2.48GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE,

PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS

3.5” SBC supports Intel® Celeron® dual-core processor N3010 up to 2.24GHz (4W) with dual HDMI and LVDS, Dual PCIe GbE,

PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS

Dual-port USB 2.0 cable, 210mm, P=2.0

PS/2 KB/MS Y-cable without bracket, 140mm/120mm

** By order production, MOQ: 100

Single Board Computer

Embedded Board

WAFER-

ULT2-i1

ULT-i1

PCIe Mini

(supports mSATA)

RS-422/485

Audio

2 x RS-232

Dual-channel DDR3 1600/1333 MHz

12V power input

DIO

2 x USB 2.0

3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT), VGA/LVDS/iDP, Dual

GbE, PCIe Mini, USB 3.0, SATA 6Gb/s Audio, iRIS-1010 and RoHS

Combo RJ-45: LAN2 / IPMI

RS-232 VGA

Dual USB 3.0

LAN1

LVDS

Heat Spreader

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 6Gb/s PCIe GbE mSATA

Slot for iRIS-1010 module

2 x SATA 6Gb/s iDP

Specifications

CPU

» 5th generation Intel® mobile ULT on-board SoC

Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache, TDP=15W)

Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache, TDP=15W)

Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache, TDP=15W)

Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB cache, TDP=15W)

» 4th generation Intel® mobile ULT on-board SoC

Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache, TDP=15W)

Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache, TDP=15W)

Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache, TDP=15W)

Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB cache, TDP=15W)

BIOS: UEFI BIOS

Memory

Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots support up to

16 GB

Graphics Engine

Intel® HD Graphics Gen 7.5 supports DX11.1, OpenGL 4.2 and OpenCL1.2 Full MPEG2,

VC1, AVC decode (4th generation SoC)

Intel® HD Graphics Gen 8 supports DX11.1, OpenGL 4.2 and OpenCL1.2 Full MPEG2,

VC1, AVC decode (5th generation SoC)

Display Output

Triple independent display

VGA (up to [email protected] Hz)

18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to [email protected]) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to [email protected] Hz)

Ethernet

LAN1: Intel® I218LM PHY with Intel® AMT 9.0 support

LAN2: Intel® I210-AT PCIe controller with NCSI support

External I/O Interfaces

2 x USB 3.0

1 x RS-232

Internal I/O Interfaces

1 x KB/MS (1x6 pin) 2 x USB 2.0 (2x4 pin, P=2.0)

1 x RS-422/485 (1x4 pin, P=2.0) 2 x RS-232 (2x5 pin, P=2.0)

2 x SATA 6Gb/s with 5V power connector (RAID 0, 1)

iRIS Remote Management Module

1 x iRIS-1010 slot

Expansion: 1 x Full-size PCIe Mini card slot (mSATA support)

Audio

Realtek ALC662 HD Audio codec

1 x Analog audio (2x5 pin)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector: 1 x System smart fan (1x4 pin)

Watchdog Timer: Software programmable, support 1~255 sec. system reset

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Core™ i5-4300U CPU with two 8 GB 1600 MHz DDR3 memory)

Operating Temperature: -10°C ~ 60°C

Storage Temperature: -20°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146mm x 102mm

Weight: GW:600g/ NW:250g

Features

● 3.5" form fator with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L

DIMMs

● 12V only single voltage design with AT/ATX mode support

● 18/24-bit dual-channel LVDS support

● Support triple independent display via LVDS, VGA and iDP

● Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM

Packing List

1 x WAFER-ULT/ULT2 single board computer with heatsink enclosure

1 x Audio cable

1 x Dual-port USB 2.0 cable

1 x Power cable

2 x SATA with 5V output cable kit

Ordering Information

Part No.

WAFER-ULT2-i1-i7-R11

WAFER-ULT2-i1-i5-R11

WAFER-ULT2-i1-i3-R11

WAFER-ULT2-i1-C-R11

WAFER-ULT-i1-i7-R11

WAFER-ULT-i1-i5-R11

WAFER-ULT-i1-i3-R11

WAFER-ULT-i1-C-R11 iRIS-1010-R10

19800-000300-200-RS

32000-023800-RS

32205-003800-300-RS

DP-DP-R10

DP-DVI-R10

DP-HDMI-R10

DP-LVDS-R10

DP-VGA-R10

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Description

3.5” SBC with Intel® 14nm 5th Generation ULT Mobile Core™ i7-5650U processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe

Mini, USB 3.0, SATA 6 GB/s and iRIS

3.5” SBC with Intel® 14nm 5th Generation ULT Mobile Core™ i5-5350U processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe

Mini, USB 3.0, SATA 6 GB/s and iRIS

3.5” SBC with Intel® 14nm 5th Generation ULT Mobile Core™ i3-5010U processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe

Mini, USB 3.0, SATA 6 GB/s and iRIS

3.5” SBC with Intel® 14nm 5th Generation ULT Mobile Celeron®

3765U processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe Mini,

USB 3.0, SATA 6 GB/s and iRIS

3.5” SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4650U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0,

PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4300U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0,

PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm 4th Generation Mobile Core™ i3-4010U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0,

PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm 4th Generation Mobile Celeron™

2980U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0,

PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS

IPMI 2.0 adapter card with AST1010 BMC chip (w/o KVM over

IP function) for PCIe Mini socket interface

RS-232 cable, 300mm, P=2.0

PS/2 KB/MS cable, 135mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

DisplayPort to DisplayPort converter board (for IEI iDP connector)

DisplayPort to DVI-D converter board (for IEI iDP connector)

DisplayPort to HDMI converter board (for IEI iDP connector)

DisplayPort to LVDS converter board (for IEI iDP connector)

DisplayPort to VGA converter board (for IEI iDP connector)

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

WAFER-BT-E38001W2

LVDS On-board Memory KB/MS USB 2.0

3.5” SBC with Intel® 22nm Atom™ SoC, -40°C ~ 85°C,

VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 3Gb/s, mSATA, COM, Audio and RoHS

SIM slot

On-board SSD

(optional)

PCIe Mini microSD

PCIe Mini mSATA

On-board

Memory

SATA 3Gb/s iDP

Digital I/O

Audio

USB 2.0

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

USB 3.0

Dual LAN

RS-232 VGA

12V DC input Front panel

RS-232 RS-422/485

Specifications

SoC

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)

Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)

Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)

Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)

BIOS

UEFI BIOS

Memory

4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)

2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)

Graphics

Intel® HD Graphics Gen 7 Engine with 4 execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2

Display Output

Dual independent dispaly

VGA (up to [email protected])

18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to [email protected]) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to [email protected])

Ethernet

LAN1: Intel® I210-IT PCIe controller

LAN2: Intel® I210-IT PCIe controller

Embedded Controller: IT8528E-I

External I/O Interface

1 x RS-232

1 x USB 2.0

1 x USB 3.0

Internal I/O Interface

1 x PS/2 KB/MS (1x6 pin)

4 x USB 2.0 (2x4 pin, P=2.0)

1 x RS-232 (2x5 pin, P=2.0)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x SATA 3Gb/s with 5V SATA power connector (no RAID)

Expansion: 2 x PCIe Mini slot

Audio

Realtek ALC662 HD Audio codec

1 x Analog audio (2x5 pin)

Storage

On-board SSD 4 GB colay SATA1 (optional)

1 x mSATA colay SATA2

1 x microSD socket

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

SMBus: 1 x SMBus (1x4 pin)

I²C: 1 x I²C (1x4 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector

1 x Smart fan connector (1x4 pin)

Watchdog Timer: Software programmable supports 1~255 sec. system reset

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Atom™ processor E3845 with on-board 2 GB 1333 MHz DDR3L memory)

Operating Temperature: -40°C ~ 85°C

Storage Temperature: -40°C ~ 85°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146mm x 102mm

Weight: GW: 1000g/NW: 250g

Jumper-less

USB

USB 3.0

mSATA

Features

● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC

● Dual independent display support

● On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory

● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support

● Supports -40°C ~ 85°C

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x WAFER-BT single board computer

1 x Power cable

1 x SATA with power cable kit

Ordering Information

Part No.

WAFER-BT-E38451W2-R10

WAFER-BT-E38271W2-R10

**

WAFER-BT-E38261W2-R10

**

WAFER-BT-E38251W2-R10

WAFER-BT-E38151W2-R10

**

19800-000300-100-RS

32000-070301-RS

32000-072100-RS

32006-000300-100-RS

32205-003800-300-RS

DP-DP-R10

DP-DVI-R10

DP-HDMI-R10

DP-LVDS-R10

DP-VGA-R10

1 x QIG (Quick Installation Guide)

1 x Utility CD

1 x One Key Recovery CD

Description

3.5” SBC with Intel® 22nm Atom™ quad-core E3845 1.91GHz

(10W) on-board SoC supports -40°C ~ 85°C, 4 GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0,

PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS

3.5” SBC with Intel® 22nm Atom™ dual-core E3827 1.75GHz

(8W) on-board SoC supports -40°C ~ 85°C, 2 GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 3Gb/s, mSATA, COM, Audio and RoHS

3.5” SBC with Intel® 22nm Atom™ dual-core E3826 1.46GHz

(7W) on-board SoC supports -40°C ~ 85°C, 2 GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 3Gb/s, mSATA, COM, Audio and RoHS

3.5” SBC with Intel® 22nm Atom™ dual-core E3825 1.33GHz

(6W) on-board SoC supports -40°C ~ 85°C, 2 GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 3Gb/s, mSATA, COM, Audio and RoHS

3.5” SBC with Intel® 22nm Atom™ single-core E3815 1.46GHz

(5W) on-board SoC supports -40°C ~ 85°C, 2 GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini,

SATA 3Gb/s, mSATA, COM, Audio and RoHS

RS-232 cable with bracket, 300mm, P=2.0

Dual-port USB cable, 210mm, P=2.0

Audio cable, 300mm, P=2.0

PS/2 KB/MS Y-cable without bracket, 140mm/120mm

RS-422/485 cable, 200mm, P=2.0

DisplayPort to DisplayPort converter board (for IEI iDP connector)

DisplayPort to DVI-D converter board (for IEI iDP connector)

DisplayPort to HDMI converter board (for IEI iDP connector)

DisplayPort to LVDS converter board (for IEI iDP connector)

DisplayPort to VGA converter board (for IEI iDP connector)

** By order production, MOQ: 100

Single Board Computer

Embedded Board

WAFER-BT-i1

One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM iDP

LVDS

2 x SATA 3Gb/s

Audio

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC,

VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS

Intel® Atom™ Bay Trail SoC processor on solder side

1 x Full-size PCIe Mini slot for Wi-Fi expansion

2 x SATA connector for storage

Full-size PCIe

Mini card slot

Slot for iRIS-1010 module

Full-size PCIe

Mini Card

12V DC input

Dual independent display (max. support [email protected])

4 x USB 2.0

DIO

2 x RS-232

Specifications

SoC

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)

Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)

Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)

Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)

Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)

Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)

Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

BIOS

AMI UEFI BIOS

Memory

One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot supports up to 8 GB (J1900,

N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

Graphics Engine

Intel® HD Graphics Gen 7 Engine with 4 execution units, supports DX11.1, OpenGL 4.2 and

OpenCL1.2

Display Output

Dual independent display

VGA (up to: [email protected])

24-bit dual-channel LVDS connector (up to [email protected]) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to [email protected])

Ethernet

LAN1: Intel® I210-AT PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

Super I/O: Fintek F81866

Embedded Controller: ITE IT8528E

External I/O Interface

1 x RS-232

1 x USB 2.0

1 x USB 3.0

Internal I/O Interface

1 x KB/MS (1x6 pin)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

SMBus: 1 x SMBus (1x4 pin)

Audio

Realtek ALC662 HD codec

1 x Analog audio (2x5 pin)

2 x SATA 3Gb/s with 5V SATA power connector

4 x USB 2.0 (2x4 pin, P=2.0)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Expansion: 1 x Full-size PCIe Mini card slot (mSATA support)

iRIS Remote Management Module: 1 x iRIS-1010 slot

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x4 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Watchdog Timer: Software programmable, supports 1~255 sec. system reset

Power Consumption

[email protected] (Intel® Celeron® J1900 with one 8 GB 1333 MHz DDR3 memory)

Operating Temperature: -20°C ~ 60°C

Storage Temperature: -30°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146mm x 102mm

Weight: GW:600g / NW:250g

Dual independent display

USB 2.0

LAN2

Multi-monitor kiosk

COM

VGA

USB 3.0

Combo RJ-45: LAN1 / IPMI

Jumper-less

USB

USB 3.0

PCIe GbE mSATA

Features

● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC

● Dual independent display support

● 1333/1066 MHz 1.35V DDR3L SDRAM up to 8 GB

● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x WAFER-BT-i1 single board computer

1 x SATA with power cable kit (P/N: 32801-000201-300-RS)

1 x Audio cable

1 x Power cable

1 x QIG (Quick Installation Guide)

1 x One Key Recovery CD

1 x Utility CD

Ordering Information

Part No.

WAFER-BT-i1-J19001-R10

WAFER-BT-i1-N28071-R10

WAFER-BT-i1-N29301-R10

WAFER-BT-i1-E38XX1-R10

**

WAFER-BT-J19001-

ECO-R10

32000-070301-RS

32006-000300-100-RS

32205-003800-300-RS

** By order production, MOQ: 100

Description

3.5” SBC supports Intel® 22nm quad-core Celeron® J1900

2.0GHz on-board SoC with VGA/LVDS/iDP, Dual PCIe

GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM,

Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm dual-core Celeron® N2807

1.58GHz (4.3W) on-board SoC with VGA/LVDS/iDP, Dual

PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA,

COM, Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm quad-core Celeron®

N2930 1.86GHz (7.5W) on-board SoC with VGA/LVDS/iDP,

Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA,

COM, Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm Atom™ E38XX on-board

SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA 6Gb/s, mSATA, COM, Audio, iRIS-1010 and

RoHS

Intel® 22nm Quad-Core Celeron® J1900 2.0GHz on-board

SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe

Mini, SATA, mSATA , COM, Audio, ECO packing and RoHS

Dual-port USB cable, 210mm, P=2.0

PS/2 KB/MS Y-cable without bracket, 140mm/120mm

RS-422/485 cable, 200mm, P=2.0

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

WAFER-KBN-i1

Single-channel DDR3

1600/1333 MHz

Audio

SATA 6Gb/s

12V power input

3.5” SBC supports AMD® Embedded G-Series SoC with VGA/LVDS/ iDP, Dual GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, iRIS-1010, HD Audio and RoHS

Multimedia Features

PCIe Mini

Unified Video

Decoder 4.2

H.264, MPEG-2,

VC-1, MPEG4

(DivX), and WMV

Outstanding graphics performance and power saving through integrated advanced graphics and hardware

DIO

2 x RS-232

Video

Compression

Engine 2.0

Video conferencing, wireless display,

H.264, SVC

Fast HD transcoding, low latency encoding conclusions, power efficient video conferencing

Combo RJ-45: LAN1 / IPMI

4 x USB 2.0

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Slot for iRIS-1010 module

RS-422/485

LVDS iDP

Specifications

SoC

AMD® Embedded G-Series SoC

GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W)

GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W)

GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W)

GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W)

BIOS

AMI UEFI BIOS

Memory

One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM SO-DIMM slot supports up to 8 GB

Graphics Engine

GPU frequency 500 MHz (Radeon™ HD 8330E) for GX-415GA

GPU frequency 300 MHz (Radeon™ HD 8310E) for GX-210HA

GPU frequency 600 MHz (Radeon™ HD 8400E) for GX-420CA

GPU frequency 450 MHz (Radeon™ HD 8280E) for GX-217GA

Support DX11.1, OpenGL 4.1 and OpenCL1.2

UVD4.2 decode for H.264, MPEG2/4, VC1, MVC

VCE 2.0 encode for H.264, VCE

Display Output

VGA (up to [email protected])

18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to

[email protected]) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to [email protected] Hz)

Ethernet

LAN1: Intel® I210-AT PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

Super IO: Fintek F81866

External I/O Interface

1 x RS-232

2 x USB 3.0

Internal I/O Interface

1 x KB/MS (1x6 pin) 2 x SATA 3Gb/s with 5V SATA power connector

1 x RS-422/485 (1x4 pin, P=2.0) 4 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

iRIS Remote Management Module: 1 x iRIS-1010 slot

SMBus: 1 x SMBus (1x4 pin)

I²C: 1 x I²C (1x4 pin)

Audio

Realtek AL892 HD Audio codec

1 x S/PDIF by 4-pin (1x4) header for digital audio

1 x Analog audio (2x5 pin)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Expansion: 1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Fan Connector: 1 x 4-pin system fan connector

Watchdog Timer: Software programmable, support 1~255 sec. system reset

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (AMD GX-415GA 1.5GHz CPU with one 4 GB 1333 MHz DDR3 memory)

Operating Temperature: 0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146mm x 102mm

Weight: GW:600g/ NW:250g

2 x USB 3.0

LAN2

RS-232 VGA

Fanless Jumper-less

USB

USB 3.0

SATA 6Gb/s PCIe GbE mSATA

Features

● 3.5” form fator with AMD® Embedded G-Series SoC

● 12V only single voltage design with AT/ATX mode

● 18/24-bit dual-channel LVDS for high resolution panel

● Dual independent display by VGA, LVDS and iDP

● Support IPMI 2.0 with iRIS-1010 module

● Support full-size PCIe Mini card slot for mSATA, wireless card and DOM

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x WAFER-KBN-210H single board computer with Enclosure Heatsink

1 x Audio cable

1 x Power cable

1 x RS-232 cable

2 x SATA with 5V output cable kit

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

WAFER-KBN-i1-4151-R10

WAFER-KBN-i1-2101-R10

Description

3.5” SBC supports AMD 28nm quad-core GX-415GA 1.5GHz

(15W) on-board SoC with VGA/LVDS, Dual GbE, PCIe Mini,

USB 3.0, SATA 6Gb/s, iRIS-1010, HD Audio and RoHS

3.5” SBC supports AMD 28nm dual-core GX-210HA 1.0GHz

(9W) on-board SoC with VGA/LVDS, Dual GbE, PCIe Mini,

USB 3.0, SATA 6Gb/s, iRIS-1010, HD Audio and RoHS iRIS-1010-R10

IPMI 2.0 adapter card with AST1010 BMC chip (W/O KVM over IP function) for PCIe Mini socket interface

32000-023800-RS

32000-070301-RS

32205-003800-300-RS

DP-DP-R10

DP-DVI-R10

DP-HDMI-R10

DP-LVDS-R10

DP-VGA-R10

PS/2 KB/MS cable

Dual-port USB cable, 210mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

DisplayPort to DisplayPort converter board (for IEI iDP connector)

DisplayPort to DVI-D converter board (for IEI iDP connector)

DisplayPort to HDMI converter board (for IEI iDP connector)

DisplayPort to LVDS converter board (for IEI iDP connector)

DisplayPort to VGA converter board (for IEI iDP connector)

Note: Models with other CPU not listed in the table are requested by MOQ: 100 pcs/lot.

Single Board Computer

Embedded Board

WAFER-CV-

D25501

N26001

3.5” SBC with Intel® Atom™ D2550/N2600 Processor,

DDR3, VGA/Dual LVDS, Dual GbE, USB 2.0, SATA 3Gb/s,

Audio and RoHS

LVDS2 Inverter2 Audio I/F

DDR3 800/1066 MHz

Power input

4 x USB

5V SATA power

2 x SATA 3Gb/s

NM10 D2550/N2600

2 x PCIe Mini slots

5V SATA power

KB/MS

12V DC input Inverter1

LVDS1 DIO

RS-422/485

2 x RS-232

Specifications

CPU

Intel® Atom™ D2550 (1.86GHz, dual-core, 1MB cache)

Intel® Atom™ N2600 (1.6GHz, dual-core, 1MB cache)

Intel® Atom™ N2800 (1.86GHz, dual-core, 1MB cache)

Chipset

Intel® NM10

BIOS

UEFI BIOS

Memory

One 204-pin 1066 MHz DDR3 SDRAM SO-DIMM slot supports up to 4 GB (D2550/

N2800) or 2 GB (N2600)

Display Output

Dual display supported

VGA (up to [email protected])

(Due to Intel GMA driver limitation, the monitor connected to the VGA connector may not have signal to it or become extended desktop after restarting from the graphics driver installation. To solve this problem, press the Ctrl+Alt+F1 hotkey to switch the primary screen to CRT mode.)

24-bit single-channel LVDS1 (D2550) (up to [email protected])

18-bit single-channel LVDS1 (N2600/N2800) (up to [email protected])

24-bit dual-channel LVD2 (up to 1920x1200 (D2550) or 1600x1200 (N2600/

N2800)@60Hz)

Graphics

GMA 3650 at 640 MHz graphics core speed (for N2550 and N2800)

GMA 3600 at 400 MHz graphics core speed (for N2600)

Ethernet

Dual LAN: Realtek RTL8111E controllers

External I/O Interface

1 x RS-232

2 x USB 2.0

Internal I/O Interface

1 x KB/MS (1x6 pin)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

2 x SATA 3Gb/s with 5V SATA power connector

4 x USB 2.0 (2x4 pin, P=2.0)

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Expansions

1 x Full-size PCIe Mini card slot (support mSATA)

1 x Half-size PCIe Mini card slot

Audio

Realtek ALC662 HD Audio codec

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Fan Connector (smart fan support)

1 x CPU smart fan (1x3 pin)

1 x System smart fan (1x3 pin)

Power Consumption

[email protected] (Intel® D2550 1.86GHz CPU with one 1 GB 1066 MHz DDR3 memory)

[email protected] (Intel® N2600 1.6GHz CPU with one 1 GB 1066 MHz DDR3 memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Storage Temperature: -30°C ~ 80°C

Operating Humidity: 5% ~ 95%, non-condensing

Weight: GW: 600g/NW: 250g

2 x USB

Solder Side

Daul LAN

VGA

COM

Packing List

1 x WAFER-CV-D25501/N26001 single board computer

Dual Core

Atom™

1.35V

Fanless

Heat Spreader

SATA 3Gb/s GbE mSATA

Features

● 3.5” form factor with Intel® Atom™ D2550/N2600 dual-core processor supporting DDR3/

DDR3L (1.35V) memory

● 12V only single voltage design for AT/ATX power

● Open frame heatsink thermal design for fanless solutions

● Flexible VGA, 18/24-bit LVDS with dual display support

● Complete I/O: six USB, two SATA 3Gb/s, one mSATA, four COM and audio

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

1 x Audio cable

1 x KB/MS cable

1 x Power cable

1 x RS-232 cable

1 x Screw set for PCIe Mini card

1 x One Key Recovery CD

1 x Heat spreader

1 x Mini jumper pack

4

Open

Frame

Monitor

1 x Utility CD

1 x QIG

2 x SATA with 5V output cable

5

Power Supply/

Peripherals

Ordering Information

Part No.

WAFER-CV-D25501-R10

WAFER-CV-N26001-R10

WAFER-CV-N28001-R10

**

Description

3.5” SBC with Intel® Atom™ D2550 1.86GHz, DDR3, VGA/ dual LVDS, dual GbE, USB 2.0, SATA 3Gb/s, Audio, RoHS

3.5” SBC with Intel® Atom™ N2600 1.6 GHz, DDR3, VGA/ dual LVDS, dual GbE, USB 2.0, SATA 3Gb/s, Audio, RoHS

3.5" SBC with Intel® Atom™ N2800 1.86GHz, DDR3, VGA/ dual LVDS, dual GbE, USB 2.0, SATA 3Gb/s, Audio, RoHS

(by project support, MOQ 100pcs / lot)

32000-070301-RS

32205-003800-300-RS

Dual-port USB cable, 210mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

6

All-in-One

System

Single Board Computer

Embedded Board

WAFER-CV-D25502/N26002

3.5” SBC Supports Intel® Atom™ D2550/N2600 Processor with 2 GB DDR3

Memory, VGA/LVDS, Dual GbE, PCI-104, USB 2.0, SATA 3Gb/s and Audio

Audio I/F DIO

4 x RS-232

Inverter LVDS

12V DC

Input

PCIe Mini slot w/ mSATA

Solder Side

KB/MS

WAFER-PV-D5252/D4252/N4552

3.5” SBC with Intel® Atom™ D425/N455/D525, DDR3, VGA/LVDS, Dual GbE,

USB 2.0 and SATA 3Gb/s, Audio, RoHS

DDR3 800 MHz

PCIe Mini card slot

12V power input CF Type II

2 x SATA 3Gb/s

CPU

PCI-104

NM10

Power

Button

Reset

Button

Front panel

LAN1

On-board DDR3 1066

MHz 2 GB SDRAM

PCI-104 screw holes

SMBus

LAN1

6 x USB

4 x RS-232

Solder side

ICH8M

RS-422/485

USB 2.0

5V SATA Power

2 x SATA

22 mm

11 mm

DIO

Audio

KB/MS

LVDS

RS-232/422/485

2 x USB Dual LAN

VGA

COM

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

2 x USB 2.0

RS-232 VGA

Dual LAN

Features

● 3.5” form factor supports Intel® Atom™ D2550/N2600 dual-core processor with 2 GB DDR3 memory

● 12V only single voltage design for AT/ATX power

● 24-bit single-channel LVDS via D2550 CPU or 18-bit single-channel via N2600/N2800 CPU support

● Supporting PCI-104 and mSATA

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D2550 (1.86GHz, dual-core,

1MB cache)

Intel® Atom™ N2600 (1.6GHz, dual-core, 1MB cache)

Intel® Atom™ N2800 (1.86GHz, dual-core,

1MB cache)

System Chipset: Intel® NM10

BIOS: UEFI BIOS

Memory

2 GB soldered-down 1066 MHz DDR3 memory

Graphics

GMA 3650 with 640 MHz graphics core speed for D2550 and N2800

GMA 3600 with 400 MHz graphics core speed for N2600

Internal I/O Interface

1 x KB/MS (1x6 pin)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x SATA 3Gb/s with 5V SATA power connector

2 x USB 2.0 (2x4 pin, P=2.0)

4 x RS-232 (2x5 pin, P=2.0)

Expansion

1 x Full-size PCIe Mini card slot (support mSATA)

1 x PCI/104 slot (PCI signal)

Audio: Realtek ALC662 HDA codec

Fan Connector

1 x Smart fan connector (1x3 pin)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

Display Output

VGA (up to [email protected])

24-bit single-channel LVDS (D2550) (up to

[email protected])

18-bit single-channel LVDS (N2600/N2800) (up to [email protected])

Ethernet

LAN1: Realtek RTL8111E controllers with

ASF2.0 support

LAN2: Realtek RTL8111E controllers

Super IO: Fintek F81866

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

External I/O Interface

1 x RS-232

2 x USB 2.0

Packing List

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX moded

Power Consumption:

[email protected] (1.86GHz Intel® Atom™ D2550 with on-board 1 GB 1066 MHz DDR3 memory)

[email protected] (1.6GHz Intel® Atom™ N2600 with onboard 2 GB 1066 MHz DDR3 memory)

Operating Temperature

-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor

-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600/N2800 processor

Storage Temperature: -30°C ~ 80°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146 mm x 102 mm

Weight: GW: 600g/ NW: 250g

1 x WAFER-CV-D25502/N26002 single board computer

1 x Audio cable

1 x Power cable

1 x PS/2 KB/MS cable

1 x RS-232 cable

2 x SATA with 5V output cable kit

Ordering Information

1 x Mini jumper pack

1 x QIG

1 x Utility CD

1 x One Key Recovery CD

Part No.

WAFER-CV-D25502-R10

WAFER-CV-N26002-R10

**

WAFER-CV-N28002-R10

32000-070301-RS

32205-003800-300-RS

Description

3.5” SBC supports Intel® Atom™ D2550 1.86 MHz processor with 2 GB DDR3 memory, VGA/LVDS, Dual GbE,

PCI/104, USB 2.0, SATA 3Gb/s and Audio

3.5” SBC supports Intel® Atom™ N2600 1.6 MHz processor with 2 GB DDR3 memory, VGA/LVDS, Dual GbE, PCI/104,

USB 2.0, SATA 3Gb/s and Audio

3.5” SBC supports Intel® Atom™ N2800 1.86 MHz processor with 2 GB DDR3 memory, VGA/LVDS, Dual

GbE, PCI/104, USB 2.0, SATA 3Gb/s and Audio (by project support, MOQ 100pcs / lot)

Dual-port USB cable, 210mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

Heat Spreader

Fanless 12V only

Features

● 3.5” form factor with Intel® Atom™ D525/D425/N455 processor supports DDR3 memory

● 12V only single voltage design for AT/ATX power

● Open frame heatsink thermal design for fanless solutions

● Support VGA and 18-bit single-channel LVDS with dual display support

● Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, six COM and audio

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ D525 (1.8GHz, dual-core, 1MB cache)

Intel® Atom™ D425 (1.8GHz, single-core,

512KB cache)

Intel® Atom™ N455 (1.66GHz, single-core,

512KB cache)

Chipset: Intel® ICH8M

BIOS: UEFI BIOS

Memory

One 204-pin 800 MHz DDR3 SDRAM SO-

DIMM slot supports up to 4 GB (D525/D425) or

2 GB (N455)

Graphics

GMA 3150

Graphics core speed 400 MHz for D525/D425

Graphics core speed 200 MHz for N455

Display Output

VGA (up to 2048x1536 (D525/D425) or

1400x1050 (N455) @60Hz)

18-bit single-channel LVDS (up to 1366x768

(D525/D425) or 1024x768 (N455) @60Hz)

Ethernet

LAN1: Realtek RTL8111E controllers with

ASF2.0 support

LAN2: Realtek RTL8111E controllers

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Expansion: 1 x Full-size PCIe Mini card slot

Audio: Realtek ALC662 HD Audio codec

External I/O Interface

1 x RS-232 2 x USB 2.0

Internal I/O Interface

1 x CF Type II 1 x KB/MS (1x6 pin)

1 x RS-232/422/485 (2x7 pin, P=2.0)

2 x SATA 3Gb/s with 5V SATA power connector

4 x RS-232 (2x5 pin, P=2.0)

6 x USB 2.0 (2x4 pin, P=2.0)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Super IO: Fintek F81865F

Fan Connector

1 x CPU smart fan (1x3 pin)

1 x System smart fan (1x3 pin)

SMBus: 1 x SMBus (1x4 pin)

Power Consumption

[email protected] (Intel® Atom™ D525 with one 1 GB

800 MHz DDR3 memory)

Operating Temperature:

-10°C ~ 60°C

Storage Temperature: -20°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Weight: GW: 600g/NW: 250g

Packing List

1 x WAFER-PV-D5252/D4252/N4552 single board computer

1 x Audio cable

1 x Heat spreader

1 x KB/MS cable

1 x Power cable

1 x Quad RS-232 cable

1 x SATA with 5V output cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x Utility CD

1 x QIG

Ordering Information

Part No.

WAFER-PV-D5252-R11

WAFER-PV-D4252-R11

WAFER-PV-N4552-R11

32000-070301-RS

32200-026500-RS

Description

3.5” SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS

3.5” SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS

3.5” SBC with Intel® Atom™ N455 1.66GHz, DDR3, VGA/

LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS

Dual-port USB cable, 210mm, P=2.0

RS-232/422/485 cable, 290mm, P=2.0

Single Board Computer

WAFER-945GSE

3.5" SBC with Intel® Atom™ Processor, VGA/LVDS/Dual PCIe GbE, CF Type II,

SATA

533 MHz DDR2

Embedded Board

WAFER-945GSE2

3.5” SBC with Intel® Atom™ N270 1.6G, VGA/LVDS, Dual GbE, CF Type II,

USB, SATA, 1 GB on-board Memory and PC/104

PC/104

Audio KB/MS

RS-232/422/485

2 x SATA

1 GB on-board

Memory

1 GB DDR3 on-board memory

4 x COM

CF Type II

PCIe Mini card

LVDS

Audio

Audio

2 x SATA

Solder side

CF Type II

4 x USB

36-bit LVDS

Inverter

4 x USB Intel® 945GSE

ICH7M

Intel® Atom™ processor N270

1.6GHz

DIO

KB/MS

2 x USB Dual LAN COM

VGA

FSB

533

RS-232/422/485

USB Dual LAN

VGA RS-232

Heat Spreader

Fanless

Features

● Intel® Atom™ processor N270 1.6 GHz CPU for ultra low voltage fanless support

● Support dual display for VGA+LVDS

● System memory supports up to 2 GB 533 MHz DDR2

● Support six COM, six USB 2.0, two SATA and CF Type II socket

● Thermal design for easy assembly

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ processor N270 (1.6GHz, singlecore, 512KB cache)

Chipset

Intel® 945GSE/Intel® 82801 GBM/ICH7M

BIOS: AMI BIOS

Memory

One 200-pin 400/533 MHz DDR2 SDRAM SO-

DIMM slot supports up to 2 GB

Ethernet

Dual LAN: Realtek RTL8111E controllers with

ASF2.0 support

External I/O Interface

1 x RS-232 2 x USB 2.0

Internal I/O Interface

1 x CF Type II 1 x KB/MS (1x6 pin)

4 x RS-232 (2x5 pin, P=2.0)

1 x RS-232/422/485 (2x7 pin, P=2.0)

2 x SATA 3Gb/s with 5V SATA power connector

4 x USB 2.0 (2x4 pin, P=2.0)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Expansion: 1 x Full-size PCIe Mini card slot

Audio: Realtek ALC662 with HD Audio codec

Display Output

VGA (up to QXGA [email protected])

18-bit dual-channel LVDS (up to UXGA

[email protected])

Power Supply

5V only DC input 12V for LCD/system fan

1 x Internal power connector (1x4 pin)

Support AT/ATX mode

Super IO: ITE IT8718

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Operating Temperature

0°C ~ 60°C (WAFER-945GSE-N270-R20)

-20°C ~ 70°C (WAFE R-945GSE-N270W-R20)

Operating Humidity: 5% ~ 95%, non-condensing

Power Consumption

[email protected] (Intel® Atom™ N270 1.6G with 1 GB

DDR2)

Dimensions: 146 mm x 102 mm

Weight: GW: 700g/NW 230g

Packing List

1 x WAFER-945GSE single board computer

1 x Audio cable

1 x KB/MS cable

1 x Quad RS-232 cable

2 x SATA cable

1 x Heat spreader

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

WAFER-945GSE-N270-R20

WAFER-945GSE-N270W-R20

32000-070301-RS

32102-000100-200-RS

32102-022100-100-RS

32200-026500-RS

Description

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/

LVDS, dual GbE, CF Type II, USB, SATA

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/

LVDS, dual GbE, CF Type II, USB, SATA, -20°C~70°C

Dual-port USB cable, 210mm, P=2.0

SATA power cable, 150mm, P=5.08

ATX power cable, 300mm

RS-232/422/485 cable, 290mm, P=2.0

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA PCIe GbE

Features

● Intel® Atom™ N270 1.6GHz processor for ultra low voltage fanless support

● Support VGA and LVDS for dual display

● On-board 1 GB DDR2 memory

● Support two COM, six USB 2.0, two SATA and one CF Type II socket

● Support PC/104 ISA expansion slot

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

Intel® Atom™ processor N270 (1.6GHz, single-core, 512KB cache)

System Chipset

Intel® 945GSE

Intel® 82801 GBM/ICH7M

BIOS: AMI BIOS

Memory

1 GB soldered-down 400 MHz DDR2 memory

Ethernet

Dual LAN: Realtek RTL8111E controllers

External I/O Interface

1 x RS-232 2 x USB 2.0

Internal I/O Interface

1 x CF Type II 1 x KB/MS (1x6 pin)

1 x RS-232/422/485 (2x7 pin, P=2.0)

2 x SATA 1.5Gb/s

4 x USB 2.0 (2x4 pin, P=2.0)

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Super IO: ITE IT8718

Expansion

1 x PC/104 slot (ISA Bus, not support DMA

Mode)

Packing List

1 x WAFER-945GSE2 single board computer

1

Audio: Realtek ALC662 with HD Audio codec

Display Output

VGA (up to QXGA [email protected])

18-bit dual-channel LVDS (up to UXGA

[email protected])

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

5V only DC input 12V for LCD/system fan

1 x Internal power connector (1x4 pin)

Support AT/ATX mode

Watchdog Timer

Software programmable supports 1~255 sec. system reset by super I/O

Operating Temperature

0°C ~ 60°C (WAFER-945GSE2-N270-R20)

-20°C ~ 70°C (WAFER-945GSE2-N270W-R20)

Storage Temperature: -30°C ~ 80°C

Operating Humidity: 5% ~ 95%, non-condensing

Power Consumption

[email protected] (Intel® Atom™ N270 with onboard 1 GB

400 MHz DDR2 memory)

Dimensions: 146 mm x 102 mm

Weight: GW: 700g/NW 230g

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

1 x Audio cable

1 x KB/MS cable

2 x SATA cable

4 x Plastic intermediate pole for PC/104

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

5

Ordering Information

Power Supply/

Peripherals

Part No.

Description

WAFER-945GSE2-

N270-R20

WAFER-945GSE2-

N270W-R20

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/LVDS,

Dual GbE, CF Type II, USB, SATA, on board 1 GB memory and

PC/104

3.5" SBC with Intel® Atom™ processor N270 1.6G, VGA/LVDS,

Dual GbE, CF Type II, USB, SATA, on board 1 GB memory and

PC/104, -20°C ~ 70°C

32000-070301-RS

Dual-port USB cable, 210mm, P=2.0

32102-000100-200-RS SATA power cable, 150mm, P=5.08

32102-022100-100-RS ATX power cable, 300mm

32200-026500-RS RS-232/422/485 cable, 290mm, P=2.0

6

All-in-One

System

Single Board Computer

Embedded Board

WAFER-LX

3.5” SBC with on-board AMD Geode™ LX 800 Processor VGA/LVDS/TTL,

Dual LAN and SATA

PC/104

Audio AMD CS5536

200-pin DDR

SO-DIMM socket

Power input

DIO

LPT

IDE

AMD Geode LX800 processor

WAFER-LX2

3.5" SBC with AMD Geode™ LX 800 Processor, Eight COM, DDR 400 MHz, VGA/

LVDS/TTL Display Interfaces, PC/104, Four USB 2.0, Embedded OS Support

PC/104 -5V/-12V power input

GPIO

COM 5~8

IDE Audio Suspend power input

Main power input

LCD inverter

ATX Power button

LED connector

TTL

AMD Geode™

LX 800

AMD CS5536

KB/MS

LVDS

Solder Side

LVDS

TTL

RS-232/422/485

Dual USB 2.0

Dual USB 2.0

Dual LAN COM

Dual SATA

VGA

CF Type II

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

Features

● 3.5” form factor embedded board with AMD Geode™ LX 800 processor and RoHS compliant

● 333/400 MHz DDR SDRAM SO-DIMM supports up to 1 GB

● Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0

● 24-bit TTL/18-bit single-channel LVDS

● Value embedded applications with low power and fanless design. Support Windows® XP/CE/XPe

● The best choice for thin client Windows® CE 5.0, XPe OS image with ICA, RDP and IE APs ready

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

AMD Geode™ LX800 (500 MHz) processor

Chipset: AMD CS5536

BIOS: Award BIOS

System Memory

One 200-pin 400/333 MHz DDR SDRAM SO-

DIMM slot supports up to 1 GB

Ethernet

Dual LAN: 10/100Mbps RTL8100C Ethernet

Controller

External I/O Interface

1 x RS-232 2 x USB 2.0

Internal I/O Interface

1 x CF Type II

1 x IDE (2x22 pin, P=2.0)

1 x LPT (2x13 pin, P=2.0)

1 x KB/MS (1x6 pin)

1 x RS-232 (2x5 pin, P=2.0)

1 x RS-422/485 (2x2 pin, P=2.0)

2 x SATA 1.5Gb/s (RAID 0, 1 support)

2 x USB 2.0 (2x4 pin, P=2.0)

Expansion: 1 x PC/104

Digital I/O: 1 x 8-bit digital I/O (2x5 pin)

Super I/O: Winbond W83627EHG

Audio: Realtek ALC203 with AC’97 codec

Display Output

VGA integrated in AMD Geode™ LX 800

24-bit TTL

18-bit single-channel LVDS

Infrared Interface: 1 x Infrared interface (1x5 pin)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

5V only DC input

1 x Internal power connector (1x4 pin)

Support AT/ATX mode

Power Consumption

[email protected] (AMD LX800 with one 1 GB 400 MHz

DDR memory)

Operating Temperature: 0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146 mm x 102 mm

Weight: GW: 670 g/NW: 230 g

Dimensions

(Unit: mm)

4

Open

Frame

Monitor

4 x USB 2.0

LAN COM1

VGA

Features

● 3.5" form factor with AMD Geode™ LX 800 CPU

● One 333/400 MHz DDR SO-DIMM socket supports up to 1 GB memory

● VGA, 24-bit TTL, 18-bit LVDS display interfaces

● Seven RS-232 and one RS-232/422/485

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU

AMD Geode™ LX 800 (500 MHz)

Chipset

CS5536

BIOS

Award BIOS

System Memory

One 200-pin 400/333 MHz DDR SDRAM SO-

DIMM slot supports up to 1 GB

Ethernet

LAN: 10/100Mbps RTL8100C Ethernet

Controller

External I/O Interface

1 x RS-232 4 x USB 2.0

Internal I/O Interface

1 x CF Type II

1 x IDE (2x22 pin, P=2.0)

1 x RS-232/422/485 (2x7 pin, P=2.0)

6 x RS-232 (2x5 pin, P=2.0)

Expansion

1 x PC/104 (ISA Bus)

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Dimensions

(Unit: mm)

Display Output

VGA integrated in AMD Geode™ LX 800

24-bit TTL

18-bit single-channel LVDS

Audio

Realtek ALC203 with AC`97 codec

Watchdog Timer

Software programmable supports 1 ~255 sec. system reset

Power Supply

5V only DC input

1 x Internal power connector (1x4 pin)

Support AT/ATX mode

Power Consumption

[email protected] (AMD Geode™ LX 800 with one 1

GB 400 MHz DDR memory)

Operating Temperature

0°C ~ 60°C (32°F ~ 140°F)

Storage Temperature: -10°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions: 146 mm x 102 mm

Weight: GW: 670g/NW: 230g

5

Power Supply/

Peripherals

6

All-in-One

System

Packing List

1 x WAFER-LX single board computer

1 x KB/MS Y cable

1 x RS-232/422/485 cable

1 x SATA power cable

1 x USB cable

2 x SATA cable

Ordering Information

Part No.

WAFER-LX-800-R12

32200-015100-RS

1 x Audio cable

1 x IDE flat cable 44p/44p

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Description

3.5” SBC with AMD Geode™ LX 800 processor, audio, VGA/

LVDS/TTL, dual LAN and SATA connectors

LPT cable, 280mm, P=2.0

Packing List

1 x WAFER-LX2 single board computer

1 x Audio cable

1 x IDE flat cable 44p/44p

2 x Quad RS-232 adapter cable

Ordering Information

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Part No.

Description

Single Board Computer

WAFER Dimensions

(Unit: mm)

WAFER-ULT2-i1/WAFER-ULT-i1

Embedded Board

WAFER-BT-i1

WAFER-BT-E38001W2 WAFER-KBN-i1

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

6

All-in-One

System

Single Board Computer

WAFER Dimensions

(Unit: mm)

WAFER-CV-D25501/N26001

Embedded Board

WAFER-PV-N4552/D5252

WAFER-945GSE-R20

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

WAFER-CV-D25502/N26002

6

All-in-One

System

WAFER-945GSE2-R20

Single Board Computer

Embedded Board

PC/104 Selection Guide

Model Name PM-PV-N4551/D5251-R11 PM-LX PM-LX2

CPU Socket

CPU Type

Chipset

Memory

On board On board

AMD Geode™ LX 800 500 MHz

On board

AMD Geode™ LX 800 500 MHz Intel® Atom™ D525 1.8GHz

Intel® Atom™ N455 1.66GHz

ICH8M Geode™ LX800 + CS5536 Geode™ LX800 + CS5536

1 x 204-pin 800 MHz 4 GB (max.) DDR3 SO-DIMM

(D525)

1 x 204-pin 800 MHz 2 GB (max.) DDR3 SO-DIMM

(N455)

1 x 200-pin 400 MHz 1 GB (max.) DDR SDRAM SO-

DIMM

1 x 200-pin 400 MHz 1 GB (max.) DDR SDRAM SO-

DIMM

Display Interface

Dual display supported

1 x VGA

1 x 18-bit single-channel LVDS

Dual display supported

1 x VGA

1 x 24-bit TTL

Dual display supported

1 x VGA

1 x 24-bit TTL

Ethernet iRIS Remote

Management

Module

I/O Interface

GbE by Intel® 82567V Ethernet PHY

1 x KB/MS by pin header

1 x RS-232

1 x RS-232/422/485

4 x USB 2.0

Drive Interface

1 x SATA 3Gb/s

1 x CF Type II

10/100Mbps LAN by Realtek RTL8100C

1 x KB/MS by pin header

1 x LPT

1 x RS-422/485

2 x RS-232

2 x USB 2.0

1 x IDE

1 x CF Type II

N/A

10/100Mbps LAN by Realtek RTL8100C

1 x KB/MS by pin header

1 x LPT

1 x RS-422/485

2 x RS-232

2 x USB 2.0

1 x Slim FDD

1 x IDE

1 x CF Type II

N/A

Audio

10-pin header on board supports 7.1-channel HD

Audio by AC-KIT-892HD-R10

Digital I/O

Power

Consumption

[email protected]

(Intel® Atom™ D525 with 1 GB DDR3)

[email protected]

(Intel® Atom™ N455 with 1 GB DDR3)

Watchdog Timer

Operating

Environment

Expansion Slot

1 x PCI-104

N/A

[email protected]

(AMD Geode™ LX 800 with 1 GB DDR 400 MHz)

Software programmable and supports 1~255 sec. system reset

[email protected]

(AMD Geode™ LX 800 with 512MB DDR 400 MHz)

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

Temperature Range: -10°C ~ 60°C (14°F ~ 140°F)

Relative Humidity: 5% ~ 95% non-condensing

Temperature Range: 0°C ~ 60°C

Relative Humidity: 5% ~ 95%, non-condensing

1 x PCI-104

Temperature Range: -40°C ~ 70°C (W)

Relative Humidity: 5% ~ 95%, non-condensing

1 x PC-104

6

All-in-One

System

Heatsink Heatsink Heatsink

CPU Cooler

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

Single Board Computer

Embedded Board

PM-PV-

N4551

D5251

PCI-104

PCI-104 SBC with Intel® Atom™ N455/D525, DDR3, VGA/LVDS, GbE, USB 2.0,

SATA 3Gb/s and CF Type II, RoHS

Solder Side

5V power input

4 x USB

RS-232/422/485

20mm

RS-232

DIO

Heatsink fanless solution

CF Type II

DDR3 SO-DIMM

18-bit LVDS

KB/MS

Audio I/F

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

SATA 3Gb/s GbE

Features

● Intel® Atom™ N455/D525 proccessor with DDR3 memory

● Single 5V power input design, 12V for LCD/fan

● Single-channel 18-bit LVDS/VGA output for display

● Support two COM, four USB, SATA 3Gb/s and CF Type II socket

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Dimensions

(mm)

LAN I/F

VGA SATA 3Gb/s

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

Specifications

CPU

Intel® Atom™ D525 (1.8GHz, dual-core, 1MB cache)

Intel® Atom™ N455 (1.66GHz, single-core, 512KB cache)

Chipset

Intel® ICH8M

BIOS

UEFI BIOS

Memory

One 204-pin 800 MHz DDR3 SDRAM SO-DIMM support up to 4 GB (D525) or 2 GB

(N455)

Graphics

GMA 3150

Graphics core speed 400 MHz for D525

Graphics core speed 200 MHz for N455

Display Output

VGA (up to QXGA 2048x1536 (D525) or SXGA+ 1400x1050 (N455) @60Hz)

18-bit single-channel LVDS (up to WXGA 1366x768 (D525) or XGA 1024x768 (N455)

@60Hz)

Ethernet

Intel® 82567V GbE Ethernet PHY

Expansion

1 x PCI-104

Digital I/O

1 x 8-bit digital I/O (2x5 pin)

Audio

1 x Audio I/F (2x5 pin, P=2.0)

Internal I/O Interface

1 x CF Type II

1 x KB/MS (1x6 pin)

1 x RS-232 (2x5 pin, P=2.0)

1 x RS-232/422/485 (2x5 pin, P=2.0)

1 x SATA 3Gb/s

4 x USB 2.0 (2x4 pin, P=2.0)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

5V only DC input

1 x Internal power connector (1x2 pin) support AT/ATX mode

Super I/O

ITE IT8718F

Power Consumption

[email protected] (Intel® Atom™ D525 with 1 GB DDR3)

[email protected] (Intel® Atom™ N455 with 1 GB DDR3)

Operating Temperature

-10°C ~ 60°C

Storage Temperature

-10°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

96mm x 90mm

Packing List

1 x PM-PV-N4551/D5251 single board computer

1 x Dual-port USB cable

1 x LAN cable

1 x Power cable

1 x PS/2 KB/MS cable

1 x RS-232 cable

1 x SATA cable

1 x VGA cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

PM-PV-D5251-R11

PM-PV-N4551-R11

Description

PCI-104 SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/

LVDS, GbE, USB 2.0, SATA 3Gb/s and CF Type II, RoHS

PCI-104 SBC with Intel® Atom™ N455 1.66GHz, DDR3, VGA/

LVDS, GbE, USB 2.0, SATA 3Gb/s and CF Type II, RoHS

32102-000100-200-RS SATA power cable, 150mm, P=5.08

32200-026500-RS

AC-KIT-892HD-R10

RS-232/422/485 cable, 290mm, P=2.0

7.1-channel HD Audio kit with Realtek ALC888 supports dual audio streams

CF-PV4010-R10

CPU fan (40mm x 40mm x 10mm)

Single Board Computer

Embedded Board

PM-LX2

AMD Geode™ LX 800 CPU on-board PC/104 Module

PM-LX

PCI-104 Module with on-board AMD Geode™ LX 800 CPU

Solder side

COM

LPT

LAN

Solder side

KB/MS

PC/104

VGA

5V power

CF Type II

COM

400/333 MHz

DDR supports

USB 2.0

Slim FDD

IDE

CF Type II

400/333 MHz

DDR SO-DIMM

LPT

IDE

TTL

USB

RS-232

VGA

PCI-104 KB/MS

RS-232

24-bit TTL

RS-422/485

LAN

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

Specifications

CPU

AMD Geode™ LX 800 (500 MHz)

Chipset

AMD CS5536

BIOS

AMI BIOS

System Memory

One 200-pin 400 MHz DDR SDRAM SO-

DIMM supports up to 1 GB

Super I/O

SMSC 3114

Ethernet

One Realtek RTL8100C 10/100Mbps

Ethernet chipset

Internal I/O Interface

1 x CF Type II

1 x IDE (2x22 pin, P=2.0)

1 x LPT (2x13 pin, P=2.0)

1 x KB/MS (1x6 pin)

2 x RS-232 (2x5 pin, P=2.0)

1 x RS-422/485 (1x4 pin, P=2.0)

1 x Slim FDD

2 x USB 2.0 (2x4 pin, P=2.0)

Display Output

VGA integrated in AMD Geode™ LX 800

24-bit TTL integrated in AMD Geode™ LX 800

Watchdog Timer

Softwafe programmable supports 1~255 sec. system reset.

Expansion

1 x PC/104

Power Supply

5V only DC input

1 x Internal power connector (1x2 pin)

Support AT mode

Power Consumption

[email protected] (AMD Geode™ LX 800 with one

512MB 400 MHz DDR)

Operating Temperature

PM-LX2-800-R10: 0°C ~ 60°C

PM-LX2-800W-R10: -40°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions

96mm (L) x 90mm (W)

Weight: GW: 500g/NW 110g

Dimensions

(mm)

Fanless

CERTIFIED

Hi-Speed

USB

USB 2.0

Specifications

CPU

AMD Geode™ LX 800 (500 MHz) processor

Chipset

AMD CS5536

BIOS

Award BIOS

System Memory

One 200-pin 400 MHz DDR SDRAM SO-

DIMM supports up to 1 GB

Ethernet

10/100Mbps r ealtek RTL8100C Ethernet chipset

Internal I/O Interface

1 x CF Type II

1 x IDE (2x22 pin, P=2.0)

1 x LPT (2x13 pin, P=2.0)

1 x KB/MS (1x6 pin)

2 x RS-232 (2x5 pin, P=2.0)

1 x RS-422/485 (1x4 pin, P=2.0)

2 x USB 2.0 (2x4 pin, P=2.0)

Expansion: 1 x PCI-104

Super I/O

Winbond

W83627EHG

Display Output

VGA integrated in AMD Geode™ LX 800

24-bit TTL integrated in AMD Geode™ LX

800

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Power Supply

5V only DC input

1 x Internal power connector (1x2 pin)

Support AT mode

Power Consumption

[email protected]

(AMD Geode™ LX 800 with one 1 GB 400 MHz DDR memory)

Operating Temperature:

0°C ~ 60°C

Storage Temperature: -10°C ~ 70°C

Operating Humidity: 5% ~ 95%

Dimensions: 95 mm x 95 mm

Weight:

GW:500 g/NW:110 g

1

Industrial

Computing

Solutions

Dimensions

(mm)

6.75

95.89

85.73

5.09

2

Video

Capture

Solutions

Packing List

1 x PM-LX2 single board computer

1 x ATA33 flat cable

1 x Dual USB cable

1 x LAN cable

1 x PS/2 KB/MS cable

1 x VGA cable

1 x Power cable

2 x RS-232 cable

1 x Mini jumper pack

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

PM-LX2-800-R10

PM-LX2-800W-R10

32200-015100-RS

32205-003800-300-RS

Description

PC/104 SBC with AMD Geode™ LX 800 500 MHz, VGA/TTL,

LAN, USB 2.0 and CF Type II

PC/104 SBC with AMD Geode™ LX 800 500 MHz, VGA/TTL,

LAN, USB 2.0 and CF Type II, Wide Temperature -40°C ~ 70°C

LPT cable, 280mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

9.20

4.30

7.30

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

Packing List

1 x PM-LX single board computer

1 x LAN cable

1 x Power cable

1 x USB cable

1 x VGA cable

2 x RS-232 cable

Model

Date

Layer

1 x ATA33 flat cable

1 x KB/MS Y cable

ICP ELECTRONICS INC.

PM-LX

06/06/2006

SILKSCREEN_TOP

1 x Mini jumper pack

Ver

B025

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

PM-LX-800-R11

32200-015100-RS

32205-003800-300-RS

Description

PCI-104 SBC with AMD Geode™ LX 800 processor , VGA/TTL,

LAN, USB 2.0, CF Type II

LPT cable, 280mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

Pico-ITX Selection Guide

Model Name HYPER-BW HYPER-BT HYPER-KBN

CPU Socket

CPU Type

Chipset

Memory

On board On board On board

Intel® Pentium®/Celeron® SoC

Intel® Pentium®/Celeron® SoC

Intel® Atom™/Celeron® SoC

Intel® Atom™/Celeron® SoC

AMD® Embedded G-Series SoC

AMD® Embedded G-Series SoC

1 x 204-pin 1333/1600 MHz single-channel DDR3L

SDRAM unbuffered SO-DIMM slot

(system max. 8 GB)

1 x 204-pin 1333/1600 MHz single-channel DDR3L

SDRAM unbuffered SO-DIMM slot

(system max. 8 GB)

1 x 204-pin 1333/1600 MHz single-channel DDR3L

SDRAM unbuffered SO-DIMM slot

(system max. 8 GB)

Display Interface

Dual independent dispaly

2 x Micro HDMI

Dual independent dispaly

1 x VGA

1 x iDP interface

1

Industrial

Computing

Solutions

Ethernet iRIS Remote Management

Module

2

Video

Capture

Solutions

I/O Interface

LAN: Realtek RTL8111GN controller

1 x PS/2 KB/MS

1 x RS-232

2 x USB 2.0

2 x USB 3.0

3

Industrial

Computer

Chassis

Drive Interface

1 x SATA 6G/s with 5V SATA power connector

(no RAID)

4

Open

Frame

Monitor

Audio

Power Consumption

LAN: Intel® I211-AT PCIe GbE controller

1 x RS-232

1 x USB 3.0

3 x USB 2.0

N/A

1 x SATA 3G/s with 5V SATA power connector

(no RAID)

Realtek ALC662 HD Audio codec

[email protected] (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory)

[email protected] (Intel® Celeron® processor J1900 with one 8 GB 1333 MHz DDR3L memory)

Dual independent dispaly

1 x DVI-I

1 x 18-bit single-channel LVDS

LAN: Realtek RTL8111E controller with ASF2.0 supported

1 x RS-232

2 x USB 2.0

2 x USB 3.0

1 x SATA 6G/s with 5V SATA power connector

(no RAID)

[email protected] (AMD GX-415GA 1.5GHz CPU with one 2 GB 1333 MHz DDR3L memory)

5

Power Supply/

Peripherals

Watchdog Timer

Operating Environment

Software programmable and supports 1~255 sec. system reset

Temperage Range: -20°C ~ 60°C (-4°F ~ 140°F)

Relative Humidity: 5% ~ 95%, non-condensing

6

All-in-One

System

Expansion Slot

CPU Cooler

1 x M.2 (B key) N/A N/A

Heatsink Heat Spreader Heatsink

Single Board Computer

Embedded Board

HYPER-BW

Pico-ITX SBC with Intel® 14nm Pentium®/Celeron® on-board SoC with dual Micro HDMI,

M.2, GbE, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS

HD Audio

M.2

COM

Front panel

SATA

USB 2.0

USB 2.0

Micro HDMI

USB 3.0

LAN

12V DC power input

Specifications

SoC

Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)

Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)

Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)

Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)

BIOS

AMI UEFI BIOS

Memory

One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot support up to 8 GB

Graphics Engine

Intel® HD Graphics Gen 8 Engine with 16 low-power execution units, supporting DX11.1,

OpenGL 4.2 and OpenCL1.2

Display Output

Dual independent display

2 x Micro HDMI (up to [email protected])

Ethernet

LAN1: Realtek RTL8111 controller

External I/O Interface

1 x USB 2.0

1 x USB 3.0

Internal I/O Interface

1 x RS-232 (1x9 pin, P=1.25)

1 x SATA 6G/s with 5V SATA power connector (No RAID) (SATA port0)

2 x USB 2.0 (2x4 pin, P=2.0)

Audio

1 x HD Audio (2x5 pin)

Front Panel

1 x Front panel (1x10 pin, power LED, HDD LED, power buttom, reset buttom)

LAN LED

1 x LAN LED (1x2 pin)

Expansion

1 x M.2 (B Key)

Fan Connector

1 x Smart fan connector (1x4 pin)

Power Supply

12V DC input only

1 x Power terminal block (1x2 pin)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory)

Watchdog Timer

Software programmable supports 1~255 sec. system reset

Operating Temperature

-20°C ~ 60°C

Storage Temperature

-30°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Vibration

3G

Dimensions

100mm x 72mm

Weight

GW:30g / NW:250g

1 x Audio cable

1 x Power cable

1 x RS-232 cable

Fanless

Packing List

Jumper-less

1 x HYPER-BW single board computer

SATA 6Gb/s mSATA

Features

● Pico-ITX SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC

● IEI jumper-less function

● Dual independent display support

● 1333/1600 MHz 1.35V DDR3L SDRAM up to 8 GB supported

● COM, USB 3.0, SATA 6Gb/s and Audio support

● 1 x M.2 B key slot for expansion possibility

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

2 x SATA with power cable kit

1 x One Key Recovery CD

1 x QIG (Quick Installation Guide)

1 x Utility CD

4

Open

Frame

Monitor

Ordering Information

Part No.

HYPER-BW-N4-R10

HYPER-BW-N3-R10

HYPER-BW-N2-R10

HYPER-BW-N1-R10

32000-070301-RS

Description

Pico-ITX SBC with Intel® Pentium® 14nm quad-core N3710 up to 2.56GHz (6W) on-board SoC with dual Micro HDMI, PCIe

GbE, M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS

Pico-ITX SBC with Intel® Celeron® 14nm quad-core N3160 up to 2.24GHz (6W) on-board SoC with dual Micro HDMI, PCIe

GbE, M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS

Pico-ITX SBC with Intel® Celeron® 14nm dual-core N3060 up to

2.48GHz (6W) on-board SoC with dual Micro HDMI, PCIe GbE,

M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS

Pico-ITX SBC with Intel® Celeron® 14nm dual-core N3010 up to

2.24GHz (4W) on-board SoC with dual Micro HDMI, PCIe GbE,

M.2, USB 3.0, SATA 6Gb/s, COM, Audio and RoHS

Dual-port USB cable

5

Power Supply/

Peripherals

6

All-in-One

System

Single Board Computer

Embedded Board

HYPER-BT

One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM

Front panel System fan

Pico-ITX SBC supports Intel® 22nm Atom™/Celeron® on-board SoC, DDR3L,

VGA/iDP, GbE, USB 3.0, SATA 3Gb/s, HD Audio and RoHS

12V DC power input iDP

VGA

USB 2.0

LAN

Audio

RS-232

Intel® Atom™ Bay Trail SoC processor on the solder side

SATA 3Gb/s

2 x USB 2.0

You can attach aluminum heat spreader directly to your construction for better heat dissipation

Thermal conductive direction Aluminum heat spreader

PCBA

Intel® Atom™ SoC

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

6

All-in-One

System

USB 3.0

Specifications

SoC

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)

Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)

Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)

Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3815 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=5W)

Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)

Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)

Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

BIOS

AMI UEFI BIOS

Memory

One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8 GB

(J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

Graphics

Intel® HD Graphics Gen 7 Engine with 4 execution units, supporting DX11.1 OpenGL 4.2 and OpenCL 1.2

Display Output

Dual independent display

1 x VGA (up to [email protected])

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to [email protected])

Ethernet: LAN: Intel® I211-AT PCIe controller

Super IO: Fintek F81866

External I/O Interface

1 x USB 2.0

1 x USB 3.0

Internal I/O Interface

1 x RS-232 (2x5 pin, P=2.0)

1 x SATA 3Gb/s with 5V SATA power connector

2 x USB 2.0 (2x4 pin, P=2.0)

Audio: Realtek ALC662 HD codec supports 5.1-channel

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 1 x LAN LED (1x2 pin)

Fan Connector: 1 x Smart fan connector (1x4 pin)

Watchdog Timer: Software programmable, support 1~255 sec. system reset

Power Supply

12V only DC input

1 x External DC power jack (ø5.5 mm)

Support AT/ATX mode

Power Consumption

[email protected] (Intel® Celeron® J1900 with one 4 GB 1333 MHz DDR3 memory)

Operating Temperature: -20°C ~ 60°C

Storage Temperature: -30°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions (LxW)

Single board: 100mm x 72mm / Heat spreader: 112mm x 78mm

Weight: GW:600g / NW:250g

SATA 3Gb/s PCIe GbE

Features

● Pico-ITX SBC supports Intel® 22nm Atom™ or Celeron® on-board SoC

● 12V only single voltage design for AT/ATX power by DC power jack

● VGA and iDP support dual display

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x HYPER-BT single board computer

1 x Audio cable

1 x RS-232 cable

1 x SATA with 5V output cable kit

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

Ordering Information

Part No.

Description

HYPER-BT-J19001-R10

HYPER-BT-N29301-R10

HYPER-BT-N28071-R10

HYPER-BT-E38XX1-R10

**

PICO-ITX SBC supports Intel® Celeron® quad-core J1900

(10W) on-board SoC with DDR3L, VGA/iDP, GbE, USB 3.0,

SATA 3Gb/s, Audio and RoHS

PICO-ITX SBC supports Intel® Celeron® quad-core N2930

(7.5W) on-board SoC with DDR3L, VGA/iDP, GbE, USB 3.0,

SATA 3Gb/s, Audio and RoHS

PICO-ITX SBC supports Intel® Celeron® dual-core N2807

(4.3W) on-board SoC with DDR3L, VGA/iDP, GbE, USB 3.0,

SATA 3Gb/s, Audio and RoHS

PICO-ITX SBC supports Intel® Atom™ E38XX on-board SoC with DDR3L, VGA/iDP, GbE, USB 2.0, SATA 3Gb/s, Audio and RoHS

Dual-port USB cable, 210mm, P=2.0

PS/2 KB/MS Y-cable without bracket, 140mm/120mm

RS-232 cable, 200mm, P=2.0

32000-070301-RS

32006-000300-100-RS

32200-000049-RS

DP-DP-R10

DP-DVI-R10

DP-HDMI-R10

DP-LVDS-R10

DP-VGA-R10

DisplayPort to DisplayPort converter board

(for IEI iDP connector)

DisplayPort to DVI-D converter board (for IEI iDP connector)

DisplayPort to HDMI converter board (for IEI iDP connector)

DisplayPort to LVDS converter borad (for IEI iDP connector)

DisplayPort to VGA converter board (for IEI iDP connector)

** By order production, MOQ: 100

Single Board Computer

Embedded Board

HYPER-KBN

Pico-ITX SBC Supports AMD® Embedded G-Series SoC with DDR3, DVI-I/LVDS,

GbE, USB 3.0, SATA 6Gb/s, Audio and RoHS

Power Button

Reset Button

Front panel

Flexible Application

Small size form factor: Pico-ITX

AMD

SoC

Audio

RS-232

SATA 6Gb/s

Digital Signage

2 x USB 2.0

Thin

Client

Video Surveillance

Specifications

SoC

GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W)

GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W) (support fanless solution)

GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W)

GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W)

BIOS

AMI UEFI BIOS

Memory

One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM supports up to 8 GB

Graphics Engine

Support DX11.1, OpenGL 4.1 and OpenCL1.2

UVD4.2 decode for H.264, MPEG2/4, VC1, MVC

VCE 2.0 encode for H.264, VCE

Display Output

DVI-I (DVI-D up to [email protected], VGA up to [email protected])

18-bit single-channel LVDS (up to [email protected])

Ethernet

LAN: Realtek RTL8111E controllers with ASF2.0 supported

External I/O Interface

2 x USB 3.0

Internal I/O Interface

1 x RS-232 (2x5 pin, P=2.0)

1 x SATA 6Gb/s with 5V SATA power connector

2 x USB 2.0 (2x4 pin, P=2.0)

Audio

Realtek AL662 HD Audio codec

1 x Analog audio (2x5 pin)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED

1 x LAN LED (1x2 pin)

Fan Connector

1 x Smart fan connector (1x4 pin)

Watchdog Timer

Software programmable, support 1~255 sec. system reset

Power Supply

12V only DC input

1 x External DC power jack (ø5.5 mm)

Support AT/ATX mode

Power Consumption

[email protected] (AMD GX-415GA 1.5GHz CPU with one 2 GB 1333 MHz DDR3 memory)

Operating Temperature

0°C ~ 60°C

Storage Temperature

-10°C ~ 70°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions (LxW)

100mm x 72mm

Weight

GW:600g/ NW:250g

Portable Medical

Equipment

Embedded System

Robotics

DC 12V input DVI-I LAN 2 x USB 3.0

1

Industrial

Computing

Solutions

USB

USB 3.0

SATA 6Gb/s GbE

Features

● Pico-ITX form fator with AMD® Embedded G-Series SoC supports DDR3/DDR3L up to

1600 MHz memory

● 12V only single voltage design for AT/ATX power by DC power jack

● DVI-I and 18-bit singel-channel LVDS support for dual display

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x HYPER-KBN single board computer

1 x Audio cable

1 x RS-232 cable

1 x SATA with 5V output cable kit

1 x Special heatsink

1 x One Key Recovery CD

1 x QIG

1 x Utility CD

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

Ordering Information

Part No.

HYPER-KBN-4151-R10

HYPER-KBN-2101-R10

32000-070301-RS

Description

Pico-ITX SBC with AMD 28nm quad-core GX-415GA 1.5GHz

(15W) SoC processor, DDR3 DVI-I/LVDS, GbE, SATA 6Gb/s,

USB 3.0, HD Audio and RoHS

Pico-ITX SBC with AMD 28nm dual-core GX-210HA 1.0GHz

(9W) SoC processor, DDR3 DVI-I/LVDS, GbE, SATA 6Gb/s,

USB 3.0, HD Audio and RoHS

Dual-port USB cable, 210mm, P=2.0

Note: Models with other CPUs not listed in the table are requested by MOQ - 100 pcs/lot

6

All-in-One

System

Single Board Computer

HYPER Dimensions

(Unit: mm)

HYPER-BW

Preliminary

Embedded Board

HYPER-BT

4

Open

Frame

Monitor

5

Power Supply/

Peripherals

1

Industrial

Computing

Solutions

2

Video

Capture

Solutions

3

Industrial

Computer

Chassis

HYPER-KBN

6

All-in-One

System

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
