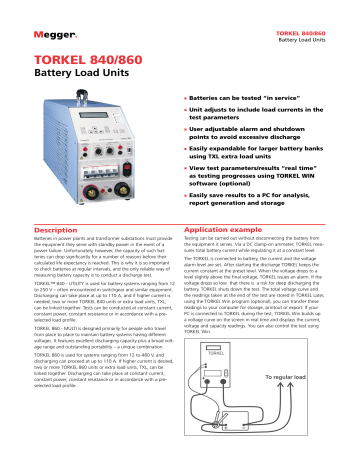

TORKEL 840/860
TORKEL 840/860
Battery Load Units
TORKEL 840/860
Battery Load Units
▪▪Batteries
can be tested “in service”
▪▪Unit
adjusts to include load currents in the
test parameters
▪▪User
adjustable alarm and shutdown
points to avoid excessive discharge
▪▪Easily
expandable for larger battery banks
using TXL extra load units
▪▪View
test parameters/results “real time”
as testing progresses using TORKEL WIN
software (optional)
▪▪Easily
save results to a PC for analysis,
report generation and storage
Description
Application example
Batteries in power plants and transformer substations must provide
the equipment they serve with standby power in the event of a
power failure. Unfortunately, however, the capacity of such batteries can drop significantly for a number of reasons before their
calculated life expectancy is reached. This is why it is so important
to check batteries at regular intervals, and the only reliable way of
measuring battery capacity is to conduct a discharge test.
Testing can be carried out without disconnecting the battery from
the equipment it serves. Via a DC clamp-on ammeter, TORKEL measures total battery current while regulating it at a constant level.
TORKEL™ 840 - UTILITY is used for battery systems ranging from 12
to 250 V – often encountered in switchgear and similar equipment.
Discharging can take place at up to 110 A, and if higher current is
needed, two or more TORKEL 840 units or extra load units, TXL,
can be linked together. Tests can be conducted at constant current,
constant power, constant resistance or in accordance with a preselected load profile.
TORKEL 860 - MULTI is designed primarily for people who travel
from place to place to maintain battery systems having different
voltages. It features excellent discharging capacity plus a broad voltage range and outstanding portability – a unique combination.
TORKEL 860 is used for systems ranging from 12 to 480 V, and
discharging can proceed at up to 110 A. If higher current is desired,
two or more TORKEL 860 units or extra load units, TXL, can be
linked together. Discharging can take place at constant current,
constant power, constant resistance or in accordance with a preselected load profile.
The TORKEL is connected to battery, the current and the voltage
alarm level are set. After starting the discharge TORKEL keeps the
current constant at the preset level. When the voltage drops to a
level slightly above the final voltage, TORKEL issues an alarm. If the
voltage drops so low that there is a risk for deep discharging the
battery, TORKEL shuts down the test. The total voltage curve and
the readings taken at the end of the test are stored in TORKEL Later,
using the TORKEL Win program (optional), you can transfer these
readings to your computer for storage, printout or export. If your
PC is connected to TORKEL during the test, TORKEL Win builds up
a voltage curve on the screen in real time and displays the current,
voltage and capacity readings. You can also control the test using
TORKEL Win.
TORKEL 840/860
Battery Load Units
Application examples with
TORKEL/TXL systems
Features and benefits
1. Display
2. External measurement input used to measure current in an external path by means of a clamp-on ammeter or a current
shunt.
3. Keys for operation and settings.
4. Alarm output equipped with a relay contact for triggering an
external alarm device.
5. Start/Stop input used for starting and stopping discharging
from an external device. Galvanically isolated.
6. Indicating lamps. Operating, Stop/Limit
7. TXL output used for control of TXL Extra Loads. Galvanically isolated.
8. Serial port used for connection to a PC or other controlling
equipment.
9. Voltage controlled circuit breaker that connects / disconnects
the loading circuits in TORKEL from the battery.
10. Positive current connection for battery being tested.
11. Input for sensing voltage at the battery terminals.
12. Negative current connection for battery being tested.
13. Mains connector, equipped with ON/OFF switch.
1
2
3
4
5
6
7
8
TORKEL and TXL can be combined into systems to match up for different battery capacities. These resistive extra loads do not perform
any regulating functions. They are designed for use together with
TORKEL Battery Load Units. Their purpose is to provide higher
load currents for use in constant current or constant power tests.
Together, TORKEL and the TXL Extra Loads form a system that can
discharge batteries with currents of up to several kA. TXL Extra
Loads are connected directly to the battery, and TORKEL measures
the total current using a clamp-on ammeter.
TXL Extra Loads are shut down automatically when TORKEL is
stopped.
TORKEL / TXL - systems examples
Max. constant current
Number of
Number of
(A)
TORKEL-units
TXL-units
TORKEL 840/860 + TXL830, 24 V battery (12 cells)1)
263
1
1
670
2
2
1005
3
3
TORKEL 840/860 + TXL850, 48 V battery (24 cells)1)
264
1
1
909
2
3
TORKEL 840/860 + TXL870, 110 V battery (54 cells)1)
188
1
1
532
2
4
845
2
8
TORKEL 840/860 + TXL870, 120 V battery (60 cells) 2)
194
1
1
557
2
4
895
2
8
TORKEL 840/860 + TXL870, 220 V battery (108 cells)1)
94
1
1
266
2
4
423
2
8
TORKEL 840/860 + TXL890, 440 V battery (216 cells)1)
59
1
1
86
1
2
1) Discharge from 2.15 V to 1.8 V per cell
2) Discharge from 2.15 to 1.75 V per cell
9
10
11
12
13
TORKEL and the extra load TXL
TORKEL 840/860
Battery Load Units
Specifications TORKEL 840/860
Load section
Specifications are valid at nominal input voltage and an ambient
temperature of +25°C, (77°F). Specifications are subject to change
without notice.
Max. battery voltage
Environment
Application field
Temperature
Operating
Storage & transport
Humidity
The instrument is intended for use in
high-voltage substations and industrial
environments.
0°C to +40°C (32°F to +104°F)
-40°C to +70°C (-40°F to +158°F)
5% – 95% RH, non-condensing
CE-marking
EMC
LVD
2004/108/EC
2006/95/EC
General
Mains voltage
Power consumption
(max)
Protection
Dimensions
Instrument
Transport case
Weight
Display
Available languages
100 – 240 V AC, 50 / 60 Hz
150 W
Thermal cut-outs, automatic overload
protection
210 x 353 x 700 mm
(8.3” x 13.9” x 27.6”)
265 x 460 x 750 mm
(10.4” x 18.1” x 29.5”)
21.5 kg (47.4 lbs)
38 kg (83.8 lbs) with accessories and
transport case.
LCD
English, French, German, Spanish, Swedish
Measurement section
Max. current
Max. power
Load patterns
Current setting
Power setting
Resistance setting
Battery voltage range,
TORKEL 840
Battery voltage range,
TORKEL 860
Stabilization (For internal current measurement)
Battery
voltage
Range 1
Range 2
Range 3
Range 4
Range 5 2)
Range
0 – 300 A
Input for clamp-on ammeter
Range
0–1V
mV/A-ratio
Software settable, 0.3 to 19.9 mV/A
Input impedance
>1 MΩ
Voltage measurement
Display range 0.0 – 60 V
Basic inaccuracy
±(0.5% of reading +0.1 V)
Resolution
0.1 V
Display range 0.0 – 500 V
Basic inaccuracy
±(0.5% of reading +1 V)
Resolution
0.1 V
Time measurement
Basic inaccuracy
±0.1% of reading ±1 digit
0-15.00 kW (299.99 kW) 1)
0.1-2999.8 Ω
4 ranges, selected automatically at start
of test
5 ranges, selected automatically at start
of test
±(0.5% of reading +0.5 A)
Highest permissible Resistor elecurrent
ment (Nominal
values)
10 – 27.6 V 110 A
0.165 Ω
10 – 55.2 V 110 A
0.275 Ω
10 – 144 V 110 A
0.55 Ω
10 – 288 V 55 A
3.3 Ω
10 – 480 V 55 A
3.3 Ω
(max power 15 kW)
1) Maximum value for a system with more than one load unit
2) TORKEL 860
Inputs, maximal values
EXTERNAL
CURRENT
MEASUREMENT
START / STOP
Current measurement
Display range
0.0 – 2999 A
Basic inaccuracy
±(0.5% of reading +0.2 A)
Resolution
0.1 A
Internal current measurement
288 V DC (TORKEL 840)
480 V DC (TORKEL 860)
110 A
15 kW
Constant current, constant power, constant resistance, current or power profile
0-110.0 A (2999.9 A) 1)
Delay until start
Stop delay
Battery
VOLTAGE SENSE
SERIAL
ALARM
1 V DC, 300 V DC to ground. Current
shunt should be connected to the negative side of the battery
Closing / opening contact
Closing and then opening the contact
will start / stop Torkel. It is not possible to
keep the contacts in closed position.
200 – 300 ms
100 – 200 ms
480 V DC, 500 V DC to ground
480 V DC, 500 V DC to ground
< 15 V
250 V DC 0.28 A
28 V DC 8 A
250 V AC 8 A
Outputs, maximal values
START / STOP
TXL
SERIAL
ALARM
5 V, 6 mA
Relay contact
< 15 V
Relay contact
TORKEL 840/860
Battery Load Units
Discharging capacity, examples
12 V battery (6 cells) 3)
Final voltage
Constant current
1.80 V / cell (10.8 V)
0 – 50.0 A
1.75 V / cell (10.5 V)
0 – 49.0 A
1.67 V / cell (10.0 V)
0 – 46.0 A
24 V battery (12 cells) 3)
1.80 V / cell (21.6 V)
0 – 110 A
1.75 V / cell (21.0 V)
0 – 110 A
1.60 V / cell (19.2 V)
0 – 100 A
48 V battery (24 cells) 3)
Constant power
0 – 0.54 kW
0 – 0.51 kW
0 – 0.46 kW
1.80 V / cell (43.2 V)
0 – 110 A
1.75 V / cell (42.0 V)
0 – 110 A
1.60 V / cell (38.4 V)
0 – 110 A
110 V battery (54 cells) 3)
1.80 V / cell (97.2 V)
0 – 110 A
1.75 V / cell (94.5 V)
0 – 110 A
1.60 V / cell (86.4 V)
0 – 110 A
120 V battery (60 cells) 3)
1.80 V / cell (108 V)
0 – 110 A
1.75 V / cell (105 V)
0 – 110 A
1.60 V / cell (96 V)
0 – 110 A
220 V battery (108 cells) 3)
1.80 V / cell (194 V)
0 – 55 A
1.75 V / cell (189 V)
0 – 55 A
1.60 V / cell (173 V)
0 – 51.0 A
240 V battery (120 cells) 3)
1.80 V / cell (216 V)
0 – 55 A
1.75 V / cell (210 V)
0 – 55 A
1.60 V / cell (192 V)
0 – 55 A
UPS battery (180 cells) 3) (TORKEL 860)
1.70 V / cell (306 V)
0 – 38 A
1.60 V / cell (288 V)
0 – 38 A
UPS battery (204 cells) 3) (TORKEL 860)
1.80 V / cell (367 V)
0 – 34 A
1.60 V / cell (326 V)
0 – 34 A
0 – 4.75 kW
0 – 4.62 kW
0 – 4.22 kW
0 – 2.37 kW
0 – 2.31 kW
0 – 1.92 kW
0 – 10.7 kW
0 – 10.4 kW
0 – 9.5 kW
0 – 11.9 kW
0 – 11.5 kW
0 – 10.5 kW
0 – 10.7 kW
0 – 10.4 kW
0 – 8.82 kW
General
Mains voltage
Power consumption
Protection
Dimensions
Instrument
Transport
case
Weight
Cable sets
for
TXL830 / 850
for
TXL870 / 890
100 – 240 V AC, 50 / 60 Hz
75 W (max)
Thermal cut-outs, automatic overload protection
210 x 353 x 600 mm (8.3” x 13.9” x 23.6”)
265 x 460 x 750 mm (10.4” x 18.1” x 29.5”)
13 kg (28.7 lbs)
21.4 kg (47.2 lbs) with transport case
2 x 3 m (9.8 ft), 70 mm2, 270 A, with cable lug.
Max. 100 V. 5 kg (11 lbs)
2 x 3 m (9.8 ft), 25 mm2, 110 A, with cable
clamp / lug. Max. 480 V. 3 kg (6.6 lbs)
Load section
TXL830
TXL850
TXL870
TXL890
Voltage (DC)
max.
Current
max.
28 V
56 V
140/280 V
230/480 V
300 A
300 A
112 A at
140 V
56 A at
280 V
63 A at
230 V
32 A at
480 V
Power max.
8.3 kW
16.4 kW
15.8 kW
15.4 kW
Internal resistance, 3-position selector
Position 1
TXL830
TXL850
TXL870
TXL890
Current
0.275 Ω
0.55 Ω
4.95 Ω
14.10 Ω
100 A
at 27.6 V
(12 x 2.3 V)
at 55.2 V
(24 x 2.3 V)
–
–
0 – 11.9 kW
0 – 11.5 kW
0 – 10.5 kW
78.5 A
at 21.6 V
at 43.2 V
(12 x 1.8 V) (24 x 1.8 V)
–
–
50.1 A
–
–
–
0 – 15 kW
0 – 15 kW
at 248.4 V
(108 x
2.3 V)
39.2 A
–
–
at 194.4 V
(108 x
1.8 V)
–
0 – 15 kW
0 – 15 kW
32.3 A
–
–
–
at 469.2 V
(204 x 2.3 V)
26.0 A
–
–
–
at 367.2 V
(204 x 1.8 V)
3) 2.15 V per cell when test starts
Position 2
TXL830
TXL850
TXL870
TXL890
Current
0.138 Ω
0.275 Ω
2.48 Ω
7.05 Ω
200 A
at 27.6 V
at 55.2 V
(24 x 2.3 V)
–
–
156 A
at 21.6 V
43.2 V
–
(24 x 1.8 V)
–
Specifications TXL 830 / 850 / 870 / 890
35.2 A
–
–
–
at 248.4 V
(108 x 2.3 V)
Specifications are valid at nominal input voltage and an ambient
temperature of +25°C, (77°F). Specifications are subject to change
without notice.
27.8 A
–
–
–
at 194.4 V
(108 x 1.8 V)
Environment
Application
field
Temperature
Operating
Storage &
transport
Humidity
The instrument is intended for use in high-voltage substations and industrial environments.
0°C to +40°C (32°F to +104°F)
-40°C to +70°C (-40°F to +158°F)
5% – 95% RH, non-condensing
CE-marking
EMC
LVD
2004/108/EC
2006/95/EC
Position 3
TXL830
TXL850
TXL870
TXL890
Current
0.092 Ω
0.184 Ω
1.24 Ω
3.52 Ω
300 A
at 27.6 V
at 55.2 V
(24 x 2.3 V)
–
–
235 A
at 21.6 V
43.2 A
(24 x 1.8 V)
–
–
100 A
–
–
at 124.2 V
(54 x 2.3 V)
–
78.4 A
–
–
at 97.2 V
(54 x 1.8 V)
–
70.5 A
–
–
–
at 248.4 V
(108 x 2.3 V)
55.2 A
–
–
–
at 194.4 V
(108 x 1.8 V)
TORKEL 840/860
Battery Load Units
Optional accessories
Clamp-on-ammeters
TORKEL Win
„„Shows
„„Last
the complete voltage curve
recorded time, voltage, current and discharged capacity
„„Scroll-window
„„Remote
„„Report
for all recorded values
control of TORKEL
„„Clamp-on
„„To
ammeters, 200 A DC and 1000 A DC
measure current in circuit outside TORKEL
functions
Note: TORKEL Win PC SW is delivered with TORKEL but an optional
license (SW key) must be ordered to run it together with a TORKEL.
Extra loads
BVM
„„Automates
battery voltage measurement during capacity
tests
„„“Daisy-chain”
„„High
design allows expandability up to 120 units
accuracy and stability for precise data collection
„„Integrates
with TORKEL Win (included) and PowerDB Test
Data Management software (freeware)
„„Four
extra loads available: TXL830, TXL850, 870 and TXL890
Cables
„„Cable
„„For
complete information see the BVM data sheet
Sensing leads
set (GA-00554)
„„Sensing
lead set (GA-00210)
TORKEL 840/860
Battery Load Units
Included accessories
Cable set
Cable set GA-00550
Ordering information
Item
Art. No.
Item
Art. No.
TORKEL 840
BS-49094
TORKEL 860
BS-49096
Cable set for TXL830 and TXL850
2 x 3 m, 70 mm2, with cable lug. Max 100 V 270 A.
Weight: 5.0 kg (11 lbs)
GA-00554
Cable set for TXL870 and 890
2 x 3 m, 25 mm2, with cable clamp. Max 480 V 110
A. Weight: 3.0 kg (6.6 lbs)
GA-00550
Extension cable set
2 x 3 m, 25 mm2. Max 480 V 110 A
Weight: 3.0 kg (6.6 lbs)
GA-00552
Included accessories
Mains cable
Cable set, GA-00550
CD with TORKEL Win (SW locked for use together
with a TORKEL)
Transport case, GD-00054
Optional accessories
TORKEL Win
Including:
CD with TORKEL Win
SW license (SW key) for one TORKEL unit
USB cable and USB to RS232 converter
Note: If you buy TORKEL Win for use together with a
TORKEL you already have, please state the serial No.
BS-8208X
of your TORKEL.
TXL830 Extra load
Incl. Cable set GA-00554 (max 28 V), Transport case BS-59093
TXL850 Extra load
Incl. Cable set GA-00554 (max 56 V), Transport case BS-59095
TXL870 Extra load
Incl. Cable set GA-00550 (max 280 V), Transport case BS-59097
TXL890 Extra load
Incl. Cable set GA-00550 (max 480 V), Transport case BS-59099
Postal address
Megger Sweden AB
Box 724
SE-182 17 DANDERYD
SWEDEN
T +46 8 510 195 00
F +46 8 510 195 95
Visiting address
Megger Sweden AB
Rinkebyvägen 19
SE-182 36 DANDERYD
SWEDEN
[email protected]
www.megger.com
Sensing lead set
Cable set for measuring voltage at battery terminals.
GA-00210
2 x 5 m (16.4 ft)
DC clamp-on ammeter, 200 A
To measure current in circuit outside TORKEL
XA-12992
DC clamp-on ammeter, 1000 A
To measure current in circuit outside TORKEL
XA-12990
BVM
Including:
TORKEL Win license (SW key) for one TORKEL
Dolphin clips, Power & signal connector,
Power supply, Connection cables and Carrying case
BVM150, System of 16 BVM units
With TORKEL Win software
With PowerDB software
BVM300, System of 31 BVM units
With TORKEL Win software
With PowerDB software
BVM600, System of 61 BVM units
With TORKEL Win software
With PowerDB software
CJ-59092
CJ-59192
CJ-59093
CJ-59193
CJ-59096
CJ-59196
Registered to ISO 9001 and 14001
Megger is a registered trademark
Printed matter:
Art.No. ZI-BS02E • Doc. BS2643EE • 2015
TORKEL-840-860_DS_en_V08
Subject to change without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
