71-1197rC Mic Panel Cust Doc
AMBER (TALKBACK)
CR3** CR6**
V+ SUPPLY (5 TO 30)
J1
4
ON TALLY
J1
3
RED (ON)
CR8
OFF TALLY
J1
2
LOGIC GROUND
J1
1
TALKBACK **
AMBER (COUGH)
CR4
CR5
CR7 YELLOW (OFF)
CR1
CR2
GNDD
R1 *
J5
1
2
3
4
5
6
7
8
5 Volts 47 ohms
12 Volts 390 ohms
Mic Remote Control
Panel Connections
CURRENT LIMITING
RESISTOR PACK
(symetrical
orientation)
6-786
6-787
J1
TALK TO C/R **
7
J1
COUGH
6
J1
ON
5
J1
OFF
S2
ON
S4
OFF
S3
Console Resistor
Logic Pack Value Harris P/N
Mic Remote
Control Panel
Schematic
8
COUGH
* Resistor Pack R1 limits the LED current. Its value is determined by the
voltage supplied by the console. Panels ship from the factory with the
5 Volt resistor pack installed.
GNDD
J1: TO/FROM CONSOLE CHANNEL LOGIC
S1 **
Digikey P/N
GNDD
4608X-1-470-ND
4608X-1-391-ND
1 2 3
4 5 6
99-1197 or 99-1198
MIC CONTROL PANEL
12-PIN ASSIGNABLE
LOGIC CONNECTOR
SIGNAL
PIN
Logic Ground
1
Off Tally
5
PIN
BLK
WHT
On Tally
11
+5 VDC Supply
7
Off Switch (-)
3
On Switch (-)
9
Cough Switch (-)
8
Talk Switch (-)
2
Tally Common
6
+5 VDC supply
12
** These items are not populated
on the PRE99-1197 Panel.
RED
GRN
BRN
BLU
ORG
YEL
SIGNAL
1
Logic GND
2
Off Tally
3
On Tally
4
Power Supply
5
Off Switch
6
On Switch
7
Cough Switch
8
Talkback Switch
J2: UNUSED
J1: TO/FROM
CONSOLE CHANNEL
LOGIC
Enable Logic Inputs (+)
4
+5 VDC Supply
10
PARTS LIST
Cable: Category cable (CAT-5), Belden 9421, or equiv.
8-pin MOD IV Housing: 14-486 (Tyco-AMP 87631-4)
12-pin MOD IV housing: 14-490 (Tyco-AMP 87922-2)
MOD IV contacts: 15-938-1 (Tyco-AMP 102128-1)
Application Examples
COUGH
J1
COUGH
ON
OFF
OFF
phone 1.252.638-7000
pre.com | [email protected]
DESIGNS BY PACIFIC RESEARCH & ENGINEERING
TALK
BACK
ON
THIS DOCUMENT APPLIES TO
PRE99-1197 & pre99-1198
PACIFIC RESEARCH &
ENGINEERING
PRE99-1788-1
SINGLE CABINET
PLATE with a
PRE99-1197
GUEST MIC PANEL
(ON/OFF/COUGH)
PRE99-1788-2
DUAL CABINET
PLATE with a
PRE99-1198
GUEST MIC PANEL
(ON/OFF/COUGH
WITH TALKBACK)
&
PRE99-1191
HEADPHONE
FADER PANEL
TITLE

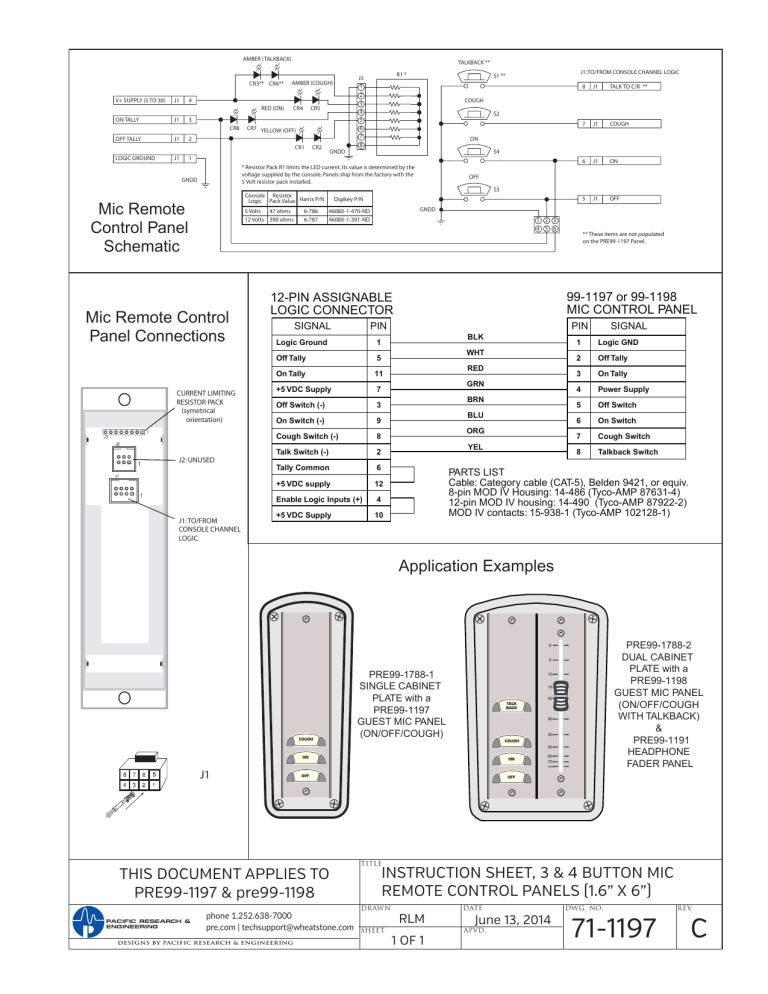

INSTRUCTION SHEET, 3 & 4 BUTTON MIC
REMOTE CONTROL PANELS (1.6” X 6”)
DRAWN
SHEET
RLM
1 OF 1
DATE
June 13, 2014
APVD.
DWG. NO.
71-1197
REV.
C
