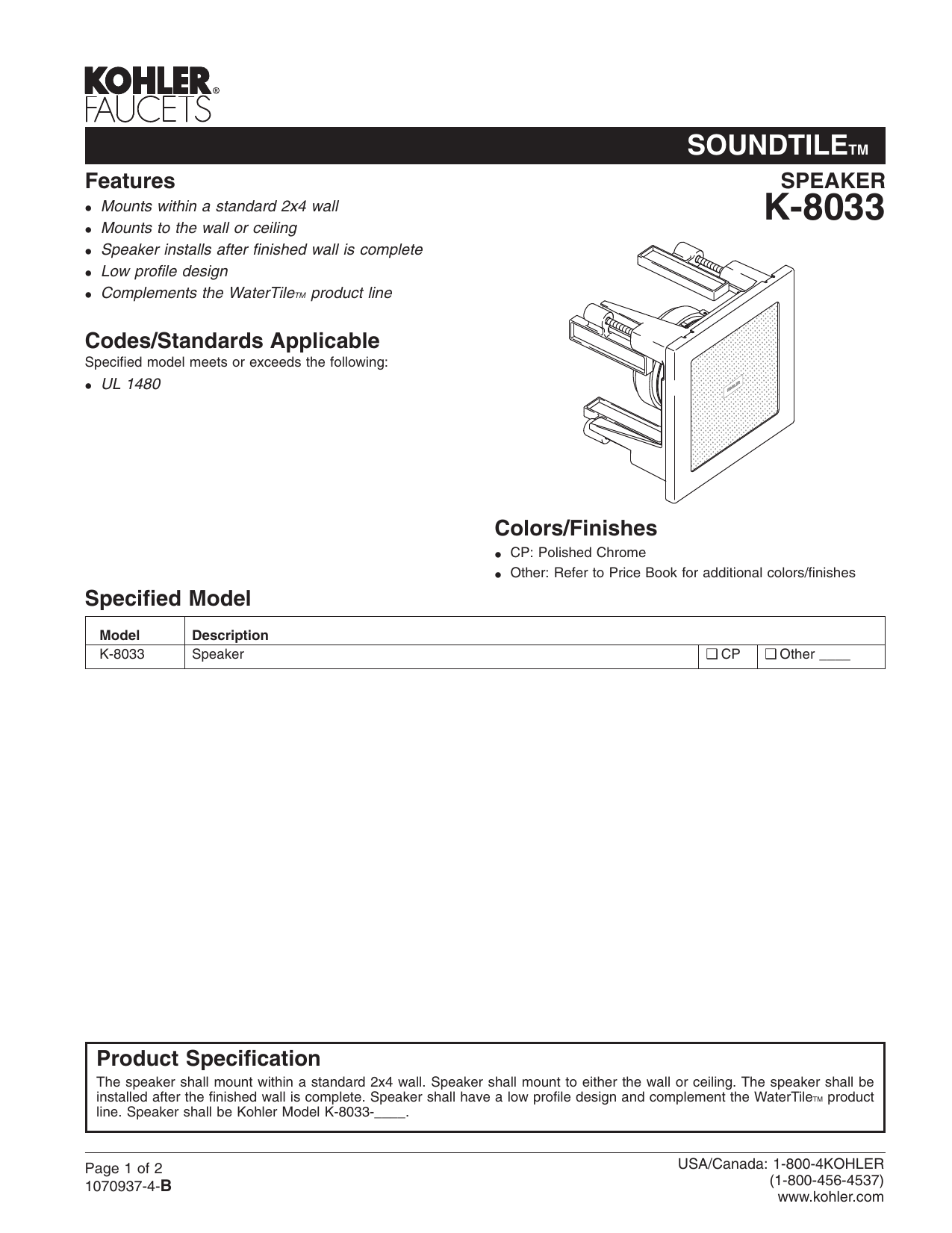

Kohler K-8033-2BZ SoundTile 135-Watt Shower Speakers - Oil-Rubbed Bronze (2-Pack) Specification

SOUNDTILETM
Features
•
•
•
•
•
SPEAKER
K-8033
Mounts within a standard 2x4 wall
Mounts to the wall or ceiling
Speaker installs after finished wall is complete
Low profile design
Complements the WaterTileTM product line
Codes/Standards Applicable
Specified model meets or exceeds the following:
• UL 1480
Colors/Finishes
• CP: Polished Chrome
• Other: Refer to Price Book for additional colors/finishes
Specified Model
Model
K-8033
Description
Speaker
❑ CP
❑ Other ____
Product Specification
The speaker shall mount within a standard 2x4 wall. Speaker shall mount to either the wall or ceiling. The speaker shall be
installed after the finished wall is complete. Speaker shall have a low profile design and complement the WaterTileTM product
line. Speaker shall be Kohler Model K-8033-____.
Page 1 of 2
1070937-4-B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
SOUNDTILETM
Technical Information
Installation Notes
Install this product according to the installation guide.
Specifications:
Peak Power
Average Power
Frequency Response
Nominal Impedance
Ambient Temperature
135 Watts
45 Watts
85 Hz - 22 kHz
4 Ohms
Max 122°F (50°C)
Recommended wire connections using solder or standard
quick-disconnect terminals (0.187″ x 0.020″ for the positive
connection and 0.110″ x 0.020″ for the negative connection).
Installer to provide sheathed speaker wire.
1/2" (13 mm) Min Clamp
Arm Clearance
Cutout
1/4" (6 mm)
Min Support
Overlap
Clearance
4-5/16" – 4-7/16"
(110 – 113 mm)
1/4" (6 mm)
4-5/16" (110 mm)
3-3/16"
(81 mm)
4-5/16" – 4-7/16"
(110 – 113 mm)
4-7/8" (124 mm)
Cutout Detail
4-7/8"
(124 mm)
Product Diagram
SOUNDTILETM SPEAKER
Page 2 of 2
1070937-4-B
