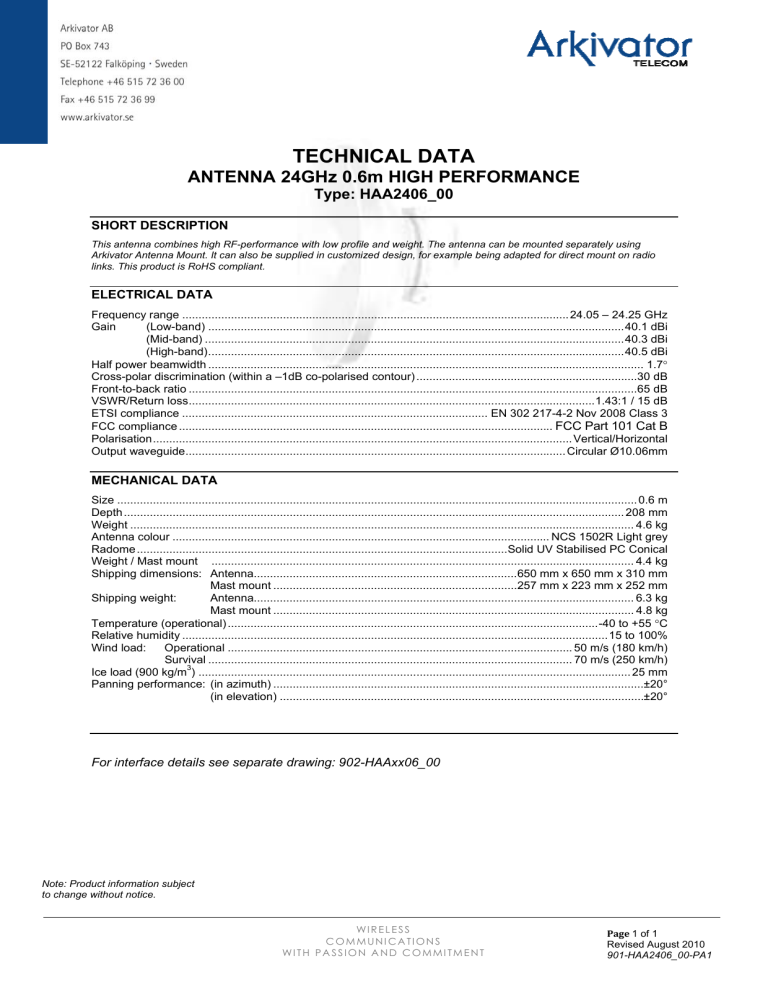

 TECHNICAL DATA
ANTENNA 24GHz 0.6m HIGH PERFORMANCE
Type: HAA2406_00
SHORT DESCRIPTION
This antenna combines high RF-performance with low profile and weight. The antenna can be mounted separately using
Arkivator Antenna Mount. It can also be supplied in customized design, for example being adapted for direct mount on radio
links. This product is RoHS compliant.
ELECTRICAL DATA
Frequency range ....................................................................................................................... 24.05 – 24.25 GHz
Gain
(Low-band) ................................................................................................................................40.1 dBi
(Mid-band) .................................................................................................................................40.3 dBi
(High-band)................................................................................................................................40.5 dBi
Half power beamwidth ...................................................................................................................................... 1.7°
Cross-polar discrimination (within a –1dB co-polarised contour) ....................................................................30 dB
Front-to-back ratio ..........................................................................................................................................65 dB
VSWR/Return loss.............................................................................................................................1.43:1 / 15 dB
ETSI compliance .............................................................................................. EN 302 217-4-2 Nov 2008 Class 3
FCC compliance ................................................................................................................... FCC Part 101 Cat B
Polarisation................................................................................................................................. Vertical/Horizontal
Output waveguide..................................................................................................................... Circular Ø10.06mm
MECHANICAL DATA
Size ................................................................................................................................................................ 0.6 m
Depth .......................................................................................................................................................... 208 mm
Weight ........................................................................................................................................................... 4.6 kg
Antenna colour .................................................................................................................... NCS 1502R Light grey
Radome ..................................................................................................................Solid UV Stabilised PC Conical
Weight / Mast mount .................................................................................................................................. 4.4 kg
Shipping dimensions: Antenna.................................................................................650 mm x 650 mm x 310 mm
Mast mount ...........................................................................257 mm x 223 mm x 252 mm
Shipping weight:
Antenna..................................................................................................................... 6.3 kg
Mast mount ............................................................................................................... 4.8 kg
Temperature (operational) ..................................................................................................................-40 to +55 °C
Relative humidity ...................................................................................................................................15 to 100%
Wind load:
Operational .......................................................................................................... 50 m/s (180 km/h)
Survival ................................................................................................................ 70 m/s (250 km/h)
3
Ice load (900 kg/m ) ..................................................................................................................................... 25 mm
Panning performance: (in azimuth) ..................................................................................................................±20°
(in elevation) ................................................................................................................±20°
For interface details see separate drawing: 902-HAAxx06_00
Note: Product information subject
to change without notice.
WI REL ESS
COMMUNI CATIONS
WI TH PA SSI ON A ND CO MMI TMEN T
Page 1 of 1
Revised August 2010
901-HAA2406_00-PA1
