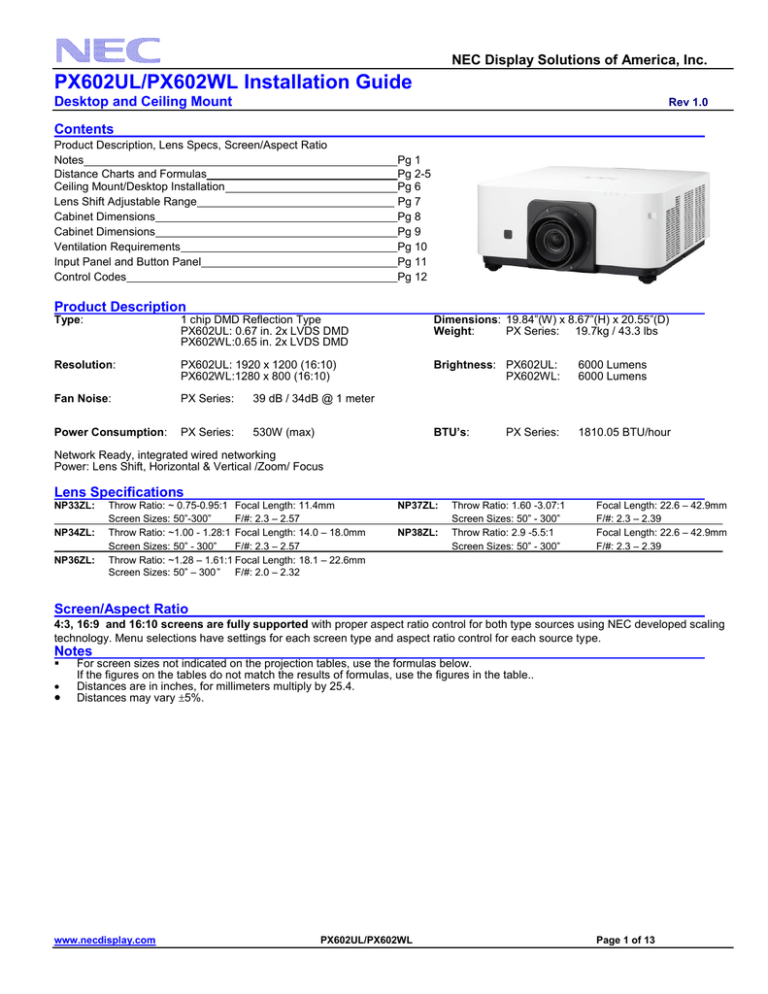

NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Cabinet Dimensions
Ventilation Requirements
Input Panel and Button Panel
Control Codes
Pg 1
Pg 2-5
Pg 6
Pg 7
Pg 8
Pg 9
Pg 10
Pg 11
Pg 12
Product Description
Type:
1 chip DMD Reflection Type
PX602UL: 0.67 in. 2x LVDS DMD
PX602WL:0.65 in. 2x LVDS DMD
Dimensions: 19.84”(W) x 8.67”(H) x 20.55”(D)
Weight:
PX Series: 19.7kg / 43.3 lbs
Resolution:
PX602UL: 1920 x 1200 (16:10)
PX602WL:1280 x 800 (16:10)
Brightness: PX602UL:
PX602WL:
6000 Lumens
6000 Lumens
Fan Noise:
PX Series:
39 dB / 34dB @ 1 meter
Power Consumption:
PX Series:
530W (max)
BTU’s:
1810.05 BTU/hour
PX Series:
Network Ready, integrated wired networking
Power: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP33ZL:
NP34ZL:
NP36ZL:
Throw Ratio: ~ 0.75-0.95:1 Focal Length: 11.4mm
Screen Sizes: 50”-300”
F/#: 2.3 – 2.57
Throw Ratio: ~1.00 - 1.28:1 Focal Length: 14.0 – 18.0mm
Screen Sizes: 50” - 300”
F/#: 2.3 – 2.57
Throw Ratio: ~1.28 – 1.61:1 Focal Length: 18.1 – 22.6mm
Screen Sizes: 50” – 300 ” F/#: 2.0 – 2.32
NP37ZL:
NP38ZL:
Throw Ratio: 1.60 -3.07:1
Screen Sizes: 50” - 300”
Throw Ratio: 2.9 -5.5:1
Screen Sizes: 50” - 300”
Focal Length: 22.6 – 42.9mm
F/#: 2.3 – 2.39
Focal Length: 22.6 – 42.9mm
F/#: 2.3 – 2.39
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes



For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
www.necdisplay.com
PX602UL/PX602WL
Page 1 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Formulas: 16:10 Aspect Ratio (PX602WL—WXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas:
NP33FL:
C = 0.817W – 1.54
NP34ZL:
C(Wide) = 1.017W – 1.193
NP36ZL:
C(Wide) = 1.300W – 1.130
NP37ZL:
C(Wide) = 1.625W – 2.358
NP38ZL:
C(Wide) = 4.580W – 5.415
---------------------
C(Tele) = 1.300W
C(Tele) = 1.620W
C(Tele) = 3.097W
C(Tele) = 8.603W
– 1.087
– 1.138
– 2.213
– 5.352
Definitions:
W = Image Width
H = Image Height (size)
C = Throw distance
16:10 Screen Formulas
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
16:9 Screen Formulas
W = H x 16/9
H = W x 9/16
Screen Diagonal = W x 18.358/16
Distance Chart for popular 16:10 Screens (WXGA)
Screen Size (16:10)
Diagonal Width(W) Height (H)
inches inches
inches
60
51
32
Zoom Lenses
NP33ZL
NP34ZL
NP36ZL
NP37ZL
NP38ZL
0.75-0.95:1
inches
-
0.95-1.20:1
inches
50.7 - 65.2
1.28-1.60-1
inches
65.2 - 81.5
1.52-2.92:1
inches
80.5 - 155.7
2.90-5.50:1
inches
-
68
58
36
-
57.8 - 74.3
74.3 - 92.8
91.9 - 177.4
-
72
61
38
-
60.8 - 78.2
78.2 - 97.7
96.8 - 186.7
-
85
72
45
-
72.0 - 92.5
92.5 - 115.5
114.6 - 220.8
-
108
92
58
-
92.4 - 118.5
118.5 - 147.9
147.1 - 282.7
-
113
96
60
-
96.4 - 123.7
123.7 - 154.4
153.6 - 295.1
-
130
110
69
-
110.7 - 141.9
141.9 - 177.1
176.4 - 338.5
-
137
116
73
-
116.8 - 149.7
149.7 - 186.8
186.1 - 357.0
-
164
139
87
-
140.2 - 179.6
179.6 - 224.0
223.5 - 428.3
-
189
160
100
-
161.5 - 206.9
206.9 - 258.1
257.6 - 493.3
-
208
176
110
-
177.8 - 227.7
227.7 - 284.0
283.6 - 542.9
-
226
192
120
-
194.1 - 248.5
248.5 - 309.9
309.6 - 592.4
-
270
229
143
-
231.7 - 296.6
296.6 - 369.8
369.8 - 707.0
-
Distance Chart using 16:10 native projector with 16:9 Image (720p)
Screen Size (16:9)
Diagonal Width(W) Height (H)
inches
inches
inches
59
51
29
Zoom Lenses
NP33ZL
NP34ZL
NP36ZL
NP37ZL
NP38ZL
0.75-0.95:1
inches
-
0.95-1.20:1
inches
50.7 - 65.2
1.28-1.60-1
inches
65.2 - 81.5
1.52-2.92:1
inches
80.5 - 155.7
2.90-5.50:1
inches
-
67
58
33
-
57.8 - 74.3
74.3 - 92.8
91.9 - 177.4
-
70
61
34
-
60.8 - 78.2
78.2 - 97.7
96.8 - 186.7
-
83
72
41
-
72.0 - 92.5
92.5 - 115.5
114.6 - 220.8
-
106
92
52
-
92.4 - 118.5
118.5 - 147.9
147.1 - 282.7
-
110
96
54
-
96.4 - 123.7
123.7 - 154.4
153.6 - 295.1
-
126
110
62
-
110.7 - 141.9
141.9 - 177.1
176.4 - 338.5
-
133
116
65
-
116.8 - 149.7
149.7 - 186.8
186.1 - 357.0
-
159
139
78
-
140.2 - 179.6
179.6 - 224.0
223.5 - 428.3
-
184
160
90
-
161.5 - 206.9
206.9 - 258.1
257.6 - 493.3
-
202
176
99
-
177.8 - 227.7
227.7 - 284.0
283.6 - 542.9
-
220
192
108
-
194.1 - 248.5
248.5 - 309.9
309.6 - 592.4
-
263
229
129
-
231.7 - 296.6
296.6 - 369.8
369.8 - 707.0
-
www.necdisplay.com
PX602UL/PX602WL
Page 2 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Lens Specifications
NP33ZL:
NP34ZL:
NP35ZL:
Throw Ratio: ~ 0.75-0.95:1 Focal Length: 11.4mm
Screen Sizes: 50”-300”
F/#: 2.3 – 2.57
Throw Ratio: ~0.95 - 1.20:1 Focal Length: 14.0 – 18.0mm
Screen Sizes: 50” - 300”
F/#: 2.3 – 2.57
Throw Ratio: ~1.23 – 1.52:1 Focal Length: 18.1 – 22.6mm
Screen Sizes: 50” – 300 ” F/#: 2.0 – 2.32
NP37ZL:
NP38ZL:
Throw Ratio: 1.52 -2.92:1
Screen Sizes: 50” - 300”
Throw Ratio: 2.9 -5.5:1
Screen Sizes: 50” - 300”
Focal Length: 22.6 – 42.9mm
F/#: 2.3 – 2.39
Focal Length: 22.6 – 42.9mm
F/#: 2.3 – 2.39
Formulas: 16:10 Aspect Ratio (PX602UL—WUXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas:
NP33FL:
C = 0.794W – 1.85
NP34ZL:
C(Wide) = 0.966W –1.181 ------ C(Tele) = 1.240W – 1.118
NP35ZL:
C(Wide) = 1.235W – 1.217 ------ C(Tele) = 1.546W – 1.185
NP37ZL:
C(Wide) = 1.546W – 2.339 ------ C(Tele) = 2.948W – 2.039
NP38ZL:
C(Wide) = 3.654W – 5.319 ------ C(Tele) = 5.492W – 5.299
Definitions:
W = Image Width
H = Image Height (size)
C = Throw distance
16:10 Screen Formulas
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
16:9 Screen Formulas
W = H x 16/9
H = W x 9/16
Screen Diagonal = W x 18.358/16
Distance Chart for popular 16:10 Screens (WUXGA)
Screen Size (16:10)
Diagonal Width(W) Height (H)
inches
inches
inches
60
51
32
Zoom Lenses
NP33ZL
NP34ZL
NP35ZL
NP37ZL
NP38ZL
0.75-0.95:1
inches
-
0.95-1.20:1
inches
48.3 - 62.4
1.23-1.52-1
inches
62.0 - 78.0
1.52-2.92:1
inches
76.8
148.9
2.90-5.50:1
inches
68
58
36
-
54.5 - 70.3
69.9 - 87.9
86.7
167.8
72
61
38
-
57.6 - 74.3
73.9 - 92.8
91.7
177.2
85
72
45
-
68.4 - 88.2
87.7 - 110.1
109.0 - 210.2
-
108
92
57.5
-
87.7 - 113.0
112.4 - 141.0
139.9 - 269.2
-
113
96
60
-
91.6 - 117.9
117.3 - 147.2
146.1 - 281.0
-
130
110
69
-
105.5 - 135.8
135.1 - 169.5
168.3 - 323.4
-
137
116
72.5
-
110.9 - 142.7
142.0 - 178.2
177.0 - 339.9
-
164
139
87
-
133.3 - 171.5
170.7 - 214.0
212.9 - 408.3
-
189
160
100
-
153.4 - 197.3
196.4 - 246.2
245.0 - 469.6
-
208
176
110
-
168.8 - 217.1
216.1 - 270.9
269.8 - 516.8
-
226
192
120
-
184.3 - 237.0
235.9 - 295.6
294.5 - 564.0
-
270
229
143
-
219.8 - 282.6
281.4 - 352.5
351.4 - 672.5
-
300
254
159
299.2 - 389.6
376.0 - 752.4
747.3 - 1198.4 1181.3 - 1826.5 1377.5 - 2154.3
Distance Chart using 16:10 native projector with 16:9 Image (1080p)
Screen Size (16:9)
Diagonal Width(W) Height (H)
inches
inches
inches
59
51
29
Zoom Lenses
NP33ZL
NP34ZL
NP35ZL
NP37ZL
NP38ZL
0.75-0.95:1
inches
-
0.95-1.20:1
inches
48.1 - 62.1
1.23-1.52-1
inches
61.8 - 77.7
1.52-2.92:1
inches
76.5 - 148.3
2.90-5.50:1
inches
-
67
58
33
-
54.8 - 70.8
70.4 - 88.5
87.3 - 168.9
-
70
61
34
-
57.7 - 74.5
74.1 - 93.1
92.0 - 177.8
-
83
72
41
-
68.4 - 88.2
87.7 - 110.1
109.0 - 210.2
-
106
92
52
-
87.7 - 113.0
112.4 - 141.0
139.9 - 269.2
-
110
96
54
-
91.6 - 117.9
117.3 - 147.2
146.1 - 281.0
-
126
110
62
-
105.1 - 135.3
134.6 - 168.9
167.7 - 322.2
-
133
116
65
-
110.9 - 142.7
142.0 - 178.2
177.0 - 339.9
-
159
139
78
-
133.1 - 171.2
170.4 - 213.7
212.6 - 407.7
-
184
160
90
-
153.4 - 197.3
196.4 - 246.2
245.0 - 469.6
-
202
176
99
-
168.8 - 217.1
216.1 - 270.9
269.8 - 516.8
-
220
192
108
-
184.3 - 237.0
235.9 - 295.6
294.5 - 564.0
-
263
229
129
-
220.0 - 282.8
281.6 - 352.8
351.7 - 673.1
-
www.necdisplay.com
PX602UL/PX602WL
Page 3 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Ceiling Mount Installation
C
Screen Top
Shift Range
Screen Center
Desktop Installation
Screen Center
Shift Range
Screen Bot tom
C
Note: Lens Shift Feature is not available for the NP06FL and NP16FL. This lens should only be used for “zero degree”/”no-offset”
applications. See below
C
3. 98
Screen Center
www.necdisplay.com
PX602UL/PX602WL
Page 4 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount Application
The diagram below shows the location of the image position in the lens for the PX602UL. The PX602WL has a maximum vertical
lens shift of +/- 30%. The lens can be shifted within the shaded area as shown using the normal projection position as a starting
point.
Note: Projector is set out of the box at center position, which is how it is depicted above.
(W: width of projected image, H: height of projected image)
www.necdisplay.com
PX602UL/PX602WL
Page 5 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Cabinet Dimensions
The following diagrams show the cabinet dimensions for the PX602UL_PX602WL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown with the NP35ZL lens
AC INLET
OPS SLOT
T ERMINAL PANEL
IR RECEIVER
INT AKE
22.61
2.57
20.04
EXHAUST
19.07
8.56
7.68
3.48
3.97
9.53
www.necdisplay.com
8.07
IR RECEIVER
PX602UL/PX602WL
1.66
Page 6 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Cabinet Dimensions
11.81
5.89
5.89
3.71
3.61
6-M4 x 12mm
FOR CEILING MOUNT UNIT
www.necdisplay.com
PX602UL/PX602WL
Page 7 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Ventilation Requirements
 If there are walls on boths sides of the projector :

If installed on a portrait stand :
www.necdisplay.com
PX602UL/PX602WL
Page 8 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
Input Panel
Control Panel
www.necdisplay.com
PX602UL/PX602WL
Page 9 of 13
NEC Display Solutions of America, Inc.
PX602UL/PX602WL Installation Guide
Desktop and Ceiling Mount
Rev 1.0
PC Control Codes
Function
POWER ON
POWER OFF
INPUT SELECT HDMI
INPUT SELECT DISPLAYPORT
INPUT SELECT BNC
INPUT SELECT BNC (CV)
INPUT SELECT BNC (Y/C)
INPUT SELECT COMPUTER
INPUT SELECT HDBaseT
INPUT SELECT SLOT
PICTURE MUTE ON
PICTURE MUTE OFF
Code Data
02H
00H
02H
01H
02H
03H
02H
03H
02H
03H
02H
03H
02H
03H
02H
03H
02H
03H
02H
03H
02H
10H
02H
11H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
02H
02H
02H
02H
02H
02H
02H
02H
00H
00H
02H
03H
01H
01H
01H
01H
01H
01H
01H
01H
12H
13H
01H
A6H
02H
06H
0BH
01H
20H
ABH
09H
AEH
0AH
0EH
13H
09H
28H
B3H
Cable Connection
Communication Protocol:
Baud Rate:
38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)
Data Length:
8 bits
Parity:
No Parity
Stop Bit:
One bit
X on/off:
None
Communications: Full duplex
PC Control Connector (D-Sub 9P)
Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.
Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
www.necdisplay.com
PX602UL/PX602WL
Page 10 of 13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
