Stand-On Scale - SR Instruments

Stand-On Scale - SR Instruments

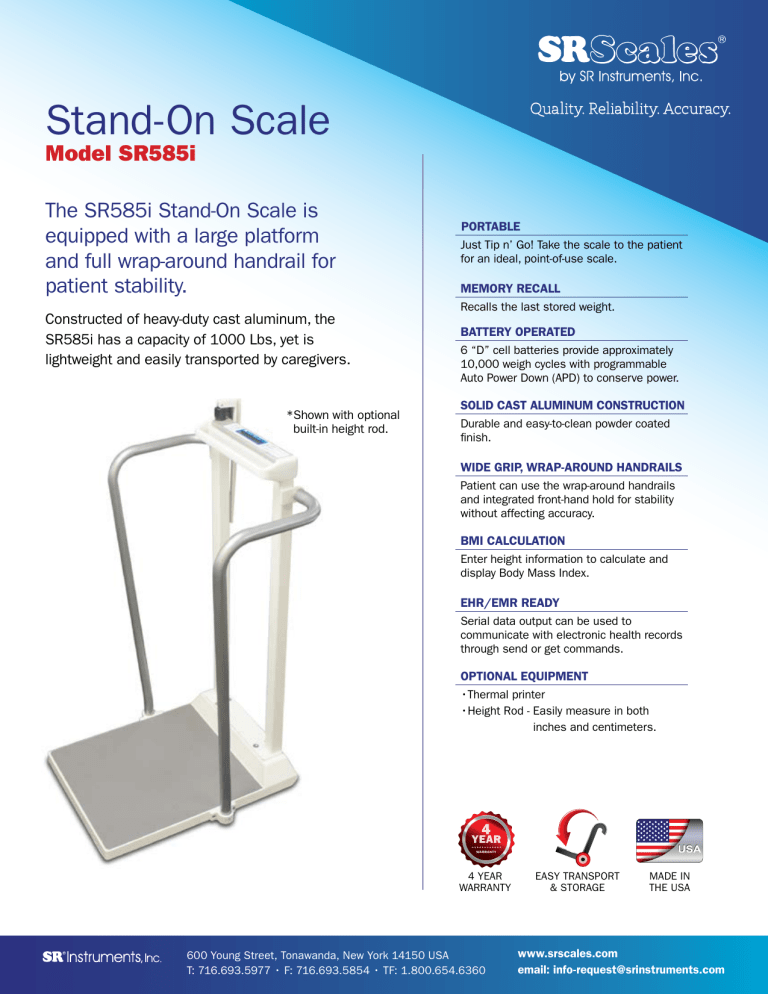

Stand-On Scale
Quality. Reliability. Accuracy.
Model SR585i
The SR585i Stand-On Scale is
equipped with a large platform
and full wrap-around handrail for
patient stability.
Constructed of heavy-duty cast aluminum, the
SR585i has a capacity of 1000 Lbs, yet is
lightweight and easily transported by caregivers.
*Shown with optional
built-in height rod.
PORTABLE
Just Tip n’ Go! Take the scale to the patient
for an ideal, point-of-use scale.
MEMORY RECALL
Recalls the last stored weight.
BATTERY OPERATED
6 “D” cell batteries provide approximately
10,000 weigh cycles with programmable
Auto Power Down (APD) to conserve power.
SOLID CAST ALUMINUM CONSTRUCTION
Durable and easy-to-clean powder coated
finish.
WIDE GRIP, WRAP-AROUND HANDRAILS
Patient can use the wrap-around handrails
and integrated front-hand hold for stability
without affecting accuracy.
BMI CALCULATION
Enter height information to calculate and
display Body Mass Index.
EHR/EMR READY
Serial data output can be used to
communicate with electronic health records
through send or get commands.
OPTIONAL EQUIPMENT
•Thermal printer
•Height Rod - Easily measure in both
inches and centimeters.
WARRANTY
4 YEAR
WARRANTY
600 Young Street, Tonawanda, New York 14150 USA
T: 716.693.5977 • F: 716.693.5854 • TF: 1.800.654.6360
EASY TRANSPORT
& STORAGE
MADE IN
THE USA
www.srscales.com
email: info-reques[email protected]
Stand-On Scale
Model SR585i
DIMENSIONS in [cm]
SYSTEM
SPECIFICATIONS
MAX WEIGHT
1000 Lb / 454 Kg
DISPLAY TYPE
16 Character LCD w/ LED Backlight
DISPLAY RESOLUTION 0.1 Lb/Kg
ACCURACY
0.1% +/- 1 digit of displayed resolution
DISPLAY UNITS
Pounds / Kilograms
POWER
6 “D” cell alkaline batteries
BATTERY LIFE
10,000 Weigh Cycles
(est. based on 30 second on-time)
AUTO POWER DOWN
(APD)
Programmable on-time to conserve
battery life. A low battery indication
will appear when it’s time to replace
the batteries.
MEMORY
Last stable weight is automatically
stored in memory. Press RECALL
to retrieve.
BMI CALCULATION
Press BMI and input height. Press
ENTER to view BMI information.
SERIAL DATA
OUTPUT (EHR)
9-pin serial data output can be used to
send weight data to optional printer or
EHR/EMR Systems.
WARRANTY
4 years
NOTE: Professional
installation is required.
Please consult
with an SR Scales
Representative or call
our factory for details
prior to purchase.
PACKAGING
68 LB
31 KG
68 LB
31 KG
ACCESSORIES AND OPTIONS
DESCRIPTION
PART NUMBER
SCALE WITH HEIGHT ROD
SR585i-H
PRINTER KIT
includes FRAP1300, FRTP130012C, FRBC1300,
SE8294, and all mounting hardware
SR8220
REPLACEMENT THERMAL PRINTER
FRAP1300
REPLACEMENT PAPER
FRTP130012C
(10 rolls per box)
REPLACEMENT POWER ADAPTER
FRBC1300
REPLACEMENT DATA CABLE
SE8294
REPLACEMENT HEIGHT ROD
SR9110
Integrated front hand hold and wrap-around
handles promote patient stability.
160825
