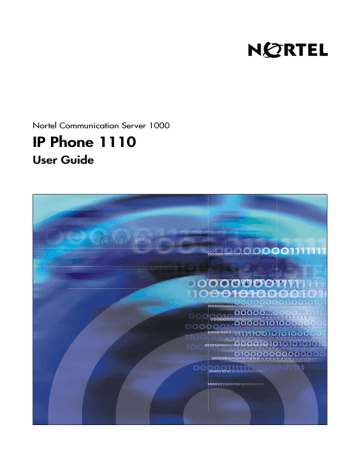

Title page

Nortel Communication Server 1000

IP Phone 1110

User Guide

Contents

Contents

About the Nortel IP Phone 1110 . . . . . . . . . . . . . . . . . . . . . . 9

Basic features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Telephone display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Telephone controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connect the components . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Telephone features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Telephone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Volume adjustment... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contrast adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Language... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Date/Time... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Local Dialpad Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Set Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Ring type... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Call timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Live Dial Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Local tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

1. Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

1. Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

2. Languages... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3. Backlight Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

2. Local Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

1. IP Set&DHCP Information . . . . . . . . . . . . . . . . . . . . . . 39

2. Network Diagnostic Tools . . . . . . . . . . . . . . . . . . . . . . 39

3

Contents

3. Ethernet Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4. IP Network Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . 39

3. Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4. Lock Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Call features and Flexible Feature Codes . . . . . . . . . . . . . 41

Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Using Off-hook dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Using On-hook Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Using Predial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Using Ring Again . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Using Last Number Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Using Speed Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Using System Speed Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

While on an active call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Placing a call on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Transferring a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Using Timed Reminder Recall . . . . . . . . . . . . . . . . . . . . . . . . 51

Using Call Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Recording a Calling Party Number . . . . . . . . . . . . . . . . . . . . . 54

Tracing a malicious call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

While away from your desk . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using Call Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using Internal Call Forward . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Using Remote Call Forward . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Securing your telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4

Contents

Talking with more than one person . . . . . . . . . . . . . . . . . . 62

Setting up a conference call . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Using Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Working without interruption . . . . . . . . . . . . . . . . . . . . . . . 66

Activating Make Set Busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Additional call features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Using Call Page Connect to make an announcement . . . . . . 67

Charging a call or charging a forced call . . . . . . . . . . . . . . . . 68

Using Enhanced Override . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Using Forced Camp-on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Overriding a busy signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Using Privacy Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Using Radio Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Additional phone features . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Secure Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Using Virtual Office . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Logging in to Virtual Office . . . . . . . . . . . . . . . . . . . . . . . . 79

Using Virtual Office on your Remote telephone . . . . . . . . 81

Using Virtual Office on your Office telephone . . . . . . . . . 83

Logging out of Virtual Office . . . . . . . . . . . . . . . . . . . . . . . 85

Troubleshooting Virtual Office . . . . . . . . . . . . . . . . . . . . . 86

Using Media Gateway 1000B . . . . . . . . . . . . . . . . . . . . . . . . . 88

Using Test Local Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Using Resume Normal Mode . . . . . . . . . . . . . . . . . . . . . . 89

Troubleshooting MG 1000B . . . . . . . . . . . . . . . . . . . . . . . 90

Using Hospitality features . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Configuring Automatic Wake-Up . . . . . . . . . . . . . . . . . . . . . . 92

5

Contents

Station Control Password . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Accessing External Server Applications . . . . . . . . . . . . . . 96

Flexible Feature Codes (FFC) . . . . . . . . . . . . . . . . . . . . . . . 97

Regulatory and safety information . . . . . . . . . . . . . . . . . . . 99

Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

DenAn regulatory notice for Japan . . . . . . . . . . . . . . . . . . . . 101

Terms you should know . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

6

Revision history


April 2009

Standard 02.02. This document is issued to support Nortel

Communication Server 1000 Release 5.0.

May 2007

Standard 02.01. This document is issued to support Nortel

Communication Server 1000 Release 5.0.

March 2007

Standard 01.01. This document is issued to support

Communication Server 1000 Release 4.5. This is the first publication of this document.

7


8

About the Nortel IP Phone 1110


The Nortel IP Phone 1110 brings voice and data to the desktop by connecting directly to a Local Area Network (LAN) through an Ethernet connection.

Basic features

Your IP Phone 1110 supports the following:

• four context-sensitive soft keys providing access to a maximum of 10 features

For information about context-sensitive soft keys, see New in This

Release Communication Server 1000 Release 5.0 (NN43001-115).

Context-sensitive soft keys are Nortel Communication Server dependent. Some IP Phone 1110 phones are not configured to support context-sensitive soft key functionality. Contact your site administrator for further details

• pixel-based LCD screen, backlit, with adjustable contrast

• speaker for on-hook listening and on-hook dialing

• volume control keys for adjusting ringer, speaker, and handset volume

• three call-processing fixed keys:

— Line

— Hold

— Goodbye

• three specialized feature keys:

— Message/Inbox

— Services

— Expand

• integrated 10/100 Ethernet switch for shared PC access

• automatic network configuration

9


• hearing aid compatibility

Note: Some features are not available on all telephones. Consult your system administrator to verify which features are available for your use.

10


Telephone display

Figure 1 shows the LCD screen of your IP Phone 1110.

Figure 1: IP Phone 1110 LCD screen

The LCD screen on your IP Phone 1110 consists of two basic display areas:

• The upper display area is for information such as caller number, caller name, feature prompt string, user-entered digits, date and time (or call timer, if provisioned in the Telephone Options menu), and telephone information.

• The lower display area is for context-sensitive soft key labels.

11


Telephone controls

Figure 2 shows the controls of your IP Phone 1110.

Figure 2: IP Phone 1110

12

Note: In some geographic regions, the IP Phone 1110 is offered with key caps that have English text labels. Text in parentheses indicates labels appearing on the key caps, for example, (Services).

Fwd

Context-sensitive soft keys are located below the LCD display area. The LCD label above each context-sensitive soft key changes based on the call state or active feature.

Fwd

More...


When a triangle appears before a contextsensitive soft key label, the feature associated with the context-sensitive soft key is active.

Press the More key to access the next layer of context-sensitive soft keys.

(Volume +)

(Volume -)

Use the Volume control buttons to adjust the volume of the ringer, handset and speaker. Press the top button to increase the volume, and press the bottom button to decrease volume.

(Line)

(Hold)

Use the Navigation keys to scroll through menus and lists appearing on the LCD display screen. The outer part of this key cluster rocks for up, down, left, and right movements.

Press the Enter key, at the center of the

Navigation key cluster, to confirm menu selections.

In many cases, you can use the Enter key instead of the Select context-sensitive soft key.

Use the Line (DN) key to access the single line and activate on-hook dialing. No status icon or LED is provided.

Press the Hold key to put an active call on hold. Press the Hold key again to return to the caller on hold.

13


Use the Expand key to access external server applications.

(Expand)

Use the Goodbye key to terminate an active call.

(Goodbye)

When a message is waiting, the red Visual

Alerter/Message Waiting indicator flashes.

Also, when the ringer sounds, this indicator flashes.

When your IP Phone 1110 firmware is being updated, the blue Feature Status Lamp flashes.

Note: To find out if additional features are supported, contact your administrator.

14

(Services)


Press the Services key once to access the following server-based options:

• Telephone Options:

— Volume adjustment...

— Contrast adjustment

— Language...

— Date/Time...

— Local Dialpad Tone

— Set Info

— Diagnostics

— Ring type...

— Call timer

— Live Dial Pad

• Password Admin:

— Station Control Password

Note: The Password Admin menu may not be available on all IP Phone 1110 sets. Consult your system administrator.

• Virtual Office Login and Virtual Office

Logout (if Virtual Office is configured)

• Test Local Mode and Resume Local

Mode (if Media Gateway 1000B is configured)

Note: Press the Services key to exit from any menu or menu item.

15


(Services)

(Services)

(Msg/Inbox)

Press the Services key twice to access the following telephone-based (local) options:

• 1. Preferences

• 2. Local Diagnostics

• 3. Network Configuration

• 4. Lock Menu

Note 1: Access to these local options can be password protected. If you press the Services key twice and a password prompt appears, contact your system administrator.

Note 2: Press the Cancel contextsensitive soft key to exit from any menu or menu item.

Press the Message/Inbox key to access your voice mailbox.

Note: This function may not be available on all IP Phone 1110s; consult your system administrator.

16

Connect the components


Before you begin

CAUTION

Damage to Equipment

Do not plug your IP Phone 1110 into a regular or ISDN telephone jack. This results in severe damage to the IP Phone.

Consult your system administrator to ensure that you plug your phone into a 10/100BaseT Ethernet jack.

CAUTION

Your IP Phone 1110 is designed for use in an indoor environment only.

17


Figure 3: Release the phone from the stand

Wall-mount lever

Tilt lever

Wall-mount lever

WARNING

Your IP Phone 1110 is shipped with its stand locked in position. To release the phone from the stand, press the Wall-Mount lever (see

Figure 3

) and gently rotate the phone away from the stand a little. When you’re sure the phone is released from the stand, press the Tilt lever and fully rotate the phone away from the stand.

Use the following steps to connect the components of your phone.

1. Remove the stand cover. Pull upward on the center catch (see

Figure 4)

and remove the stand cover from the stand base. The cable routing tracks are now accessible in the stand base (see

Figure 5

).

18

Figure 4: Remove the stand cover


Center

Catch

Tilt Lever

Button

Handset cord channel

2. Connect the AC power adapter (optional). Connect the AC power adapter (not supplied) to the AC adapter jack in the bottom of the

phone (see Figure 5 ). Form a small bend in the cable, and then

thread the adapter cord through the channel in the stand base. Plug the AC power adapter into the nearest AC power outlet.

Note: Your IP Phone 1110 supports both AC power and Power over

Ethernet (PoE), including IEEE 802.3af standard power. To use AC power, use only the Nortel-approved AC power adapter (RoHS Global

Power Supply, PEC #: N0089601), which can be ordered separately.

To use Power over Ethernet (PoE) power, your connected LAN must support PoE; an AC power adapter is not required.

19


Figure 5: IP Phone 1110 connections

3. Install the handset. Plug the end of the handset cord with the short straight section into the handset. Plug the end of the handset cord with the long straight section into the handset jack on the back of the

phone (see Figure 5 ) marked with the symbol

+ . Form a small bend in the cord, and then thread it through the channel in the stand base marked with the symbol + so that it exits in the handset cord channel on the right-hand side of the stand base (see

Figure 4 ).

4. Install the LAN Ethernet cable. Plug one end of the supplied LAN

Ethernet cable into the LAN ethernet port on the back of your phone

(see Figure 5 ) marked with the symbol % and thread the cable

through the channel in the stand base marked with the symbol %.

Connect the other end of the cable to your LAN Ethernet connection.

5. Install the PC Ethernet cable (optional). If you are connecting your

PC Ethernet through the phone, plug one end of the PC Ethernet cable (not supplied) into the PC ethernet port on the back of your phone (see

Figure 5

) marked with the symbol ( and thread the cable through the channel in the stand base marked with the symbol ( .

Plug the other end of the cable into the LAN port on the back of your PC.

20


Figure 6: Cable routing tracks and mounting holes

Method A

Method B

6. Wall-mount your phone (optional). Your IP Phone 1110 can be mounted either by: (Method A) using the mounting holes on the bottom of the phone stand, or (Method B) using a traditional-style wall-mount box with an RJ-45 connector and a 15-cm (6-inch) RJ-45 cord (not supplied).

Complete steps 1-5, as needed, before you wall-mount your phone:

Method A : Using the stand cover (part removed in step 1), mark the wall-mount holes by pressing the bottom of the stand cover firmly against the wall in the location where you wish to install the phone.

Four small pins on the bottom of the stand cover make marks on the wall. Use the marks as a guideline for installing the wall-mount screws (not supplied). Install the screws so that they protrude 3 mm

(1/8 inch) from the wall, and then position the phone stand mounting

holes (as shown in Figure 6, Method A) over the screw heads. You

may need to remove the phone from the wall to adjust the lower screws. When the lower screws fit snugly, tighten the top screws.

Method B: Attach the 15-cm (6-inch) CAT5e cable (not supplied), position the phone stand mounting holes (shown in

Figure 6

, Method

B) over the mounting rivets, push the phone onto the mounting rivets and down, to lock the phone into position.

7. Replace the stand cover. Ensure that all cables are neatly routed and press the stand cover into place until you hear an audible click.

21


8. Put the phone in the wall-mount position. If you wall-mounted your phone, put it in the wall-mount position by pressing the Tilt Lever and pushing the phone towards the stand until the phone is nearly parallel with the stand. Release the Tilt Lever and continue to gently push the phone towards the stand until you hear an audible click (from the

Wall-Mount lever). Ensure the phone is securely locked in position.

22

Telephone features


Your IP Phone 1110 has both server-based telephone features and local

(telephone-based) tools. Server-based telephone features are accessed through the Telephone Options menu item on the Services menu. Press the Services key once to access the Services menu, which has the following menu items:

•

Telephone Options

— enables you or your system administrator to select and configure server-based telephone features. For more information, see

Telephone Options below.

• Password Admin

— enables you or your system administrator to manage the Station

Control Password (SCPW). For more information, see

Station

Control Password on page 94.

• Virtual Office Login and Test Local Mode (for Branch Office)

— are present only when your phone’s Class of Service is configured for Virtual Office and Branch Office. For more

information, see “Using Virtual Office” on page 78.

Note: The Password Admin , Virtual Office Login , and Test Local

Mode menus are not available on all IP Phone 1110 telephones.

Consult your system administrator.

Telephone Options

The Telephone Options menu item provides you with access to the following features on your IP Phone 1110:

•

“Volume adjustment...” on page 25

•

“Contrast adjustment” on page 26

•

“Language...” on page 27

•

“Date/Time...” on page 28

•

“Local Dialpad Tone” on page 28

23


•

“Set Info” on page 29

•

“Diagnostics” on page 30

•

“Ring type...” on page 31

•

“Call timer” on page 32

•

“Live Dial Pad” on page 32

When an option has a submenu, an ellipses (...) appears after the option.

Using the Telephone Options menu:

1. Press the Services key.

2. Press the Up/Down navigation keys to scroll and locate Telephone Options .

3. Press the Enter key.

1. Use the Up/Down navigation keys to scroll and locate an option (for example,

Contrast adjustment ).

2. Press the Enter key. The display provides information required to adjust your selection.

24


Select or

Cancel

3. Choose one of the following:

— Press the Select context-sensitive soft key to save any changes and return to the Telephone Options menu.

— Press the Cancel context-sensitive soft key to keep existing setting and return to the Telephone Options menu.

Volume adjustment...

To adjust the volume, press the Services key, select Telephone

Options , and then select Volume adjustment…

Adjusting the volume:

1. Press the Up/Down navigation keys to scroll and locate one of the following items:

— Ringer

— Handset listen

— On-Hook listening/dialing


25


Down or or

Up

3. To increase or decrease the volume, do one of the following:

— Press the Up or Down contextsensitive soft keys.

— Press the Up or Down navigation keys.

Select or

Cancel


— Press the Select context-sensitive soft key to save the volume level and return to the Telephone Options menu.

— Press the Cancel context-sensitive soft key to keep existing configurations.

Contrast adjustment

To adjust the LCD display screen contrast, press the Services key, select

Telephone Options , and then select Contrast adjustment .

Adjusting the display screen contrast:

Lower or or

Higher 1. To increase or decrease the display contrast level, choose one of the following:

— Press the Lower or Higher contextsensitive soft keys.

— Press the Up/Down navigation keys.

26


Select or

Cancel


— Press the Select context-sensitive soft key to save the contrast level and return to the Telephone

Options menu.


Language...

The LCD display is available in multiple languages. To choose a language, press the Services key, select Telephone Options , and select

Language…

Selecting a language:

1. Press the Up/Down navigation keys to scroll and highlight the desired language

(for example, German [Deutsche]).

Select or

Cancel


— Press the Select context-sensitive soft key to save the language and return to the Telephone Options menu.


27


Date/Time...

Several date and time formats are available. Formats are based on the

12-hour and 24-hour clocks. To select the date and time format, press the

Services key, select Telephone Options , and select Date/Time…

Selecting a date and time format:

1. Press the Up/Down navigation keys to scroll and highlight the desired format.

Sample formats appear on the upperright side of the display area.

Select or

Cancel


— Press the Select context-sensitive soft key to save the format and return to the Telephone Options menu.


Local Dialpad Tone

The Local DialPad Tone option produces Dual-Tone Multi-Frequency

(DTMF) sounds, a single tone, or no sound when you press a key on the dialpad. To choose a local dialpad tone, press the Services key, select

Telephone Options , and select Local DialPad Tone .

28


Choosing a local dialpad tone:

1. Press the Up/Down navigation keys to highlight one of the following dialpad tones:

— None to disable all tones

— Short Click to enable a single tone for all keys

— DTMF to turn on a separate DTMF tone for each key

Select or

Cancel


— Press the Select context-sensitive soft key to save the tone selection and return to the Telephone

Options menu.


Set Info

The Set Info option displays the following telephone-specific information:

• General Info

• Set IP Info

• Ethernet Info

• Server Info

• Location Info

• Encryption Info

To view telephone-specific information, press the Services key, select

Telephone Options , and select Set Info .

29


Viewing telephone-specific information:

1. Press the Up/Down navigation keys to scroll through the list to view the telephone information.

Cancel 2. Press the Cancel context-sensitive soft key to return to the Telephone Options menu.

Diagnostics

The Diagnostics option displays the following telephone-specific information:

• Diag Tools (Ping, do Route Traces)

• EtherStats (Speed, Auto Neg, CRC Errors, Collision)

• IP Stats (Packet Info)

• RUDP Stats (Msg receive/trans)

• QOS Stats

To view diagnostic information, press the Services key, select

Telephone Options , and select Diagnostics .

Viewing telephone-specific diagnostic information:

1. Press the Up/Down navigation keys to scroll through the list of diagnostic information.

30


Cancel 2. Press the Cancel context-sensitive soft key to return to the Telephone Options menu.

Ring type...

The Ring type… option configures the telephone’s ring tone. To choose a ring type, press the Services key, select Telephone Options , and select

Ring type…

Choosing a ring type:

1. Press the Up/Down navigation keys to scroll and highlight one of the ring types.

Play

Select

Stop

Cancel

2. Press the Play context-sensitive soft key to sample the ring tone.


— Press the Select context-sensitive soft key to save the ring type and return to the Telephone Options menu.

— Press the Stop context-sensitive soft key and use the Up/Down navigation keys to select a different ring type.


31


Call timer

The call timer measures how long you are on each call. To enable Call timer, press the Services key, select Telephone Options , and select

Call timer .

Enabling or disabling Call Timer:

On or

Off


— To turn on the call timer, press the

On context-sensitive soft key.

— To turn off the call timer, press the

Off context-sensitive soft key.

Select or

Cancel


— Press the Select context-sensitive soft key to save the configuration and return to the Telephone

Options menu.


Live Dial Pad

Use Live Dialpad to dial a number using the telephone keypad without having to pick up the handset, press the Handsfree key, or press the Line

(DN) key.

Note: Live Dialpad activates the primary DN key.

32


Configuring Live Dialpad

To configure Live Dialpad, press the Services key, select Telephone

Options , and select Live Dial Pad

1. Press the Up/Down navigation keys to scroll and highlight one of the following:

— On

— Off

Select or

Cancel


— Press the Select soft key to save the configuration.

— Press the Cancel soft key to keep existing configurations.

33

Local tools

Local tools

Your IP Phone 1110 has both local and server-based telephone tools and features. This section discusses the various tools and features available locally on your IP Phone 1110. Many of the tools and features discussed in this section are for administrator use only. Do not make any changes unless instructed by an administrator.

Local tools and features are accessed through the Local tools menu .

Press the Services key twice to access this menu. Your system administrator can establish a password for the Local tools menu. When the password is enabled, a password prompt appears when you attempt to access this menu. If this happens, contact your system administrator.

The Local tools menu has the following menu options:

•

1. Preferences (p. 35)

•

2. Local Diagnostics (p. 38)

•

3. Network Configuration (p. 39)

•

4. Lock Menu (p. 40)

Local tools menu options are preceded by numbers. Pressing the associated number key on the dialpad triggers the corresponding feature or tool. For example, when you are in the Local tools menu, you can select the Local Diagnostics menu option by pressing the 2 key on the dialpad.

The functions of some navigation keys on your IP Phone 1110 vary depending on the situation. The navigation controls for menus are described in

Table 1

Table 1: Navigation controls for menus (Part 1 of 2)

Key Function

Down arrow keys Dislay next menu item.

Up arrow keys

Left arrow key

Display previous menu item.

Close the menu.

34

Local tools

Table 1: Navigation controls for menus (Part 2 of 2)

Key

Right arrow key

Enter key

Enter digit on the dialpad

Cancel contextsensitive soft key

Function

Select the current menu item.

Select the current menu item.

Select correspondingly numbered menu item.

Exit the Local tools menu option or feature/tool.

When you are working in Edit mode, the first field of the item is highlighted and a blinking cursor is to the right of the current edit position. The

navigation controls for Edit mode are described in Table 2 .

Table 2: Navigation controls for Edit mode

Key

Left arrow key

Enter key

Enter digit on the dialpad

Asterisk (*)

Function

Delete a character in the edit field.

Ends editing function.

Inserts digits at current position

Enters a dot (“.”) at current position.

1. Preferences

When the Preferences option is selected from the Local tools menu, a

Preferences submenu appears. This submenu provides access to tools used for controlling various local display preferences for your

IP Phone 1110.

The Preferences submenu provides access to the following tools:

•

“1. Contrast” on page 36

•

“2. Languages...” on page 36

35

Local tools

•

“3. Backlight Timer” on page 37

1. Contrast

Use the Contrast tool to adjust the contrast of the LCD display screen on your IP Phone 1110.

To adjust the contrast of the LCD display screen, press the Services key twice to open the Local tools menu, press the 1 key on the dialpad to select the Preferences menu option, and then press the 1 key on the dialpad to select the Contrast tool from the Preferences submenu.

Note: The initial contrast setting for the LCD display screen is downloaded from the server when your telephone is first configured by your system administrator. Selecting the Contrast tool from the

Preferences submenu in Local tools automatically sets the LCD display screen contrast to the telephone’s local contrast setting, even if the Cancel context-sensitive soft key is pressed.

Adjusting the LCD display screen contrast:

1. Press the Up/Down arrow keys to increase or decrease the value for the display screen contrast.

Cancel

2. Press the Enter key to select the currently displayed value and exits the menu.

3. Press the Cancel context-sensitive soft key to exit the menu with no change.

2. Languages...

Use the Languages...

tool to select the language used locally on your

IP Phone 1110.

36

Local tools

Note: The Telephone Options menu is synchronized with the selected language.

To access the local language tool , press the Services key twice to open the Local tools menu, press the 1 key on the dialpad to select the

Preferences menu option, and then press the 2 key on the dialpad to select the Languages...

tool from the Preferences menu.

Selecting a local tools language:

1. Press the Up/Down navigation keys to scroll and highlight the desired language

(for example, German [Deutsche]).

Cancel

1. Press the Enter key to select the desired language and exit the menu.


3. Backlight Timer

Use the Backlight Timer tool to adjust how long the LCD display screen remains lit when your phone is inactive.

To access the Backlight Timer tool, press the Services key twice to open the Local tools menu, press the 3 key on the dialpad to select the

Preferences menu option, and then press the 1 key on the dialpad to select the Backlight Timer tool from the Preferences menu.

Note: The backlight timer is displayed in the format xxx, where xxx is a time in minutes or hours.

37

Local tools

Adjusting the Backlight Timer:

1. Press the Up/Down arrow keys to increase or decrease the backlight timer.

— Available values for the backlight timer are as follows:

5m (5 minutes)

15m (15 minutes)

30m (30 minutes)

1h (1 hour — default)

2h (2 hours)

Never (screen does not go black)

— Choosing a high backlight timer value or Never, reduces the life span of the display screen.

Cancel

2. Press the Enter key to select the desired backlight timer value and exit the menu.


2. Local Diagnostics

When the Local Diagnostics option is selected from the Local tools menu, a Local Diagnostics submenu appears. This submenu provides access to tools used for monitoring and controlling the operation of your

IP Phone 1110.

The Local Diagnostics submenu provides access to the following tools:

•

“1. IP Set&DHCP Information” on page 39

38

Local tools

•

“2. Network Diagnostic Tools” on page 39

•

“3. Ethernet Statistics” on page 39

•

“4. IP Network Statistics” on page 39

When in the submenu, press the Cancel context sensitive soft key to exit the menu. When a Local Diagnostics tool is selected, use the Return context-sensitive soft key to exit the tool and return to the Local

Diagnostics submenu.

Use the Return context-sensitive soft key to quickly gather information and run tests. For example, you can check Ethernet Statistics (submenu option 3), press the Return context-sensitive soft key to return to the

Local Diagnostics submenu and then select Network Diagnostics

Tools (submenu option 2) to ping an IP address.

1. IP Set&DHCP Information

The IP Set&DHCP tool is used to view reports about IP set and DHCP operation. This tool is for administrator use only.

2. Network Diagnostic Tools

The Network Diagnostic Tools menu contains tools that are used to diagnose network problems. This menu is for administrator use only.

3. Ethernet Statistics

The Ethernet Statistics tool is used to view reports about Ethernet operation. This tool is for administrator use only.

4. IP Network Statistics

The IP Networks Statistics tool is used to view reports about network operation. This tool is for administrator use only.

3. Network Configuration

When the Network Configuration option is selected from the Local tools menu, network configuration data is displayed for your

IP Phone 1110. This tool is for administrator use only.

39

Local tools

4. Lock Menu

When the Lock Menu option is selected from the Local tools menu, a

Lock Menu submenu appears. This submenu provides access to tools used for controlling access to the Local tools menu itself or various

Local tools menu options. This tool is for administrator use only.

40

Call features and Flexible Feature Codes

Call features and Flexible Feature

Codes

Some call features are not available on all IP Phones. Call features and

Flexible Feature Codes (FFCs) must be assigned to your telephone and supported by system software. Contact your system administrator to assign these features and codes to your IP Phone.

Note:

Use table “Flexible Feature Codes (FFC)” on page 97 to record

the FFCs that your system administrator assigns to your phone.

41

Making a call

Making a call

This section describes features associated with making a call. You can make a call from your IP Phone 1110 using any of the following methods:

•

“Using Off-hook dialing” on page 42

•

“Using On-hook Dialing” on page 43

•

“Using Predial” on page 43

•

“Using Ring Again” on page 44

•

“Using Last Number Redial” on page 46

•

“Using Speed Call” on page 47

•

“Using System Speed Call” on page 48

Using Off-hook dialing

1. Lift the handset.

2. Dial the number.

or

(Goodbye)

3. To terminate the call, choose one of the following:

— Replace the handset into the cradle.

— Press the Goodbye key.

42

Making a call

Using On-hook Dialing

1. Leave the handset in the cradle.

2. Press the line (DN) key.

3. When the dial tone sounds, dial the number.

4. When the called party answers, lift the handset.

5. To terminate the call, choose one of the following:

— Replace the handset into the cradle.

— Press the Goodbye key.

or

(Goodbye)

Using Predial

Use the Predial feature to enter, preview, and edit numbers before dialing.

To use Predial:

1. Without selecting the line key, enter the number to be dialed.

43

Making a call or


— Lift the handset to dial the number.

— Press the line key (DN) to dial the number.

3. If the Line key is used to dial the number, lift the handset when the called party answers.

To edit a Predial number:

1. Use the dialpad to enter the number.

Clear or

Delete


— To erase all numbers, press the

Clear context-sensitive soft key.

Reenter the numbers to be dialed.

— To change one number at a time, press the Delete context-sensitive soft key to backspace. Re-enter the number.

3. Press the line key to dial the number.

Using Ring Again

Use the Ring Again feature if you receive a busy tone or if there is no answer. Your IP Phone rings when the person you called becomes available. Ring Again automatically redials the number.

44

Making a call

To activate Ring Again:

RngAgn or

1. Dial a number and receive a busy tone or no answer.


— Press the Ring Again contextsensitive soft key.

— Enter the Ring Again Activate FFC.

To call a Ring Again party when you receive notification:

1. After receiving the notification ring, lift the handset.

RngAgn 2. Press the Ring Again context-sensitive soft key to automatically dial the number.

To deactivate Ring Again before notification:

RngAgn or

Choose one of the following:

— Press the Ring Again contextsensitive soft key a second time.

— Enter the Ring Again Deactivate

FFC.

45

Making a call

Using Last Number Redial

Use the Last Number Redial feature to automatically redial the last dialed number.

To use Last Number Redial:

Choose one of the following: or

1. To redial using the handset:

— Lift the handset.

— Press the line (DN) key.

2. To redial without lifting the handset, press the line (DN) key twice (the last number dialed is automatically redialed).

46

Making a call

Using Speed Call

Use the Speed Call feature to place internal and external calls by dialing a one-, two-, or three-digit code to store, edit, and automatically dial frequently called telephone numbers.

To store a Speed Call number:

SpcCtl

SpcCtl

1. Press the Speed Call Controller context-sensitive soft key. The triangular icon flashes, indicating programming mode.

2. At the prompt:

— Enter a one-, two-, or three-digit code (0-999).

— If required, dial the access code.

— Enter the telephone number

(internal, external or long-distance number).

3. Press the Speed Call Controller context-sensitive soft key again to save the code and number. The flashing icon turns off.

To make a Speed Call:


47

Making a call

SpcCtl 2. Press the Speed Call Controller context-sensitive soft key.

3. Dial the Speed Call code to automatically dial the number.

Using System Speed Call

Use the System Speed Call feature to dial Speed Call codes that override dialing restrictions placed on your telephone.

To make a System Speed Call:


SScUsr or

SScCtl


— Press the System Speed Call context-sensitive soft key.

— Press the System Speed Call

Controller (SScCtl) key.

3. Dial the Speed Call code to automatically dial the number.

48

Answering a call

Answering a call

Each incoming call causes the telephone to ring and the Message

Indicator lamp to flash.

To answer a call:

Lift the handset.

Note: Do not use the Line (DN) key to anwer a call.

While on an active call

This section describes the following features, available during an active call:

•

“Placing a call on hold” on page 49

•

“Transferring a call” on page 50

•

“Using Timed Reminder Recall” on page 51

•

“Using Call Park” on page 52

•

“Recording a Calling Party Number” on page 54

•

“Tracing a malicious call” on page 55

Placing a call on hold

Use the Hold feature to place an active call on hold.

49


To place a call on hold:

(Hold)

To retrieve a call on hold:

Press the Hold key.

Press the line (DN) key.

Transferring a call

Use the Transfer feature to redirect a call to the appropriate person.

To transfer a call to a third party:

Trans 1. Press the Transfer context-sensitive soft key. The other party is put on hold and a dial tone sounds.

2. Dial the DN to which you are transferring the call.

Trans 3. When that number rings or a person answers, press the Transfer contextsensitive soft key to connect the calling party.

50


To return to the original call, if the transfer is incomplete:

If the person called is not available, press the Line (DN) key to reconnect to the original call.

Using Timed Reminder Recall

Use the Timed Reminder Recall feature to receive a reminder tone when a transferred call is not answered.

To use Timed Reminder Recall:

Trans 1. Press the Transfer context-sensitive soft key. The call is put on hold.

Trans or

2. Dial the number to which you are transferring the call.

3. Choose one of the following to start the recall timer:

— Press the Transfer context-sensitive soft key.

— Replace the handset before the extension answers.

Note: If the transfer is complete, the recall timer stops.

51


If the transferred call is not answered, your telephone rings:

Trans or

(Goodbye)

1. Lift the handset to reconnect to the original caller.


— Press the Transfer context-sensitive soft key and repeat the transfer.

— If the transfer is picked up while you are on the line, press the Goodbye key to complete the transfer.

Using Call Park

Use the Call Park feature to hold temporarily (park) and retrieve a call from any telephone. Using Call Park does not tie up a line. When configured network-wide, Call Park can be used across networks. A

System Park extension can be configured to automatically park most calls.

To park a call on the System Park DN or your own DN:

Park Park

During an active call, press the Park context-sensitive soft key twice.

Note: By default, the call is parked on your DN unless a System Park DN is enabled to automatically park calls on the system.

52


To park a call on a DN other than the System Park DN or your own

DN:

Park 1. Press the Park context-sensitive soft key.

Park

2. Dial the DN where you want to park the call.

3. Press the Park context-sensitive soft key.

To park a call using the SPRE code or FFC:

Trans or

Conf



— Press the Conference contextsensitive soft key.

2. Dial the Call Park FFC.

3. To use an alternate DN from the System

Park DN or your own DN, dial the DN where you want to park the call.

Otherwise, proceed to step 4.

53


Trans or

Conf




To retrieve a parked call:


Park 2. Press the Park context-sensitive soft key.

3. Dial the DN where you parked the call.

Note: If a parked call is not retrieved within a specified period of time, it rings back to your telephone.

Recording a Calling Party Number

Use the Calling Party Number feature to record a caller’s number, or to charge a call to an account number, during an established call.

To record a caller’s number for accounting purposes:

CParty 1. Press the Call Party context-sensitive soft key. The caller is placed on hold.

54

CParty


2. Dial a charge account number or the caller’s number.

Note: For information on using the

Charge

key, see “Charging a call or charging a forced call” on page 68.

3. Press the Call Party context-sensitive soft key to return to the call.

Tracing a malicious call

Use the Call Trace feature to trace nuisance calls within your system.

Note: This is not a default feature. Contact your system administrator to configure this feature on your telephone.

To activate Call Trace:

Trans or

Conf




2. Dial the SPRE code followed by 83 or dial the Call Trace FFC to automatically reconnect.

Note: Contact your system administrator for the Call Trace feature

SPRE code.

55

While away from your desk


You can use the following features when you are away from your desk:

•

“Using Call Forward” on page 56

•

“Using Internal Call Forward” on page 57

•

“Using Remote Call Forward” on page 58

•

“Securing your telephone” on page 60

Using Call Forward

Use the Call Forward feature to direct incoming calls to ring on another line (DN). If the telephone is ringing, the call cannot be forwarded.

To forward your calls or change the forward number:

Fwd


— Press the Forward context-sensitive soft key.

— Lift the handset and enter the Call

Forward All Calls Activate FFC.

Fwd

2. Dial the DN where you want to forward your calls.

3. Press the Forward context-sensitive soft key.

56


To deactivate Call Forward:

Fwd or


• Press the Forward context-sensitive soft key.

• Lift the handset and enter the Call

Forward All Calls Deactivate FFC.

To reinstate Call Forward to the same number:

Fwd Fwd

Press the Forward context-sensitive soft key twice.

Using Internal Call Forward

Use Internal Call Forward to accept only calls originating at internal DNs to ring at another DN. Calls originating outside your telephone system still ring at your telephone. Current incoming calls cannot be forwarded.

To forward internal calls:

1. Lift the handset and enter the Internal

Call Forward Activate FFC.

2. Dial the DN to which you are forwarding your internal calls.

57


3. Return the handset to the handset cradle.

To deactivate Internal Call Forward:

Lift the handset and enter the Internal

Call Forward Deactivate FFC.

Using Remote Call Forward

Use the Remote Call Forward feature (from any telephone other than your own) to forward calls to any telephone.

To activate Remote Call Forward:


2. If you are calling from a telephone outside the system, dial your direct system access number and wait for the dial tone.

3. Dial the Remote Call Forward Activate

FFC to activate the feature.

4. Dial your Station Control Password . A dial tone sounds.

58

or



— Dial your DN.

— To forward calls to the previous call forward telephone number, press the # key. (Do not perform steps 6 and 7.)

6. Dial the number to which you are forwarding calls. If calls are forwarded to an invalid number, a fast busy signal sounds.

7. Press the # key.

To deactivate Remote Call Forward:


2. If you are calling from a telephone outside the system, dial the direct system access number and wait for the dial tone.

3. Dial the Remote Call Forward

Deactivate FFC.

4. Dial your Station Control Password .

59


5. After you hear the dial tone, dial your

DN.

6. Press the # key.

Securing your telephone

Use the Electronic Lock feature to prevent others from making calls from your telephone. The Electronic Lock feature is controlled using the corresponding Flexible Feature Codes (FFC) and your Station Control

Password (SCPW).

To lock your telephone:


2. Dial the Electronic Lock Activate

Flexible Feature Code (FFC).


(Goodbye) or


— If you are dialing locally, press the

Goodbye key.

— If you are dialing the FFC remotely, dial your DN.

60


To unlock your telephone:


2. Dial the Electronic Lock Deactivate

FFC.


(Goodbye) or


— If you are dialing locally, press the

Goodbye key.

— If you are dialing the FFC remotely, dial your DN.

61

Talking with more than one person


Use the following features to enable conversations between more than two people:

•

“Setting up a conference call” on page 63

•

“Using Group Call” on page 64

62


Setting up a conference call

Use the Conference feature to set up a conference call for a maximum of three or six people including yourself. The maximum number of people the conference feature supports depends on the configuration of your telephone.

To set up a conference call:

Conf

Conf

1. While on a call, press the Conference context-sensitive soft key to place the party on hold. You hear a dial tone.

2. Dial the number of the person you want to add to the conference call. You can talk privately to the person you are adding at this time.

3. Press the Conference context-sensitive soft key a second time to conference all parties together.

If the person you attempt to add to the conference is unavailable:

1. Press the Goodbye key.

(Goodbye)

2. Press the line (DN) key to return to your original call .

63


Using Group Call

Use the Group Call feature to automatically call members of a predefined group, one at a time, until all members answer.

To call group members:


2. Enter the Group Call FFC .

— The feature automatically calls all group members.

— The telephone numbers of the group members appear on the display as they answer.

Note 1: After everyone in the group has answered, only the person who made the group call can put the call on hold.

Note 2: When a person in your group is on a conference call or another group call, they are not connected to your group call.

64


To answer a group call:

1. Lift the handset. Note the following about notification tones:

— If you are on a call and receive three

10-second tones, this is the notification of a group call on your current extension.

— If you are on a call on another line when a group call is made, you receive a long tone through the handset or speaker.

— If you are already on a conference call or another group call, you do not receive notification of a group call.

To end a group call:

(Goodbye)

Press the Goodbye key.

Note: When the person who made the group call disconnects, the call terminates for all members of the group.

However, the members of the group call can disconnect from the call and not affect other members on the call.

65

Working without interruption

Working without interruption

This section describes the Activating Make Set Busy feature, which provides uninterrupted work time.

Note: Uninterrupted work time can also be obtained by forwarding

your calls to another telephone number (see Using Call Forward on page 56) or directing your calls to your voice mailbox.

Activating Make Set Busy

Use the Make Set Busy feature to make your telephone appear busy to all callers.

To activate Make Set Busy:

Lift the handset and enter the Make Set

Busy Activate FFC.

To deactivate Make Set Busy:

Lift the handset and enter the Make Set

Busy Deactivate FFC.

66

Additional call features


Contact your system administrator to determine if the following call features are available on your telephone.

•

“Using Call Page Connect to make an announcement” on page 67

•

“Charging a call or charging a forced call” on page 68

•

“Using Enhanced Override” on page 71

•

“Using Forced Camp-on” on page 72

•

“Overriding a busy signal” on page 74

•

“Using Privacy Release” on page 74

•

“Using Radio Page” on page 75

Using Call Page Connect to make an announcement

Use the Call Page Connect feature to make an announcement over a paging system.

Note: A Page key on an attendant console overrides and disconnects the telephones. The telephones must reaccess the page trunk.

To connect to Call Page:


2. Dial the Page Trunk Access Code to complete the connection to the page system.

3. Make your announcement.

67


4. Press the Goodbye key .

(Goodbye)

Charging a call or charging a forced call

Use the Call Charge feature to charge a call to a specific account.

The Forced Charge feature charges long-distance calls from a telephone restricted to local calls.

To charge a local or long-distance call to an account before you dial:


Charge 2. Choose one of the following:

— Press the Charge context-sensitive soft key.

— Dial the Call Detail Recording FFC.

3. Dial the charge account number.

4. When the dial tone sounds, dial the number.

68


To charge a call in progress:

Trans or

Conf




Charge or





4. Press the line (DN) key to return to the call.

To charge a call to an account when you transfer a call:

Trans 1. Press the Transfer context-sensitive soft key. The call is on hold.

69


Charge or





4. After the dial tone, dial the number to which you are transferring the call.

Trans 5. Press the Transfer context-sensitive soft key when you hear the telephone ring.

Note: You can talk privately to the person at the transfer number before you press the Transfer context-sensitive soft key.

To charge a call to an account when you add someone to a conference call:

Conf 1. Press the Conference context-sensitive soft key. The call is placed on hold.

70

Charge or






Conf

4. Dial the number of the person you want to add to the conference.

5. Press the Conference context-sensitive soft key.

Using Enhanced Override

Use the Enhanced Override feature to override an active call after you attempt a Forced Camp-on. Use Enhanced Override to make a call or a consultation call, such as placing a call on hold and calling another party.

To use Enhanced Override:

You receive a busy signal after dialing a telephone number.

71


EnhOvr or

1. Enter the Override FFC to initiate a

Forced Camp-on.

— If either person on the call disconnects at this time, you receive an overflow (fast busy or engaged) signal.

2. Enter the Override FFC again.

— The other two people on the call receive an override tone and a conference call is established between the three of you. If anyone disconnects, the other two people remain connected.

3. To terminate the call, press the

Goodbye key.

(Goodbye)

Using Forced Camp-on

Use the Forced Camp-on feature to automatically ring another telephone

(internal or external) immediately after that telephone disconnects from its current call.

To use Forced Camp-on:


72


1. Enter the Override FFC, to initiate a

Forced Camp-on.

Note: The person you called receives a tone, and you receive a ring signal or a busy signal, depending on the options chosen. You are now camped-on to the number you dialed.

2. Return the handset to the cradle.

— When the person you called finishes their call, your telephone automatically dials the number and both telephones ring.

Answering a call camped-on to your extension:

When your telephone rings, lift the handset.

Note: You can program your telephone for either Camp-on or Call Waiting, but not both.

73


Overriding a busy signal

Use the Override feature to override a busy signal and interrupt another call.

To override a busy signal:


1. Enter the Override FFC.

— The people in the targeted call receive a tone for approximately 1 second. After Override joins you to their call, a short tone repeats every

16 seconds.

2. To terminate the call, press the

Goodbye key.

(Goodbye)

Using Privacy Release

Use the Privacy Release feature to enable one or more people who share your DN to join a call.

74


To use Privacy Release in an established state:

PrvRls Press the Privacy Release context-sensitive soft key during a call.

— People can join the call by pressing the shared number (DN) key on their telephone (Multiple Appearance DN feature).

Using Radio Page

Use the Radio Page feature to page a person and stay on the line until they answer. The paged person answers the call after entering a special

Page Meet-me code from any telephone.

To use Automatic Preselection (Meet-me page):


2. Dial the Radio Paging Access FFC.

— The paging tone sounds (two beeps followed by a dial tone).

3. Dial the number of the party you want to page.

— After dialing, the ringback tone sounds.

Note: The paged person can use any telephone to enter a Radio Paging

Answer FFC, plus their own DN number.

75


(Goodbye) or

4. If your call goes unanswered for a preset time period and a 15-second high- pitched tone sounds followed by silence, press the Goodbye key or replace the handset.

To use Automatic Post-selection:

The called party is either busy on the telephone or away from their desk.

To page the called party, you do not need to redial the number of the called party.

RadPag 1. Press the Radio Page context-sensitive soft key.

— A special dial tone sounds.

(Goodbye) or

2. Dial the Radio Paging Access FFC.

— The ringback tone sounds.

Note: The paged person can use any telephone to enter a Radio Paging

Answer FFC, plus their own DN number.

3. If your call goes unanswered for a preset time period and a 15-second high- pitched tone sounds, followed by silence, press the Goodbye key or replace the handset.

76


To answer a Radio Page:

If you carry a Radio Pager, a page indicates that someone dialed your

DN. If the Radio Page system is configured to function in Meet-me mode, you can answer the page call from any telephone.


2. Dial the Radio Paging Answer FFC.

— The paging tone sounds.

3. Dial your own DN to connect to the paging caller. If the caller has disconnected, a steady high-pitched

(number unavailable) tone sounds.

77

Additional phone features


The following features are described in this section:

•

Secure Communication (p. 78)

•

Using Virtual Office (p. 78)

•

Using Media Gateway 1000B (p. 88)

Secure Communication

Your IP Phone 1110 supports secure communication with other Nortel IP

Phones by encrypting your calls using a Pre-Shared Key (PSK). If the

PSK feature is enabled on both Nortel IP Phones, a PSK security icon

(:) is displayed on the LCD screen when a secure communication link is established. Consult your system administrator to find out if this feature is enabled on your IP Phone.

Using Virtual Office

The Virtual Office feature provides a service you can use while you are away from your desk to transfer calls, and all your office telephone features, to a remote telephone. Virtual Office makes this possible by allowing you to use another IP Phone (the Remote phone) to log in to your own home or office IP Phone (the Office phone). After you log in, you can access the DNs, key layout, and voicemail features that are configured on your own home or office IP Phone.

To use Virtual Office, you need your DN and preconfigured Station

Control Password (SCPW). You must activate Virtual Office on your

Office phone before you can connect to it from a Remote phone. See

“Logging in to Virtual Office” on page 79.

Note: Consult your system administrator to verify if the Virtual Office feature is available for your use.

78


You can use an IP Phone as a Remote phone to connect to your

IP Phone 1110 even if it is a different IP Phone model.

Table 3

shows the

IP Phones on which you can use Virtual Office to connect to your

IP Phone 1110.

Table 3: Virtual Office connection availability

IP Phone model

IP Phone 1110

IP Phone 1120E

IP Phone 1140E

IP Phone 2001

IP Phone 2002

IP Phone 2004

IP Phone 2007

IP Audio Conference

Phone 2033

IP SoftPhone 2050

Possible to log in to the 1110?

Yes

Yes, with restrictions


Yes






Note 1: When logged into an IP Phone 1110 from another IP Phone using Virtual Office, your IP Phone is limited to the features available on the IP Phone 1110.

Note 2: A Virtual Office login to an IP Phone 1110 from another IP

Phone is blocked in certain situations. Consult your system administrator.

Logging in to Virtual Office

To activate Virtual Office on your Office telephone from your Remote telephone:


(Services)

79


2. Press the Up/Down navigation keys to scroll and highlight Virtual Office Login .


4. At the prompt, enter your user ID.


6. At the prompt, enter the home Station

Control Password (SCPW) .

A successful login transfers all the features, time, date, and tones to your

Remote telephone from your Office telephone.

Note 1: If the user ID is not found locally, the message “Locating Remote Server” is displayed.

Note 2: After three failed login attempts, wait 1 hour before attempting to log in again, or contact your system administrator to reset your password.

Note 3: Your Virtual Office session expires after a fixed period of time,

(determined by your system administrator).

80


Using Virtual Office on your Remote telephone

Because the display characteristics, including size, vary from one IP

Phone model to the next, your Office IP Phone 1110 display is different

on each Remote phone. Figures 7 to

9

show LCD displays of various IP

Phones when they are logged on to an IP Phone 1110 using Virtual

Office.

Figure 8 shows an IP Phone 1120E logged in as a Remote phone to an

IP Phone 1110 Office phone.

Figure 7: IP Phone 1120E logged in to an IP Phone 1110

81


Figure 8

shows an IP Phone 1140E logged in as a Remote phone to an

IP Phone 1110 Office phone.

Figure 8: Logged in to an IP Phone 1110 using an

IP Phone 1140E

82


Figure 9

shows an IP Softphone 2050 logged in as a Remote phone to an IP Phone 1110 Office phone.

Figure 9: Logged in to an IP Phone 1110 using an

IP Softphone 2050

Note 1: On the displays of the IP Phone 2002, IP Phone 2004,

IP Phone 1120E, IP Phone 1140E, and IP Softphone 2050, the feature keys remain empty (except for the appearance of your DN), as your IP Phone 1110 does not support feature keys.

Note 2: A User information line appears on all displays listing the number of your office telephone.

Using Virtual Office on your Office telephone

Figure 10 shows the IP Phone 1110 display when the phone is logged

out due to remote access.

83


Figure 10: Office phone displays the message Logged Out

When activated for Virtual Office by a Remote telephone, your Office telephone is logged out and no longer operational. If this is the case when you return to your office, you can disconnect the remote login and regain control of your Office phone. If you do not disconnect the remote login, your Virtual Office session expires after a fixed period of time, determined by your system administrator.

84


To regain operation of a telephone being used for Virtual Office:


Home or

— To completely disconnect your

Office telephone from the Remote telephone: a. Press the Home context-sensitive soft key.

b. Enter your User ID and password

(this logs the Office telephone back on to your office network).

Vrtual

— Press the Virtual context-sensitive soft key to log in to another IP

Phone, and your telephone becomes a Remote telephone.

Logging out of Virtual Office

While working on a Remote phone, you can log out of Virtual Office using the following steps.

To log out from a Remote telephone:


(Services)

2. Press the Up/Down navigation keys to scroll and highlight Virtual Office

Logout .


85


Troubleshooting Virtual Office

Virtual Office can display error messages on-screen. Table 4 lists error

messages and describes actions to correct the causes.

Table 4: Troubleshooting Virtual Office (Part 1 of 3)

Displayed Message

Busy, try again

Invalid ID (1)

Invalid ID (2)

Invalid ID (3)

Probable Cause

Remote IP Phone is active (not idle).

ACD is logged in.

Make Set Busy is inactive on ACD IP

Phone.

Incorrect User ID entered.

User ID is not in

Gatekeeper database.



User ID in

Gatekeeper database points to originating

Call Server.

Actions

Wait for remote IP

Phone to become idle and try again.

Log out ACD IP

Phone before Virtual

Office from another

IP Phone.

Configure Make Set

Busy active on ACD

IP Phone.

Enter correct User ID.

Notify system administrator.




86




Locked from Login

Permission Denied

(1)

Permission Denied

(3)

Permission Denied

(4)

Permission Denied

(5)

Probable Cause

Three failed attempts to enter the correct

Station Control

Password.

Actions

Wait one hour for the lock to clear automatically, or notify system administrator to clear lock.


Remote telephone has no Station

Control Password.


Remote telephone has no Station

Control Password.


Attempt to log in to a remote IP Phone

2004 or IP Softphone

2050 from an

IP Phone 1110

(some restrictions apply).


Remote telephone does not have VOUA

Class of Service.




Go to an

IP Phone 2004 or

IP Softphone 2050 and try again, or consult your local system administrator.



87




Permission Denied

(6)

Server Unreachable

(1)

Server Unreachable

(2)

Probable Cause


Incorrect Station

Control Password entered.

Network problem.

Network problem.

Actions


Select Retry, and try again with the correct

Station Control

Password.

Notify system administrator if the problem persists.

Notify system administrator if the problem persists.

Using Media Gateway 1000B

The Media Gateway 1000B (MG 1000B) provides a means of extending

CS 1000 Release 4.5 features to one or more remotely located branch offices using the Branch Office feature. A branch office is a remote location in the network where IP Phones, PSTN access, and TDM telephones are located. Contact your system administrator to see if these functions are available for your use.

The Media Gateway 1000B (MG 1000B) telephone can operate in Normal or Local Mode.

Normal Mode

The telephone registers with the Main Office and receives telephone services from the Main Office. At any time during Normal Mode, you can check Local Mode functionality (make and receive calls) by enabling

Local Mode and returning to Normal Mode. After testing, you can return to

Normal Mode (see “Using Resume Normal Mode” on page 89) or by

waiting for 10 minutes.

88


Local Mode

If the WAN connection fails, the IP Phone loses communication with the

Main Office Telephone Preference Service (TPS). It then registers with the MG 1000B and receives telephone services from the MG 1000B.

When in Local Mode, the telephone displays the message LOCAL

MODE .

This section provides more information on the following topics:

•

Using Test Local Mode

•

Using Resume Normal Mode

•

Troubleshooting MG 1000B

Using Test Local Mode

Use Test Local Mode to check Local Mode functionality (make and receive telephone calls). Test Local Mode is useful when provisioning has changed for an IP Phone on an MG 1000B Controller.


(Services)

2. Press the Up/Down navigation keys to scroll and highlight Test Local Mode .

3. Press the Enter key (the telephone resets and registers back to the Main

Office).

Using Resume Normal Mode

Use the Resume Normal Mode command to return to Normal Mode after testing survival functionality.

89


Note: If you do not use the Resume Normal Mode command after testing, the telephone automatically returns to Normal Mode in 10 minutes.


(Services)

2. Press the Up/Down navigation key to scroll and highlight Resume Normal

Mode .

3. Press the Enter key (the telephone registers back to the main office).

Troubleshooting MG 1000B

The MG 1000B can display error messages on-screen. Table 5 lists error

messages and describes actions to correct the causes.

Table 5: Troubleshooting MG 1000B (Part 1 of 2)

Display Message

Local Mode

Local Mode

Invalid ID (1)

Probable Cause

Test Local Mode.

Network problem.

Gatekeeper unable to find end point from

Branch User ID.

Actions

Press the Services key, and then select

Resume Normal

Mode.

Contact system administrator if problem persists.


90


Table 5: Troubleshooting MG 1000B (Part 2 of 2)

Display Message

Local Mode

Invalid ID (2)

Probable Cause

Branch User ID not found in any equipped TN.

Actions


91

Using Hospitality features


Hospitality features are intended for hotel operations. The following features are discussed in this section:

•

“Configuring Automatic Wake-Up” on page 92

Configuring Automatic Wake-Up

Use the Automatic Wake-Up feature to receive a timed reminder call.

From your telephone, you can program the system to automatically place a call to you at a predetermined time. When you answer the call, recorded music plays for up to 30 seconds, followed by a prerecorded announcement or the attendant.

To enter the time for an Automatic Wake-Up call:


2. Dial the Automatic Wake-Up Request

FFC.

3. Dial the Automatic Wake-Up time in a

24-hour time format (hhmm).

— A tone sounds to confirm your entered time.

Note: In a 24-hour time format,

7:30 a.m. is entered as 0730;

9:45 p.m. is entered as 2145.


(Goodbye)

92


To cancel an Automatic Wake-Up call:


2. Dial the Automatic Wake-Up Quit FFC.


(Goodbye)

To verify the time for the Automatic Wake-Up call:


2. Dial the Automatic Wake-Up Verify

FFC.

3. Dial the Automatic Wake-Up time in a

24-hour time format (hhmm). If your query matches the preset time, a confirmation tone sounds.

Note: In a 24-hour time format,

7:30 a.m. is entered as 0730;

9:45 p.m. is 2145.


(Goodbye)

93

Station Control Password


Some features on your IP Phone 1110 are supported by a Station Control

Password (SCPW). The SCPW supports the following telephone features:

• Electronic Lock

— to prevent others from making calls from your telephone

• Remote Call Forward

• Virtual Office login

• Branch Office login

Your system administrator defines your initial SCPW. Contact your system administrator for detailed information.

Changing your Station Control Password:


(Services)

2. Press the Up/Down navigation keys to scroll and highlight Password Admin .


4. Use the dialpad to enter your password at the prompt.

94


5. Press the Up/Down navigation keys to scroll and highlight New Password .


7. Use the dialpad to enter the new password.

8. Press the Enter key to accept the new password.

Note: If you are locked out of your

IP Phone 1110, or if you forget your

SCPW, contact your system administrator.

95

Accessing External Server Applications

Accessing External Server

Applications

Use External Server Applications to access a variety of applications directly from your IP Phone 1110.

To find out what features and services are available, contact your system administrator. Depending on what is available on your system, your phone can provide information; for example, local news and weather, stock market information, or traffic reports.

For more information about the External Server Applications, consult the

Nortel IP Phone External Server Applications User Guide .

96

Flexible Feature Codes (FFC)


Use Table 6 to keep track of the FFCs that the system administrator

assigns to your IP Phone 1110:

Table 6: Flexible Feature Codes (Part 1 of 2)

FFC Feature

Automatic Wake-Up

Activate

Automatic Wake-Up

Deactivate

Automatic Wake-Up

Verify

Call Detail Recording

Charge Account

Call Forward All Calls

Activate

Call Forward All Calls

Deactivate

Call Park

Electronic Lock

Activate

Electronic Lock

Deactivate

Group Call

Internal Call Forward

Activate

Internal Call Forward

Deactivate

FFC Feature

Make Set Busy Activate

Make Set Busy Deactivate

Malicious Call Trace

Override

Pickup Ringing Number

Pickup Directory Number

Pickup Group

Radio Paging Access

Radio Paging Answer

Remote Call Forward Activate

Remote Call Forward

Deactivate

RingAgain Activate

97


Table 6: Flexible Feature Codes (Part 2 of 2)

FFC Feature

RingAgain Deactivate

Station Control

Password Change

FFC Feature

Virtual Office Terminal Log Off

Virtual Office Terminal Log On

98

Regulatory and safety information


This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

Note: The user should not make changes or modifications not expressly approved by Nortel Networks. Any such changes could void the user’s authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Warnings:

• This is a Class B product. In a domestic environment this product can cause radio interference in which case the user must take adequate measures.

• Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

この装置は、情報処理装置等電波障害自主規制協議会（ＶＣＣＩ）の基準に基づくクラス

B 情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この

装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすこと

があります。

取扱説明書に従って正しい取り扱いをして下さい。

99


Table 7 lists EMC compliance for various jurisdictions.

Table 7: EMC Compliance

Jurisdiction Standard Description

United States FCC CFR 47

Canada

Australia/New

Zealand

European

Community

Part 15

ICES-003

Class B Emissions: FCC Rules for Radio

Frequency Devices

Class B Emissions: Interference-Causing

Equipment Standard: Digital Apparatus

Class B Emissions: Information technology equipment - Radio disturbance

AS/NZS 3548

CISPR 22

EN 55022

EN 55024

Class B Emissions: Information technology equipment - Radio disturbance

Information technology equipment - Immunity characteristics

Limits and methods of measurement

EN 61000-3-2 Limits for harmonic current emissions

(equipment input current <= 16 A per phase)

Japan

EN 61000-3-3 Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current <= 16 A

VCCI Regulations for voluntary control measures.

Table 8: Safety

Jurisdiction Standard Description

United States UL 60950-1

Canada

European

Community

Australia/New

Zealand

Safety of Information Technology

Equipment

CSA 60950-1-03 Safety of Information Technology

Equipment

EN 60950-1 ITE equipment - Safety - Part 1:

General requirements

AS/NZS

60950.1:2003

Safety of Information Technology

Equipment

Other Safety Approvals: IEC 60950-1: ITE equipment - Safety - Part 1:

General requirements

100


Other

US/Canada : Hearing Aid Compatibility (HAC) as per FCC Part 68

This equipment complies with the CE Marking requirements.

Australia

: AS/ACIF S004: Voice Frequency Performance Requirements for

Customer Equipment

EU Countries: This device complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration may be obtained from http://www.nortel.com/corporate/community/environment/life_cycle/ declarations.html

or Nortel Networks GmbH address: Ingolstaedter Strasse 14-18,

80807 Munich Germany.

DenAn regulatory notice for Japan

101


102

Terms you should know


Calling Party Name Display

Information appearing on the LCD display screen, such as the caller’s name and telephone number. The system must have

CPND enabled.

Category 5 (Cat5)

Cable and associated connecting hardware capable of transmitting at speeds up to 100 MHz, used by 10BaseT,

100BaseT4, 100BaseTX.

Category 5e (Cat5e)

Most Cat5 cable manufactured after 1996 also supports

1000BaseT (GigE) installations, and is designated Cat 5e. Cat5e cable normally has four pairs of copper wire.

Category 6 (Cat6)

Cable and associated connecting hardware capable of transmitting at speeds up to 200 MHz. Designed specifically to support 1000BaseT (Gig Ethernet (GigE)), it is also compatible with 10BaseT, 100BaseT4, and 100BaseTX installations. The cable normally has four pairs of copper wire.

Communication Server 1000

Your office communication system.

Date/time display

The current date and time when the telephone is in an idle state.

Directory Number (DN)

A number consisting of one to seven digits for a telephone, and also known as an extension number.

103


Feature display

An area that shows status information about the feature in use. It also displays the name and status of the active session.

Feature Status Lamp indicator

An LCD or an LED that indicates a data message, contact, or feature status by a flash, wink, steady on, or off.

Fixed key

The hard-labeled keys on your telephone.


Specialized codes entered using the dialpad that enable features

(for example, Ring Again).

Goodbye key

A fixed key used to end an active call.

Indicator

An LCD or an LED that indicates the status of a feature by the flash, wink, steady on, or off.

Information display

Any display of call activity, lists, prompts, and status of calls. On your IP Phone 1120E, this information area is one line of text and symbols. If a text message exceeds this area, a scroll arrow icon indicates that you must use the scroll keys to view the remaining text.

Information line

A one-line by 24-character area that displays date and time or application information.

104


Interrupted dial tone

A broken or pulsed dial tone that sounds when you access some features on your telephone.

Message/Inbox

A fixed key on your IP Phone 1120E that connects to your voice messaging system when the key is pressed.

Navigation keys

Keys used to scroll through menus and lists appearing on the

LCD display screen.

Off-hook

Any line selected to make a call or receive an incoming call.

The term off-hook is applied when (a) the end-user lifts up the handset, (b) the end-user presses a line key, (c) the call is automatically answered at the telephone, or (d) a line is automatically selected for an outgoing call.

Paging tone

A special tone (two beeps followed by dial tone) that sounds when you use the Radio Paging feature.

Ringback/ring tone

A sound indicating that a call you have made is ringing at its destination.

Services key

A fixed key used to access options such as Telephone Options,

Password Admin, Virtual Office Login, Virtual Office Logout, Test

Local Mode, and Resume Normal Mode.

Shared Directory Number

A DN (extension) that is shared by two or more persons.

105


Special Prefix code (SPRE)

Special codes entered using the dialpad, followed by a two-digit access code, that enable features (for example, Call Forward All

Calls requires entry of SPRE code + 74).

Soft keys

A set of keys programmed by your system administrator. These four keys, located directly below the display area, have four programmable layers. These keys are also used to configure parameters in the Telephone Options menu.

Special dial tone

The three consecutive tones followed by dial tone that you hear when accessing telephone features.

Station Control Password (SCPW)

Enables security features on your phone to prevent others from making calls from your telephone and to prevent access to protected features (for example, Remote Call Forward).

Status Messages

A message displayed to inform the user of important information.

A right arrow appears if more than one Status Message is present. Examples of Status Messages include: Message

Waiting, All Lines Forwarded to: 6453, Do Not Disturb On, Ring

Again active, and Ringer is OFF.

System or Switch

Your office communication system.

Switchhook

A button on which the handset presses down, disconnecting your call when you replace the handset. The handset (when lifted) releases the switchhook, and you either answer an incoming call or you receive a dial tone to make a call.

106


User interface

Screen displays that interact with the end user as a result of an action or event.

Visual Alerter/Message Waiting indicator

An LCD or an LED that flashes to indicate that a message is waiting or when the ringer is on.

107


108

Index

Index

A

Adjusting the display screen contrast 26

Adjusting the volume 25

AutoDial Transfer 67

Automatic Wake-Up 92

C

Call Forward 56

Call log options 32

Call Page 67

Call Page Connect 67

Call Park 52

Call party information 103

Calling 42

Calling Party Number 54

Camp-on, Forced 72

Charge a call or charge a forced call 68

Conference call 63

Configure Name Display format 31

Configuring call log options 32

Configuring Name Display format

31

Connect the components 17

Connecting the components 17

Contrast adjustment 26

D

Date/time display 103

Date/Time format 28

Directory Number 103

display areas 11

Display incoming calls 55

Display Settings 37

Display settings 37

DN 103

E

Electronic Lock 60

Enhanced Override 71

Entering and editing text

Entering text using the USB keyboard 17

Expand to PC key 14

External server applications 96

F

Feature display 104

Fixed key 104

Flexible Feature Code (FFC) 104

Flexible Feature Codes (FFCs) 97

G

Goodbye key 14, 104

Group Call 64

H

Hold key 13

Hospitality features 92

I

Indicator status 104

Information display 104

109

Index

Information line 104

Internal Call Forward 57

Interrupted dial tone 105

L

Language display 27

Last Number Redial 46

LCD screen 11

Line (DN) 13

Local Area Network (LAN) 9

Local Diagnostics 39

Local mode 89

lower display area 11

M

Make Set Busy 66

Malicious Call Trace 55

Media encryption 17

Media Gateway 1000B 88

Meet - me page 75

Message (Inbox) key 16

Message key 105

Message waiting indicator 14, 107

More key 13

N

Navigation keys 13, 105

Normal mode 88

O

Off-hook 105

Off-hook dialing 42

On-hook dialing 43

Override a busy signal 74

P

Paging tone 105

Place a call on hold 49

Predial feature 43

Privacy Release 74

R

Radio Page 75

Record a Calling Party Number 54

Regulatory and safety information

99

Remote Call Forward 58

Resume Normal Mode 89

Ring Again 44

Ringback/ring tone 105

S

Secure your telephone 60

Selecting a language 27

Selecting date/time format 28

Services key 15, 105

Shared Directory Numbers 105

Soft keys 12

Soft keys (self-labeled) 106

Special dial tone 106

Special Prefix code (SPRE) 106

Speed Call 47

Station Control Password (SCPW)

94, 106

Status Messages 106

Switchhook 106

System or Switch 106

System Speed Call 48

110

T

Telephone controls 12

Telephone information 32

Test Local Mode 89

Timed Reminder Recall 51

Transfer a call 50

U

upper display area 11

User Interface 107

V

Viewing telephone information 32

Virtual Office 78

Virtual Office login 79

Virtual Office logout 85

Virtual Office on your Remote telephone 81

Volume adjustment 25

Volume control 13

Volume control bar 13

Index

111

Index

112

Nortel Communication Server 1000

IP Phone 1110

User Guide

Copyright © 2007–2009 Nortel Networks. All rights reserved.

The information in this document is subject to change without notice. The statements, configurations, technical data, and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users must take full responsibility for their applications of any products specified in this document. The information in this document is proprietary to Nortel Networks.

Nortel, Nortel (Logo), the Globemark, SL-1, Meridian 1, and Succession are trademarks of Nortel Networks.

Publication Number: NN43110-101

Document Release: Standard 02.02

Date: April 2009

Produced in Canada

To provide feedback or report a problem in this document, go to

www.nortel.com/documentfeedback .

www.nortel.com

No results
