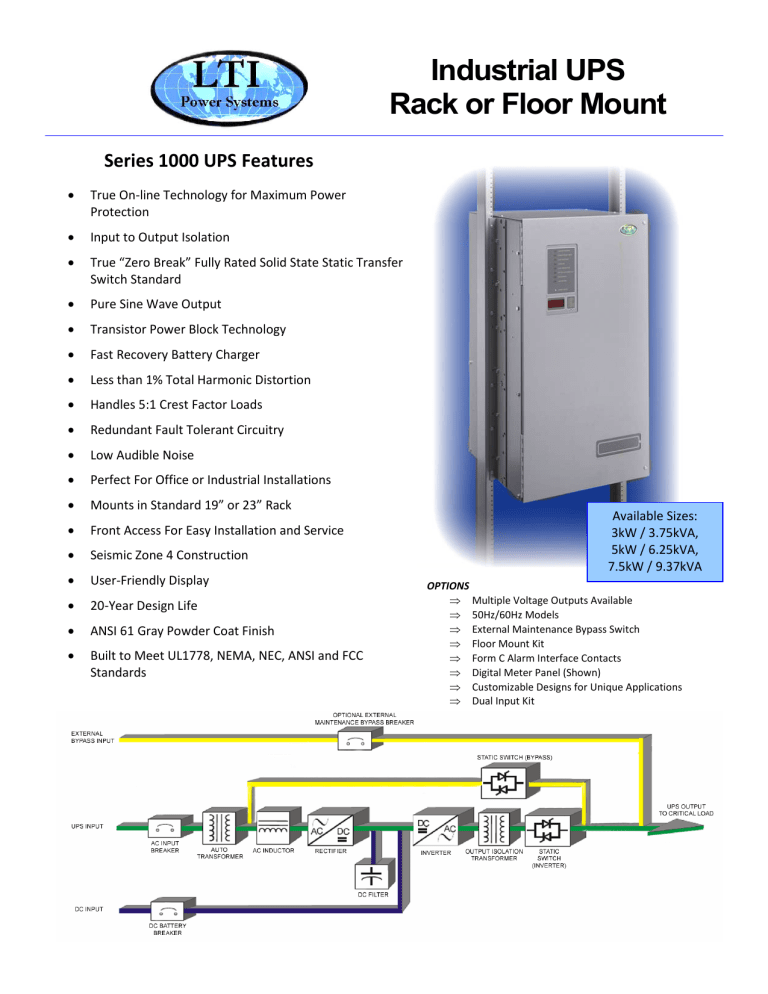

Industrial UPS Rack or Floor Mount
Industrial UPS
Rack or Floor Mount
Series 1000 UPS Features

True On-line Technology for Maximum Power
Protection

Input to Output Isolation

True “Zero Break” Fully Rated Solid State Static Transfer
Switch Standard

Pure Sine Wave Output

Transistor Power Block Technology

Fast Recovery Battery Charger

Less than 1% Total Harmonic Distortion

Handles 5:1 Crest Factor Loads

Redundant Fault Tolerant Circuitry

Low Audible Noise

Perfect For Office or Industrial Installations

Mounts in Standard 19” or 23” Rack

Front Access For Easy Installation and Service

Seismic Zone 4 Construction

User-Friendly Display

20-Year Design Life

ANSI 61 Gray Powder Coat Finish

Built to Meet UL1778, NEMA, NEC, ANSI and FCC
Standards
Available Sizes:
3kW / 3.75kVA,
5kW / 6.25kVA,
7.5kW / 9.37kVA
OPTIONS
 Multiple Voltage Outputs Available
 50Hz/60Hz Models
 External Maintenance Bypass Switch
 Floor Mount Kit
 Form C Alarm Interface Contacts
 Digital Meter Panel (Shown)
 Customizable Designs for Unique Applications
 Dual Input Kit
Industrial UPS
Rack or Floor Mount
Technical Specifications
MODEL
Max Output Power (VA) @ 0.8 PF
Max Output Power (Watts) (60Hz)
Max Output Power (Watts) (50Hz)
LT1030RM
1.5kva
3,750
LT1050RM
3kva
6,250
LT1075RM
10kva
9,375
3,000
2,400
5,000
4,000
7,500
6,000
INPUT
Nominal Input Voltage (60Hz)
120, 208, 220, 240 VAC
Nominal Input Voltage (50Hz)
220, 230, 240 VAC
Input Voltage Range (50 & 60 Hz)
Input Frequency Range
Power Walk-In
Input/Output Power Connections
OUTPUT
Nominal Output Voltage (60Hz)
Nominal Output Voltage (50Hz)
+15%, -25% (without using batteries)
45 - 65 Hz
5 seconds to full load
Hardwire Connection Standard
120, 208, 220, 240 VAC
220, 230, 240 VAC
Regulation
(Steady State): ±1% for all line and load conditions
(Dynamic): ±2% from nominal for 100% load steps
THD
Will not exceed 1% for linear loads and 3% for non-linear loads
Frequency Stability
Sync. Window
Maximum Load Crest Factor
Slew Rate
Harmonic Distortion
Overload Ratings @ 0.8 PF
Overload Ratings @ 1.0 PF
Surge Withstand
BATTERY
Voltage (VDC)
DC Amps @ 100% Load
Recharge Time
ENVIRONMENT
Operating Temperature
Humidity
Audible Noise
Heat Rejection (@ 1.0 PF Load)
ENCLOSURE
Dimensions inches (cm)
Weight (lbs/kg)
Color
Ventilation
Rating
±0.01% from nominal
±2%
±5:1
1Hz / second maximum
< 1% with linear load from .8 leading to .8 lagging power factor
110% - Indefinite, 125% for 10 min, 150% for 1 min
120% for 15 sec, 125% for 8 sec
Passes IEEE 587 / ANSI CG2.41 Category A
LT1030RM
LT1050RM
LT1075RM
120
120
120
29
48.3
72.5
< 1 hour to 90% charge level after complete discharge
2,100 BTU / hr.
Cable Entry
290 / 132
32°F to 104°F (0°C to 40°C)
0 – 95% non-condensing
< 50 dB(A) Scale @ 1 meter
3,500 BTU / hr.
5,250 BTU / hr.
17”W x 18”D x 32.25”H (43W x 46D x 82H)
310 / 141
ANSI 61 Gray
Forced Air : Intake – Rear Bottom, Exhaust – Rear Top
NEMA1
Rear
Note: All data is subject to change without notice.
LTI Power Systems • 10800 Middle Ave., Bldg. B • Elyria, OH 44035
Phone 888 327 5050 • Fax 440 458 8140 • www.ltipowersystems.com
335 / 152
