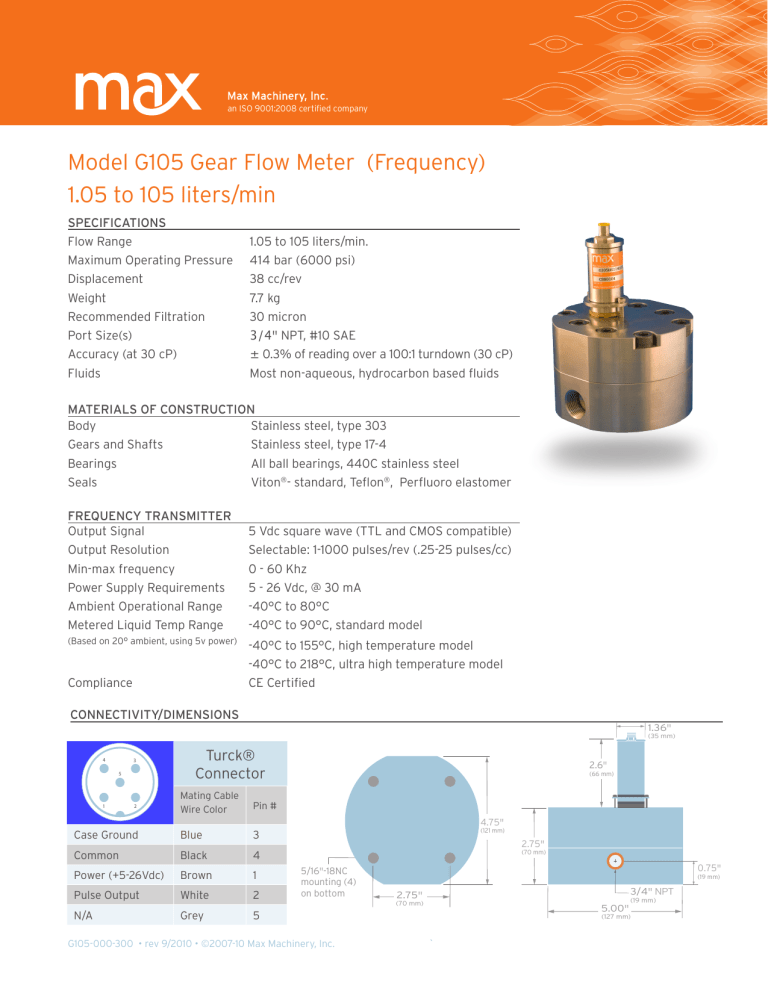

Model G105 Gear Flow Meter (Frequency) 1.05 to 105

Model G105 Gear Flow Meter (Frequency) 1.05 to 105
Precision flow solutions
an ISO 9001:2008 certified company
Model G105 Gear Flow Meter (Frequency)
1.05 to 105 liters/min
SPECIFICATIONS
Flow Range
1.05 to 105 liters/min. Maximum Operating Pressure 414 bar (6000 psi)
Displacement
38 cc/rev Weight
7.7 kg Recommended Filtration
30 micron
Port Size(s) 3/4" NPT, #10 SAE
Accuracy (at 30 cP)
± 0.3% of reading over a 100:1 turndown (30 cP)
Fluids
Most non-aqueous, hydrocarbon based fluids
MATERIALS OF CONSTRUCTION
Body
Stainless steel, type 303
Gears and Shafts
Stainless steel, type 17-4
Bearings
All ball bearings, 440C stainless steel
Seals
Viton®- standard, Teflon®, Perfluoro elastomer
FREQUENCY TRANSMITTER
Output Signal Output Resolution
Min-max frequency
Power Supply Requirements Ambient Operational Range
Metered Liquid Temp Range
5 Vdc square wave (TTL and CMOS compatible)
Selectable: 1-1000 pulses/rev (.25-25 pulses/cc)
0 - 60 Khz
5 - 26 Vdc, @ 30 mA
-40°C to 80°C
-40°C to 90°C, standard model
(Based on 20° ambient, using 5v power)
-40°C to 155°C, high temperature model
-40°C to 218°C, ultra high temperature model
CE Certified
Compliance
CONNECTIVITY/DIMENSIONS
1.36"
(35 mm)
4
3
5
Turck®
Connector
Mating Cable
Wire Color
Pin #
Case Ground
Blue
3
Common
Black
4
Power (+5-26Vdc)
Brown
1
1
2
2.6"
(66 mm)
4.75"
Pulse Output
N/A
White
Grey
2
(121 mm)
2.75"
(70 mm)
0.75"
5/16"-18NC
mounting (4)
on bottom
(19 mm)
3/4" NPT
2.75"
(70 mm)
5.00"
5
G105-000-300 • rev 9/2010 • ©2007-10 Max Machinery, Inc.
(19 mm)
(127 mm)
`
Model G105 Flow Meter
ACCURACY (Sample Curves) 1.5
1.0
% Error
-0.5
100:1
+0.3%
100 cP fluid
0.0
30 cP fluid
-0.3%
-0.5
-1.0
-1.5
0.1
1.0
100
10
1000
Flow Rate (liters/min)
TYPICAL PRESSURE DROP
Expected Failure Area
140
— 8 bar
Intermittent Duty Area
100
0c
P
— 4 bar
cP
30
cP
60
30
0
Continuous Duty Area
10
0
80 — 6 bar
cP
100
10,0
00 c
P
40
cP
— — 2 bar
20
5
Pressure Drop (psi)
120
0.1
1.0
10
100
Flow Rate (liters/min)
Max Machinery, Inc.
maxmachinery.com
33A Healdsburg Avenue
T + 1 707.433.2662
Healdsburg, CA 95448
F + 1 707.433. 1 8 1 8
1000
