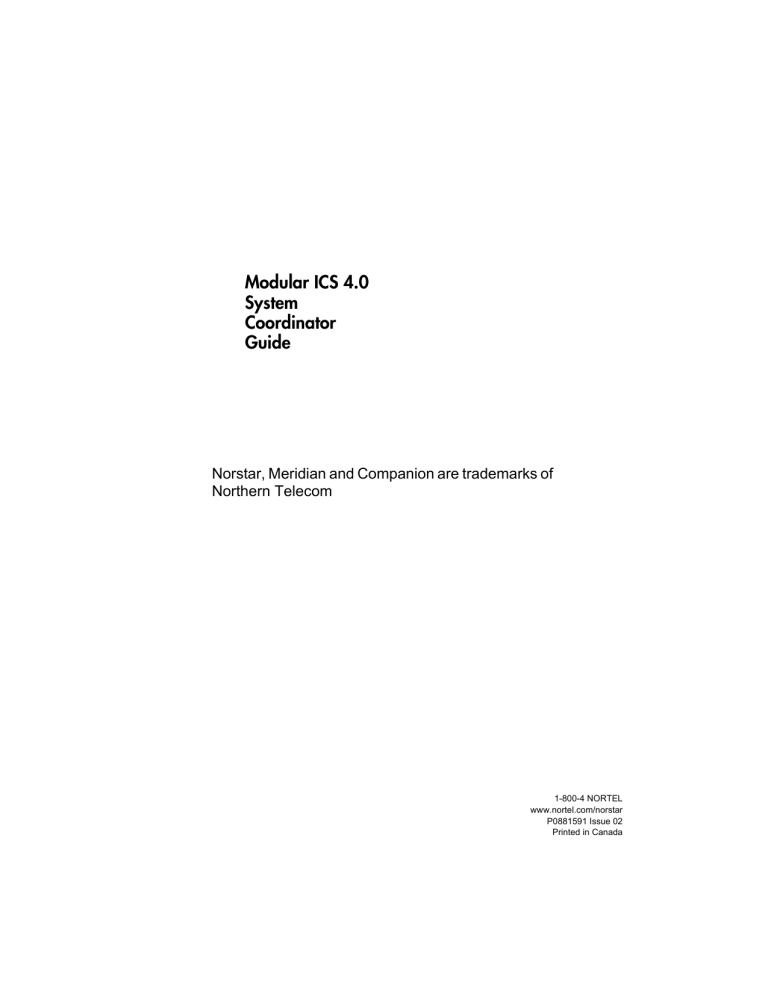

Modular ICS 4.0
System
Coordinator
Guide
Norstar, Meridian and Companion are trademarks of
Northern Telecom
1-800-4 NORTEL
www.nortel.com/norstar
P0881591 Issue 02
Printed in Canada
Table of Contents
Getting started with Norstar 1
Using this guide 1
Understanding programming 2
Before you start 3
What you’ll need to do programming 3
Using Buttons 4
Using the buttons under the display 5
The programming overlay 6
A map for working in programming 7
Starting and ending a session 11
Ending a session 11
Frequently used programming operations 13
Changing the time and date on the display 13
Adding or changing a system speed dial 15
Changing the name of a telephone 18
Changing the name of a line 20
Making changes to Call Forward No Answer 21
Making changes to Call Forward on Busy 23
Making Changes to Do Not Disturb on Busy 24
What would you like to do next? 26
Answering calls 27
Answering incoming calls with Hunt Groups 27
Answering an incoming call 27
Line buttons 28
What line indicators mean 28
Rings you may hear 28
Answering calls at a prime telephone 29
Using a central answering position (CAP) module 29
Customizing your CAP module 30
Monitoring telephones with the CAP module 31
Release button 31
Hearing aid compatibility 31
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
ii / Table of Contents
Viewing information about a call on the display 32
Using Call Information for a particular call 32
Displaying Call Information before or after answering 33
Displaying Call Information for a call on hold 33
Making Call Display information appear automatically at a
telephone 34
Changing which information is shown first about a call 34
Picking up a call ringing at another telephone 35
Answering any ringing telephone using Directed Pickup 35
Answering any ringing telephone using Group Pickup 36
Changing a telephone’s pickup group 36
Trunk Answer 37
Answering a call using Trunk Answer 38
Answer buttons 38
Creating a Conference Call 39
Disconnecting one party 40
Independently holding two calls 41
Putting a conference on hold 41
Splitting a conference 41
Removing yourself from a conference 42
Listening to a call as a group 43
Canceling Group Listening 43
Using Handsfree/Mute 43
Answering calls without lifting the receiver 43
Making calls without lifting the receiver 44
Muting Handsfree 44
Changing a regular call to handsfree 44
Changing a handsfree to a regular call 44
Using Handsfree 45
Changing Handsfree for a telephone 45
Handsfree Answerback 47
Turning Privacy on or off for a call 47
Creating a conference by releasing privacy 48
Making a call private 48
Checking call length using Call Duration Timer 48
Disconnecting by accident 49
Time 49
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Table of Contents / iii
Making calls 51
Choosing a line using a line button 53
Line pools 53
Using a line pool to make a call 54
Programming a memory button with a line pool feature code
54
Making calls from an ISDN terminal 55
Changing how you dial your calls 55
Using Standard dial 55
Using Automatic dial 56
Using Pre-dial 56
When the internal number you have called is busy 56
Priority Call 56
Making a priority call 57
Giving a telephone the ability to make priority calls 57
Using Ring Again 58
Turning on Ring Again 59
Canceling Ring Again 59
Time savers for making calls 61
Storing a number on a memory button for Autodial 61
Adding an autodial button 61
Choosing a line for Autodial 61
Using intercom as the line for Autodial 62
Using Last Number Redial 63
Preventing a telephone from using Last Number Redial 64
Using Speed Dial 65
Making a speed dial call 65
Changing and adding System Speed Dials 65
Adding or changing User Speed Dial 66
Using Saved Number Redial 67
Saving a number 67
Dialing a saved number 68
Preventing a telephone from using Saved Number Redial 68
Handling many calls at once 71
Using Hold 71
Retrieving a held call 71
Holding automatically 71
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
iv / Table of Contents
Listening on hold 71
Holding a call exclusively 72
Using Call Queuing 72
Transferring calls 73
Using the transfer feature 73
Transferring a call 73
Transferring external calls 74
Canceling a transfer 74
Using Camp-on 76
Parking a call 77
Retrieving a parked call 78
Using Call Park 78
Using Callback 80
Forwarding your calls 81
Forwarding your calls to another Norstar telephone 81
Canceling Call Forward 81
Using Call Forward at your telephone 81
Overriding Call Forward 82
Changing the automatic Call Forward settings for a telephone
82
Changing Forward no answer 82
Changing the delay before a call is forwarded 83
Forward on busy 83
DND on Busy 84
Call Forward and Voice Mail 85
Line Redirection 85
Turning on Line Redirection 86
Canceling Line Redirection 87
Allowing a telephone to redirect calls 87
Turning the redirect ring for a telephone on or off 88
How Line Redirection is different from Call Forward 90
Using Line Redirection 90
Communicating in the office 93
Paging 93
Making a page announcement 93
Activating and deactivating the ability to page 94
Creating page zones 94
Using Page with external paging equipment 96
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Table of Contents / v
Sending messages 96
Sending a message 96
Canceling a message you have sent 98
Viewing your messages 98
Replying to a message 98
Replying to a message using an analog telephone connected to
an ASM 99
Removing items from your message list 100
Removing items from your message list using an analog
telephone connected to an ASM 100
Viewing messages you have sent 101
Using Voice Call 102
Making a Voice Call 103
Muting Voice Call tones 103
Answering a Voice Call without touching your telephone 103
Preventing Voice Calls to your telephone using Voice Call Deny
103
Canceling Voice Call Deny 103
Tracking your incoming calls 105
Using Call Log 105
Call Log options 106
Logging a call manually 106
Deleting old log items 107
Viewing your Call Log 107
Viewing a Call Log item 108
Erasing log items 108
Making a call using Call Log 108
Creating a password to your Call Log 109
Changing your Call Log password 109
Deleting an assigned password 110
Programming a telephone to log calls automatically 110
Using Voice mail 112
Customizing your telephone 113
Finding out what a button does using Button Inquiry 113
Making the display darker or lighter using Contrast adjustment
113
Changing the language on the display 114
English 114
French 114
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
vi / Table of Contents
Spanish 114
Programming a feature code onto a memory button 114
Programming feature buttons 115
Erasing a feature button 115
Applying button cap labels 116
Types of button caps 117
Identifying the telephones 117
Norstar default button assignments 118
Rules of default button assignment 118
M7310 telephone button defaults 119
M7324 telephone button defaults 121
M7100 telephone button defaults 122
M7208 telephone button defaults 122
Moving line buttons 122
Changing the type of ring 123
Adjusting the Ring volume 124
Hiding the message or calls indication 124
Restoring the messages and calls indication 124
User Preferences 125
Using User Preferences 125
Changing button programming 126
Changing User Speed Dial 128
Changing Call Log options 129
Changing how calls are dialed 129
Changing the language used on the display 129
Making the display lighter or darker 130
Changing the telephone’s ring 130
Programming Hunt Groups 133
Adding or removing members from a group 134
Moving members of a group 135
Assigning or unassigning lines to a group 136
Setting the distribution mode 137
Setting the hunt delay 139
Programming busy line setting 140
Programming the queue time-out 141
Programming the overflow set 142
Setting the name 143
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Table of Contents / vii
Telephone features 145
Installing Norstar telephones 145
Naming a telephone or a line 147
Moving telephones 147
Stopping calls from ringing at your telephone using Do Not
Disturb (DND) 148
Stopping calls 148
Refusing to answer a call 148
Canceling Do Not Disturb 148
Using Do Not Disturb 148
Using Background Music 149
Turning Background Music off 149
ISDN PRI and BRI 151
ISDN PRI 151
ISDN PRI features 152
Network Name Display for PRI 152
Name and number blocking for PRI 153
Emergency 911 Dialing 153
2-way DID 153
Call by Call service selection for PRI 154
Dialing Plan and PRI 155
ISDN BRI 156
Line access from an ISDN terminal 157
ISDN BRI features 157
Network Name Display for BRI 157
Name and number blocking for BRI 158
Service provider features 158
Call Forward 158
Canceling Call Forward 159
Calling the number your calls are forwarded to 159
Automatic Call Back 159
Automatic Recall 159
ISDN BRI terminals 160
ISDN applications for BRI and PRI 160
Videoconferencing and video telephony 160
Desktop conferencing 160
File transfer 160
Telecommuting 160
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
viii / Table of Contents
Group 4 fax 161
Remote LAN access 161
Leased line backup 161
LAN to LAN bridging 161
Internet and database access 161
Using System features 163
Using alternate or scheduled services 163
Preventing certain calls from being made 163
Making additional telephones ring 163
Changing the lines used by outgoing calls 163
Turning Services on and off 164
An example of how to turn on a Service manually 165
Turning Services on and off using feature codes 166
Viewing the active Services from a two-line display telephone
167
Viewing the active Services from a one-line display telephone
167
Using passwords 169
Using a Basic password 170
Registration password 171
Changing passwords 171
Clearing a Call Log password 172
Using special telephones 172
Direct-dial 172
Changing the direct-dial telephone assignments 173
Hotline 174
Bypassing a Hotline 174
Making a telephone a hotline telephone 175
Control telephone 176
Using Set lock 176
Changing Set Lock programming for a telephone 177
Using an auxiliary ringer 177
Turning the auxiliary ringer for a telephone on or off 177
Using Host System dialing signals 178
Link 178
Preventing a telephone from using Link 179
Pause 179
Long Tones 180
Programmed Release 181
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Table of Contents / ix
Run/Stop 181
Wait for Dial Tone 182
Using pulse dialing for a call 182
Using your Norstar system from an external location 182
Controlling access to your Norstar system 183
Direct inward system access (DISA) 183
Class of Service (COS) 184
Maintaining security 184
Accessing Norstar remotely over the public network 184
Tones 185
Using Class of Service (COS) passwords 185
Changing your Class of Service 186
General System features 189
Set profile 189
Line profile 189
Pulse or tone dialing 189
Disconnect supervision 190
Hunt Groups 190
Internal numbers 190
Line assignment 191
Target line 191
Line pools 192
Overflow call routing 192
M7100 telephone 193
Memory buttons 193
One-line display 194
Prime line 194
Private lines 195
Volume bar 195
Wall mounting 195
Troubleshooting 197
Using the alarm telephone 197
Reporting and recording alarm codes 197
Testing the telephone 197
Testing the telephone display 198
Testing the telephone buttons 199
Testing the speaker in the telephone handset 199
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
x / Table of Contents
Testing the telephone headset 199
Testing the telephone speaker 200
Testing the power supply to a telephone 200
Common feature displays 201
Index 207
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
/1
Getting started with Norstar
Your Norstar digital key system has many powerful features that
can be customized to keep up with changes in your workplace.
Using this guide
The person who is responsible for adding or moving telephones
or making changes to the system is called the system coordinator.
This guide is designed to give the system coordinator all the
information he or she needs to carry out these kinds of jobs.
The first section contains step-by-step instructions on changing
the time and date, deciding how many rings it takes before a call
is forwarded and other day-to-day programming. Once you
understand these basic steps, you can move on to the many other
features described in the second section of the guide, and refer to
the first section only from time to time.
You can look at the contents page for an overview of the features
that are available, or check the index for specific features or
messages displayed on your telephone.
Emergency 911 Dialing
Emergency 911 Dialing is the capability to access a public
emergency response system by dialing the digits Ò9-1-1Ó.
Emergency 911 Dialing
State and local requirements for support of Emergency
911 Dialing service by Customer Premises Equipment
vary. Consult your local telecommunications service
provider regarding compliance with applicable laws and
regulations.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
2 / Getting started with Norstar
Understanding programming
When your system is installed, your installer or customer service
representative programs it to work with your telephone lines,
with your private network, if you have one, and with optional
equipment. They customize the system for your office. All
programming is recorded in the Norstar Programming Record.
You may want to further customize your system. For example,
you can change how some features work, or adapt the system to
changes in your office. Programming allows you to change
settings that probably need to be updated regularly because of
staff turnover or new business contacts. You can also assign
features and program buttons on individual telephones.
There are four ways to customize and maintain your Norstar
system:
¥
Initial programming is done for you by your installer or
customer service representative. It deals mostly with how
the system interacts with lines, telephones, and other
equipment.
¥
Your programming as a system coordinator changes how
features work for the system, as needed. It requires a
system coordinator password.
¥
A basic programming password is available to allow
individuals other than the system coordinator to make
changes without giving access to sensitive programming
capabilities.
¥
Personal programming is available to anyone through the
Feature button on their Norstar telephone. It allows
individuals to change how their telephone works to suit
themselves.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Getting started with Norstar / 3
Before you start
Before you begin programming, plan what changes you want to
make. Record the changes in the Norstar Programming Record so
that you have the information at hand. For example, if you are
going to program system speed dial numbers, fill out the page in
the Norstar Programming Record so that you have all the numbers
and codes handy once you start programming.
What you’ll need to do programming
Programming is done using a telephone that can show two lines
of information on its display. Examples of telephones with twoline displays are shown on page 4.
You need a programming overlay to show which buttons to press
when you are doing programming. See ÒThe programming
overlayÓ on page 6.
When you use a telephone for programming, it is taken out of
service. This means it is unable to receive or make calls, and the
call forward features do not work. Do not use the main reception
telephone for programming because you may lose incoming
calls.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
4 / Getting started with Norstar
Using Buttons
The two-line telephone you use for everyday calling is used for
changes and maintenance. Examples of telephones with two-line
displays are shown in the illustration.
M7310
M7324
The next illustration numbers the buttons that are used for both
day-to-day communication and programming on the M7310.
9
8
1
5
7
2
6
3
4
4
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Getting started with Norstar / 5
1 Dial pad
Used for dialing numbers when you are making
calls. It’s also used for entering numbers and
letters when you’re programming.
2 Display
Shows instructions for everyday calling as well as
for programming.
3 Display buttons
Have a variety of uses. The current use is shown
on the display above each button.
4 Memory buttons
Dial a number or feature code stored on the
button.
5 Dual memory buttons
Can store two numbers or feature codes (used
with the shift button).
6 Shift button
Press the shift button before a dual memory
button to activate the second number or feature
code stored on a dual memory button.
7 Feature button
Allows you to enter a feature code while using or
programming the telephone.
8 Hold button
Puts an active call on hold.
9 Release button
Hangs up an active call or ends programming.
The M7324 is different from the M7310 in two ways: it does not
have dual memory buttons (item 5) or a shift button (item 6).
Using the buttons under the display
The three display buttons are used both for telephone features
and programming, but what each button does depends on what
the display shows. Some display instructions that you may see
when making changes on the system are OK, CHANGE or COPY. In
this guide, display button instructions are underlined.
Display buttons
display button
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
6 / Getting started with Norstar
The programming overlay
When you begin programming, a group of buttons on the
telephone become the buttons for moving through programming
headings and settings. The programming overlay is a paper
cutout (found at the front of this guide) that shows the directions
the four buttons take you when programming.
Placing the programming overlay
Norstar Programming Overlay
Heading
Show
Back
Next
Norstar Programming Overlay
Heading
Show
Back
Next
Shows you the
heading for the
current level
Moves you one
item back at the
current level
Norstar Programming Overlay
Heading
Show
Back
Next
Modular ICS 4.0 System Coordinator Guide
Shows you the
first setting
within
the level
Moves you one
item forward at
the current level
P0881591 Issue 02
Getting started with Norstar / 7
Programming buttons are active or inactive at different stages of
programming. A button is active (meaning you can use that
option), when the indicator next to it is lit ( or ).
ª º
A map for working in programming
The programming maps on the following two pages show the
headings youÕll see when you move through the display menu
and entering
after pressing
or
the password (the default password is
). The maps show you the choices under each
menu heading.
ƒ••Ç؈ÏÈÌ
ÅΘȈ
¤‹fl›fl
ıÅÍÈÇ
¤¤‡›¤ ••ÊȘ‰
The default Basic password (
or
) can be used with a limited number of feature
and the codes for turning
codes, including
call services on and off. For more information, see ÒUsing
passwordsÓ on page 169.
Terminals&Sets
Terminals and sets - Customize the many features
used by telephones. You can change where a call is
forwarded, give a telephone a name, or allow certain
features to be used at a telephone. You can change the
button programming on any telephone on the system.
Lines
Lines - Program names for each line.
Services
Services - Turn services on or off. These are Ringing
service, (often called night service) that allows
additional telephones to ring, Restriction service that
blocks certain kinds of calls and Routing Service that
decides what lines a call uses.
Sys speed dial
System speed dial - Program up to 70 different
telephone numbers so that people in your office can
dial them with a two-digit code.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
8 / Getting started with Norstar
Passwords
Passwords - Change the password you use for
programming, or erase a Call log password. On an XC
system, you can also change the password for
Companion portable telephone registration.
Time&Date
Time and date - Change the time, date, or both.
System prgrming
System programming - On an XC system, you can
enable or disable registration for Companion portable
telephones.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
P0881591 Issue 02
Lines
Terminals & Sets
“
Enter digits or
press LIST
Show line:_
Enter digits or
press LIST
Show set:_
‘
ˆ
ˆ
(go to next item)
≠
ˆ
ˆ
Telco features
Name
ˆ
Restrictions
User prefernces ˆ
Name
Capabilities
(go to next level)
(go to previous item)
(go to previous level)
–
Key to Navigation:
1stDisplay
Called ID
Set restrns
Model
Button prgrming
User speed dial
Call log opt’ns
Dialing opt’ns
Language
Display cntrst
Ring type
Fwd no answer
Fwd on busy
DND on busy
Handsfree
HF answerback
Pickup grp
Page zone
Paging
D-Dial
Priority call
Hotline
Aux. ringer
Allow redirect
Redirect ring
ATA Settings
ATA ans timer
MsgIndicate
ˆ
Set lock
Allow last no
Allow saved no
Allow link
Extrnl#
Intrnl#
Fwd to
Fwd to
Fwd delay
ˆ
ˆ
ˆ
(black box) = items are in a list
Use prime line
Legend:
Name (grey text) = appears only if needed to complete programming
Enter digits (italic text) = instructions or descriptions
(grey box) = enter an extension number, line
number, or speed dial number
Getting started with Norstar / 9
Modular ICS 4.0 System Coordinator Guide
Modular ICS 4.0 System Coordinator Guide
*MICS-XC only
Sys Prgrming
Time&Date
Passwords
Sys speed dial
Services
Enter digits or
press LIST
Speed dial #:_ ˆ
BusName
Companion*
Hunt Groups
Hour
Minutes
Year
Month
Day
Reg. pswd *
ˆ
ˆ
Progrmng pswds
Call Log pswds ˆ
add/change tel#
Use prime line
Display digits
Name
Routing service ˆ
Restrn service ˆ
Ringing service ˆ
ˆ
ˆ
ˆ
Registration
Radio data
Show Group
Member DNs
Line assignment
Mode
Hunt Delay
If Busy
Q Timeout
Overflow
Name
Business Name
Show set:_
Enter digits or
press LIST
Sched:Sched 6
Sched:Night
Sched:Evening
Sched:Night
Sched:Lunch
Sched:Evening
Sched:Night
Sched:Sched 4
Sched:Lunch
Sched:Evening
Sched:Sched
Sched:Sched
4 5
Sched:Lunch
Sched:Sched
6
Sched:Sched
Sched:Sched 4 5
Sched:Sched
6
Sched:Sched 5
Re-evaluation
Radios
Cells
Registration
Portable DNs
ˆ
ˆ
ˆ
Sys Coord 23646
Basic 22742
Log pswd
Cell radios
Cell nghbrs
Cell rad nghbrs
Show cell:__
Cell Assignment
Status
10 / Getting started with Norstar
P0881591 Issue 02
Getting started with Norstar / 11
Starting and ending a session
As system coordinator the first steps in making any change to the
Norstar system are always the same.
Jan 1
12:00pm
Feature:
Password:
Press
ƒ
.
••Ç؈ÏÈÌ
••¤flfl‹››
ÅΘȈ ¤‹fl›fl
Press
pressing
RETRY
Terminals&Sets
. It’s the same as
.
Press
(
). Press RETRY
to re-enter the password if it is entered incorrectly.
The display shows the first of the seven headings
available for administration programming.
ÅΘȈ
is the password, unless the password has been changed.
Check the Norstar Programming Record for the most recent password.
Ending a session
®
Display digits:Y
CHANGE
Press
End of session
After a few seconds, the time and date reappears on
the display.
to end the session.
The system goes ahead with any changes you make to
programming as soon as you move away from a setting, either by
using the navigation buttons or
.
®
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
12 / Getting started with Norstar
You can see if the changes you have made to telephone
programming have taken effect by pressing the UPDATE display
key. The display shows you how many telephones have not been
updated.
Press DNs to see the specific extensions where programming
changes have not taken effect yet. Items disappear from the list
as they are updated.
Record any changes you make in the Norstar Programming Record.
If there is a problem with the system, the installer needs to see a
history of the changes you have made. Remember to inform
people in your office of any changes you have made that affect
them. For example, you may change system speed dial codes or
change the number of rings before an unanswered telephone is
forwarded.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
/ 13
Frequently used programming
operations
The following sections highlight the most frequently used
programming operations. To consult these or other programming
operations, see either the Table of Contents or the Index.
Changing the time and date on the display
Jan 1
12:00pm
ƒ
.
••°›fl‹
••ÊȘ‰
Feature:
Password:
Press
Press
as
¤¤‡›¤ ıÅÍÈÇ ¤‹fl›fl
ÅΘȈ
Press
RETRY
(which is the same
).
(
) or
(
)
The passwords can be changed. See “Using passwords” on page 169 for more
information.
Entering letters and numbers using the dial pad
first press
fourth press
second press
third press
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
14 / Frequently used programming operations
In this example, you are changing the time to 1:30 p.m.
Hour:01
NEXT
CHANGE
Hour:___
CANCL
Press CHANGE.
Press the dial pad buttons to enter the hour. Use two
digits for all hours. The clock on the display shows
either one or two digits.
AM
OK
The display prompts you to choose a.m. or p.m.
CHANGE Press CHANGE and OK to select p.m.
Hour:01
NEXT
CHANGE
Minutes:00
NEXT
CHANGE
Minutes:___
CANCL
Press NEXT.
Press CHANGE.
Press the dial pad buttons to enter the minutes.
If you are only changing the time and not the date, press
session.
®
to end your
In this example, you are changing the date to July 15, 1998.
Minutes:30
NEXT
CHANGE
Year:97
NEXT
CHANGE
Year:___
CANCL
Year:98
NEXT
Press NEXT.
Press CHANGE.
Press the dial pad buttons to enter the year.
CHANGE
Press NEXT.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Frequently used programming operations / 15
Month:01
NEXT
CHANGE
Month:___
CANCL
Press CHANGE.
Press the dial pad buttons to enter the month.
Use numbers for the months: 01 is January; 12 is December.
Month:07
NEXT
CHANGE
Day:01
NEXT
CHANGE
Press NEXT.
Press CHANGE.
Day:___
CANCL
Press the dial pad buttons to enter the day.
Day:15
CANCL
Press
®
to end your session.
End of session
The clock controls the schedules used for services such as
ringing and routing services.
After a power failure, the clock is behind by the length of time
power was lost. For example, if the power is out for two minutes,
the clock is two minutes behind.
Adding or changing a system speed dial
You program a speed dial on your Norstar so that anyone in your
office can dial a frequently used number using a two-digit code.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
16 / Frequently used programming operations
To change a speed dial that already exists, follow the same steps.
The new programming overwrites the previous number and
settings.
ƒ
Begin the programming session
Jan 1
12:00pm
Press
Feature:
Press
Password:
Press
RETRY
Choose a speed dial code
Terminals&Setsˆ
Press
Sys Speed Dialˆ
Press
Speed dial #:___
Press
LIST
.
••¤flfl‹››
.
¤‹fl›fl
.
‘
≠
three times.
.
‚⁄
.
You can pick any system speed dial code between 01 and 70.
Speed dial #:01ˆ
Press
FIND
≠
.
Add or change the telephone number
01:No number
01:___
CANCL
CHANGE
OK
Press CHANGE.
Use the dial pad to program the telephone number
that you want to add. The telephone number can be
up to 24 digits long.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Frequently used programming operations / 17
01:nnnnnnnn__
CANCL
BKSP
Your display shows the telephone number, and not
OK n’s as shown here. Press OK.
‘
Select a line for the speed dial code
01:nnnnnnnn
CLR
CHANGE
Press
Use prime line
CHANGE
Press CHANGE to see your options: Use prime line, a
specific line (for example Use line: 01), a line pool
(for example Pool code:71), or Use routing tbl.
.
Stop pressing CHANGE when the display shows the prime line again.
Use prime line
CHANGE
In this example, the system selects the prime line
automatically (the most common choice), to dial
speed dial code 01.
If you assign a specific line to a system speed dial number, only telephones with
an appearance of that line can use the speed dial number.
‘
Choose what shows up on the display
Press
Use prime line
CHANGE
.
Your choices are Yes and No. Yes means the display
Display digits:Y
CHANGE shows the telephone number. Press CHANGE.
No means the display shows a name for the code.
Display digits:N
CHANGE
Program a name for a speed dial
The system has a standard name to display, so it is not necessary for you to
program one. However, if you have chosen not to display the telephone number,
you may want a specific name.
Display digits:N
CHANGE
P0881591 Issue 02
Press
‘
.
Modular ICS 4.0 System Coordinator Guide
18 / Frequently used programming operations
≠
Name:Sys Spd Di...
CHANGE
Press
...al 01 ...
This is the name the display shows if you don’t
change it. Press CHANGE.
CHANGE
Name:___
-->
.
Decide the name you want to give to the speed dial
code.
Press the telephone’s numeric dial pad button that has the first letter of the
name until the display shows the letter you want.
Name:S
BKSP
-->
Name:S__
<-BKSP
-->
Press -->.
Use the dial pad and --> until you have the entire
name.
The name can be up to 16 characters long, including spaces.
Press # on the numeric dial pad to add spaces.
Name:SAVINGS BANK
<-BKSP
-->
Press
Name:SAVINGS BA...
CLR
CHANGE
Press
Or you can press
number.
–
‘
.
®
, then
to end your session.
‘
to program another speed dial
End of session
Changing the name of a telephone
ƒ
Begin the programming session
Jan 1
12:00pm
Press
Modular ICS 4.0 System Coordinator Guide
.
P0881591 Issue 02
Frequently used programming operations / 19
Feature:
Password:
Press
Press
RETRY
••¤flfl‹››
.
¤‹fl›fl
.
≠
Change the name of a telephone
Terminals&Setsˆ
Show set:___
Press
.
Enter the internal number (DN) of the telephone or
LIST voice mail extension. In this example, it’s 221.
If the set has already been given a name, it appears after DN: on the display.
221:221ˆ
Press
FIND
Name:221
≠ ‘
then
.
This is the name the display shows if you don’t
CHANGE change it. Press CHANGE.
Decide what name you want to give to the telephone number.
Name:___
Name:J
Press the telephone’s numeric dial pad button that
--> has the first letter of the name until the display shows
the letter you want.
BKSP
-->
Press -->.
Name:J___
<-BKSP
Use the dial pad and --> until you have the entire
--> name.
Name:JEAN B
<-BKSP
-->
Press
‘
to use the name you have entered.
The name can be up to 7 characters long, including spaces.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
20 / Frequently used programming operations
Name:JEAN B
CLR
Press
CHANGE
®
to end your session.
––
You can press
press
once to continue programming this telephone, or
twice to return to the Terminals and Sets heading.
End of session
Changing the name of a line
ƒ
Begin the programming session
Jan 1
12:00pm
Press
Feature:
Password:
Press
Press
RETRY
.
••¤flfl‹››
.
¤‹fl›fl
.
‘
Change the name of a line
Terminals&Setsˆ
Press
Linesˆ
Press
Show line:______
LIST
≠
.
.
Enter the three-digit number of the line you want to
name. In this example, it’s line 002.
This is the name the display shows if you don’t change it.
Line002:Line002ˆ
FIND
Press
Modular ICS 4.0 System Coordinator Guide
≠
.
P0881591 Issue 02
Frequently used programming operations / 21
Name:Line002
CHANGE
Press CHANGE.
Decide what name you want to give to the line.
Name:___
-->
Name:L
BKSP
-->
Name:L___
<-BKSP
-->
Press the telephone’s numeric dial pad button that
has the first letter of the name, until the display
shows the letter you want.
Press -->.
Use the dial pad and --> until you have the entire
name.
The name can be up to 7 characters long, including spaces.
Name:LOCAL
<-BKSP
Name:LOCAL
CLR
Press
-->
Press
CHANGE
‘
®
to use the name you have entered.
to end your session.
– –
You can press
once to continue programming this line, or press
twice to return to the Lines heading.
End of session
Making changes to Call Forward No Answer
ƒ
Begin the programming session
Jan 1
12:00pm
Feature:
P0881591 Issue 02
Press
Press
.
••¤flfl‹››
.
Modular ICS 4.0 System Coordinator Guide
22 / Frequently used programming operations
Password:
Press
RETRY
¤‹fl›fl
.
≠
Change where a call goes when there is no answer
Terminals&Setsˆ
Show set:___
Press
LIST
.
Enter the internal number (DN) of the telephone or
voice mail extension. In this example, it’s 225.
If the set has been given a name, it appears on the display.
225:225
Press
FIND
≠
≠
.
Capabilitiesˆ
Press
Fwd no answerˆ
Press
Fwd to:None
Press CHANGE and enter the internal number where
you want the calls to be sent. In this example, it’s
221.
Fwd to:221
CLR
CHANGE
≠
.
.
CHANGE
You can press CLR to change the destination back to None.
‘
Change the number of times the telephone rings before it is forwarded
Fwd to:221
CLR
Press
CHANGE
.
Use the CHANGE button to choose the number of times
Forward delay:4
CHANGE the telephone rings before it is forwarded.
Your choices are 2, 3, 4, 6 and 10 rings.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Frequently used programming operations / 23
Press
Forward delay:3
CHANGE
®
to end your session.
–
–
You can press
telephone, or press
heading.
to continue programming capabilities for this
four times to return to the Terminals and Sets
End of session
Tip - If the Norstar set is a member of a Hunt Group, the
Call Forward no answer feature is overridden and the
Hunt Group call continues to ring until the hunt time has
expired. For more information on Hunt Groups see
“Programming Hunt Groups” on page 133.
Making changes to Call Forward on Busy
ƒ
Begin the programming session
Jan 1
12:00pm
Press
Feature:
Password:
Press
Press
RETRY
.
••¤flfl‹››
.
¤‹fl›fl
.
≠
Change where a call goes when a telephone is busy
Terminals&Setsˆ
Show set:___
Press
.
Enter the internal number (intercom number) of the
LIST telephone extension. In this example, it’s 225.
If the set has been given a name, it appears on the display.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
24 / Frequently used programming operations
225:225
Press
FIND
Capabilitiesˆ
Press
Fwd no answerˆ
Press
Fwd on busy. . .
Press
Fwd to:None
≠
≠
‘
≠
.
.
.
.
Press CHANGE and enter the internal number where
CHANGE you want the calls to be sent. In this example, it’s 221.
You can press CLR to change the destination back to None.
Fwd to:221
CLR
Press
CHANGE
®
to end your session.
‘
–
You can press
telephone, or press
heading.
to continue programming capabilities for this
three times to return to the Terminals and Sets
End of session
Tip - If the Norstar set is a member of a Hunt Group, the
Call Forward on busy feature is overridden and the Hunt
Group call continues to ring until the hunt time has
expired. For more information on Hunt Groups see
“Programming Hunt Groups” on page 133.
Making Changes to Do Not Disturb on Busy
When you are on a call and a second call comes in, your
telephone rings softly to alert you to the second call. You can turn
this feature on or off for each telephone.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Frequently used programming operations / 25
ƒ
Begin the programming session
Jan 1
12:00pm
Press
Feature:
Press
Password:
Press
RETRY
.
••¤flfl‹››
.
¤‹fl›fl
.
≠
Change Do Not Disturb on Busy
Terminals&Setsˆ
Show set:___
Press
LIST
.
Enter the internal number (intercom number) of the
telephone extension. In this example, it’s 225.
If the set has been given a name, it appears on the display.
225:225
Press
FIND
≠
≠
.
Capabilitiesˆ
Press
Fwd no answerˆ
Press
DND on Busy:N
Press CHANGE to turn the feature on.
DND on Busy:Y
CHANGE
CHANGE
‘
.
twice.
A second press turns it off again. Press
your session.
®
to end
‘
–
You can press
telephone, or press
heading.
P0881591 Issue 02
to continue programming capabilities for this
three times to return to the Terminals and Sets
Modular ICS 4.0 System Coordinator Guide
26 / Frequently used programming operations
End of session
Tip - If the Norstar set is a member of a Hunt Group and
the set activates this feature, the set does not receive
notification of incoming Hunt Group calls while on a call.
The DND on busy feature overrides the Hunt Group. For
more information on Hunt Groups see “Programming
Hunt Groups” on page 133.
For more information on Call Forward and similar settings, see
ÒForwarding your calls to another Norstar telephoneÓ on page
81.
What would you like to do next?
Some of the most common programming tasks are listed below.
For a comprehensive list of settings and instructions, see either
the Table of Contents or the Index.
Redirect calls coming in on a line.
See “Turning on Line Redirection”
on page 86.
Allow individuals to answer calls that are
ringing at another telephone.
See “Picking up a call ringing at
another telephone” on page 35.
Assign telephones to different zones for
paging.
See “Paging” on page 93.
Turn the night service on and off.
See “Making additional
telephones ring” on page 163.
Use a basic password so others can take
care of programming such as changing
user speed dials, changing names, and
changing the time and date.
See “Using passwords” on page
169.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls
Answering incoming calls with Hunt Groups
Your Norstar system now allows you to establish Hunt Groups
in your system. Hunt Groups are a group of Norstar set DNs
that can be called by a single directory number. The Hunt
Groups feature ensures calls are easily routed to the
appropriate people. You can program
¥
the members for a Hunt Group
¥
member position within a Hunt Group
¥
how calls are distributed
¥
how long a call spends looking for available members
¥
what happens if all members are busy
For more information on Hunt Groups see ÒProgramming
Hunt GroupsÓ on page 133.
Answering an incoming call
There are three indications of an incoming call: ringing, a line
button flashing, and a message on the display. You do not
necessarily receive all three indications for any particular call.
For example, you may have a line that has been set up not to
ring at your telephone. If so, you see only a flashing line
button. There are many possible combinations, depending on
how your system is set up. See ÒChoosing a line using a line
buttonÓ on page 53 for more information on the use of lines.
If you receive a priority call and your telephone has no free
internal line buttons, you cannot transfer the priority call, you
must accept or release it.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
28 / Answering calls
Line buttons
One line button for each line is assigned to your telephone.
Press the line button to select the line you want to answer or
use to make a call. Having several line buttons gives you
immediate access to more than one line.
The M7100 telephone has two intercom paths which are used
instead of line buttons to answer and make calls. Each M7100
can be assigned two lines. You can press
to switch
between two calls, one active and one on hold.
˙
º
º
º
º
What line indicators mean
Flashing on and off for
equal lengths of time
There is an incoming call on the line.
Flashing on and off more
quickly
You have placed a call on hold.
Flashing on for longer
than off
Someone else has put a call on hold
on that line.
On, not flashing
You are connected to the call on that
line or the line is in use elsewhere.
Off
The line is free.
Rings you may hear
A double beep every ten
seconds
A call has been camped to your telephone.
A long single ring
There is an external call on the line for you.
A shorter double ring
There is an internal call on the line for you or
a call is being transferred to you.
A brief single ring
A call is being redirected on one of your
redirected lines. You cannot answer this call.
Three beeps descending
in tone
You are receiving a priority call.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 29
Answering calls at a prime telephone
Each line in a Norstar system can be assigned a prime
telephone. Calls not answered at their normal destinations are
transferred to the prime telephone. The prime telephone is
usually the attendantÕs telephone. The installer or customer
service representative programs a prime telephone for a line.
Displays
DND from 221
The person at telephone 221 has forwarded
a call to you using Do Not Disturb.
DND transfer
The system has transferred a call to you from
a telephone with Do Not Disturb turned on.
DRT Line001
Nobody answered this call so the system
transferred it to you.
Line001 callback
CALLBACK
Someone has camped, parked or transferred
a call on line 001, but no one has answered
it. Press CALLBACK or the line button to
connect to the call.
Line001 to prime
There is no telephone that can receive a call
on line 001 so the system has transferred it
to you.
Line002>Line052
The call coming in on line 002 was intended
for target line 052. Line 052 is busy so the
call has come to you.
For other displays, see “Common feature displays” on page 201.
Using a central answering position (CAP) module
A central answering position (CAP) is a Norstar M7324
telephone and a CAP module that your installer or customer
service representative programmed as a CAP. You can have
five CAPs in a Norstar Modular system. It is best if the CAP
is the prime telephone and direct-dial telephone for the lines
and telephones it serves.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
30 / Answering calls
M7324 telephone
CAP module
A CAP module is an add-on device that provides 48 extra
memory or line buttons. You can connect one or two Norstar
CAP modules to the telephone to increase the number of lines
it can handle.
When a CAP module is first plugged into your telephone,
some of the module buttons are already programmed to dial an
internal number.
Customizing your CAP module
If your installer has programmed the CAP module to be the
central answering position for your system, you can move
external lines onto the CAP module by using
. See ÒMoving line buttonsÓ on page 122.
ƒ•°⁄
Any of the buttons on your CAP module that do not select lines
can be programmed to dial internal or external numbers
automatically. You can program features onto CAP module
buttons. See ÒTime savers for making callsÓ on page 61 and
ÒCustomizing your telephoneÓ on page 113 for information on
programming memory buttons.
Buttons on a CAP module cannot be assigned as answer
buttons.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 31
Monitoring telephones with the CAP module
The indicators ˆ beside internal autodial buttons on your CAP
module show the status of Norstar telephones.
The indicator is on when the telephone has:
¥
an active call
¥
Do Not Disturb turned on
The indicator is off when a telephone has:
¥
no active call
¥
a call on hold and no other active call
Tip - You can send up to 30 messages from a CAP.
®
®
Release button
Pressing
down.
ends a call. You do not have to put the receiver
also ends feature programming.
®
ƒ
While you are on a call, do not press
to end a feature you
are using. If you do, you disconnect the call. Use
instead.
Hearing aid compatibility
The receivers on all Norstar telephones are compatible with
hearing aids as defined in the FCC rules, Part 68, section
68.316. Not all hearing aids are optimized for use with a
telephone.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
32 / Answering calls
Viewing information about a call on the display
If you subscribe to Call Display services from your local
telephone company, one line of information about an external
caller is displayed after you answer. Depending on the setting
and the external information available, either the callerÕs name
or telephone number is displayed.
When you transfer an external call to another Norstar user, this
information is displayed on the recipientÕs telephone.
Call Display information becomes available between the first
and second ring of an incoming call. If you answer before the
Call Display information is available on your display, and you
press
, you see only the line number or
line name.
ƒ°⁄⁄
To use logging features with Call Display, see ÒUsing Call
LogÓ on page 105.
ƒ°⁄⁄
Using Call Information for a particular call
Call Information allows you to see information about
incoming calls. This information is more detailed than the Call
Display information you can receive automatically. For
external calls, you can display the callerÕs name, telephone
number, and the line name. For an internal call, you can
display the callerÕs name and their internal number. You can
see information for ringing, answered, or held calls.
Call Information is available for calls even if they have been
transferred, forwarded or rerouted in some way.
Names and numbers for external calls are displayed only if
you have subscribed to Call Display services from your
telephone company.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 33
Tip - Call Log displays the same information as Call
Information, along with the date and time of the call, and
the number of times the caller called.
Displaying Call Information before or after answering
To find out who is calling or to display information about your
current call:
1. Press
ƒ°⁄⁄
£
.
2. Press
or VIEW to display more information about an
external call.
Call Display information becomes available between the first
and second ring of an incoming call. If you answer before the
Call Display information is available on your display, and you
press
, you see only the line number or
line name.
ƒ°⁄⁄
ƒ°⁄⁄
Displaying Call Information for a call on hold
1. Press
. The display reads ˆSelect a
call.
2. Select the line on hold. Information about the call is
displayed.
£
3. Press
or VIEW to display more information about an
external call.
Tip - If your telephone automatically displays Call Display
ƒ°⁄⁄
£
information for a call, you still need to press
before you can press
or VIEW to
display more information about the call.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
34 / Answering calls
Making Call Display information appear automatically at a
telephone
Each telephone that rings for an external line can display Call
Display information for that line. After the call is answered,
Call Display information is always shown at the telephone that
answered the call. Your installer or customer service
representative can program telephones to have automatic Call
Display.
This feature is not available to ISDN terminals.
Changing which information is shown first about a call
Depending on the services you subscribe to, Call Display
information may contain up to three parts: the name of the
caller, the number of the caller, and the name of the line in
your Norstar system that the call is on. For each telephone, you
can determine which information is displayed first.
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
≠
.
2. Press
password).
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
6. Press
.
four times.
.
7. Choose a setting at 1stDisplay: using the CHANGE button.
The choices are Name, Numbr or Line.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 35
You may see Unknown name or Unknown number on the
display if the information is not available from your telephone
company. You may see Private name or Private number
on the display if the caller blocks that information.
Picking up a call ringing at another telephone
You can pick up a call ringing at another telephone by using
Directed Pickup or Group Pickup.
ƒ‡fl
Answering any ringing telephone using Directed Pickup
You can answer any telephone that is ringing in your Norstar
system.
1. Press
ƒ‡fl
.
2. Enter the internal number of the ringing telephone.
Call Pickup cannot be used to answer private lines.
To use Call Pickup (Directed Pickup), the telephone must be
ringing. If, for example, the auxiliary ringer is ringing, but the
call is not ringing at a telephone, the call cannot be answered
using Directed Pickup. It must be answered normally at a
telephone that has a flashing indicator for the call, or by using
Trunk Answer. You can answer a call that is ringing because
someone has transferred the call to a telephone and the call is
ringing on an intercom button.
Tip - Directed pickup can retrieve calls that are ringing
on an Answer DN. While you may enter the internal
number of the telephone you hear ringing, it may be calls
from another telephone you are answering.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
36 / Answering calls
ƒ‡fi
Answering any ringing telephone using Group Pickup
Your Norstar system can be divided into nine pickup groups.
If you are a member of a pickup group, you can pick up a call
that is ringing at any telephone in your pickup group.
Press
ƒ‡fi
.
Group Pickup cannot be used to retrieve a camped call.
If there is more than one incoming call at a telephone in a
pickup group, a call ringing on an external line is answered
first followed by calls on the prime line and, finally, calls on
internal lines.
Tip - A Hunt Group call ringing at a Norstar set DN that
is also a member of a call pickup group can be picked up
by any Norstar set in that call pickup group. For more
information on Hunt Groups see “Programming Hunt
Groups” on page 133.
Changing a telephone’s pickup group
Telephones can be put into and taken out of pickup groups.
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
2. Press
password).
.
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
Modular ICS 4.0 System Coordinator Guide
twice.
P0881591 Issue 02
5. Press
‘
Answering calls / 37
five times.
6. Press CHANGE at Pickup grp: to assign the telephone to
pickup group 1, 2, 3, or 4, 5, 6, 7, 8, 9, or to None.
Displays
Already joined
You are already connected to the telephone
that made the call you are trying to pick up.
This can happen if you are on a call to a
co-worker, your co-worker dials the number
of a telephone in your pickup group, and you
attempt to pick up that call.
Pickup denied
There is no call that you can pick up or the
call that was ringing has already been
answered.
You have tried to pick up a call on someone
else’s private line.
Pickup:
Enter the internal number of the telephone
that is ringing. (You may use an internal
autodial button to do this.)
If you decide not to answer a ringing call after
you have activated Directed Pickup, press
.
ƒ
Trunk Answer
ƒ°‚‚
The Trunk Answer feature allows you to answer a ringing call
anywhere in the system from any telephone in the system. The
line you are answering does not have to appear or ring at the
telephone you are using.
Trunk Answer works only with calls that are ringing on lines
for which a Ringing Service schedule is active and if Trunk
Answer is enabled by your installer or customer service
representative.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
38 / Answering calls
ƒ°‚‚
Answering a call using Trunk Answer
Press
.
Tip - If there is more than one incoming call on lines in a
Ringing Service, the Trunk Answer feature picks up the
external call that has been ringing the longest.
Displays
Line denied
You have tried to pick up a call on someone
else’s private line.
Pickup denied
The call that is ringing is on a line that is not
in a Ringing Service.
Answer buttons
You can use an Answer button to monitor calls on another
personÕs telephone. All calls to the monitored Norstar
telephone appear on the Answer button.
Answer buttons are useful for attendants who monitor
incoming calls for one or several other people. For example, a
secretary may have appearances for three different bosses on
her answer buttons. Once a call for boss A is answered by the
secretary, the appearance stops at that bossÕ set. This allows
for another (simultaneous) call to come in on the same line.
The same is true for boss B and boss C. When incoming call
traffic becomes high, the calls can then be routed to a Hunt
Group to optimize call handling. For more information on
Hunt Groups see ÒProgramming Hunt GroupsÓ on page 133.
The Answer button setting in Featr settings programming
allows you to determine what types of calls alert at the
telephone. Your choices are: Basic, Enhanced and Extended.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 39
See the Norstar Modular ICS 4.0 Installer Guide for more
information on programming Answer buttons.
M7100N telephones and ISDN terminals cannot be assigned
Answer buttons to monitor other sets, but they can be
monitored.
You cannot make calls using Answer buttons.
If more than one call is ringing at someoneÕs telephone, the
first call appears on the attendantÕs Answer button. Any
subsequent calls appear on intercom buttons, if they are
available.
Tip - More than one attendant may have an Answer
button for a single telephone. This allows two or more
attendants to handle calls for a busy person.
Each telephone can handle calls for up to eight other
people using a separate Answer button for each person.
Creating a Conference Call
ƒ‹
You can talk to two people at once.
ƒ‹
1. Make sure you have two calls, one active and one on hold.
2. Press
.
3. Press the appropriate button to retrieve the held call (this is
automatic on the M7100 telephone).
You can create a conference when you are on a call.
ƒ‹
1. Make a second call.
2. Press
P0881591 Issue 02
.
Modular ICS 4.0 System Coordinator Guide
40 / Answering calls
3. Press the button where the first call is on hold to create a
conference.
Only the person who established the conference can process
the conference by using the procedures described in this
section.
Tip - You can create a conference by releasing privacy
on a call. See “Turning Privacy on or off for a call” on page
47.
Disconnecting one party
You can disconnect one party from a conference and continue
talking to the other.
On an M7208, M7310 or M7324 telephone:
1. Press the line button of the call that you want to disconnect.
The call that you want to keep is automatically put on hold.
2. Press
®
. The call is disconnected.
3. Press the line button of the held call to speak to the
remaining person.
ƒ£‹
˙
®
˙
On an M7100 telephone:
1. Press
, to place one caller on hold. Press
again, to put the caller you want to keep on
hold.
2. Press
. The call is disconnected.
3. Press
Modular ICS 4.0 System Coordinator Guide
to speak to the remaining party.
P0881591 Issue 02
Answering calls / 41
Independently holding two calls
For all Norstar telephones except the M7100 telephone, you
can put the two people in a conference call on hold
independently so that they cannot talk to each other.
1. Press the line button of one person. The other person is
automatically put on hold.
2. Press
˙
. The second person is put on hold.
You can re-establish the conference.
ƒ‹
1. Take one call off hold.
2. Press
.
3. Take the other call off hold.
Putting a conference on hold
You can put a conference on hold, allowing the other two
people to continue speaking to each other by pressing
.
˙
˙
You can reconnect to the conference by pressing either of the
held line buttons. For the M7100 telephone, press
.
Splitting a conference
You can talk with one person while the other person is on hold.
On an M7208, M7310 or M7324 telephone
Press the line button of the person you want to speak to.
The other person is automatically put on hold.
ƒ£‹
˙
ƒ‹
On an M7100 telephone:
1. Press
2. Press
. The first party is on hold.
, if necessary, to switch parties.
You can re-establish the conference.
1. Press
P0881591 Issue 02
.
Modular ICS 4.0 System Coordinator Guide
42 / Answering calls
2. Take the held call off hold. This is not necessary for the
M7100 telephone.
Removing yourself from a conference
ƒ‡‚
You can remove yourself from a conference, and connect the
other two callers through your Norstar system.
Enter the Transfer feature code
ƒ‡‚
.
When you remove yourself from a conference using the
Transfer feature, and both callers are from outside your
system, one of the callers must have called you on a disconnect
supervised line, or the call is be disconnected.
Displays
3 parties only
You are trying to add a fourth party to your
conference call, or to join two conferences
together. Release one call from the
conference before adding another, or keep
the two conferences separate.
Conf. on hold
You have put a conference call on hold.
Conference busy
You have tried to make a conference call, but
your system is already handling its maximum
number of conference calls.
Line001
You are on a conference with the two lines or
telephones shown. You can drop out of the
conference and leave the other two parties
connected (Unsupervised Conference) by
pressing TRANSFER or entering the Transfer
feature code.
221
TRANSFER
Press held line
You have activated the Conference feature
with one call active and another on hold.
Press the line of the call on hold to bring that
person into the conference.
For other displays, see “Common feature displays” on page 201.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 43
ƒ°‚¤
ƒ°‚¤
Listening to a call as a group
To allow people in your office to listen in on a call using
Group Listening, press
.
You hear the callerÕs voice through your telephoneÕs speaker.
Continue to speak to the caller through the telephone receiver.
Your telephoneÕs microphone is off, so the caller does not hear
people in your office.
ƒ£°‚¤
ƒ£°‚¤
Canceling Group Listening
Group Listening is canceled automatically when you hang up
or when you press
.
Tip - Keep the receiver away from the speaker, or you
®
may hear feedback. The higher the volume, the more the
feedback. Press
to prevent feedback when hanging
up.
Using Handsfree/Mute
The ability to use Handsfree must be turned on or off for each
telephone. The type of Handsfree can be changed. See
ÒChanging Handsfree for a telephoneÓ on page 45.
You must turn on Handsfree for a telephone to be able to use
a headset.
Answering calls without lifting the receiver
1. Press the line button for the ringing call. (This step is not
necessary if you have a prime line assigned to your
telephone.)
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
©
44 / Answering calls
2. Press
. The telephoneÕs internal microphone
and speaker are automatically turned on.
Handsfree is not available for an M7100 telephone.
Tip - Direct your voice toward the telephone. The closer
you are to the telephone, the easier it is for the
microphone to transmit your voice clearly to your listener.
©
Making calls without lifting the receiver
1. Press
. (If you donÕt have a prime line assigned
to your telephone, press a line button.)
The telephoneÕs internal microphone and speaker are
automatically turned on.
2. Dial your call.
3. Speak normally.
©
Muting Handsfree
1. Press
to switch off the telephone microphone
so that you can speak privately to someone in your office
while you are on a handsfree call.
©
2. Press
to turn the microphone back on again and
continue your handsfree call.
©
Changing a regular call to handsfree
1. Press
.
2. Hang up the receiver.
Changing a handsfree to a regular call
Lift the receiver.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 45
©
Using Handsfree
The indicator next to
is solid when you have
Handsfree turned on. It flashes when you mute the
microphone.
Wait for your caller to finish speaking before you speak. The
microphone and speaker cannot both be on at once. Your
callerÕs voice may be cut off if you both speak at the same
time. Noises such as a tapping pencil could be loud enough to
turn on your microphone and cut off your callerÕs speech.
To prevent a possible echo, keep the area around your
telephone free of paper and other objects that might screen
your microphone. Turning down the microphoneÕs volume
(press the left end of
while speaking) prevents
echoes. When you change the volume level, both the
microphone and speaker volume are adjusted to prevent
feedback problems.
√
Place the telephone so that any unavoidable local noise (such
as an air conditioner) is behind it. This limits the amount of
disruptive background noise.
Tip - In open-concept environments, use the receiver
when handsfree communication is not necessary or when
you need privacy during a call. Another option is to use a
headset.
Changing Handsfree for a telephone
You can program the type of Handsfree used with each
telephone or activate Handsfree Answerback.
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
46 / Answering calls
1. Press
.
2. Press
password).
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
twice.
three times.
6. Choose a setting at Handsfree: using the CHANGE button.
There are three ways to set Handsfree for an individual
telephone:
Handsfree:None
CHANGE
Handsfree is not available to the telephone.
Handsfree:Auto
CHANGE
You can make or answer a call without
having to pick up the receiver or press
. The telephone’s internal
microphone and speaker turn on
automatically when you press a line or
intercom button to make or answer a call.
Handsfree:Std
CHANGE
A standard version of Handsfree described
“Using Handsfree/Mute” on page 43.
©
For other displays, see “Common feature displays” on page 201.
Both Auto and standard Handsfree allow you to use a headset
with a Norstar telephone.
A Handsfree/Mute button is automatically assigned to a
telephone that is programmed with Handsfree and is always
located in the lower right-hand corner of the telephone.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Answering calls / 47
Handsfree Answerback
Handsfree Answerback allows you to answer a voice call
without lifting the receiver. It is always turned off for an
M7100 telephone.
You can turn Handsfree Answerback on or off for a telephone
that is programmed to use Handsfree.
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
2. Press
password).
.
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
twice.
four times.
6. Choose a setting (Yes or No) at HF answerback: using the
CHANGE button.
Turning Privacy on or off for a call
ƒ°‹
Lines in your system can be configured to have automatic
privacy. If a line is not programmed with privacy, anyone with
the line assigned to their telephone can join your call by
pressing the line button. If a line is programmed with privacy,
only one person at a time can use the line.
Privacy control cannot be used on internal or conference calls.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
48 / Answering calls
When another telephone joins a call, the participants on the
call hear a tone, and a message appears on the Norstar display.
You cannot join a call without this tone being heard.
Creating a conference by releasing privacy
If a line is programmed with privacy, you can turn privacy off
to allow another person with the same line to join in your
conversation and form a conference. All the rules applicable to
a conference apply except there is only one line in use, instead
of the normal two. This means that you cannot split a
conference set up using Privacy.
1. Press
ƒ°‹
.
2. Tell the other person to press the line button and join your
conversation.
Only two Norstar telephones in addition to the external caller
can take part in this kind of conference.
Making a call private
If a line is programmed not to have privacy, you can turn
privacy on for a call, preventing other people with the same
line from joining your conversation.
Press
ƒ°‹
.
ƒ‡‡
Checking call length using Call Duration Timer
ƒ‡‡
By pressing
, you can see how long you
spent on your last call, or how long you have been on your
present call.
Displays
221 02:47
Modular ICS 4.0 System Coordinator Guide
The display shows the last call you made, or
the current call, and the total elapsed time in
minutes and seconds.
P0881591 Issue 02
Answering calls / 49
Line001 01:45
You parked your last call. The display shows
the length of time the call was parked. You
cannot see the length of time a call was
parked unless the call is active at your
telephone or has just been released by your
telephone.
Disconnecting by accident
If you accidentally drop the receiver back into the telephone
cradle while answering a call, you can quickly retrieve the call.
©
Pick up the receiver again or press
second to be reconnected to your call.
Time
ƒ°‚‹
Press
while you are on a call.
P0881591 Issue 02
within one
to display the current date and time
Modular ICS 4.0 System Coordinator Guide
50 / Answering calls
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Making calls
There are many ways to make a call, depending on the
programming and the type of call, as follows:
¥
Pick up the receiver and dial. The Norstar system supports
three methods of dialing. See ÒChanging how you dial
your callsÓ on page 55.
¥
Pick up the receiver, press a line button, and dial (if the call
is not on your prime line).
¥
Press
and dial (to talk without using the
receiver). See ÒUsing Handsfree/MuteÓ on page 43.
¥
Press
, press a line button, and dial (to talk
without the receiver and if the call is not on your prime
line).
¥
Press a line button and dial (to talk without the receiver and
if Automatic Handsfree is assigned to your telephone).
¥
Use one of the features that make dialing easier. See ÒTime
savers for making callsÓ on page 61.
©
©
Displays
221 busy
PRIORITY
9__
QUIT
LATER
BKSP
95551234
P0881591 Issue 02
TRANSFER
The telephone you have called has no
internal lines available. Press LATER to use
the Ring Again or Message features or press
PRIORITY to make a priority call.
You are dialing using Pre-dial. To erase an
incorrect digit, press the left end of
or BKSP. When the number is
complete, select a line or lift the receiver.
√
This prompt remains on your display as long
as you are on a call you have dialed. To
transfer the call, press TRANSFER.
Modular ICS 4.0 System Coordinator Guide
52 / Making calls
Already joined
Calling 221
PRIORITY
Your telephone is already connected to the
telephone you are trying to call. Check your
active line buttons, and return to that call.
LATER
Wait for the telephone to be answered. If no
one answers, press LATER to use the Ring
Again (page 58) or Message (page 96)
feature, or press PRIORITY to make a priority
call.
Can't ring again
You cannot use Ring Again on your current
call. You can only use Ring Again while you
have a busy signal on an internal call or line
pool request or while an internal call is
ringing.
Do not disturb
PRIORITY
LATER
The telephone you are calling has Do Not
Disturb turned on. Press LATER to use the
Ring Again or Messages features, or press
PRIORITY to make a priority call.
Expensive route
You have dialed a number, but the least
expensive route that the system is
programmed to use is busy. Unless you
release the call, it goes through on a more
expensive route.
Hidden number
The last number you dialed or the number
you saved for Saved Number Redial was a
speed dial number that displayed a name
rather than the number. The number is
dialed correctly, but you cannot see it.
Line denied
You have attempted to use someone else’s
private line.
Line001
TRANSFER
Enter the digits of the number you want to
dial.
No last number
You have not dialed an external telephone
number since the last power interruption or
system reset.
No line selected
Either you have no prime line or your prime
line is busy. Select a line manually before
dialing.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Making calls / 53
Not in service
You have entered the number of a telephone
that is not in service.
On another call
LATER
The telephone you have called is on another
call. Press LATER to use the Ring Again or
Message features.
Restricted call
The call you are trying to make has been
restricted in programming. A possible reason
is time-of-day restrictions on certain calls.
Ring Again?
YES
NO
EXIT
Press YES to use Ring Again. Press NO to
send a message. See “Sending messages”
on page 96 and “Turning on Ring Again” on
page 59.
Select a line
Either you have no prime line, or the prime
line is in use, or the line programmed for an
autodial number, speed dial number, or
Hotline is in use. Select a line and dial again.
Send message?
YES
NO
Press YES to send a message. See
Messages.
For other displays, see “Common feature displays” on page 201.
Choosing a line using a line button
You have one line button for each line assigned to your
telephone. Press the line button to select the line you want to
answer or use to make a call. Having several line buttons
allows you immediate access to more than one line.
The M7100 telephone has two intercom paths which are used
instead of line buttons to answer and make calls. Each M7100
can be assigned two lines. You can press
to switch
between two calls, one active and one on hold.
˙
Line pools
A line pool is a group of external lines that can be shared by
many telephones. You can use a line in a line pool to make an
external call.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
54 / Making calls
The Norstar Modular ICS system can have 15 line pools, and
a telephone can be programmed to access any number of them.
A line pool access code is a number you dial to get a line pool.
The access code can be up to four digits long. You can have
several different line pools for your system, each one giving
you access to a different set of external lines. It is one way of
sharing lines across telephones in a system.
Your installer or customer service representative programs the
line pool access codes and gives each telephone access to a
line pool.
Everyone in the office should have a list of the line pool access
codes for the line pools their telephones can use.
Using a line pool to make a call
1. Press
ƒfl›
ƒfl›
.
2. Enter a line pool access code.
If you have a free internal line, you can make a call using a line
pool without entering the feature code first.
1. Select an internal line (intercom).
2. Dial the line pool access code.
Tip - If no lines are available in the line pool, you can use
Ring Again at the busy tone. You are notified when a line
in the line pool becomes available. See “Using Ring
Again” on page 58.
Programming a memory button with a line pool feature code
When you program a button with the line pool feature code,
you must enter a line pool access code after the feature code.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Making calls / 55
The programmed line pool button accesses a specific line pool,
not the line pool feature. See ÒProgramming feature buttonsÓ
on page 115 for more information.
If you program a button with an indicator to access a line pool,
when all the lines in a line pool are busy, the indicator for the
line pool button turns on. The indicator turns off when a line
becomes available.
Making calls from an ISDN terminal
ISDN terminals do not have line keys or intercom keys as do
Norstar telephones. To make an outgoing call from an ISDN
terminal, access an external line by entering a line pool code
or by using the ARS feature.
Changing how you dial your calls
1. Press
2. Press
ƒ•°¤
£
˙
3. Press
mode.
ƒ•°¤
.
or NEXT until the dialing mode you want appears.
or OK to select the displayed dialing
The dialing modes feature code cannot be programmed onto a
memory button.
Using Standard dial
Standard dial allows you to make a call by selecting a line and
dialing the number. If you have a prime line, it is selected
automatically when you lift the receiver or press
.
©
You cannot use Standard dial on an M7100 telephone unless
you pick up the receiver first. If you have an M7100 telephone,
use the Automatic dial or Pre-dial feature for on-hook dialing.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
56 / Making calls
Using Automatic dial
Automatic dial allows you to dial a number without selecting
a line. Your prime line is selected as soon as you start dialing
a number.
Automatic dial does not work if your telephone has no prime
line or if your prime line is in use.
Telephones connected to an analog terminal adapter (ATA)
cannot use Automatic dial.
Using Pre-dial
Pre-dial allows you to enter a telephone number, check it, then
change it before actually making the call. The call is not dialed
until you select a line or line pool, or pick up the receiver. You
can pre-dial both external and internal numbers. You must,
however, select the correct type of line (external or internal)
for the type of number you have entered.
Tip - If your telephone starts ringing while you are
ƒ°fi
pre-dialing a number, you can stop the ringing by turning
on Do Not Disturb (
). This does not affect
numbers you are entering.
You cannot pre-dial a telephone number if all the lines on
your telephone are busy.
When the internal number you have called is busy
Priority Call
ƒfl·
If you get a busy signal or a Do Not Disturb message when you
call someone in your office, you can interrupt them. Use this
feature for urgent calls only.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Making calls / 57
Tip - Priority calls cannot be made to Hunt Group DNs.
For more information on Hunt Groups see “Programming
Hunt Groups” on page 133.
ƒfl·
Making a priority call
1. Press
.
2. Wait for a connection, then speak.
A person who receives a priority call while on another call has
eight seconds to accept or block the call. For information on
blocking calls see ÒStopping callsÓ on page 148. If the person
does nothing, the priority call feature puts their active call,
including conference parties, on Exclusive Hold and connects
your call.
Giving a telephone the ability to make priority calls
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
2. Press
password).
.
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
call:.
twice.
nine times. The display shows Priority
6. Press CHANGE to choose Y (Yes) or N (No)
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
58 / Making calls
Displays
Call blocked
You tried to place a priority call to another
Norstar telephone. The person you called
has blocked your call. Try to call later.
Please wait
The party you are calling has eight seconds
to decide whether to accept or reject your
priority call.
Priority denied
The telephone you are calling has already
received a priority call or is unable to receive
priority calls.
You can make a priority call only while your telephone
displays:
221 busy
PRIORITY
LATER
Calling 221
PRIORITY
LATER
Do not disturb
PRIORITY
LATER
On another call
PRIORITY
LATER
Using Ring Again
ƒ¤
Use Ring Again when you call someone on your Norstar
system and their telephone is busy or there is no answer. Ring
Again can tell you when they hang up or next use their
telephone. You can use Ring Again to tell you when a busy
line pool becomes available.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Making calls / 59
Tip - The Ring Again feature cannot be used when calling
a Hunt Group DN. For more information on Hunt Groups
see “Programming Hunt Groups” on page 133
ƒ¤
Turning on Ring Again
Press
ƒ¤
before you hang up.
Using Ring Again cancels any previous Ring Again requests
at your telephone.
Canceling Ring Again
Press
ƒ£¤
ƒ£¤
to cancel a Ring Again request.
Displays
Can't ring again
You cannot use Ring Again on your current
call. You can only use Ring Again while you
have a busy signal on an internal call or line
pool request, or while an internal call is
ringing.
Ring Again?
YES
NO
Press YES to use Ring Again. Press NO if you
prefer to send a message.
P0881591 Issue 02
EXIT
Modular ICS 4.0 System Coordinator Guide
60 / Making calls
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Time savers for making calls
Storing a number on a memory button for Autodial
You can program memory buttons for one-touch dialing of
internal or external telephone numbers.
Buttons used for lines, answer or Handsfree/Mute cannot be
used as autodial buttons.
If the power to your Norstar system is off for more than three
days, autodial numbers (as well as some other system
programming) may be lost from the memory.
ƒ•⁄ ƒ•¤
ƒ•⁄
ƒ•¤
Adding an autodial button
or
1. Press
to program an external number or
for an internal number.
2. Choose a button and then enter the number as if you were
dialing it.
When programming Autodial you can use:
¥
Last Number Redial
¥
Saved Number Redial
¥
destination codes (choose
¥
host system signalling
∆
as the line)
Choosing a line for Autodial
To include a line selection for an external number, press the
line or intercom button before you enter the number. To select
a line pool, press a programmed line pool button, or press
and enter a line pool access code.
∆
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
62 / Time savers for making calls
If you select a line before pressing the autodial button, the call
goes out on the line you have selected instead of the line that
is part of the autodialer programming.
For the M7100 telephone, an external autodialer can be
programmed only by using a line and not a line pool.
Tip - If you do not include a line selection in an autodial
number, the call uses your prime line (if you have one).
∆
Using intercom as the line for Autodial
If you press
as the line for an external autodial
number, you must include a valid line pool access code or a
destination code. If line pool access codes or destination codes
are changed, remember to reprogram autodial numbers.
Displays
987___
QUIT
BKSP
OK
√˙
Continue to enter digits until the number is
complete. Press
or BKSP to
erase an incorrect digit. Press
or
OK when you are finished.
Autodial full
The memory allotted to autodial numbers in
your Norstar system is full.
Button erased
While programming external Autodial, you
erased the button by pressing
or
OK before entering any digits.
Enter digits
QUIT
Intercom #: ___
QUIT
Modular ICS 4.0 System Coordinator Guide
˙
OK
Enter the number you want to program
(choosing the line first if necessary) exactly
as if you were making a call.
Enter the internal telephone number you
want to program.
P0881591 Issue 02
Time savers for making calls / 63
Invalid number
You are programming an internal autodial
button and have entered a number that is not
an internal number on your system. Enter a
valid internal number. If the number you are
entering is a destination code, use external
autodial.
Press a button
QUIT
Press the memory button you want to
program.
Program and HOLD
Enter the number you want to program onto
the button, then press
.
Program and OK
QUIT
˙
OK
Programmed
˙
Enter the number you want to program onto
the button, then press
or OK. You
may include a line or line pool selection in an
autodial sequence by selecting the line
before entering any digits.
The number is stored on the button.
For other displays, see “Common feature displays” on page 201.
Using Last Number Redial
ƒfi
Press
dialed.
ƒfi
to redial the last external number you
Last Number Redial records a maximum of 24 digits.
ƒ•‚£
Tip - If you have a programmed Last Number Redial
button, you can use Button Inquiry (
), then
press the Last Number Redial button followed by
) to
check the last number before you dial it.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
64 / Time savers for making calls
Preventing a telephone from using Last Number
Redial
Last Number Redial can be restricted at individual telephones.
You need the programming template found at the front of this
guide. See ÒA map for working in programmingÓ on page 7 for
more information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
≠
‘
.
2. Press
password).
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
.
three times. The display shows
Restrictions.
6. Press
7. Press
twice.
. The display shows Allow last no:.
8. Press CHANGE to choose Y (Yes) or N (No).
Displays
Hidden number
The last number you dialed was a speed dial
number that displayed a name rather than
the number. The number is dialed correctly,
but you cannot see it.
No last number
You have not dialed an external telephone
number since the last power interruption or
system reset.
Tip - You can copy a number onto an autodial button
using Last Number Redial.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Time savers for making calls / 65
Using Speed Dial
Norstar provides two types of speed dialing: system and
personal. System Speed Dial programming allows you to
assign two-digit speed dial codes to the external numbers your
co-workers call most frequently. Personal or User Speed Dial
programming allows individuals to program their own speed
dial numbers.
Speed dial numbers are subject to the same restriction filters as
regularly dialed numbers. Your installer or customer service
representative can program system speed dial numbers to
bypass dialing restrictions.
Speed dial numbers may include host system signaling codes.
Making a speed dial call
ƒ‚
ƒ‚
1. Press
to quickly dial external telephone
numbers that have been programmed onto speed dial
codes.
2. Enter the appropriate two-digit speed dial code.
Changing and adding System Speed Dials
System Speed Dial codes are numbered from 01 to 70. The
system coordinator assigns numbers to System Speed Dial
codes for the entire system. See ÒAdding or changing a system
speed dialÓ on page 15.
Tip - There is no difference between using User Speed
Dial and using System Speed Dial. They differ only in how
you program them.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
66 / Time savers for making calls
ƒ•›
Adding or changing User Speed Dial
To add or change a User Speed Dial number on your
telephone:
1. Press
ƒ•›
.
2. Enter a two-digit code from 71 to 94 that you want to
associate with a telephone number.
3. To include a line selection for this number, press the line
or intercom button. To select a line pool, press a
programmed line pool button, or press
and
enter a line pool access code. For the M7100 telephone,
you can select only a line pool.
∆
˙
4. Enter the number you want to program.
5. Press
or OK.
Displays
01:9___
CANCL
BKSP
OK
Enter digits
QUIT
OK
Continue entering the number you want to
program. You can change the number by
pressing BKSP or
. When you are
finished, press
or OK.
√
˙
Enter the telephone number you want to
program exactly as if you were dialing it
normally. When you are finished, press
or OK.
˙
Invalid code
You have entered a code outside the code
range (01-70 for system, 71-94 for personal).
No number stored
There is no number stored on the speed dial
code you have dialed.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Time savers for making calls / 67
Program and HOLD
If you want to program a line or line pool
selection for this speed dial number, select
the line or line pool. Otherwise, enter the
telephone number exactly as if you were
dialing it normally. When you are finished,
press
.
˙
Program and OK
QUIT
OK
If you want to program a line or line pool
selection for this speed dial number, select
the line or line pool. Otherwise, enter the
telephone number you want to program
exactly as if you were dialing it normally.
When you are finished, press OK.
Select a line
There is no line associated with the speed
dial number you are trying to use. Select a
free external line or line pool and enter the
speed dial feature code again.
Unknown number
The system cannot dial the number stored.
Reprogram the number.
For other displays, see “Common feature displays” on page 201.
Using Saved Number Redial
ƒfl‡
You can save the number of the external call you are on
(provided you dialed the call) so that you can call it again later.
Each telephone can save one number at a time with Saved
Number Redial, not one number for each line.
Tip - You can copy a number onto an autodial button
using Saved Number Redial.
ƒfl‡
Saving a number
Press
while you are on the call.
Saved Number Redial records a maximum of 24 digits.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
68 / Time savers for making calls
ƒfl‡
Dialing a saved number
Press
when you are not on a call.
ƒ•‚
If you have a programmed Saved Number Redial button, you
can use Button Inquiry (
) to check the last
number before you dial it.
Preventing a telephone from using Saved Number
Redial
Saved Number Redial can be restricted at individual
telephones.
You need the programming template found at the front of this
guide. See ÒA map for working in programmingÓ on page 7 for
more information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
≠
‘
.
2. Press
password).
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
.
three times. The display shows
Restrictions.
6. Press
7. Press
no:.
twice.
twice. The display shows Allow saved
7. Press CHANGE to choose Y (Yes) or N (No).
Displays
Hidden number
Modular ICS 4.0 System Coordinator Guide
You have saved a speed dial number that
displays a name rather than the number. The
number is dialed correctly, but you cannot
see it.
P0881591 Issue 02
Time savers for making calls / 69
No number saved
P0881591 Issue 02
You have tried to save the number of an
incoming call. You can only save numbers
that you have dialed yourself.
Modular ICS 4.0 System Coordinator Guide
70 / Time savers for making calls
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Handling many calls at once
Using Hold
You can temporarily suspend a call by pressing
˙
.
When a call is on hold, its indicator flashes on all telephones
that have access to the line. The call can be retrieved from any
of these telephones.
˙
On the M7100 telephone,
alternates between two
lines; one active, one on hold. The M7100 telephone cannot
retrieve a call placed on hold by another telephone.
Tip - Answered Hunt Group calls can be placed on hold
at the answering Norstar set. For more information on
Hunt Groups see “Programming Hunt Groups” on page
133.
Retrieving a held call
You can connect to a call on hold by pressing the flashing line
button of the held call.
Holding automatically
If your line has been programmed with full autohold, you can
switch from one call to another and have your calls put on hold
automatically.
Press the line button of the caller you want to speak to. Your
current caller is put on hold automatically.
Listening on hold
If you have been put on hold, you can hang up the receiver
while you wait for the other person to return.
1. Press
P0881591 Issue 02
˙
.
Modular ICS 4.0 System Coordinator Guide
72 / Handling many calls at once
2. Hang up the receiver.
3. Press the line button of the call. You may hear indications
from the far end that you are on hold (for example, tones
or music).
4. When the person you were talking to returns you hear them
through your telephone speaker. Lift the receiver and talk.
Tip - If Automatic Handsfree has been assigned to your
telephone, you can use the Handsfree/Mute feature
instead of Listen on Hold.
Holding a call exclusively
ƒ‡·
You can put a call on Exclusive Hold so that it can be retrieved
only at your telephone.
ƒ‡· ƒ˙
Press
or
. The line
appears busy on all other telephones, and the call cannot be
picked up by anyone else in the office.
Displays
On hold: LINENAM
Using Call Queuing
You have placed one or more calls on hold.
The name of the line that has been held the
longest is displayed.
ƒ°‚⁄
If you have more than one call ringing at your telephone, you
can choose the call that has the highest priority by pressing
.
ƒ°‚⁄
Call Queuing answers incoming external calls before callback,
camped, and transferred calls.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Transferring calls
ƒ‡‚
Using the transfer feature
Transfer allows you to direct a call to a telephone in your
Norstar system, within the Norstar network, or external to
Norstar.
ƒ‡‚
Transferring a call
1. Press
.
2. Call the person to whom you want to transfer the call.
3. If you want to talk to the person to whom you are
transferring the call, wait for them to answer, and speak to
them before proceeding.
4. When you are ready to complete the transfer, press
JOIN.
®
or
You cannot use Last Number Redial, Saved Number Redial, a
speed dial code, Priority Call or Ring Again to dial the number
for a transfer.
Depending on how a private network call is routed, it may not
always be possible for the system to return a transferred call to
you if the transferred call is not answered. When transferring
a call to a private network destination, stay on the line until the
person to whom you are transferring the call answers.
You cannot use the Line Pool feature code to access a line pool
for a transfer. To use a line pool, use a programmed line pool
button, or press
and enter a line pool access code.
∆
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
74 / Transferring calls
If you have an auxiliary ringer programmed to ring for calls on
an external line, and you transfer a call on that line without
announcing the transfer, the auxiliary ringer rings for the
transferred call.
Transferring external calls
If an external call is transferred to a busy telephone, or not
answered after a few rings, the call automatically rings again
at the telephone from which it was transferred, and the display
indicates that the telephone was busy or that no one answered.
When transferring an external call to an external number, the
external call you are trying to transfer must be an incoming
call on a disconnect supervised line.
While on a conference call, you can remove yourself from the
conference and connect the other two callers using the
Transfer feature. However, if both of the other people are from
outside the system, at least one of the outside callers must have
called you and both of the outside calls must be on disconnect
supervision lines.
Note: Transfer via Hold on DID lines is not supported. Once
a call is answered the line appearances on all other sets
are free immediately to take other calls. This allows a
greater number of calls to be received. Use the Call Park
feature to transfer a call.
In certain situations, you may experience lower volume levels
when transferring an external call to an external person, or
when transferring two external callers from a conference call.
Canceling a transfer
You can reconnect to the person you are trying to transfer at
any time before the transfer is complete.
1. Press
ƒ£‡‚
Modular ICS 4.0 System Coordinator Guide
or CANCL.
P0881591 Issue 02
®
Transferring calls / 75
2. If you are not reconnected to your original call, press
and then press the line key of the original call, which is
now on hold.
Displays
221>222
CANCL
RETRY
JOIN
You are talking to the person you want to
transfer the call to. Press RETRY if you decide
to transfer the call to someone else. Press
or JOIN to transfer the call.
®
221 no reply
CALLBACK
The person to whom you tried to transfer a
call did not answer. Press CALLBACK or the
flashing line button to reconnect to the call.
On the M7100 telephone, lift the receiver.
Do not disturb
CANCL
RETRY JOIN
The person to whom you tried to transfer a
call has Do Not Disturb active on their
telephone. Press JOIN to transfer the call
anyway. Press RETRY to transfer the call to
someone else. Press CANCL or the flashing
line button to reconnect to the call (on the
M7100 telephone, press
).
ƒ£‡‚
Invalid number
CANCL
RETRY
You entered an invalid internal number.
Press RETRY and enter the number again.
Line001 hung up
The external caller you were transferring
hung up before the transfer was complete.
Line001>221
CANCL
RETRY
JOIN
Press JOIN to transfer the call on line 001 to
telephone 221. Press RETRY if, after talking to
the person at extension 221, you decide to
transfer the call to someone else.
Not in service
CANCL
RETRY
The telephone to which you are trying to
transfer a call is out of service.
Restricted call
CANCL
RETRY
You cannot transfer the call because of
telephone or line restrictions.
Still in trnsfer
CANCL
RETRY
Complete the transfer in progress before you
access a new feature, answer another
alerting call or select an outgoing line.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
76 / Transferring calls
Transfer denied
CANCL
RETRY
Your transfer cannot be completed for one of
these reasons:
• All the resources needed to perform a
transfer are in use. Try again later.
• You have tried to transfer an external
call to another external party. Some
restrictions apply.
• You cannot transfer your conference
call.
Transfer to:2___
CANCL
RETRY
Press RETRY if you entered the wrong internal
number or if the person to whom you are
transferring the call is unavailable.
For other displays, see “Common feature displays” on page 201.
ƒ°¤
Using Camp-on
You can transfer an external call to another telephone, even if
all of its lines are busy.
1. Press
ƒ°¤
.
2. Dial the number of the telephone you want to camp the call
to.
Camped calls appear on a line button on the receiving
telephone, if one is available. If there is no line button
available, you receive a message on the display and hear Camp
tones.
Each Norstar telephone can handle only one camped call at a
time.
Displays
221 Camp max
CALLBACK
Modular ICS 4.0 System Coordinator Guide
You tried to camp a call to a telephone that
already has a camped call. The call has
come back to you. Press the CALLBACK button
or the line button to reconnect to the call. On
the M7100 telephone, just pick up the
receiver.
P0881591 Issue 02
Transferring calls / 77
221 DND
CALLBACK
The person to whom you redirected a call
has Do Not Disturb active on the telephone.
The call has come back to you. Press the
CALLBACK button or the line button to
reconnect to the call. On the M7100
telephone, just pick up the receiver.
Camp denied
You have tried to camp an internal call. You
can only camp external calls.
Camp to:
CANCL
Dial the number of the internal telephone to
which the call is sent.
Camped: 221
CALLBACK
The telephone to which you camped a call
did not answer the call. The call has come
back to you. Press CALLBACK or the line
button to reconnect to the call. On the M7100
telephone, just pick up the receiver.
Line001 hung up
A call you camped has come back to you, but
the caller hung up before you could
reconnect.
Not in service
CALLBACK
The telephone to which you have camped a
call is out of service or is being used for
programming. The call has come back to
you. Press CALLBACK or the line button to
reconnect to the call. On the M7100
telephone, just pick up the receiver.
Release a call
The line that the camped call is on is in use
or that line does not appear at your
telephone. Release the line or release an
internal line.
For other displays, see “Common feature displays” on page 201.
ƒ‡›
Parking a call
You can suspend a call so that it can be retrieved from any
telephone in your system.
1. Press
P0881591 Issue 02
ƒ‡›
.
Modular ICS 4.0 System Coordinator Guide
78 / Transferring calls
ƒfl‚
2. Use the Page feature (
) or press PAGE to
announce the retrieval code displayed by your telephone.
Retrieving a parked call
1. Select an internal line. (On the M7100 telephone, pick up
the receiver.)
2. Dial the Call Park retrieval code.
Using Call Park
When you park a call, the system assigns one of 25 codes for
the retrieval of the call. These codes consist of the Call Park
prefix, which may be any digit from 1 to 9, and a two-digit call
number between 01 and 25. For example, if the Call Park
prefix is 1, the first parked call is assigned Call Park retrieval
code 101.
The Norstar system assigns Call Park codes in sequence, from
the lowest to the highest, until all the codes are used. This
round-robin approach means that a greater variety of codes are
used, which makes it easier for a call to reach the right person
when more than one incoming call is parked.
The highest call number (the Call Park prefix followed by 25)
is used only by analog telephones or devices connected to the
system using an analog terminal adapter (ATA) or an Analog
Station Module (ASM). Analog telephones or devices cannot
use the other Call Park codes.
Your installer or customer service representative programs
both the Call Park prefix and the delay before parked calls are
returned to the originating telephone. External calls parked for
longer than the programmed delay are returned to your
telephone.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Transferring calls / 79
Tip - Answered Hunt Group calls are parked in the same
manner as other calls. For more information on Hunt
Groups see “Programming Hunt Groups” on page 133.
Call Park can be disabled by your installer or customer service
representative.
Displays
Already parked
The person you were talking to has already
parked your call. You cannot park the same
call.
No call to park
You have attempted to use Call Park with no
active call on your telephone. If the call you
want to park is on hold, reconnect to it before
you park it.
Invalid number
You have entered an invalid retrieval code.
No call on: 101
There was no call on the retrieval code you
entered.
Park denied
You have tried to park a conference call.
Split the conference and park the calls
separately. The person who retrieves the
calls can reconnect the conference.
Parked on: 402
PAGE
Parking full
EXIT
ƒfl‚
Record the code shown. Use Page
(
) or press PAGE to announce
the call and its retrieval code.
All available retrieval codes are in use.
Transfer the call or take a message instead.
For other displays, see “Common feature displays” on page 201.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
80 / Transferring calls
Using Callback
When you direct a call you have answered to another
telephone, the system monitors the call to make sure it is
answered. If no one answers the call within a set length of
time, the system directs it back to you.
Callback generates a variety of displays. Most occur after a set
delay and are listed in the index. Some occur immediately if
the telephone to which you are directing a call is out of service
or otherwise unavailable. These are listed with the descriptions
of the specific features such as Transfer or Camp-on.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Forwarding your calls
ƒ›
Forwarding your calls to another Norstar telephone
ƒ›
Press
and enter the number of the internal
telephone to which you want your calls forwarded.
Use Line Redirection to forward calls outside the system. Line
redirection takes precedence over Call Forward.
ƒ£›
ƒ›
Canceling Call Forward
Press
.
Using Call Forward at your telephone
When you use
, all calls go to the destination
you select, regardless of how Forward on busy and Forward no
answer are programmed.
Tip - If your Norstar set is a member of a Hunt Group, the
Call Forward all calls setting is overridden by the Hunt
Group routing for Hunt Group calls. For more information
on Hunt Groups see “Programming Hunt Groups” on page
133.
If the telephone to which you forwarded your calls does not
have the same external lines as your telephone, the forwarded
calls appear on intercom buttons.
If a call is forwarded, it does not ring but the line indicator
flashes on your telephone. You can answer the call by pressing
the button next to the flashing indicator.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
82 / Forwarding your calls
Tip - If you are one of a group of people who regularly
forward their calls to one another, be aware that it is
possible to set up forward loops where a call is forwarded
from one telephone to another in a circle, and is never
answered anywhere.
Overriding Call Forward
If you call someone who has their calls forwarded to you, your
call rings at that personÕs telephone even though they are
forwarding their calls to you.
Changing the automatic Call Forward settings for a
telephone
Call forwarding occurs automatically when a call is not
answered or the line is busy. These automatic options are
changed in programming.
For step-by-step instructions, see ÒChange where a call goes
when there is no answerÓ on page 22.
Changing Forward no answer
Forward no answer redirects unanswered calls to another
telephone on your Norstar system.
Tip - If the Norstar set is a member of a Hunt Group, the
Call Forward no answer feature is overridden and the
Hunt Group call continues to ring until the hunt time has
expired. For more information on Hunt Groups see
“Programming Hunt Groups” on page 133.
Line Redirection takes precedence over Forward no answer.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Forwarding your calls / 83
For step-by-step instructions for changing Forward no answer
see ÒChange where a call goes when there is no answerÓ on
page 22.
Changing the delay before a call is forwarded
You can assign the number of times that the incoming call
rings at your telephone before the call is forwarded. To
estimate the delay time in seconds, multiply the number of
rings by six.
For step-by-step instructions, see ÒChange the number of
times the telephone rings before it is forwardedÓ on page 22.
Forward on busy
Forward on busy redirects your calls to another telephone on
your Norstar system when you are busy on a call, or when you
have Do Not Disturb activated at your telephone. For step-bystep instructions, see ÒMaking changes to Call Forward on
BusyÓ on page 23.
Line Redirection takes precedence over Forward on busy.
Calls that are redirected by Line Redirection are not affected
by any Call Forward features or Call Forward programming.
Telephones that have Forward on busy active can receive
priority calls. If you are busy on a target line call, another call
to that target line is redirected to the prime telephone for that
target line.
Tip - If the Norstar set is a member of a Hunt Group, the
Call Forward on busy feature is overridden and the Hunt
Group call continues to ring until the hunt time has
expired. For more information on Hunt Groups see
“Programming Hunt Groups” on page 133.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
84 / Forwarding your calls
DND on Busy
When you are busy on a call and a second call comes in, your
telephone rings softly to alert you to the second call. If you
find this second ring distracting, you can have the system
prevent a second call from disturbing you by assigning Do Not
Disturb (DND) on Busy to your extension.
When DND on Busy is turned on for the set, internal and
private network callers hear a busy tone instead of ringing
when you are on the telephone. External callers are transferred
to the prime set used in your system. For step-by-step
instructions, see ÒMaking Changes to Do Not Disturb on
BusyÓ on page 24.
If you use DND on Busy, the line indicator for an external
incoming call flashes, but your telephone does not ring.
Forward on busy takes priority over DND on Busy.
If an external call uses a target line, the call is processed
according to the programming of the target line. If the target
line is busy, the caller may hear a busy tone or be routed to the
prime set for the target line regardless of the DND on Busy
programming for the telephone.
Tip - If a Norstar set is a member of a Hunt Group and the
set activates this feature, the set does not receive
notification of incoming Hunt Group calls while on a call.
The DND on busy feature overrides the Hunt Group. For
more information on Hunt Groups see “Programming Hunt
Groups” on page 133.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Forwarding your calls / 85
Call Forward and Voice Mail
If you want a voice mail system to pick up unanswered calls
automatically
¥
use the internal number of your voice mail as the
destination when you program Forward no Answer and
Forward on busy
or
¥
make the ring delay greater than the delay used by your
voice mail system, if your voice messaging system or
service automatically retrieves calls
Displays
Forward denied
Forward>221
Not in service
There are several reasons why you may get
this message. For instance, you cannot
forward your calls to a telephone that has
been forwarded to your telephone.
CANCL
Your calls are being forwarded to telephone
221.
Two or more telephones are linked in a
forwarding chain, and one of them is out of
service or is being used for programming.
For other displays, see “Common feature displays” on page 201.
Line Redirection
Line Redirection allows you to send your external calls to a
telephone outside the office. You may choose to redirect all
your external lines or only some of them.
Line Redirection takes precedence over the Call Forward
feature. If both features are active on a set, incoming external
calls on redirected lines are routed to the specified Selective
Line Redirection (SLR) external destination. Incoming
internal calls are forwarded to the specified Call Forward
destination.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
86 / Forwarding your calls
You cannot use the Line Redirection feature on either an
M7100 telephone or a telephone connected to an ATA.
Turning on Line Redirection
1. Press
ƒ°›
ƒ°›
.
2. Select the outgoing line to be used for redirected calls.
3. Enter the number to which calls are redirected (the ways
you can do this are listed below).
4. Select the lines to be redirected.
Enter the telephone number to which you want to redirect
calls, using one of the following methods:
¥
Press an external autodial button.
¥
Enter an external telephone number (using no more than
24 digits) then press
or OK.
¥
Press
or OK if the line you have chosen as the
outgoing line is a private network line that does not require
you to dial digits.
˙
˙
If you use ALL to redirect all your lines, it is important that you
wait until all the lines on your telephone light up before
or OK
pressing
or OK. If you press
before all the lines light up, those lines not lit are not
redirected.
˙
Modular ICS 4.0 System Coordinator Guide
˙
P0881591 Issue 02
Forwarding your calls / 87
Tip - The line chosen for redirecting calls on other lines
can be used normally when it is not busy on a redirected
call. To avoid redirection failing because the chosen line is
in use, choose a line pool with several lines in it.
The system does not check that the number you give for
line redirection is a valid one. If you redirect to an invalid
number, redirection fails. Using an autodial button to enter
the redirection number helps avoid this possibility. An
autodial button used for line redirection must be
programmed to use a specific line.
Canceling Line Redirection
1. Press
ƒ£°›
ƒ£°›
.
2. Select the lines you no longer want to be redirected.
Allowing a telephone to redirect calls
You can turn a telephoneÕs ability to redirect calls on and off.
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
“
2. Press
password).
.
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
twice.
four times. The display reads
Allow redirect:.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
88 / Forwarding your calls
6. Press CHANGE to select Y (Yes) or N (No).
Turning the redirect ring for a telephone on or off
You can program a telephone to ring briefly (200
milliseconds) when a call is redirected on one of its lines.
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
“
.
2. Press
password).
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
twice.
three times. The display reads
Redirect ring:.
6. Press CHANGE to select Y (Yes) or N (No).
Tip - If a telephone has redirect ring enabled, it rings
briefly for redirected calls on one of its lines even if another
telephone set up the line redirection.
Displays while redirecting lines
Intercom
Line Redirection
QUIT
ADD
REMOVE
Modular ICS 4.0 System Coordinator Guide
You selected the intercom button as the
facility to place the call on. Enter a line pool
code or a destination code.
£ •
Press
or ADD to begin redirection. Press
or REMOVE to cancel a previous
redirection.
P0881591 Issue 02
Forwarding your calls / 89
No line to use
You have one external line on your
telephone, but you need a second line to
perform line redirection. Redirect your
external line using a line pool as the outgoing
line.
Outgoing line
You are attempting to redirect a line and the
line you have chosen is the outgoing line you
have selected as a destination. You cannot
redirect a line to itself. Select another line.
Pool code: ___
QUIT
Enter a valid line pool access code.
Redir by 221
OVERRIDE
You have attempted to redirect a line, but
someone else has already redirected that
line. Press
or OVERRIDE to override the
previous redirection and redirect the line as
you want.
Redirect denied
You can redirect calls only on individual
lines.
Select line out
QUIT
Select the line that is used to redirect calls
out of the system.
Select line(s)
QUIT
ALL
Press the lines to be redirected. To undo a
line selection, press it again. Press ALL to
redirect all your lines.
Select line(s)
ALL
Unequipped line
P0881591 Issue 02
•
OK
˙
Continue to press the lines to be redirected.
Press
or OK when you are
finished.
The line you are attempting to redirect
cannot be redirected because the hardware
does not support redirection.
Modular ICS 4.0 System Coordinator Guide
90 / Forwarding your calls
Displays while canceling redirection
Select line(s)
QUIT
ALL
Press the lines that are no longer to be
redirected. The lines light up as you press
them. Once you cancel redirection for a
line you cannot restore it by pressing the
line again. Press ALL to cancel redirection
for all your lines. When you are finished,
press
or OK.
˙
Select line(s)
ALL
OK
˙
Continue to press the lines that are no
longer to be redirected. Press
or OK when you are finished.
For other displays, see “Common feature displays” on page 201.
How Line Redirection is different from Call Forward
Call Forward forwards all calls that arrive at a particular
telephone to another telephone within the Norstar system. Line
Redirection redirects only the lines you specify, no matter
which telephones they appear on, to a telephone outside the
Norstar system. Line Redirection takes precedence over Call
Forward.
Using Line Redirection
You redirect lines at a telephone, but once redirected, the lines
are redirected for the entire system.
You can redirect only lines that appear at line buttons on your
telephone.
You can answer the telephone if it rings while you are in the
middle of programming Line Redirection, but none of the
Norstar call handling features are available until the feature
times out. If you need to use a Norstar feature to process the
call, quit Line Redirection programming by pressing
. Do not press
or you disconnect the call you
are trying to process.
ƒ
Modular ICS 4.0 System Coordinator Guide
®
P0881591 Issue 02
Forwarding your calls / 91
While you are programming Line Redirection you do not
receive any indication of calls that do not actually ring at your
telephone.
Be careful to avoid redirection loops. If for example, you
redirect your lines to your branch office and your branch office
redirects its lines to you, you can create a redirection loop. If
these calls are long distance, you end up paying charges.
In certain situations, callers may experience lower volume
levels when you redirect calls to an external location.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
92 / Forwarding your calls
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Communicating in the office
ƒfl‚
Paging
Paging allows you to make announcements over the Norstar
system using the telephone speakers, or your loudspeaker
system, if one is available.
ƒfl‚
Making a page announcement
1. Press
.
⁄
¤
‹
2. Choose a page type. Page types are:
through the telephone speakers (internal page)
through an external speaker (external page)
both internal and external (combined page)
3. If necessary, choose a zone.
®
4. Make your announcement.
5. Press
.
Tip - Instead of entering the Page feature code followed
by the page type, you can enter the following shortcut
codes.
Page zone 0 is all zones.
Internal
External
Combined
P0881591 Issue 02
ƒfl⁄
ƒfl¤
ƒfl‹
and zone (0 to 6)
(code 2 has no zones)
and zone (0 to 6)
Modular ICS 4.0 System Coordinator Guide
94 / Communicating in the office
Activating and deactivating the ability to page
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
.
2. Press
password).
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
twice.
seven times. The display reads Paging.
6. Press CHANGE to select the setting: Y (Yes) or N (No).
Creating page zones
Each telephone can be assigned to one of six zones for
receiving pages.
Tip - Hunt Group DNs cannot be included in a page zone.
For more information on Hunt Groups see “Programming
Hunt Groups” on page 133.
You need the programming template found at the front of this
guide. See ÒGetting started with NorstarÓ on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
2. Press
password).
.
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
4. Press
5. Press
≠
‘
Communicating in the office / 95
twice.
six times. The display reads Page Zone.
6. Press CHANGE to select the setting: 1, 2, 3,4, 5, 6 or None.
You can make a telephone part of a page zone only if the
telephone has paging set to Y (Yes).
A zone is any set of Norstar telephones that you want to group
together for paging, regardless of their location. The
maximum number of sets in a page zone is 50.
Your installer programs whether a tone sounds before a page
begins, and the maximum number of seconds a page can last
before it is automatically turned off.
Tip - Make sure that everyone who needs to make page
announcements has a list showing which telephones are
in which page zones.
Displays
Enter zone:___
ALL
Invalid zone
Page choice:
SETS
SPKR
Enter the desired page zone number (0- 6) or
press ALL.
You have entered a page zone code that is
not between 0 and 6.
BOTH
Select the type of page you want. See the list
in “Making a page announcement” on page
93.
Page timeout
The time allotted for paging has expired.
Paging ALL
You are making a page. The display shows
the page zone you have chosen. Press
or
when you are finished.
P0881591 Issue 02
ƒ ®
Modular ICS 4.0 System Coordinator Guide
96 / Communicating in the office
Paging busy
A page is already being made in the page
zone you have requested.
For other displays, see “Common feature displays” on page 201.
Tip - You can make an announcement to one person by
placing a voice call to their telephone.
Using Page with external paging equipment
When you make a page that uses external paging equipment
(external page or combined page), the Long Tones feature is
automatically activated for the external paging system only.
This allows you to control optional equipment with the Long
Tones feature.
Sending messages
The Messages feature allows you to leave a message on the
display of another Norstar telephone or to analog telephones
connected to an Analog Station Module (ASM). The Messages
feature indicates if you have any messages waiting.
The Messages feature uses a message waiting list to keep a
record of your internal messages and your (external) voice
mail messages (if you subscribe to a voice message service
with visual message waiting indication).
Sending a message
ƒ⁄
You can leave a message on the display of another telephone
in your Norstar system.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Communicating in the office / 97
You can send up to four messages to different telephones,
including your voice message center. If your telephone is a
direct-dial telephone or a central answering position (CAP),
you can send up to 30 messages.
Only the designated direct-dial telephone for an analog
telephone connected to an Analog Station Module (ASM) can
send messages to analog telephones by pressing
. Depending on the programming setup, the
analog telephone provides either a Stuttered Dial Tone or a
Message Waiting Lamp to inform the user of messages
pending.
ƒ⁄
If your reply to a message is forwarded or is answered at
another telephone using the Call Pickup feature, the message
remains on your telephone until you cancel it or successfully
contact the telephone that sent the message.
For analog telephones connected to an ASM, the message
waiting indicator remains on until the user invokes
. If the analog telephone has the Message
Reply Enhancement feature set to Yes, the message waiting
indicator is turned off automatically after the reply call is
answered no matter from where the call is answered.
˚£flfi
For more information on the Message Reply Enhancement
feature, see the Norstar Modular ICS 4.0 Installer Guide.
1. Press
ƒ⁄
.
2. On a telephone with a two-line display, press ADD. (This
step is not necessary on a telephone with a one-line
display.)
3. Enter the internal number of the person to whom you want
to send the message. The personÕs display reads
Message for you.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
98 / Communicating in the office
4. On analog telephones connected to an Analog Station
Module (ASM), the message waiting indicator is activated.
ƒ£⁄
Canceling a message you have sent
1. Press
. The display reads Cancel for:.
2. Enter the internal number of the person to whom you sent
the message.
ƒflfi
Viewing your messages
You can receive up to four messages from different
telephones, including your voice message center. A single
message from your voice message center may pertain to
several voice messages.
ƒflfi
• £
On a telephone with a one-line display
1. Press
message.
2. Press
. The display shows the first
or
to move through your messages.
On a telephone with a two-line display
1. Press MSG. The display shows the first message you
received.
2. Press NEXT to move through your messages.
Replying to a message
You can call the person (or your voice message center) who
sent a message while you are viewing the message.
‚
On a telephone with a one-line display
Press
.
On a telephone with a two-line display
Press CALL.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Communicating in the office / 99
If you want to call your voice message center using a line other
than the programmed line, exit your message list and dial the
voice message center telephone number using normal dialing
methods.
Replying to a message using an analog telephone connected
to an ASM
On an analog telephone connected to an Analog Station
Module
˚•flfi
Press
. The system automatically
retrieves and connects the user to the oldest message
sender. (The message can originate from either the
designated direct-dial telephone or the internal voice mail
system.)
If the analog telephone has the Message Reply Enhancement
feature set to Yes, and the sender is the designated direct-dial
telephone, the message waiting indicator is turned off
automatically after the reply call is answered, no matter from
where the call is answered.
˚•flfi
For analog telephones connected to an ASM, using the
Message Waiting Reply feature (
),
retrieves only internal messages sent to the user.
Analog telephones connected to an ASM cannot retrieve
external messages by using the Message Waiting Reply
feature (
). For external messages, users
must call back the external voice mail center to retrieve their
messages. When doing so, the message waiting indicator on
the analog telephone is turned off automatically.
˚•flfi
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
100 / Communicating in the office
Tip - If there is no voice mail system installed, only the
designated direct-dial telephone can send messages to
an analog telephone connected to an Analog Station
Module (ASM) using
. The analog telephone
can in turn invoke a single digit access code to reach the
designated direct-dial telephone and retrieve messages.
ƒ⁄
If the designated direct-dial telephone of an analog
telephone connected to an Analog Station Module (ASM)
is changed, messages sent by the previous designated
direct-dial telephone are kept in the incoming message list
of the analog telephone until they are retrieved.
Removing items from your message list
You can erase a message while you are viewing it in your
message list. If the message is from your voice message
center, this only erases the message notification at your
telephone. You need to erase the voice message at your voice
message center. Refer to your voice message center
documentation.
˙
On a telephone with a one-line display
Press
.
On a telephone with a two-line display
Press ERASE.
Removing items from your message list using an analog
telephone connected to an ASM
To remove both internal and external messages on an analog
telephone connected to an Analog Station Module
˚£flfi
Press
Waiting feature.
Modular ICS 4.0 System Coordinator Guide
to invoke the Cancel Message
P0881591 Issue 02
Communicating in the office / 101
On analog telephones connected to an ASM, the Cancel
Message Waiting feature cancels the oldest message received.
The system no longer provides either a Stuttered Dial Tone or
a Message Waiting Lamp if there are no messages pending.
Viewing messages you have sent
ƒ⁄
On a telephone with a two-line display, you can view the
messages you have sent.
1. Press
ƒ⁄
.
2. Press SHOW to display your first sent message.
3. Press NEXT to move through your sent messages.
Displays
Cancel denied
You have entered an invalid number when
attempting to cancel a message.
Cleared>LINENAM
NEXT
You have cleared an external message from
your message waiting list. The message
itself exists in your voice message center
until you erase it there.
In use: 221
You are trying to call from your message
waiting list. The line that you are trying to use
is being used by the identified Norstar user.
L001:LINENAMVMsg
NEXT
CALL
CLEAR
You are viewing your message list. The
display shows the number and name of the
line that was used for your voice mail
message.
Message denied
You have tried to send a message to an
invalid internal number or to a telephone that
is out of service.
Message list
SHOW
ADD
EXIT
SHOW appears only if you have outstanding
messages. Press SHOW to review messages
you have sent. Press ADD to send a new
message.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
102 / Communicating in the office
Message to:
Enter the internal number of the telephone to
which you want to send a message.
Messages & Calls
MSG
CALLS
You have one or more messages and one or
more new Call Logs. Press
to change the first line of
the display to the current time and date.
No button free
You have no line button free with which to
reply to a message.
No number stored
There has been no number programmed for
the voice message center. Contact your
voice messaging service provider.
Start of list
NEXT
You are at the beginning of your list of
messages. Press NEXT to move through your
messages.
Their list full
You are trying to send a message to a user
whose message waiting list is full.
Your list full
You have tried to send a message but your
telephone’s list of sent messages is full.
Cancel one of the messages you have sent,
if possible, or wait until you have received a
reply to one of those messages.
ƒ°‚fl
For other displays, see “Common feature displays” on page 201.
Using Voice Call
ƒflfl
You can make an announcement or begin a conversation
through the speaker of another telephone in the system.
Tip - Hunt Groups cannot accept voice calls. Answer
buttons have no appearances for voice calls, and the set
does not ring for voice calls. For more information on Hunt
Groups see “Programming Hunt Groups” on page 133.
For more information on Answer buttons see “Answer
buttons” on page 38.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Communicating in the office / 103
ƒflfl
Making a Voice Call
Press
.
Muting Voice Call tones
When a voice call begins at your telephone, you hear a beep
every 15 seconds as a reminder that the microphone is on.
©
To stop it from beeping, pick up the receiver or press
.
Answering a Voice Call without touching your telephone
If Handsfree Answerback is assigned to your telephone, you
can respond to a voice call without touching the telephone.
Handsfree Answerback is not available to the M7100
telephone.
When someone makes a voice call to you, simply start talking.
Your telephoneÕs microphone picks up your voice.
Once you have answered a voice call, you can put it on hold,
transfer it, or otherwise treat it as a normal call.
Preventing Voice Calls to your telephone using Voice Call
Deny
Press
. Voice calls ring like regular internal
calls. Your other calls proceed normally.
ƒ°°
ƒ£°°
Canceling Voice Call Deny
Press
.
Displays
Dial voice call
Dial the internal number or press the internal
autodial button of the person to whom you
want to speak.
Microphone muted
Your handsfree microphone is muted. Press
or pickup your receiver to respond
to the voice call.
P0881591 Issue 02
©
Modular ICS 4.0 System Coordinator Guide
104 / Communicating in the office
No voice call
The telephone receiving the call cannot
accept voice calls for one of the following
reasons: it is active or ringing with another
call; Call Forward is turned on; Do Not
Disturb is turned on; Voice Call Deny is
turned on; it is not a Norstar telephone.
Your call proceeds automatically as a regular
ringing call.
Voice call
Modular ICS 4.0 System Coordinator Guide
The line is open for you to speak.
P0881591 Issue 02
Tracking your incoming calls
Using Call Log
Telephones can automatically log Call Display information for
calls on an external line. The line must appear on that
telephone but it does not have to be a ringing line.
If your system is equipped with the appropriate equipment and
you have subscribed to the call information feature supplied by
your service provider, you are able to capture information
about incoming callers in your call log. The same feature is
supplied by an ISDN service package that comes with calling
line identification (CLID).
Call Log creates a record of incoming external calls. For each
call the log can contain:
¥
sequence number in the Call Log
¥
name and number of the caller
¥
indication if the call was long distance
¥
indication if the call was answered (and identity of who
answered it)
¥
time and date of the call
¥
number of repeated calls from the same source
¥
name of the line that the call came in on
Call Log can help you to
¥
keep track of abandoned or unanswered calls
¥
track patterns for your callers (for example volume of calls
and geographical location of calls)
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
106 / Tracking your incoming calls
¥
record caller information quickly and accurately
¥
build a personal telephone directory from log items
The long distance indicator and the callerÕs name and number,
may not be shown in the log, depending on the Call Display
services provided by your local telephone company and the
callerÕs local telephone company.
To use the features on the following pages, your telephone
must be have spaces available in its Call log. Your installer or
customer service representative programs each telephone with
an appropriate number of spaces.
ƒ•°›
Call Log options
You can select the type of calls to be stored in your Call Log.
Choose from four Autolog options: No one answered,
Unanswerd by me, Log all calls, No autologging.
ƒ•°›
£
ƒ
1. Press
option.
2. Press
3. Press
. The display shows the current
or NEXT to change the option.
or OK to select the display option.
Logging a call manually
ƒ°⁄‹
If your calls are not automatically logged, you can manually
log call information when you are connected to an external
call. Storing information for your current call can be helpful in
many situations. For example, you may want to
¥
record a callerÕs information without using paper and
pencil
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Tracking your incoming calls / 107
¥
record only selected calls that you choose, as opposed to
using Call Log automatically
¥
quickly record caller information before a caller hangs up
Press
ƒ°⁄‹
to log an external call manually.
ƒ°⁄fi
Deleting old log items
Your log has a set number of items that it can hold. When it
becomes full, new calls cannot be logged. When your log is
full, Autobumping automatically deletes the oldest Call Log
item when a new call is logged.
Press
Press
ƒ°⁄fi
ƒ£°⁄fi
to enable autobumping.
Viewing your Call Log
to disable autobumping.
ƒ°⁄¤
ƒ°⁄¤
To view your log:
1. Press
. The display shows the number
or previously read items (old) and the number of new,
unread items (new) in the log.
•
‚
2. Press
or OLD to view old items; press
view new items.
£
or NEW to
3. Press
or RESUME to display the last item you viewed,
the last time you viewed your Call Log.
Names and numbers for external callers are displayed only if
you have subscribed to Call Display services from your local
telephone company.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
108 / Tracking your incoming calls
√
Viewing a Call Log item
Press
or MORE to view the information for a call
log item.
Erasing log items
You should routinely erase log items that youÕve read, to make
space for new items in your log.
˙
®
˙
®
1. Display the item you want to erase.
2. Press
3. Press
or ERASE.
to exit.
If you accidentally erase an item, you can retrieve it.
1. Press
or UNDO immediately after accidentally
erasing an item.
2. Press
to exit.
Making a call using Call Log
You may find it helpful to place calls from within your Call
Log. The number stored for each call may vary depending on
the type of call. For example, if the call was placed from a
Centrex or PBX system, the first few numbers may need to be
trimmed before you can make the call. If the number you want
to call is long distance, or if you want to use a line pool, you
may need to add numbers.
To place a call:
1. Display the log item for the call you want to place.
√
2. Display the associated telephone number.
3. Press
want to remove.
or TRIM, once for every digit that you
4. Dial any extra digits required.
5. Press an external line or line pool button.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Tracking your incoming calls / 109
6. Lift the receiver. (This is not necessary if Handsfree is
programmed at your telephone.) The displayed number is
dialed.
Creating a password to your Call Log
ƒ•°fi
ƒ•°fi
To access your Call Log through a password:
1. Press
. The displays reads
New passwrd:.
2. Enter your four-digit password. The display reads
Repeat New:.
3. Re-enter your four-digit password. The display reads
Password changed, which confirms that your password
has been assigned.
ƒ°⁄¤
To enter Call Log using your password:
1. Press
to enter Call Log. If you have
programmed a password, the display reads Password:.
2. Enter your four-digit password.
If you forget your Call Log password, it can be deleted in
programming. See ÒUsing passwordsÓ on page 169.
Changing your Call Log password
1. Press
ƒ•°fi
ƒ•°fi
. The display reads
Old passwrd:.
2. Enter your old password. The display reads
New passwrd:.
3. Enter your new four-digit password. The display reads
Repeat New:.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
110 / Tracking your incoming calls
4. Re-enter your password. The display reads
Password changed, which confirms that your password
has been changed.
Deleting an assigned password
1. Press
ƒ•°fi
ƒ•°fi
. The display reads
Old passwrd:.
2. Enter your old password. The display reads
New passwrd:.
˙
or OK. The display reads
No pswd assigned, which confirms that your password
3. Press
has been deleted.
Programming a telephone to log calls automatically
Your installer or customer service representative can program
each telephone to automatically log calls coming in on a line.
Displays
1:Unknown name
The caller's name is unavailable.
1:Unknown number
The caller’s number is unavailable.
12:KATE SMITH
NEXT
ERASE
_ indicates a new item.
MORE
12¯KATE SMITH
NEXT
ERASE
MORE
12§KATE SMITH
NEXT
ERASE
MORE
Modular ICS 4.0 System Coordinator Guide
¯ indicates that the call was answered.
§ indicates a long distance call.
P0881591 Issue 02
Tracking your incoming calls / 111
49/1234567890123
NEXT
ERASE
MORE
/ indicates that the stored number has been
Call(s) bumped
One or more log entries have been deleted
by the Autobumping feature while you are
looking at the Call Log.
Hold or release
Hold or release your active call before
entering Call Log.
In use: SETNAME
The external line is in use.
√
shortened to its final 11 digits. Press
or MORE to display additional
information about the call.
Jan 4 9:00a
NEXT
ERASE
3X
MORE
The repeat call counter, shown along with
time and date, indicates the number of calls
you have received from the same caller.
Line001
NEXT
ERASE
¯227
This call was answered at another telephone
(227).
MORE
Line001
¯Logit
NEXT
ERASE
MORE
This call was logged manually.
Line001
NEXT
ERASE
This call was not answered.
MORE
Messages & Calls
MSG
CALLS
There are one or more items in your
message waiting list, and there are one or
more new items in your Call Log. Press
to change the first line of
the display to the current time and date.
New calls begin
You have viewed your last old log item and
now view your new log items.
No info to log
No information is available for the call.
P0881591 Issue 02
ƒ°‚fl
Modular ICS 4.0 System Coordinator Guide
112 / Tracking your incoming calls
No log assigned
No log space has been assigned to the
telephone.
No resume item
The resume item has been removed
because of Autobumping, repeat call update,
or log reallocation while you are looking at
the Call Log.
For other displays, see “Common feature displays” on page 201.
Using Voice mail
If you subscribe to a voice message service outside your
office, you can access that service through your Norstar
system. Your installer or customer service representative
programs your Norstar telephone to indicate when you have a
voice message waiting on a particular line.
To find out if your external voice message service works with
Norstar, or if you have any problems with your service,
contact your voice message service provider.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Customizing your telephone
ƒ•‚
Finding out what a button does using Button Inquiry
You can check the function of any line, intercom, or
programmed button on your Norstar telephone by pressing
. On the M7100 telephone Button Inquiry
shows your internal number followed by the function assigned
to your single memory button.
ƒ•‚
Displays
001
<LINENAME>
SHOW
OK
The display shows the number and name of
the line. Press SHOW to view the redirection
status of the line.
£
˙
123456789012345...
VIEW‚
OK
Press
or press VIEW‚ or ·VIEW to view a
number that is too long to fit on the display.
Press
or OK when you are done.
221 <SETNAME>
NEXT
VIEW‚
The display shows the directory number of
the telephone, and the assigned name.
Press NEXT to see the first line assigned to
ring at the intercom button.
<Feature name>
SHOW
Press a button
EXIT
OK
The name of the feature assigned to a button
is displayed when you press the button.
Press
or SHOW for additional information.
£
ƒ
Press the button you want to check. Press
or EXIT when you are finished.
For other displays, see “Common feature displays” on page 201.
Making the display darker or lighter using Contrast
adjustment
1. Press
P0881591 Issue 02
ƒ•‡
ƒ•‡
.
Modular ICS 4.0 System Coordinator Guide
114 / Customizing your telephone
2. Press a number on the dial pad to choose the contrast level
you prefer.
On a two-line telephone, you can use the UP and DOWN display
buttons to adjust the contrast. The number of contrast levels
available varies from one telephone model to another.
Changing the language on the display
You can select the language used on the display of each
Norstar telephone. Norstar supports three languages: English,
French and Spanish. Button caps are available for each
language. When your system is first installed, all telephones
use English.
ƒ•fi‚⁄
ƒ•fi‚¤ ƒ•fi‚‹
If you program
on to a memory
button, you can press that button until the language you want
appears on the display. You cannot program
or
onto a
memory button.
English
Press
French
Press
ƒ•fi‚⁄
ƒ•fi‚¤
ƒ•fi‚‹
Spanish
Press
.
.
.
Programming a feature code onto a memory button
You can program a feature code onto a memory button. In
some cases, pressing the button a second time cancels the
feature.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Customizing your telephone / 115
ƒ•‹
Programming feature buttons
Any memory button not programmed as an external or internal
line, target line, Answer button, or Handsfree/Mute button, is
available for features.
1. Press
ƒ•‹
.
2. Press the memory button you want to program with a
feature.
3. Enter the appropriate feature code you want to assign onto
the button.
•
The following feature codes cannot be programmed onto a
memory button: Long Tones and any code beginning with
except
(Language Choice) and
(Contrast Adjustment).
ƒ•fi‚⁄
ƒ•‡
Tip - When you program a button with the line pool
feature code, you must enter a line pool access code after
the feature code. The programmed line pool button
accesses a specific line pool, not the line pool feature.
ƒ•⁄
˙
Erasing a feature button
1. Press
.
2. Press the feature button.
3. Press
or OK to erase the button.
Displays
<Feature name>
SHOW
P0881591 Issue 02
OK
The name of the feature assigned to a button
is displayed when you press the button. SHOW
appears when there is more information
available. Press
or SHOW for additional
information.
£
Modular ICS 4.0 System Coordinator Guide
116 / Customizing your telephone
Enter code:
If you are checking a speed dial button, enter
the two-digit speed dial code that you want to
check.
F__
QUIT
Enter the feature code, or press
or QUIT
to quit programming or CLEAR to clear the
numbers you have entered. The system
accepts the entry as soon as you enter a
valid feature code.
®
CLEAR
ƒ
Feature code:
QUIT
Press
and enter the feature code
you want to assign to the button. You cannot
enter invalid codes.
Feature moved
You have programmed a button with a
feature that was already programmed onto
another button. The feature has moved to
the button you just programmed. Its original
button is now blank.
Press a button
EXIT
Press the button you want to check. Press
or EXIT when you are finished.
Program and HOLD
Enter the number you want to program and
press
. To erase the button, just
press
.
Program and OK
QUIT
ƒ
˙
˙
OK
Enter the number you want to program and
press OK. To erase the button, just press
or OK.
˙
For other displays, see “Common feature displays” on page 201.
Applying button cap labels
ƒ•‚
Before you apply button labels, activate the Button Inquiry
feature (
) to verify the button functions, and
to avoid activating features as you put the labels onto the
buttons. For more information refer to ÒFinding out what a
button does using Button InquiryÓ on page 113.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Customizing your telephone / 117
Tips - Keep the extra labels and button caps with each
Norstar telephone.
Types of button caps
¥ Unlabeled, clear button caps
with appropriate green or grey paper for typing in line
numbers, telephone numbers, and features
¥
Pre-printed, colored button caps
in green or grey
Some examples of pre-printed button caps
Green caps
∫
©
Line 1
Grey caps
µ
ß
Tips - To make identification of line types easier, use
preprinted green button caps for lines that support
incoming and outgoing calls. Use clear button caps for
target lines that are incoming only.
Identifying the telephones
1. Write the individual telephone numbers on the labels and
attach them to the appropriate Norstar telephones.
2. Write the telephone number and the internal number on the
appropriate Norstar Receiver Card for each type and color
of telephone that is to be installed.
3. Cover the Norstar Receiver Card underneath the receiver
of each telephone with the plastic lens.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
118 / Customizing your telephone
Norstar default button assignments
During Startup, the Norstar installer chooses one of the
available templates. Default features are assigned
automatically to the programmable buttons on Norstar
telephones, and vary with the template and the telephone. The
default features are listed in the following tables in this
chapter.
Tips - Norstar telephones are shipped from the factory
with the button caps in place for the Square template.
Please consult your customer service representative to
determine the type of template programmed into your
system before applying button assignments.
Rules of default button assignment
Line and Intercom buttons are assigned by default templates
and can be changed in programming. Handsfree/Mute and
answer buttons are not assigned by default. If these features
are defined, however, they are automatically assigned to
specific buttons, as described on this and the following page.
None of these buttons can be assigned to M7100 telephones.
The Handsfree/Mute feature appears on the bottom right-hand
button (the bottom button on the M7208 telephone), moving
the Intercom button(s) up one position.
Each telephone can have up to eight Intercom buttons. They
appear above the Handsfree/Mute button at the bottom righthand position on your telephone (the bottom button on the
M7208 telephone).
Each telephone can have up to four answer buttons. They
appear above Intercom buttons in the right column and
continue up from the bottom in the left column, replacing the
features on those buttons. (On the M7208 telephone, answer
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Customizing your telephone / 119
buttons appear above Intercom buttons and below external line
buttons in a single column.)
External line buttons appear in ascending line order, starting at
the top button in the left column (the top button on the M7208
telephone). If more than five external lines are assigned to an
M7310 telephone, or more than 12 to an M7324 telephone,
assignment continues down the buttons on the right column,
erasing the features on those buttons. Line buttons have
priority over feature access buttons but not Handsfree/Mute,
Intercom, or answer buttons.
M7310 telephone button defaults
The default button assignments for the M7310 telephone
depend on the template applied. The exception is the default
numbering for the dual memory buttons. Refer to ÒUsing
ButtonsÓ on page 4.
∫∫
∫∫
∫∫
∫∫
∫∫
∫∫
∫∫
∫∫
Dual memory buttons
Set 233
Set 221
Set 234
Set 222
Set 235
Set 223
Set 236
Set 224
Set 237
Set 225
Set 238
Set 226
Set 239
Set 227
Set 240
Set 228
∫∫
∫∫
∫∫
∫∫
Set 241
Set 229
Set 242
Set 230
Set 243
Set 231
Set 244
Set 232
This example shows defaults for a system with three-digit
internal numbers. The defaults do not actually exist on any
telephone, as no telephone has an autodial button for itself.
The position that would be taken by the autodial button for
itself, is blank.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
120 / Customizing your telephone
Template button assignments
∫
∫
∫
œ
π
ç
µ
≈
∆
∆
∫
†
∫
œ
˚
ç
µ
≈
∆
∆
∂
†
∫
œ
π
ç
µ
≈
∆
∆
∫
†
∫
œ
π
ç
µ
≈
∆
∆
Square
Line 1
Line 2
Call Fwd
PBX
Call Fwd
Centrex
Line<xx>
Call Fwd
Modular ICS 4.0 System Coordinator Guide
∫
ø
∫
œ
π
ç
µ
≈
∆
∆
Hybrid
Line 1
Call Fwd
DID
Line<xx>
Call Fwd
P0881591 Issue 02
Customizing your telephone / 121
M7324 telephone button defaults
The default button assignments for the M7324 telephone
depend on the template applied. Refer to ÒUsing ButtonsÓ on
page 4.
∫
∫
Square
Line 1
Line 2
blank
blank
blank
blank
blank
blank
blank
blank
blank
blank
∫
∫
ß
µ
∫
ç
†
∂
œ
≈
π
∆
∆
Centrex
Call Fwd
blank
blank
Saved No.
blank
blank
blank
blank
blank
blank
blank
blank
blank
PBX
blank
blank
blank
blank
blank
blank
blank
blank
blank
blank
blank
blank
P0881591 Issue 02
Line<xx>
∫
∫
ßø
µ
˚
ç
†
∂
œ
≈
π
∆
∆
Hybrid
Call Fwd
Line 1
blank
blank
blank
blank
blank
blank
blank
blank
blank
blank
∫
∫
߆
µ
∫
ç
†
∂
œ
≈
π
∆
∆
DID
Call Fwd
Line<xx>
blank
Saved No.
blank
blank
blank
blank
blank
blank
blank
blank
blank
∫
ß
µ
∫
ç
†
∂
œ
≈
π
∆
∆
Call Fwd
Saved No.
∫
ß
µ
∫
ç
†
∂
œ
≈
π
∆
∆
Call Fwd
Saved No.
Modular ICS 4.0 System Coordinator Guide
122 / Customizing your telephone
M7100 telephone button defaults
For all templates, the one programmable button on the M7100
telephone is
.
µ
M7208 telephone button defaults
The default button assignments for the M7208 telephone
depend on the template applied.
∫
∫
µ
π
ç
ß
∆
∆
Square
Line 1
Line 2
∫
†
µ
˚
ç
ß
∆
∆
Centrex
Line<xx>
∫
ø
µ
π
ç
ß
∆
∆
œ
†
µ
π
ç
ß
∆
∆
Hybrid
PBX
Line 1
∫
†
µ
π
ç
ß
∆
∆
DID
Line<xx>
ƒfl¤
Tips - The default Page button activates the External
Page option (
Moving line buttons
).
ƒ•°⁄
You can move external lines to different buttons on your
telephone to arrange your lines in the way that makes the most
sense to you.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Customizing your telephone / 123
You cannot move intercom, answer or Handsfree/Mute
buttons onto a CAP module.
1. Press
ƒ•°⁄
.
2. Press the button you want to move the line from.
3. Press the button you want to move the line to.
Displays
Exchanged
The two buttons you selected have
exchanged position.
Invalid location
You have tried to move a line to a button that
cannot be used as a line button, such as an
intercom button, Handsfree/Mute button, or
an answer button.
Move line from:
QUIT
Press the button of the line you want to
move. Press
or QUIT when you
have finished moving lines.
Move line to:
QUIT
Press the button you want to move the line
to. Neither of the buttons is erased. The
lines, or the line and feature, simply switch
places.
Press a line
The button you are trying to move is not a
line button. If you are trying to switch a line
and a feature, move the line to the feature
button and not the feature button to the line.
ƒ
ĥfl
Changing the type of ring
You can choose one of four distinctive rings for your
telephone. This makes it easier to identify your telephone in an
open office.
1. Press
ĥfl
⁄¤‹›
.
2. Press
,
,
,
, or NEXT. You hear the selected
ring for two seconds.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
124 / Customizing your telephone
˙
3. Repeat until you hear the ring you prefer, then press
or OK.
ƒ•°‚
Adjusting the Ring volume
1. Press
ƒ•°‚
√
. The telephone rings.
2. Press
to adjust the volume; left end for lower
and right end for higher.
ƒ°‚fl
Hiding the message or calls indication
The display that shows you have messages or calls can be
replaced with the current time and date. You can retrieve your
message and call information by using the display buttons that
appear on the second line of the display.
If you are using a telephone with a single-line display, the
message or call indication is hidden.
ƒ°‚fl
ƒflfi
ƒ°⁄¤
1. Press
. The current time and date
appears on the top line of the display.
2. Press MSG or
press CALLS or
to see your messages, or
to see your calls.
ƒ£°‚fl
Restoring the messages and calls indication
Press
.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
User Preferences
The User Preferences section of programming allows you to
program memory buttons, speed dial codes and other settings
for any Norstar telephone on the system.
For example, an employee may want to have the Do Not
Disturb feature programmed onto a memory button or create a
speed dial code. Instead of programming from the employeeÕs
telephone, you can go into programming on the telephone
nearest you to make the change.
ƒ••°‡‹‡
ƒ••Ë͉Â
ƒ••°‡‹‡
¤‹fl›fl
¤¤‡›¤
Using User Preferences
1. Press
(
).
2. Enter your System Coordinator or Basic password (the
default passwords are
and
).
By using a Basic password, it is possible to have someone else
do day-to-day upkeep of peopleÕs telephones without giving
out access to sensitive programming. See ÒUsing passwordsÓ
on page 169.
After you enter the proper password, the display shows you the
telephone with the lowest internal number followed by its
name (For example, 221:Reception).
‘
≠
1. Press
system.
to move through all the telephones on the
2. Press
when you see the telephone you want to
change. The display reads the model number of the
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
126 / User Preferences
telephone at the extension.
The display shows Connect set if no telephone is
connected at that internal number.
You cannot make changes if the model is Other.
‘
3. Press
to move through all the subheadings in
User Preferences.
User Preferences programming is available under the heading
User Prefernces in Terminals&Sets in the main body of
programming.
Sub-headings in User Preferences
User prefernces
Model
Button prgrming
User speed dial
Call log opt’ns
Dialing opt’ns
Language
Display cntrst
Ring type
≠
Changing button programming
Press
at Button prgrming. The display shows the
number of buttons on the telephone (an example is shown in
Displays at the end of this section).
If the telephone has a CAP module, you can press CAP1 to see
the buttons on the module.
‘
Press
telephone.
to move through all the buttons on the
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
User Preferences / 127
Button numbering used with User Preferences programming
M7100
telephone
M7310
telephone
B01
M7208
telephone
M7324
telephone
B12
B11
B20
B19
B28
B27
B14
B13
B22
B21
B30
B29
B16
B15
B24
B23
B32
B31
B18
B17
B26
B25
B34
B33
B01
B06
B02
B07
B03
B08
B04
B09
B05
B010
B01
B13
B02
B14
B01
B03
B15
B02
B04
B16
B03
B05
B17
B04
B06
B18
B05
B07
B19
B06
B08
B20
B07
B09
B21
B08
B10
B22
B11
B23
B12
B24
CAP module
P0881591 Issue 02
B01
B13
B25
B37
B02
B14
B26
B38
B03
B15
B27
B39
B04
B16
B28
B40
B05
B17
B29
B41
B06
B18
B30
B42
B07
B19
B31
B43
B08
B20
B32
B44
B09
B21
B33
B45
B10
B22
B34
B46
B11
B23
B35
B47
B12
B24
B36
B48
Modular ICS 4.0 System Coordinator Guide
128 / User Preferences
Use the display buttons to change the programming for a
button. User Preferences programming cannot change the
buttons that are used by lines, intercom, and the handsfree
feature.
The display buttons used in button programming.
CANCL
Moves you out of a setting without making any changes to it.
CLR
Erases the button.
TEL#
Programs the key as an autodial number for an internal or an
external number. If it is an external autodial number, you
must choose a line, line pool, or the routing table for the call
to use.
CHANGE
Used when you are setting up an external autodial number.
Press CHANGE until you see the type of line or pool you want
the number to use.
FEATR
Press to store a feature code on the button.
FIND
Locates a specific button on a telephone by entering its
number. Button numbers are shown in the illustrations.
LIST
Takes you to a list of feature codes. Press
to move
through the list and press OK when you see the feature you
want to program on the button.
‘
Information about individual displays is described on page
130.
≠
‘
‘
≠
Changing User Speed Dial
1. Press
at User Speed Dial. The display shows
the number of speed dial codes that are available.
2. Press
3. Press
4. Press
to see the first speed dial code (71).
to move through all the speed dial codes.
at the code you want to change.
5. Press CHANGE and enter the telephone number the same
way you would dial it on the telephone.
6. Press OK.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
‘
User Preferences / 129
7. Press
and choose the line (or enter a code for a
line pool) the speed dial code should use.
Use the line pool code to select a particular line pool for use
with Speed Dial. If you select Use routing tbl, a line or pool
is chosen by the routing programming according to the initial
digits in the number.
The route you choose for a User Speed Dial code must be one
that the telephone can use. For example, if the telephone does
not have access to Line Pool B and you use that pool code with
the speed dial code, the code does not work.
To change a system speed dial code, see ÒAdding or changing
a system speed dialÓ on page 15.
≠
Changing Call Log options
1. Press
at Call log opt’ns….
2. Press CHANGE until you see the option you want to use. See
ÒCall Log optionsÓ on page 106.
≠
Changing how calls are dialed
1. Press
at Dialing opt’ns….
2. Press CHANGE until you see the option you want to use.
Descriptions for dialing options are found on the Telephone
Feature Card, or see ÒChanging how you dial your callsÓ on
page 55.
Changing the language used on the display
Press CHANGE at Language: until you see the language you
want to use. See ÒChanging the language on the displayÓ on
page 114.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
130 / User Preferences
Making the display lighter or darker
Press CHANGE at Display cntrst until you see the value you
want to use.
The display contrast on the telephone you are using for the
programming session does not change when you are
programming another telephone.
Changing the telephone’s ring
At Ring type:, press CHANGE until you see the option you
want to use.
Descriptions for ringing options are found on the Telephone
Feature Card or in ÒChanging the type of ringÓ on page 123.
Displays
10+24 buttons
B01:L06:Line
FIND
001
FIND
There are ten memory buttons and twelve
dual memory buttons on the telephone you
are viewing. Press
to begin
looking at what’s on each button.
‘
A line appears on the button. You cannot
store a feature or number on it.
B02:#Reply Msg...
CLR
TEL#
FEATR
≠
Code:F#65...
CLR
TEL#
Shows the feature code stored on a button.
Press
to see the button number
and feature name.
FEATR
A feature is stored on this button. Press
to see the feature code. A full list
of names and codes for features is included
in the index.
≠
≠
B03:160455512...
CLR
TEL#
FEATR
The button has a telephone number stored
on it. Press
to see the rest of the
number.
Externl tel #...
CLR
TEL#
FEATR
≠
Modular ICS 4.0 System Coordinator Guide
The autodial is an external number. Press
to see what line or pool the call is
programmed to go out on.
P0881591 Issue 02
User Preferences / 131
Internl tel #...
CLR
TEL#
FEATR
≠
B04:Intercom...
The button is used for intercom. Press
to see more information about the
button. You cannot store a feature or number
on it.
B05:Ansr 93
FIND
FIND
The autodial is an internal number. Press
to see more information.
≠
The button is used for an Answer DN. You
cannot store a feature or number on it.
B06:Blank button
CLR
TEL#
FEATR
Either nothing is stored on the button or you
have just cleared the button by pressing CLR .
B10:Handsfree
The button is occupied by the Handsfree
feature. You cannot store a feature or
number on it.
FIND
For other displays, see “Common feature displays” on page 201.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
132 / User Preferences
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Programming Hunt Groups
The Hunt Groups feature allows a group of Norstar sets to be
called by a single directory number ensuring that calls are
easily routed to the appropriate group.
The Incoming Line Group (ILG) functionality is now
accomplished through the Hunt Group feature.
When upgrading to Modular ICS 4.0 any lines
previously belonging to an ILG are not automatically
converted to broadcast Hunt Groups, they must be
programmed. Please refer to “Assigning or
unassigning lines to a group” on page 136.
Hunt Groups are used in situations where a group of people
performing the same task are required to answer a number of
related phone queries. Some typical uses of Hunt Groups are:
¥
a sales department answering questions on product prices
or availability
¥
a support department answering questions concerning the
operation of a product
¥
an emergency department answering calls for help.
Hunt Groups can be used to route calls to a support service
such as a Help Line for a software company. Specialists
dealing with Product A can be in one group, and specialists
dealing with Product B can be in another group. Incoming
calls hunt for the next available set in the group. If no set is
available, the call can be placed in a queue or routed to an
overflow set.
The Hunt Groups subheading in system programming is the
area where programming changes are made to the following:
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
134 / Programming Hunt Groups
¥
members of a group
¥
member position in a group
¥
what lines are assigned to a group
¥
how incoming calls are distributed
¥
how long the system looks for available members
¥
where a call goes if all members are busy
Note: Videophones should not be programmed as members of
a Hunt Group. Hunt Groups allow one B channel
connection at a time and videophones use two B
channels.
Features affected by Hunt Groups include:
¥
Call Forward All Calls
¥
Call Forward No Answer
¥
Call Forward on Busy
¥
Group Pickup
¥
Transfer via Hold
¥
Priority Call
¥
Line Redirection
¥
Page Zones
¥
Voice Call
Adding or removing members from a group
Members of the group can be any Norstar set, CTA 500dm,
ISDN terminal, or portables. A Norstar set can be in more than
one Hunt Group but is considered a member in each Hunt
Group, increasing the total number of members in the system.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Programming Hunt Groups / 135
There can be only one appearance of the same Hunt Group on
a set. Hunt Group DNs cannot be members of other Hunt
Groups. A DN can be associated with a member of a Hunt
Group and is called a member DN.
Consult your customer service representative to determine
your Hunt Group number range.
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
≠
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
. The display shows Member DNs:. (There
are no member DNs if none are programmed.)
9. Press
group.
. The display shows the members for that
10. Press ADD to add a member or press REMOVE to remove a
member from the group.
11. Press
®
to exit or
‘
to continue programming.
Moving members of a group
Member order within a Hunt Group is important. The member
order determines how a call is routed through a Hunt Group.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
136 / Programming Hunt Groups
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
≠
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
. The display shows Member DNs:.
9. Press
group.
. The display shows the members for that
10. Press MOVE to move an existing member to another place
within the Hunt Group. The display shows the member
number followed by an arrow.
®
‘
11. Enter the new position number for the extension.
12. Press
to exit or
to continue programming.
Assigning or unassigning lines to a group
Configure the prime set for a Hunt GroupÕs line to None to
avoid delayed ring transfer of external Hunt Group calls to the
prime set before the Hunt Group can receive the call.
A line can be assigned to only one group.
1. Place the programming overlay on any M7310 or M7324
telephone.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
‘
≠
Programming Hunt Groups / 137
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
9. Press
10. Press
. The display shows Member DNs:.
. The display shows Line assignment.
. The display shows Show line:.
11. Enter the line number you want to program or press SCAN
to go to the first line assigned to this group, or press LIST
to go to the first line in the system.
12. Press CHANGE to program the line as Unassigned or
Assigned.
*HGnn* means the line is assigned to another Hunt Group.
13. Press
®
to exit or
‘
to continue programming.
Setting the distribution mode
There are three modes of call distribution:
¥
BroadcastÑrings each set in the group simultaneously.
Calls are handled one at a time; other calls are queued. As
soon as a call is picked up, the call next in the queue is
presented to the Hunt Group without having to wait for
queue time-out.
In Broadcast mode, a single incoming call rings
simultaneously at all the sets in a group. This way, all
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
138 / Programming Hunt Groups
receptionists in the group can share the load of answering
large volumes of calls. All sets automatically display the
calling line identification (CLID), if available. A familiar
example is a fund-raising campaign where a group of
operators are waiting to take each call as it comes in.
¥
SequentialÑstarts the call at the first set in the Hunt Group
and distribution is complete when the first free set has been
found. Simultaneous calls can be presented. Distribution is
order based.
In Sequential mode, you can program your top salesperson
to be the first member of the group to receive incoming
calls.
¥
RotaryÑthe call starts at the set after the one which
answered the last call. Distribution is complete when the
next free set has been found. Simultaneous calls can be
presented. Distribution is order based.
In Rotary mode, you can ensure that all your helpline
people are receiving calls on an equal basis, rather than one
person receiving the majority of calls. The call rings at one
set at a time in a round robin fashion.
If a Hunt Group has available members but nobody answers
the call, the call is routed through the Hunt Group list until
either someone answers the call or the queue time-out occurs.
In the latter case, the call is routed to the overflow position.
Once a call goes to the overflow position it is no longer a Hunt
Group call.
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
4. Press
‘
≠
≠
≠
‘
prgrming.
5. Press
6. Press
Programming Hunt Groups / 139
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
9. Press
. The display shows Member DNs:.
until the display shows Mode.
10. Press CHANGE to set the mode: Sequential, Rotary,
Broadcast.
11. Press
®
to exit or
Setting the hunt delay
‘
to continue programming.
This setting allows you to program the number of rings the
system permits at a Hunt Group set before moving on to the
next set in the Hunt Group.
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
‘
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
9. Press
P0881591 Issue 02
. The display shows Member DNs:.
until the display shows Hunt delay.
Modular ICS 4.0 System Coordinator Guide
140 / Programming Hunt Groups
10. Press CHANGE to select the setting: 1, 2, 3, 4, 5, 6, 7, 8,
9, 10.
11. Press
®
to exit or
‘
to continue programming.
Programming busy line setting
A Hunt Group is considered busy if one of two scenarios
exists:
¥
all of its members are being presented an incoming Hunt
Group call
¥
all of its members are active on a Hunt Group call
There are three routing options if all members are busy:
¥
BusyToneÑthe caller gets a busy tone (PRI lines only)
¥
OverflowÑthe call is routed to an overflow position. If the
overflow DN is the hunt group DN for that same hunt
group, the overflow option will not appear.
¥
QueueÑthe call stays in the system for a period of time.
Within this period of time, the call is presented to an
member if one becomes available. When the time-out
occurs, the call is presented to an overflow position.
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
Modular ICS 4.0 System Coordinator Guide
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
P0881591 Issue 02
Programming Hunt Groups / 141
≠
‘
7. Enter the Hunt Group number you want to program (1-30).
8. Press
9. Press
. The display shows Member DNs:.
until the display shows If busy:.
10. Press CHANGE to set the mode: BusyTone, Overflow,
Queue.
11. Press
®
to exit or
‘
to continue programming.
Programming the queue time-out
This setting allows you to program the number of seconds a
call remains in the Hunt Group queue before it is routed to the
overflow position.
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
‘
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
9. Press
. The display shows Member DNs:.
until the display shows Q Timeout:.
10. Press CHANGE to set the queue time-out: 15, 30, 45, 60,
120, 180.
11. Press
P0881591 Issue 02
®
to exit or
‘
to continue programming.
Modular ICS 4.0 System Coordinator Guide
142 / Programming Hunt Groups
Programming the overflow set
This setting allows you to program the overflow set to which
the Hunt Group calls are to be routed. Unless the overflow
position is a Hunt Group set, the call ceases to be a Hunt Group
call. If the overflow set is a Hunt Group set, the call is treated
as a new call and goes to the bottom of the queue.
The overflow set can be a set DN number associated with a
voice mailbox.
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
‘
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
9. Press
. The display shows Member DNs:.
. The display shows Overflow:.
10. Press CHANGE to change the overflow position.
®
‘
11. Enter the new overflow position.
12. Press
to exit or
Modular ICS 4.0 System Coordinator Guide
to continue programming.
P0881591 Issue 02
Programming Hunt Groups / 143
Setting the name
This setting allows you to program the Hunt Group name, such
as SERVICE or SALES. The name can be up to seven
characters in length.
1. Place the programming overlay on any M7310 or M7324
telephone.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
‘
2. Press
The display shows Password:.
3. Press
(CONFIG).
(ADMIN). The display shows
Terminals&Sets.
4. Press
prgrming.
5. Press
6. Press
until the display shows System
. The display shows Hunt groups.
. The display shows Show group.
7. Enter the Hunt Group number you want to program (1-30).
8. Press
9. Press
. The display shows Member DNs:.
. The display shows Name:.
10. Press CHANGE.
‘
®
‘
11. Using the dialpad, enter the name of the Hunt Group.
12. Press
13. Press
P0881591 Issue 02
to store the name.
to exit or
to continue programming.
Modular ICS 4.0 System Coordinator Guide
144 / Programming Hunt Groups
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Telephone features
Installing Norstar telephones
If you are connecting a Norstar telephone for the first time,
refer to the following illustrations as a guide.
Installing a Norstar telephone
Connect to
jack wired from
distribution block
Connect to
receiver
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
146 / Telephone features
Mounting a Norstar telephone on the wall
1
2
3
4
5
6
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Telephone features / 147
Naming a telephone or a line
You can assign names to identify external lines, target lines,
and your co-workers’ telephones. During a call, the name (if
programmed) is shown on the telephone display instead of the
external line number or internal telephone number of the
caller. Step-by-step instructions for adding or changing the
name of a telephone or a line are in “Changing the name of a
telephone” on page 18.
Telephone names and line names can contain both letters and
numbers, but cannot be longer than seven characters. You
cannot use the # and * symbols.
Tip - You can give the same name to two or more
telephones, or to a telephone and a line in your system. To
avoid confusion, avoid such duplication. Use initials,
abbreviations, or even nicknames to give each telephone
a unique name.
If automatic telephone relocation is turned on, the name
and internal number of a telephone are saved if the
telephone is moved within your system.
Moving telephones
You may be required by law to report any telephone moves
to your local telecommunications carrier or 911 service
provider. For further details, consult your local carrier, your
local 911 service provider, and/or your local
telecommunications service provider.
If automatic telephone relocation is enabled in programming
by your installer or customer service representative, you can
move your telephone from one Norstar jack to another without
losing any of its custom programming.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
148 / Telephone features
Stopping calls from ringing at your telephone using
Do Not Disturb (DND)
ƒ°fi
ƒ°fi
Stopping calls
Press
telephone.
to stop calls from ringing at your
Only priority calls ring at your telephone. A line button flashes
when you receive a call, but the call does not ring.
Refusing to answer a call
While you are on a call, you can refuse to answer a second call
(including a priority call).
Press
ƒ°fi
while your telephone is ringing.
Canceling Do Not Disturb
Press
ƒ£°fi
ƒ£°fi
.
Displays
Allow calls
Your telephone receives calls normally.
Using Do Not Disturb
Once you turn Do Not Disturb on, calls are forwarded to the
prime telephone only if there is no other telephone on which
the line appears. If there is another telephone that shares the
same line, the call may be answered by that person. (The
Delayed Ring Transfer feature transfers all unanswered calls
to the prime telephone after a specified time.)
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Telephone features / 149
Do Not Disturb prevents voice calls from alerting at your
telephone. Voice calls are presented as normal intercom calls.
Tip - Norstar sets that are members of a Hunt Group can
temporarily leave a Hunt Group by activating this feature.
Hunt Group calls arriving while a set is in Do Not Disturb
mode are routed to the next member in the Hunt Group.
For more information on Hunt Groups see “Programming
Hunt Groups” on page 133.
Using Background Music
ƒ°fl
ƒ°fl
Listen to music through your telephone speaker by pressing
.
Your installer or service representative makes this feature
available to all telephones in programming. You need to
supply a music source, such as a radio, and have it attached to
your ICS.
In accordance with U.S. copyright law, a license
may be required from the American Society of
Composers, Authors and Publishers or a similar
organization if radio or TV broadcasts are
transmitted through the Background Music feature
of this telecommunication system.
Northern Telecom Inc. hereby disclaims any liability
arising out of the failure to obtain such a license.
Turning Background Music off
The music stops automatically if you make or answer a call or
if you press
.
ƒ£°fl
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
150 / Telephone features
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
ISDN PRI and BRI
Integrated Services Digital Network (ISDN) technology
provides a fast, accurate and reliable means of sending and
receiving data, image text and voice information through the
telephone system.
By using Primary Rate Interface (PRI) or Basic Rate Interface
(BRI), your ISDN service allows for faster transmission
speeds and the addition of a variety of powerful business
applications, including remote LAN access,
videoconferencing, file transfer and Internet access.
Your installer configures your ISDN services and terminal
equipment.
ISDN PRI
PRI is economical because separate analog trunks and data
circuits are not needed for Direct Inward Dialing (DID), Direct
Outward Dialing (DOD) and data transfer.
With PRI there is greater flexibility because B channels can be
dynamically reconfigured to accommodate changes in traffic
with the Call by Call feature. For more information see “Call
by Call service selection for PRI” on page 154.
PRI offers fast information access because channel usage is
optimized to allow you the full benefit of available bandwidth
and real-time connectivity.
PRI lines are configured as DID lines. Incoming calls on a PRI
line can appear on a DID button or on an intercom button
depending on how your Norstar set has been configured.
Outgoing calls are made from the intercom buttons.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
152 / ISDN PRI and BRI
PRI lines can be accessed from all devices such as Norstar sets,
ISDN sets, and wireless sets.
ISDN PRI features
Selected ISDN network features can be used from a Norstar
telephone. Your central office switch (ISDN network)
determines which features are available to you.
Network Name Display for PRI
Your Norstar system displays the name of an incoming call
when it is available from the service provider. Name
information can be displayed on a Norstar set but not on an
ISDN terminal. If the Calling Party Name has the status of
“private” it may be displayed as “Private name”. If the Calling
Party Name is unavailable it may be displayed as “Unknown
name”.
Your Norstar system displays the name of the called party on
an outgoing call, when it is provided by your service provider.
Your Norstar system sends the Business Name concatenated
with the set name on an outgoing call but only after the
Business Name has been programmed.
The available features include:
•
Receiving Connected Name
•
Receiving Calling Name
•
Receiving Redirected Name
•
Sending Connected Name
•
Sending Calling Party Name
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
ISDN PRI and BRI / 153
Consult your customer service representative to determine
which of these features is compatible with your service
provider.
ƒ°⁄·
Name and number blocking for PRI
When activated,
allows you to block the
outgoing name and/or number on a per-call basis. Name and
number blocking can be used with a Norstar set but not with
an ISDN terminal.
Consult your customer service representative to determine
whether or not this feature is compatible with your provider.
Emergency 911 Dialing
Modular ICS 4.0 with the ISDN PRI feature is capable of
transmitting the telephone number and internal extension
number of a calling station dialing 911 to the Public Switched
Telephone Network. State and local requirements for support
of Emergency 911 Dialing service by Customer Premises
Equipment vary. Consult your local telecommunications
service provider regarding compliance with applicable laws
and regulations.
If transmission of internal extension numbers is not required or
desired, then it is recommended that the System Coordinator
maintain a site map or location directory that allows
emergency personnel to rapidly locate a Norstar set given its
DID number. This list should be kept up to date and readily
available, and can be included in the Programming Record.
2-way DID
With PRI the same lines can be used for receiving direct
inward dialing (DID) and for making direct outward dialing
(DOD) calls.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
154 / ISDN PRI and BRI
The dialing plan configured by your customer service
representative determines how calls are routed.
Consult your customer service representative to determine
whether or not this feature is compatible with your service
provider.
Call by Call service selection for PRI
PRI lines can be dynamically allocated to different service
types with the Call by Call feature. PRI lines do not have to be
pre-allocated to a given service type.
Call types that may be available, depending on your service
provider are:
Public
Public calls connect your Norstar set with a Central Office
(CO). DID and DOD calls are supported.
Private
Private calls connect your Norstar set with a Virtual Private
Network. DID and DOD calls are supported. A private dialing
plan may be used.
Tie
Tie lines are private incoming and outgoing lines that connect
Private Branch Exchanges (PBX) such as Norstar.
FX (Foreign Exchange)
FX calls connect your Norstar set to a remote CO. It provides
the equivalent of local service at the distant exchange.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
ISDN PRI and BRI / 155
Outwats
Outwats is for outgoing calls. This allows you to originate
calls to telephones in a specific geographical area called a zone
or band. Typically a flat monthly fee is charged for this
service.
Inwats
Inwats is a type of long distance service which allows you to
receive calls originating within specified areas without a
charge to the caller. A toll-free number is assigned to allow for
reversed billing.
Consult your customer service representative to determine
whether or not this feature is compatible with your provider.
Dialing Plan and PRI
The Dialing Plan supports PRI connectivity to public and
private networks. The dialing plan is a collection of features
responsible for processing and routing incoming and outgoing
calls. All PRI calls must go through a dialing plan.
The Dialing Plan
¥
allows incoming calls to be routed to sets based on service
type and digits received
¥
allows Enbloc dialing by buffering user-dialed digits until
a complete DN has been dialed
¥
provides the ability to map user-dialed digits to a service
type on a Call by Call basis
¥
allows long distance carrier selection via user-dialed
Carrier Access Codes
Consult your customer service representative to determine
how your dialing plan is configured.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
156 / ISDN PRI and BRI
ISDN BRI
Modular ICS 4.0 supports a maximum of 30 ISDN sets on the
system.
The following ISDN services are supported:
•
incoming calls
•
outgoing calls
•
Calling Line Identification Presentation
•
Sub-addressing
•
bearer capabilities
•
teleservices
The Call Forward All Calls feature can be used from ISDN
terminals connected to Modular ICS.
Note: Norstar sets can accept voice calls only. Video and data
calls do not alert at a Norstar set.
Although an ISDN S-loop or LT-loop can support up to eight
devices, the loop has a limit of two B-channels. If both Bchannels are in use, other devices on that loop cannot make or
receive calls until a B-channel is available, or until both Bchannels are available in the case of a video terminal. Thus, the
number of terminals installed must take into account whether
you require dedicated access for the terminals on that loop.
Note: Norstar set features, other than Transfer and Call
Forward All Calls, are not available to ISDN terminals.
In addition, you cannot retrieve a parked call, or reach
a Direct-Dial set by using the Direct-Dial digit from an
ISDN terminal.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
ISDN PRI and BRI / 157
Line access from an ISDN terminal
ISDN terminals do not have line keys or intercom keys as do
Norstar telephones. To make an outgoing call from an ISDN
terminal, access an external line by entering a line pool code
or by using the ARS feature.
ISDN BRI features
Selected ISDN network features can be used from a Norstar
telephone. Your central office switch (ISDN network)
determines which features are available to you.
Network Name Display for BRI
Your Norstar system displays the name of an incoming call
when it is available from the service provider. Name
information can be displayed on a Norstar set but not on an
ISDN terminal. If the Calling Party Name has the status of
“private” it may be displayed as “Private name”. If the Calling
Party Name is unavailable it may be displayed as “Unknown
name”.
Your Norstar system displays the name of the called party on
an outgoing call, when it is provided by your service provider.
As with PRI, your Norstar system sends the Business Name
concatenated with the set name on an outgoing call but only
after the Business Name has been programmed.
The available features include:
•
Receiving Connected Name
•
Receiving Calling Name
•
Receiving Redirected Name
•
Sending Connected Name
•
Sending Calling Party Name
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
158 / ISDN PRI and BRI
Consult your customer service representative to determine
whether or not this feature is compatible with your service
provider.
ƒ°⁄·
Name and number blocking for BRI
allows you to block the
When activated,
outgoing name and/or number on a per-call basis. Name and
number blocking can be used with a Norstar set but not with
an ISDN terminal.
Consult your customer service representative to determine
whether or not this feature is compatible with your service
provider.
Service provider features
Consult your customer service representative to determine if
the new ISDN features are supported with your service
provider.
Call Forward
Call Forward allows you to forward your calls to an external
telephone number.
1. Select an ISDN line by selecting a line button, a line pool,
or the Handsfree button, or by lifting the handset (if an
ISDN line is your prime line).
2. Consult your service provider for the appropriate feature
code to enter on your dial pad. Listen for three tones
followed by dial tone.
3. Enter the internal number of the telephone to which you
want your calls forwarded. If the call is answered, stay on
the line for at least five seconds to activate the Call
Forward feature.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
ISDN PRI and BRI / 159
Canceling Call Forward
1. Select an ISDN line by selecting a line button, a line pool,
or the Handsfree button, or by lifting the handset (if an
ISDN line is your prime line).
2. Consult your service provider for the appropriate feature
code to enter on your dial pad. Listen for a series of tones.
3. Press
®
.
Calling the number your calls are forwarded to
1. Select an ISDN line by selecting a line button, a line pool,
or the Handsfree button, or by lifting the handset (if an
ISDN line is your prime line).
2. Consult your service provider for the appropriate feature
code to enter on your dial pad.
Automatic Call Back
If you call a number and it is busy, enter the appropriate
feature code designated by your service provider to receive a
distinctive ring at your set when the line becomes available for
calls.
Automatic Recall
Automatic Recall allows you to automatically dial the number
of the last call you received. You may not see the number on
the display if the information is not available from your
service provider, or you do not have Caller ID as part of your
ISDN service.
Consult your service provider for the appropriate feature code
to enter on your dial pad.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
160 / ISDN PRI and BRI
ISDN BRI terminals
Your Modular ICS allows connection of eight Basic Rate
Access loops (four 2B+D channels) that can be used for fully
digital connections to ISDN networks and devices. Loops are
connections between the ICS and devices or between the ICS
and the network.
Each loop provides two separate B-channels that can be used
to make two simultaneous voice or data calls, or one data call
and one voice call.
ISDN applications for BRI and PRI
ISDN terminal equipment delivers a wide range of powerful
business applications:
Videoconferencing and video telephony
Video conferencing offers instant visual and audio contact
between distant parties using either studio-based or desktop
ISDN terminals.
Desktop conferencing
ISDN allows computer users in distant locations to share and
edit any image, data or text file on their own computer screens
while they discuss the information.
File transfer
The ISDN network allows you to transfer files containing data,
text, images, data, or audio clips, faster and cheaper than with
a conventional modem.
Telecommuting
Convenient retrieval, processing and storage of files is
possible for the employee working at home by using ISDN
lines to give high-speed access to information resources at the
office.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
ISDN PRI and BRI / 161
Group 4 fax
ISDN fax applications save money by increasing both
transmission speed and the quality of resolution.
Remote LAN access
ISDN provides an affordable and fast means for employees at
remote sites (at home or branch offices) to access local area
networks (LANs).
Leased line backup
Essential backup for leased lines can be provided using ISDN
as required, rather than duplicating costly permanent leased
lines.
LAN to LAN bridging
Local area network (LAN) bridge/routers allow flexible
interconnection between LANs using ISDN, with charges
incurred only when information is actually transmitted.
Internet and database access
The fast call set up and high bandwidth of ISDN are ideal for
accessing information services such as the Internet and
databases.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
162 / ISDN PRI and BRI
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features
Using alternate or scheduled services
There are three types of Services to make your Norstar system
handle calls differently on different days and at different times
of the day: Ringing service, Restriction service and Routing
service.
Each of the three services, and the six schedules available to
each service, are customized for you by your installer or
customer service representative. They program which
telephone is used to turn Services on and off, and display what
Services are in use. This is called the control telephone.
Preventing certain calls from being made
Restriction service prevents a user from making certain kinds
of calls from a telephone or from lines that are available at the
telephone. The restrictions are programmed by your installer
or customer service representative.
Making additional telephones ring
Ringing service makes additional telephones ring for
incoming calls on external lines. For instance, all incoming
external calls can ring at a security guard’s telephone during
the night, or calls to one attendant can ring at another
attendant’s telephone during lunch. It does not suppress your
normal ringing assignment.
Changing the lines used by outgoing calls
Routing service allows you to assign alternate routes to calls.
In this way you can take advantage of lower costs available on
particular routes on certain days and at certain times. Both the
regular and alternate routes are programmed by your installer
or customer service representative.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
164 / Using System features
Turning Services on and off
The master control for how different services and their
schedules are used by your system is in programming. There
are three settings: Manual, Automatic and Off.
•
Manual allows you to turn the service on and off at any
time from a control telephone using a feature code.
•
Automatic allows you to use the preassigned stop and start
time for a service. You are able to start and stop the service
by entering the appropriate feature code at a control
telephone. If you select this setting, you use the start and
stop times programmed by your installer or customer
service representative.
•
Off prevents the service from being activated.
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
‘
≠ ‘
≠
2. Press
password).
3. Press
4. Press
5. Press
program.
.
(the default System Coordinator
twice.
at Services.
until you see the Service you want to
6. Press
and
schedule you want to program.
until you see the
7. Press
and use CHANGE to select the setting that
works best for your office: Off, Manual or Automatic.
Each schedule can have its own configuration of a Service
which works independently of automatic start and stop times.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 165
For example, there may be a version of Restriction service
called Night Schedule that prevents anyone from making long
distance calls. But calling it Night Schedule does not mean it
can only be used with a schedule. You can turn the Night
Schedule for Restriction Service on or off as needed any time
of the day or night. If you decide to run a service on a schedule,
the system uses the start and stop times used for that schedule.
An example of how to turn on a Service manually
You may have Ringing service (your night service) set up to
run according to the Night Schedule. You may decide you
want that ringing arrangement to come into effect only when
it is turned on and off manually.
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
≠
≠
2. Press
password).
3. Press
.
(the default System Coordinator
twice.
at Services. The display reads
Ringing Serviceˆ.
4. Press
5. Press
6. Press
Manual.
. The display reads Sched:Nightˆ.
and use CHANGE to set the Service to
Night Schedule for Ringing Service no longer follows the
schedule but can be turned on and off by using the feature code
and selecting Night Ringing. See “Turning Services on and off
using feature codes” on page 166.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
166 / Using System features
Turning Services on and off using feature codes
The master control for services is in programming. See
“Turning Services on and off” on page 164. Day-to-day use of
Services is controlled using the following feature codes.
ƒ°‡⁄
ƒ£°‡⁄
ƒ°‡¤
ƒ£°‡¤
ƒ°‡‹
ƒ£°‡‹
Turns on Ringing service. When used at the
direct-dial telephone, it activates the
alternate direct-dial telephone (extra-dial
telephone).
Turns off Ringing service.
Turns on Restriction service.
Turns off Restriction service.
Turns on Routing service.
Turns off Routing service.
To turn a Service on:
1. Enter the appropriate feature code from a control
telephone.
2. For Restriction and Routing service you have to enter the
System Coordinator or Basic password.
3. Press NEXT to move through the schedules until the display
shows the version of the service you want to be turned on.
4. Press OK to select the setting, or press QUIT to exit the
feature without making any changes.
To turn a Service off:
1. Enter the appropriate feature code from a control
telephone.
2. For Restriction and Routing service you have to enter the
System Coordinator or Basic password.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 167
Do not confuse activating Normal service with
canceling a Service.
Setting a Service to Normal is not the same as
canceling a Service using a feature code. If you set
the Service to Normal, the normal version of a
Service overrides any automatic schedule and
remains in effect until you manually cancel it. If you
cancel the Service, you return to the automatic
schedule.
Viewing the active Services from a two-line display
telephone
When a Service is active, the control telephone display reads
Services ON.
1. Press LIST. The display shows the first active Service and
the schedule that is in use.
2. If there are several active Services, press NEXT to see them
all.
3. Press EXIT to exit the feature.
Viewing the active Services from a one-line display
telephone
1. Press
. The display shows the first
active Service.
2. Press
3. Press
P0881591 Issue 02
ƒ°‡‚
£
®
to move through the active schedule.
to exit.
Modular ICS 4.0 System Coordinator Guide
168 / Using System features
Displays
<Sched> Restr'n
EXIT
NEXT
£ ®
<Sched> Restr'n
QUIT
OK
NEXT
The name of the current Restriction service
schedule is displayed. Press
or NEXT to
see the other Ringing service schedules.
Press
or OK to select the desired
schedule.
<Sched> Ringing
EXIT
NEXT
£ ®
<Sched> Ringing
QUIT
OK
NEXT
The name of the current Ringing service
schedule is displayed. Press
or NEXT to
see the other Ringing service schedules.
Press
or OK to select the desired
schedule.
<Sched> Routing
EXIT
NEXT
£ ®
<Sched> Routing
QUIT
OK
NEXT
The name of the current Routing service
schedule is displayed. Press
or NEXT to
see the other Routing service schedules.
Press
or OK to select the desired
schedule.
<Sched> until *
QUIT
OK
NEXT
Press
or OK to select this
schedule,
or NEXT to see the next
available schedule, or
or QUIT to exit. If
you select this schedule, it is in effect until
the next automatic schedule takes effect.
No services ON
You have entered the Show Services feature
code and there is no active Service.
Services
ON
LIST
You are viewing the active Services. Press
or NEXT to see the other active Services.
Press
or EXIT to quit.
£
˙
You are viewing the active Services. Press
or NEXT to see the other active Services.
Press
or EXIT to quit.
£
˙
You are viewing the active Services. Press
or NEXT to see the other active Services.
Press
or EXIT to quit.
˙
˙
£
£
®
•
There is a Service active in your system.
Press
or LIST to view the active Services.
For other displays, see “Common feature displays” on page 201.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 169
Services that have been turned on automatically are indicated
by an asterisk (*) before the name on the display. You can
neither manually activate nor cancel scheduled services,
although you can override them by manually turning on
another schedule.
The control telephone can override Services that are turned on
and off according to a schedule at any time by entering a
Services feature code, and selecting a different schedule. This
override remains in effect until it is canceled. If you select a
schedule with an asterisk (*), the next automatic service
schedule comes into effect at the programmed time.
Direct-dial calls to a direct-dial telephone ring at the extra-dial
telephone (the extra-dial telephone is designated by your
installer or customer service representative) only when you
enter the Ringing service feature code (
)
at that direct-dial telephone. Note that only the extra-dial
telephone is activated, not the actual Ringing service (unless
that direct-dial telephone is a control telephone).
ƒ°‡⁄
Tip - Norstar provides six service schedules named
Night, Lunch, Evening, Sched 4, Sched 5, and Sched 6.
Your installer or customer service representative can
change these names to suit your business.
Using passwords
Your passwords prevent unauthorized or unintentional
changes to your Norstar system. To keep your telephone
service secure, distribute the password only to selected
personnel or make use of the basic password described below.
Record your password in a secure place and change it
periodically.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
170 / Using System features
If you forget the administration or basic passwords, you
cannot do any programming. Call your customer service
representative to assign a new password.
The password is a one to six-digit number. It is advised to
make your password at least six digits long for security
reasons. If you press CHANGE but do not enter a new password,
the existing password is erased. Anyone can then access
programming without a password.
¤‹fl›fl ÅΘȈ
The default System Coordinator password is
which is the same as
.
,
One password cannot be a subset of another one. For example,
you cannot have 123 and 12345.
Using a Basic password
In addition to a System Coordinator password, there is a Basic
password. This allows you to delegate some of the duties of
being a system coordinator to someone else without allowing
access to sensitive programming.
¤¤‡›¤
The default Basic password is
.
ıÅÍÈÇ
or
You can enter the Basic password after the following feature
codes:
•
•
ƒ•• Ë͉Â
ƒ ••ÊȘ‰
(User Preferences)
(to change the system
time and date)
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 171
Because the Basic password can be used to change the time,
you should give it out with care and change it when necessary
(for example, when an employee leaves the company). If
restrictions, routing or other services operate on a schedule,
changing the time can allow someone to bypass the
programming.
Registration password
The Registration password is used to control the registration of
Companion portables to the Norstar system. See the MICS-XC
Norstar-Companion System Coordinator Guide for more
information.
Changing passwords
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
‘
≠
‘
≠
1. Press
.
2. Press
password).
(the default System Coordinator
3. Press
four times.
4. Press
at Passwords.
5. Press
until you see Progrming pswds ˆ.
6. Press
.
7. Press
until you see the name of the password
you want to change.
8. Use
, CHANGE and the dial pad to enter the new
password. Press OK to accept the new password.
You cannot erase or eliminate the ability to program
passwords.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
172 / Using System features
Clearing a Call Log password
If an individual has forgotten their Call Log password, you can
clear it in programming. The individual can then enter a new
password from his or her telephone.
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
‘
≠
‘
≠
.
2. Press
password).
3. Press
4. Press
5. Press
(the default System Coordinator
four times.
at Passwords.
until the display reads Call log pswds.
6. Press
and enter the internal telephone number
of the telephone where you want to clear the Call Log
password.
7. Press
≠
, then press CLR to clear the password.
Using special telephones
Direct-dial
You can reach the direct-dial telephone by dialing a single
digit. The direct-dial telephone is usually in a central location,
such as a attendant’s desk. You can have up to five direct-dial
telephones for your Norstar system. It is usually the prime
telephone or the central answering position (CAP).
The direct-dial telephone can send up to 30 messages and can
invoke Services to activate the extra-dial telephone.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 173
You cannot forward calls to a direct-dial telephone that is
outside your Norstar system. See “Making changes to Call
Forward No Answer” on page 21.
Note: ISDN terminals cannot use the Direct-Dial digit to
reach a Direct-Dial set.
Changing the direct-dial telephone assignments
Your installer or customer service representative sets up the
direct-dial telephone.
You can change which direct-dial telephone a telephone is
assigned to, or assign it no direct-dial telephone.
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
≠
‘
.
2. Press
password).
3. Press
(the default System Coordinator
at Terminals&Sets.
4. Enter the internal number of the telephone you want to
program and press
. The display reads
Capabilities.
5. Press
6. Press
.
until the display reads D-Dial.
7. Press CHANGE to select Set1, Set2, Set3, Set4, Set5 or
None.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
174 / Using System features
Any number of telephones can be assigned to call the
direct-dial telephone.
Tip - The digit you dial in order to get the direct-dial
telephone to ring can be programmed by your installer or
customer service representative.
The Norstar system cannot verify that the number you
assign as an external direct-dial telephone is valid. Check
the number before assigning it as a direct-dial telephone,
and call the direct-dial telephone after you’ve assigned it
in order to test it.
Hotline
A hotline telephone calls a preset internal or external
telephone number when you pick up the receiver (or press
).
©
Tip - Label the telephone to inform anyone using it that
Hotline is active.
Bypassing a Hotline
Press a line button, or use the Pre-Dial or Automatic Dial
feature before you pick up the receiver or press
on
a hotline telephone. See the Telephone Feature Card or see
“Changing how you dial your calls” on page 55.
©
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 175
Making a telephone a hotline telephone
You can set up a telephone as a hotline.
Tip - A Hunt Group set DN can be specified as a Hotline
telephone. For more information on Hunt Groups see
“Programming Hunt Groups” on page 133.
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
≠
‘
.
2. Press
password).
3. Press
(the default System Coordinator
at Terminals&Sets.
4. Enter the internal number of the telephone you want to
program and press
. The display reads
Capabilities.
5. Press
6. Press
.
until the display reads Hotline.
7. Press CHANGE to select the type of call the hotline makes:
None, Intrnl, or Extrnl.
Internl assigns an internal number.
External assigns an external number. If you select an external
number, you can select the line on which the call is made: the
prime line, an external line, a line in a line pool, or a line
selected by the routing table. If you select a line pool, you must
specify the line pool access code. If you select the routing
table, the number dialed is treated as a destination code and is
routed according to the routing tables.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
176 / Using System features
A telephone’s prime line, line pool access codes, and access to
a line pool can be programmed by your installer or customer
service representative.
Control telephone
The control telephone allows you to place the telephones and
external lines for which it has responsibility into and out of
service schedules. See “Using alternate or scheduled services”
on page 163.
Using Set lock
Set lock limits the ways in which you can customize your
telephone. There are three levels of Set Lock: Full, Partial, and
None. None allows you to access all features on your
telephone.
Partial prevents:
• programming autodial
buttons
• programming user speed dial
numbers
• programming feature buttons
• moving line buttons
• changing the display
language
• changing dialing modes
(Automatic Dial, Pre-Dial, and
Standard Dial)
• using Voice Call Deny
• saving a number with Saved
Number Redial
Full, in addition to the restrictions outlined for Partial lock,
prevents:
•
•
•
•
changing Background Music
changing Privacy
changing Do Not Disturb
using Ring Again
Modular ICS 4.0 System Coordinator Guide
•
•
•
•
using Call Forward all calls
using Send Message
using Trunk Answer
activating Services
P0881591 Issue 02
Using System features / 177
Changing Set Lock programming for a telephone
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
≠
‘
.
2. Press
password).
(the default System Coordinator
3. Press
at Terminals&Sets and enter the
internal number of the telephone you want to program.
4. Press
5. Press
6. Press
7. Press
.
until the display reads Restrictions.
twice.
until the display reads Set lock.
8. Use CHANGE to select one of the three options: None,
Partial and Full.
Using an auxiliary ringer
An auxiliary ringer is a separate device that has to be
connected to Norstar.
Turning the auxiliary ringer for a telephone on or off
You need the programming template found at the front of this
guide. See “Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
2. Press
password).
3. Press
P0881591 Issue 02
.
(the default System Coordinator
at Terminals&Sets.
Modular ICS 4.0 System Coordinator Guide
178 / Using System features
≠
4. Enter the internal number of the telephone you want to
program and press
. The display reads
Capabilities.
5. Press
6. Press
≠
‘
.
until the display reads Aux. ringer.
7. Use CHANGE to select Y (Yes) or N (No).
Your installer or customer service representative can program
the auxiliary ringer to start ringing for incoming lines as part
of Ringing Service.
Using Host System dialing signals
You can access host systems, such as private branch
exchanges (PBX) from Norstar by using host system signaling
features (known as end-to-end signaling). These features
either send a special signal to the host system or allow you to
program delays required by host systems in external autodial
or speed dial sequences.
Link
ƒ‡⁄
If your Norstar system is connected to a private branch
exchange (PBX), you can use a Link signal to access special
features. On some telephones, Link is called FLASH.
The Link signal can be included as part of a longer stored
sequence on an external autodial button or in a speed dial code.
The Link symbol (¤) uses two of the 24 spaces in a dialing
sequence.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 179
Preventing a telephone from using Link
Link can be restricted at individual telephones. You need the
programming template found at the front of this guide. See
“Getting started with Norstar” on page 1 for more
information.
1. Press
ƒ••¤flfl‹››
¤‹fl›fl
≠
≠
‘
≠
‘
.
2. Press
password).
(the default System Coordinator
3. Press
and enter the internal number of the
telephone you want to program.
4. Press
5. Press
.
three times. The display reads
Restrictions.
6. Press
7. Press
link:.
twice.
three times. The display reads Allow
8. Press CHANGE to choose Y (Yes) or N (No).
Tip - If your Norstar system is connected to a private
branch exchange (PBX), program Link onto a memory
button for one-touch access.
Pause
ƒ‡°
The Pause feature enters a 1.5 second delay in a dialing
sequence on an external line. This is often required for
signaling remote devices, such as answering machines, or
when reaching through to PBX features or host systems.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
180 / Using System features
You can program more than one pause in an external autodial
or speed dial sequence.
The Pause symbol (›) uses one of the 24 spaces in a dialing
sequence.
For pulse dialing,
dialing sequence.
•
inserts a 1.5 second pause into the
ƒ°‚°
Long Tones
The Long Tones feature allows you to control the length of a
tone so that you can signal devices such as fax or answering
machines which require tones longer than the standard 120
milliseconds.
1. While on a call, press
ƒ°‚°
.
2. Press the dial pad buttons to produce the appropriate tones.
Each tone sounds for as long as you hold down the button.
Long tones can be used on any call except a conference call.
You can use internal lines of the Norstar system to activate a
device connected to an analog terminal adapter (ATA) in
another area of your office, or external lines to access devices
outside the Norstar system.
Displays
Long Tones:
Modular ICS 4.0 System Coordinator Guide
At the appropriate time, press any dial pad
button. Hold each button down for as long as
necessary. Press
or
to
cancel Long Tones.
ƒ ˙
P0881591 Issue 02
Using System features / 181
Programmed Release
ƒ•°·
®
The Programmed Release feature performs same function as
in a programmed dialing sequence. When the system
encounters Programmed Release in a dialing sequence, it stops
dialing and hangs up the call.
The Programmed Release symbol (fi) takes up two of the 24
spaces in a programmed dialing sequence.
The system ignores any digits or commands that follow a
Programmed Release in a programmed dialing sequence.
Run/Stop
ƒ•·
Run/Stop inserts a break point into a sequence of dialed
numbers or characters used for automatic dialing. This may be
necessary when you are connecting to a PBX or similar host
system.
For example, you can call a company with an automated
attendant that instructs you to dial the internal number you
need. You can program the company number, a Run/Stop,
then the internal number on one external autodial button. Press
the autodial button once to dial the company number. When
you hear the automated attendant, press the autodial button
again to dial the internal number.
The Run/Stop symbol (fl) uses one of the 24 spaces in an
autodial or speed dial sequence.
You can include up to three Run/Stop commands in a dialing
string. The system ignores a fourth Run/Stop, and any digits or
commands that follow it in a programmed dialing sequence.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
182 / Using System features
Wait for Dial Tone
ƒ°‚›
Wait for Dial Tone causes a sequence of numbers to pause
until dial tone is present on the line before continuing to dial.
This is useful if you must dial a remote system and then wait
for dial tone from that system before dialing the rest of your
number.
The Wait for Dial Tone symbol (‡) uses two of the 24 spaces
in an autodial or speed dial sequence.
Displays
Invalid code
You have entered a code that can be used
only in a programmed autodial or speed dial
sequence, not on a call you dial directly.
Programmed Release and Run/Stop are for
use in programmed dialing sequences only.
Using pulse dialing for a call
If your external telephone lines use pulse dialing, you can
temporarily switch to tone dialing by pressing
after
selecting the line. Tone dialing allows your Norstar telephone
communicate with devices and services that respond to tone
signals, such as automatic switchboards, and fax or answering
machines.
£
Using your Norstar system from an external location
You can use the lines and some of the features of a Norstar
system from outside the system. You can do this over the
public telephone network when you are away from the office,
or you can call from another system, over a private network.
An example of how remote access works is a sales
representative who spends a lot of time out of the office needs
to make long distance calls to the European office. Your
Norstar system has a leased line to Europe with reduced
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 183
transatlantic charges. You provide the sales representative
with a Class of Service password that gives access to the
transatlantic line. The sales representative can then telephone
into the Norstar system from a hotel, enter their Class of
Service password, and use the leased transatlantic line to make
calls.
Remote users can access Norstar lines, line pools, the page
feature, and remote administration (if enabled through
Software Keys). The exact facilities available to you through
remote access vary depending on how your installer or
customer service representative set up your system.
Tip - If the loop start line used for remote access is not
supervised, auto-answer does not function and the caller
hears ringing instead of a stuttered tone or the system dial
tone.
Controlling access to your Norstar system
It is important to maintain the security of your Norstar system
by limiting access to authorized users and limiting those users
to the features they need.
Remote users can make long distance calls.
Remember that a remote user can make long
distance calls that are charged to your company and
can make page announcements in your office.
Direct inward system access (DISA)
Control access to your Norstar system with direct inward
system access (DISA). Access to your Norstar system from the
public telephone network should always be controlled with
DISA. If your installer or customer service representative
programs the line used for remote access to answer a call
automatically and wait for a DISA internal number, callers
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
184 / Using System features
hear a stuttered dial tone and must enter a Class of Service
password before they are allowed into the system.
Class of Service (COS)
To control the level of telephone service a remote user can
access, your installer can assign a remote filter and remote
package to the line used for remote access. The remote filter
restricts the numbers that can be dialed on the line, and the
remote package restricts the use of line pools and the page
feature. To change the restrictions for the line, the user can
enter their Class of Service (COS) password when the system
answers with DISA, or can dial the DISA internal number and
enter their Class of Service password.
Maintaining security
To maintain the security of your system, the following
practices are recommended:
•
Warn anyone to whom you give the remote access number,
to keep it confidential.
•
Change Class of Service passwords often.
•
Warn anyone to whom you give a Class of Service
password, to remember it and not to write it down.
•
Remove the Class of Service password of anyone who
leaves your company.
Accessing Norstar remotely over the public network
1. Dial the Norstar system’s remote access number.
2. When you hear a stuttered dial tone, enter your COS
password.
3. Wait for the system dial tone.
To use the system remotely, you must use a telephone with
tone dialing to call the system.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 185
Remote access is possible only on lines that your installer or
customer service representative programs to auto-answer
calls.
•
followed
To use features on a remote Norstar system, press
by the feature code. Even if you are calling from a Norstar
system, press
instead of
.
•
ƒ
In certain situations, you may experience lower volume levels
when using Norstar remotely.
Tones
You may hear some of the following tones while accessing
Norstar remotely.
Tone
What it means
Busy tone
Dialed a busy line pool access code. You hear
system dial tone again after 5 seconds.
Norstar system dial
tone
You may use the Norstar remotely.
Fast busy tone
You have done one of the following
• Entered an incorrect COS password. Your
call is disconnected after five seconds.
• Taken too long while entering a COS
password. Your call is disconnected after
five seconds.
• Tried to use a line pool or feature not
permitted by your Class of Service. You
hear system dial tone again after five
seconds.
• Dialed a number in the Norstar system
which does not exist. Your call is
disconnected after five seconds.
Stuttered dial tone
Enter your COS password.
Using Class of Service (COS) passwords
Class of Service passwords permit controlled access to a
system’s resources both by internal and remote users. When
you enter a Class of Service password at a telephone, the
restriction filters associated with your Class of Service
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
186 / Using System features
password apply, rather than the normal restriction filters.
Similarly, when a remote user enters a Class of Service
password on an incoming auto-answer line, the restriction
filters and remote package associated with their Class of
Service password apply, rather than the normal restriction
filters and remote package. COS passwords are programmed
by either your customer service representative or installer.
Users should memorize their COS passwords instead of
writing them down. Employees’ COS passwords should be
deleted when they leave the company. Typically, each user has
a separate password. Several users can share a password or one
user can have several passwords.
Changing your Class of Service
ƒfl°
You must enter a Class of Service password each time you
want to make a call that is normally restricted on a line or
telephone.
ƒfl°
To change the restriction filters on a line or telephone:
1. Press
.
2. Enter your six-digit COS password.
COS passwords allow you to define individual passwords and
determine the restriction filters, and remote package
associated with each.
Tip - If you use your Norstar system from outside the
office, you may have to enter a Class of Service password
to gain access to the system. See “Using your Norstar
system from an external location” on page 182.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Using System features / 187
Displays
(Blank display) Enter your password. It is not
shown on the display.
Invalid Password
P0881591 Issue 02
You have entered a password that is not
programmed into your system.
Modular ICS 4.0 System Coordinator Guide
188 / Using System features
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
General System features
The following features are available for the entire Norstar
system.
Set profile
Set profile allows you to view but not change the
programming settings for each Norstar set. You can access Set
Profile from any M7310 or M7324 telephone, even while you
are on a call.
1. Press
ƒ••Í‰Ê
.
2. Enter the internal number of the telephone whose
programming you want to review.
3. Use BACK, SHOW and NEXT to navigate through the settings.
Line profile
Line profile allows you to view but not change the
programming settings for each Norstar line. You can access
Line Profile from any M7310 or M7324 telephone, even while
you are on a call.
1. Press
ƒ••ÒȈ‰
.
2. Enter the number of the line whose programming you want
to review.
3. Use BACK, SHOW and NEXT to navigate through the settings.
Pulse or tone dialing
If your external lines use pulse dialing, you can switch
temporarily to tone dialing to communicate with devices such
as answering machines, to access the features that PBX
systems may offer, or to use another Norstar system remotely.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
£
190 / General System features
Press
while on an active line. Once you hang up, your
telephone returns to pulse dialing.
Disconnect supervision
When Disconnect Supervision is assigned to a line, the Norstar
system monitors it to detect if an external caller hangs up. This
allows the system to release the line for other uses. Your
installer or customer service representative assigns disconnect
supervision.
Hunt Groups
Your Norstar system now allows you to establish Hunt Groups
in your system. Hunt Groups are a group of Norstar sets that
can be called by a single directory number. The Hunt Groups
feature ensures calls are easily routed to the appropriate
people. For more information on Hunt Groups see
“Programming Hunt Groups” on page 133.
Internal numbers
Each telephone in the Norstar system has its own internal
number. The length of internal numbers in your system can be
from two to seven digits on a non-expanded system, and three
to seven digits on an expanded system. All numbers in your
system are the same length. Your installer or customer service
representative sets the length of internal numbers (called the
DN length). The default DN length is three.
ƒ•‚
To find out your internal number, use the Button Inquiry
feature (
) on an intercom button. On the
M7100 telephone, Button Inquiry shows your internal number
followed by the function assigned to your single-memory
button.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
General System features / 191
Line assignment
Any of the lines in your system can be assigned to any of your
telephones. Your installer or customer service representative
assigns lines to telephones in Configuration programming.
Lines can be assigned to appear only, appear and ring, or to
ring only.
Usually, only the lines that are appropriate for a particular
person appear at that person’s telephone. When a line is
assigned to a telephone it is automatically given a line button
on that telephone, if a button is available. The M7100
telephone has no line buttons for its lines.
Calls on lines that ring but do not appear at a telephone are
presented at an intercom button.
You may be able to answer a call on a line that does not appear
or ring at your telephone. To pick up such a call, use Call
Pickup, Call Park, or Trunk Answer.
A telephone may have buttons assigned for lines 001 to 003,
but have only lines 001 and 002 programmed to ring as well.
An incoming call on any of the three lines causes a line button
indicator to flash, and the telephone can be used to answer the
call. This is especially useful for people who monitor other
telephone lines, but want only their own lines to ring.
Target line
A target line is used to route a call directly to a particular
telephone or group of telephones. Target lines are used only
for incoming calls. A single incoming line may provide
connections to several different target lines. This allows each
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
192 / General System features
person or department in the office to have their own number
without having a separate external line for each number.
Tip - The maximum number of target lines available in the
fully expanded XC system is 192, and 128 on a DR 3.0
system.
Line pools
A line pool allows each telephone access to external lines from
a group (or pool) of external lines. You can access such lines
by pressing an intercom button and entering a line pool access
code or by pressing a memory button programmed with the
line pool feature code and a line pool access code.
Overflow call routing
If a call comes in for a target line that is busy, Norstar routes
the call to the prime telephone for that target line. If there is no
prime telephone assigned to the target line or if a call cannot
be directed to a target line, the call goes to the prime telephone
for the external line used.
Overflow routing for incoming calls is used with the Routing
Service programmed by your installer. A Service must be
active for overflow routing to be in effect. Overflow routing is
not available in normal service.
Tips - When you make a call and the programmed route
is busy, you hear the expensive route warning tone and
see a display indicating that an expensive route is being
used. To avoid using the normal, expensive route, release
your call.
Because overflow routing directs calls using different line
pools, a call may be affected by different line filters when
it is handled by overflow routing.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
General System features / 193
M7100 telephone
Because the M7100 telephone does not have line buttons, it
sometimes works slightly differently from other Norstar
telephones. Where other telephones can require that you select
a line button to answer a call, on the M7100 telephone you
simply pick up the receiver. Where other telephones require
you to select a line button to take a call off hold, you press
on the M7100 telephone.
˙
˙
On M7100 telephones, you can answer a second call by
pressing
. Your active call is put on hold and you
are connected to the waiting call. You can have no more than
two calls at a time.
©
The M7100 telephone cannot have a
button. When
applicable, special instructions for the M7100 telephone are
included with each feature description.
Memory buttons
Memory buttons are the buttons with indicators on the M7208,
M7310, and M7324 telephones, and the dual buttons without
indicators on the M7310 telephone. There is a single memory
button, without an indicator, on the M7100 telephone.
Memory buttons can be used as answer, autodial, line, and
programmed feature buttons. Line, intercom and answer
buttons must have indicators.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
194 / General System features
One-line display
The M7100 and M7208 telephones have a one-line display.
Other Norstar telephones have a second line on the display
which shows the functions of the three buttons directly below
it.
Some display buttons, such as TRANSFER and ALL, are simply
shortcuts which are not available on a one-line display.
Other display buttons, such as OK and SHOW, perform essential
functions. For a one-line display telephone, use the following
buttons instead of these display buttons.
Substitutes for display buttons
Display button
OK
QUIT
ADD
SHOW
CANCEL
VIEW
OVERRIDE
BKSP
˙
®
•
£
£
£
£
√
Dial pad button
All displays listed in this book are shown as they appear on the
two-line display.
Prime line
Your telephone can be programmed to select an internal or
external line or a line pool automatically whenever you lift the
receiver or press
. This is your prime line.
©
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
General System features / 195
Private lines
A private line is exclusive to a particular telephone. Calls that
are put on hold or left unanswered on a private line cannot be
picked up at any telephone except the prime telephone.
Volume bar
The volume bar controls the volume of the receiver, telephone
ringer, handsfree speaker, and headset. Press either end of the
volume bar
to adjust the volume.
√
Wall mounting
Norstar telephones can be mounted on a wall. Contact the
installer or customer service representative if you want to have
any telephones in your system wall-mounted.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
196 / General System features
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Troubleshooting
Using the alarm telephone
An alarm telephone displays Norstar’s system alarm codes,
should they occur. It is a Norstar telephone with a two-line
display (M7310 or M7324 telephones) that the installer or
customer service representative has assigned as an alarm
telephone.
Reporting and recording alarm codes
If an alarm message appears on the alarm telephone’s display:
1. Record the alarm number.
2. Press TIME and record the time displayed.
3. Call your installer or customer service representative and
report the alarm code.
4. After speaking to your installer or customer service
representative, press CLEAR.
Displays
Alarm:
TIME
61-4-2
CLEAR
Report this alarm and the time it occurred to
your installer or customer service
representative.
Testing the telephone
If you suspect something is wrong with a button, the speaker,
the displays, or some other part of the Norstar telephone
hardware, you can do a quick test to see which part of the
telephone is broken.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
198 / Troubleshooting
ƒ•‚
Tip - Ensure that the function of a button matches its
label by pressing
and then the button to
see its function.
® ƒ
You can end the telephone testing session anytime by
pressing
or
unless you are testing those
buttons. The test feature times-out after 30 minutes of no
activity.
Testing the telephone display
Use a display test if you suspect that one of the indicators on
the telephone is not working.
1. Press
test.
ƒ°‚fi
˙
. The display reads Display
2. Press TEST or
to go ahead with a display test.
3. Adjust the contrast for the telephone display so you are
able to see the test results clearly. Enter a number to
change the contrast or press DOWN and UP.
4. Press OK or
˙
to go ahead with the test.
During the test, the display should be filled with solid, dark
blocks and all the indicators next to the buttons on the
telephone should be turned on. Any Busy Lamp Field (BLF)
or CAP modules that are attached to the telephone should be
completely lit. You lose any information that was showing on
the BLF before the test started.
Pressing any button ends the test.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Troubleshooting / 199
ƒ°‚fi £
˙
Testing the telephone buttons
1. Press
, then
2. Press TEST or
or NEXT.
to go ahead with a button test.
3. Press button to see its function. If the button you pressed
uses an indicator, it should turn on when you test the
button.
®
4. Pressing the
button puts Rls button on the display
briefly and returns you to the Button test display.
Testing the speaker in the telephone handset
The handset test is not available if you have a headset plugged
into the telephone.
ƒ°‚fi £
˙
1. Press
, then
display reads Handset test.
2. Press TEST or
or NEXT twice. The
to go ahead with a handset test.
3. Pick up the handset and listen. You should hear dial tone
through the handset at a maximum volume. The volume is
reset to maximum only while the test is going on.
Pressing any button or hanging up ends the test.
Testing the telephone headset
The headset test is not available to telephones that do not have
a headset jack or a headset plugged in.
ƒ°‚fi £
˙
1. Press
, then
display reads Headset test.
2. Press TEST or
or NEXT until the
to go ahead with a headset test.
You should hear dial tone through the headset. The volume is
reset to a default level during the test.
Pressing any button ends the test.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
200 / Troubleshooting
ƒ°‚fi £
˙
Testing the telephone speaker
1. Press
, then
display reads Speaker test.
2. Press TEST or
or NEXT until the
to go ahead with a speaker test.
You should hear page tone through the telephone speaker at
the maximum volume. The volume returns to its previous
setting when you end the test.
Pressing any button ends the test.
ƒ°‚fi £
˙
Testing the power supply to a telephone
1. Press
, then
or NEXT until the
display reads Power test.
2. Press TEST or
test.
to go ahead with a power supply
You should see all the indicators on the telephone go on and
hear ringing at maximum volume. When the test has ended,
the display should briefly show Power OK.
The test lasts for five seconds or until you press a button.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Common feature displays
You may see the following displays when you use a feature.
Access denied
Someone is already using programming, or
the feature you are trying to use is not
compatible with the configuration of the
telephone or line.
Denied in admin
You have tried to use a feature, but you have
not been given access to it in administration
programming.
Feature timeout
You have taken more than 15 seconds to
press a button in response to a display.
Inactive feature
You have entered a feature code that is used
by an application program that your system
does not have.
Invalid code
You have entered an invalid feature code.
Not available
You have tried to use a feature that is not
available in the present setup of your Norstar
system.
Set locked
You cannot use the feature you have chosen
because your telephone is locked. See
“Using Set lock” on page 176.
1234567890123...
VIEW‚
OK
Press
or press VIEW‚ or ·VIEW to view a
number that is too long to fit on the display.
Press
or OK when you are
finished.
§
This indicates a long distance call. (May be
available with Call Display services.)
239>221
You are receiving an internal call from
telephone 239 forwarded by telephone 221
or you have an Answer button for telephone
221 and an internal call from 239 is ringing
on 221.
P0881591 Issue 02
£
˙
Modular ICS 4.0 System Coordinator Guide
202 / Common feature displays
221
TRANSFER
You are connected to an internal call. Press
TRANSFER to transfer the call.
221 calling
You are receiving a call from telephone 221.
Call 221?
YES
NO
You have received a Ring Again offer for a
call to an internal telephone. Press the
flashing internal line button or YES to call the
number again. On the M7100 telephone, just
lift the receiver. Otherwise, press NO or wait
30 seconds for the Ring Again offer to expire.
For an explanation of Ring Again, see “Using
Ring Again” on page 58.
Camped:
The person to whom you camped the call did
not answer it. The call has come back to you.
Press the line button or CALLBACK to
reconnect to the call.
Line001
221
CALLBACK
TRANSFER
You are connected to an external call. Press
TRANSFER to transfer the call.
Line001>221
You are receiving an external call forwarded
from telephone 221 or you have an answer
button for telephone 221 and an external call
is ringing on that telephone.
Line001
transfer
The call on line 001 is being transferred to
you by someone else in your Norstar system.
Line001
waiting
A camped call is waiting. Press the line
button or use Call Queuing to answer the
call. Press
if you have an M7100
telephone.
˙
No calls waiting
You tried to use Call Queuing but no call was
ringing at your telephone.
No line selected
There is no call ringing at your telephone. If
you have a flashing line button but your
telephone is not ringing, press the line button
to answer the call on that line.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Common feature displays / 203
Not in service
The telephone to which you directed a call is
not in service or is otherwise unavailable.
The call is returned to your telephone.
Parked call
No one answered the call you parked. The
call has come back to you.
CALLBACK
Pick up receiver
You have used the Call Queuing feature
without picking up the receiver. Auto
Handsfree has not been assigned to your
telephone. You must use the receiver or
to answer a call.
©
Priority> 221
BLOCK
You are receiving a priority call. If you are on
another call, inform the person you are
speaking to that you are about to put the call
on hold. Press the flashing line indicator of
the priority call or wait until the call connects
automatically (in eight seconds). The priority
call goes through when you hear the next
beep. Your active call is placed on Exclusive
Hold. It is reconnected automatically when
the priority call ends (unless you transfer the
priority call, in which case you must press the
line button of your original call to reconnect).
Use DND (
) or press BLOCK
to reject a priority call.
ƒ°fi
Release a call
You have no free line buttons on which to
receive a call. Release one of your current
calls and try again to answer the incoming
call.
Use line pool?
YES
NO
You have received a Ring Again offer for a
line pool. Press the flashing internal line
button or YES to use the line pool. On the
M7100 telephone, just lift the receiver.
Otherwise, press NO or wait 30 seconds for
the Ring Again offer to expire.
Hold or release
You cannot program a feature button while
you are on a call.
Release calls
You have tried to use a feature while you
were on a call or had calls on hold. Release
the call or calls, before using the feature.
P0881591 Issue 02
Modular ICS 4.0 System Coordinator Guide
204 / Common feature displays
Line in use
The line is in use. Make the call using normal
methods or wait until the line is free.
No button free
You have tried to make, receive or pick up a
call when no line button was available. Some
features require you to have a button free.
Releasing calls can free up line buttons.
Make calls first
The feature you tried to use requires you to
be on an active call at your telephone. This
display appears when information about a
call has been cleared by a system reset.
No free lines
All the lines or line pools available to the
telephone are in use. This display appears
when you have tried to dial an external
number or use a feature that conflicts with
the lines, line pools or prime line used by the
telephone. This must be corrected by your
customer service representative or installer.
No line selected
The telephone has been set up to dial an
external number on a prime line but the
telephone does not have a prime line. This
must be corrected by your customer service
representative or installer.
In use:221
You have tried to program redirection while
someone else is programming redirection.
Only one person can program line
redirection at a time.
Incoming only
The line you are trying to use for redirecting
calls is for incoming calls only. Choose an
outgoing line.
9__
QUIT
BKSP
OK
√
Continue entering digits. Press
or BKSP to delete incorrect digits. Press
or OK when you are finished.
˙
Invalid number
You have entered an invalid line pool code or
an invalid destination code.
Line denied
You have selected a line that is private to
another telephone.
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Common feature displays / 205
Restricted call
P0881591 Issue 02
The destination you have chosen for line
redirection is restricted.
Modular ICS 4.0 System Coordinator Guide
206 / Common feature displays
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
Index
Symbols
§ Long Distance symbol 201
¤ Link symbol 178
› Pause symbol 180
fi Programmed Release symbol
181
fl Run/Stop symbol 181
‡ Wait for Dial Tone symbol
182
2-way DID
PRI 153
911 1, 147, 153
A
access
Class of Service 185
external lines 192
Norstar from outside the
system 182
remote 184
using a COS 184
using a DISA 183
Access denied 201
ADD 194
administration password (see
System Coordinator
password)
administration programming 2
Alarm 61-4-2 197
alarm codes, reporting and
recording 197
alarm telephone 197
Allow calls 148
allow redirect
P0881591 Issue 02
programming 87
Already joined 37, 52
Already parked 79
alternate services 163
analog telephone
replying to a message 99,
100
analog telephones
sending messages 96
analog terminal adapter (see
ATA)
announcement
paging 93
Voice Call 102
Answer button 38
answering calls
Answer button 38
Call Display services 32
Call Duration Timer 48
Call Pickup 35
CAP 29
Conference Calls 39
Group Listening 43
Handsfree 43
hearing aid compatibility 31
prime telephone 29
Privacy 47
Trunk Answer 37
using line buttons 28
using the Release button 31
Voice Call 103
apply button cap labels 116
ATA (analog terminal adapter)
dialing signals 180
using dialing modes 56
Modular ICS 4.0 System Coordinator Guide
208 / Index
Auto Call information (see Caller
ID set)
Autodial
for M7100 62
line selection 62
programming 61
storing number on a memory
button 61
using intercom line for 62
using Last Number Redial
64
Autodial full 62
automatic
Call information 34
Call Log 105
dial 56
Handsfree 46
Hold 71
release of a line (see
Disconnect Supervision)
Automatic Call Back, ISDN
terminal feature 159
Automatic Call Forward
changing settings 82
Automatic Recall
ISDN terminal feature 159
Automatic Telephone Relocation
147, 190
auxiliary ringer 177
B
Background Music 149
turning off 149
Basic password 2, 125, 170
BKSP 194
blocking calls (see Do Not
Disturb)
busy 51, 58
busy tone, fast 185
Modular ICS 4.0 System Coordinator Guide
button cap labels 116
applying 116
button caps 117
button defaults
M7100 telephone 122
M7208 telephone 122
M7310 telephone 119
M7324 telephone 121
Button erased 62
Button Inquiry 113
buttons
Answer button 38
Button Inquiry 113
changing programming 126
display 5
dual memory 5
erasing programmed
features 115
Feature 5
Handsfree/mute 46
Hold 5
Last Number Redial 63
memory 5, 61, 193
moving line 122
numbering on all telephone
types 126
programming features on
114
Release 5, 31
Saved Number Redial 68
shift 5
testing 198, 199
using a line button 53
using buttons 4
bypassing
a Hotline telephone 174
C
call
P0881591 Issue 02
Index / 209
overflow 192
ways to make a 51
Call 221? 202
Call blocked 58
Call by Call
PRI 154
Call Display information 32
Call Duration Timer 48
Call Forward
and Line Redirection,
differences 90
automatic, changing settings
82
Call Forward No Answer 22
Call Forward on Busy 23, 83
canceling 81
Forward no answer 82
ISDN terminal feature 158
overriding 82
programming 21, 82, 83
to voice mail 85
using 81
Call information
automatic 34
changing what is shown first
34
displaying information 32
getting information for a call
on hold 33
getting information for a
current call 33
Call Log 105
Autobumping 107
automatic 105
calling from within 108
deleting log items 107
logging a call manually 106
options 106, 129
password 109–110
P0881591 Issue 02
canceling 110
changing 109
set 105
using 105
Call Park 78
Call Pickup
Directed Pickup 35
Group Pickup 36
Call Queuing 72
Call Transfer 73–76
Call(s) bumped 111
Callback 80
Caller ID set 34
Calling 58
Camp denied 77
Camp max 76
Camp to 77
Camped 77, 202
camping calls (see Camp-on)
Camp-on 76
Can't ring again 52, 59
CANCEL 194
Cancel denied 101
canceling
a transfer 74
Call Forward 81
Do Not Disturb 148
Group Listening 43
Line Redirection 87
CAP (central answering position)
answering calls 29
customizing 30
M7324 telephone 29
monitoring calls 31
sending messages 97
telephone 29, 172
using 29
central answering position (see
CAP)
Modular ICS 4.0 System Coordinator Guide
210 / Index
Centrex template 122
changing settings
automatic Call Forward 82
Class of Service
changing 186
using a password 184, 185
Cleared>LINENAM 101
communicating in the office
paging 93–96
sending messages using
display 96
Voice Call 103
Conf. on hold 42
Conference busy 42
Conference Call
by releasing privacy 48
disconnecting from 42
removing yourself from 42
splitting 41
using the Conference
feature 39
contrast adjustment 114
control telephone 166, 167, 176
customizing CAP 30
customizing your telephone
adjusting ring volume 124
Button Inquiry 113
changing ring type 123
contrast adjustment 114
User Preferences 125
D
date and time
changing 13
displayed instead of
messages 124
displaying 49
length of a call 48
defaults
Modular ICS 4.0 System Coordinator Guide
button assignments 118
deleting
Call Log items 107
messages from list 100
programmed features 115
Denied in admin 201
desktop conferencing using
ISDN 160
dial pad
description 5
entering numbers and letters
18
dial tone
Norstar system 185
stuttered 185
Dial voice call 103
dialing
automatic dial 56
modes 55
options 129
pre-dial 56
saved number 68
signal
Link 178
Long Tones 180
Pause 179
Programmed Release
181
run/stop 181
switching from pulse to
tone 182
Wait for Dial Tone 182
standard dial 55
switching from pulse to tone
182
Dialing Plan
PRI 155
DID (Direct Inward Dial)
template 122
P0881591 Issue 02
Index / 211
digital connections, to ISDN
networks and devices 160
direct inward system access
(DISA) 183
direct-dial telephone
programming 173
Directed Pickup 35
DISA (see direct inward system
access)
disconnect
from conference 42
releasing a call, accidentally
49
Supervision 190
display
button equivalents for oneline display 194
buttons 5
Call information 33
changing the language 114,
129
contrast 130
making darker or lighter 113
one-line 194
testing 198
time and date 49
distinctive rings 123
DN (see internal numbers)
DND 77
DND from 29
DND transfer 29
DNs 12
Do Not Disturb 148
canceling 148
on Busy 24, 84
using 148
Do not disturb 52, 58, 75
DRT 29
dual memory button 5
P0881591 Issue 02
E
Emergency 911 1
PRI 153
ending a call 31
Enter code 116
Enter digits 62, 66
Enter zone 95
entering names and numbers 17
erasing
Call Log items 108
messages from list 100
programmed features 115
Evening Sched 169
Exchanged 123
Exclusive Hold 57, 72
Expensive route 52
external
access to Norstar 182
autodial,programming 61
Call Forward (see Line
Redirection)
page 93
paging equipment 96
extra-dial telephone 169
F
ƒ
£°⁄fi
°⁄fi
•⁄
•¤
£°fl
°fl
Autobumping
canceling
107
107
using
autodial button
external
61, 63
internal
61
Background Music
canceling
149
turning on
149
Modular ICS 4.0 System Coordinator Guide
212 / Index
•‚
‡‡
› £›
⁄⁄ ƒ°
°⁄¤
°⁄‹
•°›
•°fi
•°fi
°⁄¤
‡›
‡fl
°‚⁄
£‡‚
‡‚
°¤ fl°
£‹
‹
•‡
•°¤
‡fl
£°fi
°fi
‡·
•‹
Button Inquiry
68,
113, 190, 198
Call Duration Timer
48
Call Forward
canceling
81
using
81
Call
Information
32, 33
Call Log
entering
109
external calls
107
options
106
password
110
password
109
viewing
107
Call Park
77
Call Pickup
36
Call Queuing
72
Call Transfer
canceling
74, 75
using
42, 73
Camp-on
76
Class of Service
186
Conference Call
M7100 telephone
40, 41
using
39, 41
Contrast Adjustment
113
Dialing Modes
55
Directed Pickup
35
Do Not Disturb
canceling
148
turning on
56, 148
Exclusive Hold
72
Feature Button
programming
115
Group Listening
Modular ICS 4.0 System Coordinator Guide
£°‚¤
°‚¤
•°‚fl
‡⁄ °‚°
‡°
•°·
•·
°‚›
•fi‚⁄
•fi‚¤
•fi‚‹fi
fl›
°›£°›
⁄£⁄ ⁄
flfi
fl‹
fl¤
fl‚ fl⁄
ıÅÍÈÇ
•°fi
ˆ ÅΘÈ
canceling
43
using
43
Hide message
display
124
Host System Dialing Signals
Link
178
Long Tones
180
Pause
179
Programmed
Release
181
Run/Stop
181
Wait for Dial
182
Tone
Language
English
114
French
114
Spanish
114
Last Number Redial
63
Line Pool Access
54
Line Redirection
canceling
87
using
86
Message
canceling
98
sending
97, 100
viewing ones you sent
101
viewing
98
Page
combined zone
93
external zone
93
internal zone
93
using
78, 79, 93
Password
Basic
7,
13, 170
Call Log
109,
110
System
Coordinator
11, 13, 16, 18, 19,
P0881591 Issue 02
Index / 213
20, 21, 22, 23, 24, 25,
170
Priority Call
57
Privacy
48
Restriction Service
turning off
166
turning on
166
Ring Again
canceling
59
using
59
123
Ring Type
Ring Volume
124
Ringing Service
turning off
166
turning on
166
Routing Service
turning off
166
turning on
166
Saved Number Redial
67, 68
Services, viewing
167
Speed Dial
adding user
66
making calls
65
Static Time and
Date
102
Testing
display
198
power supply
200
telephone
buttons
199
telephone
handset
199
telephone
headset
199
°‹fl·
£°‡¤
°‡¤
£¤
¤•fl
•°‚
£°‡⁄
°‡⁄
£°‡‹
°‡‹fl‡
°‡‚
•›
‚
°‚fl
°‚fi°‚fi
°‚fi
°‚fi
°‚fi
P0881591 Issue 02
°‚fi
••ÊȘ‰
‡‡ °‚‚
Ë͉ ••
£°°
°°
flfl
telephone
speaker
200
Time and
Date
13,
170
Time
49
Trunk Answer
38
User Preferences
125, 170
Voice Call Deny
canceling
103
103
using
Voice Call
103
fast busy tone 185
Feature button 5
Feature code 116
Feature moved 116
Feature timeout 201
features
adjusting ring volume 124
Autobumping 107
autodial 61
auxiliary ringer 177
Background Music 149
Button Inquiry 113
Call Display 32
Call Duration Timer 48
Call Forward 81
Call Information 32
Call Log 105
Call Park 77
Call Pickup 35
Call Queuing 72
Call Transfer 73
Callback 80
Camp-on 76
changing ring type 123
Class of Service password
186
Modular ICS 4.0 System Coordinator Guide
214 / Index
Conference Calls 39
contrast adjustment 114
dialing modes 55
dialing signal
Link 178
Long Tones 180
Pause 179
Programmed Release
181
run/stop 181
Wait for Dial Tone 182
Do Not Disturb 148
Do Not Disturb on Busy 84
Exclusive Hold 72
Group Listening 43
Handsfree 43
hiding the message or calls
display 124
Hold 71
language choice 114
Last Number Redial 63
line pools 53
Line Redirection 85–91
Messages 96
moving line buttons 122
one button access 31
paging 93–96
priority call 56
Privacy 47
Restriction service 163
Ring Again 58
ring type 123
Ringing service 163
Routing service 163
Saved Number Redial 67
sending messages using
analog telephones 96
sending messages using
display 96
Set Lock 176
Modular ICS 4.0 System Coordinator Guide
Speed Dial 65
Test a Telephone 197–200
Time and Date 170
Trunk Answer 37
User Preferences 125
Voice Call 103
Voice Call Deny 103
file transfer using ISDN 160
Forward denied 85
Forward> 85
forwarding calls 21
Call Forward 81
Call Forward delay 83
Call Forward No Answer 82
Call Forward on Busy 83
Do Not Disturb on Busy 84
Line Redirection 85–91
G
Group 4 fax using ISDN
applications 161
Group Listening 43
canceling 43
Group Pickup 36
H
handling many calls at once
Call Queuing 72
Hold 71
handset, speaker testing 200
handset, testing 199
Handsfree
making calls 44
muting 44, 46
Handsfree Answerback
programming 47
Voice Call 103
headset
Handsfree requirement 46
P0881591 Issue 02
Index / 215
testing 199
hearing aid compatibility 31
Hidden number 64, 68
Hidden number 52
Hold
automatic 71
button 5
Conference Call 41
exclusive 72
getting information for a call
on 33
listening while on hold 71
retrieving call 71
Hold or release 111, 203
host system signaling
Link 178
Pause 179
Programmed Release 181
run/stop 181
Wait for Dial Tone 182
Hotline
bypassing 174
setting up the telephone 175
Hunt Groups 23, 24, 26, 27, 36,
38, 57, 59, 71, 79, 81, 82,
83, 84, 94, 102, 133, 149,
175, 190
Adding members 134
Assigning lines 136
Broadcast mode 137
Distribution modes 137
Moving members 135
Programming busy line
setting 140
Programming the overflow
set 142
Programming the queue
time-out 141
Removing members 134
P0881591 Issue 02
Rotary mode 138
Sequential mode 138
Setting the hunt delay 139
Setting the name 143
Unassigning lines 136
Hybrid template
button defaults 122
I
In use 101, 204
In use SETNAME 111
Inactive feature 201
incoming call indicator 27
Incoming Line Groups (ILG) 133
Incoming only 204
indicator
incoming call 27
Installer programming 2, 11
Integrated Services Digital
Network (see ISDN)
Intercom 88
intercom
using as the line for Autodial
62
Intercom # 62
internal numbers
length of 190
internal page 93
Internet access using ISDN
applications 161
Invalid code 66
Invalid code 182, 201
Invalid location 123
Invalid number 63
Invalid number 75, 79, 204
Invalid zone 95
ISDN (Integrated Services
Digital Network)
Modular ICS 4.0 System Coordinator Guide
216 / Index
applications 160–161
connecting to 160
description 151
desktop conferencing using
160
equipment 160–161
file transfer using 160
Group 4 fax using 161
Internet access using 161
LAN access using 161
LAN to LAN bridging using
161
leased line backup using
161
telecommuting using 160
videoconferencing and
video telephony using 160
ISDN BRI 156
ISDN PRI 151
2-way DID 153
Call by Call 154
Dialing Plan 155
Emergency 911 153
Name and Number blocking
153
Network Name Display 152
L
LAN
access using ISDN
applications 161
router 161
to LAN bridging ISDN
applications 161
language, changing on the
display 114, 129
Last Number Redial
programming 64
Last Number Redial, using 63
Modular ICS 4.0 System Coordinator Guide
leased line backup using ISDN
applications 161
length of call, timing 48
length of internal numbers 190
letters, entering with dial pad 18
limiting
access to Norstar 183
telephone feature use 176
telephone programming 176
using alternate or scheduled
services 163
line
assignment 191
button
moving 28, 122
button, using to choose a
line 53
changing the name 20, 147
indicators, description 28
pool 53–55, 192
profile 189
Redirection
canceling 87
using 85–91
Redirection, and Call
Forward, differences 90
target 191
Line 001 waiting 202
Line denied 38, 52, 204
Line hung up 77
Line in use 204
Line Redirection 88
Line001 callback 29
Line001 hung up 75
Line001 to prime 29
Line001 transfer 202
Link
using 178
Link, programming 179
P0881591 Issue 02
Index / 217
LIST 128
listening on hold 71
log space
programming 110
logging a call manually 106
Logit (see Call Log)
long distance call
indicator 201
using COS password 182
Long Tones 180
Lunch Sched 169
M
M7100 telephone
Autodial 62
button defaults 122
Button Inquiry 113
Call Conference 39
Call Park 78
Call Queuing 202
Call Transfer 75
CallBack 77
camping a call 76
Conference Call 41
Conference Call on hold 41
Hold 71
Incoming Line Group button
28, 53
internal numbers 190
line assignment 191
line buttons 193
Line Redirection 86
memory buttons 193
one-line display 194
Ring Again 202, 203
Speed Dial 66
standard dial 55
Transferring a call 75
Voice Call 103
P0881591 Issue 02
M7208 telephone
button defaults 122
Conference Call 40
memory buttons 193
one-line display 194
splitting a Conference Call
41
M7310 telephone 4, 5
button defaults 119
Conference Call 40
memory buttons 193
splitting a Conference Call
41
troubleshooting 197
M7324 telephone 4, 5
button defaults 121
CAP 29
Conference Call 40
memory buttons 193
splitting a Conference Call
41
troubleshooting 197
maintaining security 184
Make calls first 204
making calls
dialing modes 55
priority call 56
using a line button 53
using line pools 53
using Ring Again 58
with automatic Handsfree 46
memory buttons 5, 61, 193
Message denied 101
Message list 101
Message to 102
Messages
canceling a sent message
98
hiding display 124
Modular ICS 4.0 System Coordinator Guide
218 / Index
removing from list 100
sending, using the display
96
viewing 98
Messages & Calls 102, 111
Microphone muted 103
monitoring
calls 38, 191
with CAP 31
line pool status 58
lines (see also Disconnect
Supervision) 190
telephone status 58
transferred calls 80
mounting telephones on wall
195
Move line from 123
Move line to 123
moving
telephones 147
music, background 149
muting voice call tones 103
N
Name and Number blocking
BRI 158
PRI 153
names
spelling out 17
Network Name Display
BRI 157
PRI 152
New calls begin 111
night control phone (see control
telephone)
Night Sched 169
Night Service (see services)
9_ 51, 204
No button free 102, 204
Modular ICS 4.0 System Coordinator Guide
No call on 79
No call to park 79
No calls waiting 202
No free lines 204
No info to log 111
No last number 64
No last number 52
No line selected 52, 202, 204
No line to use 89
No log assigned 112
No number saved 69
No number stored 66, 102
No resume item 112
No services ON 168
No voice call 104
Norstar Programming Report 2
Norstar system dial tone 185
Norstar telephones
installing 145
mounting on a wall 146
Not available 201
Not in service 53, 75, 77, 85,
203
numbers, entering with dial pad
18
O
OK 194
On another call 53, 58
On hold 72
one button access to features 31
one button dialing (see Autodial)
Outgoing line 89
overflow call routing 192
OVERRIDE 194
overriding
Call Forward 82
P0881591 Issue 02
Index / 219
P
page
external equipment 96
programming 94
shortcut codes 93
types 93
zones, programming 94
Page choice 95
Page timeout 95
Paging ALL 95
Paging busy 96
Park denied 79
Parked call 203
Parked on 79
parking a call
retrieving 78
Parking full 79
password
Basic 125, 170
Call Log 109–110
canceling 110
changing 109
changing 169
Class of Service 185
clearing Call Log 172
entering 11
System Coordinator 2, 169,
170
user preferences 125
Pause 179
pause in a sequence of numbers
(see Wait for Dial Tone)
PBX template 122
Pick up receiver 203
Pickup 37
Pickup denied 37, 38
pickup group 36
Please wait 58
P0881591 Issue 02
Pool code 89
power off, effect on memory
buttons 61
power supply, testing 200
pre-dial 56
Press a button 63, 113, 116
Press a line 123
Press held line 42
prime
line 175, 176
telephone 29
prime line 194
priority call (see also Call
Queuing) 27, 56
Priority denied 58
Priority>223 203
Privacy
changing status 47
private
branch exchange, accessing
from Norstar (see also host
system dialing signals) 178
call 48
line 195
Program and HOLD 63, 67, 116
Program and OK 63, 67, 116
Programmed 63
Programmed Release 181
programming
basics
administration
programming 2
Basic password 2
customizing your Norstar
2
entering passwords 11
installer programming 2
personal programming 2
Modular ICS 4.0 System Coordinator Guide
220 / Index
ª
º
programming indicator
7
programming indicator
7
programming map 7–11
programming overlay 6
recording changes 2
starting and ending a
session 11–12
understanding
programming 2
changes, planning 3
features on buttons 114
Installer 11
lines
changing the name of a
line 147
log space 110
overlay 3, 6
system features
Call Forward 21, 24
changing the name of a
line 20
changing the name of a
telephone 18
Restriction service 163,
164
Ringing service 163
Routing service 163
System Speed Dial 15,
65
time and date 13
telephones
allowing Line Redirection
87
auxiliary ringer 177
Call Display 34
Call Forward 21, 24
Call Forward delay 83
Call Pickup 35
Modular ICS 4.0 System Coordinator Guide
changing number of rings
before forwarding call
22
changing the name of a
telephone 18, 147
direct-dial telephones
173
Do Not Disturb 148
Do Not Disturb on Busy
24
external autodial button
61
Forward no answer 82
Forward on busy 83
Handsfree 45
Handsfree Answerback
47
Hotline 175
page zone 94
paging 94
priority call 56
Redirect ring 88
Set lock 176
User Speed Dial 65, 66
using a telephone for 3
programming telephones
Last Number Redial 64
Link 179
Saved Number Redial 68
Q
QUIT 194
R
recording programming 2
redialing
external number 63
Redir by 89
Redirect ring
programming 88
P0881591 Issue 02
Index / 221
Redirect∫denied 89
redirection loops, avoiding 91
refusing to answer second call
148
Release a call 77, 203
Release button 5, 31
Release calls 203
releasing
accidentally 49
from conference 42
remote access 182–185
remote use
Class of Service password
186
security 183
using lines and features
from outside the system
182
replying to a message 98
analog telephone 99, 100
reporting and recording alarms
197
Restr'n 168
Restricted call 53, 75, 205
restricting
access to Norstar 183
feature use (see Set Lock)
telephone feature use 176
telephone programming 176
using alternate or scheduled
services 163
Restriction service 163
retrieval codes
Call Park 78
retrieving
held call 71
parked call 78
ring
auxiliary ringer 177
P0881591 Issue 02
changing ring type 123, 130
changing the number of
rings before call is
forwarded 22
description of types 28, 123
ring volume 124
Ringing service 165
Ring Again 58
Ring Again? 53, 59
Ringing 168
Ringing service 163
RLS button 31
Routing 168
Routing service 163
run/stop signal 181
S
Saved Number Redial
using 67
Saved Number Redial,
programming 68
saving a number (see Saved
Number redial)
Sched 4 169
Sched 5 169
Sched 6 169
scheduled services 163
security
recommendations 184
system 183
Select a line 53, 67
Select line out 89
Select line(s) 89, 90
Send message? 53
Service Modes (see Services)
Service Modes ON 168
Service provider features
Automatic Call Back 159
Modular ICS 4.0 System Coordinator Guide
222 / Index
Automatic Recall 159
Call Forward 158
calling the number your calls
are forwarded to 159
canceling Call Forward 159
Service Schedules
Evening Sched 169
Lunch Sched 169
Night Sched 169
Sched 4 169
Sched 5 169
Sched 6 169
Services
overriding 169
Restriction service 163
Ringing service 163
Routing service 163
Trunk Answer 37
turning off and on using
feature codes 166
viewing active schedules
167
Set Lock 176–177
set lock 177
Set locked 201
Set profile 193
shift button 5
SHOW 194
signal
Link 178
Long Tones 180
Pause 179
Programmed Release 181
run/stop 181
Wait for Dial Tone 182
special telephones 172
Speed Dial
adding or changing 15
Modular ICS 4.0 System Coordinator Guide
changing User Speed Dial
128
choosing a system code 16
choosing the display 17
host system signaling codes
65
making a call 65
programming 15
programming for User 66
selecting a line 17
splitting a Conference Call 41
Square template
button defaults 122
standard dial 55
Start of list 102
Still in trnsfer 75
stopping calls from ringing at
your telephone 148
stuttered dial tone 185
suspending a call (see also Call
Park and Hold)
System Coordinator
password 2
system dial tone 185
System Speed Dial 65
T
target line 191
changing the name 147
telecommuting using ISDN
applications 160
telephone
alarm 197
Call Display information 34
CAP 29, 172
changing the name 147
control 166, 176
difference between M7310
and M7324 telephones 5
P0881591 Issue 02
Index / 223
direct-dial 172
extra-dial 166, 169, 172
Hotline 174
log calls automatically 105
M7100, illustration 193
M7310, illustration 4
M7324, illustration 4
mounting on wall 195
moving 147
prime 172
prime telephone 29
testing 197–200
testing
buttons 198, 199
display 198
ending a session 198
handset 199
headset 199
power supply 200
telephone 197
telephone speaker 200
Their list full 102
3 parties only 42
time and date
changing 13
displayed instead of
messages and calls 124
displaying 49
ƒ
••ÊȘ‰
,
ƒ°‚fl
13 170
102
length of a call 48
time savers
autodial 61
Saved Number Redial 67
Speed Dial 65
tone
camped call tones 76
controlling length 180
P0881591 Issue 02
remote access tones 185
voice call 103
tracking incoming calls
Call Log 105
transfer (see Call Transfer)
Transfer denied 76
transferring calls 73
Callback 80
parking a call 77
using Camp-on 76
troubleshooting
reporting and recording
alarms 197
testing
the headset 199
the power supply 200
the speaker in the
handset 199
the telephone buttons
199
the telephone display 198
the telephone speaker
200
using the alarm telephone
197
Trunk Answer 37
U
understanding programming 2
Unequipped line 89
Unknown name 110
Unknown number 67
until * 168
UPDATE 12
Use line pool? 203
User Preferences 125–131
ƒ••Ë͉Â
170
User Speed Dial 65, 128
Modular ICS 4.0 System Coordinator Guide
224 / Index
using Call Forward 81
using Do Not Disturb 148
using Norstar remotely 182–185
using this guide 1
V
videoconferencing and video
using ISDN applications 160
VIEW 194
viewing
active Services 167
Call Log 107
messages 98, 101
Voice Call 102–104
Voice call 104
voice mail
accessing your Norstar
system 112
using Call Forward 85
volume
bar 195
control 195
W
Wait for Dial Tone 182
wall mounting telephones 195
Y
Your list full 102
Modular ICS 4.0 System Coordinator Guide
P0881591 Issue 02
