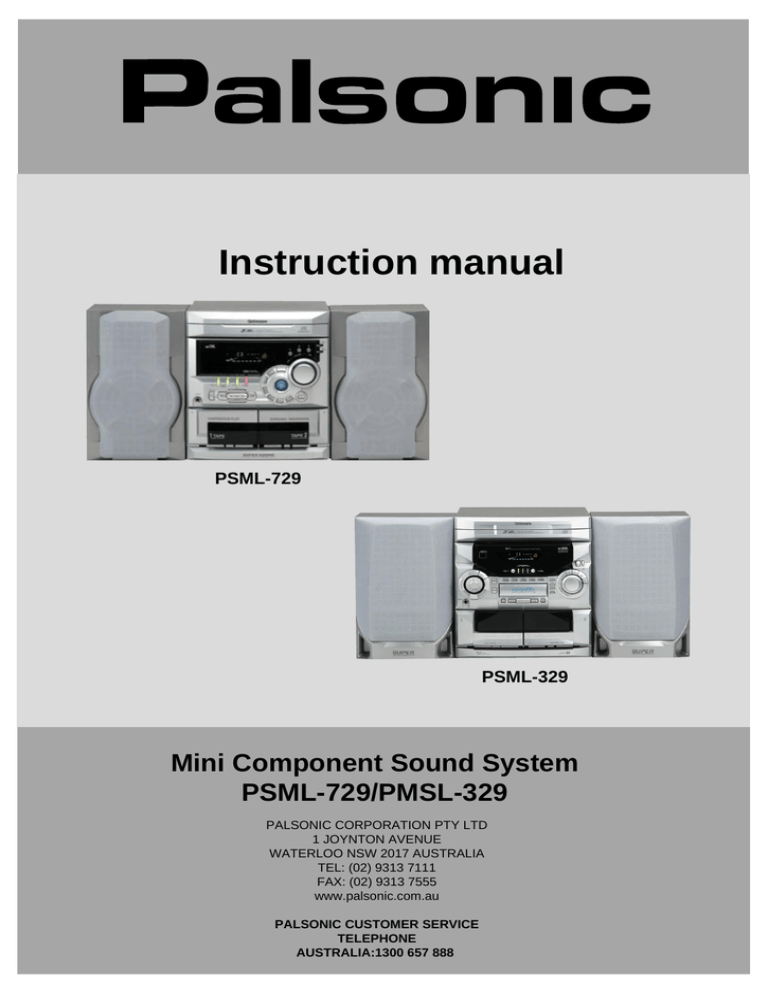

Instruction manual
PSML-729
PSML-329
Mini Component Sound System
PSML-729/PMSL-329
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA:1300 657 888
WORTH
knowing
Please keep the sound system's guarantee card and receipt safe for
warranty purposes, if guarantee card is supplied to you.
Precautions
Read carefully through this manual to familiarise yourself with this
high - quality sound system.
Make sure the rating of your household electricity supply matches that
shown on the back of the sound system.
Refer to this chapter and the "Installation/connections" chapter (page
18/19) to help you install and adjust your sound system.
Do not ...
... expose the sound system to high levels of humidity and heat, to avoid
the risk of fire and electric shock.
... connect the sound system to the power supply if you have just moved
it from a cold to a warm environment. This can result in condensation
inside the system and cause serious damage to the machine and
cassettes. Wait around two hours to allow it to reach room
temperature.
Make sure ...
... the system is placed on a stable, flat surface.
... you place the system where there is good ventilation all around.
... you clean the system only with a soft, line-free cloth, do not use
aggressive or alcohol-based cleaning agents.
... you disconnect the power supply if the system appears to be working
incorrectly, is making an unusual sound, has a strange smell, has
smoke emitting from it or liquids have got inside it.
Have a qualified technician check the system.
... you disconnect the power supply and aerial if you will not be using the
system for a long period or during a thunderstorm.
For your own safety!
There are no components in this sound system you can
service or repair yourself.
Do not open the case of the sound system. Only allow
qualified personnel to repair or service your set.
"Class 1 Laser Product" : Do not override the safety locks
around the laser unit of the CD player : Laser beams can
damage your eyes!
This sound system is designed for continuous operation.
Switching it off does not disconnect it from the mains
(stand-by). To disconnect it from the mains, you have to
unplug it.
Recording any copyright protected material may infringe
a copyright.
"CAUTION : Replace fusible resistor with the same type and rating."
2
WORTH
Before doing anything with this machine, please
read the chapter "Installation / connections".
knowing
Contents
Controls
The remote control unit ................................................................................................... 4
The sound ....................................................................................................................... 5
The machine ................................................................................................................... 6/7
Radio listening
Tuning station, Programming station presets, Selecting station presets ........................
8
Tape playing
Playing tapes, Winding, Skipping a piece, Continuous playback ...................................
9
CD Playing
Playing CDs, Searching, Skipping .................................................................................. 10
Skipping, Programmed CD tracks playback, Repeat playback, Random playback ........ 11
Recording
Recording Recording stations, from a connected device ............................................... 12
Recording CDs with synchro start, Recording from another tape (dubbing) .................. 13
Timer and clock
Setting the clock, Displaying the time, Setting the sleep timer ....................................... 14
Setting the timer, Timer (record) stand-by on/off, Checking the timer ............................ 15
Installation / connections
Placing your sound system components, Remote control and batteries ........................ 16
Installation ...................................................................................................................... 17
Appendix
Before you ask a specialist, Cleaning the audio heads of the tape deck ........................ 18
Compact discs, Technical data ....................................................................................... 19
On the following pages, the pictures show the buttons you press on the remote control or on the set to
perform the function. Some pictures show what you should see in the displays of the machine (if present).
3
CONTROLS
The remote control is the principal means of control, but the main functions are also
available on the front of the machine.
Press the buttons POWER or FUNCTION (TAPE, TUNER, AUX, CD) to turn on the
power.
The Remote Control Unit
FUNCTION
Power on / off (stand-by).
Power save mode (Only Europe): This model is implemented to reduce power
consumption at stand-by operation. At this time, all displays are turned off except
stand-by mode (power save) LED.
To select tape, tuner, a connected device (video ...) or CD player.
To set the volume level.
To tune in stations, to set values in programming, to fast reverse or advance
tape and CD.
MAX.
4M
MAX.
4M
CLOCK
SLEEP
Direct Access to one of three discs that you load onto your sound system.
To show the current time in system's display.
To set the minutes after which the system is to switch off
automatically. Press repeatedly for time between 90 and 10 minutes
For a short pause during recording of a tape or CD play or to
advance in a programming (e.g. clock set).
TIMER
BAND
To select timer setting and to activate / deactivate timer stand-by.
To select FM or AM radio.
To select music style setting, see page 5.
MUTE
To mute (on/off) the volume for a while, e.g. during a
telephone call.
TAPE 1/2
To select FM mono for a weak stereo reception, or tape 1/2.
Bass enhancement (on/off), see page 5.
4
With your sound sound system you have unique possibilities
to modify the sound of your music
CONTROLS
The sound
On the
remote control
On the
machine
Volume level
Handy buttons serve for comfortable volume control both
on the machine as well as on the remote control.
(MAX. VOL 28 ~ VOL 1, MIN.)
Mute
MUTE
If you want to turn the volume down very quickly, because
the phone rings or someone is knocking at the door, press
this button.
Press again or the volume button to get the previous
volume level.
Music styles
This adjustment section lets you adjust your system's
sound to the music style you are listening to such as
Merengue, Classic, Reggae, Salsa, Samba, Jazz, Rock
and Pops (Flat means no style).
Press the buttons repeatedly for the desired mode and
watch the display.
Ultra Bass Sound system
Use this button on the machine or on the remote control
to give music more volume and power by boosting its bass
section (on/off).
5
CONTROLS
Place your sound system
horizontally on a flat, steady base so that air can circulate around it for ventilation.
away from humidity and heat, magnetic fields, such as those from loudspeakers etc.,
and with no heavy objects placed on top.
The machine
To system power ON (stand-by)
Power save mode (Only Europe) : This mode
implemented to reduce power consumption at stand-by
operation. At this time, all display are turn off except
stand-by mode (power save) L.E.D. This mode is
activated by power button after clock setting. Clock,
Power, Function, Disc direct, OPEN/CLOSE,
Disc change buttons are available at this mode.
To select tape 1/2 tuner and band, a
connected device (video ...), CD player or to
show the current time in the system's
display
For a short pause during recording on a tape or to advance in a
programming (e.g. clock set).
To stop play and record or to cancel values
and functions.
SET
TUNE DOWN
TUNE UP
CLEAR
To tune in stations, to set values in
programming, to fast reverse or advance
tape, CD.
To start play or to select station presets and reverse play for tape.
PHONE
Headphone socket. Plugging in a
headphone switches the speakers off.
To set the minutes after which the system
is to switch off automatically. Press
repeatedly for a time between 90 and 10
minutes.
OPEN/
CLOSE
DISC
CHANGE
CD1
CD2 CD3
If you want to turn the volume down very
quickly, because the phone rings or
someone is knocking at the door, press this
button.
To open or close the disc compartment. To
load / unload CDs.
To play the next disc and to turn disc tray
for loading up to 3 discs. Also to load a disc
while another is playing.
Direct access to one of the three discs that
you can load into your sound system.
Remote Control buttons see page 4.
6
CONTROLS
The machine
REPEAT
PGM
RANDOM
MODE
To select repeat play for a track, a CD, or all CDs.
To enter programme play.
To select random play for all CDs or tracks of the selected disc.
Press repeatedly.
To select FM mono for weak stereo reception.
To start tape recording.
TAPE
REC
SYNC DUB
Tape compartment 1
for playing tapes.
To dub a tape at high or normal speed
with synchronised start of both, playing
and recording tapes.
To dub a CD with synchronised start of
disc and tape.
Tape compartment 2 for playing tapes
and recording tapes.
This adjustment section lets you adjust your system's sound to the music style you are listening to such
as Merengue, Classic, Reggae, Salsa, Samba, Jazz, Rock and Pop (FLAT means no style).
You can see demonstration of this system by press DEMO/DISPLAY
button shortly.
Or to modify graphic equalising display, press DEMO/DISPLAY button
more 1 sec - during music played. And you can select your favourite
display sequentially.
Bass enhancement (on / off), see page 5.
To select timer setting and to activate / deactivate timer stand-by.
To set the volume level.
7
RADIO
listening
Tuning stations
FUNCTION
Select the tuner function.
BAND
Select the band.
TUNE
To find weak stations too, press
repeatedly while tuning.
TUNE
To find powerful stations quickly tune
automatically keeping either button
pressed until tuning starts.
A station is being received.
FM stereo broadcasts with too
much noise can be switched to
mono for less noise.
TAPE 1/2
Programming station presets
You can store up to 30 FM /
15 AM stations.
TUNE
Find a station as under "Tuning
stations".
TUNE
Store.
The system assigns a station to
a number beginning with 1 one
after another.
Selecting station presets
Select lower or higher preset
numbers.
PRESET
On the machine select the tuner function and the band by pressing
BAND / TUNER button. The other buttons are on the machine too.
If you try to store a 31st FM / 16th AM (MW) station, the display will
show "FULL".
To clear a preset station, select it, press
, then
for 3 seconds.
You can use the
button of the remote control to switch back to stereo.
CLEAR
TAPE 1/2
8
TAPE 1: To playback prerecorded tapes.
TAPE 2: Only to playback prerecorded tapes
and to record tapes.
For tape recording see page 12-13.
T A P E
playing
Playing tapes
FUNCTION
Select the TAPE 1 or TAPE 2 function.
Open either tape compartment to load the tape.
button on the machine
PUSH
OPEN
Be sure to have the open part of the cassette downwards and the left
hand spool fully wound.
Close the compartment door again, pushing it softly.
Start playback.
PRESET
Stop playback.
CLEAR
Winding
Stop playback.
CLEAR
TUNE
TUNE
Fast rewind or advance the tape.
Skipping a piece
During playback.
PRESET
TUNE
TUNE
Fast rewind to the beginning of the current
piece of music or advance to the next piece.
Continuous playback
FUNCTION
PRESET
Select the TAPE 1 function.
Load tapes into both compartments.
Set TAPE 1 to play.
After playing TAPE 1, the machine will commence with
TAPE 2 (one side).
On the machine select the tape function by pressing the TAPE 1/2 button. The others are on the
machine too.
The tape counter resets to "0000" when a tape compartment is opened ("0000" need not be the beginning
of the tape).
To find the next piece of music at least 5 sec. free space has to left between the pieces.
9
CD
playing
CD label up
Playing CDs
FUNCTION
Select the CD function.
OPEN /
CLOSE
on the machine
DISC
CHANGE
on the machine
Open the disc compartment to
load a disc.
Be sure to have the disc label facing
upwards.
To play 3 discs, place 2 discs and turn
the trays for the third tray, using DISC
CHANGE button. (Also to load a disc
while another is playing.)
To start a first track for specific disc.
TUNE
TUNE
To select specific start track.
Start playback.
PRESET
The currently played disc is the one on
the left, when you open the
compartment.
If you want to interrupt playback
briefly - and to continue.
Stop playback.
CLEAR
Searching
TUNE
TUNE
To search for a particular point
on the disc reverse or forwards.
Skipping
TUNE
TUNE
To Skip tracks down / up
(if you want, press the button
repeatedly).
On the machine select the CD function, by pressing the CD button.
The other buttons are on the machine too.
When the disc stops the machine shows its total time.
During playback the machine shows the current disc number, the current
track number, and the tracks play time.
10
C D
Please read remarks about discs on page 19
playing
Programmed CD tracks playback
Stop the disc.
CLEAR
PGM
Select the programme function.
Choose a disc.
TUNE
TUNE
Now move to a track number.
Select this number for the programme.
With the last two steps select up to 30 tracks for your programme.
DISC CHANGE button has no effect in programming.
PRESET
Play your programme.
You can search and skip during programmed playback.
Stop Playback
CLEAR
To cancel programmed CD playback, press the button twice.
Repeat playback
Select the repeat function, press repeatedly to have ...
REPEAT
to repeat the current track
" REPEAT "
" DISC REPEAT " to repeat the current disc,
" ALL REPEAT " to repeat all discs.
To cancel repeat playback, press the button until "REPEAT"
in the display is unmarked.
You can repeat a programme by " ALL REPEAT" or a track
"REPEAT" during programme playback.
Random playback
Select the random function, press repeatedly to have ..
RANDOM
"RANDOM
DISC
" to play tracks of the
"RANDOM
ALL
" to play tracks from disc
current disc randomly.
1, 2 and 3 randomly.
To cancel random playback, press the button until
"RANDOM" in the display is unmarked.
11
RECORDING
Load a tape with enough free recording time into TAPE 2.
Be sure to have the open part of the cassette downwards and the left hand spool fully
wound on the left.
Close the compartment door again, pushing it softly
Recording stations
TUNER / BAND
buttons on the machine
TUNER / BAND
Select the TUNER function.
Select the band.
Choose the station
(see also page 8).
Start your recording.
TAPE
REC
If you want to interrupt
recording briefly-and to
continue.
SET
CLEAR
Stop your recording.
Recording from a connected device
AUX
buttons on the machine
Select the AUX function.
Be sure the audio output of the
device is properly connected (TV
set, video recorder, minidisc, etc.)
to the AUX input sockets on the
back of the machine
(see also page 19).
Start your recording.
TAPE
REC
SET
If you want to interrupt
recording briefly-and to
continue.
CLEAR
Stop your recording.
To find the point the recording is to start, use the functions on page 11.
12
RECORDING
TAPE 1: Only to playback prerecorded tapes.
TAPE 2: To playback prerecorded tapes and
to record tapes
Recording CDs with synchro start
The synchro start function gives you a very comfortable way of copying (tracks of) CDs to a tape: One
press of a button starts both CD playing and tape recording at the right time.
CD
buttons on the machine
Open the disc compartment to load a disc.
OPEN/
CLOSE
CD1
Select the CD function.
CD2 CD3
Select the disc you want to record.
CLEAR
Stop CD play before recording start.
TUNE DOWN
TUNE UP
To find a track to be recorded.
Start your recording.
SYNC-DUB
CLEAR
Stop your recording.
Recording from another tape (dubbing)
TAPE 1/2
buttons on the machine
Select the TAPE function.
Load a tape with enough free recording time into
TAPE 2.
PUSH
OPEN
Load the prerecorded tape (the one to be dubbed)
into TAPE 1.
SYNC-DUB
CLEAR
Start your dubbing by selecting dubbing speed:
"Hi-DUB" dubs with double speed = half the time
"DUB" dubs with normal tape speed.
Press repeatedly.
Stop your recording.
If the tape is not rewound completely, rewind it first.
If you want to start at the current position, press REC button.
Use only good quality tape cassettes.
Keep cassettes away from excessive moisture or dust, magnetic and electrical fields
(loudspeakers and computer monitors, for example)
Always wind the tape to the beginning when you have finished.
Store the cassette in its cover.
You can protect your precious recordings from being wiped by breaking out the safety tab on the
side of the cassette.
Should you wish to re-use the tape after removing the tab, cover the hole with adhesive tape.
13
Power save mode is activated by power button after clock setting.
CONTROLS
Setting the clock
Switch off your sound
system*.
Enter clock-set mode, the hour
and minute digits flash.
TUNE
Set the current hour.
TUNE
Switch to the minute digits.
TUNE
Set the current minutes.
TUNE
Start the clock and exit
clock set.
Displaying the time
The machine shows the time
for approx. 4 seconds.
CLOCK
Setting the sleep timer
You can set the machine to
automatically switch off after a
specified time
SLEEP
Select the SLEEP function.
SLEEP
Each time you press the
button, you cut off time from
90 minutes down to 10
minutes (then off).
If you want to cancel the SLEEP function. Dress the button till "SLEEP"
disappears from the display.
FUNCTION
* Only if the clock was set before.
14
TIMER
and clock
You can set the machine to automatically
switch on and off at a specified time.
Be sure the clock is set accurately.
Setting the timer
TIMER
Select the TIMER function.
(Timer display disappears after about 9 seconds.)
Select, if you want to listen to the radio, tape, CD, or a
connected device when the system turns on. Press
repeatedly.
FUNCTION
Enter 'on' time.
TUNE
TUNE
Set the hour of the time the machine is to switch on.
Switch to the minute digits.
TUNE
TUNE
Set the minutes of the time the machine is to switch on.
Switch to volume setting.
Set the volume between (MIN.) 1 and (MAX.) 28.
Switch to the time the machine is to switch off again.
TUNE
Each time you press the button, you cut increase off time
from 10 minutes up to 240 minutes.
TUNE
Exit the setting.
Timer (record) stand-by on / off
Press the button repeatedly to switch :
timer stand-by to play
timer record stand-by to record.
timer disable.
TIMER
Checking the timer
TIMER
Select the TIMER function.
TIMER
Press the button repeatedly for the timer items.
Timer record :
Set the timer as above. Load a tape with enough space and without safety hole (page 15) into TAPE 2.
Then set timer standby to
15
INSTALLATION/
CONNECTIONS
Placing your sound system components
Same distance
Optimal stereo position
Remote control and batteries
Fit the batteries to match the
+ and - symbols in the
compartment.
Batteries for remote control unit are not provided.
Please protect your environment! As batteries contain certain
toxic substances they pollute the environment if not properly
disposed of. Your specialised dealer will accept used batteries.
Make sure the batteries are always of the same type and age, and
remove them from the remote control if you are not using it for a long period.
16
After switching on your sound system the first
time, the machine waits for time setting.
See page 16
INSTALLATION/
CONNECTIONS
Installation
Plug the provided FM antenna here.
Plug the provided AM (MW)antenna here.
Plug a device like a video recorder, TV set,
or minidisc, etc. here.
Be sure to connect sockets and plugs of
the same colour.
Fit the speaker cables.
Be sure to connect the
pair of cables (for the left
and the right speaker) so
that the marked flexes
have both the same
colour (phase).
Right speaker
Make sure the rating of your household electricity supply matches that shown
on the back of the sound system.
Do not stack objects on top of the sound system.
Do not block the ventilation holes of the sound system.
Place the system so that air can circulate freely.
Switch devices off when connecting or disconnecting.
Do not expose the sound system to high levels of humidity and heat, to avoid the risk of fire and
electric shock.
Do not connect the sound system to the power supply if you have just moved it from a cold to a
warm environment. This can result in condensation inside the system and cause serious
damage to the machine and cassettes. Wait around two hours to allow it to reach room
temperature.
Be sure you disconnect the power supply and aerial if you will not be using the system for a
long period or during a thunderstorm.
Be sure to read the precautions on page 2.
17
APPENDIX
Before you ask a specialist
No sound
- No mains supply?
- Volume at minimum?
- Are headphones plugged in the headphone socket?
- Did someone press the MUTE button?
No Display
- The power save mode ?
- Replug the AC Cord.
Noise with radio sound
- Station not tuned accurately? Tune again.
- Weak FM station? Switch to mono using MODE button.
- Weak AM stations? Move the AM antenna slowly for
better reception.
- Antenna accurately fitted?
Bad sound with tapes
- Be sure playing / recording heads and tape guiding
parts are clean, see bottom of this page.
- Try another cassette.
Not recording
- Cover the protective hole of the cassette with adhesive
tape.
- Correct source CD, tape, tuner, AUX selected?
Not playing CDs
- Load a CD with the label facing upwards.
- CD scratched, broken, deformed, ... Try with another.
- Condensation e.g. after a transport? Wait for a
while (20-30 minutes).
- CD dirty? Wipe with a soft cloth from the centre to the
outside.
Remote control does
not work
- Check Batteries polarity? See page 18.
- Batteries run down? Try new ones.
- An object is blocking the direct line between remote
control and the system. Max distance to the system is
4-7 m pointing to its front.
Cleaning the audio heads of the tape deck
Unplug your sound system from the mains. Open the tape compartments.
After playing and recording for a time, the sound of the tape recorders may
become muffled. Then clean the heads and tape guiding parts.
Only use a soft utensil with
alcohol or a special head
cleaning liquid.
erasing head
playing/ tape guiding
recording head parts
18
APPENDIX
Compact discs
Always ...
Never ...
handle your discs with care. Hold a disc
with the fingers touching the edge or the
hole.
place the disc with the label facing up.
place the disc properly into the tray using
the proper guide area for 12 cm or 8 cm
discs.
replace a disc in its case after playing and
store it in a vertical position.
use a soft cloth to clean a disc if
necessary and wipe from the centre to the
outside.
play a deformed, cracked, or chipped disc.
try to repair a disc with adhesive tape or
glue.
close the tray with a disc slipping out of
the guide area, or two disc inside.
scratch a disc or store it in direct sunlight,
high humidity or high temperature.
use record cleaning sprays, benzene, static
electricity liquids or any other solvent, if the
disc surface is soiled.
wipe the disc in a circular motion, since
circular scratches are likely to occur, which
will cause noise.
write on the disc.
move the system during playback.
Technical data
Dimensions (W x D x H)
3 x CD changer
Set:
Speaker:
275 x 375 x 317 mm
200 x 235 x 217 mm (PMSL-329)
190 x 223 x 317 mm (PMSL-729)
2.5 kg x 2 (PMSL-329)
2.7 kg x 2 (PMSL-729)
Converter:
16 bit D/A
Oversampling: 8x
AC 240V ~ 50Hz
Amplifier
Weight:
Tape
Synchro recording.
High Speed Dubbing, Automatic level control.
Power supply
Voltage:
Power consumption
Output Power: 12.5 watt + 12.5 watt (RMS) (PMSL-329)
30 watt + 30 watt (RMS) (PMSL-729)
40watt (PMSL-329)
75watt (PMSL-729)
Less than 1 watt: Power save (Only Europe)
Impedance
Impedance
Speakers
8 ohm (PMSL-329)
8 ohm (PMSL-729)
Reception range
FM:
AM:
87.5MHz - 108MHz
522 - 1620kHz
Subject to technical alterations without notice.
19
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA:1300 657 888
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
