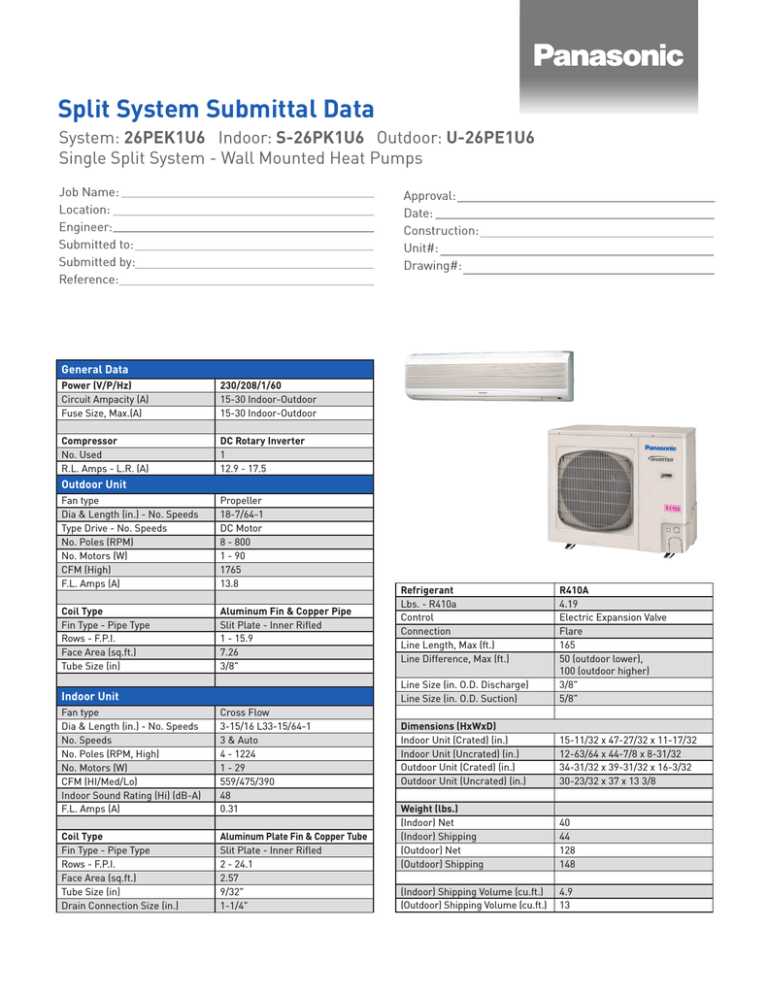

Split System Submittal Data
System: 26PEK1U6 Indoor: S-26PK1U6 Outdoor: U-26PE1U6
Single Split System - Wall Mounted Heat Pumps
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit#:
Drawing#:
General Data
Power (V/P/Hz)
Circuit Ampacity (A)
Fuse Size, Max.(A)
230/208/1/60
15-30 Indoor-Outdoor
15-30 Indoor-Outdoor
Compressor
No. Used
R.L. Amps - L.R. (A)
DC Rotary Inverter
1
12.9 - 17.5
Outdoor Unit
Fan type
Dia & Length (in.) - No. Speeds
Type Drive - No. Speeds
No. Poles (RPM)
No. Motors (W)
CFM (High)
F.L. Amps (A)
Propeller
18-7/64-1
DC Motor
8 - 800
1 - 90
1765
13.8
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Tube Size (in)
Aluminum Fin & Copper Pipe
Slit Plate - Inner Rifled
1 - 15.9
7.26
3/8"
Indoor Unit
Fan type
Dia & Length (in.) - No. Speeds
No. Speeds
No. Poles (RPM, High)
No. Motors (W)
CFM (HI/Med/Lo)
Indoor Sound Rating (Hi) (dB-A)
F.L. Amps (A)
Cross Flow
3-15/16 L33-15/64-1
3 & Auto
4 - 1224
1 - 29
559/475/390
48
0.31
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Tube Size (in)
Drain Connection Size (in.)
Aluminum Plate Fin & Copper Tube
Slit Plate - Inner Rifled
2 - 24.1
2.57
9/32"
1-1/4"
Refrigerant
Lbs. - R410a
Control
Connection
Line Length, Max (ft.)
Line Difference, Max (ft.)
Line Size (in. O.D. Discharge)
Line Size (in. O.D. Suction)
R410A
4.19
Electric Expansion Valve
Flare
165
50 (outdoor lower),
100 (outdoor higher)
3/8"
5/8"
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
Indoor Unit (Uncrated) (in.)
Outdoor Unit (Crated) (in.)
Outdoor Unit (Uncrated) (in.)
15-11/32 x 47-27/32 x 11-17/32
12-63/64 x 44-7/8 x 8-31/32
34-31/32 x 39-31/32 x 16-3/32
30-23/32 x 37 x 13 3/8
Weight (lbs.)
(Indoor) Net
(Indoor) Shipping
(Outdoor) Net
(Outdoor) Shipping
40
44
128
148
(Indoor) Shipping Volume (cu.ft.)
(Outdoor) Shipping Volume (cu.ft.)
4.9
13
Performance Data @ ARI Standard Conditions (230V)
Option
Cooling
Total Capacity (BTU/H)
Sensible Capacity (BTU/H)
Latent Capacity (BTU/H)
SEER
Dehumidification (Pints/H)
Amps (A)
Power Inputs (W)
Outdoor Sound Rating (dB-A)
Refrigerant Line Set
Fresh Air Intake
Airduct Extension
Indoor Frame Extension
Condensate Drain Pump
Non-Removeable Remo-con
Bracket
Heating
Total Capacity (BTU/H)
HSPF
Amps (A)
Max Amps (A)
Power Inputs (W)
Back-up Strip Heather (KW)
Outdoor Sound Rating (dB-A) High
25,200 (9,500 - 25,200)
14,790
10,410
14.9
8.1
15.3/16.9
2,840/2,840
49
29,200 (8,000 - 29,200)
10.2
14/15.5
14.8/16.4
2,620/2,620
0.00/0.00
49
Features
Controls
Remote Controller
Temperature Control
Timer
Night Setback
Air Louver, Horizontal
Air Louver, Vertical
Power Failure Automatic
Changeover
Heating/Cooling Automatic
Changeover
Self-Diagnosis
Air Filter
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
Microprocessor
LCD Wired Type, Temp. Sensor
Built in
IC Thermostat
24 Hr. Program
Built-In
Manual
Automatic
Built-In
Built-In
Built-In
Washable, Anti-Mold
Available
N/A
N/A
N/A
Available
Available
Operating Range
Indoor Air Intake Temp
Outdoor Air Intake Temp
Cooling (Max)
Cooling (Min)
Heating (Max)
Heating (Min)
95F DB/71F WB
67 DB/57F WB
80F DB/67F WB
-DB/-WB
115F DB
0F DB
75F DB/65F WB
5F DB
1. Specifications
1-4 Dimensional data
Indoor
Dimensions
Indoor unit : Wall Mounted Type
1-4 Dimensional Data
(B) Outdoor Unit: U-26PE1U6, U-26PS1U6
U-36PE1U6, U-36PS1U6
Drain and wiring port (3-5/32)
Refrigerant liquid line (3/8") Flare connection
Refrigerant gas line (5/8") Flare connection
Drain hose OD 45/64
1
1-4 Dimensional Data
(B) Outdoor Unit: U-26PE1U6, U-26PS1U6
U-36PE1U6, U-36PS1U6
Outdoor Dimensions
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
Dimension : inch
