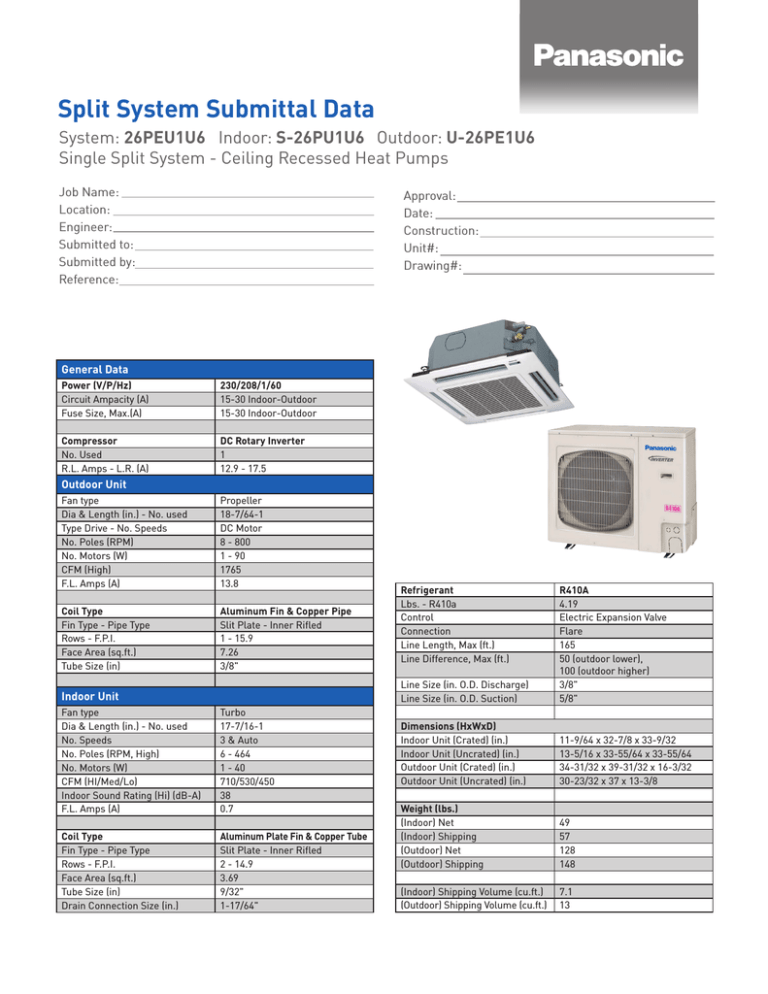

Split System Submittal Data

System:

26PEU1U6 Indoor: S-26PU1U6 Outdoor: U-26PE1U6

Single Split System - Ceiling Recessed Heat Pumps

Job Name:

Location:

Engineer:

Submitted to:

Submitted by:

Reference:

Approval:

Date:

Construction:

Unit#:

Drawing#:

General Data

Power (V/P/Hz)

Circuit Ampacity (A)

Fuse Size, Max.(A)

Compressor

No. Used

R.L. Amps - L.R. (A)

Outdoor Unit

Fan type

Dia & Length (in.) - No. used

Type Drive - No. Speeds

No. Poles (RPM)

No. Motors (W)

CFM (High)

F.L. Amps (A)

Coil Type

Fin Type - Pipe Type

Rows - F.P.I.

Face Area (sq.ft.)

Tube Size (in)

230/208/1/60

15-30 Indoor-Outdoor

15-30 Indoor-Outdoor

DC Rotary Inverter

1

12.9 - 17.5

Propeller

18-7/64-1

DC Motor

8 - 800

1 - 90

1765

13.8

Aluminum Fin & Copper Pipe

Slit Plate - Inner Rifled

1 - 15.9

7.26

3/8"

Indoor Unit

Fan type

Dia & Length (in.) - No. used

No. Speeds

No. Poles (RPM, High)

Turbo

17-7/16-1

3 & Auto

6 - 464

No. Motors (W)

CFM (HI/Med/Lo)

1 - 40

710/530/450

Indoor Sound Rating (Hi) (dB-A) 38

F.L. Amps (A) 0.7

Coil Type

Fin Type - Pipe Type

Rows - F.P.I.

Face Area (sq.ft.)

Tube Size (in)

Drain Connection Size (in.)

Aluminum Plate Fin & Copper Tube

Slit Plate - Inner Rifled

2 - 14.9

3.69

9/32"

1-17/64"

Refrigerant

Lbs. - R410a

Control

Connection

Line Length, Max (ft.)

Line Difference, Max (ft.)

Line Size (in. O.D. Discharge)

Line Size (in. O.D. Suction)

R410A

4.19

Electric Expansion Valve

Flare

165

50 (outdoor lower),

100 (outdoor higher)

3/8"

5/8"

Dimensions (HxWxD)

Indoor Unit (Crated) (in.)

Indoor Unit (Uncrated) (in.)

Outdoor Unit (Crated) (in.)

Outdoor Unit (Uncrated) (in.)

Weight (lbs.)

(Indoor) Net

(Indoor) Shipping

(Outdoor) Net

(Outdoor) Shipping

(Indoor) Shipping Volume (cu.ft.) 7.1

(Outdoor) Shipping Volume (cu.ft.) 13

49

57

128

148

11-9/64 x 32-7/8 x 33-9/32

13-5/16 x 33-55/64 x 33-55/64

34-31/32 x 39-31/32 x 16-3/32

30-23/32 x 37 x 13-3/8

Performance Data @ ARI Standard Conditions (230/208V)

Cooling

Total Capacity (BTU/H)

Sensible Capacity (BTU/H)

Latent Capacity (BTU/H)

SEER

Dehumidification (Pints/H)

24,800 (9,500 - 24,800)

14,810

9,990

14.1

8.1

Amps (A)

Power Inputs (W)

15.6/17.3

2,920/2,920

Outdoor Sound Rating (dB-A) High 49

Heating

Total Capacity (BTU/H)

HSPF

Amps (A)

Max Amps (A)

Power Inputs (W)

29,800 (8,000 - 29,800)

10.5

14.8/16.4

14.8/16.4

2,790/2,790

Back-up Strip Heather (KW) N/A

Outdoor Sound Rating (dB-A) High 49

Features

Controls

Remote Controller

Temperature Control

Timer

Night Setback

Air Louver, Horizontal

Air Louver, Vertical

Power Failure Automatic

Changeover

Heating/Cooling Automatic

Changeover

Self-Diagnosis

Air Filter

Microprocessor

(Wired Remote Included)

(Wireless Remote Optional)

IC Thermostat

72 Hr. On/Off

N/A

Manual

Automatic

Built-In

Built-In

Built-In

Washable, Anti-Mold

Option

Refrigerant Line Set

Fresh Air Intake

Airduct Extension

Indoor Frame Extension

Condensate Drain Pump

Non-Removeable Locking

Remo-con Bracket

Available

Available

Knock-out

N/A

Built In (Limited Vertical Lift)

Available

Operating Range Indoor Air Intake Temp Outdoor Air Intake Temp

Cooling (Max)

Cooling (Min)

Heating (Max)

Heating (Min)

95F DB/71F WB

67 DB/57F WB

80F DB/67F WB

-DB/-WB

115F DB

0F DB

75F DB/65F WB

5F DB

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144 us.panasonic.com/aircon

1-4 Dimensional data

Indoor unit : 4-Way Cassette Type

26 Type

10-9/32

8-11/16

4-7/8

Min. 2-15/32

Min. 19/32

3

1-4 Dimensional data

Indoor Dimensions

26 Type

10-9/32

8-11/16

4-7/8

9

4-7/8

32-9/32 (Ceiling opening)

29-13/16 (Suspention bolt pitch)

30-9/16

X

32-9/32 (Ceiling opening)

22-9/32

(Suspention bolt pitch)

14-27/32

2-5/16

6-3/16

Grille center 7-5/32

12-1/8

4-7/8

1-7/8

1-3/16

30-9/16

14-1/2 1

33-27/32

19-11/16

Min. 2-15/32

Min. 19/32

3

15/32

4-7/8

32-9/32 (Ceiling opening)

29-13/16 (Suspention bolt pitch)

1-4 Dimensional Data

4-7/8

8-11/16

(B) Outdoor Unit: U-26PE1U6, U-26PS1U6

Outdoor Dimensions

Dimension : inch

Air intake grille

Air outlet

Refrigerant liquid line

(3/8") Flare connection

Refrigerant gas line

(5/8") Flare connection

Drain connection

Power supply entry (conduit size : 1/2")

For discharge duct

Suspention bolt mounting

For fresh air intake 8-27/32

12-1/8

4-7/8

1-7/8

2-5/16

6-3/16

7-5/32

1-4 Dimensional Data ø6-3

/8

(B) Outdoor Unit: U-26PE1U6, U-26PS1U6

U-36PE1U6, U-36PS1U6

1-3/16

Detail of

33-27/32

19-11/16

4-ø

1/8 hole

4-ø1/8 ho le

ø4-13/32

2-5/32

Detail of 9

Dimension : inch

Air intake grille

Air outlet

Refrigerant liquid line

(3/8") Flare connection

Refrigerant gas line

(5/8") Flare connection

Drain connection

Power supply entry (conduit size : 1/2")

For discharge duct

Suspention bolt mounting

For fresh air intake le

1/8 hole

4-ø

ø6-3

/8

4-ø1/8 ho

2-3/8

ø4-13/32

ø5-29/32

1917_X_S

15/32 15/32

4-7/8

8-11/16

3-15/16

33-27/32

19-11/16

15/32 le

4-ø1/8 ho ø4-13/32

8-27/32

1/8 hole

4-ø

ø6-3

/8

2-3/8

ø5-29/32

1917_X_S

X-view

11-1/2

9-1/8

13-11/32

3-15/16

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144 us.panasonic.com/aircon
