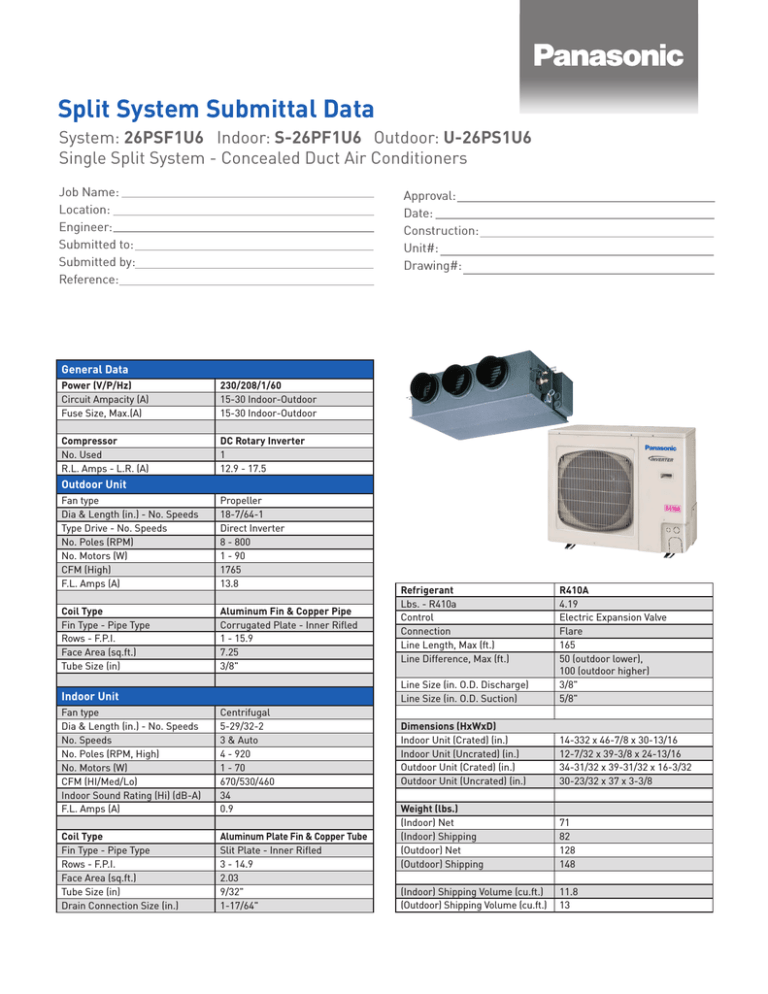

Split System Submittal Data

System:

26PSF1U6 Indoor: S-26PF1U6 Outdoor: U-26PS1U6

Single Split System - Concealed Duct Air Conditioners

Job Name:

Location:

Engineer:

Submitted to:

Submitted by:

Reference:

Approval:

Date:

Construction:

Unit#:

Drawing#:

General Data

Power (V/P/Hz)

Circuit Ampacity (A)

Fuse Size, Max.(A)

Compressor

No. Used

R.L. Amps - L.R. (A)

Outdoor Unit

Fan type

Dia & Length (in.) - No. Speeds

Type Drive - No. Speeds

No. Poles (RPM)

No. Motors (W)

CFM (High)

F.L. Amps (A)

Coil Type

Fin Type - Pipe Type

Rows - F.P.I.

Face Area (sq.ft.)

Tube Size (in)

230/208/1/60

15-30 Indoor-Outdoor

15-30 Indoor-Outdoor

DC Rotary Inverter

1

12.9 - 17.5

Propeller

18-7/64-1

Direct Inverter

8 - 800

1 - 90

1765

13.8

Aluminum Fin & Copper Pipe

Corrugated Plate - Inner Rifled

1 - 15.9

7.25

3/8"

Indoor Unit

Fan type

Dia & Length (in.) - No. Speeds

No. Speeds

No. Poles (RPM, High)

Centrifugal

5-29/32-2

3 & Auto

4 - 920

No. Motors (W)

CFM (HI/Med/Lo)

1 - 70

670/530/460

Indoor Sound Rating (Hi) (dB-A) 34

F.L. Amps (A) 0.9

Coil Type

Fin Type - Pipe Type

Rows - F.P.I.

Face Area (sq.ft.)

Tube Size (in)

Drain Connection Size (in.)

Aluminum Plate Fin & Copper Tube

Slit Plate - Inner Rifled

3 - 14.9

2.03

9/32"

1-17/64"

Refrigerant

Lbs. - R410a

Control

Connection

Line Length, Max (ft.)

Line Difference, Max (ft.)

Line Size (in. O.D. Discharge)

Line Size (in. O.D. Suction)

R410A

4.19

Electric Expansion Valve

Flare

165

50 (outdoor lower),

100 (outdoor higher)

3/8"

5/8"

Dimensions (HxWxD)

Indoor Unit (Crated) (in.)

Indoor Unit (Uncrated) (in.)

Outdoor Unit (Crated) (in.)

Outdoor Unit (Uncrated) (in.)

Weight (lbs.)

(Indoor) Net

(Indoor) Shipping

(Outdoor) Net

(Outdoor) Shipping

14-332 x 46-7/8 x 30-13/16

12-7/32 x 39-3/8 x 24-13/16

34-31/32 x 39-31/32 x 16-3/32

30-23/32 x 37 x 3-3/8

71

82

128

148

(Indoor) Shipping Volume (cu.ft.) 11.8

(Outdoor) Shipping Volume (cu.ft.) 13

Performance Data @ ARI Standard Conditions (230V)

Cooling

Total Capacity (BTU/H)

Sensible Capacity (BTU/H)

Latent Capacity (BTU/H)

SEER

Dehumidification (Pints/H)

Amps (A)

Power Inputs (W)

Outdoor Sound Rating (dB-A)

24,400 (9,500 - 24,400)

14,390

9,610

14

7.7

13.6/15.0

2,600/2,600

49

Features

Controls

Remote Controller

Temperature Control

Timer

Night Setback

Air Louver, Horizontal

Air Louver, Vertical

Power Failure Automatic

Changeover

Self-Diagnosis

Air Filter

Microprocessor

LCD Wired Type, Temp. Sensor

Built in

IC Thermostat

72 Hr. On/Off

Built-In

Manual

Automatic

Built-In

Built-In

Washable, Anti-Mold

Option

Refrigerant Line Set

Fresh Air Intake

Indoor Frame Extension

Condensate Drain Pump

Non-Removeable Remo-con

Bracket

Available

N/A

Standard

Available

Available

Operating Range Indoor Air Intake Temp Outdoor Air Intake Temp

Cooling (Max)

Cooling (Min)

95F DB/71F WB

67 DB/57F WB

115F DB

0F DB

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144 us.panasonic.com/aircon

1-4 Dimensional data

Indoor unit : Low Silhouette Duct Type

26 Type

1-4 Dimensional data

Indoor unit : Low Silhouette Duct Type

26 Type

10

7-15/32

31/32 6-7/8

31/32 6-7/8

1. Specifications

7-15/32

13/32

31/32

6-5/16

1-3/16

24-13/16

2-3/4

31/32

3-11/32

Indoor Dimensions

2-3/4 13/32

31/32

1-3/16

24-13/16 3-11/32

11

4-17/32

1-4 Dimensional data

10-1/4

(Air outlet duct flange)

Indoor unit : Low Silhouette Duct Type

26 Type

4-17/32

15/16

10 1

7-15/32

31/32 6-7/8

11

10-1/4

(Air outlet duct flange)

15/16

1-4 Dimensional Data

(B) Outdoor Unit: U-26PE1U6, U-26PS1U6

U-36PE1U6, U-36PS1U6

2-3/4

31/32

3-11/32

1. Specifications

1

1. Specifications

1-4 Dimensional Data

22-27/32

(Suspension bolt pitch)

7-9/32

31/32

Outdoor Dimensions

9

10

11

Dimension : inch

(B) Outdoor Unit: U-26PE1U6, U-26PS1U6

U-36PE1U6, U-36PS1U6

11

10-1/4

(Air outlet duct flange)

Refrigerant gas line (5/8") Flare connection

Upper drain port (O.D. 1-1/4)

Bottom drain port (O.D. 1-1/32)

Suspension lug

Power supply inlet (conduit size 1/2")

Fresh air intake port (ø5-29/32)

Flange for the flexible air outlet duct (ø7-7/8)

Tube cover

Electrical component box

Flange for the air intake duct

(option or field supply)

1914_U_I

22-27/32

(Suspension bolt pitch)

31/32

Dimension : inch

9

10

11

Refrigerant liquid line (3/8") Flare connection

Refrigerant gas line (5/8") Flare connection

Upper drain port (O.D. 1-1/4)

4-17/32

Bottom drain port (O.D. 1-1/32)

Suspension lug

Power supply inlet (conduit size 1/2")

Fresh air intake port ( ø 5-29/32)

Flange for the flexible air outlet duct ( ø 7-7/8)

Tube cover

Electrical component box

Flange for the air intake duct

(option or field supply)

1914_U_I

1-43

SM830203-01_PAC-i_US-letter.indb43 43

2012/01/19 22:39:24

2012/01/19 22:39:24

22-27/32

(Suspension bolt pitch)

31/32

7-9/32

Dimension : inch

9

10

11

Refrigerant liquid line (3/8") Flare connection

Refrigerant gas line (5/8") Flare connection

Upper drain port (O.D. 1-1/4)

Bottom drain port (O.D. 1-1/32)

Suspension lug

Power supply inlet (conduit size 1/2")

Fresh air intake port (ø5-29/32)

Flange for the flexible air outlet duct (ø7-7/8)

Tube cover

Electrical component box

Flange for the air intake duct

(option or field supply)

1914_U_I

1

1-43

SM830203-01_PAC-i_US-letter.indb43 43 2012/01/19 22:39:24

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144 us.panasonic.com/aircon
