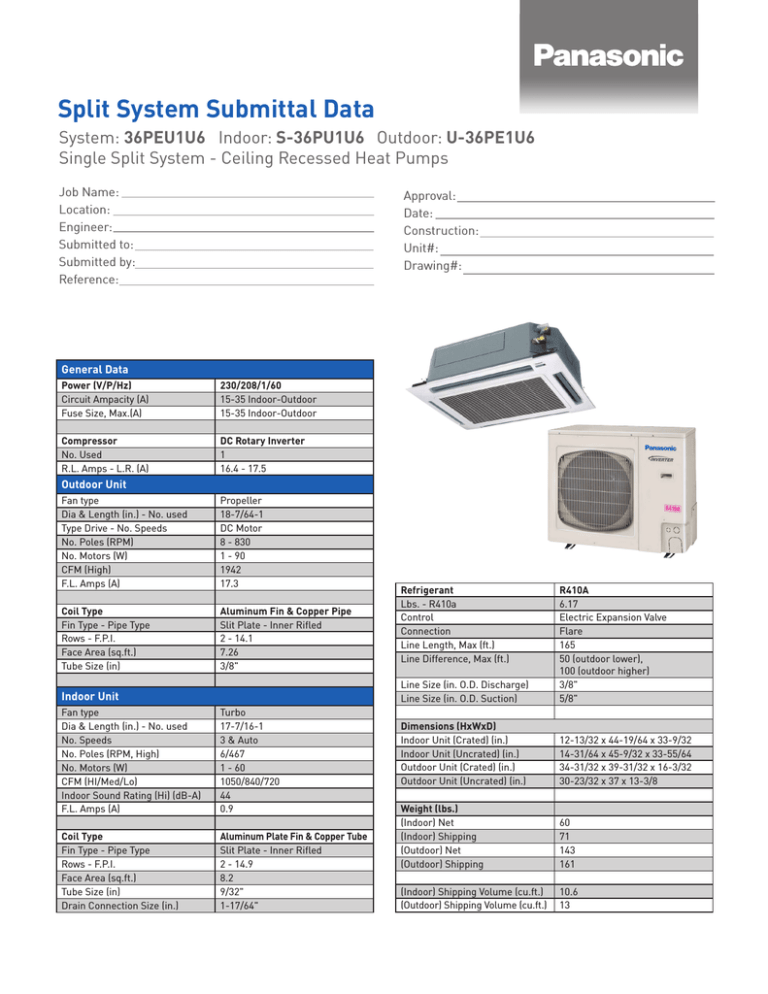

Split System Submittal Data
System:
36PEU1U6 Indoor: S-36PU1U6 Outdoor: U-36PE1U6
Single Split System - Ceiling Recessed Heat Pumps
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit#:
Drawing#:
General Data
Power (V/P/Hz)
Circuit Ampacity (A)
Fuse Size, Max.(A)
Compressor
No. Used
R.L. Amps - L.R. (A)
Outdoor Unit
Fan type
Dia & Length (in.) - No. used
Type Drive - No. Speeds
No. Poles (RPM)
No. Motors (W)
CFM (High)
F.L. Amps (A)
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Tube Size (in)
230/208/1/60
15-35 Indoor-Outdoor
15-35 Indoor-Outdoor
DC Rotary Inverter
1
16.4 - 17.5
Propeller
18-7/64-1
DC Motor
8 - 830
1 - 90
1942
17.3
Aluminum Fin & Copper Pipe
Slit Plate - Inner Rifled
2 - 14.1
7.26
3/8"
Indoor Unit
Fan type
Dia & Length (in.) - No. used
No. Speeds
No. Poles (RPM, High)
Turbo
17-7/16-1
3 & Auto
6/467
No. Motors (W)
CFM (HI/Med/Lo)
1 - 60
1050/840/720
Indoor Sound Rating (Hi) (dB-A) 44
F.L. Amps (A) 0.9
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Tube Size (in)
Drain Connection Size (in.)
Aluminum Plate Fin & Copper Tube
Slit Plate - Inner Rifled
2 - 14.9
8.2
9/32"
1-17/64"
Refrigerant
Lbs. - R410a
Control
Connection
Line Length, Max (ft.)
Line Difference, Max (ft.)
Line Size (in. O.D. Discharge)
Line Size (in. O.D. Suction)
R410A
6.17
Electric Expansion Valve
Flare
165
50 (outdoor lower),
100 (outdoor higher)
3/8"
5/8"
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
Indoor Unit (Uncrated) (in.)
Outdoor Unit (Crated) (in.)
Outdoor Unit (Uncrated) (in.)
Weight (lbs.)
(Indoor) Net
(Indoor) Shipping
(Outdoor) Net
(Outdoor) Shipping
12-13/32 x 44-19/64 x 33-9/32
14-31/64 x 45-9/32 x 33-55/64
34-31/32 x 39-31/32 x 16-3/32
30-23/32 x 37 x 13-3/8
60
71
143
161
(Indoor) Shipping Volume (cu.ft.) 10.6
(Outdoor) Shipping Volume (cu.ft.) 13
Performance Data @ ARI Standard Conditions (230/208V)
Cooling
Total Capacity (BTU/H)
Sensible Capacity (BTU/H)
Latent Capacity (BTU/H)
SEER
Dehumidification (Pints/H)
32,600 (9,500 - 32,600)
20,160
12,400
14.6
10.6
Amps (A)
Power Inputs (W)
8.7/20.7
3,950/3,950
Outdoor Sound Rating (dB-A) High 52
Heating
Total Capacity (BTU/H)
HSPF
Amps (A)
Max Amps (A)
Power Inputs (W)
37,600 (8,000 - 37,600)
9.1
15.9/17.6
15.9/17.6
3,350/3,350
Back-up Strip Heather (KW) N/A
Outdoor Sound Rating (dB-A) High 52
Features
Controls
Remote Controller
Temperature Control
Timer
Night Setback
Air Louver, Horizontal
Air Louver, Vertical
Power Failure Automatic
Changeover
Heating/Cooling Automatic
Changeover
Self-Diagnosis
Air Filter
Microprocessor
(Wired Remote Included)
(Wireless Remote Optional)
IC Thermostat
72 Hr. On/Off
N/A
N/A
Automatic
Built-In
Built-In
Built-In
Washable, Anti-Mold
Option
Refrigerant Line Set
Fresh Air Intake
Airduct Extension
Condensate Drain Pump
Wireless Remote Controller
Non-Removeable Locking
Remo-con Bracket
Available
Available
Knock-out
Built in (Limited Vertical Lift)
Optional
Available
Operating Range Indoor Air Intake Temp Outdoor Air Intake Temp
Cooling (Max)
Cooling (Min)
Heating (Max)
Heating (Min)
95F DB/71F WB
67 DB/57F WB
80F DB/67F WB
-DB/-WB
115F DB
0F DB
75F DB/65F WB
5F DB
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144 us.panasonic.com/aircon
1-4 Dimensional data
Indoor unit : 4-Way Cassette Type
36, 42Type
4-7/8 11-15/32
9-19/32
Min. 2-15/32
Min. 19/32
3
4-7/8
32-9/32 (Ceiling opening)
29-13/16 (Suspention bolt pitch)
Indoor Dimensions
36, 42Type
4-7/8
11-15/32
9-19/32
4-7/8
32-9/32 (Ceiling opening)
29-13/16 (Suspention bolt pitch)
9
13-5/16
4-7/8
1-7/8
Min. 2-15/32
Min. 19/32
3
15/32
1-4 Dimensional Data
2-5/16
6-3/16
7-5/32
1-3/16
ø6-3/
8
(B) Outdoor Unit: U-26PE1U6, U-26PS1U6
U-36PE1U6, U-36PS1U6
33-27/32
ø5-29/32
19-11/16
Detail of
4-ø
1/8 hol e
30-9/16
7-3/32
15/32
4-ø
1/8 hol e
2-5/32
Detail of 9
ø4-13/
32
15/32
13-5/16
4-7/8
1-7/8
X
43-11/16 (Ceiling opening)
33-11/16
2-5/16 20-9/16
6-3/16
7-5/32
1-3/16
Grille center
4-7/8
9-19/32
41-31/32
45-9/32
31-3/32 e
1/8 hol
20-3/16
4-ø ø4-13/
32
33-27/32
19-11/16
1
15/32
Dimension : inch
Air intake grille
Air outlet
Refrigerant liquid line (3/8") Flare connection
Refrigerant gas line (5/8") Flare connection
Drain connection
Power supply entry (conduit size : 1/2")
For discharge duct
Suspention bolt mounting
For fresh air intake
9-13/16 e
1/8 hol
4-ø
ø6-3/
8
2-3/8
ø5-29/32
1-4 Dimensional Data
(B) Outdoor Unit: U-26PE1U6, U-26PS1U6
Outdoor Dimensions
e
1/8 hol
4-ø ø4-13/
32
2-3/8
Dimension : inch
Air intake grille
Air outlet
Refrigerant liquid line (3/8") Flare connection
Refrigerant gas line (5/8") Flare connection
Drain connection
Power supply entry (conduit size : 1/2")
For discharge duct
Suspention bolt mounting
For fresh air intake
9-13/16 e
1/8 hol
4-ø
ø6-3/
8
ø5-29/32
1918_X_S
1918_X_S
X-view
11-1/2
9-1/8
13-11/32
3-15/16
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144 us.panasonic.com/aircon
