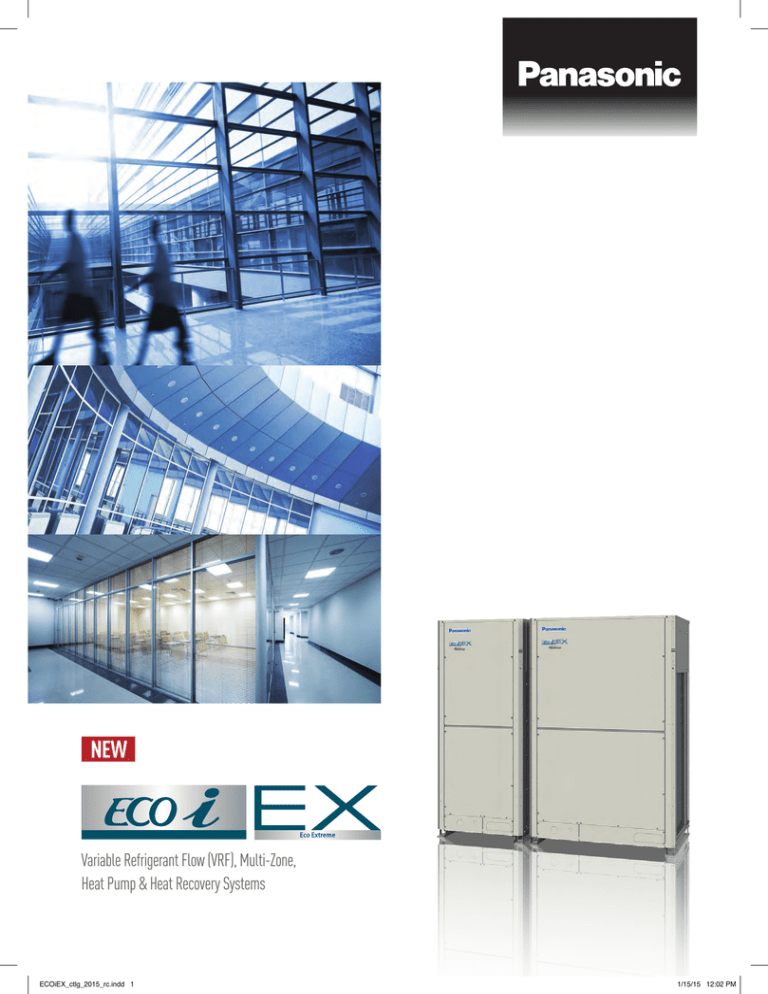

NEW
Variable Refrigerant Flow (VRF), Multi-Zone,
Heat Pump & Heat Recovery Systems
ECOiEX_ctlg_2015_rc.indd 1
1/15/15 12:02 PM
Panasonic Delivers
Eco-Friendly Air Solutions
In any indoor environment, eco-friendly air conditioning plays a vital role in maintaining our health, comfort, and productivity.
Whether it’s an office, a hotel, or a shopping mall, every building matters. That's why Panasonic has developed energy-efficient
large-scale air conditioning solutions to suit a variety of business applications.
As one of the pillars of Panasonic’s B2B operations, our air conditioning sector provides comprehensive solutions to businesses
around the world. Harnessing our advanced technology and extensive on-site expertise, we serve clients in a diverse range of
environments throughout the world.
Panasonic air conditioning solutions are designed from the ground up to meet the specific needs of each location, whilst placing
a premium on efficiency and reliability. At every stage, we seek to make optimal use of resources and energy to create solutions
that benefit the environment.
ECOi™ VRF System Your Building Life Tool.
ECOi™ has a number of diverse features to meet all your conditioning needs, including: flexible combinations: ECOi™ allows multiple
indoor unit combinations that provide you with the utmost in flexible solutions. The system also allows multiple unit connectivity
providing up to 150%* of the total capacity of the condensing unit. This provides 14-29 indoor units connected to one condensing
unit (6-12 tons).
Inverter Control Compressor: All ECOi™ systems utilize highly advanced inverter controlled compressor technology. By varying the
rotational speed of the compressor, the inverter control can precisely match the amount of refrigerant being delivered to the needs of
each zone. This intelligent approach helps realize excellent efficiencies during partial-load conditions.
This allows all occupants to enjoy consistent room temperature, regardless of any increases or decreases in the heat load during the
day. ECOi™ quite simply knows what you need, and when you need it throughout the day.
And even better, it does so with energy efficiency in mind.
Lower running and life cycle costs: Panasonic ECOi™ VRF systems are amongst the most efficient systems on the market, offering
COPs in excess of 4.0 at full load conditions.
All Panasonic VRF systems are designed to maximize the reduction of running cost by using our unique intelligent control sequence.
This is done by the most efficient combination of compressor, fan, and refrigeration management criteria. Improved defrost
sequencing reduces running cost and defrost cycle.
*Exceptions apply when using Vertical Air Handlers.
Panasonic Worldwide Air Solutions
Australia
Travelodge Hobart
Cooling Capacity:
302 kW / 86 USRT
Spain
Hotel Claris 5 GL
Cooling Capacity:
769 kW / 218 USRT
HongKong
King Yip Road
Cooling Capacity:
2,108 kW / 599 USRT
Malaysia
Gapruna project
Cooling Capacity:
5,370 kW / 1,526 USRT
2
ECOiEX_ctlg_2015_rc.indd 2
1/15/15 12:02 PM
The milestones of Panasonic Airconditioning in the US.
1958
Started production and sales in May under the “Home
Cooler” name.
1983
1998
Panasonic has launched ductless A/C to US market
and has been leading A/C market.
Introduced revolutionary Gas Heater Air
Conditioner 14KGS11.
Heating Operation Schematic
Orifice
Unsealed Circuit
On/Off
Valve 1
Indoor Unit
2001
2003
First R410a driven ductless model, 24KS62R, was
introduced meeting the 2006 DOE regulation.
Again, blazed a trail to other ductless manufacturers.
2006
2013
Refreshed the total ductless line, introducing
its proven Inverter technology to the US market.
Check Valve 1
Check
Valve 2
Refrigerant
Heater
Burner
Reversing
Valve
Outdoor Heat
Exchanger
That maintains a consistent heating performance
level, regardless of how much the ambient
temperature goes down outside.
Launched VRF "Eco-Multi" to the US
market.
Compressor
On/Off Valve 2
Capillary Tube
Eco-Multi was displayed at the AHR show, and was
introduced to other ductless manufacturers.
It's the new individual air-conditioning system that
effectively combines a power control compressor and
an electronic refrigerant control valve.
Celebrating the 30th anniversary of marketing in the
USA.
Introduce EXTERIOS series to US
market
SEER 28.5 Highest Efficient model in Industry as of
2013/March
2014
United States
Introduced All Inverter Driven 2way VRF "ECO-EX" &
System 5
Shippensburg University
Cooling Capacity:
1,498 kW / 426 USRT
China
Star River Group Luxury Condominium
Cooling Capacity:
16,737 kW / 4,755 USRT
Russia
Innovation Center of Novosibirsk Academy
Cooling Capacity:
1,487 kW / 422 USRT
Siberia
Sun City
Cooling Capacity:
1,605 kW / 456 USRT
3
ECOiEX_ctlg_2015_rc.indd 3
1/15/15 12:02 PM
INDOOR UNITS LINE-UP
Panasonic introduced its first VRF to the US market in 2001 with 16 different indoor units.
Since then, it has continued to refine and expand VRF indoor model offerings, and today the model line up totals up to 49 models.
In 2015, Panasonic is replacing some indoor units with more sophisticated designs with better efficiencies. These new indoor models are
also connectable to Panasonic original “ECONAVI” (optional).
Whether it's an office, a hotel, or other applications, Panasonic offers wide selections in solving your air conditioning requirements.
Nominal Cooling Capacity
Btu/h class
Type
MK2 TYPE
(Optional Accessory)
MY2 TYPE
12,000
15,000
S-07MK2U6
S-09MK2U6
S-12MK2U6
18,000
24,000
**
S-18MK2U6
S-19MK2U6
(Special Order)
*
S-24MK2U6
NEW
(Optional Accessory)
MU2 TYPE
4-way Ceiling
Cassette
33" x 33"
9,000
NEW
Wall Mounted
4-way Mini Ceiling
Cassette
24" x 24"
7,500
S-12MY2U6
S-18MY2U6
NEW
*
(Optional Accessory)
S-24MU2U6
MD TYPE
1 Way Ceiling
Cassette
MF2 TYPE
Concealed Duct –
Medium Static
S-09MD1U6
S-12MD1U6
S-07MF2U6
S-09MF2U6
S-12MF2U6
S-15MF2U6
S-18MF2U6
S-07MM2U6
S-09MM2U6
S-12MM2U6
S-15MM2U6
S-18MM2U6
NEW
(Optional Accessory)
MM2 TYPE
Concealed Duct –
Low Static Pressure
S-07MD1U6
S-24MF2U6
NEW
(Optional Accessory)
ME TYPE
Concealed Duct –Medium-High Static
NEW
MT2 TYPE
Ceiling Suspended
(Optional Accessory)
*
*
S-12MT2U6
S-18MT2U6
*
S-24MT2U6
MP TYPE
Floor Mounted
without decorative panel
S-07MP1U6
S-09MP1U6
S-12MP1U6
S-15MP1U6
S-18MP1U6
S-24MP1U6
S-07MR1U6
S-09MR1U6
S-12MR1U6
S-15MR1U6
S-18MR1U6
S-24MR1U6
MVA18FBAS6HBCP
MVA24FBAS6HBCP
MR TYPE
Floor Mounted
without decorative panel
MVA TYPE
Vertical Air Handler
*Available from late 2015
4
ECOiEX_ctlg_2015_rc.indd 4
1/15/15 12:03 PM
Actual Installation Examples
36,000
MVA: 30,000 / 36,000
48,000
MVA: 42,000 / 48,000
54,000
MVA: 60,000
MU2 TYPE
MD TYPE
*
S-36MU2U6
S-36MF2U6
S-48MF2U6
S-54MF2U6
MF2 TYPE
S-36ME1U6
S-48ME1U6
ME TYPE
MVA30FBAS6HBCP
MVA36FBAS6HBCP
MVA42FBAS6HBCP
MVA48FBAS6HBCP
MVA60FBAS6HBCP
5
ECOiEX_ctlg_2015_rc.indd 5
1/15/15 12:03 PM
OUTDOOR UNITS LINE-UP
ME2series
2-WAY ECOi EXTM VRF HEAT PUMP
•Dual large-capacity inverter compressors (models above U-120MEU9)
•Outstanding energy saving performance: IEER : 19.1 / EER : 12.3 (in the
case of 6 tons)
•Exceptional flexible piping design:
Maximum total piping length - 3,280 Feet
Maximum outdoor to most distant indoor unit - 164 Feet
•Extended operating range (Outdoor Temperature)
- Cooling 14 °FDB to 122 °FDB
- Heating -4 °FWB to 64 °FWB
•Maximum outdoor unit connects
as many as 64 indoor units (50%-150% ratio of indoor to outdoor capacity)
•Expanded system capacity range (up to 30tons)
MFseries
NEW ME2 series 2way ECOi EX™
3-WAY ECOiTM VRF HEAT RECOVERY
• Excellent performance: efficient individual air conditioning is possible in buildings
having diverse room temperatures for simultaneous heating/cooling and individual
operation of each indoor unit.
• Effective heat recovery system enables higher energy savings
• Improves discharge air temperature of indoor units during heating and simultaneous
mode operation
• Flexible system design with Solenoid Valve Kit (can be piped up to 98ft. from indoor unit)
Cooling and Heating
Simultaneous Type
ME2 series 2-WAY ECOi EX™
Capacity (Nominal Tons)
MODEL NAME
Consisted of
6
8
10
12
14
U-72ME2U9
U-96ME2U9
U-120ME2U9
U-144ME2U9
U-72ME2U9
U-96ME2U9
U-120ME2U9
U-144ME2U9
U-72ME2U9
+U-96ME2U9
U-96ME2U9
+U-96ME2U9
WU-168ME2U9
16
WU-192ME2U9
Appearance
MF series 3-WAY ECOi™
Capacity (Nominal Tons)
MODEL NAME
Consisted of
6
8
12
14
16
U-72MF1U9
U-96MF1U9
WU-144MF1U9
WU-168MF1U9
WU-192MF1U9-1
U-72MF1U9 x2
U-72MF1U9
+U-96MF1U9
U-96MF1U9 x2
U-72MF1U9
U-96MF1U9
Appearance
6
ECOiEX_ctlg_2015_rc.indd 6
1/15/15 12:03 PM
LEseries
2-WAY MINI ECOiTM VRF HEAT PUMP
• Inverter Driven Twin Rotary Compressor
• One outdoor unit connects as many as 9 indoor units (50%-130% ratio of indoor to
outdoor capacity)
• Nominal operating range (outdoor ambient)
- Cooling 14 °FDB to 113°FDB
- Heating -4 °FWB to 59 °FWB
• Flexible piping design:
Maximum total piping length - 656 Feet
Maximum outdoor to most distant indoor unit - 164 Feet
Cooling and Heating Type
LE series 2way
NEW
MF2series
3-WAY ECOi EXTM HEAT RECOVERY
• Effective heat recovery system enables higher energy savings
• Dual large-capacity inverter compressors
• Maximum capacity up to 30tons
Further Improved performance: efficient individual air conditioning is
possible in buildings having diverse room temperatures for simultaneous
heating/cooling and individual operation of each indoor unit.
• More flexible designing with extended max tubing length/more allowable
connecting indoor units
• Wider operating range (Outdoor Temperature)
- Cooling 14 °FDB to 122 °FDB
- Heating -4 °FWB to 64 °FWB
NEW MF2 series 3way ECOi EX™
*
Available from late 2015
18
WU-216ME2U9
20
WU-240ME2U9
22
WU-264ME2U9
24
WU-288ME2U9
U-96ME2U9
+U-120ME2U9
U-72ME2U9
+U-72ME2U9
+U-96ME2U9
U-72ME2U9
+U-96ME2U9
+U-96ME2U9
U-96ME2U9
+U-96ME2U9
+U-96ME2U9
18
20
22
24
26
WU-312ME2U9
U-72ME2U9
+U-120ME2U9
+U-120ME2U9
28
WU-336ME2U9
U-96ME2U9
+U-120ME2U9
+U-120ME2U9
30
WU-360ME2U9
U-120ME2U9
+U-120ME2U9
+U-120ME2U9
LE series 2-WAY Mini ECOi™
WU-216MF1U9
WU-240MF1U9
WU-264MF1U9
WU-288MF1U9
U-72MF1U9 x3
U-72MF1U9 x2
+U-96MF1U9
U-96MF1U9 x2
+U-72MF1U9
WU-96MF1U9 x3
3
4
U-36LE1U6
U-52LE1U6
7
ECOiEX_ctlg_2015_rc.indd 7
1/15/15 12:03 PM
INDOOR UNITS Wide varieties of indoor units to match with your interrior design
MU2 series 4-WAY CEILING CASSETTE 33" X 33" WITH CONDENSATE PUMP
S-24MU2U6 / S-36MU2U6
KEY FEATURES:
* “ECO Friendly” R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* F our Way Air Throw
* Washable Long Life Air Filter
* Built-In Drain Pump – 25 Inch Lift
* Electronic Expansion Valve (EEV) for
Accurate Refrigerant Control
* W ired or Wireless Remote Control
* Automatic or 3 Fan Speed Control
* Easy Service
* ECM Motor
NEW
(Optional Accessory)
MY2 series 4-WAY CEILING MINI CASSETTE 24" X 24" WITH CONDENSATE PUMP
S-12MY2U6 / S-18MY2U6
KEY FEATURES:
* “ECO Friendly” R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Four Way Air Throw
* Washable Long Life Air Filter
* Built-In Drain Pump – 33 Inch Lift
* Electronic Expansion Valve (EEV) for
Precise Refrigerant Control
NEW
* Individual Flap Control Possible for Better
Air Distribution.
* ECONAVI Attachment Possible
* Automatic or Fixed Fan Speed Control
* Easy Installation
* ECM Motor
(Optional Accessory)
MF2 series CONCEALED DUCT – MEDIUM STATIC
S-07MF2U6 / S-09MF2U6 / S-12MF2U6 / S-15MF2U6 / S-18MF2U6 / S-24MF2U6 / S-36MF2U6 / S-48MF2U6 / S-54MF2U6
KEY FEATURES:
* E lectronic Expansion Valve (EEV)
for Accurate Refrigerant Control
djustable External Static Pressure
*A
* B uilt-In Drain Pump – 20 Inch Lift
*W
ired or Wireless Remote Control
“ECO Friendly” R410A Refrigerant
* E CONAVI Connection Possible.
* A djustable External Static Pressure
* B uilt-In Drain Pump – 20 Inch Lift
* W ired or Wireless Remote Control
* A utomatic or Fixed Fan Speed Control
* E asy Service
* O ptional Outside Air Intake
* ECM Motor
NEW
(Optional Accessory)
MM2 series CONCEALED DUCT – LOW STATIC PRESSURE WITH CONDENSATE PUMP
S-07MM2U6 / S-09MM2U6 / S-12MM2U6 / S-15MM2U6 / S-18MM2U6
KEY FEATURES:
* “ECO Friendly” R410A Refrigerant
* 2 08/230V, 1 Phase, 60Hz
* E lectronic Expansion Valve (EEV) for
Accurate Refrigerant Control
*A
djustable External Static Pressure
* B uilt-In Drain Pump – 20 Inch Lift
*W
ired or Wireless Remote Control
* ECONAVI Connection Possible.
* Automatic or 3 Fan Speed Control
* Easy Service
* Low Profile Fits into Tight Ceiling Spaces
* 4 Temperature Sensors(Air Intake/
Discharge) for Optimum Operations.
* Washable Long Life Filter
* ECM Motor
NEW
(Optional Accessory)
MK2 series WALL MOUNTED UNIT
S-07MK2U6 / S-09MK2U6 / S-12MK2U6 / S-18MK2U6 / S-19MS2U6 / S-24MK2U6
KEY FEATURES:
* “ECO Friendly” R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Easy Wall Mount for Any Application
* Washable Long Life Filter
* Washable Front Panel
* Electronic Expansion Valve (EEV) for
Accurate Refrigerant Control
* ECONAVI Connection Possible
* New Flash Paneldesign
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* ECM Motor
NEW
(Optional Accessory)
8
ECOiEX_ctlg_2015_rc.indd 8
1/15/15 12:03 PM
MT2 series SERIES CEILING SUSPENDED UNIT
S-12MT2U6 / S-18MT2U6 / S-24MT2U6
KEY FEATURES:
* “ ECO Friendly” R410A Refrigerant
* 2 08/230V, 1 Phase, 60Hz
*N
ew Round Design Fits into Numerous
Ceiling Suspended Locations
* L ong Distance Air Throw with New
Designed Fan and DC Motor
*W
ashable Long Life Air Filter
* Electronic Expansion Valve (EEV) for
Precise Refrigerant Control
* W ired or Wireless Remote Control
* ECONAVI Attachment Possible
* Automatic or Fixed Fan Speed Control
* E asy Service
* ECM Motor
NEW
(Optional Accessory)
MD series 1-WAY CEILING CASSETTE WITH CONDENSATE PUMP
S-07MD1U6 / S-09MD1U6 / S-12MD1U6
KEY FEATURES:
* “ECO Friendly” R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* One-Way Air Throw – Perfect for Small
Spaces
* Washable Long Life Air Filter
* Built-In Drain Pump – 24 Inch Lift
* Electronic Expansion Valve (EEV) for
Accurate Refrigerant Control
* Only 13 Inches Tall (Not Including Decorative Panel),
30 Inches Wide and 25 Inches Deep
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Optional Outside Air Intake
* Easy Service
ME series CONCEALED DUCT – MEDIUM-HIGH STATIC
S-36ME1U6 / S-48ME1U9
KEY FEATURES:
* “ECO Friendly” R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV) for
Accurate Refrigerant Control
* P erfect for Long Duct Runs
* W ired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* E asy Service
* B uilt-In Float Safety
MP/MR series FLOOR MOUNTED
S-07MP1U6 / S-09MP1U6 / S-12MP1U6 / S-15MP1U6
S-18MP1U6 / S-24MP1U6
S-07MR1U6 / S-09MR1U6 / S-12MR1U6
S-15MR1U6 / S-18MR1U6 / S-24MR1U6
KEY FEATURES:
KEY FEATURES:
* “ ECO Friendly” R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* W ired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* E asy Service
* Washable Long Life filter
FLOOR MOUNTED WITH
DECORATIVE PANEL
* “ECO Friendly” R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* W ired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* Washable Long Life filter
FLOOR MOUNTED WITHOUT
DECORATIVE PANEL
MVA series CONCEALED DUCT – VERTICAL MULTI POISE*
MVA18FBAS6HBCP/ MVA24FBAS6HBCP/ MVA30FBAS6HBCP/ MVA36FBAS6HBCP/ MVA42FBAS6HBCP/ MVA48FBAS6HBCP/ MVA60FBAS6HBCP
KEY FEATURES:
* Eco-Friendly R410A Refrigerant
* 2 08/230V, 1 Phase , 60Hz
* E lectronic Expansion Valve (EEV)
for Accurate Refrigerant Control
*M
ulti-position (Horizontal/Vertical)
Possible
*H
igh Efficient ECM(DC) Fan Motor
* Optional Electric Heater Available (Field installed)
* 19 Gauge Galvanized External Panel with Baked on
Polyester Powder Coating
* Adjustable External Static
* With 1 Inch Filter Rack
* Optional Filter Available. (2" or 4" Fiter RACK)
*Capacity ratio is adjusted when using the MVA Series.
ECOiEX_ctlg_2015_rc.indd 9
9
1/15/15 12:03 PM
CONTROL SYSTEMS
BUILDING MANAGEMENT
INTEGRATION
SIMPLE SYSTEM CONTROL NETWORK
NEW
LONWORKS INTERFACE
SINGLE POINT OF CONTROL
ECONAVI SENSOR
WIRED REMOTES SIMPLE TO INSTALL
NEW
NEW
CZ-CLNC1U
LonWorks Interface
CZ-RTC3
CZ-RTC4
CZ-RE2C2
CZ-CENSC1
High-spec
Wired Remote Controller
Standard Remote/
7-Day Timer For Use With All Indoor Units
Simple Remote
Controller
ECONAVI,CZ-CENSC1 needs to be connected with
Wired Remote Control, CZ-RTC3 to function.
WIRELESS REMOTES CONTROL IN THE PALM OF YOUR HAND.
NEW
CZ-CAPC2U
CZ-RWSU1U
CZ-RWST1U
CZ-RWSK1U
CZ-RWSC3
For Use With MU Indoor Units
For Use With MD and MT
Indoor Units
For Use With MK
Indoor Units for
CZ-RWSC3
Remote Controller Receiver to be
used with CZ-RWSK1U MM, MF,
ME, MP and MR Indoor Units
MULTIPLE ZONE
CONTROLLERS
THE HEART AND
SOUL OF
CONDITIONING
LOCAL ADAPTOR FOR
ON/OFF CONTROL
BMS CONTROLLER
BMS-CTRL1
CONTROLS UP TO
256 INDOOR
UNITS
CZ-64ESMC1U
CZ-256ESMC1U
System Controller
Intelligent Controller
ECONAVI Sensor Kit (CZ-CENSC1)
BMS-CTRL1
BacNet Interface
High-spec Wired Remote Controller (CZ-RTC3)
ECONAVI detects activity levels to enable
fine-tuned energy savings
Optimally positioned ECONAVI sensors eliminate
“blind” areas to enable maximum energy savings
Wide detection area
3 1/4' 9 7/8' 16 7/8' 23'
60°
-60°
40°
-40°
8-1/4 ft
Detection area
ft
-20°
0°
20° Wide 120°
Large 3.5"
Full-dot LCD
with White LED
Backlight
Stylish,
Easy-to-use
Touch
Key Design
Approx 3 1/4 ft
Dead Zone
23 ft
A sensor is remotely set to maximise the detection area.
Installation flexibility ready for indoor unit replacement and layout changes.
10
ECOiEX_ctlg_2015_rc.indd 10
Energy-saving effect tested and verified by field test
CZ-CENSC1 must be connected with CZ-RTC3/4 to function as ECONAVI
Temperature Auto Return
Temperature Setting Range
Auto Shutoff
1/15/15 12:03 PM
IEER INTEGRATED ENERGY EFFICIENCY RATIO
ECOiTM System Certified Efficiency Ratings
ME2 SERIES 2-WAY ECOi HEATPUMP
Rating Standard: AHRI 1230
COOLING PERFORMANCE
Indoor Unit
Rating Type
System Model Number
Capacity
Btu/h
HEATING PERFORMANCE
High Heating 47°F
EER
95F°
IEER
Capacity
(Btu/h)
Low Heating 17°F
Capacity
(Btu/h)
COP
COP
U-72ME2U9
Ducted
69,000
12.3
19.1
77,000
3.56
52,000
2.56
U-72ME2U9
Non Ducted
69,000
12.6
22.1
77,000
3.86
52,000
2.63
U-96ME2U9
Ducted
92,000
11.9
19.3
103,000
3.54
67,000
2.42
U-96ME2U9
Non Ducted
92,000
11.9
23.1
103,000
3.75
67,000
2.59
U-120ME2U9
Ducted
114,000
11.5
19.3
129,000
3.40
75,000
2.30
U-120ME2U9
Non Ducted
114,000
11.8
24.8
129,000
3.60
75,000
2.40
U-144ME2U9
Ducted
138,000
10.9
18.7
154,000
3.27
100,000
2.18
U-144ME2U9
Non Ducted
138,000
10.7
22.6
154,000
3.35
100,000
2.41
WU-168ME2U9
Ducted
160,000
11.7
19.0
180,000
3.45
119,000
2.30
WU-168ME2U9
Non Ducted
160,000
11.6
23.2
180,000
3.50
119,000
2.38
WU-192ME2U9
Ducted
184,000
11.2
18.4
206,000
3.40
134,000
2.25
WU-192ME2U9
Non Ducted
184,000
11.1
22.6
206,000
3.39
134,000
2.26
WU-216ME2U9
Ducted
206,000
11.0
18.0
232,000
3.38
142,000
2.23
WU-216ME2U9
Non Ducted
206,000
10.9
22.3
232,000
3.35
142,000
2.34
WU-240ME2U9
Ducted
228,000
10.7
17.7
258,000
3.36
150,000
2.18
WU-240ME2U9
Non Ducted
228,000
10.8
22.8
258,000
3.25
150,000
2.22
WU-264ME2U9
Ducted
252,000
10.2
17.3
284,000
3.35
176,000
2.16
WU-264ME2U9
Non Ducted
252,000
10.1
20.8
284,000
3.22
176,000
2.12
WU-288ME2U9
Ducted
274,000
9.8
16.9
308,000
3.28
200,000
2.14
WU-288ME2U9
Non Ducted
274,000
9.6
19.5
308,000
3.20
200,000
2.06
WU-312ME2U9
Ducted
298,000
10.4
17.7
334,000
3.27
202,000
2.16
WU-336ME2U9
Ducted
320,000
10.3
17.2
360,000
3.23
218,000
2.13
WU-360ME2U9
Ducted
342,000
10.1
16.6
386,000
3.20
226,000
2.10
MF SERIES 3-WAY ECOi Heat Recovery System
Rating Standard: AHRI 1230
COOLING PERFORMANCE
Type
System Model Number
Indoor Unit Rating Type
Capacity
(Btuh)
EER
SIMULTANEOUS
OPERATION
PERFORMANCE
HEATING PERFORMANCE
High Heating 47F
IEER
Capacity
(Btu/h)
Low Heating 17F
Capacity
(Btu/h)
COP
Simultaneous CoolingHeating Efficiency
(SCHE)
COP
Heat Recovery
U-72MF1U9
Ducted
72,000
11.4
16.4
81,000
3.5
47,000
2.28
24.0
Heat Recovery
U-72MF1U9
Non-Ducted
69,000
10.9
17.1
77,000
3.31
42,000
2.25
24.7
Heat Recovery
U-96MF1U9
Ducted
95,000
11.0
16.0
106,000
3.3
69,000
2.25
23.1
Heat Recovery
U-96MF1U9
Non-Ducted
93,000
10.9
16.7
103,000
3.31
58,500
2.25
23.5
Heat Recovery
WU-144MF1U9
Ducted
138,000
10.8
16.4
156,000
3.21
93,000
2.05
23.1
Heat Recovery
WU-144MF1U9
Non-Ducted
136,000
10.9
17.1
150,000
3.31
83,000
2.25
23.8
Heat Recovery
WU-168MF1U9
Ducted
164,000
10.7
16.1
184,000
3.21
114,000
2.05
22.6
Heat Recovery
WU-168MF1U9
Non-Ducted
160,000
10.5
16.9
178,000
3.21
98,000
2.05
23.3
Heat Recovery
WU-192MF1U9-1
Ducted
180,000
10.6
16.0
202,000
3.21
132,000
2.05
22.3
Heat Recovery
WU-192MF1U9-1
Non-Ducted
174,000
10.5
16.7
196,000
3.21
114,000
2.05
22.8
Heat Recovery
WU-216MF1U9
Ducted
202,000
10.6
16.0
228,000
3.21
136,000
2.05
22.2
Heat Recovery
WU-216MF1U9
Non-Ducted
198,000
10.5
16.6
220,000
3.21
120,000
2.05
22.9
Heat Recovery
WU-240MF1U9
Ducted
230,000
10.5
16.0
264,000
3.21
158,000
2.05
22.0
Heat Recovery
WU-240MF1U9
Non-Ducted
220,000
10.5
16.4
246,000
3.21
136,000
2.05
22.4
Heat Recovery
WU-264MF1U9
Ducted
258,000
9.7
15.9
288,000
3.21
176,000
2.05
21.6
Heat Recovery
WU-264MF1U9
Non-Ducted
252,000
9.4
16.3
268,000
3.21
150,000
2.05
22.0
Heat Recovery
WU-288MF1U9
Ducted
280,000
9.6
15.8
312,000
3.21
194,000
2.05
21.2
Heat Recovery
WU-288MF1U9
Non-Ducted
274,000
9.4
16.2
292,000
3.21
164,000
2.05
21.6
LE Series MINI ECOiTM MULTI SPLIT 2-WAY VRF HEAT PUMP SERIES
Cooling Performance / Heating Performance
System Model
Number
U-36LE1U6
U-52LE1U6
Indoor Unit
Rating Type
High Cooling 95F
Capacity (Btu/h)
High Heating 47F
EER (Btu/W,h)
SEER (Btu/W,h)
Capacity (Btu/h)
COP (W/W)
Low Heating 17F
HSPF (Btu/W,h)
Capacity (Btu/h)
COP (W/W)
Non-Ducted
39,000
11.5
17.0
43,000
3.40
9.8
28,000
2.7
Ducted
37,000
11.0
16.6
38,500
3.64
9.3
25,400
2.5
Non-Ducted
52,000
10.2
17.4
58,500
3.40
9.6
32,500
2.8
Ducted
51,500
10.1
16.1
58,000
2.96
8.3
32,000
2.0
11
ECOiEX_ctlg_2015_rc.indd 11
1/15/15 12:03 PM
Quality
Management
System
Certificate
Use of the AHRI Certified™ mark indicates
a manufacture's participation in the
certification program.
For verification of certification for individual
products, go to www.ahridirectory.org
Certified to ISO 9001: 2008
Panasonic HA Air-Conditioning (M)
Sdn.Bhd.
Cert. No.: MY-AR 1010
Certified to ISO 9001: 2008
Cert. No.: MY-AR 1010
Environmental
Management
System
Certificate
Certified to ISO 14001: 2004
Panasonic HA Air-Conditioning (M)
Sdn.Bhd.
Cert. No.: MY-ER 0112
Certified to ISO 14001: 2004
Cert. No.: MY-ER 0112
Panasonic Corporation of North America
Air Conditioning Group
1690 Roberts Blvd., NW, Suite 110, Kennesaw, GA 30144
WWW.PANASONIC.COM/AIRCON
in 2018
Serving the US Ductless
market since 1983
Panasonic Canada Inc.
Enterprise Product Sales
5770 Ambler Dr., Mississauga, ON, L4W 2T3 CANADA
www.panasonic.ca
Because its products are subject to continuous improvements, Panasonic reserves the right to modify product design and specifications without notice and without incurring any obligations.
©Copyright 2014, Panasonic Air Conditioning Products.
Caution Related to Safety
ECOiEX_ctlg_2015_rc.indd 1
Do not add or replace refrigerant other than the specified type. Manufacturer is not responsible for the damage and deterioration in safety due to usage of other refrigerant.
1/15/15 12:02 PM
Download PDF

advertising
