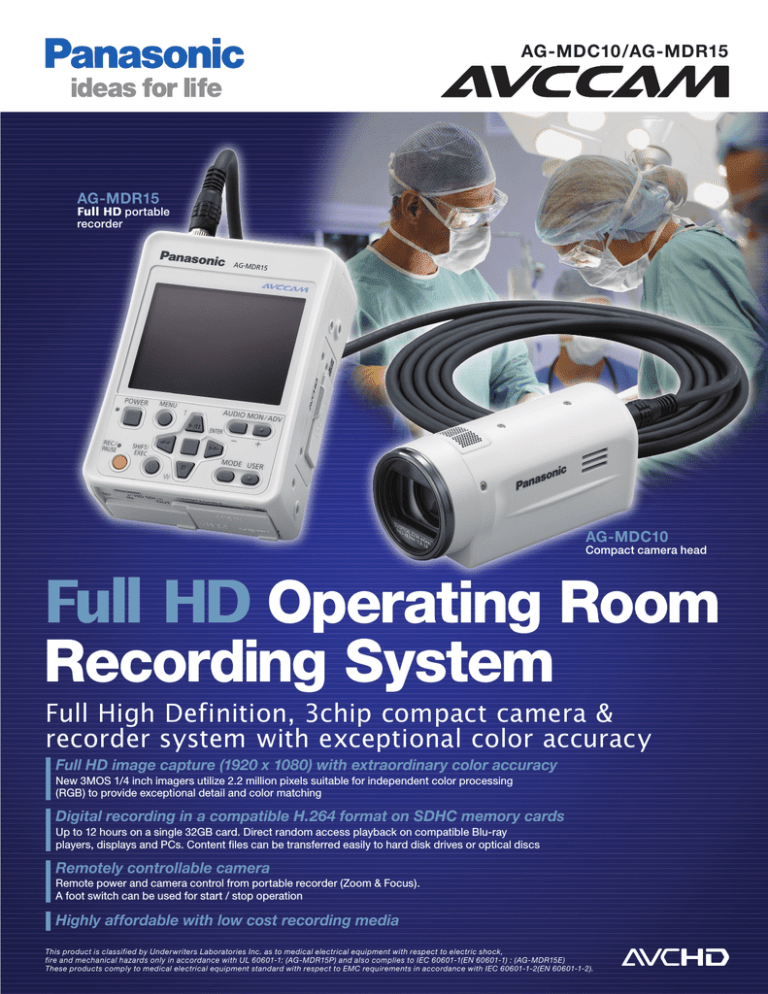

AG-MDC10/AG-MDR15
AG-MDR15
Full HD portable
recorder
AG-MDC10
Compact camera head
Full HD Operating Room
Recording System
Full High Definition, 3chip compact camera &
recorder system with exceptional color accuracy
Full HD image capture (1920 x 1080) with extraordinary color accuracy
New 3MOS 1/4 inch imagers utilize 2.2 million pixels suitable for independent color processing
(RGB) to provide exceptional detail and color matching
Digital recording in a compatible H.264 format on SDHC memory cards
Up to 12 hours on a single 32GB card. Direct random access playback on compatible Blu-ray
players, displays and PCs. Content files can be transferred easily to hard disk drives or optical discs
Remotely controllable camera
Remote power and camera control from portable recorder (Zoom & Focus).
A foot switch can be used for start / stop operation
Highly affordable with low cost recording media
This product is classified by Underwriters Laboratories Inc. as to medical electrical equipment with respect to electric shock,
fire and mechanical hazards only in accordance with UL 60601-1: (AG-MDR15P) and also complies to IEC 60601-1(EN 60601-1) : (AG-MDR15E)
These products comply to medical electrical equipment standard with respect to EMC requirements in accordance with IEC 60601-1-2(EN 60601-1-2).
Full HD Operating Room Recording System
S P E C I F I C AT I O N S
AG-MDC10/AG-MDR15
Shutter Speed
(Synchro Scan):
Compact camera head
AG-MDC10
[GENERAL]
Power Supply:
Power Consumption:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions (W x H x D):
DC8 V-9 V (Supplied from the AG-MDR15 Series)
3.5 W
0 °C to 40 °C (32 °F to 104 °F)
10 % to 80 % (No condensation)
Approx. 275 g (Approx. 0.61 lb.)
53.5 x 56 x 123.8 mm (2.11 x 2.20 x 4.87 inches)
excluding the projection part
[CAMERA]
Pick-up Device:
Picture Elements:
Lens:
3MOS (1/4.1-inch progressive modes supported)
Effective: Approx. 2.51 megapixels x 3 (16:9)
Lens with optical image stabilizer, 12x zoom,
F1.8 to 2.8 (f=4.0 mm to 48 mm),
35 mm equivalent: 40.8 mm to 490 mm (16:9)
Filter Diameter:
43 mm
Optical Color Separation: Prism system
ND Filter:
Auto On/Off by IRIS
Minimum shooting distance: Approx. 35.43 inches (Approx. 0.9 m)
Gain Selection:
0 dB to +34 dB (Variable in 1-dB steps)
White balance:
ATW, preset 3200 K, preset 5600 K, W.set
Shutter Speed
[59.94 Hz] 60i/60p mode: 1/60 sec. to 1/2000 sec. (7 steps)
(Preset):
30p mode: 1/30 sec. to 1/2000 sec. (8 steps)
24p mode: 1/24 sec. to 1/2000 sec. (8 steps)
[50 Hz] 50i/50p mode: 1/50 sec. to 1/2000 sec. (7 steps)
25p mode: 1/25 sec. to 1/2000 sec. (8 steps)
Full HD portable recorder
AG-MDR15
[GENERAL]
DC7.2 V (using with battery), 7.3 V (using with AC adapter)
Power Supply:
Power Consumption: 11.7 W (when the optional AG-MDC10 Camera Head is connected)
6.5 W (in standalone condition)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 10 % to 80 % (No condensation)
Weight:
Approx. 580 g (Approx. 1.28 lb.) excluding battery
Approx. 691 g (Approx. 1.52 lb.) including bundled battery
Dimensions (W x H x D): 96 x 52.6 x 133 mm (3.78 x 2.07 x 5.24 inches)
excluding the projection
[Video Recording]
Recording Format:
AVCHD
Compression Method: MPEG-4 AVC/H.264
Recording Media*3:
SD Memory Card : 512 MB, 1 GB, 2 GB (FAT12, FAT16)
SDHC Memory Card : 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB (FAT32)
Recording Video
[59.94 Hz] PH mode: 1080/60i, 1080/30p*5 (over 60i),
Format*4:
1080/24p*5 (Native) *6, 720/60p, 720/30p*5 (over 60p) and
720/24p*5 (Native) *6 HA, HG and HE mode: 1080/60i only
[50 Hz] PH mode: 1080/50i, 1080/25p*5 (over 50i),
720/50p and 720/25p*5 (over 50p)
HA, HG and HE mode: 1080/50i only
Transmission Rate:
PH mode: Approx. 21 Mbps (VBR, Max. 24 Mbps)
HA mode: Approx. 17 Mbps (VBR), HG mode: Approx. 13 Mbps (VBR)
HE mode: Approx. 6 Mbps (VBR)
Approx. 180 minutes
Recording Time:
(In PH mode with 1920 x 1080 pixels and using a 32 GB SDHC Memory Card)
SD Memory Card:
Max. recordable clips per card: 900 (after formatting,
without removing/inserting the card)
Max. playable clips: 1,000 (up to 1,000 clips displayed)
[59.94 Hz] 60i/60p mode: 1/60.0 sec. to 1/250.0 sec.
30p mode: 1/30.0 sec. to 1/250.0 sec.
24p mode: 1/24.0 sec. to 1/250.0 sec.
[50 Hz] 50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.
[59.94 Hz] 60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
Slow Shutter
30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
Speed:
24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
[50 Hz] 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
Minimum Luminance: Approx. 1 lx (Gain: +34 dB, Slow Shutter: 1/2 sec.)
Digital Zoom:
2x/5x/10x (When set to 59.94 Hz: 1080/60i, 720/60p only;
when set to 50 Hz: 1080/50i, 720/50p only)
[Video Recording]
Recording Video
[59.94 Hz] PH mode: 1080/60i, 1080/30p (over 60i), 1080/24p (native) *2,
720/60p, 720/30p (over 60p) and 720/24p (native) *2
Format*1:
(Recording with the HA, HG and HE mode: 1080/60i only
AG-MDR15 Series) [50 Hz] PH mode: 1080/50i, 1080/25p (over 50i),
720/50p and 720/25p (over 50p)
HA, HG and HE mode: 1080/50i only
[Video Output]
AG-MDR15 Series 20-pin dedicated terminal
(connection with the AG-MDR15 Series)
Output:
[Audio Input]
Internal Microphone: Stereo microphone
[Standard Accessories]
Lens cap (mounted to the AG-MDC10), Lens hood (mounted to the AG-MDC10)
*1: When the system frequency has been changed, turn the unit's power off and
then back on so that the setting takes effect.
*2: In the Native mode, AG-MDR15 Series record only active frames.
Thumbnail View:
Editing Functions:
Formatting Function:
[Video System]
Video Signals:
[Video IN/OUT]
SDI Input:
SDI Output:
AG-MDC10 Input:
HDMI Output:
[Audio System]
Compression Method:
Sampling Frequency:
Quantization:
Compression Bit-rate:
[Audio IN/OUT]
AG-MDC10 Input:
External
Microphone Input:
HDMI Output:
Headphone:
8 frames/page
Delete, write-protect
Yes
[59.94 Hz] 1080/60i, 720/60p [50 Hz] 1080/50i, 720/50p
HD-SDI Input, BNC x 1, 0.8 Vp-p, 75 Ω
HD-SDI/SD-SDI Output, BNC x 1, 0.8 Vp-p, 75 Ω
20-pin dedicated terminal (connection with the AG-MDC10)
HDMI Output x 1 (HDMI Type A terminal), [59.94 Hz] 1080/60i, 720/60p, 480/60p
[50 Hz] 1080/50i, 720/50p, 576/50p (Not compatible with VIERA Link)
Recording/Playback: Dolby Digital/2 ch
48 kHz
16 bit
PH mode: 384 kbps, HA, HG and HE mode: 256 kbps
20-pin dedicated terminal (connection with the AG-MDC10)
-70 dBV (Mic sensitivity: -50 dB equivalent, 0 dB=1 V/Pa 1 kHz)
Stereo mini jack (3.5 mm diameter) (Not compatible with plug-in power microphone)
2 ch (Linear PCM), 5.1 ch (Dolby Digital)
Stereo mini jack (3.5 mm diameter) x 1, 100 Ω
-22 dBV (with 32 Ω load)
20 mm (round) x 1
Built-in Speaker:
[Other Connectors]
Super mini jack (2.5 mm diameter) x 1, for zoom and rec start/stop operations
Camera Remote:
Type mini B connector (compliant with USB ver. 2.0)
USB:
[Monitor]
3.5 inches, LDC color monitor, Approx. 210,000 pixels
LCD Monitor:
[Standard Accessories]
AC adapter/charger, 2640 mAh battery pack (secure type), AC cable,
DC cable (catch type), CD-ROM, AVCCAM Restorer (Windows PC/Mac)
*3: SDHC/SD Memory Card (8 MB to 32 GB) can be used for reading metadata.
*4: When the system frequency has been changed, turn the unit's power off and
then back on so that the setting takes effect.
*5: Selectable only when combined with the AG-MDC10.
*6: In the Native mode, AG-MDR15 Series record only active frames.
*Weight and dimensions shown are approximate. Specifications are subject to change without notice.
