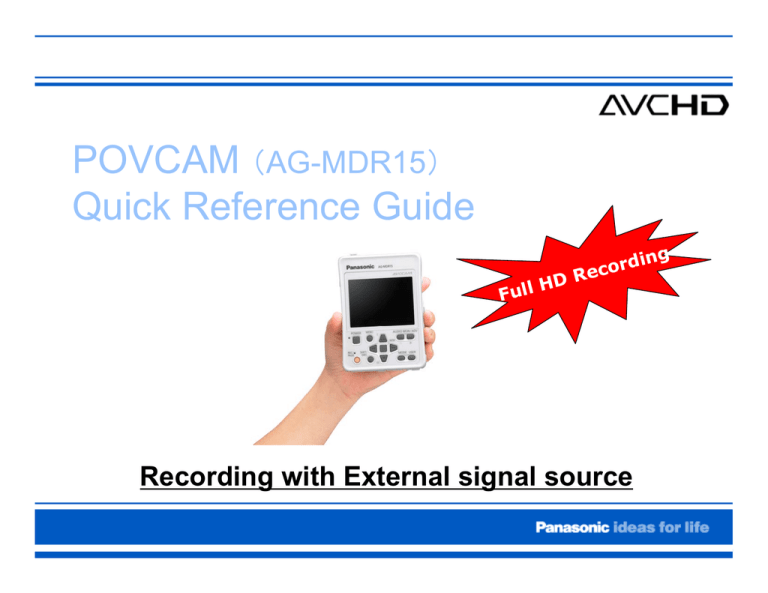

POVCAM (AG-MDR15)
Quick Reference Guide
R
D
H
l
Ful
ing
d
r
o
ec
Recording with External signal source
Connecting monitor via HDMI cable or HD-SDI output
HDMI connection
(HDMI cable)
HD-SDI connection
(BNC cable)
Monitor
Either
Or
Note : Menu setting must be as follows ;
When using HDMI connection, MENU > AV OUT SETUP > SDI OUT > OFF
When using HD-SDI connection, MENU > AV OUT SETUP > SDI OUT > ON
Preparation #4
Turn the power on !
Press the POWER button for 2 seconds or longer.
The POWER lamp (green) illuminates and the power turns on.
Note : For turning the power off, press the POWER button
for 2 seconds or longer when the power is on.
The POWER lamp flashes, the power turns off,
and then the lamp goes off.
Connecting Recorder to an external video source
Insert the SD Memory Card into the card slot
and close the door.
Note : POVCAM supports up to 32GB SDHC card.
Preparation #2
C-Mount camera w / HD-SDI output
HD-SDI connection
(BNC cable)
Connect the external signal source which has HD-SDI output.
Endoscope w / HD-SDI output
Formatting SD memory card
Note : All data in SD memory card will be erased by FORMAT process.
1) Press MENU button
, and select “CARD FUNCTION”
by using UP/DOWN button
.
2) Press ENTER button
, select “CARD FORMAT”
and press ENTER button
again.
3) Select “YES” by using UP button
and press ENTER button
4) In “SD CARD FORMAT ?” window, select “YES”
by using UP button
and press ENTER button
.
5) After you see “SD CARD FORMAT COMPLETED” on the screen,
press MENU button
to return.
1)
2)
5)
2)
3)
4)
.
Quick Reference for Menu setup
For menu setup, press MENU button
and select item by using
up/down button
, then press ENTER button
.
In order to simplify the preparation, the only following menu selections
should be cared for recording. The other selections don’t have to be
changed.
OTHER FUNCTIONS --- MENU INIT NO-->YES, then POWER OFF-->ON
Returning to factory initial set
RECORDING SETUP --- REC FORMAT
AV OUT SETUP --- SDI OUT
PH 1080/60i Best quality Full-HD, 3-hour w/32GB card
HA 1080/60i High quality Full-HD, 4-hour w/32GB card
HG 1080/60i Standard quality Full-HD, 5-hour 20-min
HE 1080/60i 1440X1080 resolution, 12-hour w/32GB card
ON When connecting a monitor with HD-SDI connection
OFF When connecting a monitor with HDMI connection
Typical external signal sources examples
IM4000
Panasonic GP-US932
560 SERIES
High Definition Cameras
How to start Recording
Press the REC/PAUSE button to start recording.
Press the REC/PAUSE button once again to finish recording.
During recording, REC indicator (Yellow LED) is ON,
also “REC” on the display.
Playing back previously recorded video
1) Press the MODE button to change to playback mode.
Thumbnails displayed on the screen.
2) Choose the clip by using
and press ENTER button
button,
to start playback that clip.
3) During playback, buttons works as below ;
PAUSE /
PAUSE Release
REWIN
D
PLAY
STOP
Fast
Forward
