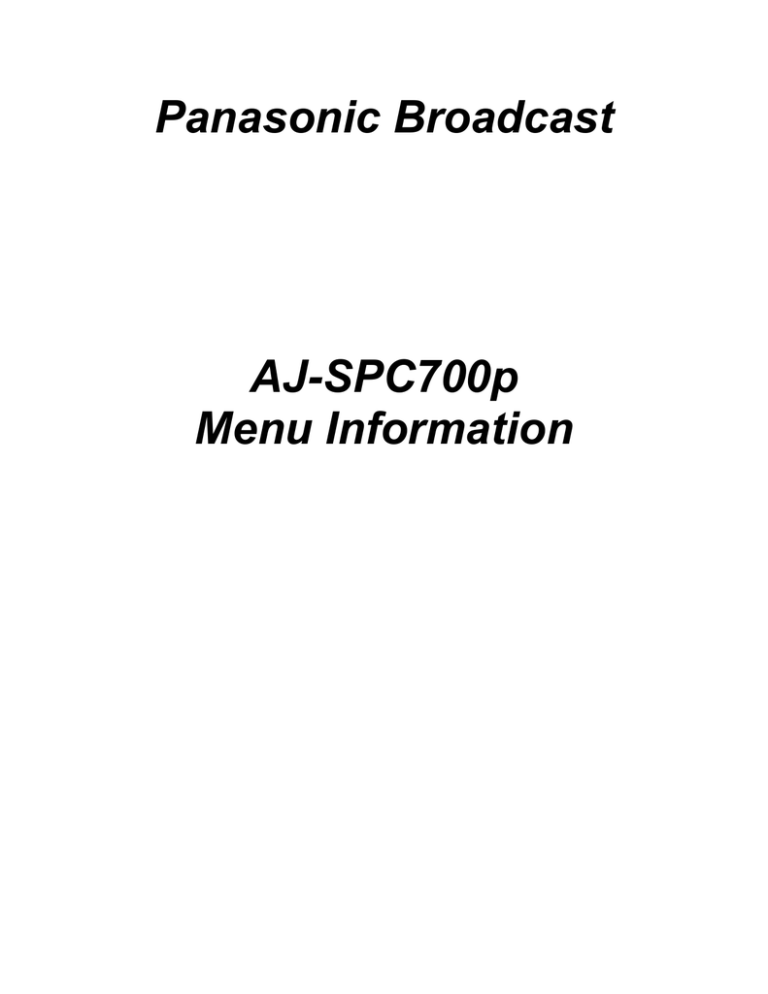

Panasonic Broadcast
AJ-SPC700p
Menu Information
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-2 SYSTEM SETTING
8-2-1 SYSTEM MODE
Items/
Adjustable
Data Saved
Range
REC SIGNAL
CAM
VIDEO
1394
– C U F E
ASPECT
Select the aspect ratio for recording.
16:9: Record in <16:9> aspect ratio.
4:3: Record in <4:3> aspect ratio.
50M
25M
DV
Select the recording mode.
50M: Record in DVCPRO50 format.
25M: Record in DVCPRO format.
DV:
Record in DV format.
0%
7.5%A
Switch the setup.
0%: Setup is switched to 0% for both
the camera output and the
recording.
7.5%A: Setup is switched to 7.5% for
the camera output and 0% for
the recording.
– C U F E
SET UP
– C U F E
REC TALLY
RED
GREEN
CHAR
– C U F E
ACCESS LED
– C U F E
Select video input signals.
CAM Record the signal from the
camera
VIDEO: Record the signal from the
GENLOCK IN terminal
1394: Record the signal from the 1394
input terminal (when optional
AJ-YAD800G is attached)
<Notes>
z After the power has been turned
OFF, this setting defaults to CAM
when the power is turned ON again.
z With VIDEO selected, to synchronise
this camera-recorder to the video
signal (VBS) that is input to the
GENLOCK
IN
terminal,
the
GENLOCK item in [8-2-6 GENLOCK]
must be set to EXT.
16:9
4:3
– C U F E
REC MODE
Remarks
ON
OFF
Selects display of the recording status
of the camera when the AJ-SPC700P is
controlling an external VTR, by setting
the menu option 1394 CONTROL to
“BOTH”.
The menu option 1394 CONTROL is
found in the OPTION MODE screen on
the SYSTEM setting page.
RED: The red tally lamp lights up.
GREEN:The green tally lamp lights up.
CHAR: The VF displays [REC] in
characters.
<Note>
1394 control menu options are only
displayed when an IEEE1394 interface
board (AJ-YAD800G, optional
accessory) is attached. For more
information, see the AJ-YAD800G
instruction manual.
Select whether or not to enable
illumination of the P2 card access
LEDs.
ON: Enable the P2 card access
LEDs to light up for card status
indications.
OFF: LEDs remain off.
Items/
Adjustable
Data Saved
Range
USB
ON
OFF
Remarks
Select the USB drive mode when using
the P2 card as bulk storage by
connecting the AJ-SPC700P with a PC
via USB2.0.
ON: Switches to the USB drive
mode. Recording, playback or
thumbnail operation via the AJSPC700P is not permitted.
OFF: Stops the USB drive mode, and
returns to normal operation.
<Note>
After the power is turned off, this setting
defaults to “OFF” when the power is
next turned on.
– – U F –
8-2-2 OPTION MODE
Items/
Adjustable
Data Saved
Range
SAVE SW (AUD ON
OUT)
OFF
– C U F –
SAVE SW (LCD) ON
OFF
– C U F –
8
Remarks
Select whether or not to forcibly disable
the audio output when the SAVE ON/
OFF switch is set to [ON].
ON: Disable audio output.
OFF: Enable audio output.
Select whether or not to automatically
turn off the LCD monitor when the
SAVE ON/OFF switch is set to [ON].
ON: Turn off LCD monitor.
OFF: Do not turn off LCD monitor.
<Note>
Menu options for setting 1394 are displayed when an
IEEE1394 interface board (AJ-YAD800G, optional) is
attached. For more information, see the AJ-YAD800G
instruction manual. Note that the AJ-SPC700P incorporates
the following additional items:
Items/
Adjustabl
Data Saved e Range
1394
CONTROL
OFF
BOTH
– C U F –
1394 CMD SEL REC_P
STOP
– C U F –
Remarks
Select the control method for recording
when an external device for backup
recording is connected via the DVCPRO/
DV connector:
OFF: The external device is not
controlled.
BOTH:Recording is performed by both
the AJ-SPC700P and the external
device.
Determine the recording operation of the
external backup device when the REC
START/STOP button is pressed:
REC_P: Record/Pause
STOP: Record/Stop
The ____ in the Adjustable Range column indicates the
preset mode.
99
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-2-3 REC FUNCTION
Items/
Adjustable
Data Saved
Range
PRE REC
MODE
ON
OFF
– C U F –
PRE REC TIME 1SEC
:
8SEC
:
15SEC
– C U F –
LOOP REC
MODE
ON
OFF
– – – F –
VOICE MEMO
RESERV
ON
OFF
– C U F –
REC START
ALL
NORMAL
– C U F –
P.ON REC
SLOT SEL
– C U F –
100
HOLD
SLOT1
8-2-4 OUTPUT SEL
Remarks
Items/
Adjustable
Data Saved
Range
Select whether or not to enable PRE
RECORDING.
ON: PRE RECORDING enabled.
OFF: PRE RECORDING disabled.
<Note>
Specify the PRE RECORDING time by
using the menu option PRE REC TIME.
VIDEO OUT
SEL
Set PRE RECORDING.
1-15SEC:
Set the length of time that can be
retrospectively recorded before the
REC START button is pressed.
<Note>
The maximum selectable range is 8
seconds when the REC MODE in the
<SYSTEM MODE> screen is set to
50M (DVCPRO50).
Select whether or not to enable LOOP
REC.
This setting can be used with PRE
RECORDING features.
ON: Enable LOOP REC.
OFF: Disable LOOP REC.
<Note>
After the power is turned off, this item
will default to OFF the next time the
power is turned on.
Set the available memory space for
voice memos in P2 cards.
ON: Reserve a voice memo area of 10
minutes or longer separately from
the video recording capacity. The
voice memo area can be used
even when FULL is displayed for
the recording capacity of the P2
card.
OFF: Do not reserve any voice memo
space.
<Note>
Even when this item is set to OFF, and
FULL is displayed for the P2 card’s
recording capacity, it may be possible to
record voice memos depending on the
status of the P2 card.
OUTPUT CHAR MENU
ONLY
TC
STATUS
Select operating modes that allow
recording to start.
ALL: Allow recording to start during
stop, recording pause, and
playback.
NORMAL:
Allow recording to start during
stop and recording pause.
Select the recording order of the slot
when the power is turned on.
HOLD:
The recording order starts with the
card previously selected when the
power was turned off.
SLOT1:
The recording order starts with the
card that is inserted in Slot 1 when
the power is turned on.
VBS
VF
Y
– C U F –
– C U F –
LCD MON
CHAR
– C U F –
Set the character contents
superimposed onto the output signals
for the VIDEO OUT connecter.
MENU ONLY:
Displays only when the menu
characters are superimposed. No
display appears when other
characters are superimposed.
TC: Display the time code. (Displays the
menu when menu characters are
superimposed.)
<Note>
The TC display position moves up and
down depending on the camera ID
position.
STATUS:
Display the same characters
superimposed on the VF signal.
(Displays the menu when menu
characters are superimposed.)
Select whether or not to superimpose
characters on the LCD monitor. (The
character content is the same as the
video output signal.)
ON: Enable superimpose.
(Not interlocked with the VIDEO
OUT CHARACTER switch.)
OFF: Disable superimpose.
(Not interlocked with the VIDEO
OUT CHARACTER switch.)
EE/PB
EE
Select the image to display in the
viewfinder.
EE/PB: Display the playback image in
the playback mode.
EE:
Always display the camera
image.
ON
OFF
Select whether or not to output clip
thumbnails displayed on the LCD
monitor to the video output signals.
ON: Enable output.
OFF: Disable output.
– C U F –
THUMBNAIL
OUT
Select the output signal on the VIDEO
OUT connecter.
VBS:Output a regular composite
signal.
VF: Output a VF Y signal. The status
display is also superimposed.
Y:
Output a component Y signal.
ON
OFF
– C U F –
VF MODE
Remarks
The ____ in the Adjustable Range column indicates the
preset mode.
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-2-5 LCD MONITOR
Items/
Adjustable
Data Saved
Range
BRIGHTNESS
–7
8-2-6 GENLOCK
Remarks
Adjust the LCD monitor brightness.
Items/
Adjustable
Data Saved
Range
GENLOCK
:
+0
INT
EXT
:
– C U F – +7
COLOR LEVEL –7
Adjust the LCD monitor chroma level.
:
+0
:
– C U F E
– C U F – +7
CONTRAST
–7
Adjust the LCD monitor contrast.
:
H PHASE
COARSE
+0
NORMAL
HIGH
– C U F –
SELF SHOOT
NORMAL
MIRROR
– C U F –
ASPECT CONV. SQUEEZE
LT.BOX
– C U F –
:
+00
:
:
Switch the camera synchronising
signal.
INT: Synchronise with the internal
reference signal regardless of the
reference signal input to the
GENLOCK IN terminal.
EXT: Synchronise with the reference
signal input to the GENLOCK IN
terminal.
Perform coarse phase adjustment for
horizontal hold when configuring a
system.
– – – – – +50
– C U F – +7
BACKLIGHT
–50
Remarks
Select whether or not to set the LCD
monitor brightness to always high.
NORMAL: The brightness changes
according to the
BRIGHTNESS setting.
HIGH:
Set to always high.
Select whether or not to change the
LCD monitor to mirror image.
NORMAL: Do not change to mirror
image.
MIRROR: Change to mirror image.
Select a screen ratio for images
displayed on the LCD monitor.
SQEEZE: Display images in the squeeze
size.
LT.BOX: Display images in the letter
box size.
<Note>
This item is enabled only when
ASPECT described in “8-2-1 SYSTEM
MODE” is set to16:9.
H PHASE FINE –160
:
+000
:
+160
– – – – –
SC PHASE
COARSE
0
1
Perform fine phase adjustment for
horizontal hold when configuring a
system.
<Note>
This adjustment simultaneously shifts
the SC phase.
Perform coarse SC PHASE adjustment
when GENLOCK is set.
:
– – – – –
SC PHASE
FINE
3
–75
:
+00
:
+75
– – – – –
Perform fine SC PHASE adjustment
when GENLOCK is set.
<Note>
When adjusting GENLOCK, please
adjust H PHASE first, and then adjust
SC PHASE.
The ____ in the Adjustable Range column indicates the
preset mode.
101
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-3 PAINT
8-3-1 ROP
Items/
Adjustable
Data Saved
Range
MASTER PED
–200
8-3-2 MATRIX
Remarks
Set the master pedestal level.
:
+005
–31
„MATRIX
TABLE
MATRIX R-G
Set the H Detail and V Detail levels.
S C U F E +31
0.35
+06
Set MASTER GAMMA in 0.01 steps.
:
:
0
+06
:
S C U F E +31
MATRIX G-B
–31
S C U F E 107.0%
–01
:
:
S C U F E +31
MATRIX B-R
–31
:
S C U F E 99
–200
+07
:
:
S C U F E +31
MATRIX B-G
–31
:
S C U F E +200
–200
–05
:
:
:
S C U F E +200
–200
Adjust the tint.
:
Set the Gch gain.
+000
B GAIN
Adjust the tint.
:
Set the Rch gain.
+000
G GAIN
Adjust the tint.
:
Set the KNEE slope.
50
R GAIN
Adjust the tint.
:
Set the KNEE POINT position in 0.5%
steps.
:
KNEE SLOPE
+12
S C U F E +31
MATRIX G-R
–31
S C U F E 0.75
85 0%
Adjust the tint.
:
:
0.45
70.0%
Adjust the tint.
:
:
KNEE POINT
–31
S C U F E +31
MATRIX R-B
–31
:
MASTER
GAMMA
Select the color correction table. 2
types of tables can be stored: type A
and type B.
:
:
+00
Remarks
A
B
S C U F E
:
S C U F E +200
MASTER DTL
Items/
Adjustable
Data Saved
Range
Set the Bch gain.
:
+000
S C U F E +31
OFF
„MATRIX
TABLE
A
S C U F E B
Select the color correction table to be
applied to the selected GAIN switch (L/
M/H).
:
S C U F E +200
R PEDESTAL
–100
Set the Rch pedestal level.
:
+000
:
S C U F E +100
G PEDESTAL
–100
Set the Gch pedestal level.
:
+000
<Note>
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for PAINT
MENU LEVEL R/W.
Please refer to [8-7-2 SD CARD R/W SELECT] for more
information.
:
S C U F E +100
B PEDESTAL
–100
:
+000
:
S C U F E +100
102
Set the Bch pedestal level.
The ____ in the Adjustable Range column indicates the
preset mode.
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-3-3 COLOR CORRECTION
Items/
Adjustable
Data Saved
Range
R
(SAT/PHASE)
–63
:
+00
Remarks
Perform red color correction (saturation
and hue).
8-3-4 LOW SETTING
Items/
Adjustable
Data Saved
Range
„MASTER
GAIN
:
–63
:
+00
Perform color correction (saturation and
hue) between red and magenta.
H.DTL LEVEL
:
+00
17
:
Perform magenta color correction
(saturation and hue).
V.DTL LEVEL
:
+00
18
Perform color correction (saturation and
hue) between magenta and blue.
DTL CORING
:
+00
:
Perform blue color correction
(saturation and hue).
H.DTL FREQ.
20
:
Perform color correction (saturation and
hue) between blue and cyan.
S C U F E 31
LEVEL
0
DEPEND.
1
:
5
S C U F E +63
–63
:
+00
00
:
:
Cy
(SAT/PHASE)
Perform cyan color correction
(saturation and hue).
:
S C U F E +63
Cy-G
(SAT/PHASE)
–63
:
+00
S C U F E
Perform color correction (saturation and
hue) between cyan and green.
MASTER
GAMMA
:
–63
:
+00
Perform green color correction
(saturation, hue).
BLACK
STRETCH
:
–63
:
+00
:
+00
0.45
–3
Set the gamma curb for dark spots.
:
OFF
:
Perform color correction (saturation,
hue) between green and yellow.
:
–63
Set MASTER GAMMA in 0.01 steps.
:
S C U F E +3
S C U F E +63
Yl
(SAT/PHASE)
Set LEVEL DEPEND.
No DTL is added to the portion whose
brightness is the setting value or less.
When the GAMMA MODE SEL item is
set to STD1, each setting value
represents brightness levels, as follows:
0 = about 0%, 1 = about 4%,
2 = about 8%, 3 = about 12%,
4 = about 16%, 5 = about 20%.
S C U F E 0.75
S C U F E +63
G-Yl
(SAT/PHASE)
0.35
Set a frequency (DTL width) at which
H.DTL is added. The greater the value,
the higher the frequency (the narrower
the DTL).
:
S C U F E +63
G
(SAT/PHASE)
Set DTL CORING.
:
S C U F E 15
:
S C U F E +63
B-Cy
–63
(SAT/PHASE) :
+00
00
02
:
–63
Set V.DTL LEVEL.
:
:
S C U F E +63
B
(SAT/PHASE)
00
S C U F E 31
S C U F E +63
–63
Set H.DTL LEVEL.
:
:
Mg-B
(SAT/PHASE)
00
S C U F E 63
S C U F E +63
–63
0dB
Select the master gain from –3, 0, 3, 6,
9, 12, 15, 18, 21, 24, 27, or 30dB.
S C U F E 30dB
:
Mg
(SAT/PHASE)
:
:
S C U F E +63
R-Mg
(SAT/PHASE)
–3dB
Remarks
Perform yellow color correction
(saturation, hue).
„MATRIX
TABLE
OFF
A
S C U F E B
Select the color correction table.
„COLOR
CORRECT
Set the color correction to ON or OFF.
ON
OFF
S C U F E
:
S C U F E +63
Yl-R
(SAT/PHASE)
–63
:
+00
Perform color correction (saturation,
hue) between yellow and red.
:
S C U F E +63
„COLOR
CORRECT
S C U F E
ON
OFF
Select whether or not to enable color
correction for the selected GAIN switch
(L/M/H).
ON: Enable correction.
OFF: Disable correction.
<Note>
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for PAINT
MENU LEVEL R/W.
Please refer to [8-7-2 SD CARD R/W SELECT] for more
information.
The ____ in the Adjustable Range column indicates the
preset mode.
103
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-3-5 MID SETTING
Items/
Adjustable
Data Saved
Range
„MASTER
GAIN
–3dB
:
9dB
8-3-6 HIGH SETTING
Remarks
Select the master gain from –3, 0, 3, 6,
9, 12, 15, 18, 21, 24, 27, or 30dB.
Items/
Adjustable
Data Saved
Range
„MASTER
GAIN
:
00
Set H.DTL LEVEL.
H.DTL LEVEL
:
14
12
00
:
Set V.DTL LEVEL.
V.DTL LEVEL
:
15
14
S C U F E 31
Set DTL CORING.
DTL CORING
:
05
:
:
20
:
S C U F E 31
LEVEL
0
DEPEND.
1
:
5
S C U F E
0.35
S C U F E 15
Set a frequency (DTL width) at which
H.DTL is added. The greater the value,
the higher the frequency (the narrower
the DTL).
Set LEVEL DEPEND.
No DTL is added to the portion whose
brightness is the setting value or less.
When the GAMMA MODE SEL item is
set to STD1, each setting value
represents brightness levels, as follows:
0 = about 0%, 1 = about 4%,
2 = about 8%, 3 = about 12%,
4 = about 16%, 5 = about 20%.
Set MASTER GAMMA in 0.01 steps.
:
0.45
H.DTL FREQ.
20
:
S C U F E 31
LEVEL
0
:
DEPEND.
3
:
5
S C U F E
MASTER
GAMMA
0.35
Set a frequency (DTL width) at which
H.DTL is added. The greater the value,
the higher the frequency (the narrower
the DTL).
Set LEVEL DEPEND.
No DTL is added to the portion whose
brightness is the setting value or less.
When the GAMMA MODE SEL item is
set to STD1, each setting value
represents brightness levels, as follows:
0 = about 0%, 1 = about 4%,
2 = about 8%, 3 = about 12%,
4 = about 16%, 5 = about 20%.
Set MASTER GAMMA in 0.01 steps.
:
0.55
:
S C U F E 0.75
Set the gamma curb for dark spots.
:
OFF
BLACK
STRETCH
:
–3
Set the gamma curb for dark spots.
:
OFF
:
S C U F E +3
„MATRIX
TABLE
00
:
:
S C U F E 0.75
–3
Set DTL CORING.
:
S C U F E 15
BLACK
STRETCH
00
:
03
00
Set V.DTL LEVEL.
:
S C U F E 31
MASTER
GAMMA
00
:
00
Set H.DTL.
S C U F E 63
:
H.DTL FREQ.
00
:
S C U F E 63
DTL CORING
18dB
Select the master gain from –3, 0, 3, 6,
9, 12, 15, 18, 21, 24, 27, or 30dB.
S C U F E 30dB
:
V.DTL LEVEL
:
:
S C U F E 30dB
H.DTL LEVEL
–3dB
Remarks
S C U F E +3
OFF
A
S C U F E B
Select the color correction table.
„MATRIX
TABLE
OFF
A
S C U F E B
Select the color correction table.
„COLOR
CORRECT
Set the color correction to ON or OFF.
„COLOR
CORRECT
Set the color correction to ON or OFF.
S C U F E
ON
OFF
ON
OFF
S C U F E
<Note>
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for PAINT
MENU LEVEL R/W.
Please refer to [8-7-2 SD CARD R/W SELECT] for more
information.
The ____ in the Adjustable Range column indicates the
preset mode.
104
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-3-7 ADDITIONAL DTL
Items/
Adjustable
Data Saved
Range
KNEE APE LVL OFF
1
2
8-3-8 SKIN TONE DTL
Remarks
Set KNEE APE LEVEL.
:
S C U F E
DTL GAIN(+)
5
–31
:
+00
Set the chroma detail.
Detects the chroma edge and
superimposes it on Y to enhance
H.DTL. A greater value increases the
correction.
Adjust the detail level toward +
(upwards).
:
+00
„SKIN TONE
ZEBRA
:
S C U F E
63
DTL SOURCE
Adjust the detail level toward the –
(downwards).
ON
OFF
ON/OFF switching for ZEBRA within
the SKIN TONE range.
0
Adjust the effect of SKIN TONE DTL
CORING.
:
5
:
S C U F E 7
Used when obtaining the target hue for
SKIN TONE DTL. Align the center
marker and the target object with each
other.
Set the maximum value of the
brightness signal to which SKIN TONE
effect is enabled.
– – – – –
Y MAX
000
:
190
Adjust the detail signal clip towards the
+ direction.
:
S C U F E 255
Y MIN
000
Set the minimum value of the
brightness signal to which the SKIN
TONE effect is enabled.
:
(R+G)/2
(G+B)/2
2G+R+B /4
(3G+R)/4
R
S C U F E G
Set the signal source for detail signal
components.
H.DTL LINE MIX 0H
1H
S C U F E 2H
Set the scan line to generate the H.DTL
signal.
„CORNER DTL ON
OFF
ON/OFF switching for CORNER DTL
mode, which enhances the resolution
around the screen perimeter.
S C U F E
Set the skin tone DTL to ON or OFF.
S C U F E
SKIN DTL
CORING
:
S C U F E +31
DTL CLIP
00
ON
OFF
SKIN TONE
GET
:
S C U F E +31
DTL GAIN(–)
–31
„SKIN TONE
DTL
Remarks
S C U F E
:
S C U F E 5
CHROMA DTL OFF
1
Items/
Adjustable
Data Saved
Range
010
:
S C U F E 255
I CENTER
000
Set the center position on the I axis (the
area where SKIN TONE is enabled).
:
022
:
S C U F E 255
I WIDTH
000
Set the area width where SKIN TONE
is enabled along the I axis above and
below the I CENTER.
:
010
:
S C U F E 255
Q WIDTH
000
Set the area width where SKIN TONE
is enabled along the Q axis above and
below the I CENTER.
:
005
:
S C U F E 255
Q PHASE
–128
Set the phase in the area where SKIN
TONE is enabled based on the Q axis.
:
+000
:
S C U F E +127
Y
R-Y
Q-WIDTH
I-WIDTH
Y-MAX
+ direction
I-CENTER
– direction
Q-PHASE
B-Y
Y-MIN
= SKIN TONE AREA
0
<Note>
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for PAINT
MENU LEVEL R/W.
Please refer to [8-7-2 SD CARD R/W SELECT] for more
information.
The ____ in the Adjustable Range column indicates the
preset mode.
105
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-3-9 KNEE/LEVEL
Items/
Adjustable
Data Saved
Range
MASTER PED
–200
8-3-10 GAMMA
Remarks
Set the master pedestal.
:
+005
Items/
Adjustable
Data Saved
Range
MASTER
GAMMA
:
ON
OFF
S C U F E
KNEE POINT
70.0%
:
85.0%
Set the mode when the AUTO KNEE
switch is OFF. The KNEE POINT/
SLOPE set value is enabled when this
setting is ON.
Set the KNEE POINT position in 0.5%
steps.
R GAMMA
:
50
:
99 (98)
S C U F E
„WHITE CLIP ON
OFF
S C U F E
WHITE CLIP
LVL
90%
–15
+00
:
S C U F E +15
B GAMMA
–15
+00
:
Set the KNEE SLOPE.
0 setting is equal to KNEE OFF.
<Note>
The adjustable range when using the
AJ-EC3P is from 00 to 98.
S C U F E +15
GAMMA MODE STD1
STD2
SEL
NEWS
Set the WHITE CLIP feature to ON or
OFF. The WHITE CLIP LVL set value is
enabled when this setting is ON.
Set WHITE CLIP LEVEL.
105%
:
S C U F E 109%
:
85%
:
107%
S C U F E
A.KNEE LVL
100
Set the Bch gamma.
:
:
A.KNEE POINT 80%
Set the Rch gamma.
:
:
00
0.45
S C U F E 0.75
S C U F E 107.0%
KNEE SLOPE
Set the master gamma in 0.01% steps.
:
:
S C U F E +200
„MANUAL
KNEE
0.35
Remarks
Set the AUTO KNEE POINT position in
0.5% steps. This setting is enabled
when the OUTPUT/AUTO KNEE
selector switch is set to CAM.AUTO
KNEE ON.
Set the AUTO KNEE LEVEL.
S C U F E
Select the gamma.
STD1: Standard gamma feature.
STD2: Gamma feature that conforms to
the ITU-R.BT709 standards.
NEWS: This video gamma feature can
effectively reproduce gradations
by reducing whiteouts and
blackouts when shooting an
object with partially highlighted
areas. This gamma is especially
effective in the AUTO KNEE
mode.
<Note>
Selecting NEWS gamma disables
settings under the items KNEE SLOPE,
KNEE POINT, and A.KNEE POINT
outlined in [8-3-9 KNEE/LEVEL]. These
settings are also disabled when NEWS
gamma is selected with the USER
switch.
:
105
:
S C U F E 109
A.KNEE
RESPONSE
S C U F E
1
:
4
Set the AUTO KNEE response speed.
The smaller the setting value, the faster
the response speed.
<Note>
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for PAINT
MENU LEVEL R/W.
Please refer to [8-7-2 SD CARD R/W SELECT] for more
information.
8-3-11 FLARE
Items/
Adjustable
Data Saved
Range
R FLARE
000
Remarks
Set the R FLARE.
:
S C U F E
G FLARE
100
000
Set the G FLARE.
:
S C U F E
B FLARE
100
000
Set the B FLARE.
:
S C U F E
100
The ____ in the Adjustable Range column indicates the
preset mode.
106
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-4 VF
8-3-12 „CAMERA SETTING
Items/
Adjustable
Data Saved
Range
DETAIL
8-4-1 VF DISPLAY
Adjustable
Items/
Data Saved
Range
Remarks
ON
OFF
Set the DTL (H, V) to ON or OFF.
ON
OFF
ON/OFF switching for the twodimensional LPF that reduces crosscolor.
ON
OFF
ON/OFF switching for the HIGH
COLOR mode, which enhances the
color dynamic range.
ON
OFF
Set the gamma circuit to ON or OFF.
ON
OFF
Switch the test signal ON or OFF.
ON
OFF
Set the flare correction to ON or OFF.
DISP
CONDITION
NORMAL
HOLD
NORMAL: Display status constantly.
HOLD: Display status only when the
MODE CHECK switch is
pressed.
1
2
3
Set the DISP MODE.
Switch the camera’s Warning/Message
indication. Please refer to [4-7-4
Display Modes and Setting Changes/
adjustment Result Messages] for more
information.
Y
NAM
R
G
B
Select the VF output.
Y:
Brightness signal
NAM: Output signal with the highest
level among R, G, and B
signals.
R:
Rch signal
G:
Gch signal
B:
Bch signal
0
Select the VF DTL.
Additionally enhance the DTL for the
VF signal. 0 setting is the same DTL as
the primary scan lines.
S C U F E
2D LPF
S C U F E
HIGH COLOR
S C U F E
GAMMA
– C U F E
DISP MODE
– C U F E
VF OUT
S C U F E
TEST SAW
S C U F E
FLARE
S C U F E
H-F COMPE.
– C U F E
VF DTL
ON
OFF
ON/OFF switching for the H-F COMPE
mode, which enhances the DTL in the
high-frequency range.
S C U F E
Remarks
:
3
:
– C U F E 5
ZEBRA1
0%
:
DETECT
70%
Set the ZEBRA1 detection level (IRE
value).
:
– C U F E 109%
ZEBRA Pattern Display
Video Level
109%
ON
ZEBRA 2
OFF
ZEBRA2
DETECT
SPOT
ZEBRA 2
DETECT
ZEBRA 1
DETECT
0%
:
85%
Set the ZEBRA2 detection level (IRE
value).
:
– C U F E 109%
ZEBRA2
OFF
SPOT
– C U F E ON
Set the ZEBRA2 to ON, OFF, or SPOT.
LOW LIGHT LVL OFF
10%
15%
20%
25%
30%
– C U F E 35%
Set the camera incoming light volume
at which to display LOW LIGNT.
ECU MENU
DISP.
ON
OFF
Set the menu display on the VF to ON
or OFF when the ECU is connected.
ON
OFF
Set the 50M recording indication to ON
or OFF.
– C U F E
50M
INDICATOR
0%
<Note>
All items in CAMERA SETTING are setting targets of the
item PAINT MENU SW(„) R/W in the <SD CARD R/W
SELECT> screen.
– C U F E
MARKER/CHAR 50%
LVL
60%
70%
80%
90%
– C U F E 100%
Adjust the brightness of markers and
characters displayed on the VF.
The ____ in the Adjustable Range column indicates the
preset mode.
107
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-4-2 VF MARKER
Items/
Adjustable
Data Saved
Range
TABLE
A
B
– C U F E
CENTER MARK OFF
1
2
3
4
– C U F E
SAFETY ZONE OFF
1
2
– C U F E
SAFETY AREA 80%
8-4-4 VF INDICATOR1
Remarks
Select the VF MARKER setting table.
First, select table A or B, then set the
items below for each table.
EXTENDER
Switch the center mark.
OFF: Do not display center mark.
1:
+ (large)
2:
Hollow (large)
3:
+ (small)
4:
Hollow (small)
SHUTTER
Select the frame type for the safety
zone.
OFF: Do not display frame.
1:
Box
2:
Corner frame
Set the frame marker to ON or OFF.
FRAME LVL
Set the level outside the frame marker.
0: Equivalent to signal OFF.
15: Same brightness as center area.
This setting, however, is disabled if
the FRAME SIG is set to VISTA.
– C U F E
ON
OFF
Set the shutter speed indication to ON
or OFF.
ON
OFF
Set the filter No. indication to ON or
OFF.
ON
OFF
Set the AWB PRE/A/B indication to ON
or OFF.
ON
OFF
Set to ON or OFF the indications for
current gain setting, S.GAIN.
OFF
IRIS
S+IRIS
S
OFF: Disable indications of both the
super iris ON status and the iris
value.
IRIS: Enable only the iris value
indication.
S+IRIS: Enables indications of the super
iris ON status and the iris value.
S:
Enable indication of the super
iris ON status.
(The iris value indication and the iris
override indication/non indication are
interlocked.)
Select when to enable the ID mix during
recording.
OFF:
Disable ID mix.
BAR:
Enable when recording color
bars.
CAM:
Enable when recording
camera image.
ALWAYS: Enable always.
<Note>
ID MIX INH of the “8-9-1 OPTION” is
set to OFF to mix an ID to the camera
image.
ID is not superimposed in the EE mode,
but recorded onto the P2 card.
Set the camera ID recording position.
UPPER R: Upper right.
UPPER L: Upper left.
LOWER R: Lower right.
LOWER L: Lower left.
– C U F E
WHITE
– C U F E
GAIN
Set the frame marker.
Only enabled when REC MODE is set
to 16:9.
The VISTA ratio is 16:8.65.
FRAME MARK ON
– C U F E OFF
15
Set the extender indication to ON or
OFF.
– C U F E
FILTER
IRIS
:
:
ON
OFF
– C U F E
:
0
– C U F E
CAMERA ID
OFF
BAR
CAM
ALWAYS
8-4-3 USER BOX
Items/
Adjustable
Data Saved
Range
USER BOX
Remarks
ON
OFF
Select whether or not to display the
USER BOX.
1
Set the width of the USER BOX.
– C U F E
ID POSITION
– C U F E
USER BOX
WIDTH
:
13
1
DATE/TIME
ON
OFF
Set the zoom position indication to ON
or OFF.
COLOR TEMP ON
OFF
Set the color temperature indication to
ON or OFF.
– C U F E
ZOOM LVL
–50
:
+00
Set the horizontal position of the USER
BOX.
:
– C U F E +50
–121
:
+000
:
– C U F E +121
108
Select whether or not to simultaneously
mix the year/month/date and hour/
minute/second when recording the
camera ID.
:
13
:
USER BOX V
POS
ON
OFF
Set the height of the USER BOX.
– C U F E 121
USER BOX H
POS
UPPER R
UPPER L
LOWER R
LOWER L
– C U F E
:
– C U F E 100
USER BOX
HEIGHT
Remarks
– C U F E
Set the position of the safety zone.
90%
– C U F E 100%
FRAME SIG
4:3
13:9
14:9
– C U F E VISTA
Items/
Adjustable
Data Saved
Range
Set the vertical position of the USER
BOX.
– C U F E
– C U F E
The ____ in the Adjustable Range column indicates the
preset mode.
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-4-5 VF INDICATOR2
Items/
Adjustable
Data Saved
Range
P2CARD
REMAIN
OFF
ONE-CARD
TOTAL
– C U F E
BATTERY
ON
OFF
Remarks
Select the indication mode for the P2
card’s remaining capacity.
OFF: Disable the remaining capacity
indication.
ONE-CARD:
Display the remaining capacity
of the P2 card currently used for
recording.
TOTAL: Display the total remaining
capacity of all P2 cards in slots.
Set the battery voltage indication to ON
or OFF.
– C U F E
AUDIO LVL
ON
OFF
Set the audio lever meter indication to
ON or OFF.
OFF
TCG
TCR
TCG/TCR
Select the time code to display.
OFF: Disable the time code display.
TCG: Display the time code generator
value in E-E mode.
TCR: Display the time code reader
value in V-V mode.
TCG/TCR:
Display the time code generator
value in E-E mode, and the time
code reader value in V-V mode.
Items/
Adjustable
Data Saved
Range
REC STATUS
ON
OFF
– C U F –
PROXY REC
ON
OFF
– C U F E
TC
– C U F E
SYSTEM INFO OFF
ALWAYS
NORMAL
– C U F E
SAVE LED
P2CARD
SAVE
– C U F E
DV
ON
OFF
– C U F E
VOICEMEMO
– C U F E
ON
OFF
Select the method of displaying system
information and warnings.
OFF: Display no warnings other than
“TURN POWER OFF” and
“SYSTEM ERROR”.
ALWAYS:
Always display warnings.
NORMAL:
Display warnings for 3 seconds only
when problems occur.
Set the SAVE lamp function.
P2CARD:
The lamp blinks in synch with
the warning message when the
P2 card’s remaining recording
capacity is getting low.
SAVE: The lamp lights up when the
SAVE ON/OFF switch is set to
ON and the output system
assigned in [8-2-2 OPTION
MODE] is in the save mode.
DV Select whether or not to enable DV
indication when the format is set to DV.
ON: Enable DV indication.
OFF: Disable DV indication.
Select whether or not to enable the V
indication during voice memo
recording.
ON: Enable V indication.
OFF: Disable V indication.
– C U F –
Remarks
Select whether or not to enable “REC”
indication in the viewfinder and on the
LCD monitor during recording.
ON: REC indication enabled.
OFF: REC indication not enabled.
<Note>
This option is useful when the AJSPC700P is used independently. When
the 1394 control option is set to BOTH
with an external IEEE 1394 device,
settings are subject to setting of the
menu option REC TALLY in SYSTEM
MODE.
When a video encoder card (AJYAX800G, optional) is attached, proxy
recording information is displayed when
recording starts.
ON: Display indicating whether proxy
recording is to be performed on
the P2 card only, or on both the
P2 card and the SD memory card.
OFF: Proxy recording information is not
displayed.
8-4-6 MODE CHECK IND
Items/
Adjustable
Data Saved
Range
STATUS
Remarks
ON
OFF
Select whether or not to display the
status indication during MODE CHECK.
ON
OFF
Select whether or not to display the
cause indication screen when the ! LED
turns on during MODE CHECK
ON
OFF
Select whether or not to display the
FUNCTION indication screen during
MODE CHECK.
ON
OFF
Select whether or not to display the
AUDIO indication screen during MODE
CHECK.
ON
OFF
Select whether or not to display the
status indication screen after the power
is turned ON.
– C U F E
!LED
– C U F E
FUNCTION
– C U F E
AUDIO
– C U F E
P.ON IND
– C U F E
The ____ in the Adjustable Range column indicates the
preset mode.
109
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-5 CAM OPERATION
8-4-7 !LED
Items/
Adjustable
Data Saved
Range
GAIN(0dB)
8-5-1 CAMERA ID
Remarks
ON
OFF
Select whether or not to illuminate
when GAIN is set to other than 0 dB.
ID1
ON
OFF
Select whether or not to illuminate
when GAIN is set to other than –3 dB.
ID2
ON
OFF
Select whether or not to illuminate
when the shutter is set to ON.
ID3
ON
OFF
Select whether or not to illuminate
when the WHITE BAL switch is set to
PRST.
ON
OFF
Select whether or not to illuminate
when the lens is in EXTENDER mode.
ON
OFF
Select whether or not to illuminate
when BLACK STRETCH is used.
ON
OFF
Select whether or not to illuminate
when MATRIX is set to ON.
– C U F E
GAIN (-3dB)
Setting 3 for the CAMERA ID recorded
on color bars. Up to 10 characters are
allowed for this setting.
– C U F –
– C U F E
EXTENDER
Setting 2 for the CAMERA ID recorded
on color bars. Up to 10 characters are
allowed for this setting.
– C U F –
– C U F E
WHITE
PRESET
Remarks
Setting 1 for the CAMERA ID recorded
on color bars. Up to 10 characters are
allowed for this setting.
– C U F –
– C U F E
SHUTTER
Items/
Adjustable
Data Saved
Range
<Note>
This setting is canceled when READ FACTORY DATA is
selected.
– C U F E
BLACK STR
8-5-2 SHUTTER SPEED
– C U F E
MATRIX
– C U F E
COLOR
ON
CORRECTION OFF
– C U F E
FILTER
ON
OFF
Select whether or not to illuminate
when COLOR CORRECTION is set to
ON.
Select whether or not to illuminate the
lamp when filter1 (3200K) is not 3200K.
ON
OFF
Select whether or not to illuminate
when SUPER V is set to ON.
OFF
W/O 50M
W/O 25M
W/O DV
Select whether or not to illuminate
according to the recording mode.
OFF: Does not illuminate in any
recording mode.
W/O 50M:
Illuminate except in DVCPRO50
mode.
W/O 25M:
llluminate except in DVCPRO
mode.
W/O DV:
Illuminate except in DV mode.
Select whether or not to illuminate
when auto-tracking white balance is
allocated to the WHITE BAL switch B.
– C U F E
50M/25M/DV
– C U F E
ATW
– C U F E
SYNCHRO
SCAN
ON
OFF
<Note>
If both GAIN (0 dB) and GAIN (–3 dB) are set to ON, the
LED illuminates except when GAIN is adjusted to 0 dB and
–3 dB.
Remarks
ON
OFF
Allocate SYNCHRO SCAN as a shutter
speed selectable by the shutter switch.
ON
OFF
Allocate SUPER V as a shutter speed
selectable by the shutter switch.
ON
OFF
Allocate the shutter speed set by
POSITION1 SELECT in the
<SHUTTER SELECT> screen as the
shutter speed selectable by the shutter
switch.
ON
OFF
Allocate the shutter speed set by
POSITION2 SELECT in the
<SHUTTER SELECT> screen as the
shutter speed selectable by the shutter
switch.
ON
OFF
Allocate the shutter speed set by
POSITION3 SELECT in the
<SHUTTER SELECT> screen as the
shutter speed selectable by the shutter
switch.
ON
OFF
Allocate the shutter speed set by
POSITION4 SELECT in the
<SHUTTER SELECT> screen as the
shutter speed selectable by the shutter
switch.
ON
OFF
Allocate the shutter speed set by
POSITION5 SELECT in the
<SHUTTER SELECT> screen as the
shutter speed selectable by the shutter
switch.
ON
OFF
Allocate the shutter speed set by
POSITION6 SELECT in the
<SHUTTER SELECT> screen as the
shutter speed selectable by the shutter
switch.
– C U F E
SUPER V
– C U F E
POSITION1
– C U F E
SUPER V
Items/
Adjustable
Data Saved
Range
– C U F E
POSITION2
– C U F E
POSITION3
– C U F E
POSITION4
– C U F E
POSITION5
– C U F E
POSITION6
– C U F E
The ____ in the Adjustable Range column indicates the
preset mode.
110
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-5-3 SHUTTER SELECT
Items/
Adjustable
Data Saved
Range
SUPER V
MODE
FRM1
FRM2
8-5-4 USER SW
Remarks
POSITION1
SEL
Select the SUPER V switching mode.
FRM1: Normal mode.
FRM2: After-image reduction mode.
<Note>
The SUPER V mode increases vertical
resolution by directly outputting the
photo-diode vertical signal from the
CCD. FRM1 sets the accumulation level
to 1/30th second. FRM sets the level to
1/60th second, reducing sensitivity by
half.
Select the shutter speed to be allocated
to POSITION1.
POSITION2
SEL
1/100
1/120
1/250
1/500
1/1000
– C U F E 1/2000
Select the shutter speed to be allocated
to POSITION2.
POSITION3
SEL
1/100
1/120
1/250
1/500
1/1000
– C U F E 1/2000
Select the shutter speed to be allocated
to POSITION3.
POSITION4
SEL
1/100
1/120
1/250
1/500
1/1000
– C U F E 1/2000
Select the shutter speed to be allocated
to POSITION4.
POSITION5
SEL
1/100
1/120
1/250
1/500
1/1000
– C U F E 1/2000
Select the shutter speed to be allocated
to POSITION5.
POSITION6
SEL
Select the shutter speed to be allocated
to POSITION6.
– C U F E
1/100
1/120
1/250
1/500
1/1000
– C U F E 1/2000
1/100
1/120
1/250
1/500
1/1000
– C U F E 1/2000
Items/
Adjustable
Data Saved
Range
Remarks
USER MAIN SW INH
S.GAIN
S.IRIS
I.OVR
S.BLK
B.STR
ATW
Y GET
NEWS-G.
AUDIO CH1
AUDIO CH2
REC SW
RET SW
SLOT SEL
PRE REC
– C U F E USB
Allocate the USER MAIN button.
USER1 SW
INH
S.GAIN
S.IRIS
I.OVR
S.BLK
B.STR
ATW
Y GET
NEWS-G.
AUDIO CH1
AUDIO CH2
REC SW
RET SW
SLOT SEL
PRE REC
– C U F E USB
Allocate the USER1 button.
USER2 SW
Allocate the USER2 button.
INH
S.GAIN
S.IRIS
I.OVR
S.BLK
B.STR
ATW
Y GET
NEWS-G.
AUDIO CH1
AUDIO CH2
REC SW
RET SW
SLOT SEL
PRE REC
– C U F E USB
8
<Note>
For each function of the USER switches, refer to [4-9-4
Assigning Functions to USER MAIN, USER1 and USER2
Buttons].
The ____ in the Adjustable Range column indicates the
preset mode.
111
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-5-5 SW MODE
Items/
Adjustable
Data Saved
Range
RET SW
REC
CHECK
CAM RET
8-5-6 WHITE BALANCE MODE
Remarks
– C U F E
Select the RET switch function.
REC CHECK:
Perform REC REVIEW.
CAM RET:
Perform return signal output.
S.BLK LVL
OFF
–10
–20
– C U F E –30
Set the super black level.
AUTO KNEE
SW
ON
OFF
Select whether or not to use the AUTO
KNEE switch.
ON
OFF
Select whether or not to enable the
automatic black shading adjustment if
the ABB switch has been pressed for 5
seconds or more.
– C U F E
COLOR BARS SMPTE
FULL
BARS
SPLIT
ARIB
– C U F E
S.GAIN OFF
L/M/H
S.GAIN
– C U F E
ECU DATA
SAVE
ON
OFF
– C U F –
ECU REC CHK R.REVIEW
PLAY
SW
– C U F E
FILTER INH
ON
OFF
– C U F E
SHOCKLESS
AWB
S C U F E
SHD,ABB SW
CTL
Items/
Adjustable
Data Saved
Range
Remarks
Select whether or not to retain white
balance memory (A/B) data for
individual filters.
ON: Retain data in the A/B memory (2
memory areas) regardless of the
filters.
OFF: Retain data for individual filters.
OFF
FAST
NORMAL
SLOW1
SLOW2
– C U F E SLOW3
Set SHOCKLESS AWB to ON (FAST/
NORMAL/SLOW1-3) or OFF.
SHOCKLESS AWB eliminates the
shock caused by switching the WHITE
BAL switch’s PRST/A/B setting. The
switching time can also be selected.
AWB AREA
25%
50%
90%
Switch the AWB detection area.
25%: Detect 25% of area around the
screen center.
50%: Detect 50% of area around the
screen center.
90%: Detect 90% of area in the full
screen.
ON
OFF
Select whether or not to reset the GAIN
and PED values in the ROP menu
when AWB and ABB are executed.
ON: Do not reset.
OFF: Reset values.
Select the color bars to use.
SMPTE:
Use the SMPTE color bars.
FULL BARS: Use full color bars.
SPLIT:
Use SPLIT color bars.
ARIB:
Use ARIB multi-format
color bars.
AWB & ABB
OFFSET
Select when the SUPER GAIN mode is
disabled.
L/M/H: Disabled when the gain selector
switch is operated.
S.GAIN: Disabled only with the S.GAIN
switch (USER button).
COLOR TEMP 3200K
:
PRE
5600K
– C U F E
Set the AWB PRE color temperature.
AWB A
Select the function to be allocated to
WHITE BAL switch A.
MEM: Function to store values set by
executing the auto white
balance.
VAR: Function to apply color
temperature set by COLOR
TEMP A.
ON: Store the values set and adjusted
with the ECU when the ECU is
disconnected from the camerarecorder.
OFF: Does not store camera-related
set values.
Select the camera-recorder operation
to be performed when the ECU REC
CHECK button is pressed.
R.REVIEW: Perform REC REVIEW.
PLAY:
Play back the most-recently
recorded clip from the
beginning.
– C U F E
– C U F E
MEM
VAR
– C U F E
COLOR TEMP 3200K
:
A
5600K
– C U F E
Set the color temperature when VAR is
selected under AWB A.
AWB B
Select the function to be allocated to
WHITE BAL switch B.
MEM: Function to store values set by
executing auto white balance.
VAR: Function to apply color
temperature set by COLOR
TEMP B.
ATW: Function to execute autotracking white balance.
MEM
VAR
ATW
– C U F E
COLOR TEMP 3200K
:
B
5600K
– C U F E
Set the color temperature when VAR is
selected under AWB B.
ATW SPEED
Select the control speed for the autotracking white balance.
NORMAL
SLOW
– C U F E FAST
The ____ in the Adjustable Range column indicates the
preset mode.
112
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-6 MAIN OPERATION
8-5-7 USER SW GAIN
Items/
Adjustable
Data Saved
Range
S.GAIN
30 dB
Remarks
_
•
Select whether or not to enable 30dB
for SUPER GAIN.
_: Enable.
• : Disable.
_
•
Select whether or not to enable 36dB
for SUPER GAIN.
_: Enable.
• : Disable.
– C U F E
36 dB
8-6-1 BATTERY/P2CARD
– C U F E
8-5-8 IRIS
Items/
Adjustable
Data Saved
Range
A.IRIS LEVEL
000
Remarks
Set the target value for auto iris.
:
050
:
– C U F E 100
A.IRIS PEAK/
AVE
000
:
040
:
100
– C U F E
A.IRIS MODE
NORM1
NORM2
CENTR
Select the auto iris detection window.
NORM1:The window closer to the center
of the screen.
NORM2:The window closer to bottom of
the screen.
CENTR: The spot window in the center of
the screen.
000
Set the target value for the super iris.
– C U F E
S.IRIS LEVEL
Determine the peak-to-standard ratio
for the auto iris.
A larger value sets the auto iris to
respond to the peak in the IRIS
detection window, while a smaller value
sets it to respond to the average value
in the window.
:
080
:
Items/
Adjustable
Data Saved
Range
BATTERY
SELECT
PRO14
TRIM14
HYTRON50
HYTRON100
HYTRON120
DIONIC90
DIONIC160
HP-90L
BP-H120
NP-L50
ENDURA50
ENDURA80
BP-L60/90
NiCd14
NiCd13
NiCd12
TYPE A
– C U F – TYPE B
Select the battery to use. Remaining
capacity detection is also performed
according to the selected battery.
The selectable battery types change
depending on the settings under [8-6-2
BATTERY SETTING1] and [8-6-3
BATTERY SETTING2].
EXT DC IN
SELECT
AC_ADPT
PRO14
TRIM14
HYTRON50
HYTRON100
HYTRON120
DIONIC90
DIONIC160
HP-90L
BP-H120
NP-L50
ENDURA50
ENDURA80
BP-L60/90
NiCd14
NiCd13
NiCd12
TYPE A
– C U F – TYPE B
Set the remaining capacity detection
type when a battery is connected to the
DC IN connector. Remaining capacity
detection is also performed according
to the selected battery type.
The selectable battery types change
depending on the settings under [8-6-2
BATTERY SETTING1] and [8-6-3
BATTERY SETTING2].
<Note>
The % display is disabled even when a
digital battery is connected to the DC IN
connector.
BATT NEAR
END ALARM
ON
OFF
Select whether or not to set the alarm
to beep for BATT NEAR END ALARM.
ON
OFF
If set to ON, the warning tone and
indication can be canceled by pressing
the MODE CHECK button when BATT
NEAR END ALARM is triggered.
ON
OFF
Select whether or not to set the alarm
to beep for BATT END ALARM.
– C U F E 100
– C U F –
IRIS GAIN
BATT NEAR
END CANCEL
CAM
LENS
– C U F E
IRIS GAIN
VALUE
01
:
08
:
– C U F E 20
Select which unit controls IRIS GAIN.
<Note>
Lenses with an extender, such asC2,
C0.8 sold before FUJINON DIGI
POWER, perform IRIS compensation
while enabling the extender. Therefore,
if this setting is switched to CAM, the
camera’s iris control will not operate
properly.
Remarks
– C U F –
BATT END
ALARM
– C U F –
BATT REMAIN 70%
100%
FULL
Set the adjustable value for IRIS GAIN.
This setting is effective when CAM is
selected for IRIS GAIN.
– C U F –
Set the display content of the remaining
battery capacity indicator bars in the
display window when using a digital
battery.
70%: Indicate FULL at 70% capacity.
100%: Indicate FULL at 100% capacity.
The ____ in the Adjustable Range column indicates the
preset mode.
113
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-6-2 BATTERY SETTING1
Items/
Adjustable
Data Saved
Range
CARD NEAR
END ALARM
ON
OFF
Select whether or not to set the alarm
to beep for P2 CARD NEAR END
ALARM.
2min
3min
Set the remaining time to indicate the
P2 CARD NEAR END TIME alarm.
ON
OFF
Select whether or not to set the alarm
to beep for P2 CARD END ALARM.
– C U F –
CARD NEAR
END TIME
Remarks
Items/
Adjustable
Data Saved
Range
PRO14
_
•
MANUAL
AUTO
– C U F –
CARD END
ALARM
11.0
:
– C U F –
CARD REMAIN/ 3min/„
„
5min/„
– C U F –
13.9
Set the length of time for one segment
(„) of the P2 card’s remaining capacity
indicator bars.
3min/„: One segment represents 3
minutes.
5min/„: One segment represents 5
minutes.
:
Remarks
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the
above menu, set the NEAR END
voltage in 0.1 V steps.
– C U F – 15.0
TRIM14
_
•
MANUAL
AUTO
11.0
:
13.6
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
– C U F – 15.0
HYTRON50
_
•
MANUAL
AUTO
11.0
:
13.1
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
– C U F – 15.0
HYTRON100
_
•
MANUAL
AUTO
11.0
:
13.2
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
– C U F – 15.0
HYTRON120
_
•
MANUAL
AUTO
11.0
:
13.1
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
– C U F – 15.0
The ____ in the Adjustable Range column indicates the
preset mode.
114
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
Items/
Adjustable
Data Saved
Range
DIONIC90
_
•
MANUAL
AUTO
11.0
:
13.6
:
Remarks
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
– C U F – 15.0
DIONIC160
_
•
MANUAL
AUTO
11.0
:
13.3
:
_
•
MANUAL
AUTO
11.0
:
12.8
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
_
•
MANUAL
AUTO
11.0
:
11.5
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
_
•
MANUAL
AUTO
11.0
:
13.3
:
MANUAL
AUTO
11.0
:
13.1
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
ENDURA80
_
•
MANUAL
AUTO
11.0
:
13.5
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
BP-L60/90
_
•
MANUAL
AUTO
11.0
:
11.2
:
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
– C U F – 15.0
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
– C U F – 15.0
NP-L50
_
•
– C U F – 15.0
– C U F – 15.0
BP-H120
ENDURA50
Remarks
– C U F – 15.0
– C U F – 15.0
HP-90L
Items/
Adjustable
Data Saved
Range
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Select auto or manual to set the NEAR
END voltage.
MANUAL: Set voltage manually.
AUTO: Set voltage automatically.
When MANUAL is selected in the menu
above, set the NEAR END voltage in
0.1 V steps.
<Note>
The remaining battery capacity for digital batteries is
displayed as % inside the viewfinder (PRO14/TRIM14/
HYTRON50/HYTRON100/HYTRON120/DIONIC90/
DIONIC160/NP-L50/ENDURA50/ENDURA80).
The BATT NEAR END alarm, however, is triggered
according to the setting on the <BATTERY SETTING1>
screen, regardless of the % indication.
The ____ in the Adjustable Range column indicates the
preset mode.
– C U F – 15.0
115
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-6-3 BATTERY SETTING2
Items/
Adjustable
Data Saved
Range
NiCd14
_
•
NEAR END 11.0
:
13.6
Remarks
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Set the NEAR END voltage in 0.1 V
steps.
8-6-4 MIC/AUDIO1
Items/
Adjustable
Data Saved
Range
FRONT VR CH1 OFF
FRONT
W.L.
REAR
ALL
:
END
15.0
11.0
:
13.2
:
– C U F – 15.0
NiCd13
_
•
NEAR END 11.0
:
12.7
When MANUAL is selected in the menu
above, set the END voltage in 0.1 V
steps.
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Set the NEAR END voltage in 0.1 V
steps.
:
END
15.0
11.0
:
12.2
:
– C U F – 15.0
NiCd12
_
•
NEAR END 11.0
:
11.5
When MANUAL is selected in the menu
above, set the END voltage in 0.1 V
steps.
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Set the NEAR END voltage in 0.1 V
steps.
END
:
11.2
:
– C U F – 15.0
TYPE A
_
•
FULL
12.0
:
15.0
:
13.6
Select the microphone low-cut filter.
When MANUAL is selected in the menu
above, set the END voltage in 0.1 V
steps.
MIC LOWCUT
CH2
OFF
FRONT
W.L.
– C U F – REAR
Select the microphone low-cut filter.
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Set the voltage to display the FULL
indication in 0.1 V steps.
LIMITER CH1
ON
OFF
Select the limiter.
ON
OFF
Select the limiter.
2CH
4CH
Select the audio channels to be
recorded in the DVCPRO and DV
formats.
2CH: Only recorded in CH1 and CH2.
4CH: Recorded in all channels from
CH1 to CH4.
OFF
NORMAL
ALWAYS
CHSEL
Select the test signal.
OFF:
Disable test tone output.
NORMAL: Output test tones to CH1/2
when the OUTPUT/AUTO
KNEE selector switch is set to
BARS and the AUDIO IN
switch CH1 is set to FRONT.
ALWAYS: Output test tones to CH1/2 when
OUTPUT/AUTO KNEE selector
switch is set to BARS.
CHSEL: Output test tone to the
channels where the AUDIO
IN switch CH1 or CH2 is set
to FRONT when OUTPUT/
AUTO KNEE selector switch
is set to BARS. The test tone
is not output to CH3 and CH4.
– C U F –
LIMITER CH2
– C U F –
Set the NEAR END voltage in 0.1 V
steps.
25M REC CH
SEL
:
END
15.0
11.0
:
13.2
:
– C U F – 15.0
_
•
TYPE B
FULL
12.0
:
13.5
When MANUAL is selected in the menu
above, set the END voltage in 0.1 V
steps.
– C U F –
TEST TONE
Enable selection under BATTERY
SELECT.
_:Enable selection.
• :Disable selection.
Set the voltage to display the FULL
indication in 0.1 V steps.
:
17.0
NEAR END 11.0
:
11.8
Set the NEAR END voltage in 0.1 V
steps.
:
END
15.0
11.0
:
11.1
:
– C U F – 15.0
116
Select whether or not to enable the
FRONT AUDIO LEVEL control for the
signal selected as an input signal to
AUDIO CH2.
OFF: Disabled for any input selected.
Recording level does not
change by turning the volume
control.
FRONT: Only enabled when FRONT is
selected.
W.L.: Only enabled when WIRELESS
is selected.
REAR:Only enabled when REAR is
selected.
ALL: Enabled for any input selected.
OFF
FRONT
W.L.
– C U F – REAR
:
17.0
NEAR END 11.0
– C U F –
Select whether or not to enable the
FRONT AUDIO LEVEL control for the
signal selected as the input signal to
AUDIO CH1.
OFF: Disabled for any input selected.
Recording level does not
change by turning the volume
control.
FRONT: Only enabled when FRONT is
selected.
W.L.: Only enabled when WIRELESS
is selected.
REAR:Only enabled when REAR is
selected.
ALL: Enabled for any input selected.
MIC LOWCUT
CH1
:
15.0
11.0
– C U F –
FRONT VR CH2 OFF
FRONT
W.L.
REAR
ALL
Remarks
When MANUAL is selected in the menu
above, set the END voltage in 0.1 V
steps.
– C U F –
The ____ in the Adjustable Range column indicates the
preset mode.
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-6-5 MIC/AUDIO2
Items/
Adjustable
Data Saved
Range
FRONT MIC
POWER
8-6-6 TC/UB
Remarks
Items/
Adjustable
Data Saved
Range
ON
OFF
Select the phantom power supply for
the front microphone.
TC MODE
ON
OFF
Select the phantom power supply for
the rear microphone.
UB MODE
ON
OFF
Set the audio output circuit.
OFF: Power-down output circuit to
disable output.
ON: Enable output.
STEREO
MIX
Select the signal format for output to
the PHONE (earphones) jack.
–40dB
–50dB
Select the front microphone input level.
REAR MIC CH1 –50dB
LVL
–60dB
Select the rear microphone input level.
– C U F –
REAR MIC
POWER
– C U F –
MONITOR
SELECT
DF
NDF
Set the time code mode.
DF:
Drop frame.
NDF: Non drop frame.
USER
TIME
DATE
EXT
TCG
FRM RATE
REGEN
Select the user bits mode.
USER:Select UB value set in the LCD
section.
TIME: Select local time (hours,
minutes, seconds).
DATE: Select local date and time (2 last
digits of year, month, date,
time).
EXT: When “CAM” or “VIDEO” is
selected in the menu option
REC SIGNAL in the SYSTEM
MODE screen, user’s bit input to
the TC IN connector is the
reference.
When “1394” is selected, user’s
bit input to the DVCPRO/DV
connector is the reference.
If reading fails, USER value is
retained.
TCG: TCG value enters UB.
FRM RATE:
Select same camera shoting
information (frame rate, etc.) with
the VAUX UB (VITC UB).
REGEN:Read out value stored in the
card and record value
continuously.
– C U F –
– C U F –
AUDIO OUT
– C U F –
FRONT MIC
LEVEL
– C U F –
– C U F –
REAR MIC CH2 –50dB
LVL
–60dB
Select the rear microphone input level.
– C U F –
REAR LINE IN
LVL
–3dB
0dB
– C U F – +4dB
Select the rear line input level.
AUDIO OUT LVL –3dB
0dB
– C U F – +4dB
Select the audio output level.
– C U F –
HEADROOM
18dB
– C U F – 20dB
Set the headroom (standard level).
WIRELESS
WARN
Select whether or not to enable the
alarm to trigger for poor wireless
receiver reception.
VITC UB MODE USER/EXT
TIME
DATE
TCG
FRM RATE
REGEN
– C U F –
ON
OFF
– C U F –
TCG SET HOLD ON
OFF
– C U F –
Remarks
Select the user bits mode for VAUX TC
(VITC).
USER/EXT:
If UB MODE is set to EXT, the
EXT value is recorded. If not,
USER value set by UB is
recorded.
TIME: Select local time (hours,
minutes, seconds).
DATE: Select local date and time (2 last
digits of year, month, date,
time).
TCG: TCG value enters UB.
FRM RATE:
Select same camera shoting
information (frame rate, etc.) with
the VAUX UB (VITC UB).
REGEN:Read out value stored in card
and record value continuously.
ON/OFF switching for the feature that
always starts recording (when the
power is turned ON again) the TCG
value that was set before the power is
turned OFF.
The ____ in the Adjustable Range column indicates the
preset mode.
117
8
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-7 FILE
8-7-1 SD CARD READ/WRITE
Items/
Adjustable
Data Saved
Range
FIRST REC TC PRESET
REGEN
– C U F –
P.OFF LCD
DISPLAY
ON
OFF
– C U F –
TC OUT
TCG
TCG/TCR
– C U F –
Remarks
For the first recording after the power is
turned on, a P2 card is inserted and
then switching from this P2 card to
another recording-target P2 card is
performed, select whether or not to
regenerate the time code as the value
on the new P2 card.
PRESET:
Use the camera-recorder’s internal
time code.
REGEN:For clips recorded on the
recording-target P2 card,
regenerate the time code as the
time code of the clip that has the
most recent date and time.
<Note>
Set the date and time accurately. For
guidance on setting, see [4-5-2 Setting
the Internal Clock’s Date and Time].
Select whether or not to display the
time code setting and counter
indication on the LCD monitor when the
power is turned OFF.
ON: Display setting and indication
while the power is turned OFF.
OFF: Power-down LCD monitor while
camera power is turned OFF.
Setting and indication disabled.
Select the time code to be output to the
time code output connector.
TCG:Always output time code
generator value.
TCG/TCR:
Display time code generator value
in E-E mode, and time code
reader value in V-V mode.
8-6-7 UMID SET/INFO
Items/
Adjustable
Data Saved
Range
COUNTRY
NO-INFO
Remarks
Input the user’s country. NO-INFO is
displayed until the input completes.
– C U F –
ORGANIZATION NO-INFO
– C U F –
USER
NO-INFO
Input the user’s organisation or
company name. NO-INFO is displayed
until the input completes.
Input the user name. NO-INFO is
displayed until the input completes.
– C U F –
DEVICE NODE
Indicate the product ID number.
– – – – –
<Note>
Please refer to [4-5-6 Setting UMID Information] for the
UMID information setting.
118
Items/
Adjustable
Data Saved
Range
R.SELECT
1
:
– – – F – 8
READ
Remarks
Select the file number to read out.
Read out the data from the SD memory
card.
– – – – –
W.SELECT
1
:
– – – F – 8
WRITE
Select the file number to write in.
Write the camera-recorder’s menu data
to the SD memory card.
– – – – –
CARD CONFIG
Format the SD memory card.
– – – – –
TITLE READ
Read out the title of the data recorded
on the SD memory card.
– – – – –
TITLE1-8:
Up to 8 letters can be set for the title
name.
– – – – –
The ____ in the Adjustable Range column indicates the
preset mode.
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-7-2 SD CARD R/W SELECT
Items/
Adjustable
Data Saved
Range
ID READ/
WRITE
Remarks
ON
OFF
Select whether or not to include the
CAMERA ID when reading out or
writing to the SD memory card.
ON
OFF
Select whether or not to include the
FILE MENU settings when reading out
or writing to the SD memory card.
SYSTEM MENU ON
OFF
R/W
Select whether or not to include the set
values on the SYSTEM SETTING page
when reading out or writing to the SD
memory card.
– – – F –
USER MENU
SELECT R/W
– – – F –
– – – F –
PAINT MENU
LEVEL R/W
ON
OFF
Select whether or not to include the
adjusted values on the PAINT page
when reading out or writing to the SD
memory card.
ON
OFF
Select whether or not to include the set
values on the PAINT MENU page when
reading out or writing to the SD
memory card.
– – – F –
PAINT MENU
SW(„) R/W
– – – F –
PAINT (FLARE) ON
R/W
OFF
– – – F –
VF MENU
R/W
1
:
– – – – – 8
READ
Select the lens file number.
Read the lens file data.
– – – – –
WRITE
Write the lens file data.
– – – – –
TITLE1-8
Up to 12 letters can be set for the title
name.
– – – – –
8-7-4 SCENE
Items/
Adjustable
Data Saved
Range
READ USER
DATA
8
Remarks
Read out the data from the user area in
the memory.
– – – – –
SCENE SEL
Select the scene file.
ON
OFF
Select whether or not to include the set
values on the CAM OPERATION page
when reading out or writing to the SD
memory card.
READ
Read the scene file.
ON
OFF
– – – F –
MAINTE MENU ON
R/W
OFF
– – – F –
FILE NO.
Remarks
Select whether or not to include the set
values on the VF page when reading
out or writing to the SD memory card.
– – – F –
MAIN OPE
MENU R/W
Items/
Adjustable
Data Saved
Range
ON
OFF
– – – F –
CAM OPE
MENU R/W
Select whether or not to include the set
values on the FLARE page when
reading out or writing to the SD
memory card.
8-7-3 LENS FILE
1
:
– – – – – 4
– – – – –
WRITE
Select whether or not to include the set
values on the MAIN OPERATION page
when reading out or writing to the SD
memory card.
– – – – –
Select whether or not to include the set
values on the MAINTENANCE page
when reading out or writing to the SD
memory card.
TITLE 1-4
RESET
Write the scene file.
Reset the scene file values to the initial
values.
– – – – –
Create the scene file title.
– – – – –
8-7-5 INITIALIZE
Items/
Adjustable
Data Saved
Range
READ
FACTORY DATA
Remarks
– – – – –
The menu (USER MENU, MAIN MENU,
OPTION MENU) values are all reset to
factory settings.
WRITE USER
DATA
Save the user preference menu data in
the camera’s internal memory.
– – – – –
RESET LENS
FILES
Reset the lens file data to the factory
settings.
– – – – –
The ____ in the Adjustable Range column indicates the
preset mode.
119
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-8 MAINTENANCE
8-8-5 DIAGNOSTIC1
8-8-1 SYSTEM CHECK
Items/
Adjustable
Data Saved
Range
COLOR CHECK ON
OFF
– – – – –
Remarks
ON/OFF switching for checking proper
operation of the camera-recorder.
Displays the center Y and RGB levels
on the viewfinder to indicate whether
the signals have been properly
processed and transmitted from the
optical system to the digital system.
Items/
Adjustable
Data Saved
Range
CAMSOFT(IN)
– – – – –
FONT ROM
Items/
Adjustable
Data Saved
Range
Remarks
ON
OFF
The iris is only set to F2.8 when this
item set to ON.
ON
OFF
The iris is only set to F16 when this
item set to ON.
CAM SYS
FPGA
– – – – –
– – – – –
PULSE FPGA
8-8-3 BLACK SHADING
Items/
Adjustable
Data Saved
Range
– – – – –
Remarks
ON
OFF
ON/OFF switching for digital black
shading compensation.
–
Execute digital black shading
compensation.
– C U F E
DETECTION
(DIG)
– – – – –
8-8-4 WHITE SHADING
Items/
Adjustable
Data Saved
Range
CORRECT
Remarks
ON
OFF
ON/OFF switching for white shading
compensation.
–
Execute white shading compensation.
– C U F E
DETECTION
(V SAW)
– – – – –
120
Display the table version.
Display the character font version.
– – – – –
CAM DSP CPLD
– – – – –
– – – – –
CORRECT
Display the software version for the
external flash.
– – – – –
8-8-2 LENS ADJ
F16 ADJ
Display the software version for the
microprocessor-controlled flash.
– – – – –
CAMSOFT
(OUT)
CAM TABLE
F2.8 ADJ
Remarks
Display the program version for the
CPLD (Complex Programmable Logic
Device) that processes camera block
signals.
Display the program version for the
FPGA (Field Programmable Gate
Array) that processes camera block
signals.
Display the program version for the
FPGA that processes the CCD
scanning.
The ____ in the Adjustable Range column indicates the
preset mode.
#,52%2
'PINKUJDQQMࡍ࡯ࠫ㧞㧜㧜㧢ᐕ㧡᦬㧝㧝ᣣ‫ᦐᧁޓ‬ᣣ‫ޓ‬ඦ೨㧥ᤨ㧠㧡ಽ
Chapter 8 Menu Description Tables (continued)
8-9 OPTION MENU
8-8-6 DIAGNOSTIC2
Items/
Adjustable
Data Saved
Range
SYSCON SOFT
8-9-1 OPTION
Remarks
Display the software version for the
system control microprocessor.
Items/
Adjustable
Data Saved
Range
ENG
SECURITY
ON
OFF
Select whether or not to prohibit
opening the menu screen.
ON: Menu screen cannot be opened.
Please consult your distributor to
release the setting.
OFF: Menu screen can be opened.
ON
OFF
Select whether or not to inhibit mixing
the ID in the camera image.
ON: Inhibit mixing. ID is not mixed in
the camera image.
OFF: Do not inhibit. Camera ID setting
under VF INDCATOR1 is
reflected in the camera image.
DELAYED
THROUGH
Select whether or not to delay audio,
headphone and speaker outputs.
DELAYED:
Delay audio output in
synchronisation with video output.
THROUGH:
Output audio input without delay.
This setting prevents echo effect
between the sound source and
audio output when the sound source
is near the camera-recorder.
– – – – –
LCD SOFT
Display the software version for the
LCD microprocessor.
– C – – –
– – – – –
P2CS OS
Display the OS version for the
streaming controller.
ID MIX INH
– – – – –
P2CS AP
Display the application version for the
streaming controller.
– C – – –
– – – – –
MSC FPGA
– – – – –
SIF FPGA
Display the program version for MSC
FPGA streaming control and for
recording/playback signal processing
FPGA.
AUDIO OUT
DELAY
Display the program version for the
serial interface FPGA.
– – – – –
DIF FPGA
– – – – –
Display program version for the
IEEE1394 interface FPGA.
(when AJ-YAD800G is attached).
Remarks
– C – – –
<Note>
8-8-7 HOURS METER
Items/
Adjustable
Data Saved
Range
OPERATION
Remarks
Display total hours the camera power
has been turned ON.
– – – – –
LCD
BACKLIGHT
Menu options for setting 1394 are displayed when an
IEEE1394 interface board (AJ-YAD800G, optional) is
attached. For more information, see the AJ-YAD800G
instruction manual.
The ____ in the Adjustable Range column indicates the
preset mode.
Display total hours the LCD monitor
backlight power has been turned ON.
– – – – –
P.ON TIMES
Display total number of times the power
switch has been turned ON.
– – – – –
121
8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
