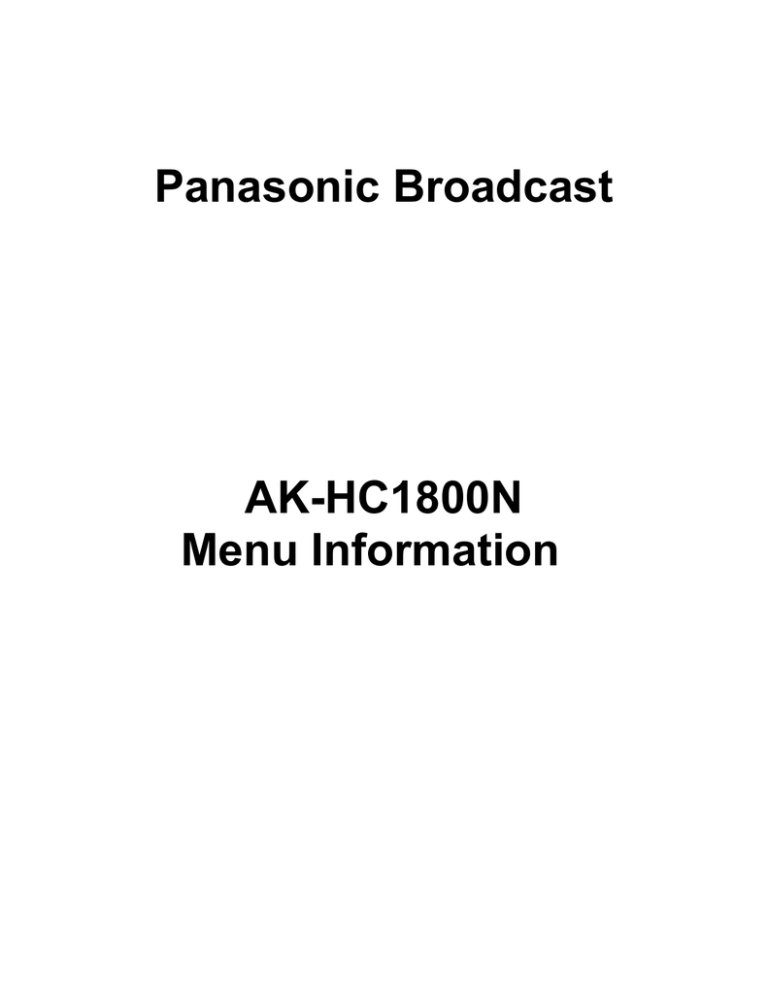

Panasonic Broadcast
AK-HC1800N
Menu Information
Setting of menu items
How to display the menus
Two methods are used to display the menus.
 Using AK-HC1800N multi purpose camera to display the menus:
Hold down the MENU switch on the rear panel of the main unit for at least 3 seconds
to display the TOP menu.
Use the UP/DOWN switch to move the cursor to the target item, and press the
ENTER switch to move to a menu at a lower hierarchical level.
 Using AK-HRP150G camera controller
Press the MENU ON/OFF switch on the AK-HRP150G so that its lamp lights.
The TOP menu now appears.
Move the cursor to the target item, and press the MENU switch to move to a menu at
a lower hierarchical level.
TOP menu
When the VIDEO MENU is selected:
When the FILM MENU is selected:
- 28 -
Setting of menu items
 MAINTENANCE menu
[1] BLACK SHADING
DETECTION
For automatically correcting the black
shading.
CORRECT(DIG) [OFF, ON]
For ON/OFF control of the detection
correction.
- 29 -
Setting of menu items
 MAINTENANCE menu
[2] PEDESTAL, GAMMA
M PEDESTAL [–200 to +200]
For adjusting the black level.
R PEDESTAL [–100 to +100]
For correcting the red in relation to the
master pedestal.
B PEDESTAL [–100 to +100]
For correcting the blue in relation to the
master pedestal.
When the AK-HRP150G has been
connected, M PEDESTAL, R PEDESTAL and
B PEDESTAL operations cannot be
performed using the menu.
M GAMMA
[0.30 to 0.75 (DRS OFF), –10 to +10 (DRS ON)]
For adjusting the gamma characteristics.
R GAMMA
[–15 to +15 (DRS OFF), –10 to +10 (DRS ON)]
For adjusting the gamma characteristics
of the red in relation to the master gamma
characteristics.
B GAMMA
[–15 to +15 (DRS OFF), –10 to +10 (DRS ON)]
For adjusting the gamma characteristics of
the blue in relation to the master gamma
characteristics.
M BLACK GAMMA [–32 to +32]
For adjusting the gamma characteristics in
the vicinity of the black.
R BLACK GAMMA [–15 to +15]
For adjusting the gamma characteristics of
the red in the vicinity of the black in relation
to the master gamma characteristics.
- 30 -
Setting of menu items
 MAINTENANCE menu
[2] PEDESTAL, GAMMA
B BLACK GAMMA [–15 to +15]
For adjusting the gamma characteristics of
the blue in the vicinity of the black in relation
to the master gamma characteristics.
GAMMA [OFF, ON]
For turning the gamma correction ON or OFF.
BLACK GAMMA [OFF, ON]
For turning the black gamma correction ON
or OFF.
When ON has been selected as the DRS
setting, the BLACK GAMMA setting does not
take effect.
When the VIDEO MENU is selected:
EFFECT DEPTH [1 to 5]
For selecting the effects of the contrast
adjustment when ON has been set for DRS.
DRS [OFF, ON]
For adjusting the contrast automatically when
this is set to ON.
When the FILM MENU is selected:
CINE GAMMA SELECT
[VIDEO REC, FILM REC]
For selecting either the film-use or video-use
cine gamma characteristics.
BLACK STR. LEVEL [00% to 30%]
For setting the BLACK STRETCH position.
DYNAMIC LEVEL [200% to 500%]
For setting the dynamic range.
- 31 -
Setting of menu items
 MAINTENANCE menu
[3] FLARE
R FLARE [000 to 100]
G FLARE [000 to 100]
B FLARE [000 to 100]
For adjusting the flare correction.
FLARE [OFF, ON]
For turning the flare correction ON or OFF.
- 32 -
Setting of menu items
 MAINTENANCE menu
[4] KNEE, WHITE CLIP
(When the KNEE is set to
MANUAL)
M KNEE POINT
[080.00% to 107.00% (VIDEO MENU)]
[30% to 90% (FILM MENU/VIDEO REC)]
For adjusting the knee point.
R KNEE POINT [–25.00% to +25.00%]
For correcting the knee point of the red in
relation to the master knee point.
B KNEE POINT [–25.00% to +25.00%]
For correcting the knee point of the blue in
relation to the master knee point.
M KNEE SLOPE
[00 to 99 (VIDEO MENU)]
[150% to 600% (FILM MENU)]
For adjusting the knee slope.
R KNEE SLOPE [–99 to +99]
For adjusting the knee slope of the red in
relation to the master knee slope.
B KNEE SLOPE [–99 to +99]
For adjusting the knee slope of the blue in
relation to the master knee slope.
The M KNEE POINT and M KNEE SLOPE
settings do not take effect when a setting
other than MANUAL is selected for KNEE or
ON is selected as the DRS setting when the
VIDEO MENU has been selected or when
FILM REC is selected as the CINE GAMMA
SEL setting when the FILM MENU has been
selected.
Similarly, the R/B KNEE POINT and R/B
KNEE SLOPE settings do not take effect
when a setting other than MANUAL is
selected for KNEE or ON is selected as the
DRS setting when the VIDEO MENU has
been selected or when the FILM MENU has
been selected.
- 33 -
Setting of menu items
 MAINTENANCE menu
[4] KNEE, WHITE CLIP
(When the KNEE is set to
AUTO)
A. KNEE POINT [080.00% to 107.00%]
For setting the auto knee break point position.
This setting does not take effect when a
setting other than AUTO is selected for KNEE
or ON is selected as the DRS setting when
the VIDEO MENU has been selected or when
the FILM MENU has been selected.
A. KNEE LEVEL [100% to 109%]
For setting the maximum level of auto knee.
This setting does not take effect when a
setting other than AUTO is selected for KNEE
or ON is selected as the DRS setting when
the VIDEO MENU has been selected or when
the FILM MENU has been selected.
M WHITE CLIP LVL [090% to 109%]
For setting the white clip level.
R WHITE CLIP LVL [–15% to +15%]
For correcting the amount of red for the
M WHITE CLIP LVL.
B WHITE CLIP LVL [–15% to +15%]
For correcting the amount of blue for the
M WHITE CLIP LVL.
- 34 -
Setting of menu items
 MAINTENANCE menu
[4] KNEE, WHITE CLIP
KNEE [OFF, MANUAL, AUTO]
For selecting the knee operation mode.
This setting does not take effect when FILM
REC is selected or DRS is ON.
WHITE CLIP [OFF, ON]
For tuning white clip ON or OFF.
HIGH COLOR [OFF, ON]
For improving the color reproducibility of the
high-brightness areas when it is set to ON.
This setting does not take effect when a
setting other than MANUAL is selected for
KNEE or ON is selected as the DRS setting
when the VIDEO MENU has been selected
or when the FILM MENU has been selected.
[5] R/B GAIN
R GAIN [–200 to +200]
For adjusting the gain of the red.
B GAIN [–200 to +200]
For adjusting the gain of the blue.
ND FILTER [CLEAR, 1/4, 1/16, 1/64]
For selecting the ND filter setting.
When the AK-HRP150G has been
connected, the items on this page cannot be
operated using the menu.
- 35 -
Setting of menu items
 MAINTENANCE menu
[6] DETAIL
DETAIL [OFF, ON]
For turning all the detail functions ON or OFF.
TOTAL DTL LEVEL [–31 to +31]
For setting the H DTL and V DTL levels.
H DTL LEVEL [00 to 63]
For setting the H DTL level.
CRISP [00 to 31]
For setting the noise elimination level of the
detail signals.
LEVEL DEPENDENT [00 to 15]
For removing the detail in the dark areas.
PEAK FREQUENCY [00 to 31]
For setting the H DTL peak frequency.
KNEE APERTURE [OFF, ON]
For turning the emphasizing of the outlines
for the high-brightness areas ON or OFF.
KNEE APE LEVEL [0 to 5]
For adjusting the knee aperture level.
- 36 -
Setting of menu items
 MAINTENANCE menu
[6] DETAIL
SLIM DETAIL [OFF, ON]
For setting the detail more finely at ON.
DETAIL(+) [–31 to +31]
For adjusting the detail gain in the + direction.
DETAIL(–) [–31 to +31]
For adjusting the detail gain in the – direction.
DETAIL CLIP [00 to +63]
For minimizing the glare caused by adding
too much detail as a result of a detail clip
adjustment.
DETAIL SOURCE
[(G+R)/2, (G+B)/2, (2G+B+R)/4, (3G+B)/4,
R, G]
For setting the ratio of the RGB signal
components which create the detail.
- 37 -
Setting of menu items
 MAINTENANCE menu
[7] SKIN TONE DETAIL
SKIN TONE DTL [OFF, ON]
For turning the SKIN TONE DTL ON or OFF.
SKIN GET [OFF, ON]
When ON is selected, the box cursor is
output to the screen center. When the image
of the subject’s skin is placed inside the
box cursor and the ENTER operation is
performed,
I CENTER and Q PHASE are set
automatically.
SKIN DTL CORING [0 to 7]
For setting the SKIN TONE DTL coring
amount.
Y MAX [000 to 255]
For setting the upper limit of the brightness in
the skin tone specification area.
Y MIN [000 to 255]
For setting the lower limit of the brightness in
the skin tone specification area.
I CENTER [000 to 255]
For setting the phase of the I axis in the skin
tone specification area.
I WIDTH [000 to 255]
For setting the phase width of the I axis in the
skin tone specification area.
Q WIDTH [000 to 255]
For setting the phase range of the Q axis in
the skin tone specification area.
Q PHASE [–128 to +127]
For setting the phase of the Q axis in the skin
tone specification area.
- 38 -
Setting of menu items
 MAINTENANCE menu
[8] GAIN, AUTO IRIS
LOW GAIN [–06dB to 30dB]
MID GAIN [–06dB to 30dB]
HIGH GAIN [–06dB to 30dB]
For setting the amount by which the gain is to
be increased when LOW, MID or HIGH has
been selected by GAIN SELECT.
A.IRIS LEVEL [000 to 100]
For adjusting the target level (brightness) of
the auto iris.
A.IRIS PEAK/AVE [000 to 100]
For setting the ratio between the auto iris
light-metering peak value and average value.
A.IRIS WINDOW [NORM1, NORM2, CENTR]
For setting the auto iris light-metering area.
NORM1:The light is metered on the
entire screen (except around the
edges).
NORM2:The light is metered on the entire
screen (except at the top).
CENTR:The light is metered only in the
area at the screen center.
IRIS MODE [LENS, CAM]
For switching between the iris gain control
on the lens (LENS) and the menu (CAM) to
adjust the focusing speed of the auto iris.
Normally, LENS is selected, and the speed
is adjusted using the iris gain control on the
lens.
IRIS GAIN [01 to 10]
For adjusting the iris gain when CAM has
been selected as the IRIS MODE setting.
- 39 -
Setting of menu items
 MAINTENANCE menu
[9] SUPER GAIN
These settings are performed when
S.GAIN1, S.GAIN2 or S.GAIN3 has been
selected by GAIN SELECT.
MODE [S.GAIN1, S.GAIN2, S.GAIN3]
For selecting the S.GAIN storage table.
TOTAL GAIN [00dB to 72dB]
For displaying the total gain for GAIN, PIX
MIX, V MIX and FRAME MIX.
GAIN [00dB to 36dB]
For setting the gain increase.
(The increase is set in increments of 3 dB.)
PIX MIX [OFF, +6dB]
For setting the addition of horizontal pixels
ON or OFF.
V MIX [OFF, +6dB]
For setting the addition of vertical pixels ON
or OFF.
FRAME MIX [OFF, 06dB to 24dB]
For setting the gain increase based on
accumulation in the CCD image sensor.
(The increase is set in increments of 6 dB.)
H DETAIL LEVEL [00 to 63]
For setting the H DETAIL level.
CRISP [00 to 31]
For setting the noise elimination level of the
detail signals.
- 40 -
Setting of menu items
 MAINTENANCE menu
[9] SUPER GAIN
LEVEL DEPENDENT [00 to 15]
For removing the detail in the dark areas.
The higher the number set, the wider the
range in which the detail is removed.
PEAK FREQUENCY [00 to 31]
For setting the H DTL peak frequency.
M GAMMA
[0.35 to 0.75 (DRS OFF)]
[–10 to +10 (DRS ON)]
For adjusting the gamma characteristics.
M PED OFFSET [–200 to +200]
For adjusting the amount of offset in the
black level.
R PED OFFSET [–200 to +200]
For adjusting the amount of offset in the
R pedestal.
B PED OFFSET [–200 to +200]
For adjusting the amount of offset in the
B pedestal.
- 41 -
Setting of menu items
 MAINTENANCE menu
[10] FRAME MODE
SCAN REVERSE [OFF, REVERSE1 to 3]
For selecting the video output scanning
method.
OFF:
Normal scanning
REVERSE1: Left/right reversed
REVERSE2: Top/bottom reversed
REVERSE3:Top/bottom and left/right
reversed
[11] MATRIX
MATRIX TABLE [A, B]
For selecting the table in which the matrix
data is to be stored.
MATRIX R-G [–31 to +31]
MATRIX R-B [–31 to +31]
MATRIX G-R [–31 to +31]
MATRIX G-B [–31 to +31]
MATRIX B-R [–31 to +31]
MATRIX B-G [–31 to +31]
For adjusting the color tone of each color
phase.
- 42 -
Setting of menu items
 MAINTENANCE menu
[12] COLOR CORRECTION
R
SAT/PHASE [–63 to +63]
Mg SAT/PHASE [–63 to +63]
B
SAT/PHASE [–63 to +63]
Cy SAT/PHASE [–63 to +63]
G
SAT/PHASE [–63 to +63]
Yl
SAT/PHASE [–63 to +63]
R-Mg SAT/PHASE [–63 to +63]
Mg-B SAT/PHASE [–63 to +63]
B-Cy SAT/PHASE [–63 to +63]
Cy-G SAT/PHASE [–63 to +63]
G-Yl SAT/PHASE [–63 to +63]
Yl-R SAT/PHASE [–63 to +63]
For adjusting the color tone of each color
phase.
- 43 -
Setting of menu items
2 SETTING menu
[1] MODE
When the VIDEO MENU is selected
D5600K [OFF, ON]
When the FILM MENU is selected
LIGHTING [TUNGSTEN, DAYLIGHT]
ON, DAYLIGHT:
The color temperature is corrected
electrically to attain white balance in
5600K-degree environments.
OFF, TUNGSTEN:
The color temperature is corrected
electrically to attain white balance in
3200K-degree environments.
GAIN SELECT
[LOW, MID, HIGH, S.GAIN1 to 3]
For selecting LOW, MID, HIGH, S.GAIN1,
S.GAIN2 or S.GAIN3 as the gain setting.
CAM ID [OFF, BAR, ON]
For selecting how the camera ID is to be
displayed.
OFF: The camera ID is not displayed.
BAR:The camera ID is displayed only in
the color bar mode.
ON:The camera ID is displayed at all
times.
- 44 -
Setting of menu items
2 SETTING menu
[1] MODE
CAM ID POSI [0 to 3]
For selecting where the camera ID is to be
displayed.
0: top left, 1: top right, 2: bottom left,
3: bottom right
MATRIX TABLE [OFF, A, B]
For selecting OFF, A or B as the matrix
setting.
COLOR CORRECTION [OFF, ON]
For turning the color correction function ON
or OFF.
Note
When DIGITAL EXTENDER is set to
X2, the resolution is downgraded.
The detail function ceases to work as
well.
DIGITAL EXTENDER [OFF, X2]
For digitally doubling the images when set to
X2.
BAR SEL
[FULL (16:9), FULL (4:3), SMPTE (16:9),
SMPTE (4:3), ARIB]
For selecting the color bars.
Select the 4:3 color bars for down-conversion
at the system side. The color bars and
characters will then be contained within the
4:3 picture angle.
- 45 -
Setting of menu items
2 SETTING menu
[1] MODE
FORMAT
For displaying the video output format.
(1080/59.94i)
STATUS [OFF, ON]
For turning the AWB/ABB operation displays
ON or OFF.
The status displays are as follows.
AWB ACTIVE:
While automatic white balance is being
executed.
AWB OK:
When the automatic white balance has
been adjusted satisfactorily.
OUT RANGE RB:
When the automatic white balance has
not been adjusted satisfactorily.
(“RB” denotes the colors which were
not balanced properly.)
HIGH LIGHT NG:
When the lighting is too high.
LOW LIGHT NG:
When the lighting is too low.
ABB ACTIVE:
While automatic black balance is being
executed.
IRIS CONTROL NG:
When the lens is open.
- 46 -
Setting of menu items
2 SETTING menu
[1] MODE
ABB OK:
When the automatic black balance has
been adjusted satisfactorily.
OUT RANGE RGB:
When the automatic black balance has
not been adjusted satisfactorily.
(“RGB” denotes the colors which were
not balanced properly.)
MENU ON BAR [OFF, ON]
For selecting whether the menu is to be
displayed with the color bars.
Switching from ON to OFF or vice versa is
not possible when color bars have been set.
MENU SEL [VIDEO MENU, FILM MENU]
For selecting the menu display.
FAN [OFF, AUTO, ON]
For selecting the operation mode of the
air-cooled fan.
OFF: The fan is always off.
AUTO:The fan is automatically controlled
by the temperature sensor.
ON: The fan is running at all times.
At the FAN OFF setting, ensure that
the product is operated in an ambient
temperature below 86 °F (30 °C).
- 47 -
Setting of menu items
2 SETTING menu
[2] SHUTTER
SHUTTER MODE [OFF, ON, SYNCHRO]
For selecting the operation mode of the
shutter.
OFF:
For turning the shutter OFF.
ON:For setting the shutter speed
which was set by SHUTTER
SPEED.
SYNCHRO:For setting the shutter speed
which was set by SYNCHRO
SCAN.
SHUTTER SPEED
[1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
(VIDEO MENU)]
[180.0 deg, 172.8 deg, 144.0 deg, 120.0 deg,
90.0 deg, 45.0 deg (FILM MENU)]
For setting the shutter speed at the
SHUTTER ON setting.
SYNCHRO SCAN
[60.32 Hz to 149.2 Hz]
[356.4 deg to 144.0 deg (FILM MENU)]
For setting the shutter speed in the synchro
scanning mode.
- 48 -
Setting of menu items
2 SETTING menu
[3] GEN-LOCK
GEN-LOCK INPUT [BNC, DSUB]
For selecting whether the sync signals are to
be input from the BNC or D-SUB connector.
H PHASE-COARSE
[–060 to +060]
For roughly adjusting the horizontal phase.
H PHASE-FINE [–045 to +045]
For finely adjusting the horizontal phase.
SD-HD PHASE CRS [–4 to +4]
For roughly adjusting the phase of the HD
video signals when SD sync signals have
been input.
SD-HD PHASE FINE [–99 to +99]
For finely adjusting the phase of the HD
video signals when SD sync signals have
been input.
- 49 -
Setting of menu items
2 SETTING menu
[4] PROTOCOL
PROTOCOL [1 to 4]
For selecting the remote control
communication system in accordance with
the system connected.
1:Information camera communication
protocol (EIA422)
For connecting the AK-HRP150G or
AK-HRP900
(With the AK-HRP900, this setting
cannot be used at a baud rate of
9600 bps.)
2:Information camera communication
protocol (EIA232)
For connecting a PC
(This setting cannot be used at a baud
rate of 9600 bps.)
3:Convertible PC control protocol
(EIA422)
For connecting the AW-CB400
(baud rate fixed at 9600 bps)
4:Convertible PC control protocol
(EIA232) For connecting the AW‑PH400
pan/tilt head (baud rate fixed at
9600 bps)
The protocol is actually switched after the
power has been turned off and back on.
- 50 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
M-GAIN [–6dB to 72dB]
The current gain total is displayed here.
ND-FIL [CLEAR, 1/4, 1/16, 1/64]
The current ND filter position is displayed
here.
INTELLIGENT
[MANUAL, AUTO, LOCK]
The operation mode for intelligent control is
set here.
AUTO:AGC and ATW are adjusted
automatically.
LOCK:The status of the AGC and
ATW adjustments is held as
soon as the INTELLIGENT
item setting is changed from
AUTO to LOCK.
MANUAL:Intelligent control is operated
using the settings selected
from the regular menus and
camera controller.
When AUTO or LOCK is set on the
INTELLIGENT1 menu, INTELLIGENT2 is
set to MANUAL.
Similarly, when AUTO or LOCK is
set on the INTELLIGENT2 menu,
INTELLIGENT1 is set to MANUAL.
The INTELLIGENT SET menu settings are
also switched in tandem.
- 51 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
When AUTO or LOCK has been set as the
operation mode, restrictions apply to the
settings of some of the other menus, as
indicated below.
AGC
•The auto iris function is operational
regardless of whether the auto iris
setting from the camera controller is ON
or OFF.
•The setting from the menu and camera
controller is not reflected for GAIN
SELECT on the SETTING menu.
•The LOW GAIN, MID GAIN, and HIGH
GAIN settings for GAIN/AUTO IRIS
on the MAINTENANCE menu are not
reflected.
•The S.GAIN settings (gain, detail,
gamma, and pedestal settings) on the
MAINTENANCE menu are not reflected.
•The ND FILTER setting for R/B GAIN
on the MAINTENANCE menu is not
reflected.
ATW
•R/B GAIN can be controlled from the
menu and camera controller, but the
white balance is automatically adjusted
if the subject is identified as being white.
•AWB is executed in a 25 %  25 %
area at the center regardless of the
ATW AREA setting.
However, what is determined to be the
ATW color temperature is not always
consistent with AWB, so the white
balance may be changed by ATW after
AWB has been executed.
- 52 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
INTELLIGENT MODE
[AGC, ATW, AGC+ATW]
The intelligent control setting is selected
using this menu item.
AGC:When the gain cannot be
adjusted within the IRIS
RANGE setting, gain control
(including PIX MIX, V MIX,
and FRAME MIX) and
automatic exposure control
performed by adjusting the
ND filter setting are executed.
ATW:When the subject is
identified as being white, the
white balance is adjusted
automatically.
AGC+ATW:The above AGC and ATW
adjustments are performed at
the same time.
ND FILTER SELECT
[CLEAR, 1/4, 1/16, 1/64, AUTO]
The ND filter setting during AGC operations
is selected using this menu item.
AUTO:Depending on the light quantity,
the ND filter is adjusted to the
appropriate position.
CLEAR, 1/4, 1/16, 1/64:
The specified ND filter setting is
fixed.
During AGC operations, control cannot be
exercised from the camera controller.
AGC SPEED [1 to 5]
The AGC convergence speed can be set to
any of 5 levels here.
The speed becomes faster as the figure
increases.
- 53 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
AGC GAIN STEP [NORMAL, MAX]
The AGC gain increment or decrement step
is selected using this menu item.
NORMAL:In the case of underexposure,
the gain is incremented from
0 dB to AGC MAX GAIN in
very small steps. Conversely, in
the case of overexposure, it is
decremented from AGC MAX
GAIN to 0 dB in very small
steps.
MAX:In the case of underexposure,
the gain is incremented
straight from 0 dB to AGC
MAX GAIN. Conversely, in
the case of overexposure, it
is decremented straight from
AGC MAX GAIN to 0 dB.
When MAX is selected, set
AGC MAX GAIN in such a way
that the lens iris adjustment
range is not exceeded.
(If it is set so that this range
is exceeded, iris hunting may
occur.)
HI LIGHT DETECT [01 to 10]
When the effective image is exposed to
the light from a spotlight, one of 10 levels
for ignoring the effect of the light can be
selected.
The reaction to the light from the spotlight
becomes greater as the figure increases.
- 54 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
IRIS RANGE [1, 2, 3]
The iris control range during AGC operations
is selected using this menu item.
1: F1.8 to F8
2: F1.8 to F11
3: F1.8 to F16
When the iris cannot be adjusted within
the above range settings, use the gain
(including PIX MIX, V MIX, and FRAME
MIX), ND filter, and minus gain settings to
adjust the range so that the appropriate
level of exposure is achieved.
ATW AREA [25%, 50%, 90%]
The ATW white detection range is selected
here.
The range is set to an area that is
approximately 25 %, approximately 50 %,
or approximately 90 % of the horizontal
and vertical angles of view from the screen
center, respectively.
ATW SPEED [1 to 5]
The ATW convergence speed can be set to
any of 5 levels here.
The speed becomes faster as the figure
increases.
- 55 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
D5600K [OFF, ON]
The ATW center value is set using this item.
OFF:3200K
ON: 5600K
The respective ATW tracking ranges
are set using ATW WIDTH on the
INTELLIGENT SET menu.
AGC MODE
[NORMAL, SPORTS, SN, USER]
The AGC control mode is set here.
NORMAL:
The gain is incremented up to +18 dB
by AGC control.
SPORTS:
This setting is for exercising control that
is ideally suited to fast-moving images.
The gain is incremented in the following
sequence: +18 dB for AGC  +6 dB for
PIX MIX  +6 dB for V MIX.
SN:
This setting is for exercising control that
gives priority to SN.
The gain is incremented in the following
sequence: +24 dB for FRAME MIX 
+6 dB for PIX MIX  +6 dB for V MIX.
USER:
The gain is incremented in the
sequence set using SUB MENU.
When the AGC MODE setting is changed,
intelligent control is exercised from the
initial status inside the camera. Therefore,
immediately after this change is made, the
image may become dark or light, and the
color temperature may change.
- 56 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
AGC MAX GAIN [+00dB to +36dB]
The maximum gain increment for AGC is
displayed here. Inside the parentheses on the
right is the maximum gain increment, which
is obtained by adding the values for PIX MIX,
V MIX, and FRAME MIX.
PIX MIX [+00dB, +06dB]
The extent of the horizontal pixel addition is
displayed here.
+00dB: No horizontal pixels are added.
+06dB:The sensitivity is doubled over
the +00 dB setting. However, the
horizontal resolution is reduced to
half.
V MIX [+00dB, +06dB]
The extent of the vertical pixel addition is
displayed here.
+00dB: No vertical pixels are added.
+06dB:The sensitivity is doubled over
the +00 dB setting. However, the
vertical resolution is reduced to
half.
FRAME MIX
[+00dB, +06dB, +12dB, +18dB, +24dB]
The extent of the frame addition
(incrementing of gain by CCD storage) is
displayed here.
+00dB: No frames are added.
+06dB to +24dB:
2 frames are added with +06 dB,
4 frames are added with +12 dB,
8 frames are added with +18 dB
and 16 frames are added with
+24 dB, with the sensitivity
increasing at each setting.
However, the phenomenon of
residual image increases.
- 57 -
Setting of menu items
2 SETTING menu
[5] INTELLIGENT1
SUB MENU
When USER has been selected as the
AGC MODE setting, the type of gain, gain
increment step, and priority sequence can be
set in detail.
The gain is incremented in the sequence of
No.01, 02, 03 and so on. It can be set up to
No.18.
(No.10 to 18 are displayed on page 2/2.)
When NORMAL, SPORTS, or SN has been
selected as the control mode setting, only a
display appears.
Move the cursor to TYPE for each number,
set the gain type, and then move the cursor
to the numbers on the right and set the gain
increment step. Inside the parentheses on
the right of the setting is the total gain.
The gain can be set in 3 dB increments for
AGC up to a maximum of +36 dB, in 6 dB
increments for PMIX and VMIX, and in 6 dB
increments for FMIX up to a maximum of
+24 dB.
If the TYPE setting selected is changed to
“– – –”, the subsequent settings will be
deleted.
- 58 -
Setting of menu items
2 SETTING menu
[6] INTELLIGENT2
This menu is configured in the same way as
the INTELLIGENT1 menu.
- 59 -
Setting of menu items
2 SETTING menu
[7] INTELLIGENT SET
INTELLIGENT [INTEL1, INTEL2, OFF]
Intelligent mode OFF, INTEL1
(INTELLIGENT1 menu setting), or INTEL2
(INTELLIGENT2 menu setting) is selected
as the operation mode. When the setting
of this item is changed, the settings for the
INTELLIGENT items on the INTELLIGENT1
and INTELLIGENT2 menus are also changed
in tandem.
OFF:MANUAL is set for
INTELLIGENT1 and
INTELLIGENT2.
INTEL1:AUTO is set for INTELLIGENT1
and MANUAL for
INTELLIGENT2.
INTEL2:MANUAL is set for
INTELLIGENT1 and AUTO for
INTELLIGENT2.
- 60 -
Setting of menu items
2 SETTING menu
[7] INTELLIGENT SET
ATW WIDTH [1 to 5]
The color temperature range (1 to 5) used for
tracking ATW is set here.
With D5600K OFF, the range is set centering
on 3200K or so; with D5600K ON, it is set
centering on 5600K or so.
The general color temperature tracking
ranges are listed in the table below.
ATW
WIDTH
D5600K OFF
D5600K ON
1
Approx.
3000K to 4000K
Approx.
4500K to 7000K
2
Approx.
2500K to 5000K
Approx.
4000K to 8000K
3
Approx.
2400K to 8000K
Approx.
2500K to 9500K
4
Approx.
1900K to 10000K
Approx.
2400K to 10500K
5
Approx.
1600K to 11000K
Approx.
1600K to 11000K
IRIS ON LOCK
[LOCK, MANUAL, PANEL]
The IRIS operation status when the intelligent
functions are locked is selected here.
LOCK:The iris is held in the lock start
status.
MANUAL:The iris is switched to manual
operation.
PANEL:Control that is exercised from
the camera controller switches
the iris operation between
IRIS AUTO and MANUAL.
- 61 -
Setting of menu items
3 CAMERA ID menu
An ID of not more than 10 characters
consisting of alphanumerics, symbols and
spaces can be set for the camera.
The camera ID is displayed at all times when
ON is selected in the CAM ID mode but
displayed only when color bar signals are
output in the BAR mode.
The status for setting the ID is established
by moving the cursor above the colon (:) and
selecting it.
Move the cursor to the positions of the
characters to be set, select the characters
and enter them.
Characters which can be entered:
Spaces, upper-case letters (A to Z), numbers
(0 to 9), and symbols (' , >, <, /, -)
- 62 -
Setting of menu items
4 FILE OPERATION menu
MODE [LOAD/STORE]
Select LOAD when settings are to be loaded
from a file; select STORE when the current
settings are to be saved in a file.
LOAD/STORE FROM
For selecting the LOAD or STORE
destination.
PRESET, USER1 or USER2 can be selected
as the LOAD destination when LOAD has
been selected; USER1 or USER2 can be
selected as the STORE destination when
STORE has been selected.
EXECUTE
When EXECUTE is selected, the
“LOAD OK?” or “STORE OK?” message is
displayed.
LOAD or STORE is executed when NO is
switched to YES and the ENTER operation is
performed.
“COMPLETE” is displayed after the data has
been loaded or stored.
- 63 -
Setting of menu items
Menu list
MAINTENANCE
1.BLACK SHADING
2.PEDESTAL, GAMMA
3.FLARE
4.KNEE, WHITE CLIP
5.R/B GAIN
6.DETAIL
DETECTION
CORRECT(DIG)
M PEDESTAL
R PEDESTAL
B PEDESTAL
M GAMMA
R GAMMA
B GAMMA
M BLACK GAMMA
R BLACK GAMMA
B BLACK GAMMA
GAMMA
BLACK GAMMA
EFFECT DEPTH
DRS
CINE GAMMA SELECT
BLACK STR.LEVEL
DYNAMIC LEVEL
R FLARE
G FLARE
B FLARE
FLARE
M KNEE POINT
R KNEE POINT
B KNEE POINT
M KNEE SLOPE
R KNEE SLOPE
B KNEE SLOPE
A.KNEE POINT
A.KNEE LEVEL
M WHITE CLIP LVL
R WHITE CLIP LVL
B WHITE CLIP LVL
KNEE
WHITE CLIP
HIGH COLOR
R GAIN
B GAIN
ND FILTER
DETAIL
TOTAL DTL LEVEL
H DTL LEVEL
CRISP
LEVEL DEPENDENT
PEAK FREQUENCY
KNEE APERTURE
KNEE APE LEVEL
- 64 -
Scene file items indicated by “”















































Setting of menu items
MAINTENANCE
6.DETAIL
7.SKIN TONE DTL
8.GAIN,AUTO IRIS
9.S.GAIN
10.FRAME MODE
11.MATRIX
SLIM DETAIL
DETAIL(+)
DETAIL(–)
DETAIL CLIP
DETAIL SOURCE
SKIN TONE DTL
SKIN GET
SKIN DTL CORING
Y MAX
Y MIN
I CENTER
I WIDTH
Q WIDTH
Q PHASE
LOW GAIN
MID GAIN
HIGH GAIN
A.IRIS LEVEL
A.IRIS PEAK/AVE
A.IRIS WINDOW
IRIS MODE
IRIS GAIN
MODE
TOTAL GAIN
GAIN
PIX MIX
V MIX
FRAME MIX
H DETAIL LEVEL
CRISP
LEVEL DEPENDENT
PEAK FREQUENCY
M GAMMA
M PED OFFSET
R PED OFFSET
B PED OFFSET
SCAN REVERSE
MATRIX TABLE
MATRIX R-G
MATRIX R-B
MATRIX G-R
MATRIX G-B
MATRIX B-R
MATRIX B-G
- 65 -
Scene file items indicated by “”












































Setting of menu items
MAINTENANCE
12.COLOR
CORRECTION
SETTING
1.MODE
2.SHUTTER
3.GEN-LOCK
4.PROTOCOL
R SAT/PHASE
Mg SAT/PHASE
B SAT/PHASE
Cy SAT/PHASE
G SAT/PHASE
Yl SAT/PHASE
R_Mg SAT/PHASE
Mg_B SAT/PHASE
B_Cy SAT/PHASE
Cy_G SAT/PHASE
G_Yl SAT/PHASE
Yl_R SAT/PHASE
D5600K
LIGHTING
GAIN SELECT
CAM ID
CAM ID POSI
MATRIX TABLE
COLOR CORRECTION
DIGITAL EXTENDER
BAR SEL
FORMAT
STATUS
MENU ON BAR
MENU SEL
FAN
SHUTTER MODE
SHUTTER SPEED
SYNCHRO SCAN
GEN-LOCK INPUT
H PHASE-COARSE
H PHASE-FINE
SD-HD PHASE CRS
SD-HD PHASE FINE
PROTOCOL
- 66 -
Scene file items indicated by “”



































Setting of menu items
SETTING
5.INTELLIGENT1
6.INTELLIGENT2
7.INTELLIGENT SET
CAMERA ID
INTELLIGENT
INTELLIGENT MODE
ND FILTER SELECT
AGC SPEED
AGC GAIN STEP
HI LIGHT DETECT
IRIS RANGE
ATW AREA
ATW SPEED
D5600K
AGC MODE
AGC MAX GAIN
PIX MIX
V MIX
FRAME MIX
SUB MENU
INTELLIGENT
ATW WIDTH
IRIS ON LOCK
ID:
Scene file items indicated by “”




















When a scene file is loaded, there may be inconsistencies in some of the items between
the status of the connected controller and the status of the camera.
When the controller is operated in this status, the status of the controller will be reflected.
- 67 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
