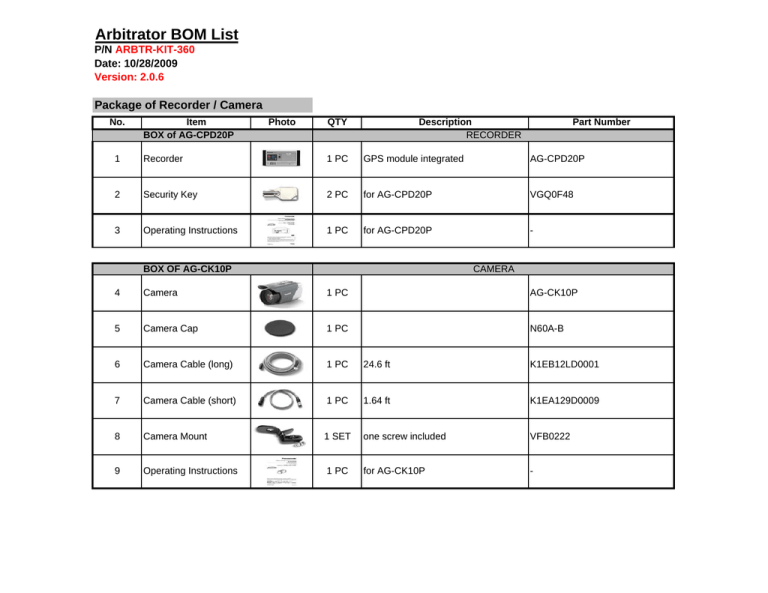

Arbitrator BOM List
P/N ARBTR-KIT-360
Date: 10/28/2009
Version: 2.0.6
Package of Recorder / Camera
No.
Item
BOX of AG-CPD20P
QTY
Description
RECORDER
Part Number
1
Recorder
1 PC
GPS module integrated
AG-CPD20P
2
Security Key
2 PC
for AG-CPD20P
VGQ0F48
3
Operating Instructions
1 PC
for AG-CPD20P
-
BOX OF AG-CK10P
CAMERA
4
Camera
1 PC
AG-CK10P
5
Camera Cap
1 PC
N60A-B
6
Camera Cable (long)
1 PC
24.6 ft
K1EB12LD0001
7
Camera Cable (short)
1 PC
1.64 ft
K1EA129D0009
8
Camera Mount
1 SET
one screw included
VFB0222
9
Operating Instructions
1 PC
for AG-CK10P
-
No.
Item
QTY
Description
Part Number
CABLE KIT
BOX OF AG-CR13P
10
GPS Antenna
1 PC
26 ft
N1JYYYY00006
11
GPS Antenna Pad
1 PC
Mounting Pad
VMP8729
12
GPIO Cable
1 PC
4 ft
K1V226Y00001
13
Recorder Power Cable
1 PC
25 ft
K4EY3YY00007
BOX OF SDHC Card
14
1 PC
32GB SDHC Card
SDHC Card
Class 6 or Class 10, 32GB capacity
(actual item is subject to change
without notice)
RP-SDW32GP1K
USB Adapter and RJ45 Crossover Cable
15
USB Adapter and
RJ45 Crossover Cable
1 SET
including driver CD
(actual item is subject to change
without notice)
ARB-ADAP-CABL
Documents
16
Warranty and Support
Guide
1 SET
Arbitrator 360 Warranty and Support
Guide
N/A
17
Parts List
1 SET
Arbitrator 360 Parts List
N/A
Package of W-MIC (P/N: CCR24PNA)
No.
1
Item
Tx
QTY
1 PC
Description
Transmitter
Part Number
CCR24T
No.
Item
QTY
Description
Part Number
2
Tx Lavalier Microphone
1 PC
including clip / windscreen
3
Tx Battery
1 PC
Li-Ion Polymer, 3.7V/1300mA (in TX) BAT2400
4
Tx Pouch
1 PC
Belt Type
CLP24PNA
5
Rx
1 PC
Receiver
w/ antenna connector on top
CCR24R
6
Rx Power Cable
1 PC
25 ft
RJ4524D
7
Rx Mounting Bracket
1 SET
including 4 screws
BKT24D
8
External Antenna
1 PC
10 ft
EXA2410F
9
Desktop Charger
1 PC
without antenna connector on top
CPC24PNA
10
Charger Adapter
1 PC
Input: 100~240V / 0.3A
Output: 12VDC / 1A
CPA24PNA
11
Charger Stand
1 PC
for Desktop Charger
CSB24D
12
In-Car MIC
1 PC
RCA male type connector
ICM24D
13
User Guide
1 PC
for CCR24PNA
-
MIC24
No.
Item
QTY
Description
Part Number
QTY
Description
Part Number
OPTIONS
Package of AG-RCP30P
No.
Item
1
Control Panel
1 PC
3.5" TFT LCD
AG-RCP30P
2
Control Panel Cable
1 PC
24.6ft
K1V312Y10001
3
Operating Instructions
1 PC
for Control Panel
-
Package of CN258IR-P
No.
1
Item
QTY
1 PC
Rear Camera
Description
Arbitrator rear seat IR camera
(940nm, including tool and screws)
Part Number
CN258IR-P
Package of CCR24TXPNA
No.
Item
QTY
Description
Part Number
1
Tx
1 PC
Transmitter
CCR24T
2
Tx Lavalier Microphone
1 PC
including clip / windscreen
MIC24
3
Tx Battery
1 PC
Li-Ion Polymer, 3.7V/1300mA (in TX) BAT2400
4
Tx Pouch
1 PC
Belt Type
CLP24PNA
5
User Guide
1 PC
for CCR24PNA
-
No.
Item
QTY
Description
Part Number
6
Desktop Charger
1 PC
without antenna connector on top
CPC24PNA
7
Charger Adapter
1 PC
Input: 100~240V / 0.3A
Output: 12VDC / 1A
CPA24PNA
8
Charger Stand
1 PC
for Desktop Charger
CSB24D
