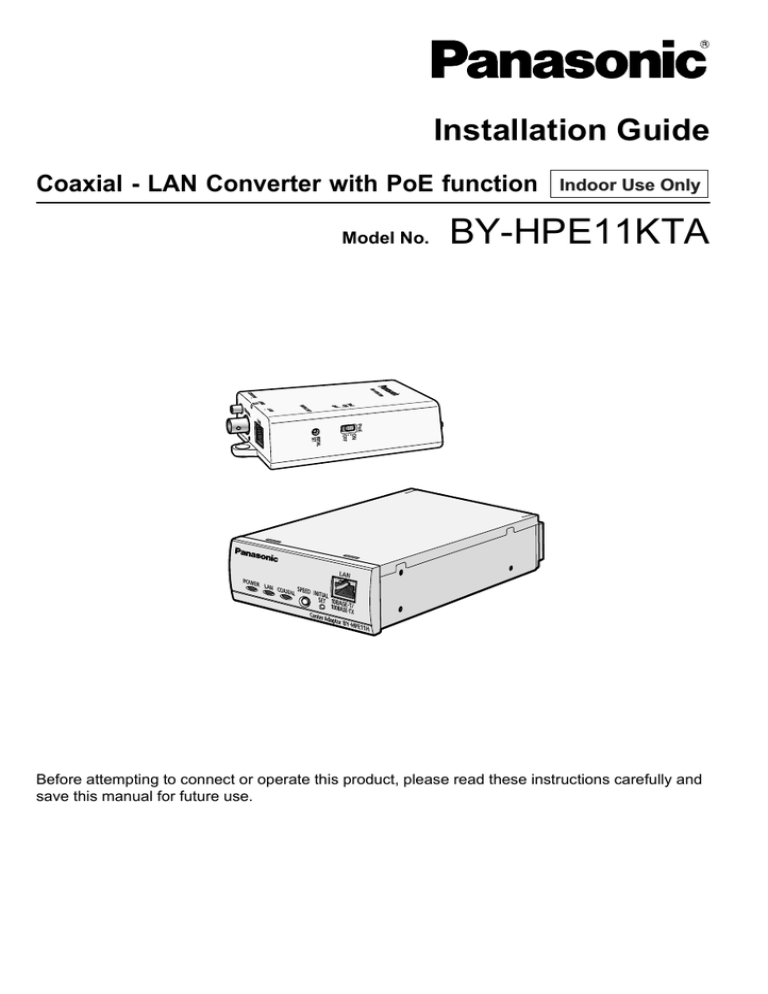

Panasonic | BY-HPE11KTA | Installation guide | Panasonic BY-HPE11KTA Installation Guide

Installation Guide
Coaxial - LAN Converter with PoE function
Model No.
Indoor Use Only
BY-HPE11KTA
Before attempting to connect or operate this product, please read these instructions carefully and
save this manual for future use.
Product Overview
Product Overview
The BY-HPE11KTA is a coaxial - LAN converter capable of implementing long distance,
high speed digital data transmission on existing coaxial cabling with low setup costs.
With the built-in PoE function, the BY-HPE11KTA is able to supply power to Panasonic
network cameras, which eliminates the need for installing power outlets for the cameras.
Note
• The PoE switch can be switched to ON or OFF.
• For information on network cameras that can be connected with BY-HPE11KTA,
see the Panasonic support site at
http://panasonic.net/pss/security/products/coax/index.html.
For U.S.A.
The KT serial number of this product may be found on
the surface of the unit.
You should note the model number and KT serial
number of this unit in the space provided and retain
this book as a permanent record of your purchase to
aid identification in the event of theft.
Model No.
KT Serial No.
RG-6/U coaxial cable
In this document coaxial cables with the following specifications are referred to as
RG-6/U coaxial cables.
2
Coaxial Cable
Type
DC R/300 m (984 feet
3 inches) of Inner
Conductor
RG-6/U
Less than 12 W
Installation Guide
Maximum Cable
Length (for PoE
connections)
Maximum Cable
Length (for non-PoE
connections)
500 m (1,640 feet 5
inches)
2,000 m (6,561 feet 8
inches)
Main Features
Main Features
PoE (Power over Ethernet) ready
The coaxial - LAN converter is compliant with PoE standards (IEEE 802.3af), and
contains a power supplying device. PoE can be used to supply power to Panasonic
network cameras, which eliminates the need for installing power outlets for the cameras.
Use over long distances
The coaxial - LAN converter can be used for distances of up to 500 m (1,640 feet 5
inches)*1 for PoE connections, and 2 km (6,561 feet 8 inches) for non-PoE connections.
(When used with RG-6/U coaxial cable.)
High-speed transmission
The coaxial - LAN converter is capable of transmission speeds of 35 Mbps or over for
TCP*2, and 45 Mbps or over for UDP connections. (When used with RG-6/U coaxial
cable, and for distances under 2 km [6,561 feet 8 inches].)
No setup required
Connections can be established by simply connecting the coaxial cable to the coaxial
- LAN converter.
*1
*2
When connected to a Panasonic network camera. For other cameras the connection distance is 300 m (984
feet 3 inches).
Measured using Linux® FTP.
Installation Guide
3
Other Information
Other Information
About the user manuals
•
•
There are 2 sets of operating instructions for this unit as follows.
– Installation Guide: Explains how to install and connect devices.
– Operating Instructions (PDF): Explains how to perform the settings and how to
operate this unit.
Adobe® Reader® is required to read these operating instructions (PDF) on the
provided CD-ROM. When the Adobe Reader is not installed on the PC, download
the latest Adobe Reader from the Adobe web site and install it.
The BY-HPE11R adaptor is called the camera adaptor and the BY-HPE11H adaptor
is called the center adaptor in this document.
Trademarks
•
•
•
Linux is a registered trademark of Linus Torvalds in the United States, other
countries, or both.
Adobe and Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
All other trademarks identified herein are the property of their respective owners.
About copyright and license
Distributing, copying, disassembling, reverse compiling, reverse engineering, and also
exporting in violation of export laws of the software provided with this unit are expressly
prohibited.
Limitation of liability
THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR
PURPOSE, OR NON-INFRINGEMENT OF THE THIRD PARTY'S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR
TYPOGRAPHICAL ERRORS. CHANGES ARE ADDED TO THE INFORMATION
HEREIN, AT ANY TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION AND/
OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY
PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE
MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT
LIMITED TO BELOW:
1. ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR
INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR
RELATING TO THE PRODUCT;
4
Installation Guide
Other Information
2. PERSONAL INJURY OR ANY DAMAGE CAUSED BY INAPPROPRIATE USE OR
NEGLIGENT OPERATION OF THE USER;
3. UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFICATION OF THE
PRODUCT BY THE USER;
4. INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT
DISPLAYED, DUE TO ANY REASON OR CAUSE INCLUDING ANY FAILURE OR
PROBLEM OF THE PRODUCT;
5. ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE,
ARISING OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD
PARTY;
6. ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT BY ANY PERSON OR
ORGANIZATION BEING A PHOTOGENIC SUBJECT, DUE TO VIOLATION OF
PRIVACY WITH THE RESULT OF THAT SURVEILLANCE-CAMERA'S PICTURE,
INCLUDING SAVED DATA, FOR SOME REASON, BECOMES PUBLIC OR IS
USED FOR THE PURPOSE OTHER THAN SURVEILLANCE;
7. LOSS OF REGISTERED DATA CAUSED BY ANY FAILURE.
Network security
As you will use this unit connected to a network, your attention is called to the following
security risks.
Leakage or theft of information through this unit
Use of this unit for illegal operations by persons with malicious intent
Interference with or stoppage of this unit by persons with malicious intent
It is your responsibility to take precautions such as those described below to protect
yourself against the above network security risks.
• Use this unit in a network secured by a firewall, etc.
• If this unit is connected to a network that includes PCs, make sure that the system
is not infected by computer viruses or other malicious entities (using a regularly
updated anti-virus program, anti-spyware program, etc.).
• Protect your network against unauthorized access by restricting users to those who
log in with an authorized user name and password.
• Apply measures such as user authentication to protect your network against leakage
or theft of information, including image data, authentication information (user names
and passwords), alarm mail information, FTP server information and DDNS server
information.
• After the unit is accessed by the administrator, make sure to close the browser.
• Change the administrator password periodically.
• Do not install this unit in locations where this unit or the cables can be destroyed or
damaged by persons with malicious intent.
Security between the camera adaptor and center adaptor
•
Data sent and received between camera and center adaptors employs AES 128-bit
encryption, however we cannot guarantee that data will not be intercepted by a third
party.
Installation Guide
5
Other Information
•
•
6
For security, reset the unit when sending the unit for servicing, discarding the unit,
or giving the unit to someone else (see 2 Resetting the Unit in the Operating
Instructions on the CD-ROM).
The unit does not have a firewall feature. To prevent unauthorized external access
to the network, we recommend performing the following procedures.
– Setup security measures for the router and computers accessing the network.
– Change the default password on the adaptor’s maintenance screen (see
3.2.3 Changing Adaptor Settings - Changing the adaptor’s password in the
Operating Instructions on the CD-ROM).
Installation Guide
Included Items
Included Items
Confirm that the following items are included in the unit’s packaging.
•
•
•
•
•
•
•
Installation Guide (this document) (1 pc.)
Warranty Card*1 (1 pc.)
CD-ROM*2 (1 pc.)
AC Cord (1 pc.)
Safety Wire (1 pc.)
BNC Connector Cover (2 pcs.)
Screw (3 pcs.): For the safety wire and BNC connector covers
*1
For U.S.A. only
Contains the documentation including the Operating Instructions.
*2
Installation Guide
7
For Your Safety
For Your Safety
To prevent severe injury and loss of life/property, read this section carefully before using
the unit to ensure proper and safe operation of your unit.
WARNING
Consult an authorized dealer for mounting
•
Experience and knowledge are required to perform mounting of the unit. Incorrect
mounting can cause damage to the unit, fire, electric shock, or injury. Make sure
to consult an authorized dealer for mounting.
Do not damage the AC cord or power plug
•
Do not allow the AC cord or plug to be damaged, placed near heat emitting
devices, excessively pulled, bent or placed under heavy objects. Using damaged
AC cords or plugs can result in the risk of fire or electric shock. Contact an
authorized service center for AC cord and plug repairs.
Do not use the unit if it does not work normally
•
Unplug the unit from the power outlet if it emits smoke, an abnormal smell or
makes unusual noise. Consult an authorized service center for repairs.
Do not disassemble or repair the unit
•
To reduce the risk of electric shock or fire, do not disassemble the unit. Contact
an authorized service center when service is required.
Use only the power source specified for the unit
•
Overloading the unit by having many loads on one electrical outlet, etc. may cause
excessive heat resulting in fire.
Completely insert the power plug into the power outlet
•
Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
Do not use damaged power plugs or power outlets.
Regularly remove any dust, etc. from the power plug
•
Regularly remove any dust, etc. from the power plug by pulling it from the power
outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation
defect from moisture, etc., resulting in a fire.
Do not bring metal objects near the power outlet slots
•
This may result in electric shock or fire.
Do not hold the power plug by the metal parts
•
This may result in electric shock or fire.
Never touch the power plug with wet hands
•
8
This may result in electric shock.
Installation Guide
For Your Safety
Do not touch the unit, LAN cable, coaxial cable, AC cord, or power plug
during thunderstorms
•
This may result in electric shock.
Do not use the included AC cord with other devices
•
This may result in electric shock or fire.
Only use the included AC cord
•
Using other AC cords may result in electric shock or fire.
Place the unit securely on a stable, level surface
•
Serious damage and/or injury may result if the unit falls.
Do not install the unit in a dusty or moist place
•
This may result in electric shock or fire.
Never push any objects into the unit or spill any liquids on the unit
•
This may result in electric shock or fire. Disconnect the AC cord and contact an
authorized service center if any foreign objects or liquids enter the unit.
Regularly check the unit
•
Rusted brackets or screws may cause the unit to fall causing serious damage
and/or injury. Consult an authorized dealer for checks.
Mount the unit to secure locations that can support the weight of the
unit
•
Serious damage and/or injury may result if the unit falls. Reinforce the mounting
area if it has insufficient strength to secure the unit.
Make sure to use the safety wire
•
Attach the safety wire in a position so that if the camera adaptor were to become
detached, it would not fall on nearby people.
Do not use the unit where it can be exposed to flammable or explosive
gasses
•
This may cause the unit to explode resulting in injury.
Do not mount the unit where it can be exposed to vibrations
•
This may cause the unit to fall resulting in injury.
Do not use the unit where it can be exposed to corrosive gas or salty
conditions
•
This may cause the unit parts to degrade and the unit may fall resulting in damage
and/or injury.
Do not drop, or expose the unit to strong shaking
•
This may result in electric shock or fire.
Installation Guide
9
For Your Safety
Turn the power off before performing wiring
•
This may result in electric shock, or result in fire from wiring shorts or incorrect
wiring.
Only use mounting brackets made for the unit
•
Serious damage and/or injury may result if the unit falls.
Do not damage coaxial cables, insert objects into the conductor, or
connect coaxial cables with incomplete relays
•
If water or other objects enter the conductor, or coaxial cables with incomplete
relays are connected, it may result in electric shock or fire. Disconnect the AC
cord and contact an authorized service center if there is any damage to the coaxial
cables.
Do not damage existing wires or pipes when making holes for mounting
or wiring
•
This may result in earth leakage, electric shock, or fire.
Do not install or use the unit near medical equipment
•
High-frequency signals emitted from the unit may affect the operation of medical
equipment and cause malfunctions.
Do not expose the unit to rain or any type of moisture
•
To prevent the risk of fire or electrical shock, do not place objects such as cups
or vases near the unit. If the unit is exposed to moisture, disconnect the AC cord
and contact an authorized service center.
Do not touch the core of the coaxial cable
•
A maximum of DC 60 V is applied to the coaxial cable. This may result in electric
shock.
Do not perform wiring or installation during thunderstorms
•
This may result in electric shock or fire.
Secure screws with the specified torque
•
Serious damage and/or injury may result if the unit falls.
CAUTION
Disconnect the AC cord of the center adaptor if the unit will not be used
for long periods of time or when performing care and cleaning
•
10
Leaving the AC cord connected when the unit is not used for long periods of time
or when performing care and cleaning may result in earth leakage, electric shock,
or injury.
Installation Guide
For Your Safety
Do not mount the unit to ceilings or walls made of soft materials
•
Do not mount the unit to soft ceilings or walls such as plasterboard, ALC (aerated
light-weight concrete), concrete blocks, or any surfaces under 25 mm (1 inch)
thickness. Injury may result if the unit falls.
Do not pull cables or apply excessive force to connectors
•
This may damage the cables or connectors, and result in electric shock.
Do not connect other devices to the BNC connector of the unit
•
This may damage the unit.
Do not expose the unit to fire or naked flames
•
This may result in fire.
The AC cord is used as the main disconnect device
•
Ensure that the power outlet is installed near the unit and is easily accessible.
Do not play the included CD-ROM in an audio CD player
•
Ear-splitting volume may hurt your ears and damage the CD player’s speakers.
Installation Guide
11
Important Safety Instructions
Important Safety Instructions
When using this unit, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, or personal injury.
1. Do not use this unit near water for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement or near a swimming pool.
2. Avoid handling or installing the unit, connecting wiring, or touching the AC cord,
power plug, LAN cable, or coaxial cable during an electrical storm.
3. Do not use the unit in the vicinity of a gas leak.
4. Use only the AC cord indicated in this manual.
SAVE THESE INSTRUCTIONS
12
Installation Guide
FCC Information
FCC Information
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Installation Guide
13
General Precautions
General Precautions
Follow the instructions written in For Your Safety (see page 8) and Important Safety
Instructions (see page 12) together with the instructions written below.
1. The unit is intended for indoor use only and should not be mounted outdoors.
2. The unit uses the same high-frequency signals as used by the radio signals of
amateur radio, shortwave broadcasting, aviation radio, and marine radio. Therefore
operational interference may occur if the unit is used in proximity to devices that
transmit these radio signals.
3. Do not connect the camera adaptor (BY-HPE11R) to communications carrier
equipment such as rental modems.
4. Follow the following precautions in order to maintain product performance
over long periods of time.
• Do not use the unit in areas with high temperatures or humidity for long periods
of time. Use in these areas can degrade parts which can shorten the life-span of
the unit. We recommend areas that have temperatures of 35 °C (95 °F) or lower.
• Do not install the unit in places that can be directly exposed to heat sources.
5. Proper handling of the unit
• Do not drop, or expose the unit to strong vibrations or shaking. This may cause
malfunctions.
6. Take precautions for when reselling, disposing, or sending the unit for repairs.
• Take adequate precautions when handing the unit over to third parties.
7. Care and cleaning for the unit
• Perform cleaning and care after disconnecting the center adaptor from the power
outlet. Do not use benzine, thinner, or any other abrasive powders when
cleaning. This may change the color of the unit cases.
8. Cleaning stains from the unit
• Wipe stained areas with a damp soft cloth.
14
Installation Guide
Precautions for Installation
Precautions for Installation
All electrical wiring should be performed by a qualified electrician.
Consult an authorized dealer for installation.
1. The unit is intended for indoor use only
• The unit cannot be used outdoors. Do not install the unit in areas that are exposed
to direct sunlight for long periods of time, or areas near heaters or air conditioners.
Installing the unit in such areas may cause malfunctions and cause the unit to
change shape or color. Do not use the unit when they have been exposed to
water or moisture.
2. Do not install or use the unit near medical equipment
• High-frequency signals emitted from the unit may affect the operation of medical
equipment and cause malfunctions.
3. Installation locations
• Do not install the unit in the following locations:
– where the unit can be directly exposed to rain or water (including under eaves)
– areas where chlorine is used such as pools
– in locations subject to humidity, dust, steam and oil smoke
– where the unit can be exposed to solvents or flammable gas
– where the unit can be exposed to radiation or X-rays, or interference from
magnetic devices or devices that use strong radio signals
– where the unit can be exposed to corrosive gas such as from the sea
– where the temperature or humidity exceeds the operating environment
specifications for the unit
Camera Adaptor (BY-HPE11R):
• Temperature: -10 °C (+14 °F) to +50 °C (+122 °F)
• Humidity: 20 %–90 %
Center Adaptor (BY-HPE11H):
• Temperature: 0 °C (+32 °F) to +50 °C (+122 °F)
• Humidity: 20 %–85 %
– where the unit can be exposed to vibrations such as in cars or boats (the unit
is not designed to be installed in vehicles)
– where the unit can be exposed to sudden changes in temperatures, such as
near air conditioners or near doorways
• Uninstall the unit if it is no longer used.
4. Precautions before installations
• Use the screws with the specifications shown on page 24 when mounting the
camera adaptor to a ceiling or wall. Screws are not included. Use screws that
are appropriate for the material of the ceiling or wall.
• When mounting the camera adaptor to a ceiling or wall (see page 24), do not
drive the screws into a soft material. Drive the screws into a secure, 25 mm
(1 inch) thick area of the ceiling or wall, such as a crossbeam, otherwise the
camera adaptor may fall. If there is no crossbeam, place a board on the other
side of the ceiling or wall to make sure the camera adaptor is securely mounted.
• When mounting a camera adaptor on a concrete or mortar ceiling or wall, use a
drill and anchors (customer-provided, body diameter 4 mm [3/16 inches]) and
make holes using the following procedure.
Installation Guide
15
Precautions for Installation
i.
Mark points where you are going to make holes (2 places) according to the
position of the camera adaptor.
ii. Mark a point where you are going to make a hole (1 place) for the safety wire.
iii. Make holes in the areas that you marked with an electric drill.
• Mortar ceilings break easily when drilling. Be careful of pieces of mortar
which may become loose and fall.
Drill for concrete (in case of tile, use a drill for tile)
Caulk to waterproof
iv. Insert the anchors (customer-provided) into the holes and push them inside
with a hammer.
v. Secure the camera adaptor and safety wire.
• Mount the camera adaptor to a secure area and make sure that the anchors and
screws are secured.
5. Inserting screws
• Use screws that are appropriate for the material of the ceiling, wall, or rack.
• Do not use impact drills. Impact drills may damage the screws.
• Secure screws in a straight line into the ceiling, wall, or rack. Confirm that screws
are flush with the surface that they are secured to.
6. Using the safety wire
• Attach the safety wire in a position so that if the camera adaptor were to become
detached, it would not fall on nearby people.
7. Coaxial cable connections
• Disconnect the coaxial cable from all devices and measure the insulation
resistance of the coaxial cable (new or existing) before making connections.
Insulation resistance value: 1 MW or more for DC 500 V
• Confirm the length of the coaxial cable when using the PoE function. The
maximum length is 500 m (1,640 feet 5 inches) when using RG-6/U coaxial cable
(with loop resistance at 20 W or less).
16
Installation Guide
Precautions for Installation
RG-6/U coaxial cable
Coaxial Cable
Type
RG-6/U
•
•
•
Maximum Cable
Length (for PoE
connections)
Maximum Cable
Length (for
non-PoE
connections)
500 m (1,640 feet 5
inches)
2,000 m (6,561 feet
8 inches)
DC R/300 m (984
feet 3 inches) of
Inner Conductor
Less than 12 W
We recommend RG-6/U coaxial cable.
The performance of the coaxial cable may be affected if it is relayed.
Use only the following recommended BNC plug when connecting coaxial cables
to the BNC connectors of the unit.
– Applicable plug: MIL-C39012C, MIL-C39012/16F, or BS CECC2212: 1981
(Suffixes attached to the standards may be updated.)
BNC plug
(customer-provided)
Coaxial cable
(customer-provided)
–
Tip dimensions inside the recommended BNC plug
Diameter: 1.32 mm (0.052 inches) to
1.37 mm (0.054 inches)
Diameter: 0.13 mm (0.005 inches) to
0.69 mm (0.027 inches)
IMPORTANT
• Use a suitable plug. Using a non-specified plug may cause a bad
connection or cause damage to the BNC connector.
8. Mounting and connections
• Do not mount camera adaptors above or below other camera adaptors. This can
cause transmission interference. When mounting several camera adaptors in the
same area, mount them side by side each other.
• When connecting the coaxial cable to the unit, make sure that no other devices
are connected to the coaxial cable. Connecting the coaxial cable to the unit when
there are other devices connected (such as an analog CCTV camera), may
cause damage to the connected device.
Installation Guide
17
Table of Contents
Table of Contents
1
1.1
1.2
1.3
2
2.1
2.2
3
3.1
3.2
18
Main Unit ...................................................................................................19
Camera Adaptor (BY-HPE11R) ......................................................................19
Center Adaptor (BY-HPE11H) ........................................................................21
Understanding the Indicators .......................................................................22
Mounting the Unit ....................................................................................23
Mounting the Camera Adaptor ......................................................................23
Mounting the Center Adaptor to a Rack .......................................................25
Connecting the Unit .................................................................................28
Connection Example ......................................................................................28
Connections ....................................................................................................29
Installation Guide
1 Main Unit
1 Main Unit
1.1 Camera Adaptor (BY-HPE11R)
Front view
A Indicator
Displays the status of the camera adaptor (see
page 22).
B PoE switch
Turns the PoE function ON/OFF. The default
setting is [ON].
B
A
C
D
E
IMPORTANT
• When using the camera adaptor’s PoE
function to supply power to a network
camera, set the PoE switch to [ON].
When not using the PoE function (when
powering the network camera with an
AC adaptor), set it to [OFF].
• The PoE function cannot be used for
connections over 500 m (1,640 feet 5
inches). Set the PoE switch to [OFF].
C BNC connector
Connects the camera adaptor to the center
adaptor with a coaxial cable (see page 30).
D Network connector
Connects the camera adaptor to a network
camera with a LAN cable (see page 29).
E INITIAL SET button
Used to reset the camera adaptor to its factory
default settings (see 2.1 Resetting Camera
Adaptors in the Operating Instructions on the
CD-ROM).
Installation Guide
19
1 Main Unit
Rear view
A
A Used when attaching the camera adaptor to a
ceiling or wall with screws (see page 24).
B
B Used when attaching the safety wire (see
page 23).
C Used when attaching the camera adaptor to
screws inserted into a wall.
C
20
Installation Guide
1 Main Unit
1.2 Center Adaptor (BY-HPE11H)
Front view
A Indicators
Displays the status of the center
adaptor (see page 22).
D
A
B
C
B SPEED button
Used when measuring the speed
between adaptors (see page 33).
C INITIAL SET button
Used to reset the center adaptor to
its factory default settings (see
2.2 Resetting Center Adaptors in
the Operating Instructions on the
CD-ROM).
D Network connector
Connects the center adaptor to a
network device with a LAN cable
(see page 32).
Rear view
A BNC connector
Connects the center adaptor to the
camera adaptor with a coaxial cable
(see page 31).
A
B
B AC IN
Connects the center adaptor to the
power outlet with the included AC
cord (see page 32).
Installation Guide
21
1 Main Unit
1.3 Understanding the Indicators
The light indicators change depending on the operating status of the camera and center
adaptors.
Camera adaptor
Indicator
LINK
Light Status
Meaning
Green (lit)
The camera adaptor is connected to the center
adaptor.
Orange (lit)
The camera adaptor is activating.
Red (lit)
The camera adaptor is malfunctioning. Contact an
authorized service center.
Off
The center adaptor is not connected to the power
outlet, or the coaxial cable is not connected.
Center adaptor
Indicator
Light Status
Green (lit)
The center adaptor is active.
Green (flashing)
The center adaptor may be connected to a device
other than the camera adaptor with the coaxial
cable. Check the connection with the camera
adaptor.
Off
The center adaptor is not connected to the power
outlet.
Green (lit)
A network device is connected.
Green (flashing)
Sending/receiving data from a network device.
Orange (lit)
A network device is not connected, or the
connected network device is not connected to the
power outlet.
Off
The center adaptor is not connected to the power
outlet.
Green (lit)
The camera adaptor is connected to the center
adaptor.
Red (lit)
The center adaptor is malfunctioning. Contact an
authorized service center.
Off
The center adaptor is not receiving power, or the
coaxial cable or camera adaptor is not connected.
POWER
LAN
COAXIAL
22
Installation Guide
Meaning
2 Mounting the Unit
2 Mounting the Unit
2.1 Mounting the Camera Adaptor
Please read the following information before mounting the camera adaptor.
IMPORTANT
• Mount the camera adaptor to a secure area.
• Mount the camera adaptor and safety wire to secure part of the ceiling or wall
such as a crossbeam.
• Make sure you attach the safety wire when mounting the camera adaptor on a
ceiling or wall to prevent the adaptor from falling. Consult an authorized dealer
for mounting.
• Do not mount camera adaptors above or below other camera adaptors. This can
cause transmission interference. When mounting several camera adaptors in the
same area, mount them side by side each other.
• The pull-out strength of the installation area must be at least 294 N (30 kgf) per
screw.
1. Secure the safety wire to the camera adaptor with the screw (included).
(Recommended torque 0.4-0.8 N·m {4.1-8.2 kgf·cm})
Screw
(length: 10 mm [3/8 inches],
body diameter: 2.6 mm [1/8 inches])
Safety wire
Installation Guide
23
2 Mounting the Unit
2. Secure the camera adaptor to the wall or ceiling using screws (customer-provided,
length: 20 mm [13/16 inches], body diameter: 4 mm [3/16 inches]).
• Use screws that are appropriate for the material of the ceiling or wall.
Screw (customer-provided,
length: 20 mm [13/16 inches],
body diameter: 4 mm [3/16 inches])
3. Secure the safety wire to the ceiling or wall using a screw (customer-provided, length:
20 mm [13/16 inches], body diameter: 4 mm [3/16 inches]).
• Use screws that are appropriate for the material of the ceiling or wall.
• Attach the safety wire in a position so that if the camera adaptor were to become
detached, it would not fall on nearby people.
Screw (customer-provided,
length: 20 mm [13/16 inches],
body diameter: 4 mm [3/16 inches])
Safety wire
24
Installation Guide
2 Mounting the Unit
2.2 Mounting the Center Adaptor to a Rack
By using the Rack Mount Connecting Fitting (sold separately), 3 or 4 connected center
adaptors can be mounted to a rack.
Prepare the Rack Mount Connecting Fitting (BY-HCA10A), which includes the following
items.
– Mounting bracket (2 pcs.)
– Underside continuous connecting bracket (2 pcs.)
– Screw (Flat-head M3´6: 32 pcs.)
– Screw (M3´6: 6 pcs.)
IMPORTANT
• Make sure to use the screws included with the BY-HCA10A.
Mounting 3 or 4 center adaptors to a rack
1. Connect the center adaptors together using the BY-HCA10A underside continuous
connecting brackets with the screws included with the BY-HCA10A.
• Connecting 3 center adaptors
Place a center adaptor on both ends of the underside continuous connecting
brackets.
(Recommended torque 0.4-1.0 N·m {4.1-10.2 kgf·cm})
Screw (Flat-head M3x6: 24 pcs.)
Underside continuous
connecting bracket
Installation Guide
25
2 Mounting the Unit
•
Connecting 4 center adaptors
(Recommended torque 0.4-1.0 N·m {4.1-10.2 kgf·cm})
Screw (Flat-head M3x6: 32 pcs.)
Underside continuous
connecting bracket
2. Secure the BY-HCA10A mounting brackets to both sides of the connected center
adaptors with the screws included with the BY-HCA10A.
(Recommended torque 0.4-1.0 N·m {4.1-10.2 kgf·cm})
Mounting bracket
Screw
(M3x6: 6 pcs.)
Mounting bracket
26
Installation Guide
2 Mounting the Unit
3. Secure the connected center adaptors to the rack.
• Securely mount the center adaptors to the rack with the rack mounting screws
(customer-provided, nominal diameter 5 mm [3/16 inches] tapping).
• We recommend using a fan or other device to keep the temperature in the rack
under 30 °C (86 °F).
Rack mounting screw (customer-provided,
nominal diameter 5 mm [3/16 inches] tapping)
IMPORTANT
• Take measures to ensure that the temperature in the rack does not exceed
45 °C (113 °F).
• When mounting center adaptors to the rack, leave 1U (44 mm [1 3/4 inches])
or more clearance above and below the adaptors.
Installation Guide
27
3 Connecting the Unit
3 Connecting the Unit
3.1 Connection Example
B
A
C
D
F
–
–
–
•
G
E
F
Network camera
Camera adaptor
Center adaptor
Switching hub (or similar device)
Network device
LAN cable
Coaxial cable
Connect network cameras and camera adaptors with LAN cables.
Connect camera adaptors and center adaptors with coaxial cables.
Connect center adaptors and network devices with LAN cables.
We recommend Cat-5e or higher cable for the LAN cable. When using PoE to supply
power to the network camera from the camera adaptor, we recommend using
100 W balanced LAN cable that complies to the ISO/IEC 11801-2002 (IEEE802.3af
Annex 33B).
IMPORTANT
• Use all 4 pairs (8 pins) of the LAN cable.
• The maximum length of LAN cable that can be used is 100 m (328 feet 1 inch).
• When reconnecting the LAN cable, wait for at least 2 seconds after disconnecting
before reconnecting. If the LAN cable is quickly disconnected and then
reconnected, the PoE function may not be able to supply power.
28
Installation Guide
3 Connecting the Unit
•
When connecting to network cameras not made by Panasonic, the PoE function
may not be able to supply power using cross-pair LAN cables. Confirm the
specifications of the network camera used before installation.
3.2 Connections
Before proceeding with the connections, turn off the power of the unit and other network
devices that will be connected.
Prepare the necessary peripheral equipment and cables.
The LAN cable and coaxial cable are customer-provided.
IMPORTANT
• Connect the center adaptor to the power outlet only after completing all the
connections.
1. Connect a LAN cable (Cat-5e or higher) to the camera adaptor and network camera.
Network connector
Network camera
PoE switch
LAN cable
Network connector
IMPORTANT
• Turn the PoE switch to [ON] when using the PoE function to supply power to
a network camera. When using an AC adaptor to supply power to a network
camera, turn the PoE switch to [OFF].
• The PoE function cannot be used for connections over 500 m (1,640 feet 5
inches). Set the PoE switch to [OFF].
Installation Guide
29
3 Connecting the Unit
2. First pass the coaxial cable through the included BNC connector cover, then connect
the coaxial cable to the BNC connector of the camera adaptor.
Coaxial cable
(When using an existing cable,
you must disconnect it from another
device before connecting.)
BNC connector
BNC connector cover
Connect to the center adaptor.
(Do not connect to another device.)
Never touch the core.
IMPORTANT
• When connecting the coaxial cable to the unit, make sure that no other
devices are connected to the coaxial cable. Connecting the coaxial cable to
the unit when there are other devices connected (such as an analog CCTV
camera), may cause damage to the connected device.
• When using existing coaxial cables, disconnect other devices that are
connected to the coaxial cable before connecting to the unit.
• Measure the insulation resistance of the coaxial cable (new or existing) before
making connections.
Insulation resistance value: 1 MW or more for DC 500 V
• Confirm the length of the coaxial cable when using the PoE function. The
maximum length is 500 m (1,640 feet 5 inches) when using RG-6/U coaxial
cable (with loop resistance at 20 W or less).
RG-6/U coaxial cable
Coaxial
Cable Type
RG-6/U
30
Installation Guide
DC R/300 m (984
feet 3 inches) of
Inner Conductor
Less than 12 W
Maximum Cable
Length (for PoE
connections)
Maximum Cable
Length (for
non-PoE
connections)
500 m (1,640 feet 5 2,000 m (6,561 feet
inches)
8 inches)
3 Connecting the Unit
3. Secure the BNC connector cover with the included screw to the camera adaptor.
(Recommended torque 0.4-0.8 N·m {4.1-8.2 kgf·cm})
Screw
(length: 10 mm [3/8 inches],
body diameter: 2.6 mm [1/8 inches])
BNC connector cover
4. First pass the coaxial cable through the included BNC connector cover, then connect
the coaxial cable to the BNC connector of the center adaptor.
BNC connector
BNC connector cover
Coaxial cable
(When using an existing cable,
you must disconnect it from another
device before connecting.)
Connect to the camera adaptor.
(Do not connect to another device.)
Never touch the core.
Installation Guide
31
3 Connecting the Unit
5. Secure the BNC connector cover with the included screw to the center adaptor.
(Recommended torque 0.4-0.8 N·m {4.1-8.2 kgf·cm})
BNC connector cover
Screw
(length: 10 mm [3/8 inches],
body diameter: 2.6 mm [1/8 inches])
6. Connect a LAN cable (Cat-5e or higher) to the center adaptor and network device.
Network connector
Network device
Network connector
LAN cable
7. Connect the AC cord to the AC IN jack of the center adaptor, then plug the AC cord
into the power outlet.
AC IN
To the power outlet
AC cord (included)
•
32
When you operate the center adaptor, the power outlet should be near the center
adaptor and easily accessible. To prevent the AC cord from being disconnected
if it is pulled, do not place objects near the power outlet.
Installation Guide
3 Connecting the Unit
8. Turn the power on for the network cameras and network devices, then check the
indicators of the adaptors.
Green
Green
Green
Green
9. Press the center adaptor’s SPEED button for about 1 second.
POWER
•
LAN
COAXIAL
SPEED button
The transmission speed between the camera adaptor and center adaptor will be
measured. During measurements, the indicators of the center adaptor will be lit
in the following order.
POWER
(Green)
LAN
COAXIAL
POWER
LAN
(Green)
COAXIAL
POWER
LAN
COAXIAL
(Green)
Installation Guide
33
3 Connecting the Unit
10. Confirm that all 3 of the center adaptor’s indicators are lit (for about 6 seconds).
POWER LAN COAXIAL
(Green) (Green) (Green)
34
Installation Guide
Notes
Installation Guide
35
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
(905)624-5010
www.panasonic.ca
© Panasonic System Networks Co., Ltd. 2010
Printed in Malaysia
PNQX3079ZA KK1110MJ0
Download PDF
