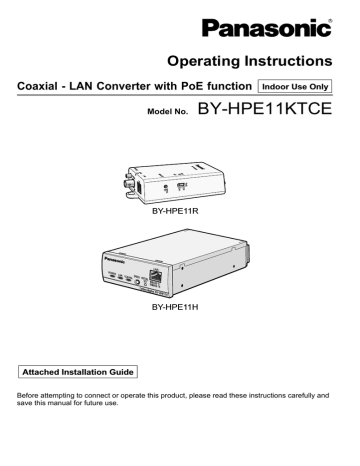

Operating Instructions
Coaxial - LAN Converter with PoE function
Model No.
Indoor Use Only
BY-HPE11KTCE
BY-HPE11R
BY-HPE11H
Attached Installation Guide
Before attempting to connect or operate this product, please read these instructions carefully and
save this manual for future use.
Introduction
Introduction
About the user manuals
•
•
There are 2 sets of operating instructions for this unit as follows.
– Installation Guide: Explains how to install and connect devices.
– Operating Instructions (PDF): Explains how to perform the settings and how to
operate this unit.
Adobe® Reader® is required to read these operating instructions (PDF) on the
provided CD-ROM. When the Adobe Reader is not installed on the PC, download
the latest Adobe Reader from the Adobe web site and install it.
The BY-HPE11R adaptor is called the camera adaptor and the BY-HPE11H adaptor
is called the center adaptor in this document.
Trademarks
•
•
•
•
•
2
Microsoft, Windows, Windows Vista, and Internet Explorer are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other
countries.
Microsoft product screen shot(s) reprinted with permission from Microsoft
Corporation.
Linux is a registered trademark of Linus Torvalds in the United States, other
countries, or both.
Adobe and Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
All other trademarks identified herein are the property of their respective owners.
Operating Instructions
For Your Safety
For Your Safety
To prevent severe injury and loss of life/property, read this section carefully before using
the unit to ensure proper and safe operation of your unit.
WARNING
Consult an authorized dealer for mounting
•
Experience and knowledge are required to perform mounting of the unit. Incorrect
mounting can cause damage to the unit, fire, electric shock, or injury. Make sure
to consult an authorized dealer for mounting.
Do not damage the AC cord or power plug
•
Do not allow the AC cord or plug to be damaged, placed near heat emitting
devices, excessively pulled, bent or placed under heavy objects. Using damaged
AC cords or plugs can result in the risk of fire or electric shock. Contact an
authorized service center for AC cord and plug repairs.
Do not use the unit if it does not work normally
•
Unplug the unit from the power outlet if it emits smoke, an abnormal smell or
makes unusual noise. Consult an authorized service center for repairs.
Do not disassemble or repair the unit
•
To reduce the risk of electric shock or fire, do not disassemble the unit. Contact
an authorized service center when service is required.
Use only the power source specified for the unit
•
Overloading the unit by having many loads on one electrical outlet, etc. may cause
excessive heat resulting in fire.
Completely insert the power plug into the power outlet
•
Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
Do not use damaged power plugs or power outlets.
Regularly remove any dust, etc. from the power plug
•
Regularly remove any dust, etc. from the power plug by pulling it from the power
outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation
defect from moisture, etc., resulting in a fire.
Do not bring metal objects near the power outlet slots
•
This may result in electric shock or fire.
Do not hold the power plug by the metal parts
•
This may result in electric shock or fire.
Never touch the power plug with wet hands
•
This may result in electric shock.
Operating Instructions
3
For Your Safety
Do not touch the unit, LAN cable, coaxial cable, AC cord, or power plug
during thunderstorms
•
This may result in electric shock.
Do not use the included AC cord with other devices
•
This may result in electric shock or fire.
Only use the included AC cord
•
Using other AC cords may result in electric shock or fire.
Place the unit securely on a stable, level surface
•
Serious damage and/or injury may result if the unit falls.
Do not install the unit in a dusty or moist place
•
This may result in electric shock or fire.
Never push any objects into the unit or spill any liquids on the unit
•
This may result in electric shock or fire. Disconnect the AC cord and contact an
authorized service center if any foreign objects or liquids enter the unit.
Regularly check the unit
•
Rusted brackets or screws may cause the unit to fall causing serious damage
and/or injury. Consult an authorized dealer for checks.
Mount the unit to secure locations that can support the weight of the
unit
•
Serious damage and/or injury may result if the unit falls. Reinforce the mounting
area if it has insufficient strength to secure the unit.
Make sure to use the safety wire
•
Attach the safety wire in a position so that if the camera adaptor were to become
detached, it would not fall on nearby people.
Do not use the unit where it can be exposed to flammable or explosive
gasses
•
This may cause the unit to explode resulting in injury.
Do not mount the unit where it can be exposed to vibrations
•
This may cause the unit to fall resulting in injury.
Do not use the unit where it can be exposed to corrosive gas or salty
conditions
•
This may cause the unit parts to degrade and the unit may fall resulting in damage
and/or injury.
Do not drop, or expose the unit to strong shaking
•
4
This may result in electric shock or fire.
Operating Instructions
For Your Safety
Turn the power off before performing wiring
•
This may result in electric shock, or result in fire from wiring shorts or incorrect
wiring.
Only use mounting brackets made for the unit
•
Serious damage and/or injury may result if the unit falls.
Do not damage coaxial cables, insert objects into the conductor, or
connect coaxial cables with incomplete relays
•
If water or other objects enter the conductor, or coaxial cables with incomplete
relays are connected, it may result in electric shock or fire. Disconnect the AC
cord and contact an authorized service center if there is any damage to the coaxial
cables.
Do not damage existing wires or pipes when making holes for mounting
or wiring
•
This may result in earth leakage, electric shock, or fire.
Do not install or use the unit near medical equipment
•
High-frequency signals emitted from the unit may affect the operation of medical
equipment and cause malfunctions.
Do not expose the unit to rain or any type of moisture
•
To prevent the risk of fire or electrical shock, do not place objects such as cups
or vases near the unit. If the unit is exposed to moisture, disconnect the AC cord
and contact an authorized service center.
Do not touch the core of the coaxial cable
•
A maximum of DC 60 V is applied to the coaxial cable. This may result in electric
shock.
Do not perform wiring or installation during thunderstorms
•
This may result in electric shock or fire.
Secure screws with the specified torque
•
Serious damage and/or injury may result if the unit falls.
CAUTION
Disconnect the AC cord of the center adaptor if the unit will not be used
for long periods of time or when performing care and cleaning
•
Leaving the AC cord connected when the unit is not used for long periods of time
or when performing care and cleaning may result in earth leakage, electric shock,
or injury.
Operating Instructions
5
For Your Safety
Do not mount the unit to ceilings or walls made of soft materials
•
Do not mount the unit to soft ceilings or walls such as plasterboard, ALC (aerated
light-weight concrete), concrete blocks, or any surfaces under 25 mm thickness.
Injury may result if the unit falls.
Do not pull cables or apply excessive force to connectors
•
This may damage the cables or connectors, and result in electric shock.
Do not connect other devices to the BNC connector of the unit
•
This may damage the unit.
Do not expose the unit to fire or naked flames
•
This may result in fire.
The AC cord is used as the main disconnect device
•
Ensure that the power outlet is installed near the unit and is easily accessible.
Do not play the included CD-ROM in an audio CD player
•
6
Ear-splitting volume may hurt your ears and damage the CD player’s speakers.
Operating Instructions
Important Safety Instructions
Important Safety Instructions
When using this unit, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, or personal injury.
1. Do not use this unit near water for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement or near a swimming pool.
2. Avoid handling or installing the unit, connecting wiring, or touching the AC cord,
power plug, LAN cable, or coaxial cable during an electrical storm.
3. Do not use the unit in the vicinity of a gas leak.
4. Use only the AC cord indicated in this manual.
SAVE THESE INSTRUCTIONS
Operating Instructions
7
General Precautions
General Precautions
Follow the instructions written in For Your Safety (see page 3) and Important Safety
Instructions (see page 7) together with the instructions written below.
1. The unit is intended for indoor use only and should not be mounted outdoors.
2. The unit uses the same high-frequency signals as used by the radio signals of
amateur radio, shortwave broadcasting, aviation radio, and marine radio. Therefore
operational interference may occur if the unit is used in proximity to devices that
transmit these radio signals.
3. Do not connect the camera adaptor (BY-HPE11R) to communications carrier
equipment such as rental modems.
4. Follow the following precautions in order to maintain product performance
over long periods of time.
• Do not use the unit in areas with high temperatures or humidity for long periods
of time. Use in these areas can degrade parts which can shorten the life-span of
the unit. We recommend areas that have temperatures of 35 °C or lower.
• Do not install the unit in places that can be directly exposed to heat sources.
5. Proper handling of the unit
• Do not drop, or expose the unit to strong vibrations or shaking. This may cause
malfunctions.
6. Take precautions for when reselling, disposing, or sending the unit for repairs.
• Take adequate precautions when handing the unit over to third parties.
7. Care and cleaning for the unit
• Perform cleaning and care after disconnecting the center adaptor from the power
outlet. Do not use benzine, thinner, or any other abrasive powders when
cleaning. This may change the color of the unit cases.
8. Cleaning stains from the unit
• Wipe stained areas with a damp soft cloth.
For FRG Users (For Germany Only)
•
•
8
Machine noise information regulation - 3.GPSGV, the maximum sound pressure
level is 70 dB(A) or less, in conformity with EN ISO 7779.
This device is not intended for use in the direct field of view at visual display
workplaces. To avoid incommoding reflexions at visual display workplaces this
device must not be placed in the direct field of view.
Operating Instructions
Table of Contents
Table of Contents
1
Main Unit ...................................................................................................10
1.1
1.2
1.3
2
Camera Adaptor (BY-HPE11R) ......................................................................10
Center Adaptor (BY-HPE11H) ........................................................................12
Understanding the Indicators .......................................................................13
Resetting the Unit ....................................................................................14
2.1
2.2
3
Resetting Camera Adaptors ..........................................................................14
Resetting Center Adaptors ............................................................................15
Adaptor Maintenance Screen .................................................................16
3.1
3.1.1
3.1.2
3.1.3
3.1.4
3.2
3.2.1
3.2.2
3.2.3
4
4.1
4.2
4.3
4.4
5
Accessing the Maintenance Screen .............................................................17
Temporarily Changing the Computer’s IP Address ........................................17
Accessing the Maintenance Screen ...............................................................19
Maintenance Screen Overview ......................................................................21
System Requirements ....................................................................................22
Using the Maintenance Screen .....................................................................23
Updating the Adaptor’s Firmware ..................................................................23
Confirming the Adaptor’s Status ....................................................................24
Changing Adaptor Settings ............................................................................26
Troubleshooting ......................................................................................29
Indicator Display Issues ................................................................................29
Communication Speed Issues ......................................................................30
PoE Issues ......................................................................................................31
Other Issues ....................................................................................................31
Specifications ..........................................................................................32
Operating Instructions
9
1 Main Unit
1 Main Unit
1.1 Camera Adaptor (BY-HPE11R)
Front view
A Indicator
Displays the status of the camera adaptor (see
page 13).
B PoE switch
Turns the PoE function ON/OFF. The default
setting is [ON].
B
A
C
D
E
IMPORTANT
• When using the camera adaptor’s PoE
function to supply power to a network
camera, set the PoE switch to [ON].
When not using the PoE function (when
powering the network camera with an
AC adaptor), set it to [OFF].
• The PoE function cannot be used for
connections over 500 m. Set the PoE
switch to [OFF].
C BNC connector
Connects the camera adaptor to the center
adaptor with a coaxial cable (see
3.2 Connections in the Installation Guide).
D Network connector
Connects the camera adaptor to a network
camera with a LAN cable (see
3.2 Connections in the Installation Guide).
E INITIAL SET button
Used to reset the camera adaptor to its factory
default settings (see page 14).
10
Operating Instructions
1 Main Unit
Rear view
A
B
A Used when attaching the camera adaptor to a
ceiling or wall with screws (see 2.1 Mounting
the Camera Adaptor in the Installation Guide).
B Used when attaching the safety wire (see
2.1 Mounting the Camera Adaptor in the
Installation Guide).
C Used when attaching the camera adaptor to
screws inserted into a wall.
C
Operating Instructions
11
1 Main Unit
1.2 Center Adaptor (BY-HPE11H)
Front view
A Indicators
Displays the status of the center
adaptor (see page 13).
D
A
B
B SPEED button
Used when measuring the speed
between adaptors (see
3.2 Connections in the Installation
Guide).
C INITIAL SET button
Used to reset the center adaptor to
its factory default settings (see
page 15).
C
D Network connector
Connects the center adaptor to a
network device with a LAN cable
(see 3.2 Connections in the
Installation Guide).
Rear view
A BNC connector
Connects the center adaptor to the
camera adaptor with a coaxial cable
(see 3.2 Connections in the
Installation Guide).
A
12
Operating Instructions
B
B AC IN
Connects the center adaptor to the
power outlet with the included AC
cord (see 3.2 Connections in the
Installation Guide).
1 Main Unit
1.3 Understanding the Indicators
The light indicators change depending on the operating status of the camera and center
adaptors.
Camera adaptor
Indicator
LINK
Light Status
Meaning
Green (lit)
The camera adaptor is connected to the center
adaptor.
Orange (lit)
The camera adaptor is activating.
Red (lit)
The camera adaptor is malfunctioning. Contact an
authorized service center.
Off
The center adaptor is not connected to the power
outlet, or the coaxial cable is not connected.
Center adaptor
Indicator
Light Status
Green (lit)
The center adaptor is active.
Green (flashing)
The center adaptor may be connected to a device
other than the camera adaptor with the coaxial
cable. Check the connection with the camera
adaptor.
Off
The center adaptor is not connected to the power
outlet.
Green (lit)
A network device is connected.
Green (flashing)
Sending/receiving data from a network device.
Orange (lit)
A network device is not connected, or the
connected network device is not connected to the
power outlet.
Off
The center adaptor is not connected to the power
outlet.
Green (lit)
The camera adaptor is connected to the center
adaptor.
Red (lit)
The center adaptor is malfunctioning. Contact an
authorized service center.
Off
The center adaptor is not receiving power, or the
coaxial cable or camera adaptor is not connected.
POWER
LAN
COAXIAL
Meaning
Operating Instructions
13
2 Resetting the Unit
2 Resetting the Unit
Reset the unit when reselling, disposing, or sending it for repairs.
2.1 Resetting Camera Adaptors
Reset the camera adaptor when it is connected to the center adaptor with a coaxial
cable, and the center adaptor is connected to the power outlet.
1. Press the camera adaptor’s INITIAL SET button (A) for about 3 seconds with a
pointed object.
• The indicator (B) will start flashing green.
B
A
2. The camera adaptor’s indicator (B) is lit green.
• Resetting is completed when the indicator is lit green after changing from flashing
green to flashing orange. However, depending on the condition of the connection,
the indicator may be lit green after alternating from flashing orange to lit orange.
IMPORTANT
• Do not disconnect the center adaptor’s AC cord, or the coaxial cable during
resetting or within 30 seconds after resetting, because the internal
information may not have completed resetting.
14
Operating Instructions
2 Resetting the Unit
2.2 Resetting Center Adaptors
1. Press the center adaptor’s INITIAL SET button (A) for about 3 seconds with a
pointed object.
• All the indicators (B) will start flashing green.
B
A
2. All of the center adaptor’s indicators (B) are lit green.
• Resetting is completed when all the indicators are lit green after changing from
flashing green.
IMPORTANT
• Do not disconnect the center adaptor’s AC cord within 30 seconds after
resetting, because the internal information may not have completed resetting.
Operating Instructions
15
3 Adaptor Maintenance Screen
3 Adaptor Maintenance Screen
The adaptor’s maintenance screen can be displayed on the web browser of a PC
connected to the network connector of an adaptor.
Settings such as the following can be performed in the maintenance screen.
– firmware version updates
– adaptor status confirmation
– IP address and password changes
IMPORTANT
• To display the maintenance screen of adaptors that have already been installed
or connected, directly connect the camera or center adaptor to a PC with a LAN
cable.
• In order to access the adaptor’s maintenance screen, you must temporarily
change the IP address assigned to your computer. Before you change the IP
address of your computer, note the IP address and network settings already
assigned to your computer.
• After you have finished using the maintenance screen, restore the
computer’s IP address and network settings to their original values.
• If you plan to update the adaptor’s firmware, download the latest version of the
adaptor’s firmware from the Panasonic support site
(http://panasonic.net/pss/security/products/coax/index.html) and save it on the
computer before you change the IP address of the computer.
16
Operating Instructions
3 Adaptor Maintenance Screen
3.1 Accessing the Maintenance Screen
3.1.1 Temporarily Changing the Computer’s IP Address
Temporarily change the IP address assigned to your computer to access the adaptor’s
maintenance screen.
The procedure for changing the IP address differs depending on the operating system
used.
Windows® 7: Changing your computer’s IP address
In Microsoft® Windows 7, this procedure must be performed by either the
“Administrator” user, or a user assigned with administrator level privileges. Refer to the
help file supplied with the operating system for more information.
1. Click [Start]®[Control Panel]®[View network status and tasks].
2. Click [View your active networks]®[Local Area Connection].
3. Click [Properties] under [Local Area Connection Status].
4. Select [Internet Protocol Version 4 (TCP/IPv4)], then click [Properties].
Operating Instructions
17
3 Adaptor Maintenance Screen
5. Select [Use the following IP address], then click [OK] after entering the IP address
(192.168.249.***) and Subnet mask (255.255.255.0). For the IP address,
***=1-254. However, 249 cannot be used.
6. Click [Close] to exit the [Local Area Connection Properties] screen.
IMPORTANT
• The procedure for changing the IP address may change depending on whether
the viewing method for Windows 7 is set to [Large icons] or [Small icons]. Refer
to the help file supplied with the operating system for more information.
18
Operating Instructions
3 Adaptor Maintenance Screen
3.1.2 Accessing the Maintenance Screen
Follow the procedure below after you have changed the IP address of the computer.
1. Connect the adaptor (A: camera adaptor or center adaptor) and computer (C) using
a LAN cable (B). When accessing the camera adaptor, make sure it is connected
to the center adaptor with a coaxial cable, and that the center adaptor is connected
to the power outlet.
A
C
B
IMPORTANT
• To display the maintenance screen of adaptors that have already been
installed or connected, directly connect each adaptor to a PC with a LAN
cable.
2. Start the computer’s web browser.
• See page 22 for information on web browsers.
3. Enter http://192.168.249.249/ in the web browser’s address bar.
4. Enter the user name and password.
– Default user name: BY-HPE11
– Default password: 999999
• The screen shown here depicts the screen shown when using Windows 7.
Operating Instructions
19
3 Adaptor Maintenance Screen
5. Click [OK].
• The maintenance screen is displayed.
IMPORTANT
• The screen shown here depicts the screen shown when accessing a center
adaptor. The screen displayed for the center adaptor and camera adaptor is
different.
• After you have finished using the maintenance screen, restore the
computer’s IP address and network settings to their original values.
• Only a PC connected to the adaptor’s network connector can display the
maintenance screen and perform firmware updates, etc.
• The maintenance screen is displayed in English.
20
Operating Instructions
3 Adaptor Maintenance Screen
3.1.3 Maintenance Screen Overview
A
B
C
D
E
F
G
Model name
Name of current screen
Click to jump to the corresponding page
Click to restart the adaptor
Click to view the copyright information
Contents of the current screen
Click to update the displayed information
IMPORTANT
• The screen shown here depicts the screen shown when accessing a center
adaptor. The screen displayed for the center adaptor and camera adaptor is
different.
• When consecutively connecting adaptors to the computer to access their
maintenance screens, because the information (ARP table) of the previously
connected adaptor is retained, the maintenance screen may not be able to be
opened. Therefore, we recommend restarting the computer before connecting it
to another adaptor and accessing its maintenance screen.
You may reset the computer’s ARP table if you do not want to restart the
computer. Refer to the help file or operating instructions supplied with the
operating system for more information.
Resetting the ARP table when using Windows 7
1. Display the command prompt by clicking [Start]®[All
Programs]®[Accessories]®[Command Prompt].
2. Enter arp -d, then press [Enter].
Operating Instructions
21
3 Adaptor Maintenance Screen
3.1.4 System Requirements
Operating System
22
Web Browser
Microsoft Windows 7
Internet Explorer® (version 8.0 or later)
Microsoft® Windows Vista®
Internet Explorer® (version 7.0 or later)
Microsoft® Windows® XP
Internet Explorer® (version 6.0 or later)
®
®
Operating Instructions
3 Adaptor Maintenance Screen
3.2 Using the Maintenance Screen
3.2.1 Updating the Adaptor’s Firmware
Make sure you download the latest version of the adaptor’s firmware from the Panasonic
support site (http://panasonic.net/pss/security/products/coax/index.html) and save it to
the computer before changing the computer's IP address and accessing the
maintenance screen.
1. Access the maintenance screen of the adaptor.
2. Click [Update Firmware].
3. Click [Browse...], select the firmware file, then click [Open].
4. Click [Start].
5. Click [OK] when prompted.
• The firmware will be updated, and then the adaptor will automatically restart. After
restarting, the updated firmware is used.
IMPORTANT
• After you have finished using the maintenance screen, restore the computer’s IP
address and network settings to their original values.
• Do not disconnect the center adaptor from the power outlet until the update is
completed.
• After you have updated the firmware, confirm the adaptor’s firmware version on
the [Status] screen. (See page 24)
• Update the firmware for both the camera adaptor and center adaptor.
Operating Instructions
23
3 Adaptor Maintenance Screen
3.2.2 Confirming the Adaptor’s Status
You can confirm the information in the table below, such as the firmware version and
MAC address of the adaptor, on the [Status] screen.
1. Access the maintenance screen of the adaptor.
2. Click [Status].
IMPORTANT
• The screen shown here depicts the screen shown when accessing a center
adaptor. The screen displayed for the center adaptor and camera adaptor is
different. [Link Status] and [MAC Address of Master] are not displayed on the
camera adaptor’s screen.
Items
24
Description
Boot Version
Displays the adaptor’s boot version.
Firmware Version
Displays the adaptor’s firmware version.
Operation Mode
Displays the adaptor type (camera adaptor or center adaptor).
Camera adaptors are displayed as [Master], and center adaptors
are displayed as [Terminal].
MAC Address of this
equipment
Displays the MAC address of the connected adaptor.
Another Master
Indicates whether other camera adaptors exist on the network.
If other camera adaptors exist on the network, [Detected] is
displayed, if they do not exist, [Not Detected] is displayed.
Communication performance may be affected if other camera
adaptors are detected.
Link Status (only
displayed for the
center adaptor)
Displays the status of the connection between the center and
camera adaptor. [Connected] is displayed when there is a
connection, and [Disconnected] is displayed when there is no
connection.
Operating Instructions
3 Adaptor Maintenance Screen
Items
Description
MAC Address of
Master (only
displayed for the
center adaptor)
Displays the MAC address of the connected camera adaptor. If no
camera adaptor is connected, [Unregistered] is displayed.
PoE: Ethernet Link
Displays the status of the connection between the camera adaptor
and network device.
[Link-up] is displayed if there is a connection, and [Link-down] is
displayed if there is no connection.
• When viewing the center adaptor’s maintenance screen,
information from the camera adaptor is obtained and displayed.
If the information cannot be obtained, [Unknown] is displayed.
PoE: PoE Switch
Displays the status of the camera adaptor’s PoE switch (ON/OFF).
• When viewing the center adaptor’s maintenance screen,
information from the camera adaptor is obtained and displayed.
If the information cannot be obtained, [Unknown] is displayed.
PoE: PoE Power
Supply
Displays whether the camera adaptor’s PoE function is able to
supply power to connected devices or not. [Enable] is displayed if
the camera adaptor is able to supply power, and [Disable] is
displayed if it is not.
• When viewing the center adaptor’s maintenance screen,
information from the camera adaptor is obtained and displayed.
If the information cannot be obtained, [Unknown] is displayed.
IMPORTANT
• After you have finished using the maintenance screen, restore the computer’s IP
address and network settings to their original values.
Operating Instructions
25
3 Adaptor Maintenance Screen
3.2.3 Changing Adaptor Settings
The IP address and password for accessing the maintenance screen can be changed.
Changing the adaptor’s IP address
You may change the adaptor’s IP address and subnet mask if necessary.
Change the IP address in cases such as when the adaptor is using the same IP address
as another network device, or if you want to match the address used in the network.
1. Access the maintenance screen of the adaptor.
2. Click [Option].
3.
4.
5.
6.
Enter the desired IP address.
Enter the subnet mask if necessary.
Click [Set], then click [OK] when prompted.
Click [Restart].
• The adaptor will restart, and the new settings will take effect. The new IP address
must be entered in the web browser’s address bar in order to access the
adaptor’s maintenance screen again.
IMPORTANT
• After you have finished using the maintenance screen, restore the computer’s IP
address and network settings to their original values.
• Match the IP address and subnet mask settings to those used in your network.
• The screen shown here depicts the screen shown when accessing a camera
adaptor. The screen displayed for the center adaptor and camera adaptor is
different.
26
Operating Instructions
3 Adaptor Maintenance Screen
Changing the adaptor’s password
You may change the adaptor’s password if necessary. The password is required to
access the maintenance screen.
1. Access the maintenance screen of the adaptor.
2. Click [Option], then click the [Account] tab.
3. Enter the desired password within 6-12 characters (only A-Z, a-z, and 0-9 can be
used).
• Passwords are case-sensitive.
• [Space], ["], ['], [&], [<], and [>] cannot be entered.
4. Click [Set], then click [OK] when prompted.
5. Click [Restart].
• The adaptor will restart, and the new settings will take effect. The new password
must be entered in order to access the adaptor’s maintenance screen again.
IMPORTANT
• After you have finished using the maintenance screen, restore the computer’s IP
address and network settings to their original values.
• To increase security, we recommend changing the adaptor’s password.
• Do not forget the password. If the password is forgotten, you can reset the
password to the default value (999999) by resetting the adaptor (see page 14).
If the adaptor is reset, all registration information is erased.
• Do not disclose the password, you are responsible for managing your password.
• The user name cannot be changed.
• The screen shown here depicts the screen shown when accessing a camera
adaptor. The screen displayed for the center adaptor and camera adaptor is
different.
Operating Instructions
27
3 Adaptor Maintenance Screen
Viewing the center adaptor’s MAC address (only from the camera adaptor)
You can access the camera adaptor’s maintenance screen and view the MAC address
of the center adaptor.
1. Access the maintenance screen of the camera adaptor.
2. Click [Option], then click the [Terminal List/Delete] tab.
•
•
The center adaptor’s MAC address is displayed.
The [Delete] button, [Cancel] button, and check box cannot be used.
IMPORTANT
• After you have finished using the maintenance screen, restore the computer’s IP
address and network settings to their original values.
• The MAC address of the center adaptor is written on the underside of the center
adaptor.
28
Operating Instructions
4 Troubleshooting
4 Troubleshooting
Before sending the unit in for repairs, check if the problem can be resolved by following
the troubleshooting steps.
If the problem cannot be solved by the steps in the troubleshooting, contact an
authorized service center.
4.1 Indicator Display Issues
Problem
Cause and Remedy
All the indicators are
not lit.
•
The center adaptor may not be receiving power.
→ Confirm that the AC cord is connected to the power outlet
and the AC IN of the center adaptor (see
3.2 Connections in the Installation Guide).
Only the camera
adaptor’s indicator is
not lit.
•
The coaxial cable is not connected.
→ Connect the coaxial cable.
→ Confirm that the coaxial cable is not over 2 km in length
and is connected properly (see 3.2 Connections in the
Installation Guide).
→ Confirm that there are no connection problems such as
damage or breaks in the cable.
The camera adaptor’s •
LINK indicator is lit red.
Data cannot be sent because the camera adaptor may be
malfunctioning.
→ Contact an authorized service center.
The center adaptor’s
POWER indicator is
flashing green.
•
The center adaptor may be connected to a device other than
the camera adaptor.
→ Check the connection with the camera adaptor (see
3.2 Connections in the Installation Guide).
The center adaptor’s
LAN indicator is lit
orange.
•
A network device is not connected to the network connector.
→ Connect a network device to the network connector with
a LAN cable (see 3.2 Connections in the Installation
Guide).
The network device connected to the network connector may
not be receiving power.
→ Connect the network device to a power outlet (see
3.2 Connections in the Installation Guide).
A network device is not connected to the network connector
with a LAN cable.
→ Confirm that the LAN cable is connected properly (see
3.2 Connections in the Installation Guide) and that there
are no connection problems such as damage or breaks
in the cable.
•
•
Operating Instructions
29
4 Troubleshooting
Problem
The center adaptor’s
COAXIAL indicator is
not lit.
Cause and Remedy
•
•
•
The center adaptor’s
•
COAXIAL indicator is lit
red.
The center adaptor is not receiving power.
→ Confirm that the AC cord is connected to the power outlet
and AC IN of the center adaptor (see 3.2 Connections
in the Installation Guide).
The coaxial cable is not connected.
→ Confirm that the coaxial is not over 2 km in length and is
connected properly (see 3.2 Connections in the
Installation Guide).
→ Confirm that there are no connection problems such as
damage or breaks in the cable.
The camera adaptor is not connected.
→ Connect the center and camera adaptors with a coaxial
cable (see 3.2 Connections in the Installation Guide).
Data cannot be sent because the center adaptor may be
malfunctioning.
→ Contact an authorized service center.
4.2 Communication Speed Issues
Problem
When testing the
•
communication speed,
all the indicators are off,
or only 1 or 2 of the
indicators are lit.
30
Operating Instructions
Cause and Remedy
The communications speed may be affected due to issues
with the installation environment.
→ This is not a malfunction. Confirm that there are no
problems with using the camera or displaying images.
→ Confirm that the coaxial cable is of a suitable type and
length, and that there are no devices near the unit that
may cause strong interference.
4 Troubleshooting
4.3 PoE Issues
Problem
Network cameras
connected to the
camera adaptor do not
function.
Cause and Remedy
•
•
The status of the [PoE:
PoE Power Supply] on
the maintenance
screen is set to
[Disable] and the PoE
function cannot supply
power.
•
•
•
The connection distance may be too long.
→ The PoE function cannot supply power to devices
connected at distances over 500 m.
→ Confirm that the connected LAN cable is a PoE standard
cable (see 3.1 Connection Example in the Installation
Guide), that the LAN cable is connected properly, and
that there are no connection problems such as damage
or breaks in the cable.
If the LAN cable was quickly disconnected and then
reconnected, the PoE function may not be able to supply
power.
→ Disconnect the LAN cable and then reconnect after
waiting for more than 2 seconds.
The status of the [PoE: Ethernet Link] on the maintenance
screen is set to [Link-down].
→ Confirm that the camera adaptor, network camera and
other network devices are connected properly, that there
are no connection problems such as damage or breaks
in the cables, and that network devices are connected to
the power outlet (see 3.2 Connections in the Installation
Guide).
The status of the [PoE: PoE Switch] on the maintenance
screen is set to [OFF].
→ Turn the PoE switch on the camera adaptor to [ON] (see
page 10).
Power cannot be supplied normally from the center adaptor
to the camera adaptor.
→ The PoE function cannot supply power to devices
connected with coaxial cable at distances over 500 m
(see 3.2 Connections in the Installation Guide).
→ The PoE function may not be able to supply power if the
line resistance of the coaxial cable is of a high value (see
3.2 Connections in the Installation Guide).
4.4 Other Issues
Problem
The unit is warm.
Cause and Remedy
•
This is normal. (The unit may seem slightly warmer in
summer than compared to winter.)
→ If the unit gets extremely hot, disconnect the power plug
and contact an authorized service center.
Operating Instructions
31
5 Specifications
5 Specifications
Center Adaptor (BY-HPE11H)
Items
Specifications
Operating Environment
Temperature: 0 °C to 50 °C
Humidity: 20 %–85 % (no condensation)
Interfaces
10Base-T/100Base-TX ´ 1
AUTO MDI/MDI-X AC inlet
BNC connector
Dimensions (W´H´D)
About 105 mm ´ 44 mm ´ 210 mm (main body only)
Mass (Weight)
About 570 g
Power Supply
AC 100–240 V 50/60 Hz 0.6 A
Power Consumption
Maximum about 28 W (including the power consumption of the
camera adaptor)
Coaxial Cable Power
Supply Capability
Maximum 22 W
Camera Adaptor (BY-HPE11R)
Items
Specifications
Operating Environment
Temperature: -10 °C to 50 °C
Humidity: 20 %–90 % (no condensation)
Interfaces
10Base-T/100Base-TX ´ 1
AUTO MDI/MDI-X (PoE compatible)
BNC connector
Dimensions (W´H´D)
About 80 mm ´ 115 mm ´ 35 mm (main unit only)
Mass (Weight)
About 165 g
Power Supply
Original power system (DC 55 V from the center adaptor via the
coaxial cable)
Power Consumption
Included in the center adaptor’s power consumption
PoE Power Supply
Capability
Maximum 15.4 W
(see page 34 for more information)
Coaxial Interface
Items
Standard
32
Operating Instructions
Specifications
Panasonic original system
5 Specifications
Items
Specifications
Frequency Range
2 MHz–28 MHz
Data Transfer Mode
Wavelet OFDM
Access Method
CSMA/CA
Error Correction
Reed-Solomon Code + Convolutional Code (Viterbi decoding)
LAN Interface
Items
Specifications
Standard
IEEE802.3/IEEE802.3u
(10Base-T/100Base-TX)
MDI/MDI-X
Cross/Straight cable automatic recognition
Transmission Rate
10 Mbps/100 Mbps (Auto-Sensing)
Number of Ports
1 (RJ-45 connector)
Protocol
TCP/IP/UDP
Access Method
CSMA/CD
Connection Specifications
Items
Specifications
Number of adaptors
that can be
communicated with
1 camera adaptor can be connected via coaxial cable for each
center adaptor
Connectable Devices
Center adaptor: devices equipped with 10Base-T/100Base-TX
interfaces
Camera adaptor: Panasonic network cameras (see
http://panasonic.net/pss/security/products/coax/index.html for
more information)
Number of devices that
can be connected
A maximum of 256 center adaptors or camera adaptors can be
connected in 1 segment
Maintenance Screen Specifications
Items
Specifications
Compatible Operating
Systems
Windows XP, Windows Vista, Windows 7
Web Browser
Internet Explorer 6.0, 7.0, 8.0 or later
Operating Instructions
33
5 Specifications
Performance Specifications
Items
Specifications
*1
Transmission Speed
(UDP)
45 Mbps or higher (when using an RG-6/U coaxial cable at
distances under 2 km)
Transmission Speed*1
(TCP*2)
35 Mbps or higher (when using an RG-6/U coaxial cable at
distances under 2 km)
Maximum
Transmission Distance
Without PoE function: 2 km
With PoE function: 500 m (when using a Panasonic network
camera) / 300 m (when using a Class0 standard network
camera)
*1
*2
This value is for transmissions between the BY-HPE11H and BY-HPE11R. The transmission speed when
using an RG-6/U coaxial cable may very depending on factors such as the coaxial cable condition and
network environment. The values shown here measured in environments not affected by cable or network
environment conditions.
Measured using Linux® FTP.
Maximum Transmission Distance / PoE Power Supply (when using RG-6/U
coaxial cable) Specifications
Maximum
Transmission
Distance
Power
Supplied by
PoE
*1
*2
*3
34
300 m
500 m
15.4 W*1
12.0 W*2
1,000 m
1,500 m
2,000 m
Cannot supply power with PoE*3
When connecting an IEEE802.3af (Alternative B, class0) network camera to the camera adaptor
(BY-HPE11R).
When connecting a Panasonic network camera (see
http://panasonic.net/pss/security/products/coax/index.html for more information) to the camera adaptor
(BY-HPE11R).
Turn the PoE switch [OFF] in this situation.
Operating Instructions
5 Specifications
RG-6/U coaxial cable
In this document coaxial cables with the following specifications are referred to as
RG-6/U coaxial cables.
Coaxial Cable
Type
DC R/300 m of Inner
Conductor
RG-6/U
Less than 12 W
Maximum Cable
Length (for PoE
connections)
500 m
Maximum Cable
Length (for non-PoE
connections)
2,000 m
Accessories
Rack Mount Connecting Fitting: BY-HCA10CE
Operating Instructions
35
Hagenauer Strasse 43, 65203 Wiesbaden, Germany
For information of Compliance with EU relevant Regulatory
Directives, Contact to Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
(For EU only)
http://panasonic.net
Importer's name and address to follow EU rules:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
© Panasonic System Networks Co., Ltd. 2010
PNQX3365ZA KK1210CM0
