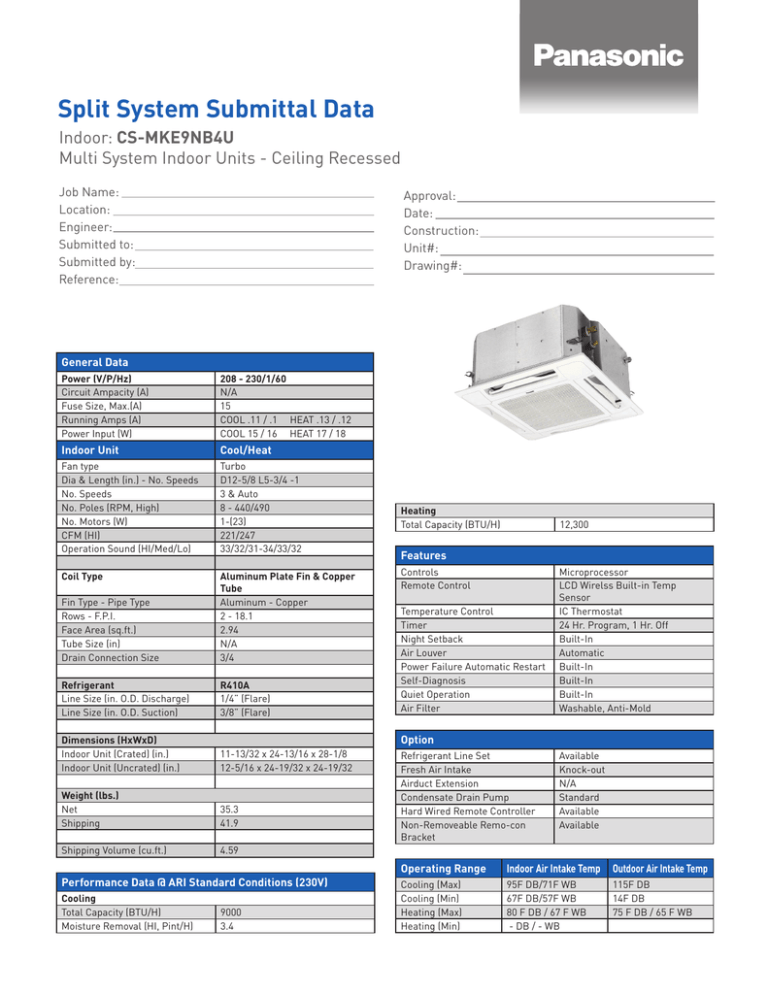

Split System Submittal Data

Indoor:

CS-MKE9NB4U

Multi System Indoor Units - Ceiling Recessed

Job Name:

Location:

Engineer:

Submitted to:

Submitted by:

Reference:

Approval:

Date:

Construction:

Unit#:

Drawing#:

General Data

Power (V/P/Hz)

Circuit Ampacity (A)

Fuse Size, Max.(A)

Running Amps (A)

Power Input (W)

Indoor Unit

Fan type

Dia & Length (in.) - No. Speeds

No. Speeds

No. Poles (RPM, High)

No. Motors (W)

CFM (HI)

Operation Sound (HI/Med/Lo)

Coil Type

Fin Type - Pipe Type

Rows - F.P.I.

Face Area (sq.ft.)

Tube Size (in)

Drain Connection Size

Refrigerant

Line Size (in. O.D. Discharge)

Line Size (in. O.D. Suction)

Dimensions (HxWxD)

Indoor Unit (Crated) (in.)

Indoor Unit (Uncrated) (in.)

Weight (lbs.)

Net

Shipping

Shipping Volume (cu.ft.)

208 - 230/1/60

N/A

15

COOL .11 / .1 HEAT .13 / .12

COOL 15 / 16 HEAT 17 / 18

Cool/Heat

Turbo

D12-5/8 L5-3/4 -1

3 & Auto

8 - 440/490

1-(23)

221/247

33/32/31-34/33/32

Aluminum Plate Fin & Copper

Tube

Aluminum - Copper

2 - 18.1

2.94

N/A

3/4

R410A

1/4” (Flare)

3/8” (Flare)

11-13/32 x 24-13/16 x 28-1/8

12-5/16 x 24-19/32 x 24-19/32

35.3

41.9

4.59

Performance Data @ ARI Standard Conditions (230V)

Cooling

Total Capacity (BTU/H)

Moisture Removal (HI, Pint/H)

9000

3.4

Heating

Total Capacity (BTU/H) 12,300

Features

Controls

Remote Control

Temperature Control

Timer

Night Setback

Air Louver

Microprocessor

LCD Wirelss Built-in Temp

Sensor

IC Thermostat

24 Hr. Program, 1 Hr. Off

Built-In

Automatic

Power Failure Automatic Restart Built-In

Self-Diagnosis Built-In

Quiet Operation

Air Filter

Built-In

Washable, Anti-Mold

Option

Refrigerant Line Set

Fresh Air Intake

Airduct Extension

Condensate Drain Pump

Hard Wired Remote Controller

Non-Removeable Remo-con

Bracket

Available

Knock-out

N/A

Standard

Available

Available

Operating Range Indoor Air Intake Temp Outdoor Air Intake Temp

Cooling (Max)

Cooling (Min)

Heating (Max)

Heating (Min)

95F DB/71F WB

67F DB/57F WB

80 F DB / 67 F WB

- DB / - WB

115F DB

14F DB

75 F DB / 65 F WB

Indoor Dimensions

AA

1

2

3

4

7

8

5

6

Air intake

Discharge outlet

Refrigerant tubing (liquid tube) dia. 1/4" (flared)

Refrigerant tubing (gas tube) dia. 1/2" (flared)

Drain tube connection port VP20 (outer dia. 1")

Power supply port

Suspension bolt hole (4 - 1/2" x 1-1/8" hole)

Fresh air intake duct connection port (dia. 3-7/8")

22-5/8 (575)

7

Center of panel

2-3/32

22-5/8 (575)

6-5/16 6-11/16 5

4-29/32

A View

8

Less than 31/32

1-27/32

Unit : inch (mm)

2-3/32

1-3/32

Less than 31/32

25/32

2

2

1

2

6 3

24-19/32 (625)

14-3/32 (358)

2

The length of the suspension bolts should be selected so that there is a gap of 1-3/16" or the ceiling (21/32" or more below the lower surface of the main unit), as shown in the figure at right. If the suspension bolts is too long, it will contact the ceiling panel and the unit cannot be installed.

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144 http://www.panasonic.com/aircon
