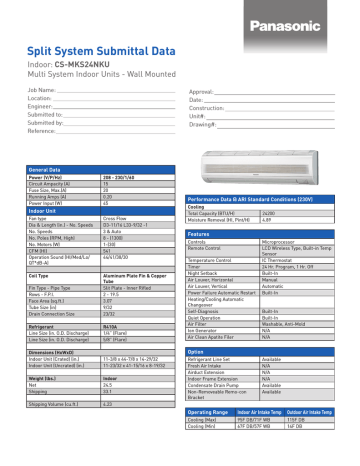

Split System Submittal Data
Indoor: CS-MKS24NKU
Multi System Indoor Units - Wall Mounted
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit#:
Drawing#:
General Data
Power (V/P/Hz)
Circuit Ampacity (A)
Fuse Size, Max.(A)
Running Amps (A)
Power Input (W)
208 - 230/1/60
15
20
0.20
45
Indoor Unit
Fan type
Dia & Length (in.) - No. Speeds
No. Speeds
No. Poles (RPM, High)
No. Motors (W)
CFM (HI)
Operation Sound (HI/Med/Lo/
QT*dB-A)
Cross Flow
D3-11/16 L33-9/32 -1
3 & Auto
8 - (1300)
1-(30)
541
44/41/38/30
Coil Type Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Tube Size (in)
Drain Connection Size
Aluminum Plate Fin & Copper
Tube
Slit Plate - Inner Rifled
2 - 19.5
3.07
9/32
23/32
Refrigerant
Line Size (in. O.D. Discharge)
Line Size (in. O.D. Discharge)
R410A
1/4” (Flare)
5/8” (Flare)
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
Indoor Unit (Uncrated) (in.)
11-3/8 x 44-7/8 x 14-29/32
11-23/32 x 41-15/16 x 8-19/32
Weight (lbs.)
Net
Shipping
Indoor
24.5
33.1
Shipping Volume (cu.ft.)
4.23
Performance Data @ ARI Standard Conditions (230V)
Cooling
Total Capacity (BTU/H)
Moisture Removal (HI, Pint/H)
24200
4.89
Features
Controls
Remote Control
Temperature Control
Timer
Night Setback
Air Louver, Horizontal
Air Louver, Vertical
Power Failure Automatic Restart
Heating/Cooling Automatic
Changeover
Self-Diagnosis
Quiet Operation
Air Filter
Ion Generator
Air Clean Apatite Filer
Microprocessor
LCD Wireless Type, Built-in Temp
Sensor
IC Thermostat
24 Hr. Program, 1 Hr. Off
Built-In
Manual
Automatic
Built-In
Built-In
Built-In
Washable, Anti-Mold
N/A
N/A
Option
Refrigerant Line Set
Fresh Air Intake
Airduct Extension
Indoor Frame Extension
Condensate Drain Pump
Non-Removeable Remo-con
Bracket
Available
N/A
N/A
N/A
Available
Available
Operating Range
Indoor Air Intake Temp
Outdoor Air Intake Temp
Cooling (Max)
Cooling (Min)
95F DB/71F WB
67F DB/57F WB
115F DB
14F DB
Indoor Dimensions
CS-MKS18NKU
CS-MKS24NKU
Unit: inch(mm)
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
