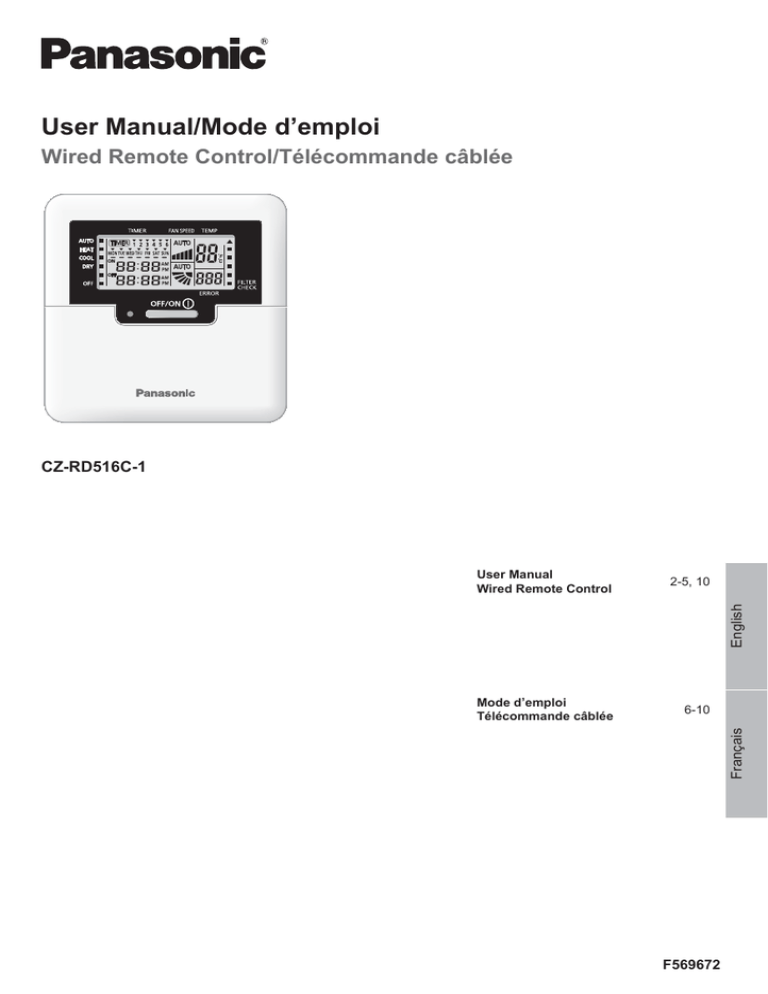

User Manual/Mode d’emploi
Wired Remote Control/Télécommande câblée
CZ-RD516C-1
2-5, 10
Mode d’emploi
Télécommande câblée
6-10
Français
English
User Manual
Wired Remote Control
F569672
Wired remote control
d
e
c
f
g
b
h
1
a
4
3
2
5
6
7
9
8
Remote Control Display
Remote Control Preparation
a OPERATION LED
b OFF INDICATOR
• Press
and hold for approximately 5
seconds to show 12-hour (am/pm) or 24-hour
time indication.
c OPERATION MODE SELECTION
INDICATOR
1. Press
d TIMER/CLOCK SETTING DISPLAY
2. Press
Lights up if Timer operation is selected
6 different
programmes can be
set in a day (1 ~ 6)
Indicates the selected
day
Indicates the next
timer operation day
Time to be selected
(10 minutes step)
OFF Timer. To automatically
switch “OFF” the unit.
ON Timer. To automatically switch “ON”
the unit.
Day to be selected
e FAN SPEED DISPLAY
f
TEMPERATURE SETTING DISPLAY
g ERROR CODE DISPLAY
h FILTER CHECK INDICATOR
2
10
or
to select current day.
3. Press
to confirm.
4. Repeat steps 2 and 3 to set the current time.
1
TO TURN ON OR OFF THE UNIT
• Please be aware of the OFF indication on the
remote control display to prevent the unit from
starting/stopping improperly.
2
TO SET TEMPERATURE
• Selection range: 60°F ~ 86°F.
3
TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode during startup
according to temperature setting and room
temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up. The power
indicator blinks during this operation.
COOL mode - To enjoy cool air
• Use curtains to screen off sunlight and outdoor
heat to reduce power consumption during cool
mode.
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle
cooling operation.
4
TO SELECT FAN SPEED
FAN SPEED
• For AUTO, the indoor fan speed is
automatically adjusted according to the
operation mode.
5
TO ADJUST AIRFLOW DIRECTION
• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver
swing left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal
louver fix at predetermined position. The
vertical louver swing left/right after the
temperature rises.
• For Hide-Away models, AIR SWING buttons
are not in use. Airflow direction can not be
adjusted.
6
Press and hold for approximately 10
seconds to show temperature setting in °C
or °F.
7
Press and hold for 5 seconds to dim or
restore the unit’s indicator brightness.
8
Press to restore the remote control’s
default setting.
9
RETRIEVE ERROR CODE
• During operation, the unit stops and both a
and b is OFF indicates abnormality occurs.
1. Ensure a is OFF, press
for 5 seconds.
2. Press
or
. If error code and abnormality
can be identified, a will be ON continuously,
then write down the error code.
3. Press
for 5 seconds to quit checking.
4. Turn the unit off and reveal the error code to
authorized dealer.
for 10 seconds to enter AC reset
Note: Press
switch (Not used in normal operation).
10
AIR FILTER MAINTENANCE
Cleaning is needed when “FILTER CHECK”
indicator is ON.
• lt is recommended to clean the air filter every 6
weeks.
• After the air filter is cleaned, press
to
reset.
• Do not operate without an air filter.
• Wash/rinse the filters gently with water to avoid
damage to the filter surface.
• Do not dry the part with a hair dryer or a stove.
• Replace any damaged filters.
English
Press the remote control’s button
3
To set the timer
DAILY TIMER SETTING
WEEKLY TIMER SETTING
• To turn ON or OFF the unit at a preset time.
• Daily timer and weekly timer could not be set at
the same time.
• Promotes energy saving by allowing you to set
up to 6 programmes in any given day.
1
3
4
2
1 • Press once to change the display from
Clock to Timer or vice-versa.
• Press for more than 4 seconds to change
the display from Daily Timer to Weekly
Timer or vice-versa.
2 Select ON or OFF timer
1. Press TIMER
for 4 seconds to change
display to weekly timer.
2. Press TIMER
day.
or
to select your desired
3 Set the time
3. Press
4 Confirm
4. “1” will be blinking, press
1.
• To cancel ON or OFF timer, press
.
• Timer operation is based on the clock set in the
remote control and repeats daily once set.
• The timer closest to the current time will be
activated first.
• If timer is cancelled manually or due to power
failure, you can restore the previous setting by
pressing
.
to confirm your selection.
5. Press TIMER
to set programme
to select ON or OFF timer.
6. Press TIMER
or
to select your desired
time.
If you want to set the timer together with your
desired temperature, press
to select the
temperature.
7. Press
to confirm programme 1. The selected
day will be highlighted with
.
• After 2 seconds, the display will move to the
next programme. Repeat steps 4 to 7 to set
programmes 2 to 6.
• Same timer programme cannot be set in the
same day.
• During timer setup, if no button is pressed within
button is pressed, the
30 seconds, or if the
setting at that moment is confirmed and timer
setup is ended.
4
OPERATION DETAILS
NOTE
The timer setting will shown at wired remote
control only but not at indoor unit’s TIMER
indicator.
• POWERFUL, QUIET operation setting could be
operate according to wireless remote control.
• When wired remote control is in operation, the
timer setting from wireless remote control will be
cancelled.
Check Current Timer Programme
Perform the step below to check the timer
programme for a particular day.
1. Press TIMER
2. Press
to enter timer mode.
to enter day setting.
3. Press TIMER
shown, press
4. Press TIMER
programmes.
or
until your desired day is
to confirm your selection.
or
to check the set
Modify Current Timer Programme or Add
New Timer Programme
1. Press TIMER
2. Press
to enter timer mode.
to enter day setting.
3. Press TIMER
or
until your desired day is
shown.
4. Perform steps 4 to 7 of “WEEKLY TIMER
SETTING” to modify existing timer programme,
or add any timer programme.
Perform the step below to cancel the timer
programme for a particular day.
1. Press
to enter day.
2. Press TIMER
shown.
3. Press
or
English
Cancel Current Timer Programme
until your desired day is
to enter programme setting.
or
4. Press TIMER
programme is shown.
until your desired
Press
to cancel the programme and
will disappear.
Disable & Enable Weekly Timer
• To disable weekly timer setting, press TIMER
, then press
.
• To enable previous weekly timer setting, press
TIMER
, then press
.
5
Information/Informations importantes
Federal Communications Commission Interference Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, follow the attached installation instructions. Any
changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
Industry Canada Notice
This Class B digital apparatus complies with Canadian ICES-003.
Avis de la FCC
Cet appareil est conforme à la section 15 des règlements de la FCC. Le fonctionnement est soumis
aux deux conditions suivantes : (1) cet appareil ne doit pas émettre de brouillage nuisible, et (2) cet
appareil doit accepter toute interférence, y compris toute interférence qui pourrait occasionner un
fonctionnement inopportun.
Ce matériel a fait l’objet de tests et il a été trouvé conforme aux limites établies pour un appareil
numérique de la classe B comme il est stipulé à la section 15 des règlements de la FCC. Ces
limites sont conçues pour assurer une protection raisonnable contre le brouillage nuisible dans un
environnement résidentiel. Ce matériel génère, utilise et peut émettre de l’énergie de fréquence
radio et, s’il n’est pas installé et utilisé conformément aux instructions, il peut provoquer un brouillage
nuisible aux communications radio. Cependant, on ne peut garantir que le brouillage n’aura pas
lieu dans le cadre d’une installation particulière. Si ce matériel cause un brouillage nuisible de
la réception radio ou de la télévision, ce qui peut être déterminé en mettant l’appareil hors et en
marche, vous êtes encouragé à remédier à la situation en prenant les mesures suivantes :
• Réorienter ou déplacer l’antenne réceptrice.
• Augmenter la distance entre l’appareil et le récepteur.
• Brancher l’appareil dans une prise d’un circuit différent de celui auquel est branché le récepteur.
• Consulter un revendeur ou un technicien radio/télévision chevronné pour obtenir de l’aide.
Mise en garde de la FCC : Pour assurer la conformité de cet appareil, suivre les directives
d’installation fournies. Tout changement ou toute modification non expressément autorisée par le site
responsable de la conformité risque d’annuler la permission qu’a l’utilisateur de faire fonctionner le
présent appareil.
Avis d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
10
Panasonic Corporation
Website: http://panasonic.net/
Panasonic Canada Inc.
Website/Site Web: http://www.panasonic.com
For support: http://www.panasonic.ca/english/support
Pour le soutien: http://panasonic.ca/french/support
© Panasonic Corporation 2014
Printed in China
Imprimé en Chine For inquiries (U.S.A.), please call 1-800-851-1235 (Pour les É.-U.)
