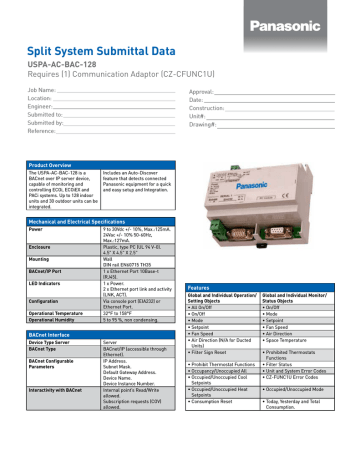

Split System Submittal Data
USPA-AC-BAC-128
Requires (1) Communication Adaptor (CZ-CFUNC1U)
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit#:
Drawing#:
Product Overview
The USPA-AC-BAC-128 is a
BACnet over IP server device,
capable of monitoring and
controlling ECOi, ECOiEX and
PACi systems. Up to 128 indoor
units and 30 outdoor units can be
integrated.
Includes an Auto-Discover
feature that detects connected
Panasonic equipment for a quick
and easy setup and Integration.
Mechanical and Electrical Specifications
Power
Enclosure
Mounting
BACnet/IP Port
LED Indicators
Configuration
Operational Temperature
Operational Humidity
9 to 30Vdc +/- 10%, Max.:125mA.
24Vac +/- 10% 50-60Hz,
Max.:127mA.
Plastic, type PC (UL 94 V-0).
4.5" X 4.5" X 2.5"
Wall
DIN rail EN60715 TH35
1 x Ethernet Port 10Base-t
(RJ45).
1 x Power.
2 x Ethernet port link and activity
(LNK, ACT).
Via console port (EIA232) or
Ethernet Port.
32°F to 158°F
5 to 95 %, non condensing.
BACnet Interface
Device Type Server
BACnet Type
BACnet Configurable
Parameters
Interactivity with BACnet
Server
BACnet/IP (accessible through
Ethernet).
IP Address.
Subnet Mask.
Default Gateway Address.
Device Name.
Device Instance Number.
Internal point’s Read/Write
allowed.
Subscription requests (COV)
allowed.
Features
Global and Individual Operation/
Setting Objects
• All On/Off
• On/Off
• Mode
• Setpoint
• Fan Speed
• Air Direction (N/A for Ducted
Units)
• Filter Sign Reset
• Prohibit Thermostat Functions
• Occupancy/Unoccupied All
• Occupied/Unoccupied Cool
Setpoints
• Occupied/Unoccupied Heat
Setpoints
• Consumption Reset
Global and Individual Monitor/
Status Objects
• On/Off
• Mode
• Setpoint
• Fan Speed
• Air Direction
• Space Temperature
• Prohibited Thermostats
Functions
• Filter Status
• Unit and System Error Codes
• CZ-FUNC1U Error Codes
• Occupied/Unoccupied Mode
• Today, Yesterday and Total
Consumption.
Dimensions
System Example
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
http://www.panasonic.com/aircon
Minimum Clearances
