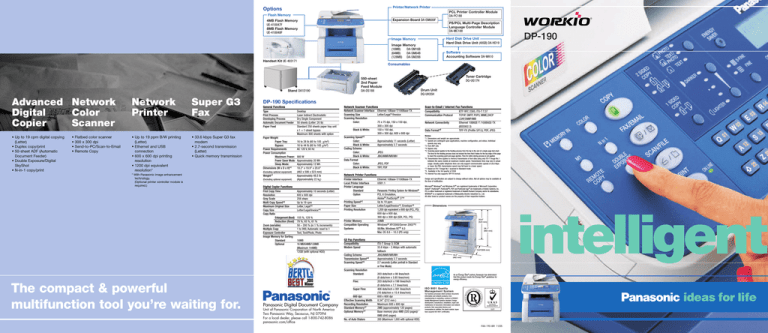

Panasonic DP-190 Specification

Panasonic DP-190 Specification
Printer/Network Printer
Options
PCL Printer Controller Module
DA-PC188
Flash Memory
Expansion Board DA-EM600F
4MB Flash Memory
UE-410047F
8MB Flash Memory
UE-410048F
PS/PCL Multi-Page Description
Language Controller Module
DA-MC188
Hard Disk Drive Unit
Hard Disk Drive Unit (40GB) DA-HD19
Image Memory
Image Memory
(16MB)
DA-SM16B
(64MB)
DA-SM64B
(128MB) DA-SM28B
DP-190
Software
Accounting Software DA-WA10
Handset Kit UE-403171
Consumables
550-sheet
2nd Paper
Feed Module
DA-DS188
Stand DA1D190
Advanced Network
Digital
Color
Copier
Scanner
Network
Printer
Super G3
Fax
• Up to 19 cpm digital copying
(Letter)
• Duplex copy/print
• 50-sheet ADF (Automatic
Document Feeder)
• Double Exposure/Digital
SkyShot
• N-in-1 copy/print
• Up to 19 ppm B/W printing
(Letter)
• Ethernet and USB
connection
• 600 x 600 dpi printing
resolution
• 1200 dpi equivalent
resolution*
• 33.6 kbps Super G3 fax
modem
• 2.7-second transmission
(Letter)
• Quick memory transmission
• Flatbed color scanner
• 300 x 300 dpi
• Send-to-PC/Scan-to-Email
• Remote Copy
* With Panasonic image enhancement
technology.
(Optional printer controller module is
required.)
Drum Unit
DQ-UH35H
DP-190 Specifications
G e n er a l F u n ct i o n s
Type
Print Process
Developing Process
Automatic Document Feeder
Paper Feed
Paper Weight
Paper Tray:
Bypass:
Power Requirements
Power Consumption
Maximum Power:
Power Saver Mode:
Sleep Mode:
Dimensions (W x D x H)*1
(Excluding optional equipment)
Weight*1
(Excluding optional equipment)
Desktop
Laser Indirect Electrostatic
Dry Single Component
50 sheets (Letter: 20 lb)
Standard 250 sheets paper tray unit
x 1 + 1-sheet bypass
Maximum 800 sheets with option
16 to 28 lb (60 to 105 g/m2)
16 to 44 lb (60 to 165 g/m2)
AC 120 V, 60 Hz
900 W
Approximately 20 Wh
Approximately 12 Wh
18.2" x 19.9" x 20.6"
(462 x 506 x 523 mm)
Approximately 48.5 lb
(Approximately 22 kg)
D ig i t al C o p i e r F u n c t i o n s
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*2
Maximum Original Size
Copy Size
Copy Ratio
Enlargement (fixed)
Reduction (fixed)
Zoom (variable)
Multiple Copy
Exposure Controller
Image Memory for Sorting
Standard
Optional
Approximately 10 seconds (Letter)
600 x 600 dpi
256 steps
Up to 19 cpm
Letter, Legal*3
Letter/Legal/Invoice*4
155 %, 129 %
79 %, 65 %, 61 %
50 – 200 % (in 1 % increments)
1 to 999, Automatic reset to 1
Text, Text/Photo, Photo
16MB
16 MB/64MB/128MB
(Maximum 144MB)
12GB (with optional HDD)
Ne tw o rk Sc a nne r F unc ti o n s
Network Scanner Interface Ethernet 10Base-T/100Base-TX
Scanning Size
Letter/Legal*3/Invoice
Scanning Resolution
Color:
75 x 75 dpi, 150 x 150 dpi,
300 x 300 dpi
Black & White:
150 x 150 dpi,
300 x 300 dpi, 600 x 600 dpi
Scanning Speed*5
Color:
Approximately 11 seconds (Letter)
Black & White:
Approximately 2.7 seconds
Coding Scheme
Color:
JPEG
Black & White:
JBIG/MMR/MR/MH
Data Format
Color:
JPEG, PDF
Black & White:
TIFF, PDF
Ne tw o rk P ri nte r F u nc t i o ns
Printer Interface
Local Printer Interface
Printer Language
Standard
Option
Printing Speed*2
Paper Size
Printing Resolution
Printer Memory
Compatible Operating
Systems
G3 Fax Functions
Compatibility
Modem Speed
Coding Scheme
Transmission Speed*6
Scanning Speed*5
Scanning Resolution
Standard:
Fine:
The compact & powerful
multifunction tool you’re waiting for.
Toner Cartridge
DQ-UG17H
Super Fine:
Panasonic Digital Document Company
Unit of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
600 dpi:
Effective Scanning Width
Recording Resolution
Standard Memory*7
Optional Memory*7
No. of Auto Dialers
Ethernet 10Base-T/100Base-TX
USB1.1
Panasonic Printing System for Windows®
PCL 6 Emulation,
Adobe® PostScript® 3™
Up to 19 ppm
Letter/Legal/Invoice*4, Envelope*4
1,200 dpi equivalent x 600 dpi (PCL, PS)
600 dpi x 600 dpi,
300 dpi x 300 dpi (GDI, PCL, PS)
20MB
Windows® XP/2000/Server 2003*8/
98/Me, Windows NT® 4.0
Mac OS 8.6 – 10.3 (PS only)
ITU-T Group 3, ECM
33.6 kbps - 2.4kbps with automatic
fallback
JBIG/MMR/MR/MH
Approximately 2.7 seconds
2.7 seconds (Letter portrait in Standard
or Fine Mode)
203 dots/inch x 98 lines/inch
(8 dots/mm x 3.85 lines/mm)
203 dots/inch x 196 lines/inch
(8 dots/mm x 7.7 lines/mm)
406 dots/inch x 391 lines/inch
(16 dots/mm x 15.4 lines/mm)
600 x 600 dpi
8.34" (212 mm )
Maximum 600 x 600 dpi
2MB (approximately 120 pages)
Base memory plus 4MB (320 pages)/
8MB (640 pages)
200 (Maximum 1,000 with optional HDD)
Sc a n - to -E ma i l / I n te rn e t F a x F u n c ti o n s
Compatibility
IETF RFC 2305, ITU-T T.37
Communication Protocol
TCP/IP, SMTP, POP3, MIME,DHCP
LDAP,SNMP/MIB
Network Connectivity
Ethernet 10BASE-T /100BASE-TX
(IEEE802.3)
Data Format*9
TIFF-FX (Profile S/F/J), PDF, JPEG
Notes
*1 Dimensions and weight are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual
speeds may vary.
*3 from ADF only
*4 Bypass only
*5 Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page
to reach the scanning point and page ejection. Time for entire storing process is not applied.
*6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1
between the same models at maximum modem speed. Transmission time may vary in actual
usage. Usually public telephone lines can only support communication speeds of 28.8 Kbps
or lower. Via PBX, transmission speed may fall back to a lower speed.
*7 Based on ITU-T Image No.1 scanned in Standard mode.
*8 Available in the 3rd quarter of 2004
*9 Internet Fax only supports TIFF-FX format.
Design and specification are subject to change without notice. Not all options may be available at
the time of notification.
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
PCL is either trademark or registered trademark of Hewlett-Packard Company and/or its subsidiaries.
WORKiO® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product names are the property of their respective holders.
Dimensions
20.6"
(523 mm)
26.1"
(663 mm)
19.9"(506 mm)
18.2"
(462 mm)
As an Energy Star® partner, Panasonic has determined
that this product meets the Energy Star® guidelines for
energy efficiency.
ISO 9001 Quality
Management System
Our business processes which produce document,
information and network products, from
manufacturing to marketing, conform to ISO9001
Quality Management Systems standard. Design,
development, manufacture, installation, repair and
maintenance of document, information and network
products, their associated devices and
consumables.In addition, the plants outside Japan
have acquired ISO 9001 certification.
FAX-190-BR 11/05
intelligent
The DP-190 can handle all your office demands
The Smart
Intelligent
Choice For
Choice
For
Your
Your
Office
Desktop.
Bringing the latest in cutting-edge technology to your
office, the intelligent WORKiO DP-190 will help you
meet your document processing needs and manage
your documents more effectively than ever. From
copying and color scanning to printing and faxing, the
DP-190 is the ultimate all-round document
management tool for small departments and
workgroups. It comes with both Automatic Document
Feeder (ADF) and a built-in duplex unit, so you can
use it as a powerful plain paper copier with up to 19
cpm capability that rivals dedicated copiers.
The DP-190 also features a color flatbed scanner
that makes it easy to digitize paper documents and
transfer the files directly to a PC on the network or
send them as email attachments to remote
computers via the Internet. And with automated
network installation capability, the DP-190 can be
plugged into your existing LAN, so you can
immediately use it as a high-performing network
printer*. Use the DP-190 as a Super G3 fax with
JBIG compression for fast, high-quality transmission
for superior office performance.
Versatile Copying
Capability
Network
Color Scanner
Standard Network
Printer
Super G3 Fax
and Email
Intuitive Control
with Easy-to-Use
GUI Software
Digital SkyShot
Scan-to-PC
GUI Printer Driver
Fast Processing
Scan-to-PC lets users digitize virtually any kind of
document — even handwritten notes or sketches
— and convert it to a PDF, TIFF or JPEG file and
send it to a networked PC.
Built-in Network Printing
Capability
Quick Memory Transmission
Panasonic’s Digital SkyShot is especially
convenient for copying small-sized originals like
checks or ID cards. Users can even reproduce
documents with unusual shapes — round, oval,
etc. — without generating any unnecessary black
areas simply by making a copy with the platen
cover open.
As soon as the first page of a multi-page fax has
been scanned, the DP-190 starts dialing.
Transmission takes place as additional pages are
being scanned, saving time, as well as increasing
productivity.
Easy-to-install graphical
printer driver empowers
users with full control of
versatile printing functions
right from your PC desktop.
From the intuitive tabbed
interface to on-screen graphic preview of job
settings, everything is designed to maximize ease
of use, and eliminate errors.
Powered by a high-performance 200-MHz
microprocessor and custom-developed LSIs, the
DP-190’s high-speed image processing and
quality enable high-speed printing and multi-task
operations.
N-in-1 Copying/Printing
N-in-1 enables copying of multiple originals onto a
single sheet of paper, accelerating document
production while reducing paper consumption.
Panasonic Document Management System
software allows efficient document management,
flexible editing and convenient sharing at the
user’s fingertips. Users can manage and edit
documents right from their desktop with a simple
“drag and drop” operation.
Remote Copy
Double Exposure for
Double Savings
By selecting the Double Exposure key located on
the control panel, users can make quality copies
of small double-sided documents on a single
sheet of paper without the black borders — even if
the platen cover is open. This is especially
convenient for copying small double-sided
originals such as ID and insurance cards, checks,
and receipts.
When users press the Remote Copy key, the
DP-190 automatically sends the scanned data
through the PC to a pre-selected network printer.
This allows users to easily make color copies of a
color document when a color printer is connected
to the LAN.
Remote Copy
Color
Original
Color
Copy
Scanning Area
First Pass-Image#1
Automated Network Installation
Capability*
The DP-190 allows simple network installation.
Simply plug the network cable into the DP-190’s
Ethernet port, and the network information is
automatically acquired from the server. No
complex setup required.
* Requires a DHCP server on the network.
High-Resolution of 1200equivalent x 600 dpi
In addition to standard 600 x 600 dpi print
resolution, you can boost print resolution to 1200
dpi-equivalent x 600 dpi (in PCL/PS mode) by
adding our optional printer controller. This gives
crisp, clean prints with superior legibility and
halftone gradations — even with very tiny
characters or complex images.
KX-CL500
DP-190
Standard Duplex Printing
LAN
PC
The DP-190 from Panasonic — it’s the intelligent
solution for your business.
* Requires a DHCP server on the network.
Document Management
System Software
The DP-190 comes standard with a built-in network
board and an Ethernet LAN port, so users can set
it up as a network printer that can be used by PCs
on the LAN. No special options are required for the
Panasonic printing system for Windows®. In
addition, the standard USB 1.1 interface allows
direct connection to a dedicated PC.
For added convenience, the DP-190 comes
standard with a duplex printing unit that enables
users to easily print on both sides of a sheet of
paper. Reduce paper consumption by using
duplex printing when printing faxes or copying.
Internet Fax / Scan-to-Email
The DP-190 can send documents as TIFF, JBIG
images or PDF files, and transmit them as email
attachments to PCs or other machines*, saving
time and money.
* Internet Fax only supports TIFF-FX format.
Network Panafax® Desktop
Software
The Panafax® Desktop software allows users to
send a fax directly from their PC without having to
print it before transmitting. The PC fax capability
increases productivity while decreasing paper
consumption.
Panafax Desktop
Network Status Monitor
Status monitor lets the user monitor the
DP-190's status directly from their desktop,
including print job status, paper jams, machine
configuration, and much more. Users will always
have prior notice regarding the paper supply level
and toner level.
Extended Reliability
The Check & Call function automatically reports
low toner status and certain mechanical problems
to a service center while the Remote Diagnostic
System enables expert technicians to quickly
troubleshoot and provide solutions via a
telephone line or the Internet.
DP-190
Completion Notice
G3 FAX
LAN
SMTP
Result Notice is
automatically sent
to the sender's
IP address
As soon as a print job is completed, the DP-190
automatically sends a Completion Notice to the
user’s desktop to notify them that the job has
been completed, eliminating needless trips to
check the machine.
Security Print/Mailbox*
Security printing for up to 100 users is available.
Simply print directly to the Security Print Mailbox*
and the DP-190 stores the print file until the user
retrieves it at the machine by entering a user ID
and password. This is extremely useful when
generating sensitive and confidential documents.
Scanning Area
*Only available if the optional hard disk unit is installed.
Second Pass-Image#2
Print
Superior
Performance
The DP-190 can handle all your office demands
The Smart
Intelligent
Choice For
Choice
For
Your
Your
Office
Desktop.
Bringing the latest in cutting-edge technology to your
office, the intelligent WORKiO DP-190 will help you
meet your document processing needs and manage
your documents more effectively than ever. From
copying and color scanning to printing and faxing, the
DP-190 is the ultimate all-round document
management tool for small departments and
workgroups. It comes with both Automatic Document
Feeder (ADF) and a built-in duplex unit, so you can
use it as a powerful plain paper copier with up to 19
cpm capability that rivals dedicated copiers.
The DP-190 also features a color flatbed scanner
that makes it easy to digitize paper documents and
transfer the files directly to a PC on the network or
send them as email attachments to remote
computers via the Internet. And with automated
network installation capability, the DP-190 can be
plugged into your existing LAN, so you can
immediately use it as a high-performing network
printer*. Use the DP-190 as a Super G3 fax with
JBIG compression for fast, high-quality transmission
for superior office performance.
Versatile Copying
Capability
Network
Color Scanner
Standard Network
Printer
Super G3 Fax
and Email
Intuitive Control
with Easy-to-Use
GUI Software
Digital SkyShot
Scan-to-PC
GUI Printer Driver
Fast Processing
Scan-to-PC lets users digitize virtually any kind of
document — even handwritten notes or sketches
— and convert it to a PDF, TIFF or JPEG file and
send it to a networked PC.
Built-in Network Printing
Capability
Quick Memory Transmission
Panasonic’s Digital SkyShot is especially
convenient for copying small-sized originals like
checks or ID cards. Users can even reproduce
documents with unusual shapes — round, oval,
etc. — without generating any unnecessary black
areas simply by making a copy with the platen
cover open.
As soon as the first page of a multi-page fax has
been scanned, the DP-190 starts dialing.
Transmission takes place as additional pages are
being scanned, saving time, as well as increasing
productivity.
Easy-to-install graphical
printer driver empowers
users with full control of
versatile printing functions
right from your PC desktop.
From the intuitive tabbed
interface to on-screen graphic preview of job
settings, everything is designed to maximize ease
of use, and eliminate errors.
Powered by a high-performance 200-MHz
microprocessor and custom-developed LSIs, the
DP-190’s high-speed image processing and
quality enable high-speed printing and multi-task
operations.
N-in-1 Copying/Printing
N-in-1 enables copying of multiple originals onto a
single sheet of paper, accelerating document
production while reducing paper consumption.
Panasonic Document Management System
software allows efficient document management,
flexible editing and convenient sharing at the
user’s fingertips. Users can manage and edit
documents right from their desktop with a simple
“drag and drop” operation.
Remote Copy
Double Exposure for
Double Savings
By selecting the Double Exposure key located on
the control panel, users can make quality copies
of small double-sided documents on a single
sheet of paper without the black borders — even if
the platen cover is open. This is especially
convenient for copying small double-sided
originals such as ID and insurance cards, checks,
and receipts.
When users press the Remote Copy key, the
DP-190 automatically sends the scanned data
through the PC to a pre-selected network printer.
This allows users to easily make color copies of a
color document when a color printer is connected
to the LAN.
Remote Copy
Color
Original
Color
Copy
Scanning Area
First Pass-Image#1
Automated Network Installation
Capability*
The DP-190 allows simple network installation.
Simply plug the network cable into the DP-190’s
Ethernet port, and the network information is
automatically acquired from the server. No
complex setup required.
* Requires a DHCP server on the network.
High-Resolution of 1200equivalent x 600 dpi
In addition to standard 600 x 600 dpi print
resolution, you can boost print resolution to 1200
dpi-equivalent x 600 dpi (in PCL/PS mode) by
adding our optional printer controller. This gives
crisp, clean prints with superior legibility and
halftone gradations — even with very tiny
characters or complex images.
KX-CL500
DP-190
Standard Duplex Printing
LAN
PC
The DP-190 from Panasonic — it’s the intelligent
solution for your business.
* Requires a DHCP server on the network.
Document Management
System Software
The DP-190 comes standard with a built-in network
board and an Ethernet LAN port, so users can set
it up as a network printer that can be used by PCs
on the LAN. No special options are required for the
Panasonic printing system for Windows®. In
addition, the standard USB 1.1 interface allows
direct connection to a dedicated PC.
For added convenience, the DP-190 comes
standard with a duplex printing unit that enables
users to easily print on both sides of a sheet of
paper. Reduce paper consumption by using
duplex printing when printing faxes or copying.
Internet Fax / Scan-to-Email
The DP-190 can send documents as TIFF, JBIG
images or PDF files, and transmit them as email
attachments to PCs or other machines*, saving
time and money.
* Internet Fax only supports TIFF-FX format.
Network Panafax® Desktop
Software
The Panafax® Desktop software allows users to
send a fax directly from their PC without having to
print it before transmitting. The PC fax capability
increases productivity while decreasing paper
consumption.
Panafax Desktop
Network Status Monitor
Status monitor lets the user monitor the
DP-190's status directly from their desktop,
including print job status, paper jams, machine
configuration, and much more. Users will always
have prior notice regarding the paper supply level
and toner level.
Extended Reliability
The Check & Call function automatically reports
low toner status and certain mechanical problems
to a service center while the Remote Diagnostic
System enables expert technicians to quickly
troubleshoot and provide solutions via a
telephone line or the Internet.
DP-190
Completion Notice
G3 FAX
LAN
SMTP
Result Notice is
automatically sent
to the sender's
IP address
As soon as a print job is completed, the DP-190
automatically sends a Completion Notice to the
user’s desktop to notify them that the job has
been completed, eliminating needless trips to
check the machine.
Security Print/Mailbox*
Security printing for up to 100 users is available.
Simply print directly to the Security Print Mailbox*
and the DP-190 stores the print file until the user
retrieves it at the machine by entering a user ID
and password. This is extremely useful when
generating sensitive and confidential documents.
Scanning Area
*Only available if the optional hard disk unit is installed.
Second Pass-Image#2
Print
Superior
Performance
The DP-190 can handle all your office demands
The Smart
Intelligent
Choice For
Choice
For
Your
Your
Office
Desktop.
Bringing the latest in cutting-edge technology to your
office, the intelligent WORKiO DP-190 will help you
meet your document processing needs and manage
your documents more effectively than ever. From
copying and color scanning to printing and faxing, the
DP-190 is the ultimate all-round document
management tool for small departments and
workgroups. It comes with both Automatic Document
Feeder (ADF) and a built-in duplex unit, so you can
use it as a powerful plain paper copier with up to 19
cpm capability that rivals dedicated copiers.
The DP-190 also features a color flatbed scanner
that makes it easy to digitize paper documents and
transfer the files directly to a PC on the network or
send them as email attachments to remote
computers via the Internet. And with automated
network installation capability, the DP-190 can be
plugged into your existing LAN, so you can
immediately use it as a high-performing network
printer*. Use the DP-190 as a Super G3 fax with
JBIG compression for fast, high-quality transmission
for superior office performance.
Versatile Copying
Capability
Network
Color Scanner
Standard Network
Printer
Super G3 Fax
and Email
Intuitive Control
with Easy-to-Use
GUI Software
Digital SkyShot
Scan-to-PC
GUI Printer Driver
Fast Processing
Scan-to-PC lets users digitize virtually any kind of
document — even handwritten notes or sketches
— and convert it to a PDF, TIFF or JPEG file and
send it to a networked PC.
Built-in Network Printing
Capability
Quick Memory Transmission
Panasonic’s Digital SkyShot is especially
convenient for copying small-sized originals like
checks or ID cards. Users can even reproduce
documents with unusual shapes — round, oval,
etc. — without generating any unnecessary black
areas simply by making a copy with the platen
cover open.
As soon as the first page of a multi-page fax has
been scanned, the DP-190 starts dialing.
Transmission takes place as additional pages are
being scanned, saving time, as well as increasing
productivity.
Easy-to-install graphical
printer driver empowers
users with full control of
versatile printing functions
right from your PC desktop.
From the intuitive tabbed
interface to on-screen graphic preview of job
settings, everything is designed to maximize ease
of use, and eliminate errors.
Powered by a high-performance 200-MHz
microprocessor and custom-developed LSIs, the
DP-190’s high-speed image processing and
quality enable high-speed printing and multi-task
operations.
N-in-1 Copying/Printing
N-in-1 enables copying of multiple originals onto a
single sheet of paper, accelerating document
production while reducing paper consumption.
Panasonic Document Management System
software allows efficient document management,
flexible editing and convenient sharing at the
user’s fingertips. Users can manage and edit
documents right from their desktop with a simple
“drag and drop” operation.
Remote Copy
Double Exposure for
Double Savings
By selecting the Double Exposure key located on
the control panel, users can make quality copies
of small double-sided documents on a single
sheet of paper without the black borders — even if
the platen cover is open. This is especially
convenient for copying small double-sided
originals such as ID and insurance cards, checks,
and receipts.
When users press the Remote Copy key, the
DP-190 automatically sends the scanned data
through the PC to a pre-selected network printer.
This allows users to easily make color copies of a
color document when a color printer is connected
to the LAN.
Remote Copy
Color
Original
Color
Copy
Scanning Area
First Pass-Image#1
Automated Network Installation
Capability*
The DP-190 allows simple network installation.
Simply plug the network cable into the DP-190’s
Ethernet port, and the network information is
automatically acquired from the server. No
complex setup required.
* Requires a DHCP server on the network.
High-Resolution of 1200equivalent x 600 dpi
In addition to standard 600 x 600 dpi print
resolution, you can boost print resolution to 1200
dpi-equivalent x 600 dpi (in PCL/PS mode) by
adding our optional printer controller. This gives
crisp, clean prints with superior legibility and
halftone gradations — even with very tiny
characters or complex images.
KX-CL500
DP-190
Standard Duplex Printing
LAN
PC
The DP-190 from Panasonic — it’s the intelligent
solution for your business.
* Requires a DHCP server on the network.
Document Management
System Software
The DP-190 comes standard with a built-in network
board and an Ethernet LAN port, so users can set
it up as a network printer that can be used by PCs
on the LAN. No special options are required for the
Panasonic printing system for Windows®. In
addition, the standard USB 1.1 interface allows
direct connection to a dedicated PC.
For added convenience, the DP-190 comes
standard with a duplex printing unit that enables
users to easily print on both sides of a sheet of
paper. Reduce paper consumption by using
duplex printing when printing faxes or copying.
Internet Fax / Scan-to-Email
The DP-190 can send documents as TIFF, JBIG
images or PDF files, and transmit them as email
attachments to PCs or other machines*, saving
time and money.
* Internet Fax only supports TIFF-FX format.
Network Panafax® Desktop
Software
The Panafax® Desktop software allows users to
send a fax directly from their PC without having to
print it before transmitting. The PC fax capability
increases productivity while decreasing paper
consumption.
Panafax Desktop
Network Status Monitor
Status monitor lets the user monitor the
DP-190's status directly from their desktop,
including print job status, paper jams, machine
configuration, and much more. Users will always
have prior notice regarding the paper supply level
and toner level.
Extended Reliability
The Check & Call function automatically reports
low toner status and certain mechanical problems
to a service center while the Remote Diagnostic
System enables expert technicians to quickly
troubleshoot and provide solutions via a
telephone line or the Internet.
DP-190
Completion Notice
G3 FAX
LAN
SMTP
Result Notice is
automatically sent
to the sender's
IP address
As soon as a print job is completed, the DP-190
automatically sends a Completion Notice to the
user’s desktop to notify them that the job has
been completed, eliminating needless trips to
check the machine.
Security Print/Mailbox*
Security printing for up to 100 users is available.
Simply print directly to the Security Print Mailbox*
and the DP-190 stores the print file until the user
retrieves it at the machine by entering a user ID
and password. This is extremely useful when
generating sensitive and confidential documents.
Scanning Area
*Only available if the optional hard disk unit is installed.
Second Pass-Image#2
Print
Superior
Performance
Printer/Network Printer
Options
PCL Printer Controller Module
DA-PC188
Flash Memory
Expansion Board DA-EM600F
4MB Flash Memory
UE-410047F
8MB Flash Memory
UE-410048F
PS/PCL Multi-Page Description
Language Controller Module
DA-MC188
Hard Disk Drive Unit
Hard Disk Drive Unit (40GB) DA-HD19
Image Memory
Image Memory
(16MB)
DA-SM16B
(64MB)
DA-SM64B
(128MB) DA-SM28B
DP-190
Software
Accounting Software DA-WA10
Handset Kit UE-403171
Consumables
550-sheet
2nd Paper
Feed Module
DA-DS188
Stand DA1D190
Advanced Network
Digital
Color
Copier
Scanner
Network
Printer
Super G3
Fax
• Up to 19 cpm digital copying
(Letter)
• Duplex copy/print
• 50-sheet ADF (Automatic
Document Feeder)
• Double Exposure/Digital
SkyShot
• N-in-1 copy/print
• Up to 19 ppm B/W printing
(Letter)
• Ethernet and USB
connection
• 600 x 600 dpi printing
resolution
• 1200 dpi equivalent
resolution*
• 33.6 kbps Super G3 fax
modem
• 2.7-second transmission
(Letter)
• Quick memory transmission
• Flatbed color scanner
• 300 x 300 dpi
• Send-to-PC/Scan-to-Email
• Remote Copy
* With Panasonic image enhancement
technology.
(Optional printer controller module is
required.)
Drum Unit
DQ-UH35H
DP-190 Specifications
G e n er a l F u n ct i o n s
Type
Print Process
Developing Process
Automatic Document Feeder
Paper Feed
Paper Weight
Paper Tray:
Bypass:
Power Requirements
Power Consumption
Maximum Power:
Power Saver Mode:
Sleep Mode:
Dimensions (W x D x H)*1
(Excluding optional equipment)
Weight*1
(Excluding optional equipment)
Desktop
Laser Indirect Electrostatic
Dry Single Component
50 sheets (Letter: 20 lb)
Standard 250 sheets paper tray unit
x 1 + 1-sheet bypass
Maximum 800 sheets with option
16 to 28 lb (60 to 105 g/m2)
16 to 44 lb (60 to 165 g/m2)
AC 120 V, 60 Hz
900 W
Approximately 20 Wh
Approximately 12 Wh
18.2" x 19.9" x 20.6"
(462 x 506 x 523 mm)
Approximately 48.5 lb
(Approximately 22 kg)
D ig i t al C o p i e r F u n c t i o n s
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*2
Maximum Original Size
Copy Size
Copy Ratio
Enlargement (fixed)
Reduction (fixed)
Zoom (variable)
Multiple Copy
Exposure Controller
Image Memory for Sorting
Standard
Optional
Approximately 10 seconds (Letter)
600 x 600 dpi
256 steps
Up to 19 cpm
Letter, Legal*3
Letter/Legal/Invoice*4
155 %, 129 %
79 %, 65 %, 61 %
50 – 200 % (in 1 % increments)
1 to 999, Automatic reset to 1
Text, Text/Photo, Photo
16MB
16 MB/64MB/128MB
(Maximum 144MB)
12GB (with optional HDD)
Ne tw o rk Sc a nne r F unc ti o n s
Network Scanner Interface Ethernet 10Base-T/100Base-TX
Scanning Size
Letter/Legal*3/Invoice
Scanning Resolution
Color:
75 x 75 dpi, 150 x 150 dpi,
300 x 300 dpi
Black & White:
150 x 150 dpi,
300 x 300 dpi, 600 x 600 dpi
Scanning Speed*5
Color:
Approximately 11 seconds (Letter)
Black & White:
Approximately 2.7 seconds
Coding Scheme
Color:
JPEG
Black & White:
JBIG/MMR/MR/MH
Data Format
Color:
JPEG, PDF
Black & White:
TIFF, PDF
Ne tw o rk P ri nte r F u nc t i o ns
Printer Interface
Local Printer Interface
Printer Language
Standard
Option
Printing Speed*2
Paper Size
Printing Resolution
Printer Memory
Compatible Operating
Systems
G3 Fax Functions
Compatibility
Modem Speed
Coding Scheme
Transmission Speed*6
Scanning Speed*5
Scanning Resolution
Standard:
Fine:
The compact & powerful
multifunction tool you’re waiting for.
Toner Cartridge
DQ-UG17H
Super Fine:
Panasonic Digital Document Company
Unit of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
600 dpi:
Effective Scanning Width
Recording Resolution
Standard Memory*7
Optional Memory*7
No. of Auto Dialers
Ethernet 10Base-T/100Base-TX
USB1.1
Panasonic Printing System for Windows®
PCL 6 Emulation,
Adobe® PostScript® 3™
Up to 19 ppm
Letter/Legal/Invoice*4, Envelope*4
1,200 dpi equivalent x 600 dpi (PCL, PS)
600 dpi x 600 dpi,
300 dpi x 300 dpi (GDI, PCL, PS)
20MB
Windows® XP/2000/Server 2003*8/
98/Me, Windows NT® 4.0
Mac OS 8.6 – 10.3 (PS only)
ITU-T Group 3, ECM
33.6 kbps - 2.4kbps with automatic
fallback
JBIG/MMR/MR/MH
Approximately 2.7 seconds
2.7 seconds (Letter portrait in Standard
or Fine Mode)
203 dots/inch x 98 lines/inch
(8 dots/mm x 3.85 lines/mm)
203 dots/inch x 196 lines/inch
(8 dots/mm x 7.7 lines/mm)
406 dots/inch x 391 lines/inch
(16 dots/mm x 15.4 lines/mm)
600 x 600 dpi
8.34" (212 mm )
Maximum 600 x 600 dpi
2MB (approximately 120 pages)
Base memory plus 4MB (320 pages)/
8MB (640 pages)
200 (Maximum 1,000 with optional HDD)
Sc a n - to -E ma i l / I n te rn e t F a x F u n c ti o n s
Compatibility
IETF RFC 2305, ITU-T T.37
Communication Protocol
TCP/IP, SMTP, POP3, MIME,DHCP
LDAP,SNMP/MIB
Network Connectivity
Ethernet 10BASE-T /100BASE-TX
(IEEE802.3)
Data Format*9
TIFF-FX (Profile S/F/J), PDF, JPEG
Notes
*1 Dimensions and weight are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual
speeds may vary.
*3 from ADF only
*4 Bypass only
*5 Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page
to reach the scanning point and page ejection. Time for entire storing process is not applied.
*6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1
between the same models at maximum modem speed. Transmission time may vary in actual
usage. Usually public telephone lines can only support communication speeds of 28.8 Kbps
or lower. Via PBX, transmission speed may fall back to a lower speed.
*7 Based on ITU-T Image No.1 scanned in Standard mode.
*8 Available in the 3rd quarter of 2004
*9 Internet Fax only supports TIFF-FX format.
Design and specification are subject to change without notice. Not all options may be available at
the time of notification.
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
PCL is either trademark or registered trademark of Hewlett-Packard Company and/or its subsidiaries.
WORKiO® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product names are the property of their respective holders.
Dimensions
20.6"
(523 mm)
26.1"
(663 mm)
19.9"(506 mm)
18.2"
(462 mm)
As an Energy Star® partner, Panasonic has determined
that this product meets the Energy Star® guidelines for
energy efficiency.
ISO 9001 Quality
Management System
Our business processes which produce document,
information and network products, from
manufacturing to marketing, conform to ISO9001
Quality Management Systems standard. Design,
development, manufacture, installation, repair and
maintenance of document, information and network
products, their associated devices and
consumables.In addition, the plants outside Japan
have acquired ISO 9001 certification.
FAX-190-BR 11/05
intelligent
Printer/Network Printer
Options
PCL Printer Controller Module
DA-PC188
Flash Memory
Expansion Board DA-EM600F
4MB Flash Memory
UE-410047F
8MB Flash Memory
UE-410048F
PS/PCL Multi-Page Description
Language Controller Module
DA-MC188
Hard Disk Drive Unit
Hard Disk Drive Unit (40GB) DA-HD19
Image Memory
Image Memory
(16MB)
DA-SM16B
(64MB)
DA-SM64B
(128MB) DA-SM28B
DP-190
Software
Accounting Software DA-WA10
Handset Kit UE-403171
Consumables
550-sheet
2nd Paper
Feed Module
DA-DS188
Stand DA1D190
Advanced Network
Digital
Color
Copier
Scanner
Network
Printer
Super G3
Fax
• Up to 19 cpm digital copying
(Letter)
• Duplex copy/print
• 50-sheet ADF (Automatic
Document Feeder)
• Double Exposure/Digital
SkyShot
• N-in-1 copy/print
• Up to 19 ppm B/W printing
(Letter)
• Ethernet and USB
connection
• 600 x 600 dpi printing
resolution
• 1200 dpi equivalent
resolution*
• 33.6 kbps Super G3 fax
modem
• 2.7-second transmission
(Letter)
• Quick memory transmission
• Flatbed color scanner
• 300 x 300 dpi
• Send-to-PC/Scan-to-Email
• Remote Copy
* With Panasonic image enhancement
technology.
(Optional printer controller module is
required.)
Drum Unit
DQ-UH35H
DP-190 Specifications
G e n er a l F u n ct i o n s
Type
Print Process
Developing Process
Automatic Document Feeder
Paper Feed
Paper Weight
Paper Tray:
Bypass:
Power Requirements
Power Consumption
Maximum Power:
Power Saver Mode:
Sleep Mode:
Dimensions (W x D x H)*1
(Excluding optional equipment)
Weight*1
(Excluding optional equipment)
Desktop
Laser Indirect Electrostatic
Dry Single Component
50 sheets (Letter: 20 lb)
Standard 250 sheets paper tray unit
x 1 + 1-sheet bypass
Maximum 800 sheets with option
16 to 28 lb (60 to 105 g/m2)
16 to 44 lb (60 to 165 g/m2)
AC 120 V, 60 Hz
900 W
Approximately 20 Wh
Approximately 12 Wh
18.2" x 19.9" x 20.6"
(462 x 506 x 523 mm)
Approximately 48.5 lb
(Approximately 22 kg)
D ig i t al C o p i e r F u n c t i o n s
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*2
Maximum Original Size
Copy Size
Copy Ratio
Enlargement (fixed)
Reduction (fixed)
Zoom (variable)
Multiple Copy
Exposure Controller
Image Memory for Sorting
Standard
Optional
Approximately 10 seconds (Letter)
600 x 600 dpi
256 steps
Up to 19 cpm
Letter, Legal*3
Letter/Legal/Invoice*4
155 %, 129 %
79 %, 65 %, 61 %
50 – 200 % (in 1 % increments)
1 to 999, Automatic reset to 1
Text, Text/Photo, Photo
16MB
16 MB/64MB/128MB
(Maximum 144MB)
12GB (with optional HDD)
Ne tw o rk Sc a nne r F unc ti o n s
Network Scanner Interface Ethernet 10Base-T/100Base-TX
Scanning Size
Letter/Legal*3/Invoice
Scanning Resolution
Color:
75 x 75 dpi, 150 x 150 dpi,
300 x 300 dpi
Black & White:
150 x 150 dpi,
300 x 300 dpi, 600 x 600 dpi
Scanning Speed*5
Color:
Approximately 11 seconds (Letter)
Black & White:
Approximately 2.7 seconds
Coding Scheme
Color:
JPEG
Black & White:
JBIG/MMR/MR/MH
Data Format
Color:
JPEG, PDF
Black & White:
TIFF, PDF
Ne tw o rk P ri nte r F u nc t i o ns
Printer Interface
Local Printer Interface
Printer Language
Standard
Option
Printing Speed*2
Paper Size
Printing Resolution
Printer Memory
Compatible Operating
Systems
G3 Fax Functions
Compatibility
Modem Speed
Coding Scheme
Transmission Speed*6
Scanning Speed*5
Scanning Resolution
Standard:
Fine:
The compact & powerful
multifunction tool you’re waiting for.
Toner Cartridge
DQ-UG17H
Super Fine:
Panasonic Digital Document Company
Unit of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
600 dpi:
Effective Scanning Width
Recording Resolution
Standard Memory*7
Optional Memory*7
No. of Auto Dialers
Ethernet 10Base-T/100Base-TX
USB1.1
Panasonic Printing System for Windows®
PCL 6 Emulation,
Adobe® PostScript® 3™
Up to 19 ppm
Letter/Legal/Invoice*4, Envelope*4
1,200 dpi equivalent x 600 dpi (PCL, PS)
600 dpi x 600 dpi,
300 dpi x 300 dpi (GDI, PCL, PS)
20MB
Windows® XP/2000/Server 2003*8/
98/Me, Windows NT® 4.0
Mac OS 8.6 – 10.3 (PS only)
ITU-T Group 3, ECM
33.6 kbps - 2.4kbps with automatic
fallback
JBIG/MMR/MR/MH
Approximately 2.7 seconds
2.7 seconds (Letter portrait in Standard
or Fine Mode)
203 dots/inch x 98 lines/inch
(8 dots/mm x 3.85 lines/mm)
203 dots/inch x 196 lines/inch
(8 dots/mm x 7.7 lines/mm)
406 dots/inch x 391 lines/inch
(16 dots/mm x 15.4 lines/mm)
600 x 600 dpi
8.34" (212 mm )
Maximum 600 x 600 dpi
2MB (approximately 120 pages)
Base memory plus 4MB (320 pages)/
8MB (640 pages)
200 (Maximum 1,000 with optional HDD)
Sc a n - to -E ma i l / I n te rn e t F a x F u n c ti o n s
Compatibility
IETF RFC 2305, ITU-T T.37
Communication Protocol
TCP/IP, SMTP, POP3, MIME,DHCP
LDAP,SNMP/MIB
Network Connectivity
Ethernet 10BASE-T /100BASE-TX
(IEEE802.3)
Data Format*9
TIFF-FX (Profile S/F/J), PDF, JPEG
Notes
*1 Dimensions and weight are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual
speeds may vary.
*3 from ADF only
*4 Bypass only
*5 Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page
to reach the scanning point and page ejection. Time for entire storing process is not applied.
*6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1
between the same models at maximum modem speed. Transmission time may vary in actual
usage. Usually public telephone lines can only support communication speeds of 28.8 Kbps
or lower. Via PBX, transmission speed may fall back to a lower speed.
*7 Based on ITU-T Image No.1 scanned in Standard mode.
*8 Available in the 3rd quarter of 2004
*9 Internet Fax only supports TIFF-FX format.
Design and specification are subject to change without notice. Not all options may be available at
the time of notification.
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
PCL is either trademark or registered trademark of Hewlett-Packard Company and/or its subsidiaries.
WORKiO® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product names are the property of their respective holders.
Dimensions
20.6"
(523 mm)
26.1"
(663 mm)
19.9"(506 mm)
18.2"
(462 mm)
As an Energy Star® partner, Panasonic has determined
that this product meets the Energy Star® guidelines for
energy efficiency.
ISO 9001 Quality
Management System
Our business processes which produce document,
information and network products, from
manufacturing to marketing, conform to ISO9001
Quality Management Systems standard. Design,
development, manufacture, installation, repair and
maintenance of document, information and network
products, their associated devices and
consumables.In addition, the plants outside Japan
have acquired ISO 9001 certification.
FAX-190-BR 11/05
intelligent
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
