 DP-8032/8025 Options
Consumables
DQ-TU15E DA-UC200
MEAN DO-2120E | E esla ¿7 ENENUE-410047F DA-KH200
DA-XN201 EEE DO-HOGOE 6... EEN UE-410048F
PASEOS
Paper Exit Options
Fax Options
HDD / Software Options
Image Memory Options
«2117: DA-SM64B Hard Disk Drive Unit
DA-HD31
Accounting
System
NE) DA-SM28B
DA-XT200
Accounting Software
DA-WA10
DA-DS305 Panasonic Document Distribution System
— 8 IT DA-WR10
a
DA-DS305 т
Printer Options
DA-DS306 DA-DS305 p
1-Bin Finisher Printer Controller Module
DA-FS300 DA-PC302
Multi-Page Description
Language Controller Module
(Standard with the optional Finisher) DA-MC302
Outer Tray
Expansion Board
DA1D311 DA1D321 DA1D230 DA1D321 DA1D230 DA-EM600F

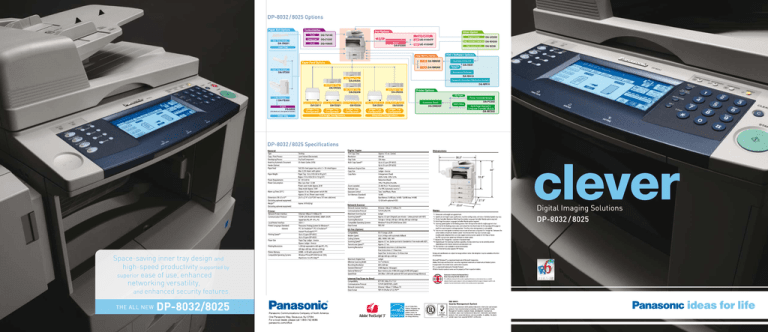

DP-8032/ 8025 Specifications
General Digital Copier Dimensions
Type Desktop First Copy Time Approx. 4.5 sec. (Letter)
Copy / Print Process Laser Indirect Electrostatic Resolution 600 dpi
Developing Process Dry Dual Component Gray Scale 256 steps
Inverting Automatic Document 50 sheets (Letter, 20 Ib) Multi Copy Speed*? Up to 32 cpm (DP-8032)
Feeder (Option) Up to 25 cpm (DP-8025)
Paper Feed Std. 550-sheet paper tray unit x 2 + 50-sheet bypass Maximum Original Size Ledger
Max.2,250sheetswithopion ~~ CopySize Ledger - Invoice
Paper Weight Paper Tray : 16 to 24 Ib (60 to 90 g/m?) Copy Ratio Enlargement (fixed)
Bypass: 15 to 35 Ib (55 to 133 g/m?) 200% 155% 129% 121%
Power Requirements AC120V,60 Hz Reduction (fixed)
Power Consumption Max.: Less than 1.5 kW 79% 77% 65% 61% 50%
Power saver mode: Approx.28 W Zoom (variable) 25-400 % (in 1% increments)
Sleep mode: Approx. 18 W Multiple Copy 110 999, Automatic reset to 1
Warm-up Time (20°C) Approx. 35 sec. (Main power switch ON) Exposure Control Text, Text/Photo, Photo
Approx. 30 sec. (Power saver mode) ~~ Sort Memory (Standard) 16 MB
Dimensions (W x D x H)*! 23.6" x 27.9" x 33.9"(597 mm x 707 mm x 860 mm) (Option) Base Memory (16 MB) plus / 64 MB / 128 MB (max.144 MB)
(Excluding optional equipment) 12 GB (with optional HDD)
iaht*1
Weight Approx.181 Ib (82 kg) Network Scanner
Printer Communication Protocol TCP/IP (LPR, FTP) Notes
Network Printer Interface Ethernet 10Base-T/100Base-TX Maximum Scanning Size Ledger *1 Dimensions and weight are approximate. `
Communication Protocol TCP/IP {LPD [Port9100/RAW], SNMP, DHCP) Scanning Speed*? Approx.32 opm (Originals per minute — Letter portrait with ADF) *2 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary. L
AppleTalk (PS), IPP (PCL,PS) Scanning Resolution 150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi у vue Contoller Moduler Mult Page eo Language Contoler Module option required. Г) > — 5
DO — Mess | О ulti-Page Description Language Controller Module option required.
Local Printer Interface USB 1.1 Compatible Operating Systems Windows® Vista/XP/2000/Server 2003 *5 Scanning speed applies to the feeding process from the top to the end of a single page test chart. 3
Printer Language (Standard) Panasonic Printing System for Windows® Data Format TIFF, PDF The time for the feeding process does not include the time that it takes for the top edge of the page to
(Option) PCL 5e Emulation*3, PCL 6 Emulation*3 G3 Fax (Option) reach the scanning point and page ejection. Time for entire storing process is not applied.
; * ax {(Uption *6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
Adobe® PostScript®3™*4
— о Compatibility ITU-T Group 3, ECM same models at maximum modem speed. Transmission time may vary in actual usage.
Printing Speed Up to 32 ppm (DP-8032) Modem Speed 33.6-2.4 kbps with automatic fallback Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Up to 25 ppm (DP-8025) Coding Scheme JBIG/MMR/MR/ MH Via PBX, transmission speed may fall back to a lower speed.
; . ; “odingacheme __ BR/MMR/MA/MA *7 Based on ITU-T Image No.1 scanned in Standard mode.
Paper Size Paper Tray: Ledger Invoice Scanning Speed*> Approx. 0.7 sec. (Letter portrait in Standard or Fine mode with ADF) *3 Depending on the receiving machines capability, the document may not be correctly printed
Bypass: Ledger - Invoice _ Transmission Speed*6 Approx. 2.7 sec. depending on the chosen resolution and document size.
Printing Resolution 1,200 dpi equivalent x 600 dpi (PCL, PS), Scanning Resolution Standard:8 dots/mm x 3.85 lines/mm *g This function is not available in certain destinations.
600 dpi x 600 dpi, 300 dpi x 300 dpi
Printer Memory 50MB + 6 GB with optional HDD
- - *10 T.37 Internet Fax only supports TIFF format.
Fine: 8 dots/mm x 7.7 lines/mm
- - - - Super Fine: 16 dots/mm x 15.4 lines/mm Design and specification are subject to change without notice. Not all options may be available at the time
Compatible Operating Systems Windows®Vista/XP/2000/Server 2003, р
MacOS 8.6-10.5 (PS Onlyy**
600 dpi:600 dpi x 600 dpi of notification.
Maximum Original Size ledger . ÑW _ oo Microsoft® Windows® is a registered trademark of Microsoft Corporation.
Effective Scanning Width 10.7"(274mm) Adobe, PostScript and PostScript 3 are either registered trademarks or trademarks of Adobe Systems
Recording Resolution 600 x 600 dpi Incorporated in the United States and/or other countries.
*7 PCL is a registered trademark of Hewlett-Packard.
Standard Memory 3 MB (Approx. 180 pages) All other brand or product names are the property of their respective holders.
Optional Memory*7 Base memory plus 4 MB (320 pages)/8 MB (640 pages)
Speed Dials 200 (Max. 1,000 with optional HDD and optional Image Memory) Common Criteria Validated EAL2
. Data Security Kit DA-SC06 V.1.01
Internet Fax/Scan-to-Email +
Compatibilit IETF RFC 3965, ITU-TT.37
Communication Protocol TCP/IP (SMTP, POP3, LDAP)
Network Connectivity Ethernet 10Base-T/100Base-TX
Data Format TIFF-FX (Profile S/F/J), PDF*?
The certification obtained for this product regarding information security indicates that, as a result of
evaluation based on given evaluation criteria and evaluation method, the target of evaluation used for such
evaluation has been determined to conform to the security assurance requirements.
ISO 9001
[| ®
Quality Management System
®
As an Energy Stare Our business processes which produce document, information and network
7 Partner, Panasonic has Vv
products, from manufacturing to marketing, conform to IS09001 Quality
determined that this E Management Systems standard. Design, development, manufacture,
Panasonic Communications Company of North America product meets the y UKAS installation, repair and maintenance of document, information and network
A d 0 b e P 0 stS cri t J ENERGY STAR Energy Stare Guidelines MANAGEMENT products, their associated devices and consumables. In addition, the plants
One Panasonic Way, Secaucus, NJ 07094 p for energy efficiency. outside Japan have acquired 1SO9001 certification.
For a local dealer, please call 1-800-742-8086
panasonic.com/office
With the DP-8032/8025 on your network, everyone can take advantage of increased
printing speed (max. 32-ppm/25ppm for letter size) and enjoy high-quality output
that only Panasonic's Image Enhancement Technology can deliver. Features like
an intuitive graphical interface and the on-screen preview of job settings within
the print driver maximizes, ease of use and prevents costly errors. This ledger-
size Imaging solution is IPvó ready and depending on your needs, a variety of
optional printing modules for extended compatibility with PCL*1 and genuine
Adobe PostScript3*? are available. All this plus a built-in automatic duplex unit
for paper-saving 2-sided printing and incredible output options make the
DP-8032/8025 a truly resourceful network printer.
*1 Optional PCL Printer Controller Module is required.
*2 Optional Multi-Page Description Language Controller Module is required.
When time is of the essence, you can depend on the robust copy speed of
the DP-8032/8025 (max. 32-cpm/25cpm for letter size). This ledger-size MFP
delivers high quality output up to 600 x 600 dpi, thanks to Panasonic's advanced
Image stabilization system. In addition to the built-in Automatic Duplex unit and
Inverting Automatic Document Feeder for paper-saving double-sided copying,
users can take advantage of convenient features like Double Exposure, Digital
SkyShot, N-in-1 Copy, enlargement/reduction and Image Rotate. Everything
from the intuitive touch panel interface to electronic collation with rotated set
capabilities can streamline the workflow of your office. For advanced output
capabilities a compact & light weight 1-Bin Finishing option is available.
Device Monitor
With the Panasonic Device Monitor,
you can check the status of the
DP-8032/8025 toner level and paper
supply without leaving your desk.
Double Exposure / Digital SkyShot
Make copies of ID cards or other
double-sided documents on a
single sheet of paper. Even with the
platen cover open, there are no ugly
borders. You save time, paper and
toner while getting beautiful results.
N in 1 Copy
N in 1 Copy is a cost efficient feature.
Copying multiple originals onto a
single sheet of paper.
Py ERE: | 100%
o 4-4
D-0 |[ 3-0 }
my A A
[ non } ECT } Г Net $
With a scanning speed up to 30 originals per minute (letter size], the
DP-8032/8025 is the key to unlocking your office into the future of digital
document management. Scanning documents to an FTP server, client PC or
as an E-mail attachment is easily accomplished from the intuitive scanning
console of the DP-8032/8025 control panel. The convenient “File Naming”
feature lets you assign a name to scanned documents for easy identification.
Equipped with an Inverting Automatic Document Feeder, 2-sided scanning up
to ledger-size documents is possible and of course, scanned documents are
clear and crisp thanks to the high-resolution 600 x 600dpi CCD, which can
scan and reprint documents with near-original quality. Above all, everyone in
the office can take advantage of their documents with the Panasonic Quick
Image Navigator software, allowing for the import and management of
documents scanned from the DP-8032/8025.
Internet Fax
QUICK IMAGE NAVIGATOR
This powerful application software not
only imports images from a network
scanner to your computer, but can
manage electronic documents
and images created by various applica-
tions with drag-and-drop simplicity.
Thumbnail displays of image files,
annotation functions, and effortless
handling of large files are just some of
the features that will accelerate your
shift to a paperless office.
=
E
NETWORK ACCOUNTING MANAGER
Collects and tabulates device usage
Information stored on Panasonic
network printing devices. This
server-based software provides an
easy access view of workgroup,
device, or corporate wide device
utilization with peak usage and print
cost analysis using a standard web
browser. This information can easily
be exported to a CSV file.
Combined with the DP-8032/8025, the optional Document Inbound Fax
Distribution System completes your digital document sharing
and workflow needs. Once documents are scanned and
converted into digital data, you can have the system correct
image skew, remove noise and perform OCR functions which
can transform your original image into a text-searchable
document before they are routed to one or multiple destinations
which include sending to E-mail, FTP Server, network folder
DP-8032/8025 Clients can view
share, PC desktop or the built in web based storage system. shared files
Scanned Documents
Server with
Document
Distribution
System
Automatically distribute
files to specific clients
With the built in web based storage system you centrally store,
manage, and share documents and inbound faxes easily from
a web browser. Other features include, Active Directory
Integration, new document notification and completion notice.
| ~~ | ~~
With the optional fax communication kit, the DP-8032/8025 becomes a high
performance fax station with 33.6 kbps Super G3 fax capability accelerated
by it's 0.7-sec “Quick Scanning” speed and Memory Transmission.
Built-in Internet Fax capability lets users scan documents as TIFF images
or PDF files and transmits them as Email attachments right from the
control panel. With “Scan-to-Email”, you can send scanned documents to
other Internet Fax-capable devices or Email destinations anywhere in the
world. When the optional fax communication kit is installed you can turn
the the DP-8032/8025 into a fax/Email gateway that can automatically route
Incoming faxes to a recipient's Email inbox. This same gateway can be used
to send documents directly from Panasonic's Panafax Desktop software
installed on a client PC to G3 fax machines around the world.
In the digital world, security is considered mandatory.
The DP-8032/8025 comes with an array of security features
listed below, which protect digital information from being “Mo,
compromised when scanning, copying, printing or accessing
the the device.
User Authentication
Mailbox & Secure Mailbox
Hard Disk Data Erasing
Data Security Kit for Common Criteria (EAL-2)
The DP-8032/8025 comes with an advanced service and support system.
“Check and Call” enables our authorized dealers to stay on top of your device.
When supplies are running low or the device needs attention, the built-in
automatic report function automatically notifies your servicing dealer of it's
condition. To further reduce down time for any repairs, the Remote Diagnostic
System helps the service technicians quickly identify problems prior to
servicing the machine and can make sure they have the right solution
and/or parts when they arrive at your office.
—— FE ся
Easily Accessible Toner
Easy Lifting ADF
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
