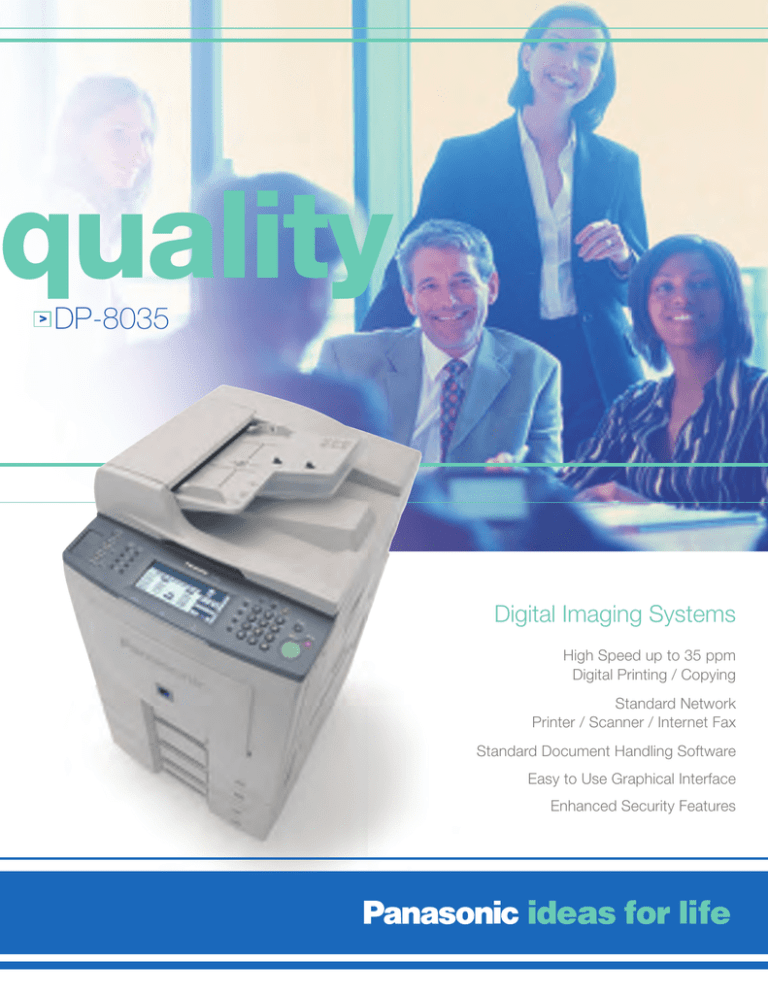

quality
>
DP-8035
Digital Imaging Systems
High Speed up to 35 ppm
Digital Printing / Copying
Standard Network
Printer / Scanner / Internet Fax
Standard Document Handling Software
Easy to Use Graphical Interface
Enhanced Security Features
DP-8035 Options
Printer Options
Software Options
Printer Controller Module
DA-PC800
Accounting Software
DA-WA10
Multi Page Description Language Controller Module
DA-MC800
Document Distribution System
DA-WR10
Document Distribution System
Unlock Module
DA-UK10
DA-WS20
Facsimile Options
Paper Exit Options
Exit Tray
Fax Communication Board
DA-FG600
DD Server Software
Flash Memory (4MB)
UE-410047F
Other Options
Flash Memory (8MB)
UE-410048F
Data Security Kit
DA-SC01
Key Counter Harness Kit
PJEEF2750
DA-XT600
Memory Options
Image Memory (16MB)
DA-SM16B
Image Memory (64MB)
DA-SM64B
Image Memory (128MB)
DA-SM28B
Consumables
Punch
Unit
DA-SP41
DA-FS330
Staples
1-Bin Saddle-Stitch
Finisher
FQ-SS32
(Standard with the
optional Finisher)
Toner
DQ-TU33R
Developer
DQ-Z240R
Drum
DQ-H360R
Paper Feed Options
Finisher
Conversion Kit
for Wheelchair
Accessibility
2-Bin Finisher
Consumables
Letter-R/Legal Size Adaptor for LCT
DA-TK31
DA-FK352
DA-FS355A
Staples
DQ-SS35
(Standard with the
optional Finisher)
Deluxe Stand
Deluxe Stand
DA1D351
System Console 1
DA-D352R
System Console 2
DA-DS603
DA-DS604
For Wheelchair Accessibility
2-Paper Tray Configuration
3-Paper Tray Configuration
4-Paper Tray Configuration
3000-Sheet Tray (LCT)
DA-MA301
DP-8035 Specifications
Internet Fax / Scan-to-Email*9
Digital Copier
General
IETF RFC 3965, ITU-T T.37
Type
Semi Console
First Copy Time
Approx. 5.8 sec. (Letter)
Compatibility (Internet Fax)
Copy/Print Process
Laser Indirect Electrostatic
Resolution
Up to 600 dpi
Communication Protocol
TCP/IP (SMTP, POP3, LDAP)
Developing Process
Dry Dual Component
Gray Scale
256 steps
Network Connectivity
Ethernet 10Base-T/100Base-TX
Automatic Document Feeder
85 sheets (Letter, 20 lb, 75 g/m2)
Multi Copy Speed*5
up to 35 cpm
Data Format
TIFF-FX (Profile S/F/J), PDF*10
Paper Feed
Std. 1,550 (Large-capacity tray) + 550-sheet paper tray unit Maximum Original Size
+ 50-sheet bypass
Copy Size
Max. 6,250 sheets (20 lb, 75 g/m2) with option
Copy Ratio
Ledger – Invoice (fixed)
200%, 155%, 129%, 121%
Bypass: 15 to 35 lb (55 to 130 g/m2)
Network User Authentication:
25~400% (in 1% increments)
Multiple Copy
1 to 999, Automatic reset to 1
Exposure Control
Text, Text / Photo, Photo
Fax Memory Erasure
Sort Memory
Power Requirements
AC 120 V, 60 Hz, 12 A
Power Consumption
Max.: Less than 1.45 kW
Power saver mode: Approx. 60 W
Sleep mode: Approx. 35 W
Approx. 30 sec. (Main power switch ON)
Dimensions (W x D x H)*1
23.6" x 29.8" x 35.4" (600 x 757 x 900 mm)
(Excluding optional equipment)
(Including Automatic Document Feeder and ADF mounting bracket)
Weight
Approx. 298 lb (135 kg)
(Excluding optional equipment)*1
79%, 77%, 65%, 61%, 50%
Zoom (variable)
Memory Erasure
Data Security: HDD Overwrite
Warm-up Time (68F/20ºC)
Reduction: (fixed)
Supported Protocols (SMTP, LDAP, NTLM)
Supported Modes (Copy, Scan, Email, Print, Fax)
Printer
Ethernet 10Base-T/100Base-TX
Communication Protocol
TCP/IP (LPR, FTP)
Maximum Scanning Size
Ledger
Scanning Speed*6
Approx. 35 opm (Originals per minutes - Letter portrait with ADF)
Scanning Resolution
150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi
Compatible Operating Systems
Windows®XP/2000/98/Me, Windows Server®2003, Windows NT®4.0
Data Format
TIFF, PDF
Ethernet 10Base-T/100Base-TX, Bi-directional Parallel (IEEE1284)
G3 Fax (Option)
TCP/IP (LPD [Port 9100/RAW], SNMP, DHCP)
(option)
Printing Speed*2
Paper Size
Compatibility
ITU-T Group 3, ECM
IPX/SPX (NDS, Bindery, NDPS) AppleTalk (PS), IPP (PCL, PS)
Modem Speed
33.6 - 2.4 kbps with automatic fallback
Panasonic Printing System for Windows®
Coding Scheme
JBIG / MMR / MR / MH
PCL 5e Emulation*3, PCL 6 Emulation*3
Scanning Speed*6
Approx. 0.7 sec. (Letter portrait in Standard or Fine mode with ADF)
Adobe® PostScript®3™*4
Transmission Speed*7
Approx. 2.7 sec.
up to 35 ppm
Scanning Resolution
Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
Paper Tray: Ledger – Invoice
Bypass: Ledger – Invoice
Printing Resolution
1,200 dpi equivalent x 600 dpi (PCL, PS), 600 dpi x 600 dpi (PCL, PS, GDI)
Printer Memory
50MB + 6GB for Spooling
Compatible Client Operating Systems Windows®XP/2000/98/Me, Windows Server®2003, Windows NT®4.0
MacOS 8.6-10.4*4 (PS Only)
Compatible Network Operating Systems
Windows®2000,Windows Server®2003,WindowsNT®4.0
39.5"
Standard: 32MB (Image Memory) + 12GB (HDD)
Optional: 16MB/64MB/128MB (Max.160MB)
Network Scanner Interface
Communication Protocol
Printer Language (standard)
46.0"
Network Scanner
Network Printer Interface
*2
Dimensions
Enlargement: (fixed)
Paper Tray: 16 to 24 lb (60 to 90 g/m2)
Paper Weight
Security
Ledger
29.8"
23.6"
Notes
*1
*2
*3
*4
*5
*6
Dimensions and weights are approximate.
Compatible with Novell Netware® 3/4/5/6 and Novell Directory Service® 4/5/6.
Printer Controller Module or Multi-Page Description Language Controller Module option required.
Multi-Page Description Language Controller Module option required.
Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page to
reach the scanning point and page ejection. Time for entire storing process is not applied.
*7 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*8 Based on ITU-T Image No.1 scanned in Standard mode.
*9 Depending on the receiving machines capability, the document may not be correctly printed
depending on the chosen resolution and document size.
*10 T.37 Internet Fax only supports TIFF format.
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7lines/mm)
Design and specifications are subject to change without notice.
Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm)
Microsoft® Windows® Windows NT® and Windows Server®are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3™, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc., in the
United States and other countries.
PCL® is a registered trademark of Hewlett-Packard.
All other brand or product names are the property of their respective holders.
600 dpi: 600 dpi x 600 dpi
Maximum Original Size
Ledger
Effective Scanning Width
10.7" (274 mm)
Recording Resolution
600 dpi x 600 dpi
Standard Memory*8
3MB (Approx. 180 pages)
The Product is designed to reduce hazardous chemical substances along with the RoHS directive.
Common Criteria Validated EAL2
Data Security Kit DA-SC01 V.1.01
This certification means that the security features provided by the TOE (Target of Evaluation) used for
evaluation have been determined by ISO/IEC to conform to the security assurance requirements, and provide
adequate protection against the threats for which they are intended.
DP-8035-SS 01/07
