DP-C354/C264 Options
Exit Tray (Outer)
DA-XT320
Paper
Transport
Unit
DA-FK350
1-Bin Finisher
DA-FS350
Staple
FQ-SS32
(Standard with the optional Finisher)
Options
Consumables
Printer/Scanner/Email Options
Printer Controller Module
(for Adobe®PostScript®3™)
DDS Unlock Module
FAX / Internet Fax Options
Toner
Toner Cartridge (Black)
Toner Cartridge (Cyan)
Toner Cartridge (Magenta)
Toner Cartridge (Yellow)
Toner Waste Container
Toner Waste Container
OPC Drum Unit
OPC Drum Unit (Black)
OPC Drum Unit (Color)
Staple
Staples for DA-FS356
Staples for DA-FS350
DA-MC350
DA-UK10
Fax Communication Board
with Internet Fax
Memory Options
Page Memory (256 MB)
DA-PMN56
Software Options
Accounting Software
Document Distribution System
Remote Operation Panel Software
DA-WA10
DA-WR10
DA-UD320
DA-FN350
DQ-TUS28K
DQ-TUS20C
DQ-TUS20M
DQ-TUS20Y
DQ-BFN45
DQ-UHS36K
DQ-UHS30
DQ-SS35
FQ-SS32
brilliant
Punch
Unit
DA-SP41
1-Bin Saddle
-Stitch Finisher
DA-FS356
Staple
DQ-SS35
4-Paper Tray Configuration
3-Paper Tray Configuration
2-Paper Tray Configuration
(Standard with the optional Finisher)
System Console 2
DA-DS321
DP-C354 / DP-C264
Deluxe Stand
DA1D322
System Console 1
DA-DS320
DP-C354/C264 Specifications
General
Inverting Automatic Document Feeder
Paper Feed
Paper Weight
Semi Console
Laser Indirect Electrostatic
Dry Dual Component
Induction Heating (IH) System
85 sheets (8.5" x 11", 20 lb)
Std. 550-sheet paper tray unit x 2 + 50-sheet bypass
Optional paper tray: 550 sheets x 2
Max. 2,250 sheets with option
Paper Tray: 18 to 28 lb – Bond Paper (64 to 105 g/m2 )
Warm-up Time (68F/20ºC)
Dimensions (W x D x H)*1
Bypass: 15 to 40 lb – Bond Paper (55 to 220 g/m2 )
90 to 121 lb (Index Paper)
SD Card Max. 1GB
PC (PCMCIA) Card Type 2, 3.3V
AC 120 V, 12A, 50/60 Hz
Max.: Less than 1.44 kW
Power save mode: Approx. 75 W
Sleep mode: Approx. 35 W
Approx. 15 sec.
25.8" x 32.5" x 36.7" (656 mm x 825 mm x 933 mm)
(Excluding optional equipment)
(Including Automatic Document Feeder and ADF mounting bracket)
Weight (Excluding optional equipment)*1
Approx. 360.8 lb (164 k g)
Media Interface
Power Requirements
Power Consumption
Digital Copier
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*2
Maximum Original Size
Copy Size
Copy Ratio
Zoom (variable)
Multiple Copy
Exposure Control
Sort Memory
G3 Fax (Option) / Internet Fax (Option)
Printer
Type
Copy/Print Process
Developing Process
Fusing Method
B/W: Approx. 6.2 sec. (8.5" x 11") (DP-C354)
Approx. 7.3 sec. (8.5" x 11") (DP-C264)
Color: Approx. 10.3 sec. (8.5" x 11")
Max. 600 dpi
256 steps
B/W: Up to 35 cpm (DP-C354)
Up to 26 cpm (DP-C264)
Color: Up to 26 cpm
11" x 17"
11" x 17"– 5.5" x 8.5"
Enlargement: (fixed)
200%, 155%, 129%, 121%
Reduction: (fixed)
79%, 77%, 65%, 61%, 50%
25%~400% (in 1% increments)
1 to 999, Automatic reset to 1
Text, Text / Photo, Photo
Standard: 12 GB
Network Printer Interface
Ethernet 10Base-T/100Base-TX
Communication Protocol
TCP/IP (LPD [Port9100/Raw], SNMP, DHCP, SMB),
Compatibility
G3 Fax: ITU-T Group 3, ECM
Internet Fax: ITU-T T.37, IETF RFC 3965
IPv4/IPv6 Dual Stack
Communication Protocol
Modem Speed
TCP/IP, SMTP, POP3, MIME, LDAP (Internet Fax)
33.6 kbps – 2.4 kbps with automatic fallback (G3 Fax)
Local Printer Interface
USB 2.0
Coding Scheme
JBIG / MMR / MR / MH (Conforms to ITU-T Recommendations)
Printer Language (standard)
PCL 6 Emulation
Scanning Speed*5
Approx. 0.7 sec. (8.5" x 11" portrait in Standard or Fine mode with ADF)
(option) Adobe® PostScript®3™*3
Transmission Speed*6
Approx. 2.9 sec.
B/W: Up to 35 ppm (DP-C354)
Scanning Resolution
Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
IPX/SPX (NDS, Bindery, NDPS), AppleTalk (PS), IPP (PCL, PS)
Printing Speed*2
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7 lines/mm)
Up to 26 ppm (DP-C264)
Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm)
Color: Up to 26 ppm
Paper Size
Bypass: 12" x 36"*4 – 5.5" x 8.5"
1,200 x 1,200 dpi*4, 600 x 600 dpi
Printing Resolution
Printer Memory
Compatible Network Operating Systems
11" x 17"
Effective Scanning Width
11.5" (292 mm)
600 x 600 dpi
2 GB
Windows® XP, 2000, Server 2003, 98, Me, Windows NT® 4.0,
Standard Memory*7
3 MB (approx. 180 pages based on ITU-T Image No.1 using Standard Resolution)
Optional Memory
64 MB – 1 GB (SD card)
MacOS 8.6-10.4*3 (PS Only)
Data Format
TIFF-FX (Profile S/F/J) (Internet Fax)
Windows NT® 4.0, Windows® 2000, Server 2003, Unix (LPR),
Linux (LPR), Novell 3.x/4.x/5.x/6.x
Notes
B/W: Up to 35 opm (Letter)
*1 Dimensions and weight are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
*3 Requires optional Printer Controller Module.
*4 Requires optional page memory.
*5 Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page to
reach the scanning point and page ejection. Time for entire storing process is not applied.
*6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*7 Based on ITU-T Image No.1 scanned in Standard mode.
Color: Up to 31 opm (Letter)
Design and specifications are subject to change without notice.
Network Scanner / Scan-to-Email
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Communication Protocol
TCP/IP (LPR, FTP), SMTP, LDAP, SSL
IPv4/IPv6 Dual Stack (IPv6: HTTP, SMTP)
Maximum Scanning Size
11" x 17"
Scanning Resolution
200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Compatible Client Operating Systems
Windows® XP/2000/Server 2003, 98, Me, Windows NT® 4.0
Data Format
Maximum Original Size
Recording Resolution
Standard: 512 MB
PCL/PS Spool Memory
Compatible Client Operating Systems
Scanning Speed*5
600 dpi: 600 x 600 dpi
Paper Tray: 11" x 17" – 5.5" x 8.5"
B/W: TIFF, PDF
Color: JPEG, PDF, Compressed PDF (300 x 300 dpi only)
200 stations
Address Book Capacity
(including Network scanner,
Max. 1000 stations
Scan-to-Email, G3 Fax and
Internet Fax)
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3™, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc., in the
United States and other countries.
PCL® is a registered trademark of Hewlett-Packard.
All other brand or product names are the property of their respective holders.
IPv6 Ready Logo is the international IPv6 product’s certification program managed by the
IPv6 Ready Logo Committee.
This Product is designed to reduce hazardous chemical substances along with the RoHS directive.
DP-C354/C264-BR 09/06
Digital Color Imaging Systems
Full-color MFP with Quick Start Warm-up
Up to 26 ppm Color Printing / Copying
Up to 35 ppm Monochrome Printing / Copying
Network Scanner / Scan-to-Email Standard
Convenient SD Memory Card
d Interface
Enhanced Security Features
es
C354/C264
Quick Start with IH Technology
SD Card Convenience
With the evolution of color output from a luxury to a business necessity, you
need a machine that offers high productivity, superior quality, ease of use and
enhanced security. Panasonic’s color digital imaging solutions satisfy virtually all your imaging requirements. With features like our
proprietary IH technology for faster start up, SD Card convenience, incredible document distribution and management functions, built-in
Full Color User-Friendly Interface
Enhanced Security
Universal Design
security, and user-friendly design and operation all combined to produce superior color documents, these two color imaging systems are the
brilliant choice for today’s evolving office.
Improved Productivity Superior Print Quality
Thanks to Panasonic’s proprietary Induction Heating (IH) technology the DP-C354/C264 is always ready. Not only does IH
technology enable a super-fast warm-up time of only 15 seconds,
but also an energy efficient and cost efficient sleep mode. Even
when making only one copy, energy consumption is minimal.
The DP-C354/C264 uses a “next generation toner” that consists
of smaller, uniform particles to create more beautiful images with
smoother halftone reproduction, especially for photos, charts, and
illustrations. The low melting point of the toner further contributes
to energy savings. Automatic Picture Image Control adjusts toner
on the printed images so after thousands of pages, you still get
the same quality print as the first page.
DP-C354/C264 corresponds to
IPv6, the next generation internet
protocol, in addition to the IPv4
Incredible Ease of Use
Enhanced Security
Panasonic is commited to producing machines that can be
Security is a great concern for today’s business users. Panasonic
called universally designed. Large VGA full color display panel,
addresses this area from every stand point. The DP-C354/C264
intuitive graphical user interface, adjustable panel and easy to lift
has built-in security features that range from daily data deletion
ADF all contribute to the stress-free use of the machine.
and network user authentication to complete hard disk erasure.
C354/C264
Quick Start with IH Technology
SD Card Convenience
With the evolution of color output from a luxury to a business necessity, you
need a machine that offers high productivity, superior quality, ease of use and
enhanced security. Panasonic’s color digital imaging solutions satisfy virtually all your imaging requirements. With features like our
proprietary IH technology for faster start up, SD Card convenience, incredible document distribution and management functions, built-in
Full Color User-Friendly Interface
Enhanced Security
Universal Design
security, and user-friendly design and operation all combined to produce superior color documents, these two color imaging systems are the
brilliant choice for today’s evolving office.
Improved Productivity Superior Print Quality
Thanks to Panasonic’s proprietary Induction Heating (IH) technology the DP-C354/C264 is always ready. Not only does IH
technology enable a super-fast warm-up time of only 15 seconds,
but also an energy efficient and cost efficient sleep mode. Even
when making only one copy, energy consumption is minimal.
The DP-C354/C264 uses a “next generation toner” that consists
of smaller, uniform particles to create more beautiful images with
smoother halftone reproduction, especially for photos, charts, and
illustrations. The low melting point of the toner further contributes
to energy savings. Automatic Picture Image Control adjusts toner
on the printed images so after thousands of pages, you still get
the same quality print as the first page.
DP-C354/C264 corresponds to
IPv6, the next generation internet
protocol, in addition to the IPv4
Incredible Ease of Use
Enhanced Security
Panasonic is commited to producing machines that can be
Security is a great concern for today’s business users. Panasonic
called universally designed. Large VGA full color display panel,
addresses this area from every stand point. The DP-C354/C264
intuitive graphical user interface, adjustable panel and easy to lift
has built-in security features that range from daily data deletion
ADF all contribute to the stress-free use of the machine.
and network user authentication to complete hard disk erasure.
Sharing & Managing Images
Scan & Send
Scan and Archive
The Network Scanner and Scan-to-Email functions now come standard with the DP-C354/
The DP-C354/C264 allows you to scan documents
C264 thus allowing you to scan and send color or monochrome digital documents as
directly to your PC or FTP server at a high quality of
email attachments (PDF, JPEG, TIFF) straight from the large LCD touch panel. Up to 1,000
600 dpi resolution. Our Quick Image Navigator software
email addresses can be programmed in the machine’s local address book. You can even
has faster and more intuitive image handling capabilities
minimize the programming of the local address book. If your company is running an LDAP
including thumbnail previews of PDF files. It also allows
(Lightweight Directory Access Protocol) server, the DP-C354/C264 allows you to access the
you to view, annotate, edit and send image files.
company’s database and retrieve desired recipient email addresses right off the LCD touch
Featuring a Windows Explorer-like document structure, it
panel. This means your address book capacity is virtually unlimited.
helps you put your documents to work immediately.
Scan & Carry
Minimum File Size, Maximum Legibility
The DP-C354/C264 makes it easy to scan documents
By using the compressed PDF format, a scanned image is divided
Scan and Share
directly onto an SD or PC Card for convenient transfer to
into an image layer and text layer, and compressed by JPEG and
The DP-C354/C264 helps you leverage
a PC. When sending emails, conveniently attach files directly
MMR, respectively. As a result, text clarity is maintained while the
the power of information through
from the SD card. You can also print from the SD card or
image layer is optimally compressed. Not only does it retain the
sharing. Scan documents and images
remove it and transfer the documents to a PC, or take it with
same visual quality as a 300 dpi file but you also reduce the file size
you want to share and then save
you for “on-the-fly” presentations.
smaller than that of a 150 dpi file which makes it easier to send
them in up to 12 “image boxes” that
files over the network.
you create on the HDD unit. Using a
JPEG 300 dpi (290KB)
standard web browser, your colleagues
JPEG 150 dpi (80KB) Compressed PDF (65KB)
can easily view the image files via any
PC or Mac on your network.
Streamline your document
management and distribution*
With the optional Document Distribution System software
you can efficiently manage and organize the distribution of
all documents from scanned image data and general office
documents to inbound faxes. When receiving inbound faxes
the data will be saved directly to the server and automatically
distributed to specified folders. These files can then be
easily viewed online, helping to maintain a “paperless”
work environment.
You can also set up document routing according to your needs
so the documents can be distributed automatically. Using the
built-in OCR functionality, documents can be converted into
text-searchable PDF files in password protected “secure PDF”
format. From input to output, the C3 Series is the smarter way
to manage the flow of documents. And that's Simply Brilliant.
* DP-C354/C264 requires Document Distribution System unlock key (DA-UK10)
Sharing & Managing Images
Scan & Send
Scan and Archive
The Network Scanner and Scan-to-Email functions now come standard with the DP-C354/
The DP-C354/C264 allows you to scan documents
C264 thus allowing you to scan and send color or monochrome digital documents as
directly to your PC or FTP server at a high quality of
email attachments (PDF, JPEG, TIFF) straight from the large LCD touch panel. Up to 1,000
600 dpi resolution. Our Quick Image Navigator software
email addresses can be programmed in the machine’s local address book. You can even
has faster and more intuitive image handling capabilities
minimize the programming of the local address book. If your company is running an LDAP
including thumbnail previews of PDF files. It also allows
(Lightweight Directory Access Protocol) server, the DP-C354/C264 allows you to access the
you to view, annotate, edit and send image files.
company’s database and retrieve desired recipient email addresses right off the LCD touch
Featuring a Windows Explorer-like document structure, it
panel. This means your address book capacity is virtually unlimited.
helps you put your documents to work immediately.
Scan & Carry
Minimum File Size, Maximum Legibility
The DP-C354/C264 makes it easy to scan documents
By using the compressed PDF format, a scanned image is divided
Scan and Share
directly onto an SD or PC Card for convenient transfer to
into an image layer and text layer, and compressed by JPEG and
The DP-C354/C264 helps you leverage
a PC. When sending emails, conveniently attach files directly
MMR, respectively. As a result, text clarity is maintained while the
the power of information through
from the SD card. You can also print from the SD card or
image layer is optimally compressed. Not only does it retain the
sharing. Scan documents and images
remove it and transfer the documents to a PC, or take it with
same visual quality as a 300 dpi file but you also reduce the file size
you want to share and then save
you for “on-the-fly” presentations.
smaller than that of a 150 dpi file which makes it easier to send
them in up to 12 “image boxes” that
files over the network.
you create on the HDD unit. Using a
JPEG 300 dpi (290KB)
standard web browser, your colleagues
JPEG 150 dpi (80KB) Compressed PDF (65KB)
can easily view the image files via any
PC or Mac on your network.
Streamline your document
management and distribution*
With the optional Document Distribution System software
you can efficiently manage and organize the distribution of
all documents from scanned image data and general office
documents to inbound faxes. When receiving inbound faxes
the data will be saved directly to the server and automatically
distributed to specified folders. These files can then be
easily viewed online, helping to maintain a “paperless”
work environment.
You can also set up document routing according to your needs
so the documents can be distributed automatically. Using the
built-in OCR functionality, documents can be converted into
text-searchable PDF files in password protected “secure PDF”
format. From input to output, the C3 Series is the smarter way
to manage the flow of documents. And that's Simply Brilliant.
* DP-C354/C264 requires Document Distribution System unlock key (DA-UK10)
Designed for How You Really Work
Accelerate Double-sided Workflow
Protecting Your “Image Data” Assets
The DP-C354/C264 knows how people work and provides the
The DP-C354/C264 puts a priority on data security. Hard Disk Data Erasing automatically overwrites image data with zeroes or random
tools to do the job faster and better! With Color Double Exposure
data for each completed job. If the equipment is sold, moved or retired, you can use this function to securely erase the entire hard disk
and Color Digital SkyShot, you can make color copies of double-
including its address book data. To prevent viewing of confidential information in the output tray, you can send ID-registered print jobs
sided documents such as ID cards on a single sheet of paper.
to a shared “mailbox” on the hard disk. The job will not be printed until a user enters the matching ID on the operation panel. For an
Even with the platen cover open, there are no black borders and
added level of security, you can add password protection to the “mailbox”. User Authentication not only bolsters security by using
virtually no waste of toner. You save time, paper and toner, and
the same user names and passwords registered in the Windows Active Directory server database, but also enables the setting of usage
get beautiful results.
restrictions on color printing and copying for efficient cost management and control.
The Right Quality for Each Job
Network Accounting Manager
Our new digital color imaging solutions now offers Map,
With the optional Network Accounting Manager, it is easy to keep track of machine use by department or individual and maintain an
Newspaper and Tracing Paper modes in addition to the Text,
account log. In addition, Job Tracking log data can be viewed with a web-based browser. With this ability to confirm who sent what
Text/Photo and Photo modes. Just select the appropriate mode
kind of information to what destination at what time, this tool can also contribute to improved security.
and the DP-C354/C264 does all the rest. For example, if you are
copying a newspaper article, the Newspaper mode automatically
applies background suppression and bleedthrough prevention
functions to produce crisp and easy to read copies.
Convenience with SD Card Printing
Versatile Finishing and Booklet Creation
Insert an SD card into the machine’s slot and get instant prints without having to use
With the Optional Finisher added to your system you can now
a PC. Images appear on the panel display as thumbnails**; and to print, you simply
automatically perform your choice of binding selections from
just touch it. Not only can you print JPEG and TIFFs* straight from a digital camera,
stapling and hole punching to saddle stitching. Combined with
but you can also print Microsoft Word, Powerpoint***and PDF****documents directly
the impressive color quality of the DP-C354/C264, this powerful
from the SD card. There’s no need to use the printer driver or open an application.
finishing capability frees you from outside contractors and gives
A PC card slot for various removable media is also provided.
you the versatility and convenience of in-house on-demand
*
**
***
printing for a wide range of documents. Print and finish manuals,
TIFF files only support Black and White, some files may not be compatible
Requires Exif-compatible JPEG taken with a digital camera
Requires installation of the included Memory Card Utility and the
presence of Microsoft Word® and Power Point® software on network server.
**** Requires installation of the included Memory Card Print Utility and the
presence of Adobe Reader software on the network server or Installation
of the Printer Controller Module (DA-MC350)
Exif (Exchangeable Image File Format)
conference materials and guidebooks, all from your desktop.
Designed for How You Really Work
Accelerate Double-sided Workflow
Protecting Your “Image Data” Assets
The DP-C354/C264 knows how people work and provides the
The DP-C354/C264 puts a priority on data security. Hard Disk Data Erasing automatically overwrites image data with zeroes or random
tools to do the job faster and better! With Color Double Exposure
data for each completed job. If the equipment is sold, moved or retired, you can use this function to securely erase the entire hard disk
and Color Digital SkyShot, you can make color copies of double-
including its address book data. To prevent viewing of confidential information in the output tray, you can send ID-registered print jobs
sided documents such as ID cards on a single sheet of paper.
to a shared “mailbox” on the hard disk. The job will not be printed until a user enters the matching ID on the operation panel. For an
Even with the platen cover open, there are no black borders and
added level of security, you can add password protection to the “mailbox”. User Authentication not only bolsters security by using
virtually no waste of toner. You save time, paper and toner, and
the same user names and passwords registered in the Windows Active Directory server database, but also enables the setting of usage
get beautiful results.
restrictions on color printing and copying for efficient cost management and control.
The Right Quality for Each Job
Network Accounting Manager
Our new digital color imaging solutions now offers Map,
With the optional Network Accounting Manager, it is easy to keep track of machine use by department or individual and maintain an
Newspaper and Tracing Paper modes in addition to the Text,
account log. In addition, Job Tracking log data can be viewed with a web-based browser. With this ability to confirm who sent what
Text/Photo and Photo modes. Just select the appropriate mode
kind of information to what destination at what time, this tool can also contribute to improved security.
and the DP-C354/C264 does all the rest. For example, if you are
copying a newspaper article, the Newspaper mode automatically
applies background suppression and bleedthrough prevention
functions to produce crisp and easy to read copies.
Convenience with SD Card Printing
Versatile Finishing and Booklet Creation
Insert an SD card into the machine’s slot and get instant prints without having to use
With the Optional Finisher added to your system you can now
a PC. Images appear on the panel display as thumbnails**; and to print, you simply
automatically perform your choice of binding selections from
just touch it. Not only can you print JPEG and TIFFs* straight from a digital camera,
stapling and hole punching to saddle stitching. Combined with
but you can also print Microsoft Word, Powerpoint***and PDF****documents directly
the impressive color quality of the DP-C354/C264, this powerful
from the SD card. There’s no need to use the printer driver or open an application.
finishing capability frees you from outside contractors and gives
A PC card slot for various removable media is also provided.
you the versatility and convenience of in-house on-demand
*
**
***
printing for a wide range of documents. Print and finish manuals,
TIFF files only support Black and White, some files may not be compatible
Requires Exif-compatible JPEG taken with a digital camera
Requires installation of the included Memory Card Utility and the
presence of Microsoft Word® and Power Point® software on network server.
**** Requires installation of the included Memory Card Print Utility and the
presence of Adobe Reader software on the network server or Installation
of the Printer Controller Module (DA-MC350)
Exif (Exchangeable Image File Format)
conference materials and guidebooks, all from your desktop.

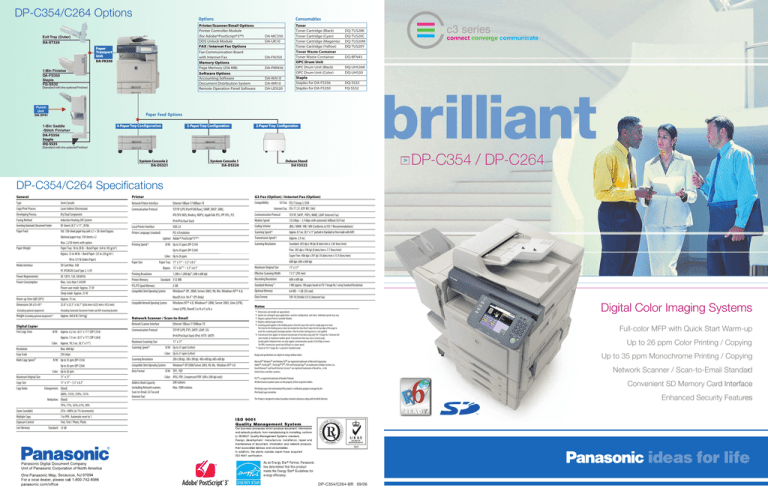

DP-C354/C264 Options
Exit Tray (Outer)
DA-XT320
Paper
Transport
Unit
DA-FK350
1-Bin Finisher
DA-FS350
Staple
FQ-SS32
(Standard with the optional Finisher)
Options
Consumables
Printer/Scanner/Email Options
Printer Controller Module
(for Adobe®PostScript®3™)
DDS Unlock Module
FAX / Internet Fax Options
Toner
Toner Cartridge (Black)
Toner Cartridge (Cyan)
Toner Cartridge (Magenta)
Toner Cartridge (Yellow)
Toner Waste Container
Toner Waste Container
OPC Drum Unit
OPC Drum Unit (Black)
OPC Drum Unit (Color)
Staple
Staples for DA-FS356
Staples for DA-FS350
DA-MC350
DA-UK10
Fax Communication Board
with Internet Fax
Memory Options
Page Memory (256 MB)
DA-PMN56
Software Options
Accounting Software
Document Distribution System
Remote Operation Panel Software
DA-WA10
DA-WR10
DA-UD320
DA-FN350
DQ-TUS28K
DQ-TUS20C
DQ-TUS20M
DQ-TUS20Y
DQ-BFN45
DQ-UHS36K
DQ-UHS30
DQ-SS35
FQ-SS32
brilliant
Punch
Unit
DA-SP41
1-Bin Saddle
-Stitch Finisher
DA-FS356
Staple
DQ-SS35
4-Paper Tray Configuration
3-Paper Tray Configuration
2-Paper Tray Configuration
(Standard with the optional Finisher)
System Console 2
DA-DS321
DP-C354 / DP-C264
Deluxe Stand
DA1D322
System Console 1
DA-DS320
DP-C354/C264 Specifications
General
Inverting Automatic Document Feeder
Paper Feed
Paper Weight
Semi Console
Laser Indirect Electrostatic
Dry Dual Component
Induction Heating (IH) System
85 sheets (8.5" x 11", 20 lb)
Std. 550-sheet paper tray unit x 2 + 50-sheet bypass
Optional paper tray: 550 sheets x 2
Max. 2,250 sheets with option
Paper Tray: 18 to 28 lb – Bond Paper (64 to 105 g/m2 )
Warm-up Time (68F/20ºC)
Dimensions (W x D x H)*1
Bypass: 15 to 40 lb – Bond Paper (55 to 220 g/m2 )
90 to 121 lb (Index Paper)
SD Card Max. 1GB
PC (PCMCIA) Card Type 2, 3.3V
AC 120 V, 12A, 50/60 Hz
Max.: Less than 1.44 kW
Power save mode: Approx. 75 W
Sleep mode: Approx. 35 W
Approx. 15 sec.
25.8" x 32.5" x 36.7" (656 mm x 825 mm x 933 mm)
(Excluding optional equipment)
(Including Automatic Document Feeder and ADF mounting bracket)
Weight (Excluding optional equipment)*1
Approx. 360.8 lb (164 k g)
Media Interface
Power Requirements
Power Consumption
Digital Copier
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*2
Maximum Original Size
Copy Size
Copy Ratio
Zoom (variable)
Multiple Copy
Exposure Control
Sort Memory
G3 Fax (Option) / Internet Fax (Option)
Printer
Type
Copy/Print Process
Developing Process
Fusing Method
B/W: Approx. 6.2 sec. (8.5" x 11") (DP-C354)
Approx. 7.3 sec. (8.5" x 11") (DP-C264)
Color: Approx. 10.3 sec. (8.5" x 11")
Max. 600 dpi
256 steps
B/W: Up to 35 cpm (DP-C354)
Up to 26 cpm (DP-C264)
Color: Up to 26 cpm
11" x 17"
11" x 17"– 5.5" x 8.5"
Enlargement: (fixed)
200%, 155%, 129%, 121%
Reduction: (fixed)
79%, 77%, 65%, 61%, 50%
25%~400% (in 1% increments)
1 to 999, Automatic reset to 1
Text, Text / Photo, Photo
Standard: 12 GB
Network Printer Interface
Ethernet 10Base-T/100Base-TX
Communication Protocol
TCP/IP (LPD [Port9100/Raw], SNMP, DHCP, SMB),
Compatibility
G3 Fax: ITU-T Group 3, ECM
Internet Fax: ITU-T T.37, IETF RFC 3965
IPv4/IPv6 Dual Stack
Communication Protocol
Modem Speed
TCP/IP, SMTP, POP3, MIME, LDAP (Internet Fax)
33.6 kbps – 2.4 kbps with automatic fallback (G3 Fax)
Local Printer Interface
USB 2.0
Coding Scheme
JBIG / MMR / MR / MH (Conforms to ITU-T Recommendations)
Printer Language (standard)
PCL 6 Emulation
Scanning Speed*5
Approx. 0.7 sec. (8.5" x 11" portrait in Standard or Fine mode with ADF)
(option) Adobe® PostScript®3™*3
Transmission Speed*6
Approx. 2.9 sec.
B/W: Up to 35 ppm (DP-C354)
Scanning Resolution
Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
IPX/SPX (NDS, Bindery, NDPS), AppleTalk (PS), IPP (PCL, PS)
Printing Speed*2
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7 lines/mm)
Up to 26 ppm (DP-C264)
Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm)
Color: Up to 26 ppm
Paper Size
Bypass: 12" x 36"*4 – 5.5" x 8.5"
1,200 x 1,200 dpi*4, 600 x 600 dpi
Printing Resolution
Printer Memory
Compatible Network Operating Systems
11" x 17"
Effective Scanning Width
11.5" (292 mm)
600 x 600 dpi
2 GB
Windows® XP, 2000, Server 2003, 98, Me, Windows NT® 4.0,
Standard Memory*7
3 MB (approx. 180 pages based on ITU-T Image No.1 using Standard Resolution)
Optional Memory
64 MB – 1 GB (SD card)
MacOS 8.6-10.4*3 (PS Only)
Data Format
TIFF-FX (Profile S/F/J) (Internet Fax)
Windows NT® 4.0, Windows® 2000, Server 2003, Unix (LPR),
Linux (LPR), Novell 3.x/4.x/5.x/6.x
Notes
B/W: Up to 35 opm (Letter)
*1 Dimensions and weight are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
*3 Requires optional Printer Controller Module.
*4 Requires optional page memory.
*5 Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page to
reach the scanning point and page ejection. Time for entire storing process is not applied.
*6 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*7 Based on ITU-T Image No.1 scanned in Standard mode.
Color: Up to 31 opm (Letter)
Design and specifications are subject to change without notice.
Network Scanner / Scan-to-Email
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Communication Protocol
TCP/IP (LPR, FTP), SMTP, LDAP, SSL
IPv4/IPv6 Dual Stack (IPv6: HTTP, SMTP)
Maximum Scanning Size
11" x 17"
Scanning Resolution
200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Compatible Client Operating Systems
Windows® XP/2000/Server 2003, 98, Me, Windows NT® 4.0
Data Format
Maximum Original Size
Recording Resolution
Standard: 512 MB
PCL/PS Spool Memory
Compatible Client Operating Systems
Scanning Speed*5
600 dpi: 600 x 600 dpi
Paper Tray: 11" x 17" – 5.5" x 8.5"
B/W: TIFF, PDF
Color: JPEG, PDF, Compressed PDF (300 x 300 dpi only)
200 stations
Address Book Capacity
(including Network scanner,
Max. 1000 stations
Scan-to-Email, G3 Fax and
Internet Fax)
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3™, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc., in the
United States and other countries.
PCL® is a registered trademark of Hewlett-Packard.
All other brand or product names are the property of their respective holders.
IPv6 Ready Logo is the international IPv6 product’s certification program managed by the
IPv6 Ready Logo Committee.
This Product is designed to reduce hazardous chemical substances along with the RoHS directive.
DP-C354/C264-BR 09/06
Digital Color Imaging Systems
Full-color MFP with Quick Start Warm-up
Up to 26 ppm Color Printing / Copying
Up to 35 ppm Monochrome Printing / Copying
Network Scanner / Scan-to-Email Standard
Convenient SD Memory Card
d Interface
Enhanced Security Features
es
Download PDF

advertising
